Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 3 illustrations

Illustrations

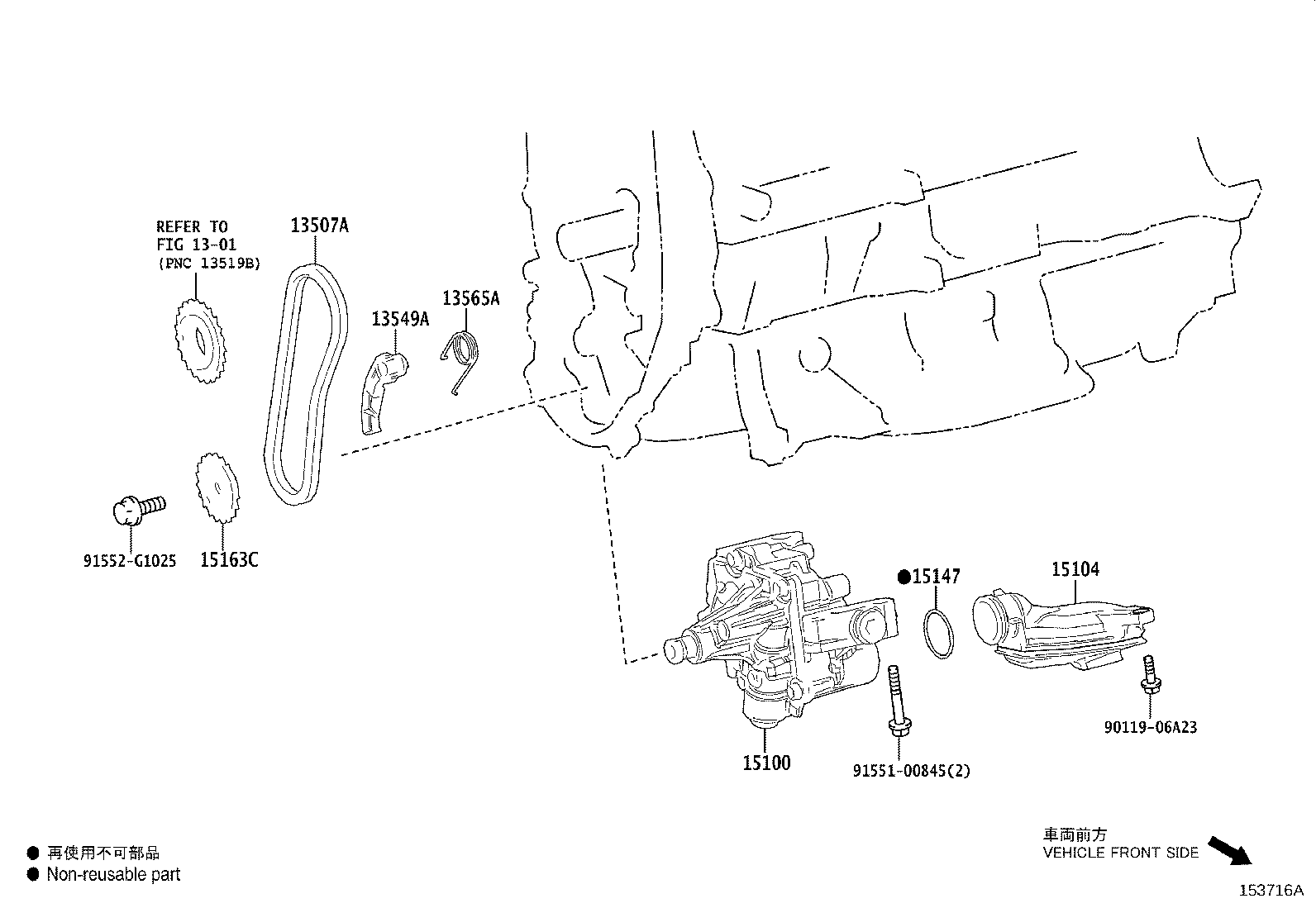

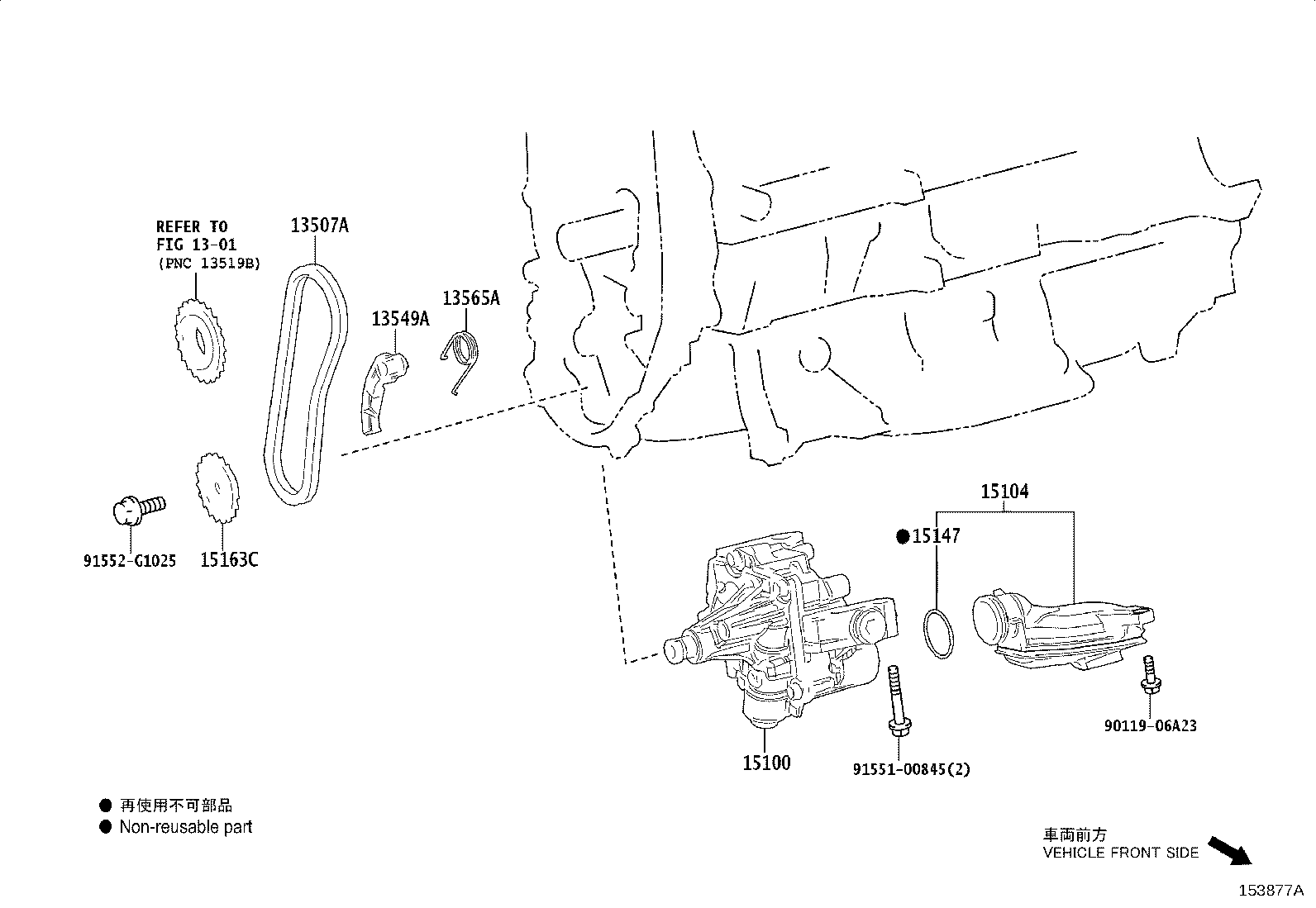

Figure 153681A 153681A 2022-11 → — Figure 153877A 153877A 2024-10 → — Figure 153716A 153716A 2022-11 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
13549A Plate, Chain Tensioner
13565A Spring, Chain Damper
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15167 Bracket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
