Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

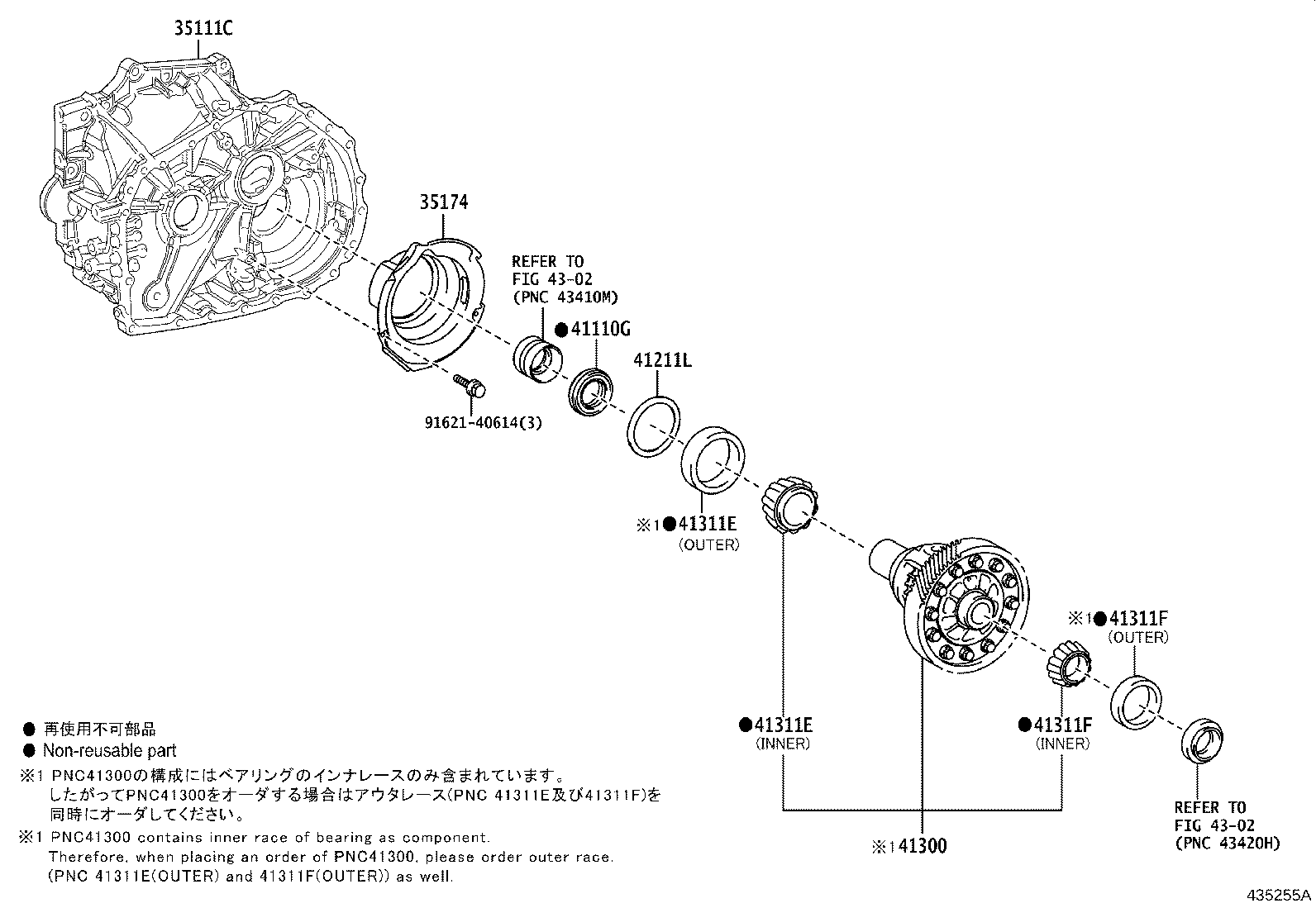

Front Axle Housing & Differential
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41300 | Case Assy, Front Differential, W/Ring Gear |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
