Front Axle Hub

6 part groups · 2 illustrations

Illustrations

Figure 435132B

435132B 2022-11 → —

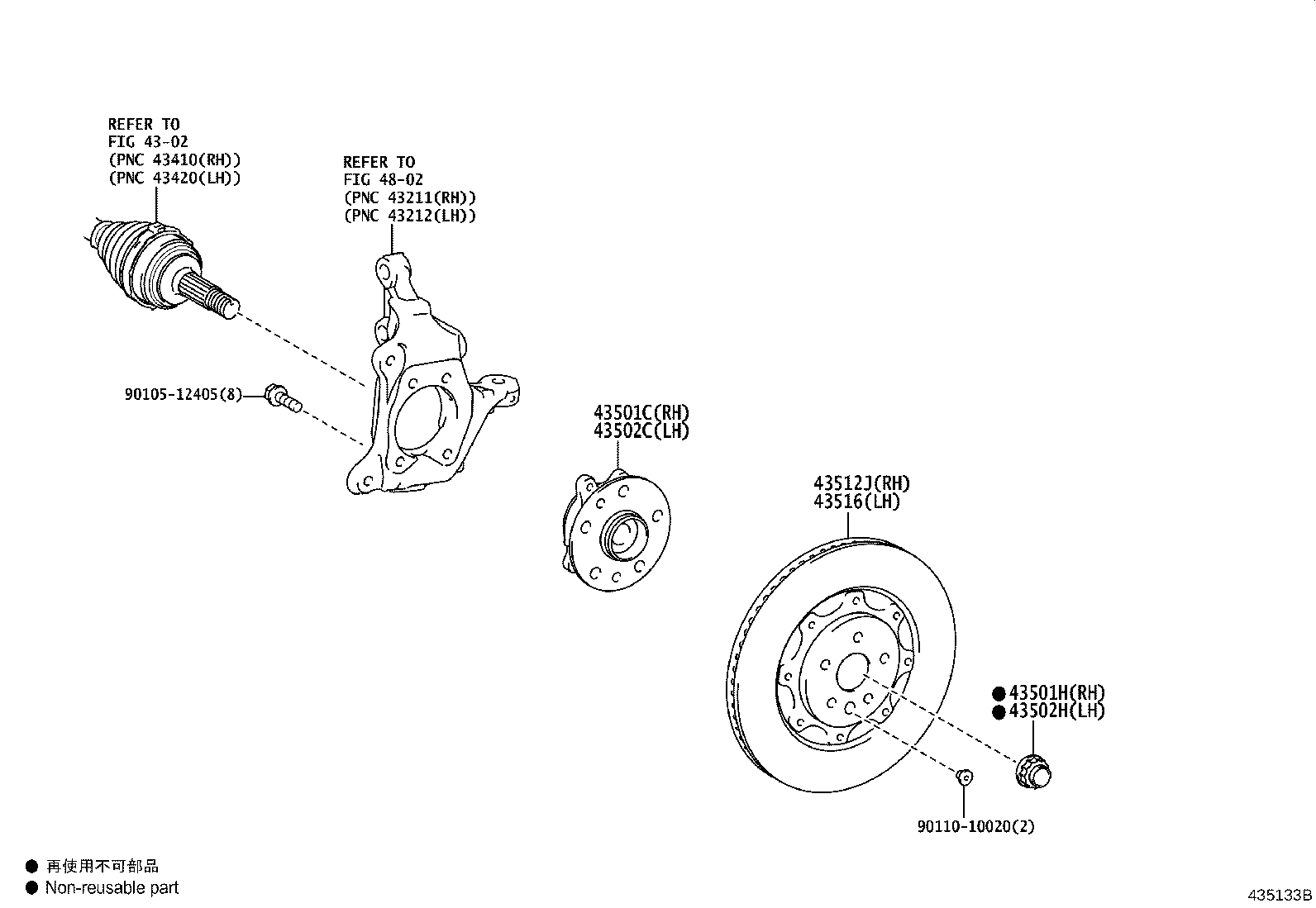

Figure 435133B

435133B 2022-11 → —

Part groups

PNC	Description
43501C	Hub Sub-assy, Front Axle, RH
43501H	Nut (FOR FRONT AXLE SHAFT RH)
43502C	Hub Sub-assy, Front Axle, LH
43502H	Nut (FOR FRONT AXLE SHAFT LH)
43512J	Disc, Front RH
43516	Disc, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
