Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

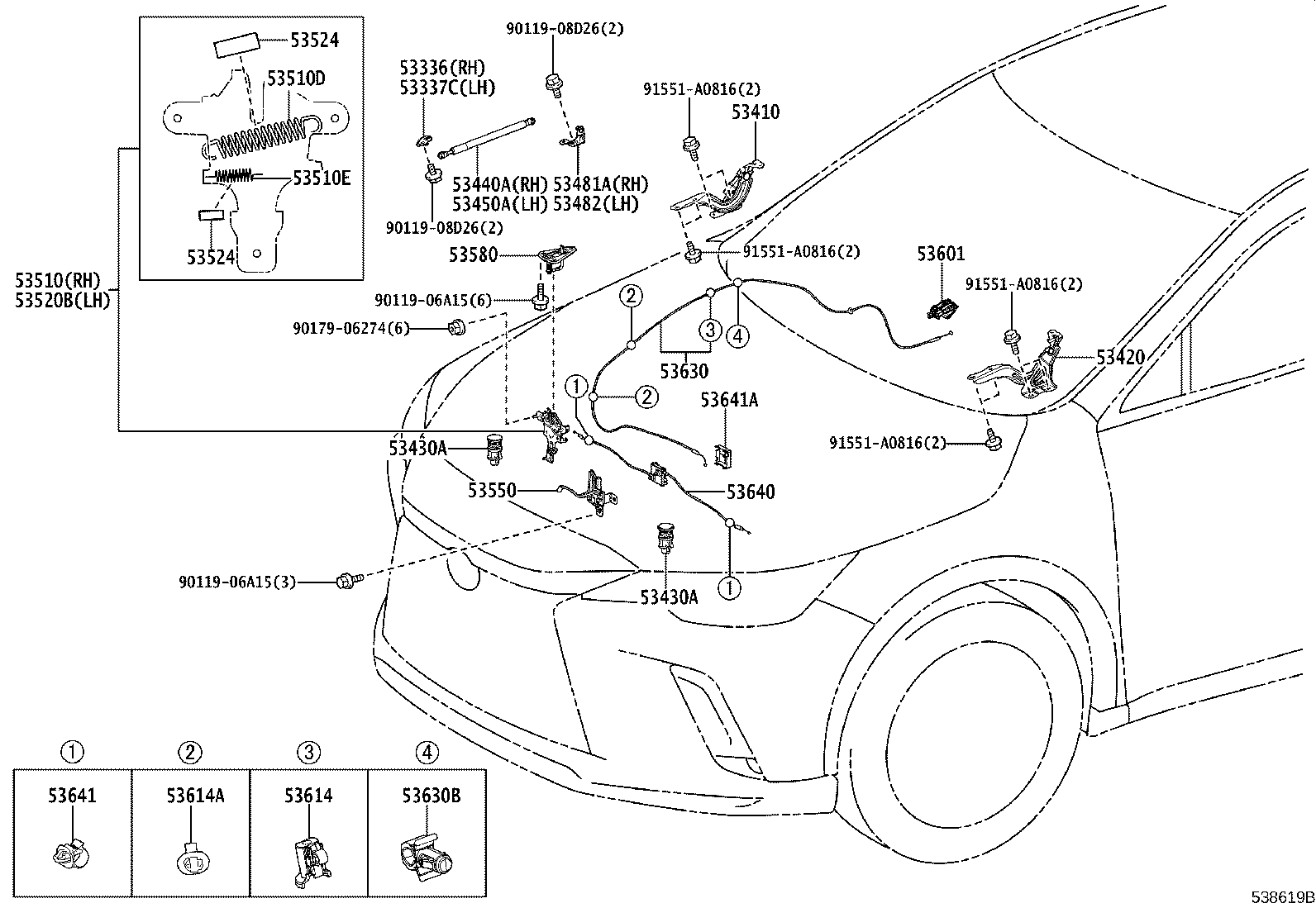

Hood Lock & Hinge
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53336 | Bracket, Hood Stay, RH |
| 53337C | Bracket, Hood Stay, LH |
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53430A | Spring, Tension(FOR HOOD SUPPORT) |
| 53440A | Support Assy, Hood, RH |
| 53450A | Support Assy, Hood, LH |
| 53481A | Bracket, Hood Support, RH |
| 53482 | Bracket, Hood Support, LH |
| 53510 | Lock Assy, Hood |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53520B | Lock Assy, Hood, LH |
| 53524 | Damper, Hood Lock Spring |
| 53550 | Hook Assy, Hood Auxiliary Catch |
| 53580 | Striker Assy, Hood Lock |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53614 | Clamp, Hood Lock Control Cable |
| 53614A | Clamp, Hood Lock Control Cable, NO.1 |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
| 53640 | Junction Assy, Hood Lock Control |
| 53641 | Clamp, Hood Lock Control Wire |
| 53641A | Cover, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
