Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

47 part groups · 10 illustrations

Illustrations

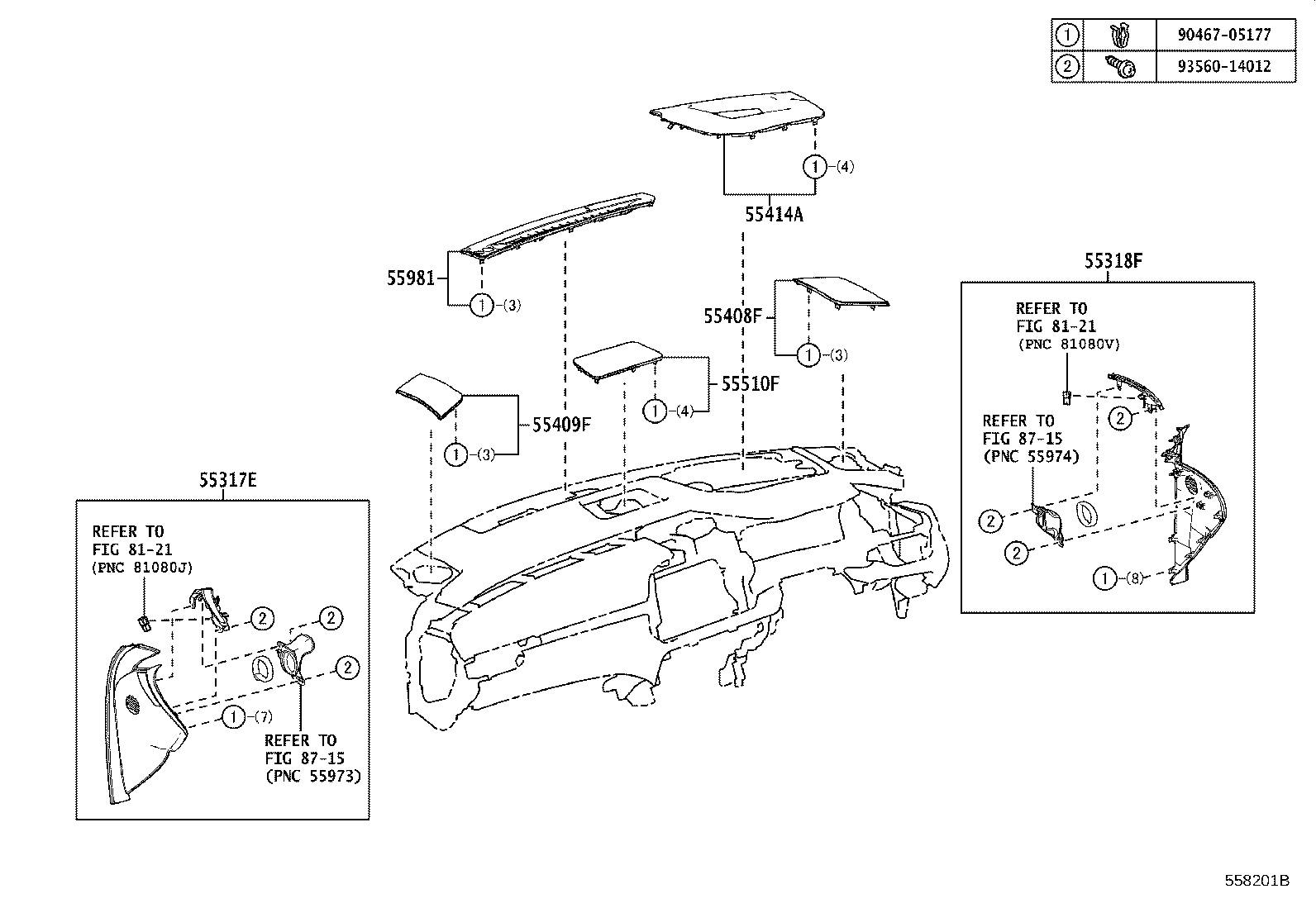

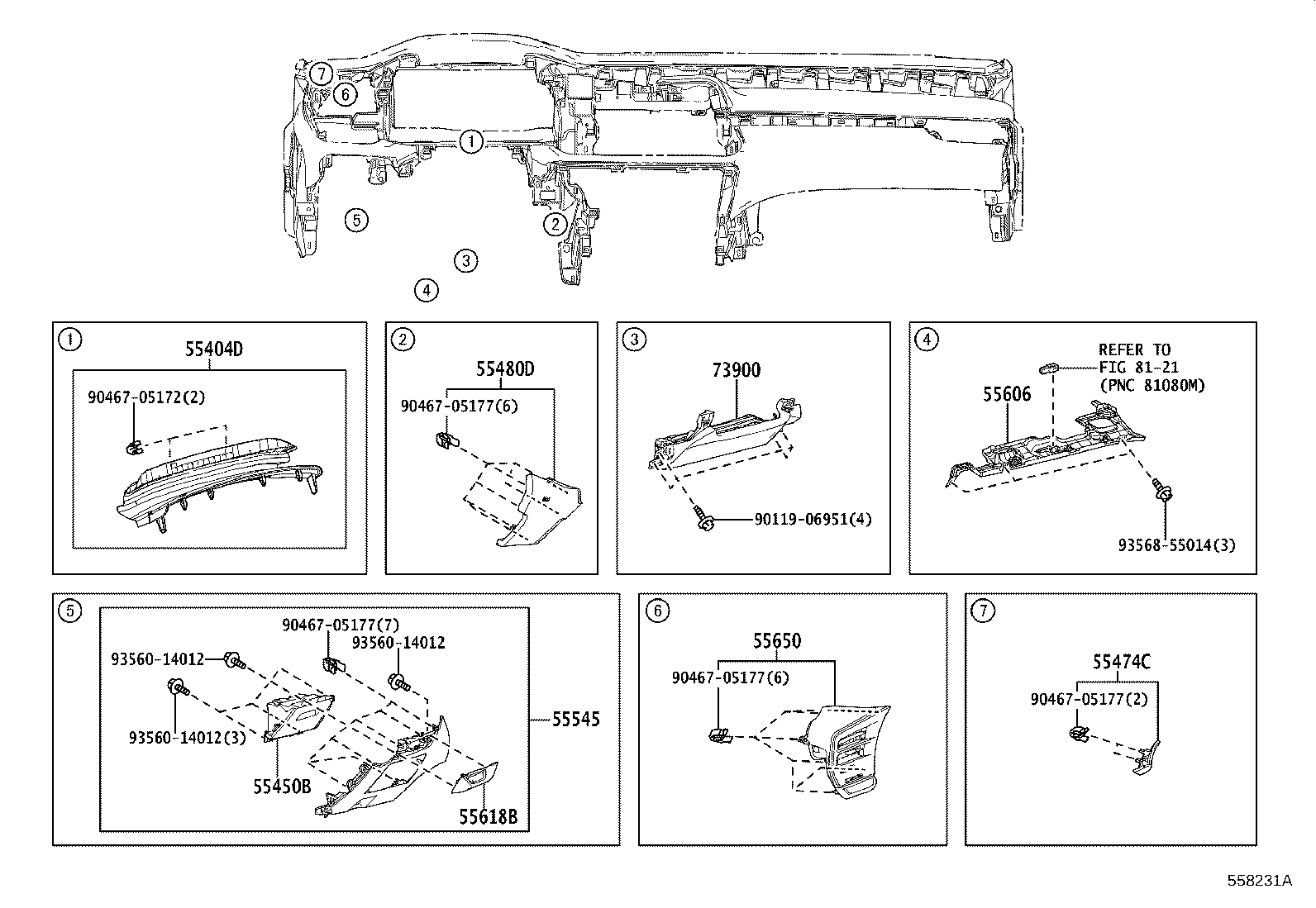

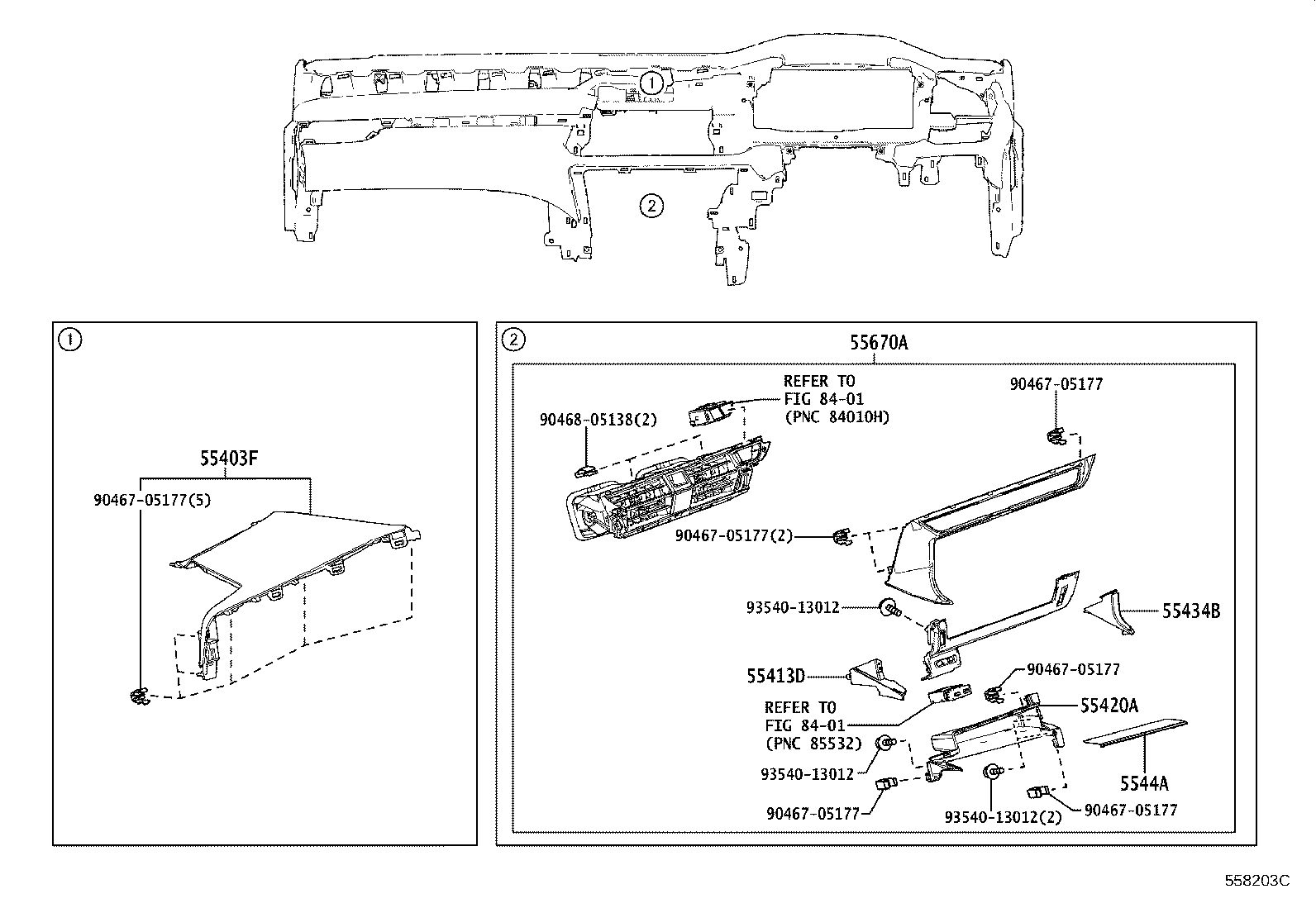

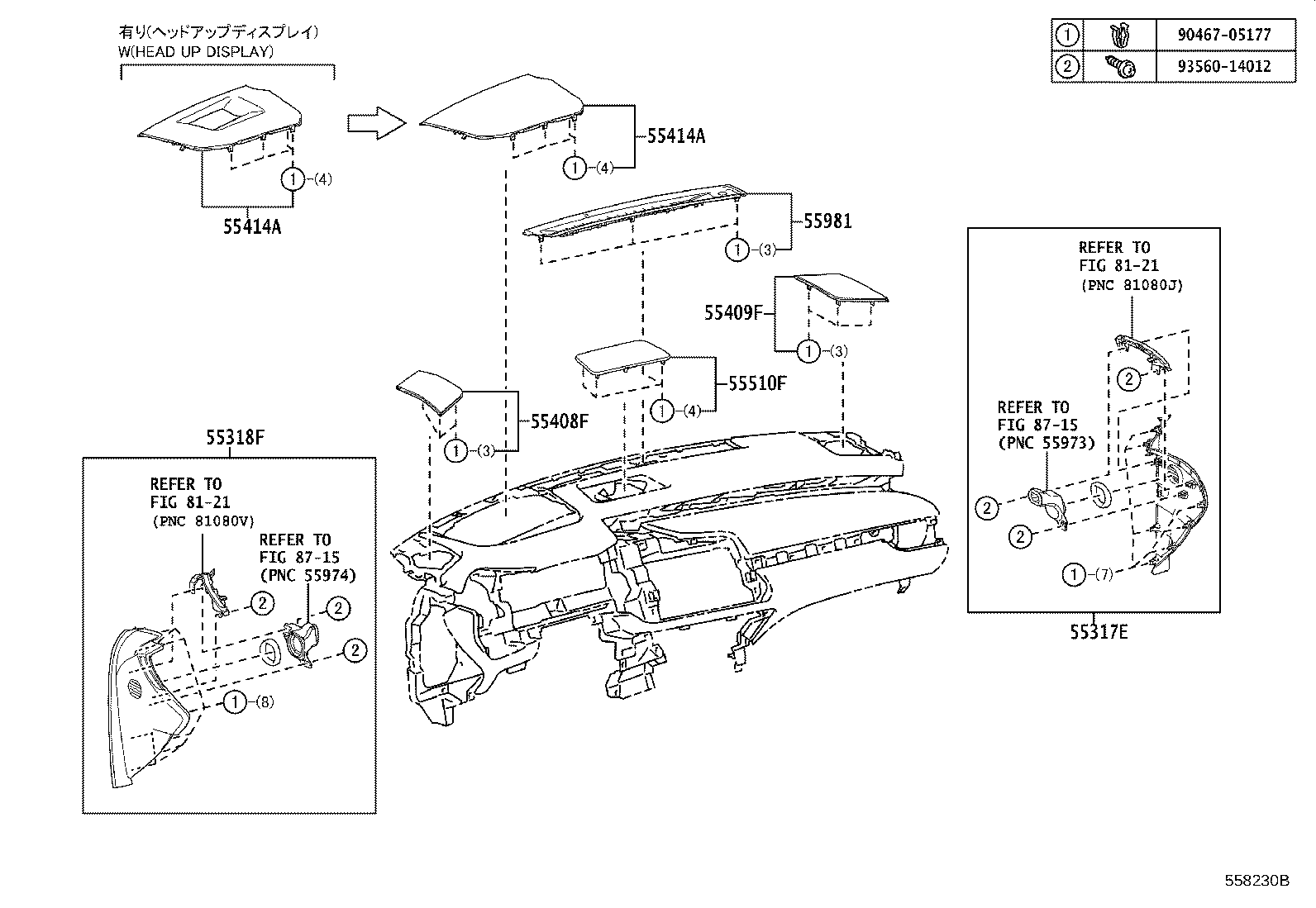

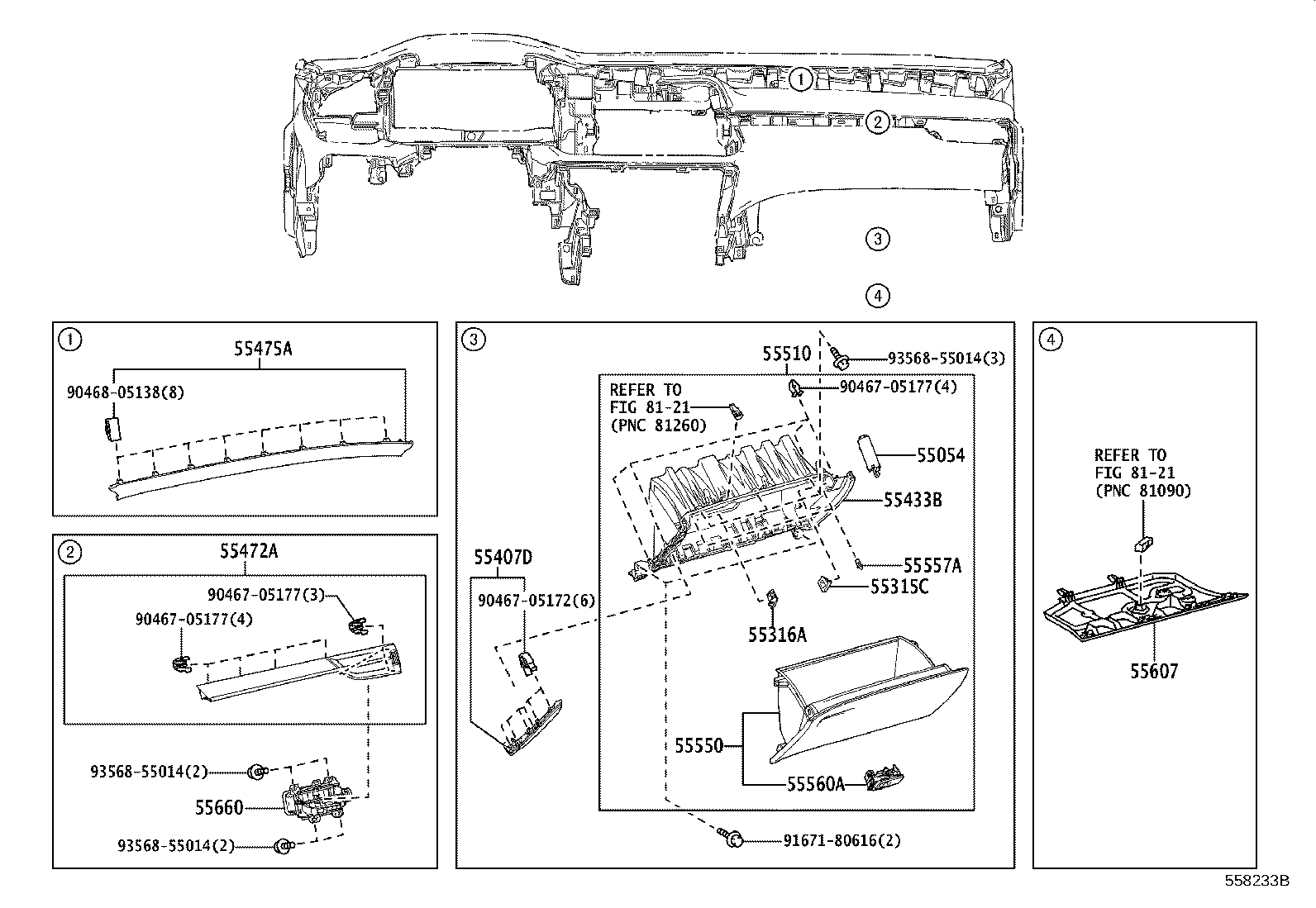

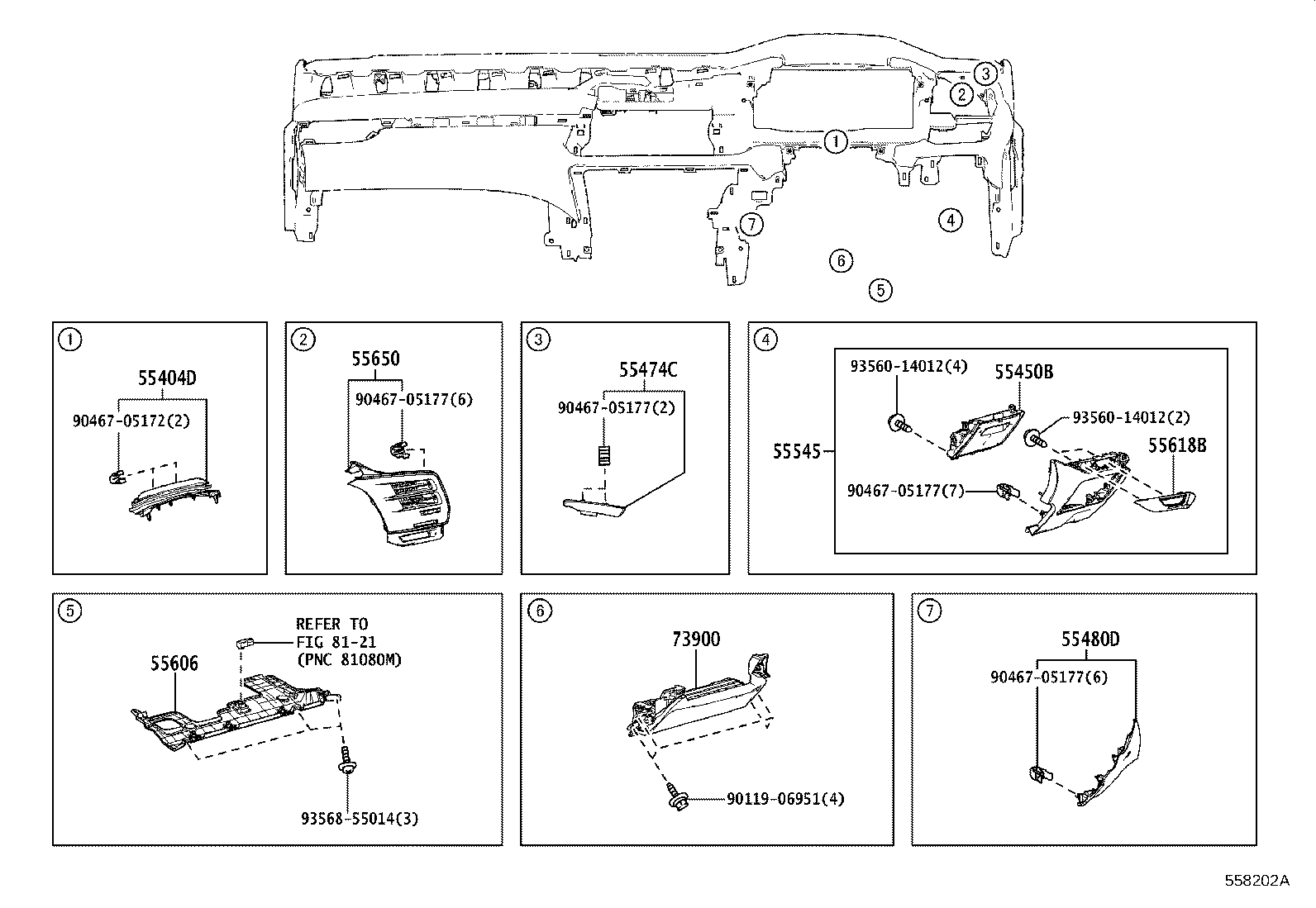

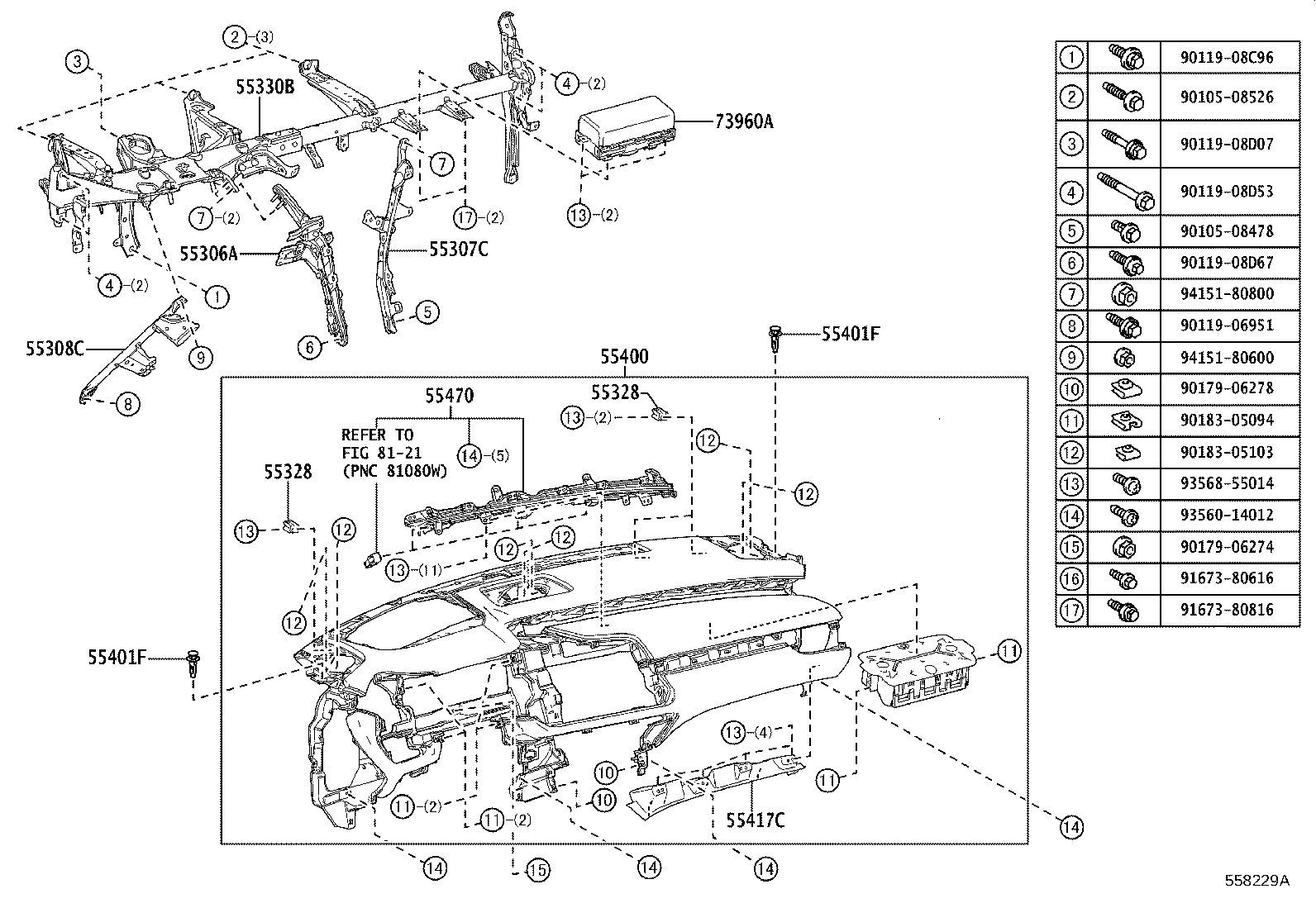

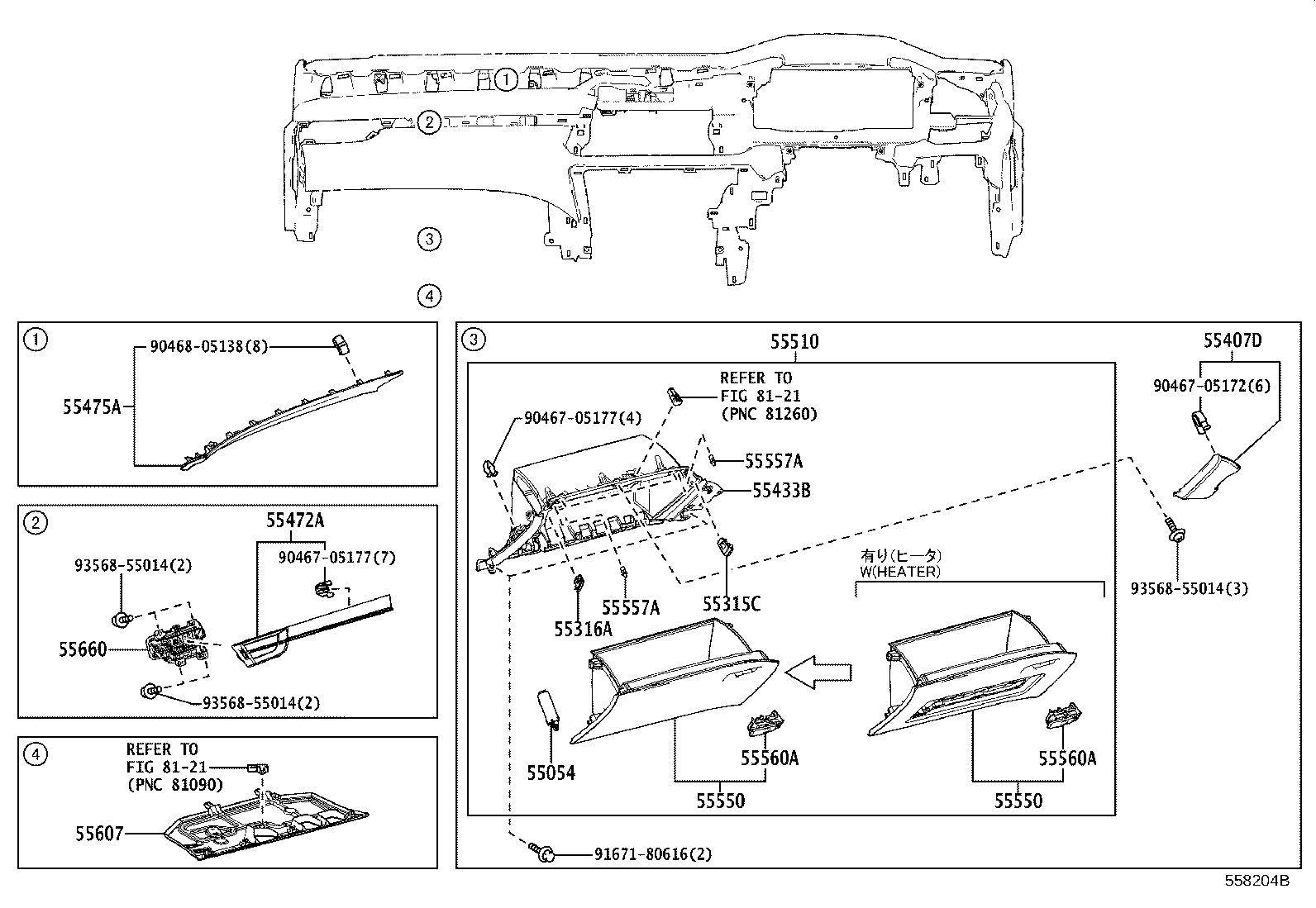

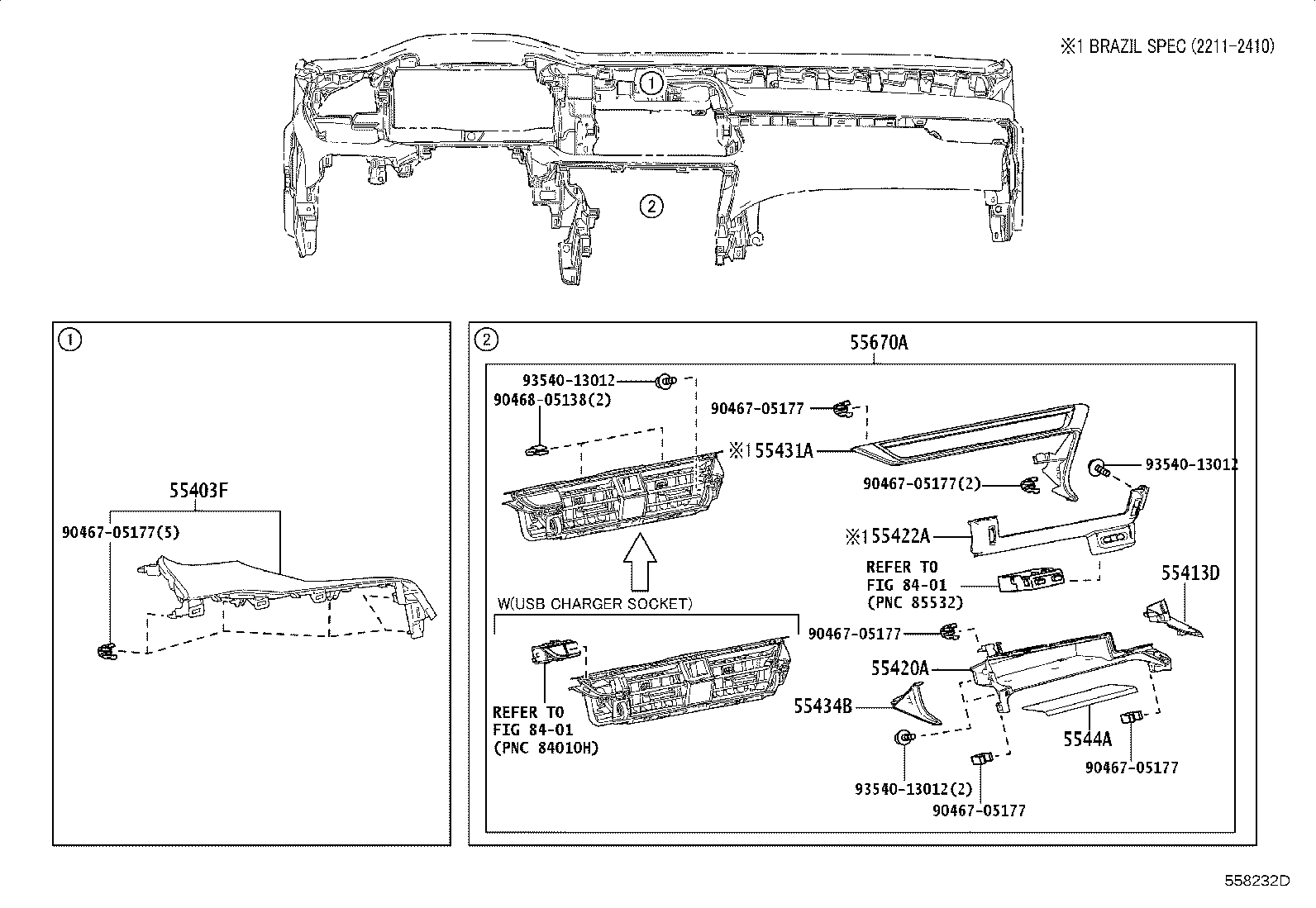

Figure 558200A 558200A 2022-11 → — Figure 558201B 558201B 2022-11 → — Figure 558202A 558202A 2022-11 → — Figure 558203B 558203B 2022-11 → — Figure 558204B 558204B 2022-11 → — Figure 558229A 558229A 2022-11 → — Figure 558230B 558230B 2022-11 → — Figure 558231A 558231A 2022-11 → — Figure 558232D 558232D 2022-11 → — Figure 558233B 558233B 2022-11 → —

Part groups

PNCDescription
55054 Stopper Sub-assy, Glove Compartment Door
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55315C Patch, Instrument Side, Upper RH
55316A Patch, Instrument Side, Upper LH
55317E Panel, Instrument Side, NO.1
55318F Panel, Instrument Side, NO.2
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55400 Pad Assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55407D Pad Sub-assy, Instrument Panel, End
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55413D Panel, Instrument Cluster Finish, Center Lower
55414A Panel, Instrument Cluster Finish, End
55417C Bracket, Instrument Pad, NO.3
55420A Panel Assy, Instrument Cluster Finish, Center
55422A Panel, Instrument Cluster Finish, Lower
55431A Panel, Instrument Panel Finish
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
5544A Mat, Insutrument Panel Tray
55450B Box Assy, Coin
55470 Garnish Assy, Instrument Cluster Finish Panel
55472A Moulding, Instrument Cluster, NO.2
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55480D Panel Assy, Instrument Panel Finish, Lwr
55510 Door Assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55545 Cover, Fuse Box Opening
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618B Base, Switch Hole, NO.3
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
