Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

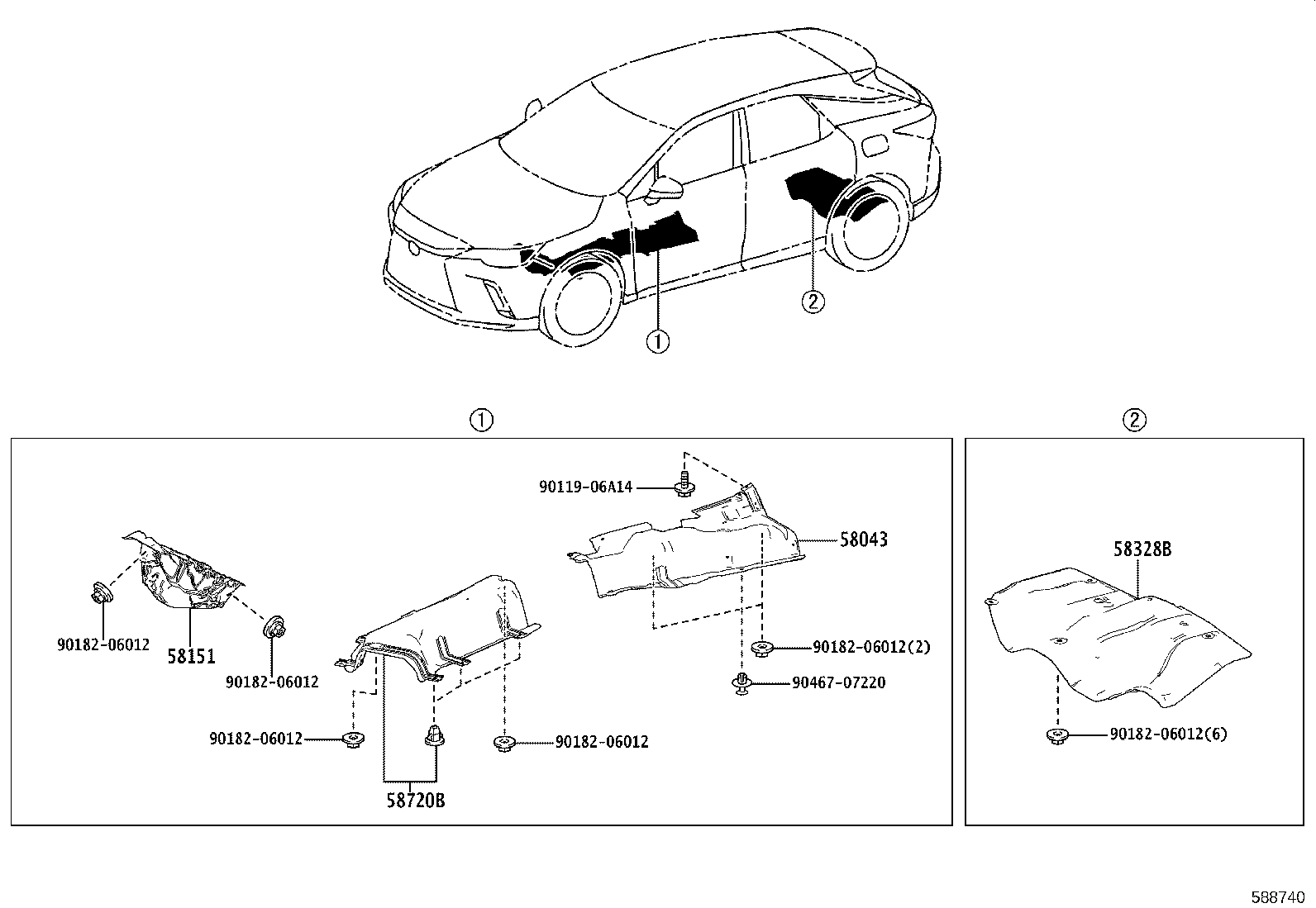

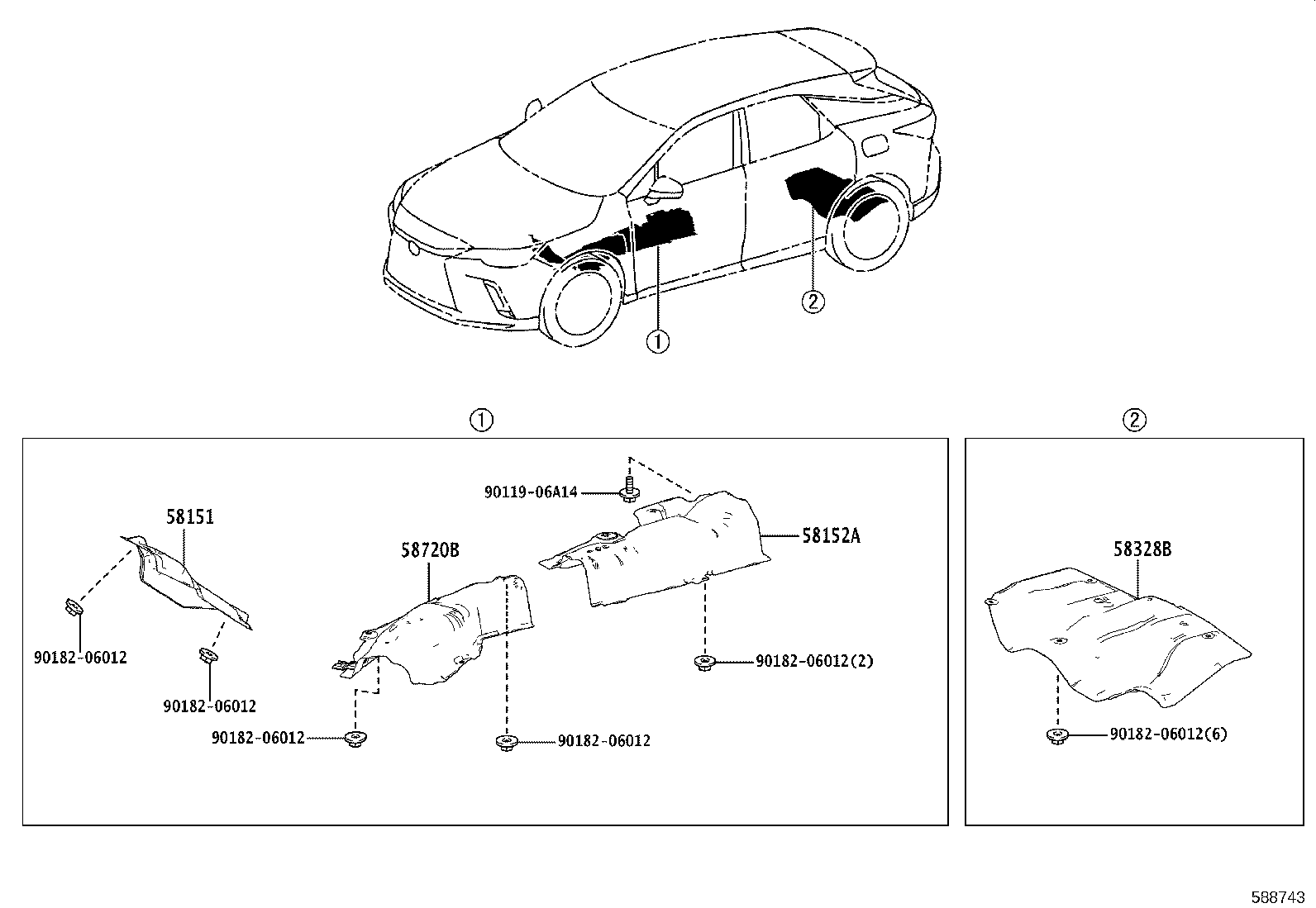

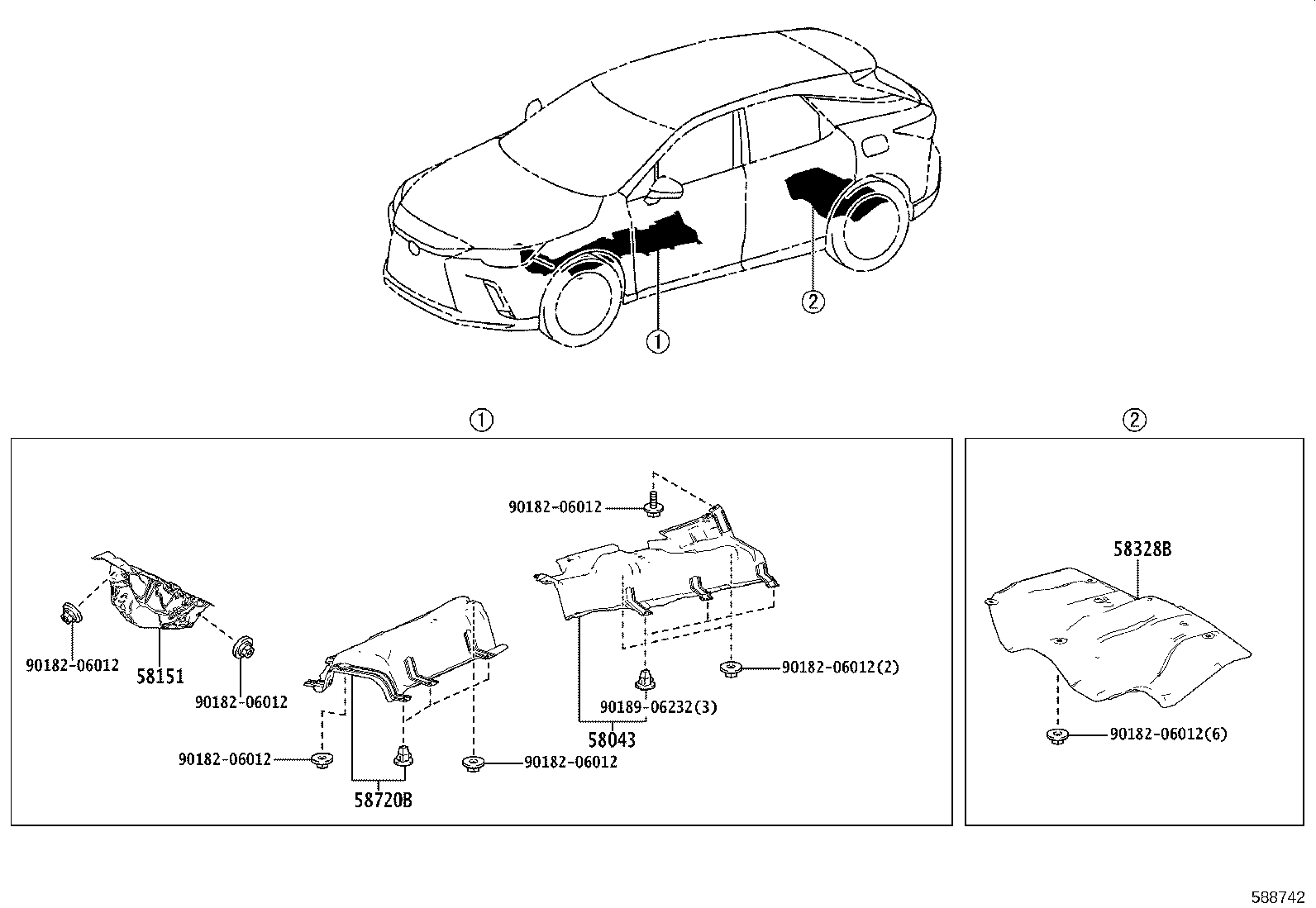

Floor Insulator
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58043 | Insulator Sub-assy, Main Muffler Heat, Rear |
| 58135B | Bracket, Floor Insulator Support |
| 58151 | Insulator, Front Floor Heat, NO.1 |
| 58152A | Insulator, Front Floor Heat, NO.1 Lower |
| 58328B | Insulator, Main Muffler Heat, Lower |
| 58720B | Cover Assy, Engine Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
