Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 8 illustrations

Illustrations

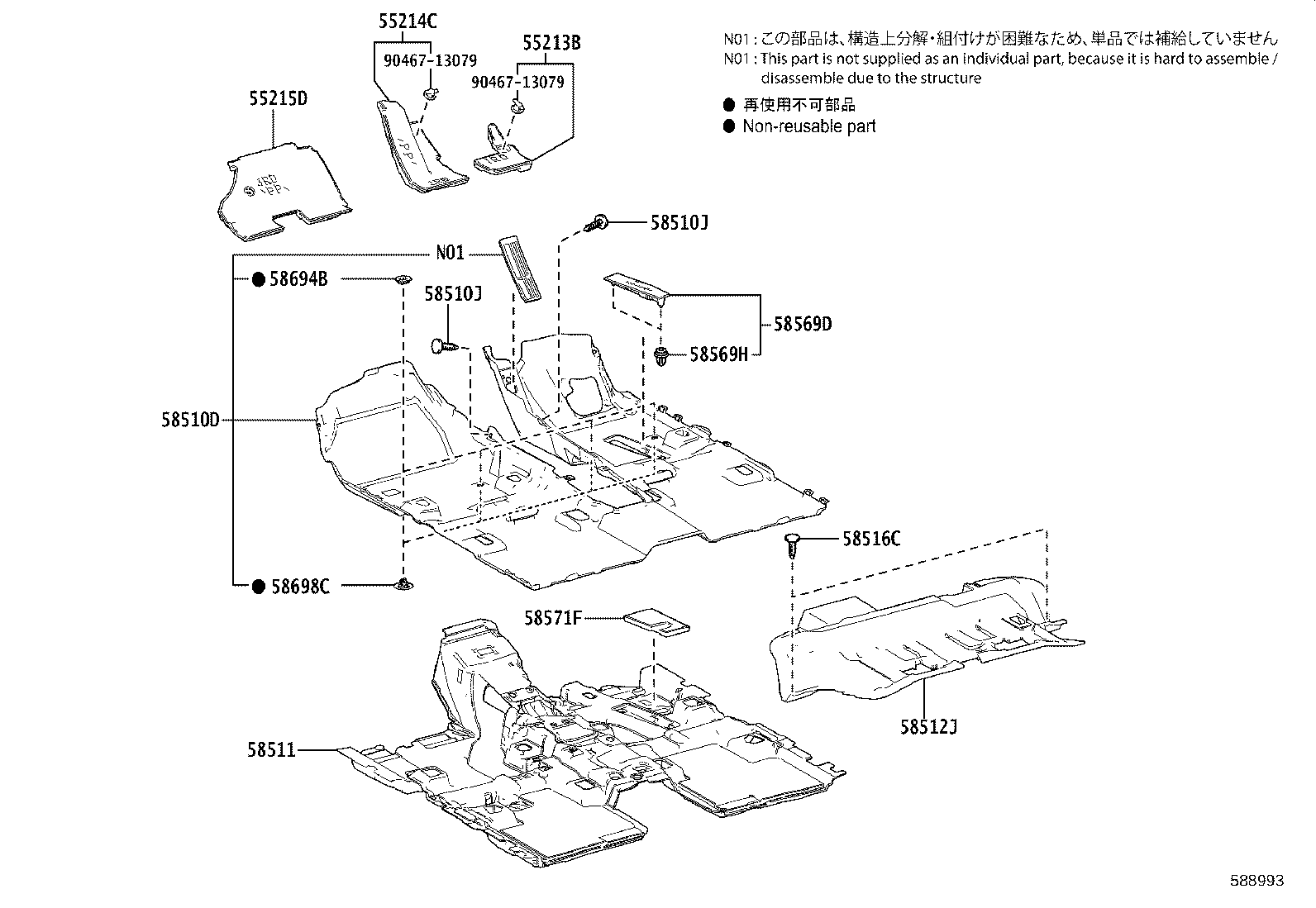

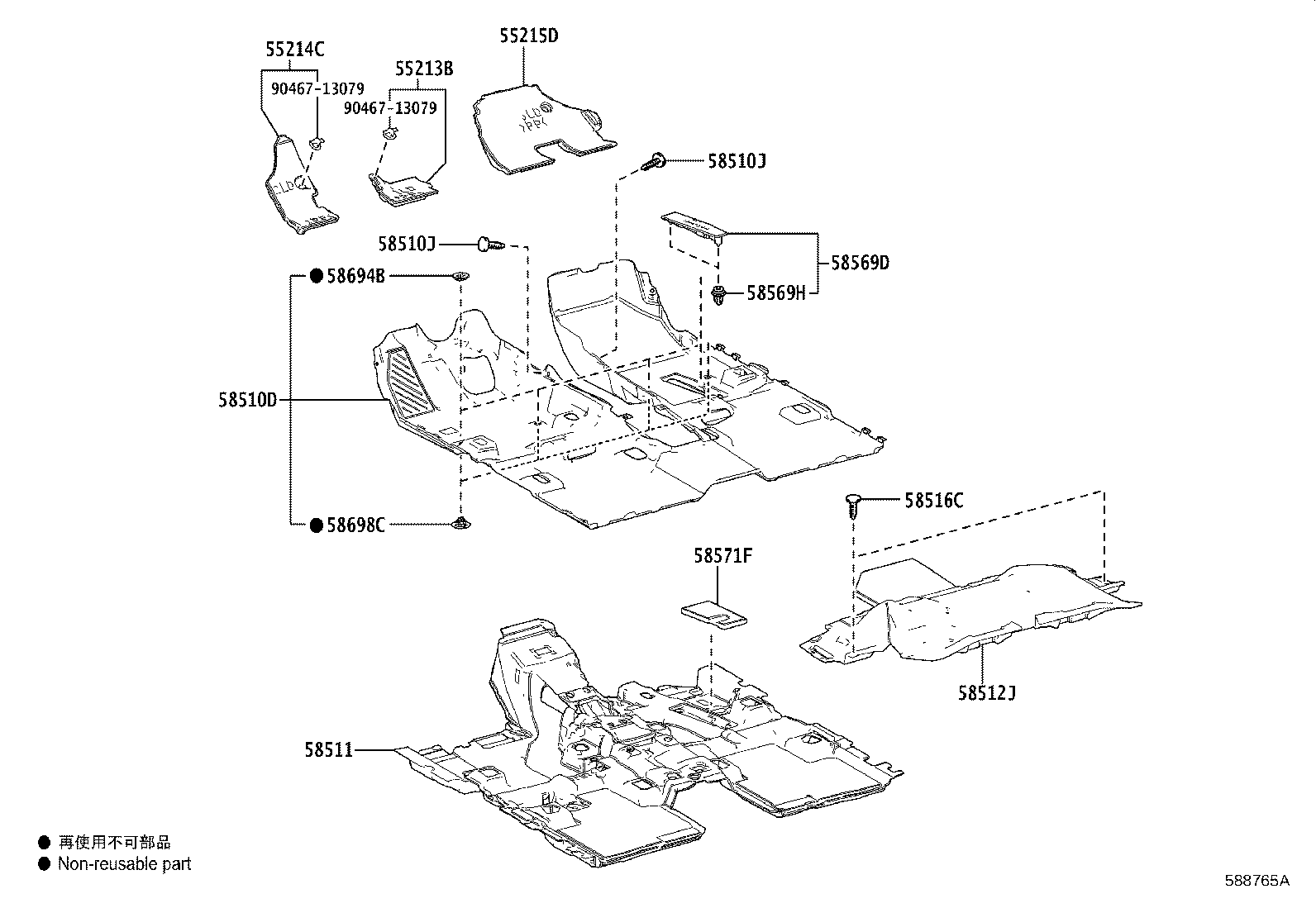

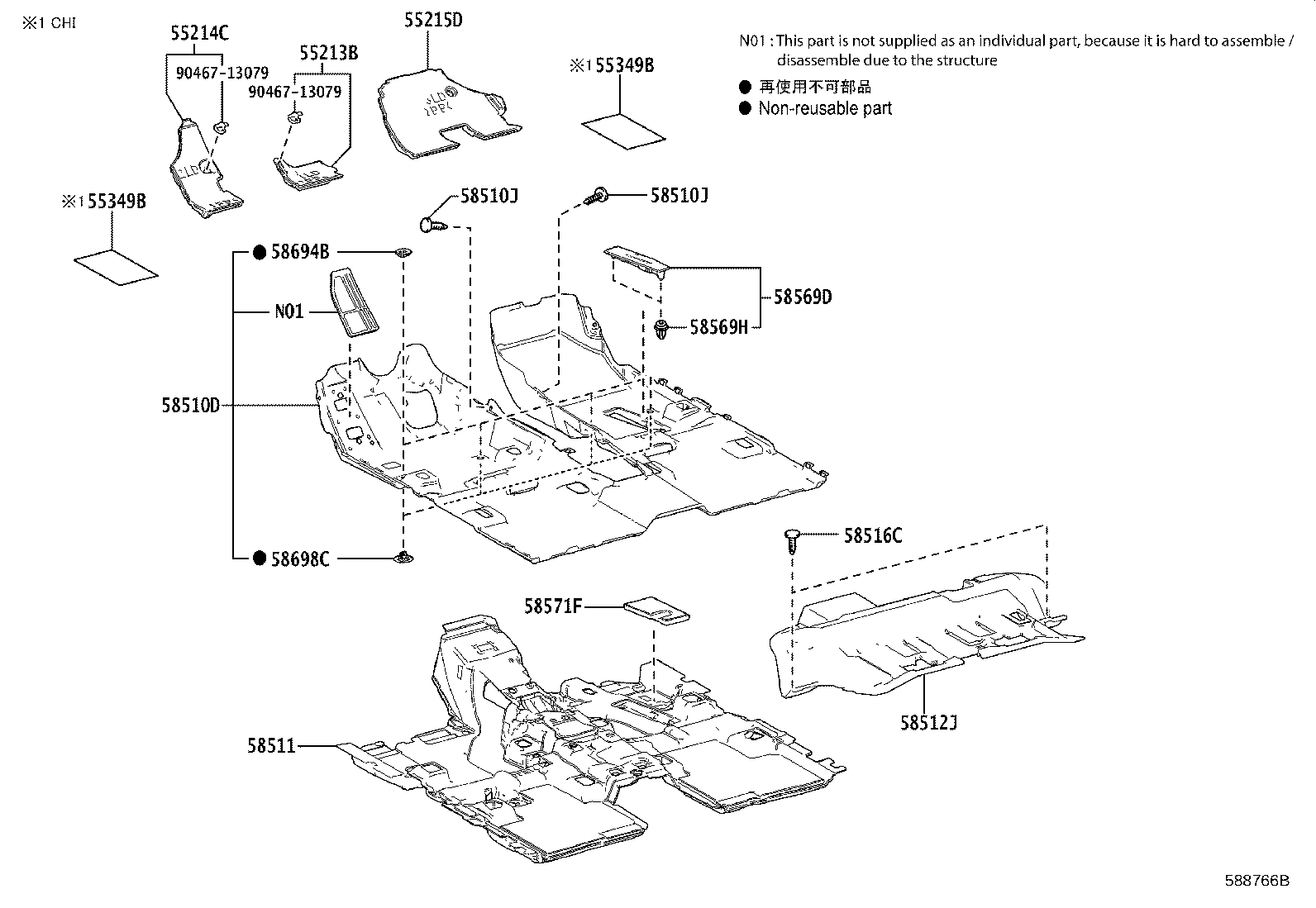

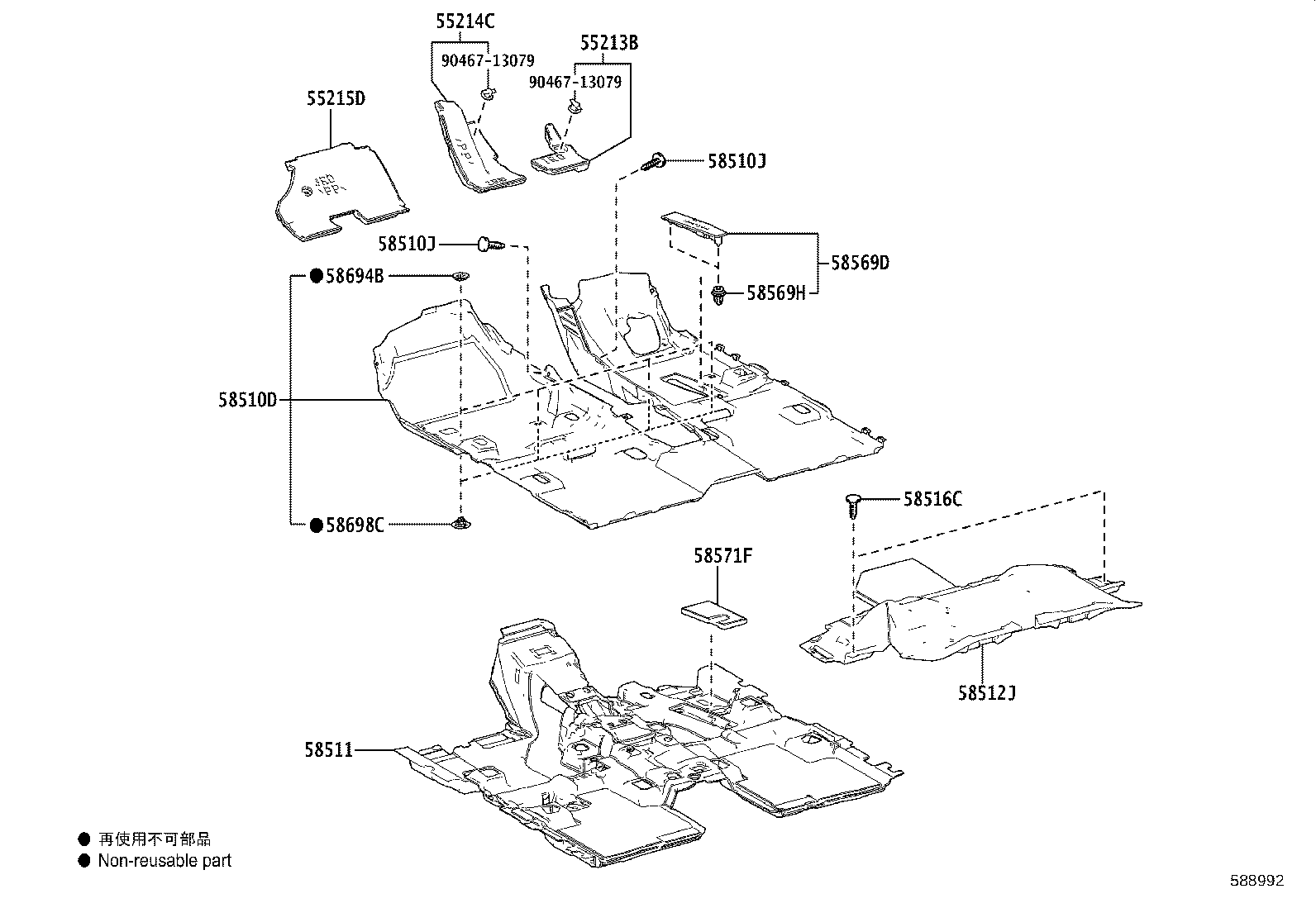

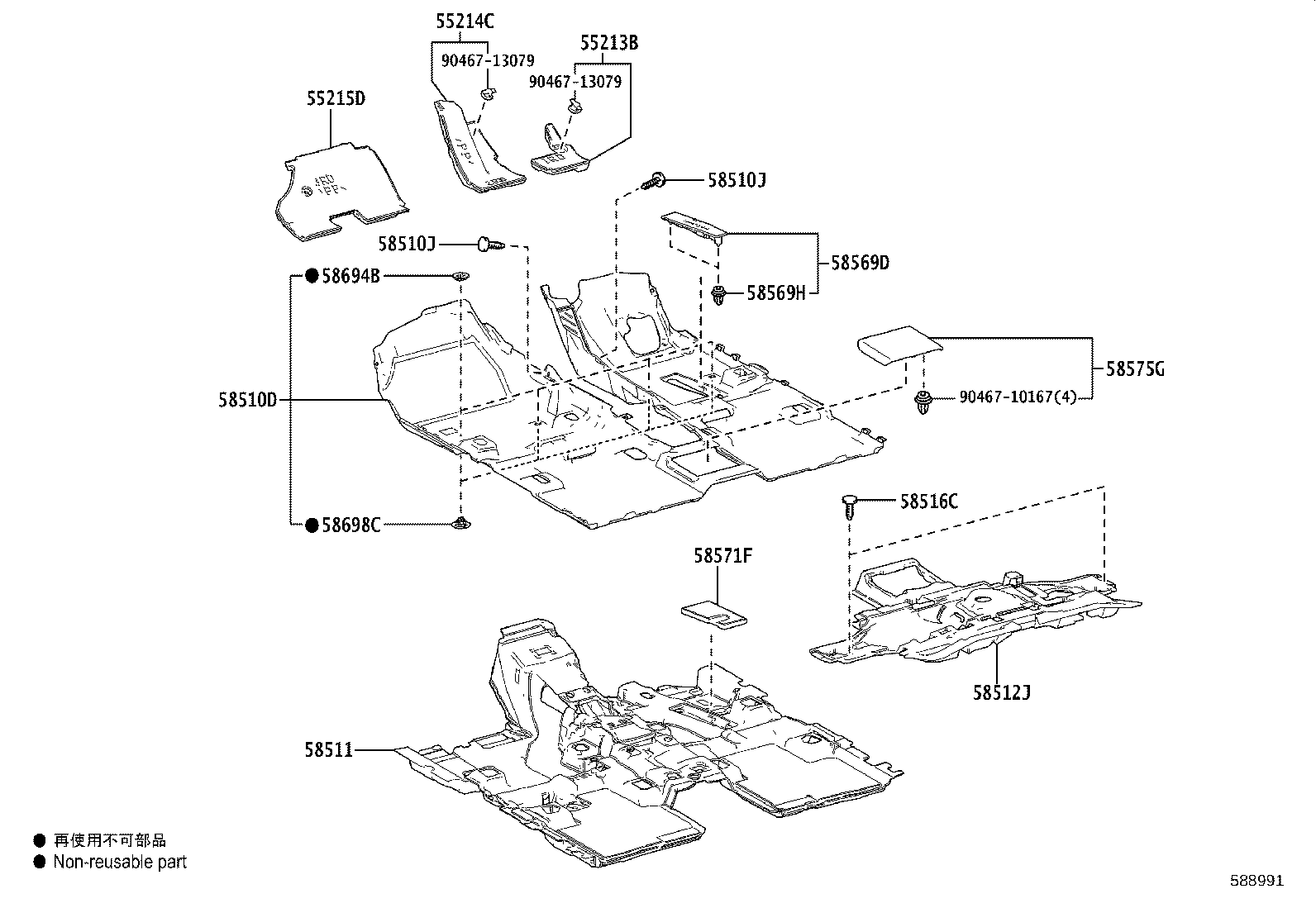

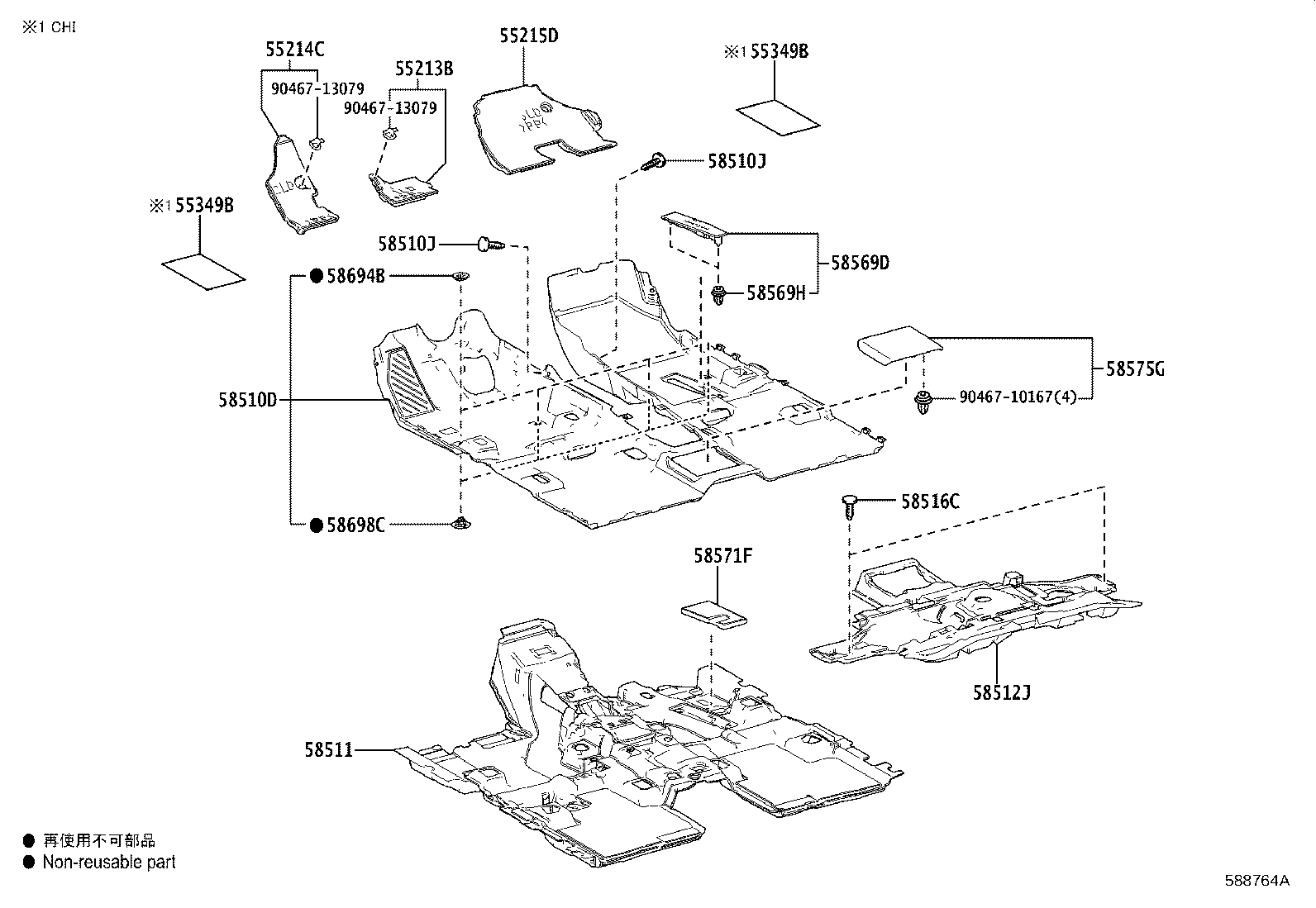

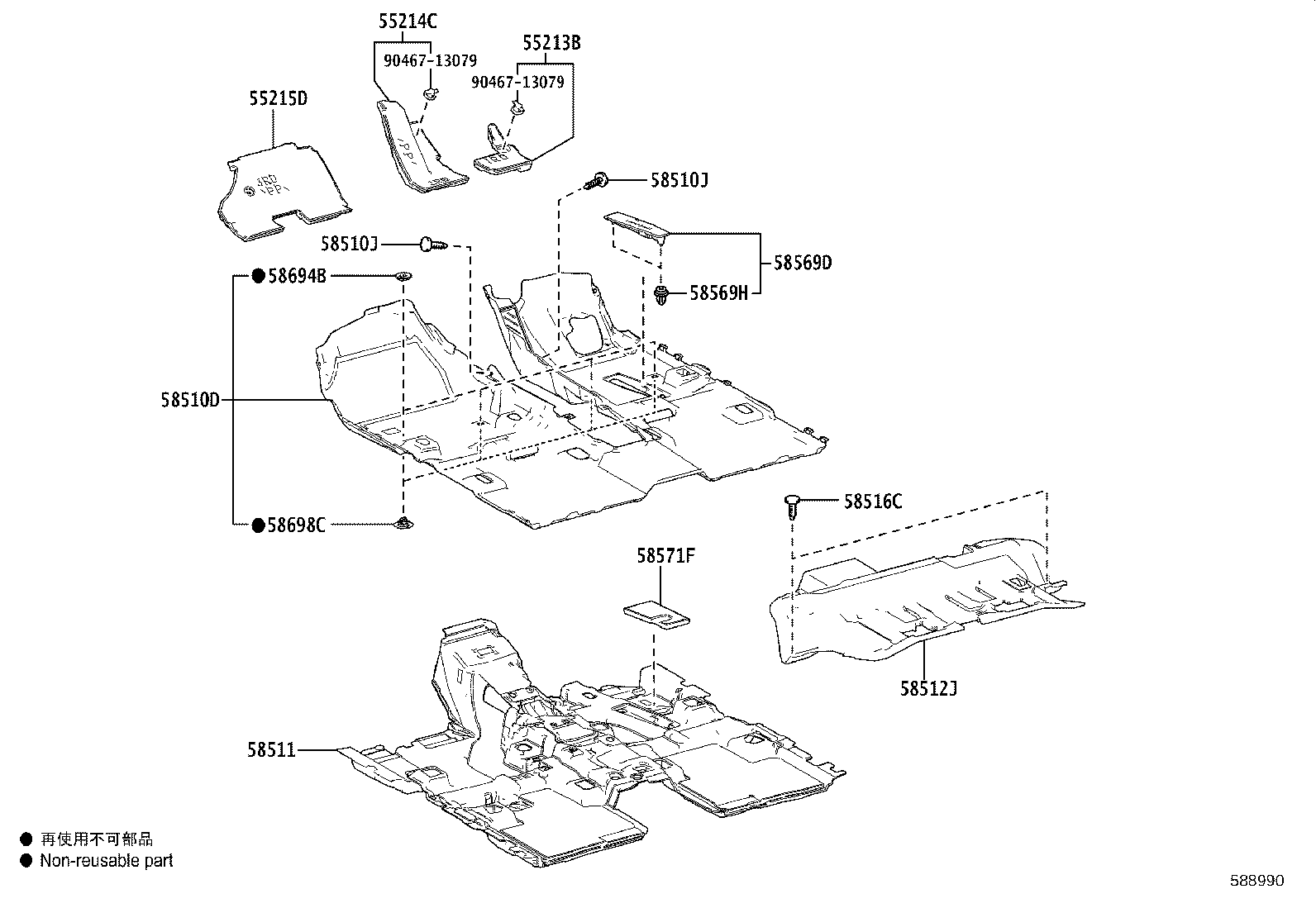

Figure 588763B 588763B 2022-11 → — Figure 588764A 588764A 2022-11 → — Figure 588765A 588765A 2022-11 → — Figure 588766B 588766B 2022-11 → — Figure 588990 588990 2022-11 → — Figure 588991 588991 2022-11 → — Figure 588992 588992 2022-11 → — Figure 588993 588993 2022-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55349B Sheet, Activated Carbon
58510D Carpet Assy, Floor, Front
58510J Clip (FOR FLOOR CARPET)
58511 Mat, Floor, Front
58512J Mat, Floor, NO.2
58516C Clip(FOR FLOOR MAT)
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58571F Pad, Front Floor, Front
58575G Trim, Rear Floor
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
