Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10

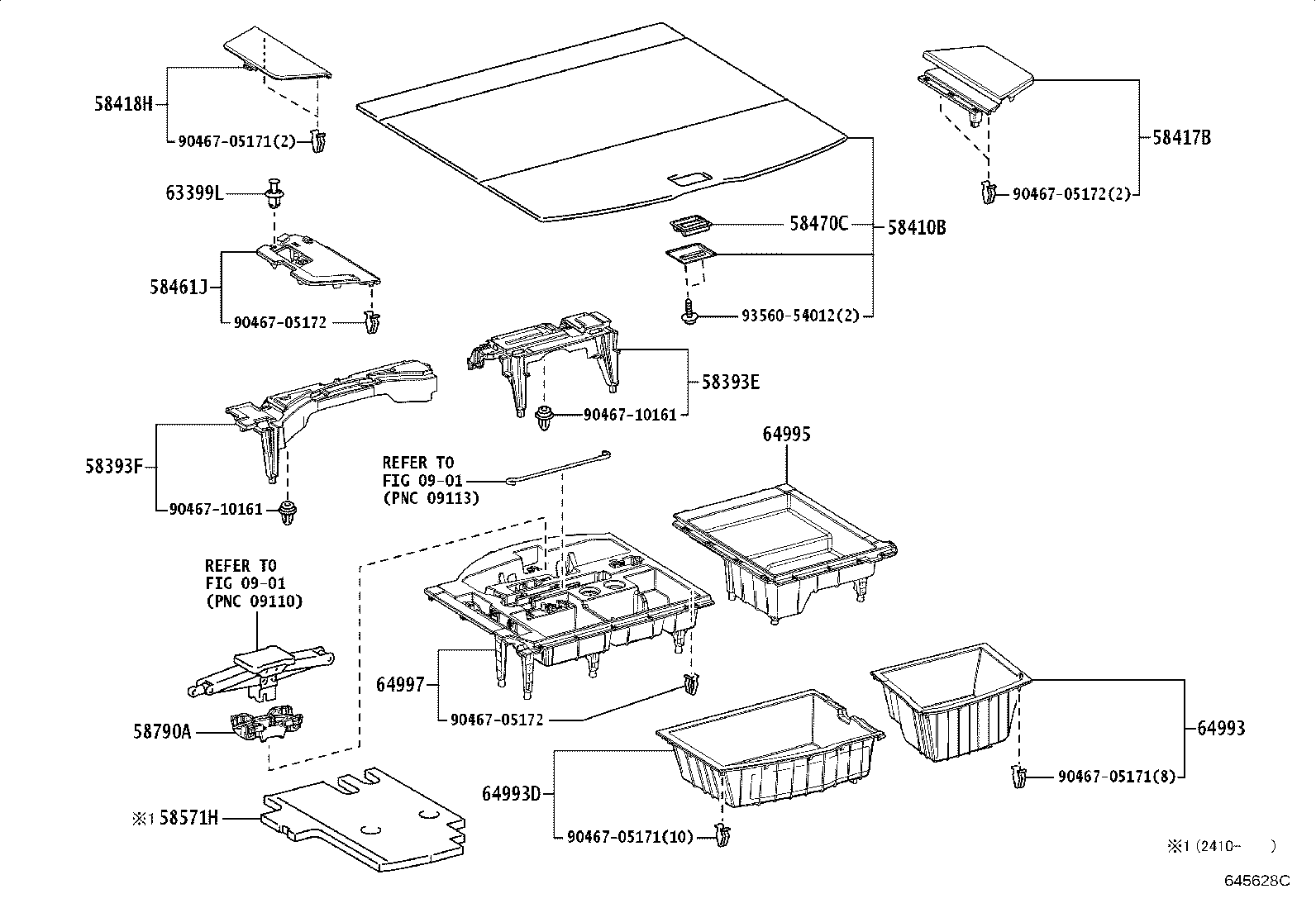

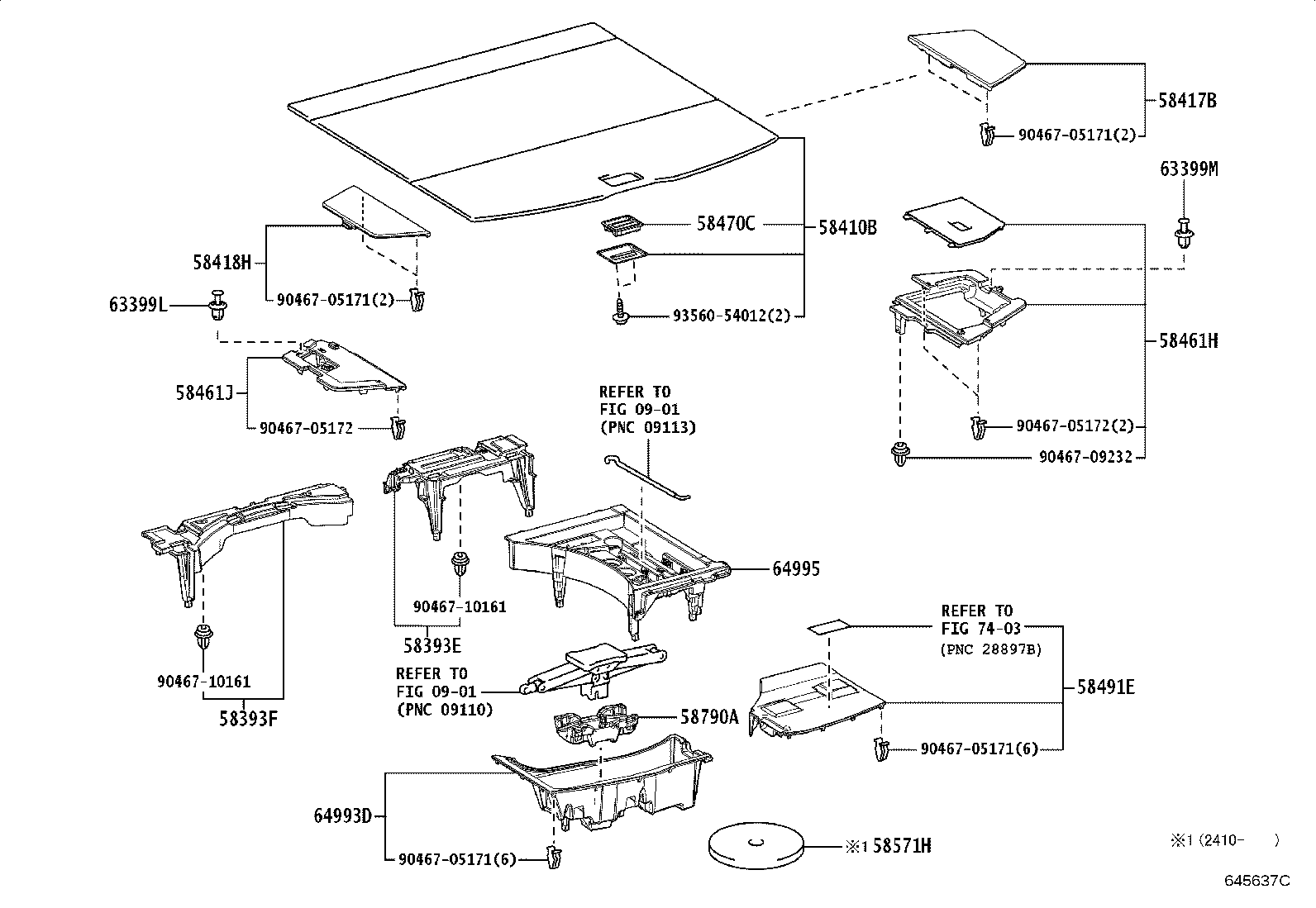

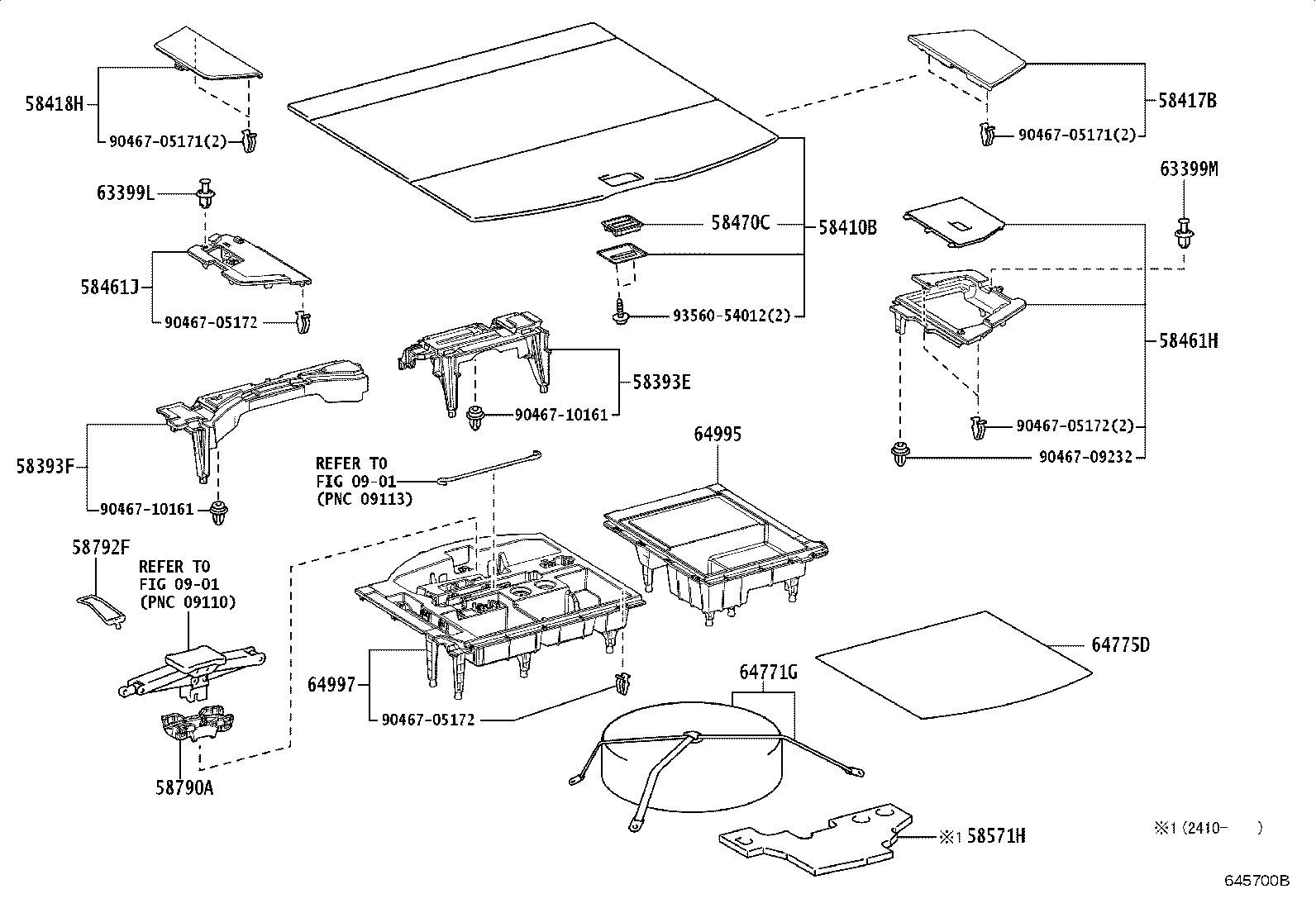

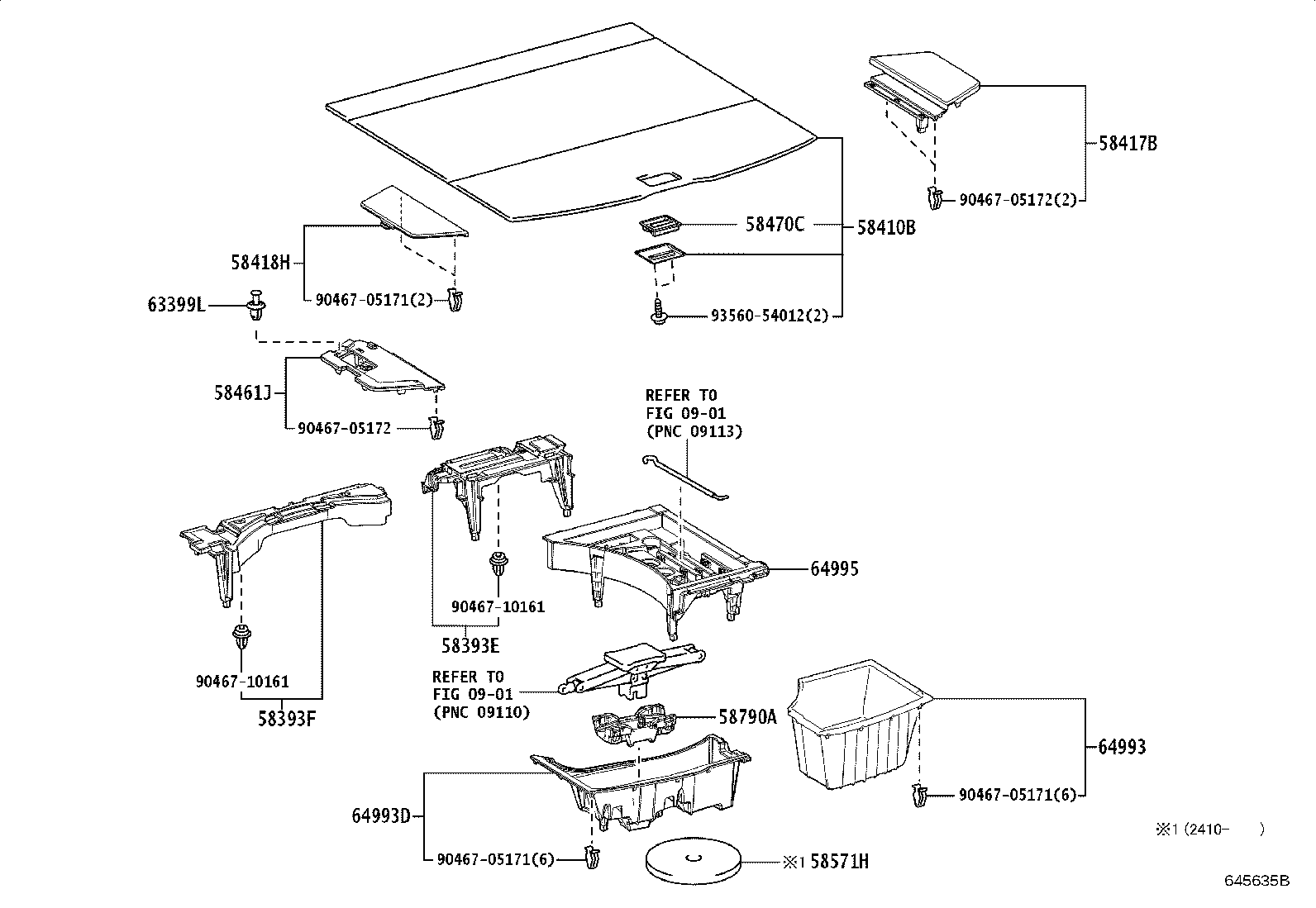

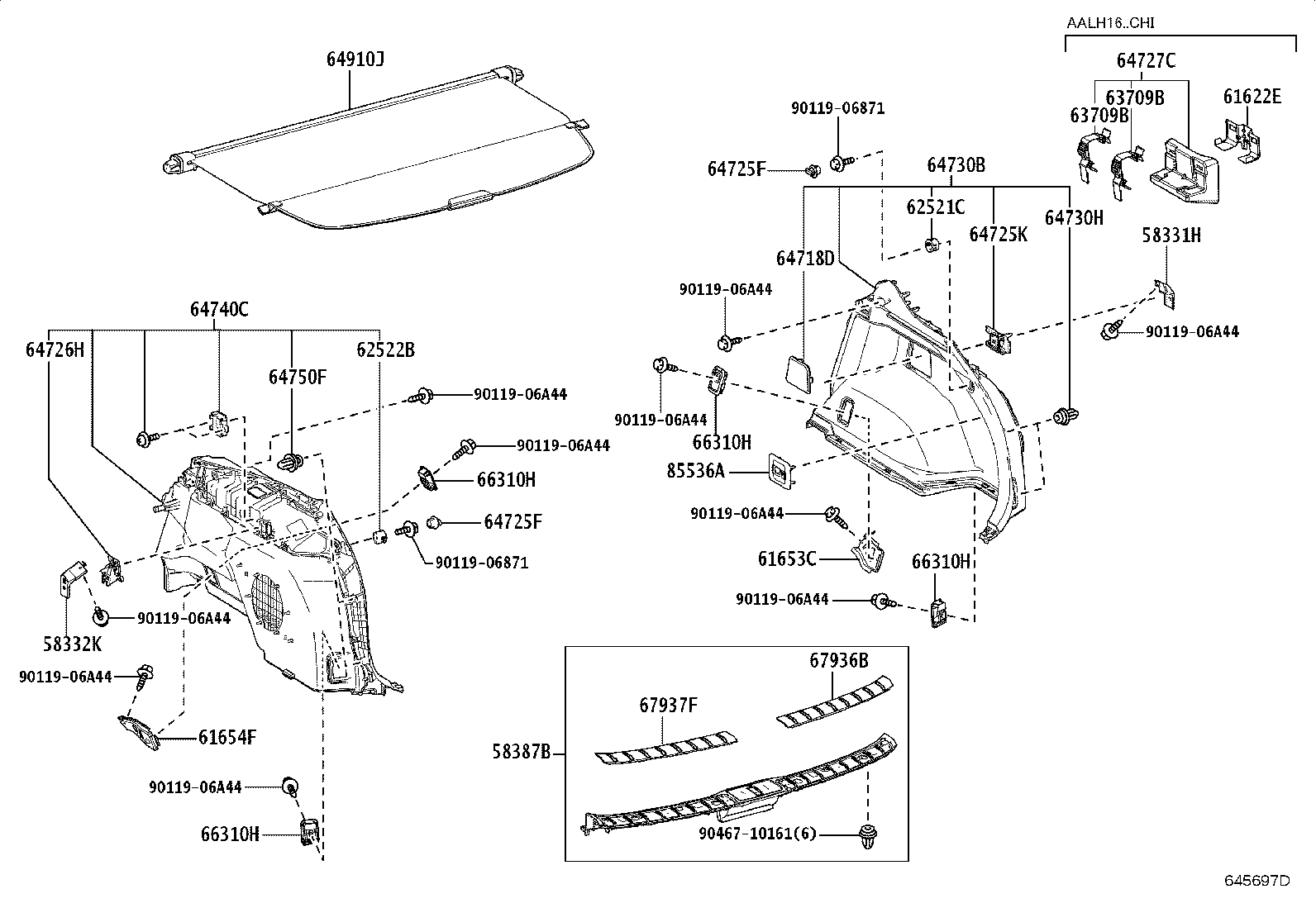

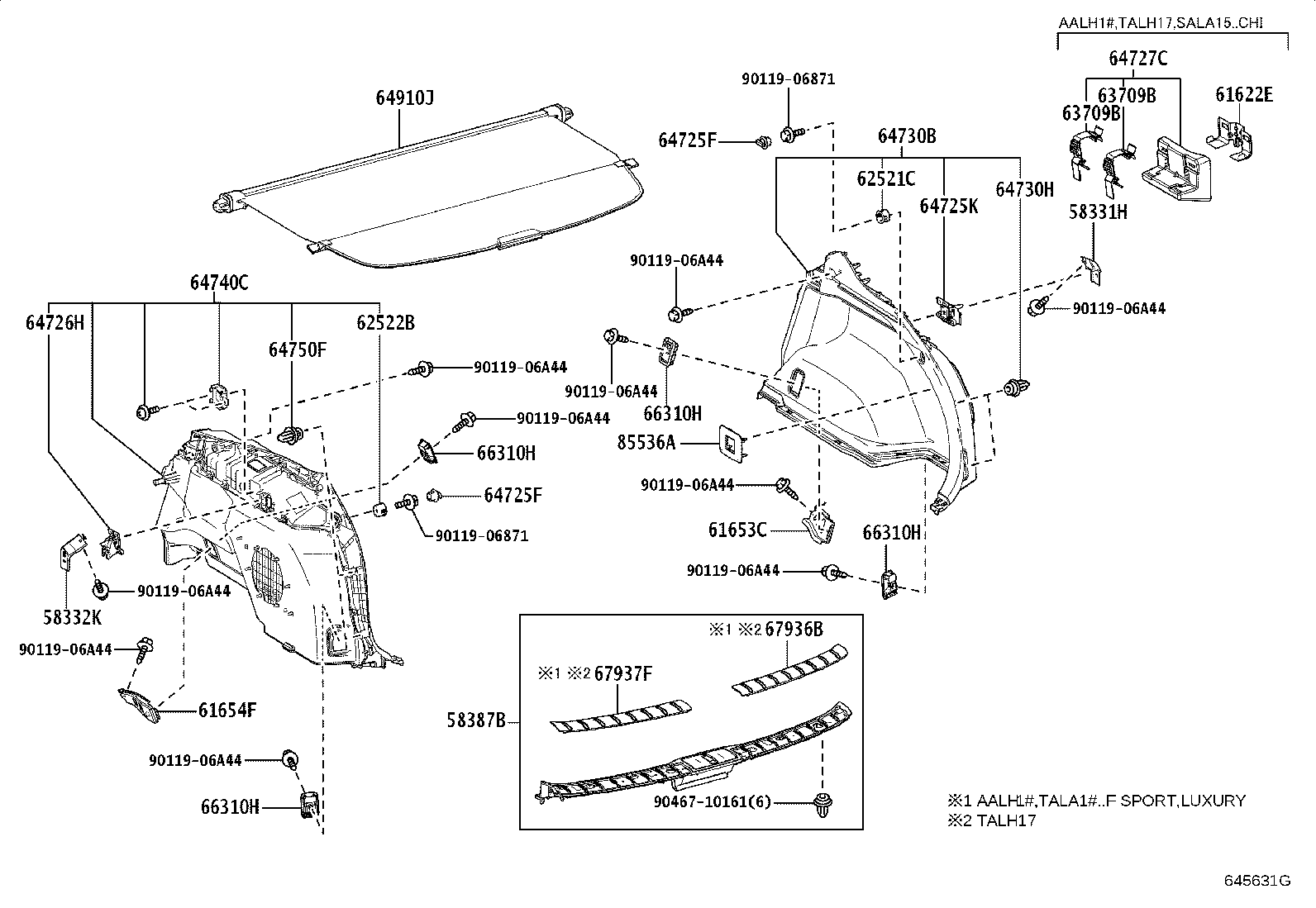

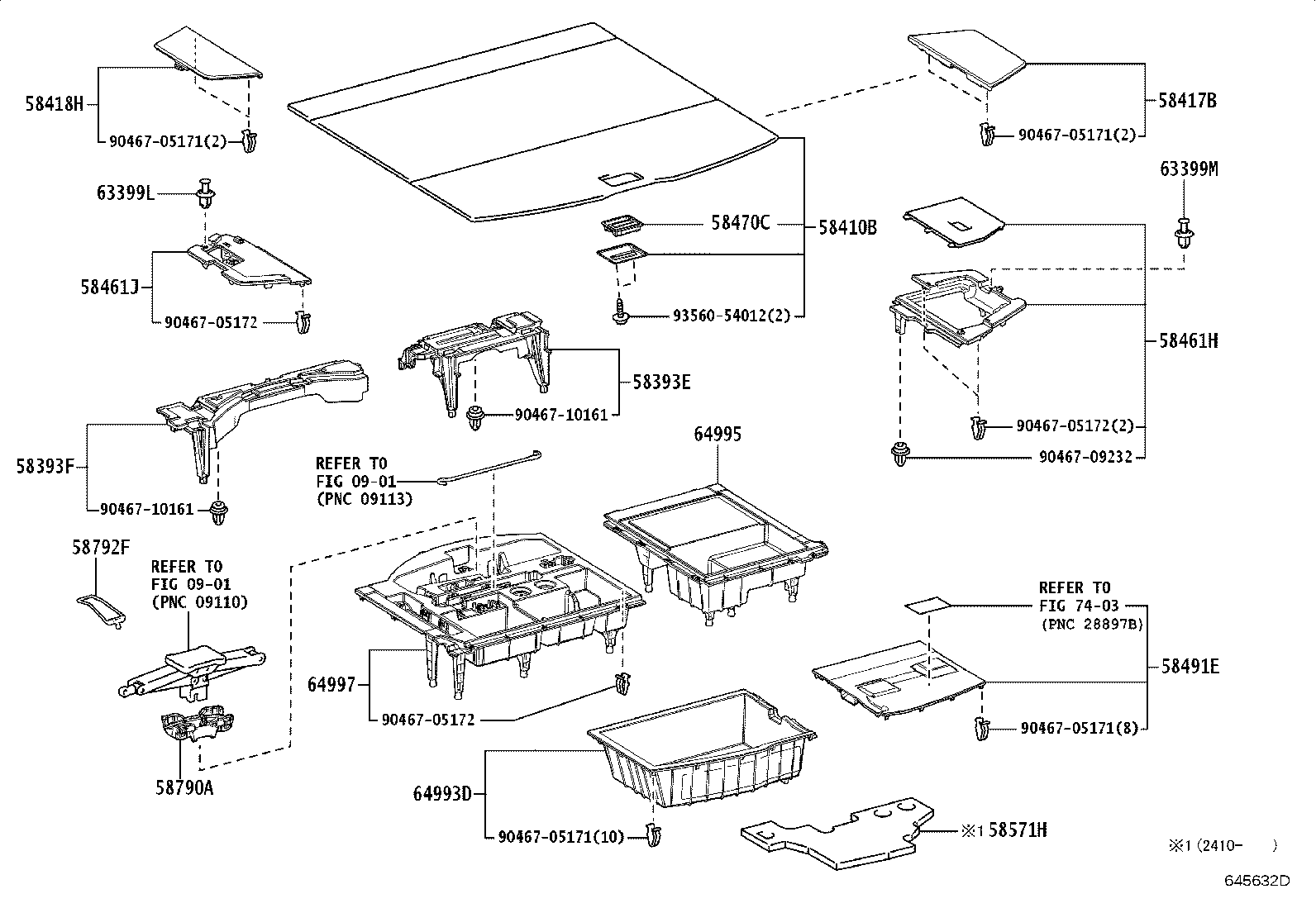

Deck Board & Deck Trim Cover

43 part groups · 8 illustrations

PNC	Description
58331H	Bracket, Luggage Compartment Trim, NO.1
58332K	Bracket, Luggage Compartment Trim, NO.2
58387B	Plate, Rear Floor Finish
58393E	Support, Deck Board Set
58393F	Support, Deck Board Set, LH
58410B	Board Assy, Deck
58417B	Board, Rear Floor, Rear RH
58418H	Board, Rear Floor, Rear LH
58461H	Cover, Junction Block Service
58461J	Cover, Junction Block Service, LH
58470C	Handle Assy, Deck Board
58491E	Plate, Battery Service Cover
58571H	Carpet, Rear Floor
58790A	Carrier Assy, Jack
58792F	Support, Jack Carrier
61622E	Bracket, Deck Side Trim Lower
61653C	Bracket, Deck Side Trim, RH
61654F	Bracket, Deck Side Trim, LH
62521C	Cover, Quarter Trim RH
62522B	Cover, Quarter Trim LH
63399L	Clip, Junction Block Service Cover, LH
63399M	Clip, Junction Block Servise Cover, RH
63709B	Band Sub-assy, Room Rack
64718D	Cover, Deck Trim Service Hole
64725F	Hook, Luggage Compartment Trim, NO.1
64725K	Hook, Deck Side Trim, NO.1
64726H	Hook, Deck Side Trim, NO.2
64727C	Hook, Luggage Compartment Trim, NO.3
64730B	Panel Assy, Deck Trim Side, RH
64730H	Clip(FOR DECK TRIM SIDE PANEL)
64740C	Panel Assy, Deck Trim Side, LH
64750F	Clip(FOR DECK SIDE TRIM PANEL)
64771G	Cover, Spare Wheel
64775D	Guard, Spare Wheel
64910J	Cover Assy, Tonneau
64993	Box, Deck Floor, Rear
64993D	Box, Deck Floor, Rear LH
64995	Box, Deck Floor, RH
64997	Box, Deck Floor, LH
66310H	Hook Assy, Rope
67936B	Cover, Back Door Scuff Side, RH
67937F	Cover, Back Door Scuff Side, LH
85536A	Bezel, Power Outlet Socket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
