Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

103 part groups · 12 illustrations

Illustrations

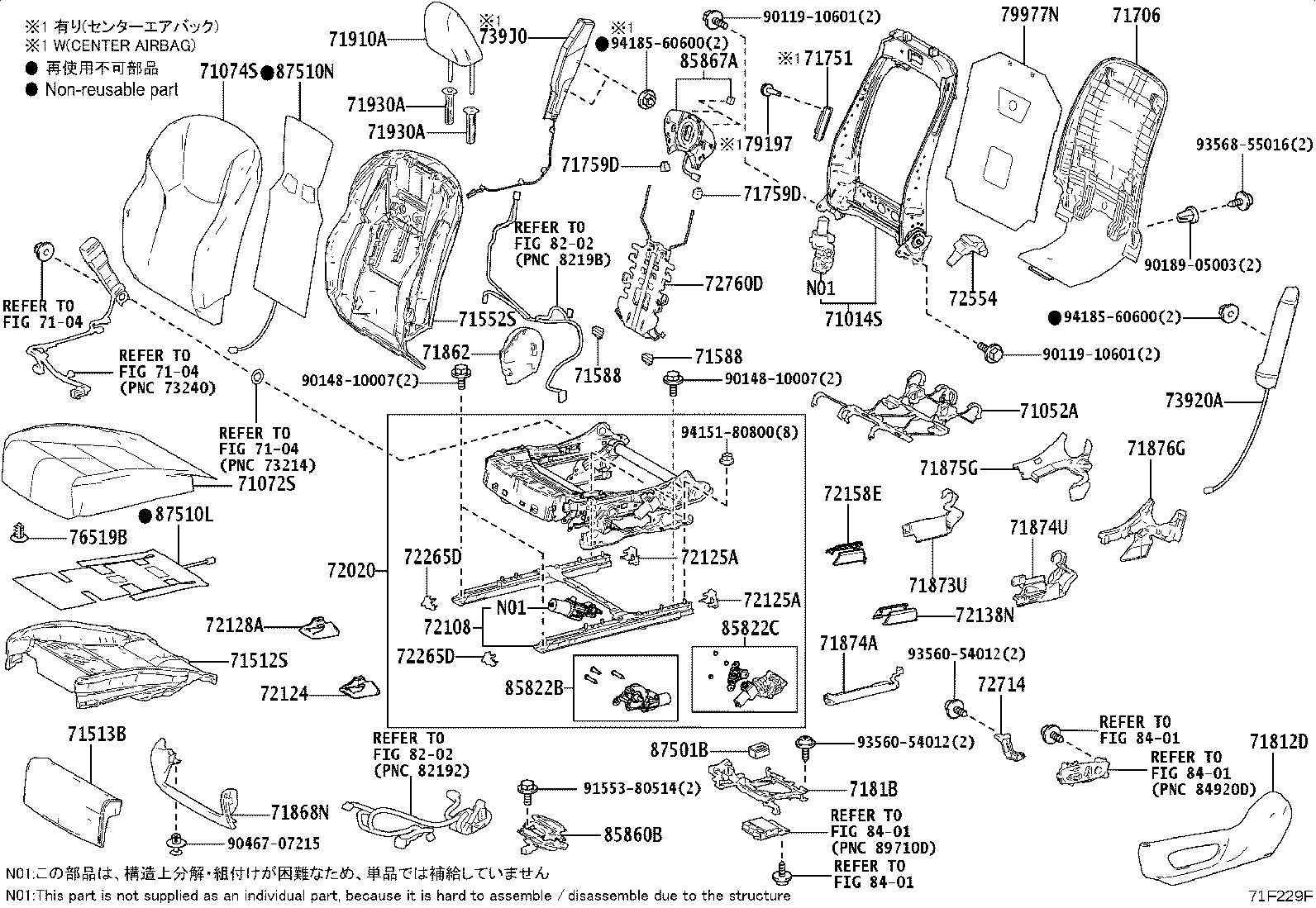

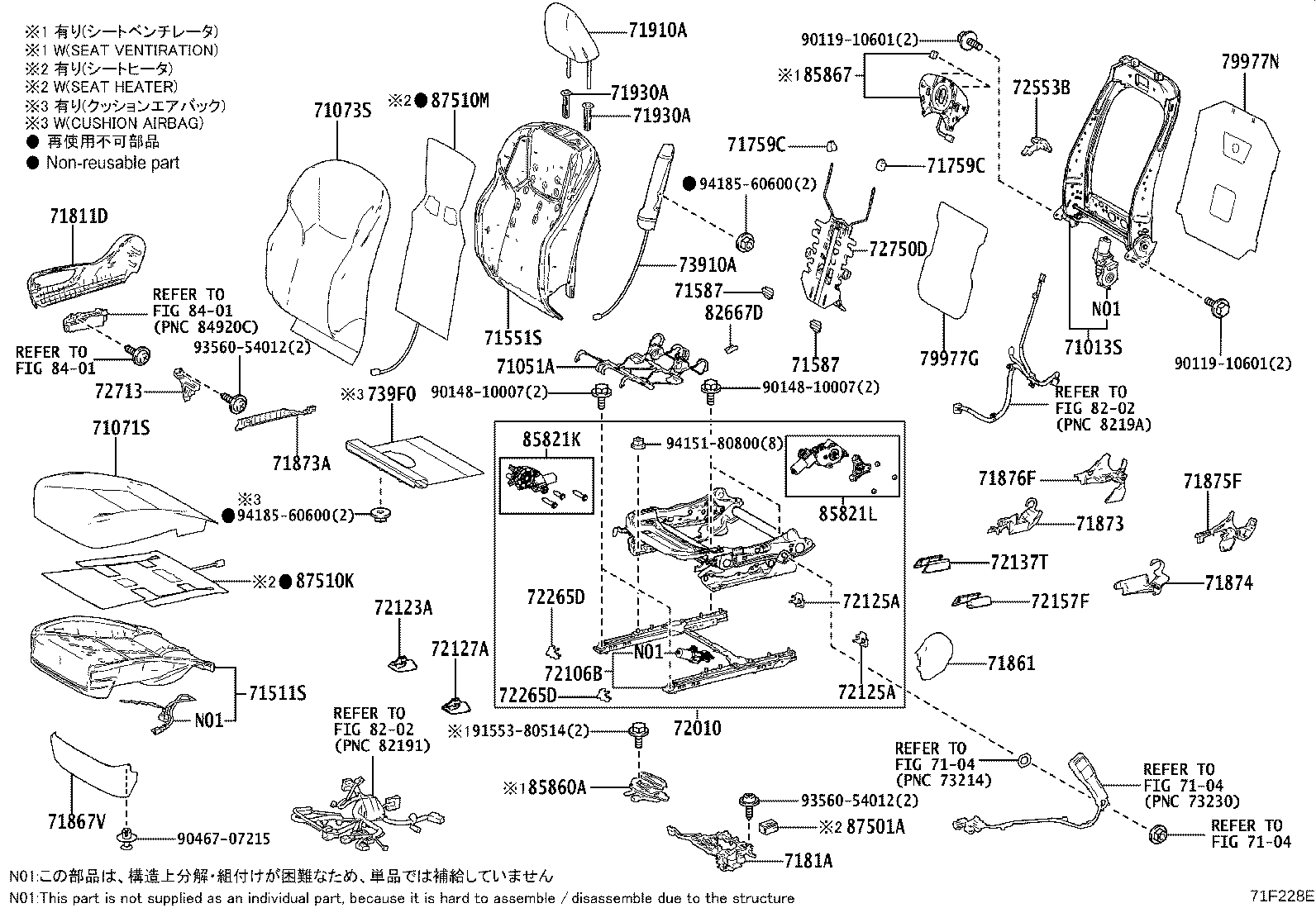

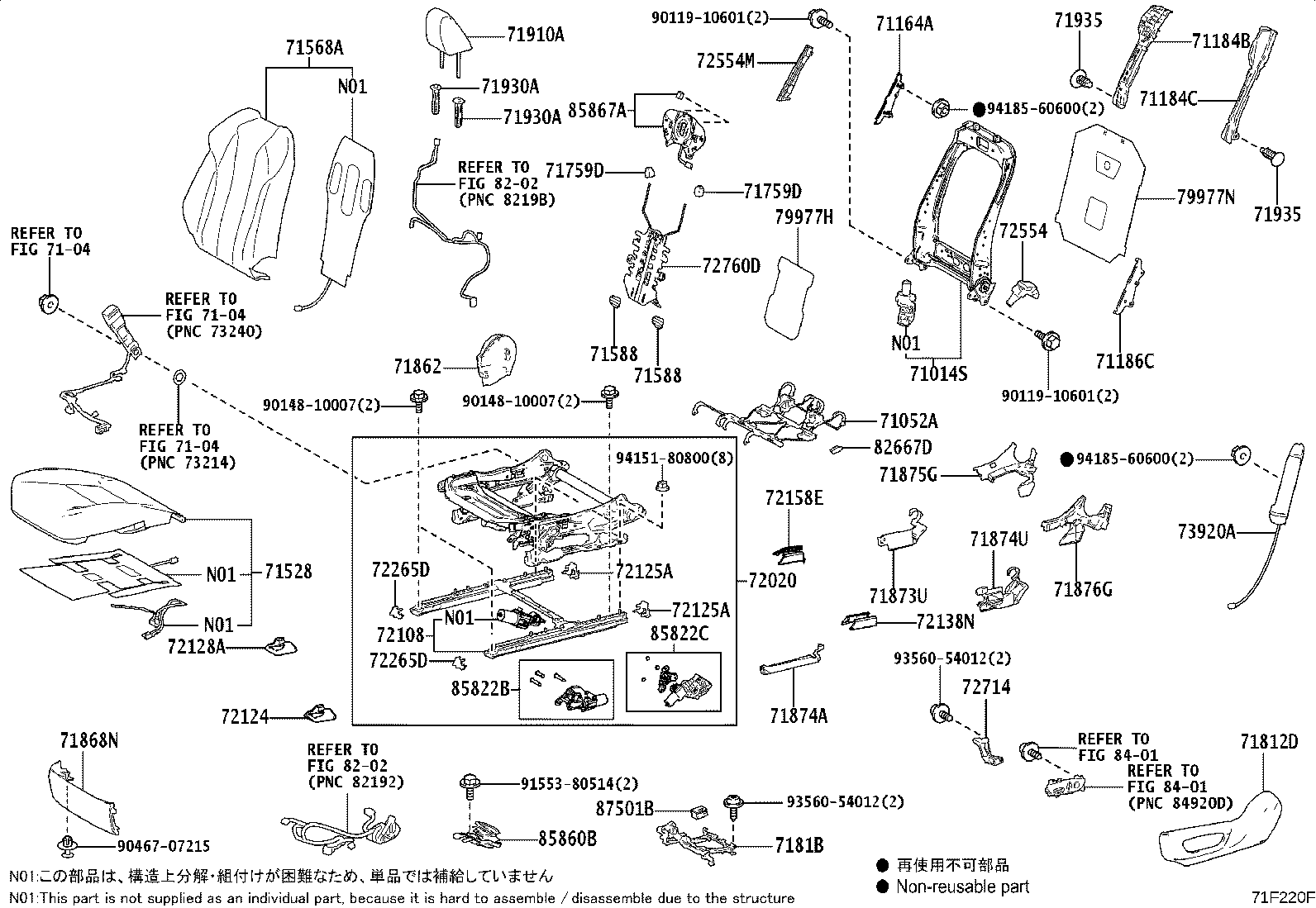

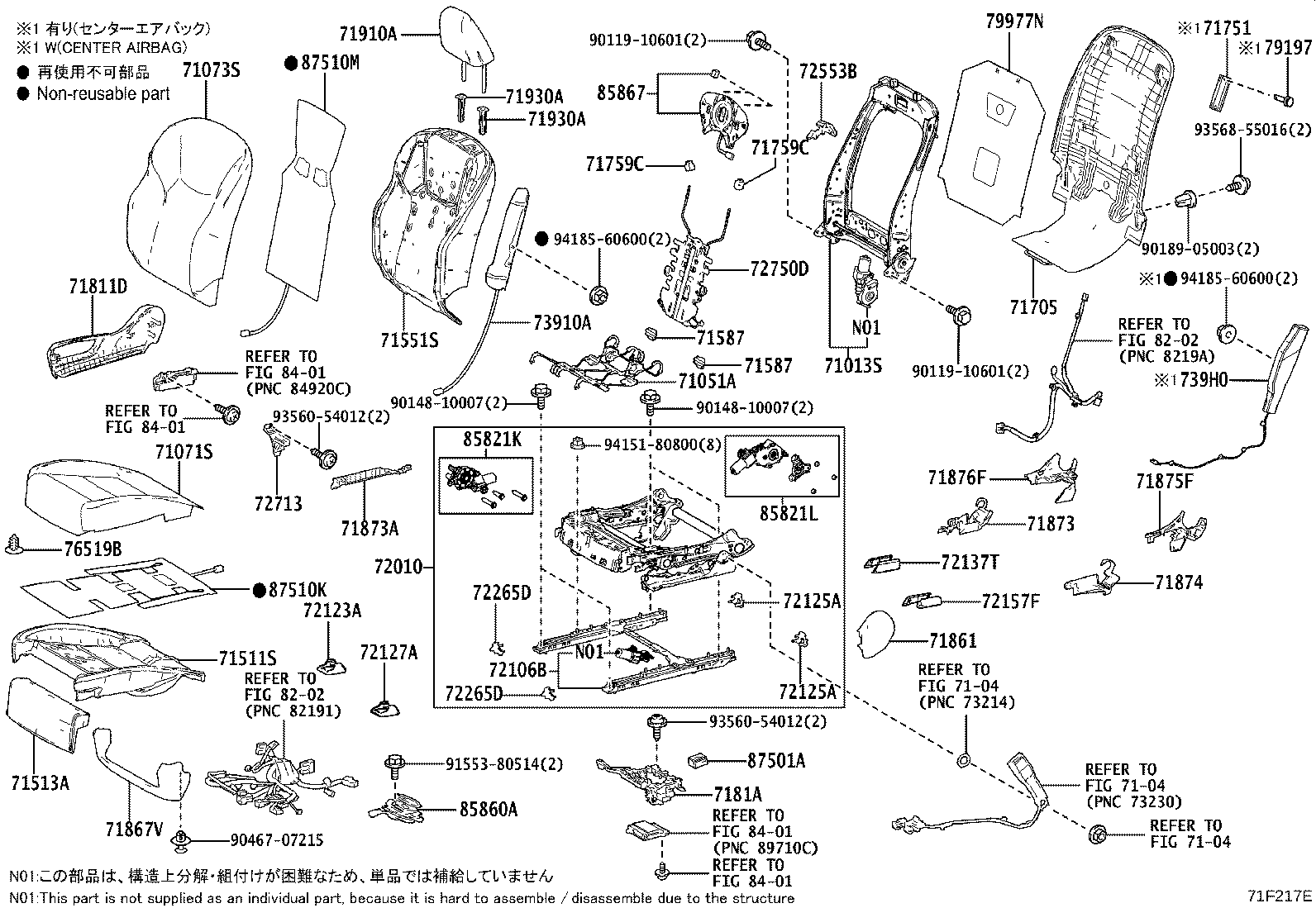

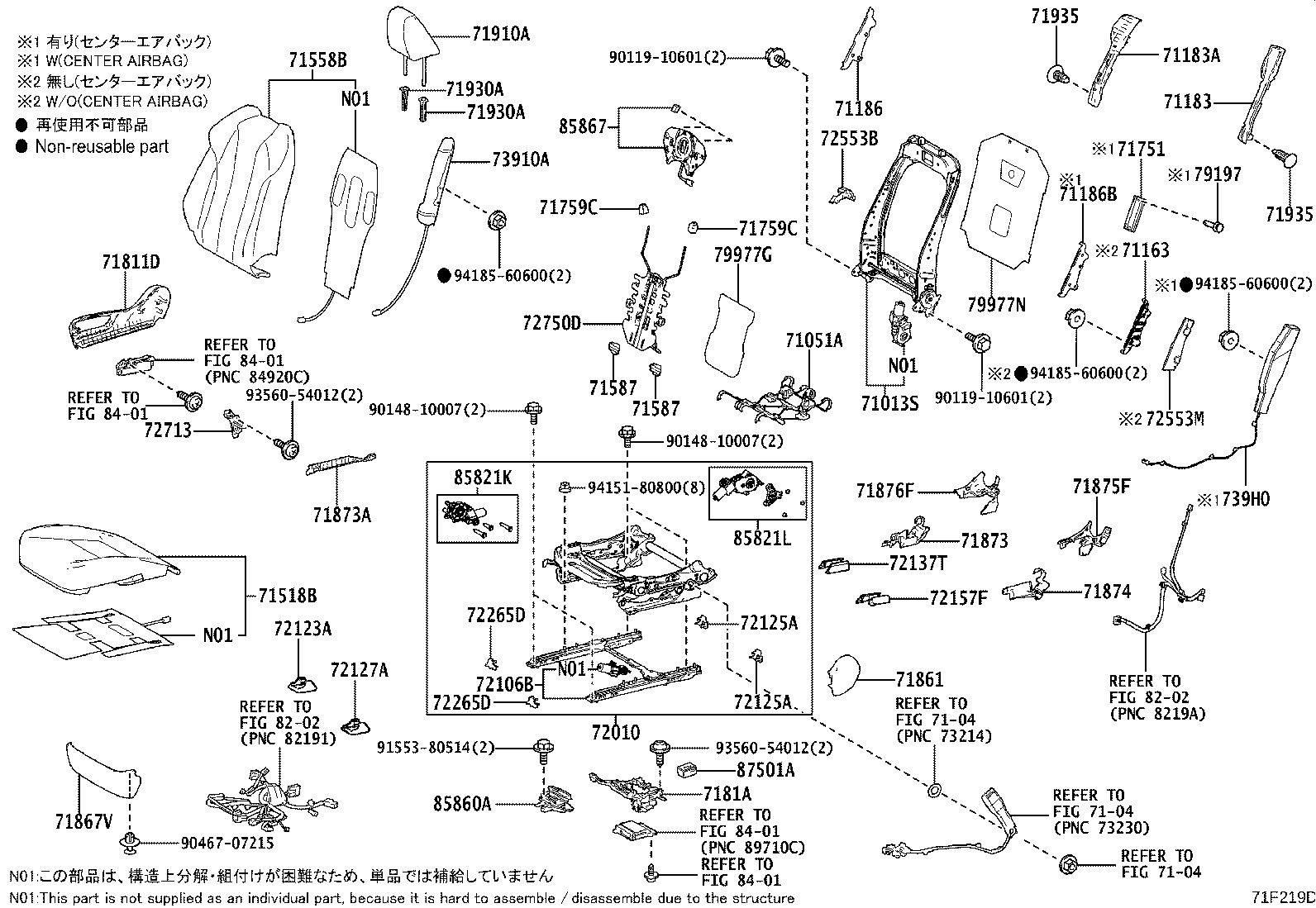

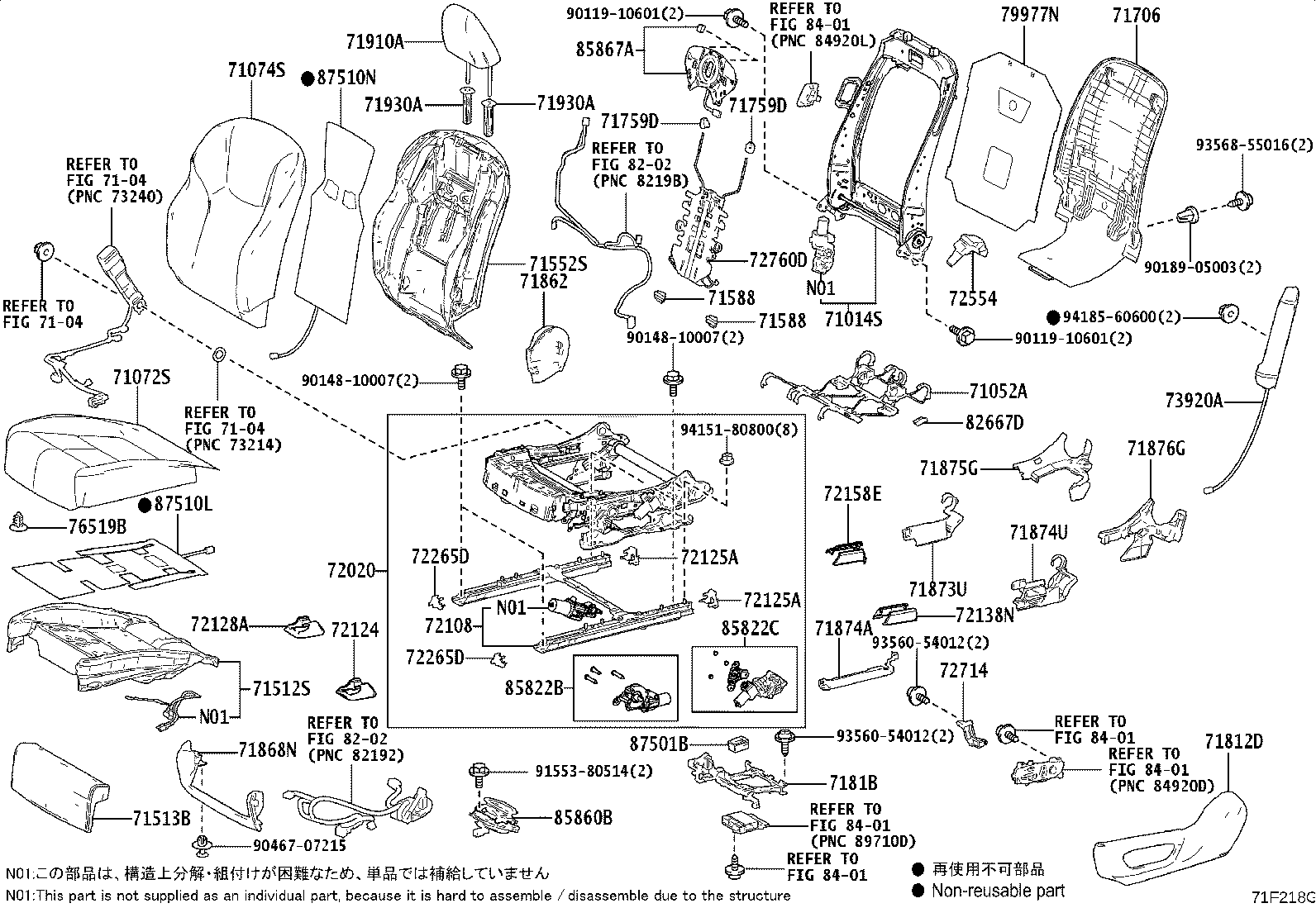

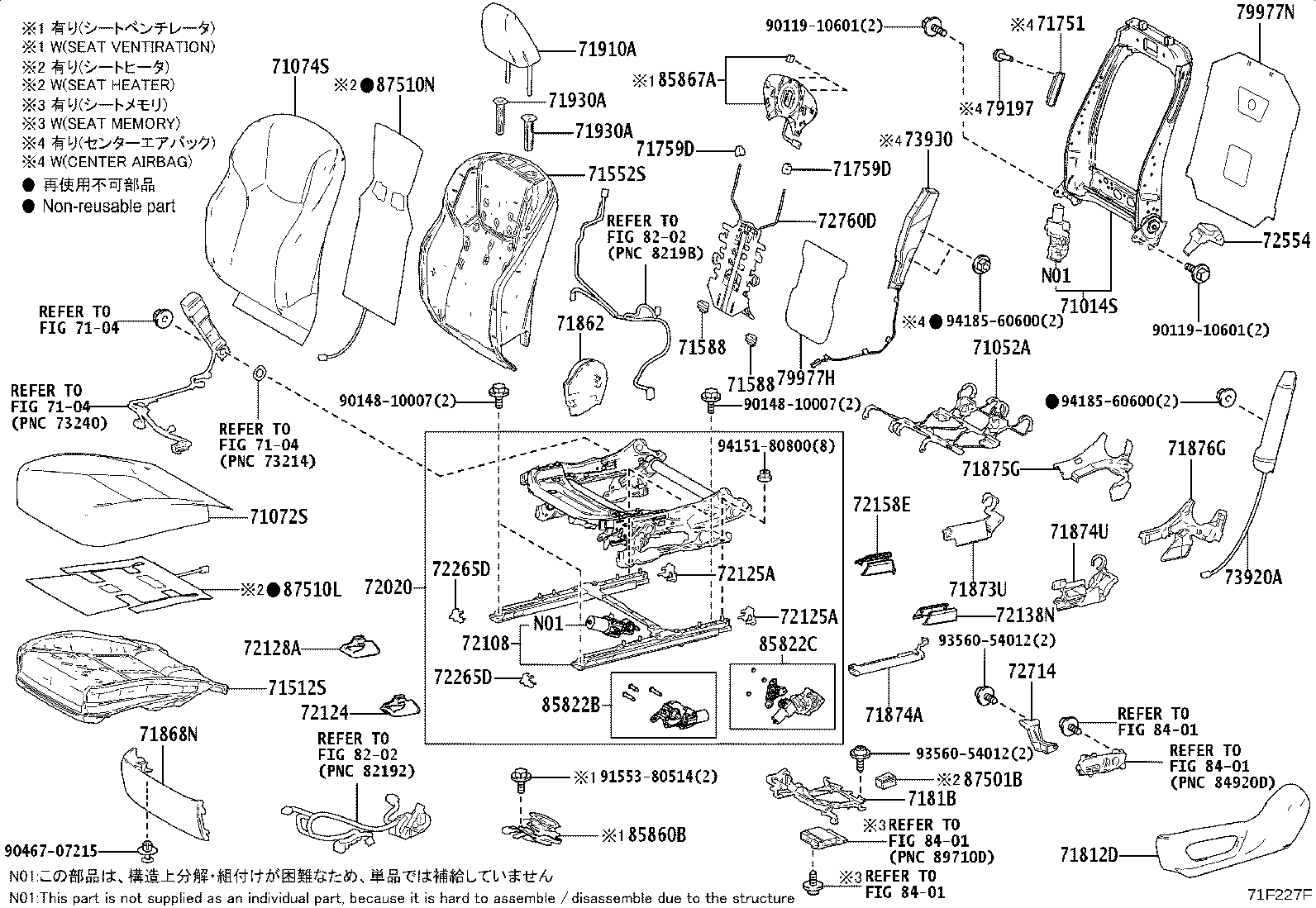

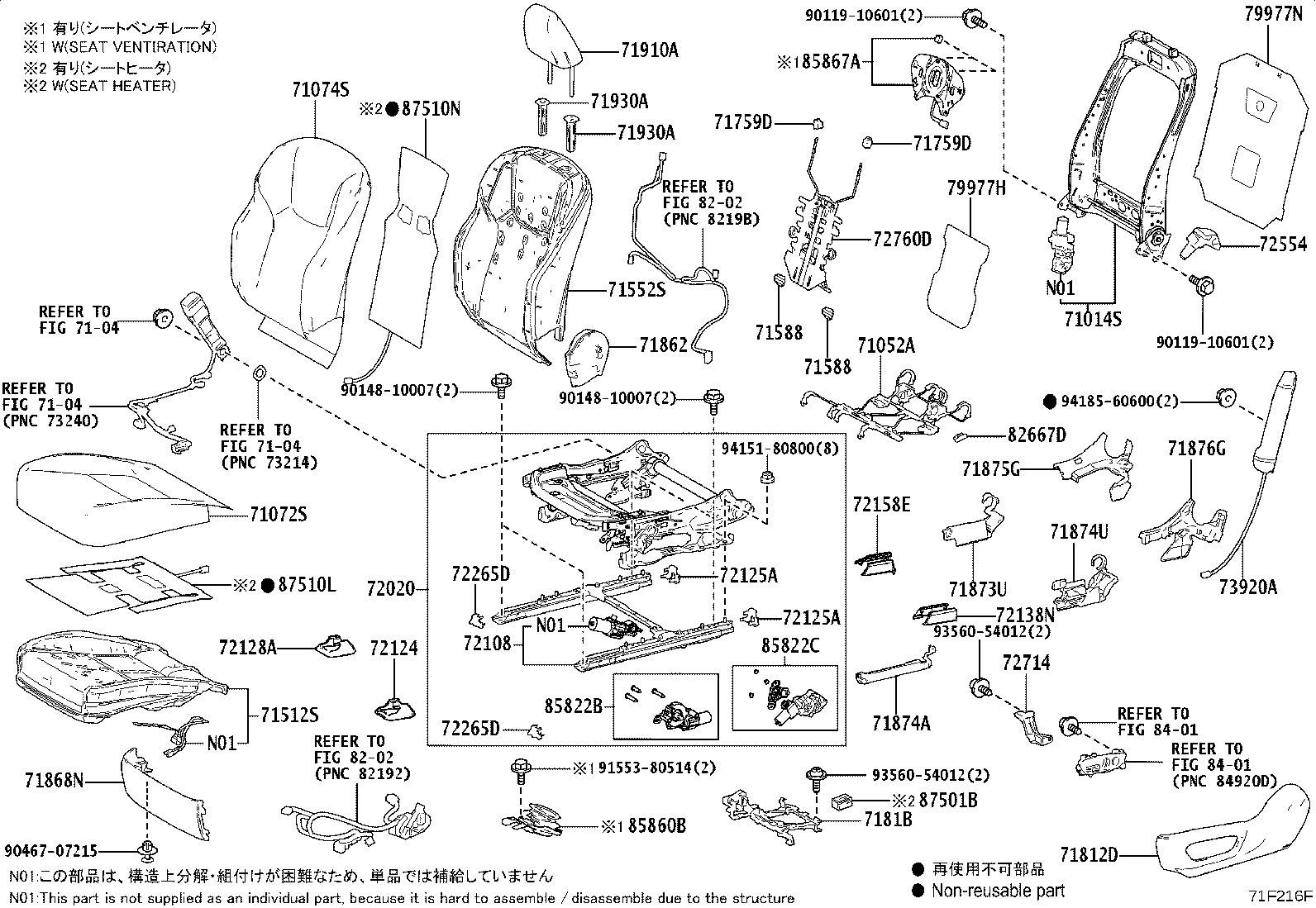

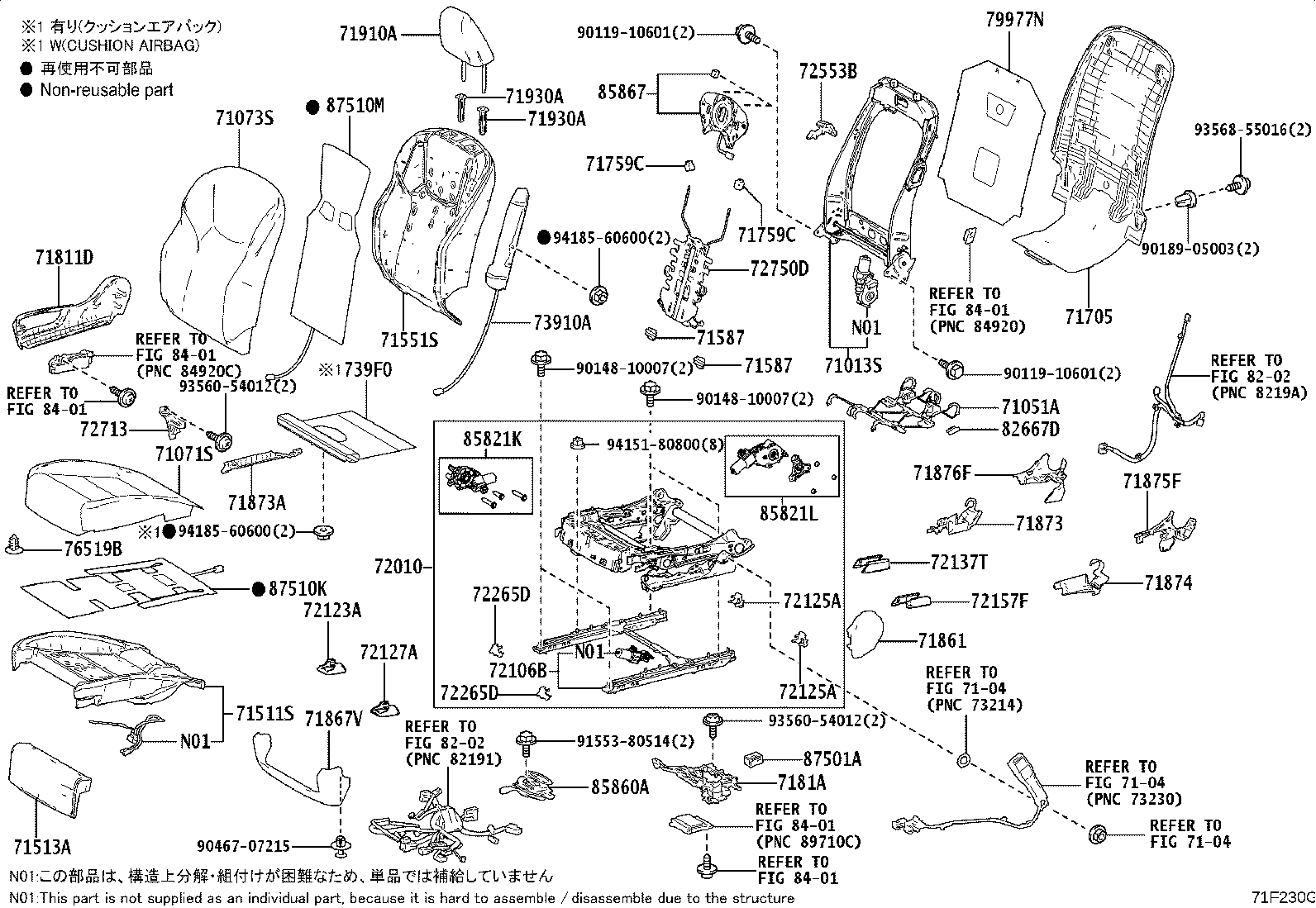

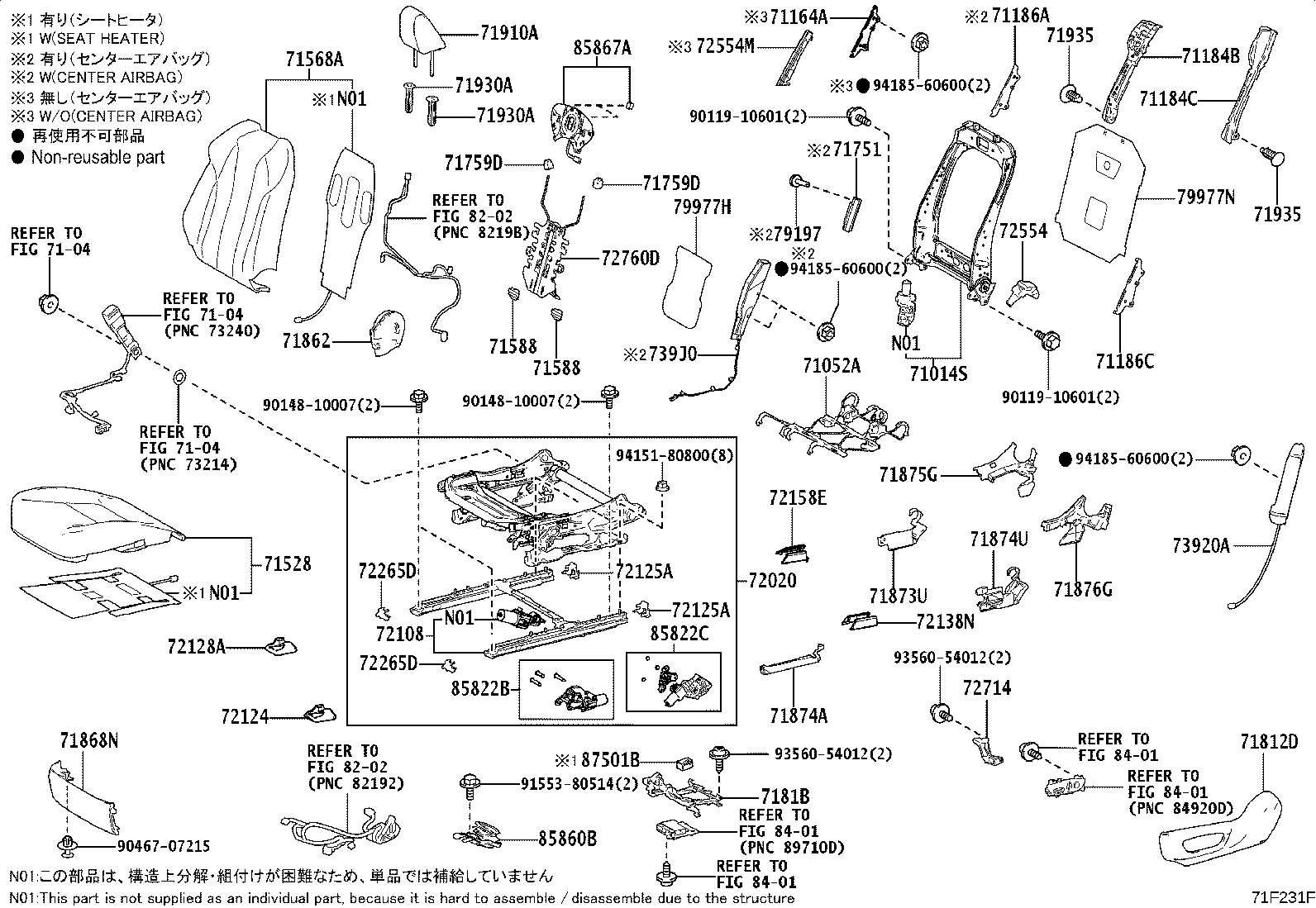

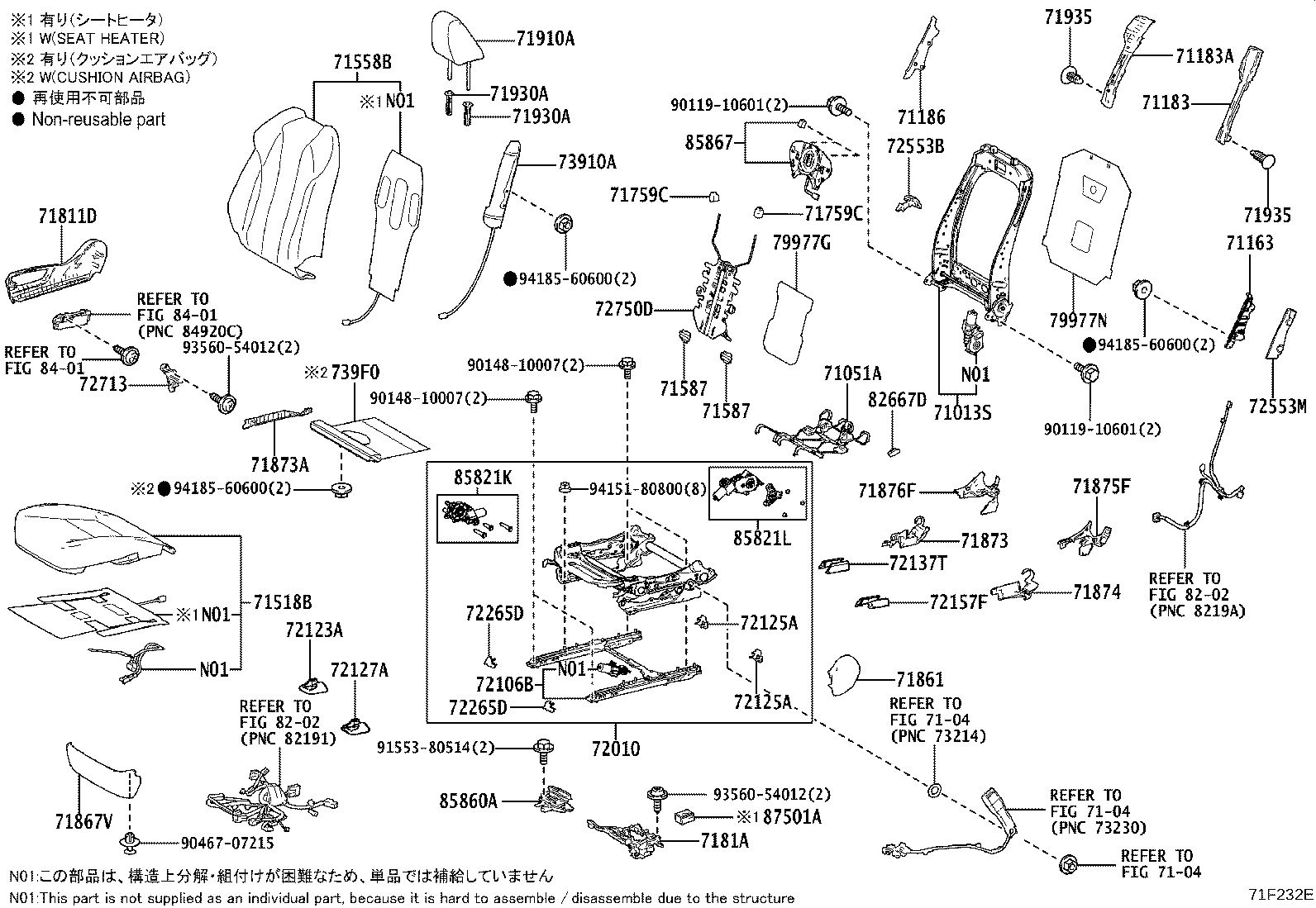

Figure 71F215E 71F215E 2022-11 → — Figure 71F216F 71F216F 2022-11 → — Figure 71F217E 71F217E 2022-11 → — Figure 71F218G 71F218G 2022-11 → — Figure 71F219E 71F219E 2022-11 → — Figure 71F220F 71F220F 2022-11 → — Figure 71F227F 71F227F 2022-11 → — Figure 71F228E 71F228E 2022-11 → — Figure 71F229F 71F229F 2022-11 → — Figure 71F230G 71F230G 2022-11 → — Figure 71F231F 71F231F 2022-11 → — Figure 71F232E 71F232E 2022-11 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71163 Bracket, Front Seatback Support, RH
71164A Bracket, Front Seatback Support, LH
71183 Support, Front Seatback, RH
71183A Support, Front Seatback, RH NO.2
71184B Support, Front Seatback, LH
71184C Support, Front Seatback, LH NO.2
71186 Bracket, Front Seat Side Support, RH
71186A Bracket, Front Seat Side Support, LH
71186B Bracket, Front Seat Side Support, RH, NO.2
71186C Bracket, Front Seat Side Support, LH, NO.2
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71513A Pad, Front Seat Cushion, A
71513B Pad, Front Seat Cushion, B
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71751 Hanger, Seat Cover
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71935 Clip
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72106B Rail Sub-assy, Seat Track, Upper RH
72108 Rail Sub-assy, Seat Track, Upper LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72265D Cover, Seat Track Upper Rail
72553B Protector, Reclining Cover, RH
72553M Protector, Reclining Cover, RH, NO.2
72554 Protector, Reclining Cover, LH
72554M Protector, Reclining Cover, LH, NO.2
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
739F0 Airbag Assy, Front Seat Cushion, RH
739H0 Airbag Assy, Front Seat Center, RH
739J0 Airbag Assy, Front Seat Center, LH
76519B Clip, Front Seat Cushion Cover
79197 Hook, Seatback Cover
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
79977N Felt, Seatback
82667D Holder, Connector
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
