Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

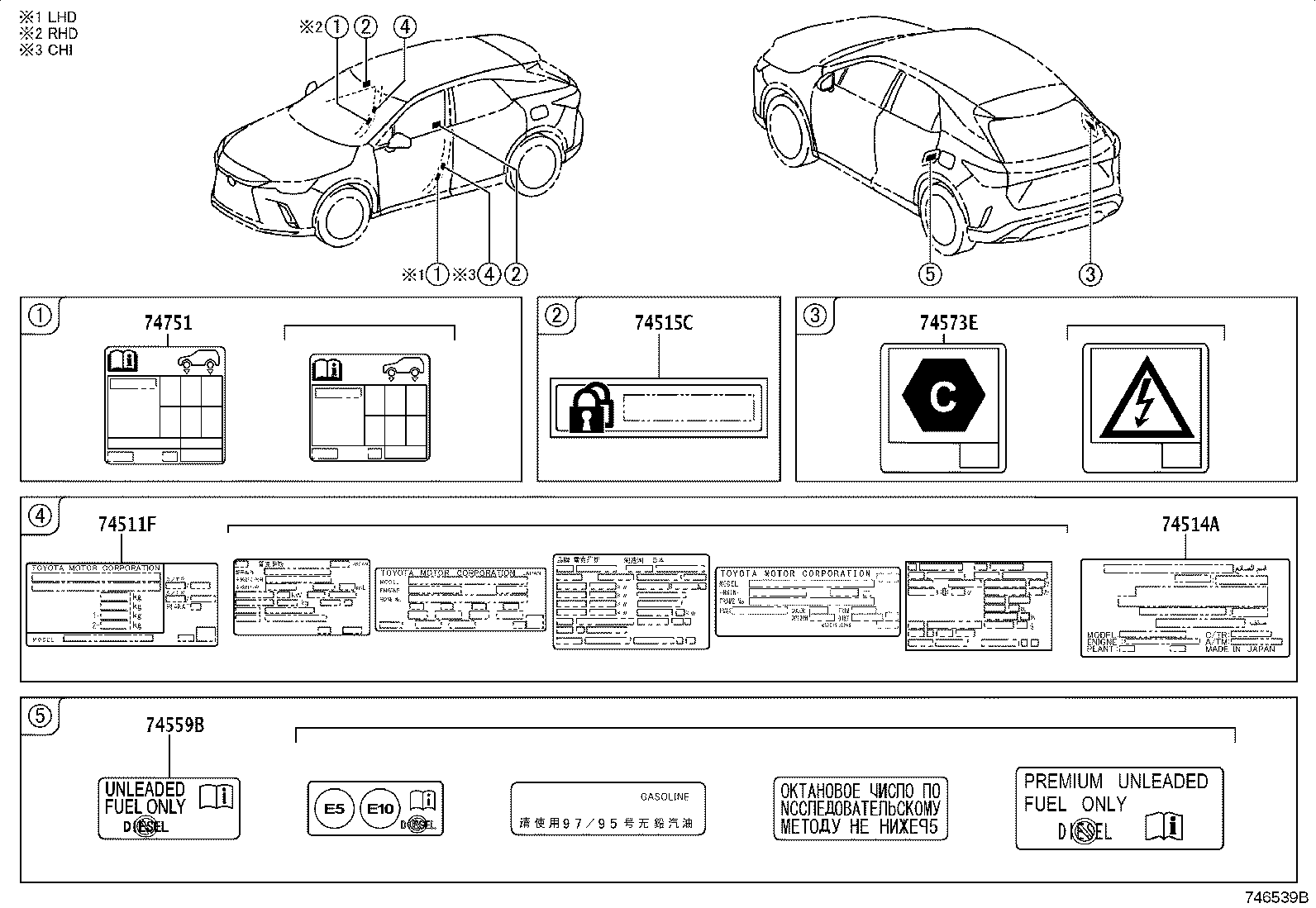

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11298B | Label, Emission Control Information |
| 28897B | Label, Battery Caution, NO.1 |
| 288A2 | Label, Battery Location |
| 47288 | Label, Brake Fluid Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74514A | Label, Certification Regulation Information |
| 74515C | Label, Theft Warning Information |
| 74528J | Label, Power Back Door Caution |
| 7452A | Label, Shift Control Information |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74543P | Label, Rear Seat Caution |
| 74558B | Label, Battery Inspection Information |
| 74559B | Label, Fuel Information |
| 74573E | Label, Electric Vehicle Battery Caution, NO.2 |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 88733A | Label, Cooler Service Information |
| G9118E | Label, Electric Vehicle Unit Controller Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
