Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10

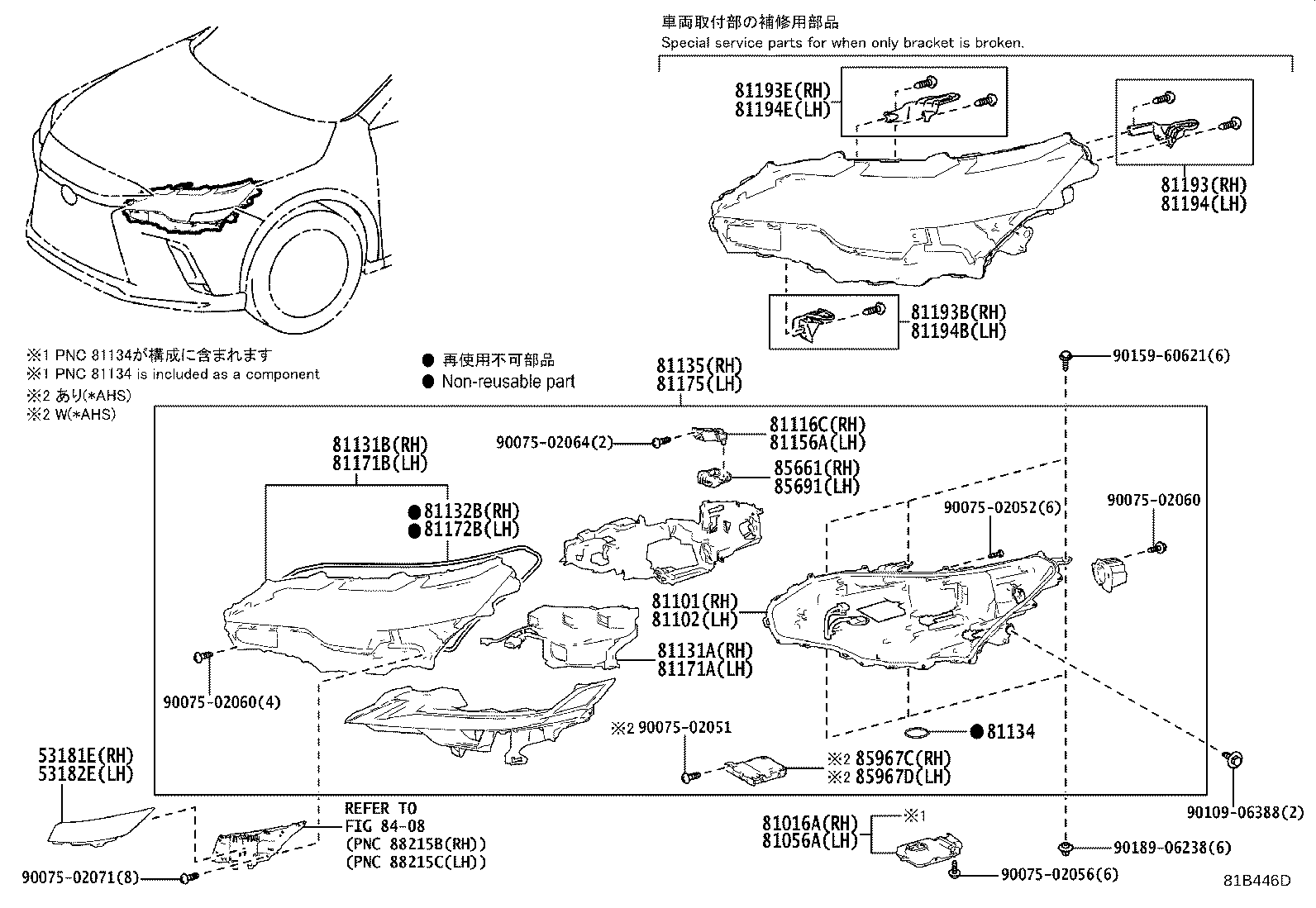

Headlamp
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 81116C | Bracket, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 8112B | Unit, Headlamp Clearance Led, NO.2 RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81156A | Bracket, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 8116B | Unit, Headlamp Clearance Led, NO.2 LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81172B | Gasket, Headlamp Lens |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193E | Retainer, Headlamp Protector, Upper RH NO.3 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194E | Retainer, Headlamp Protector, Upper LH NO.3 |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
