Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

29 part groups · 5 illustrations

Illustrations

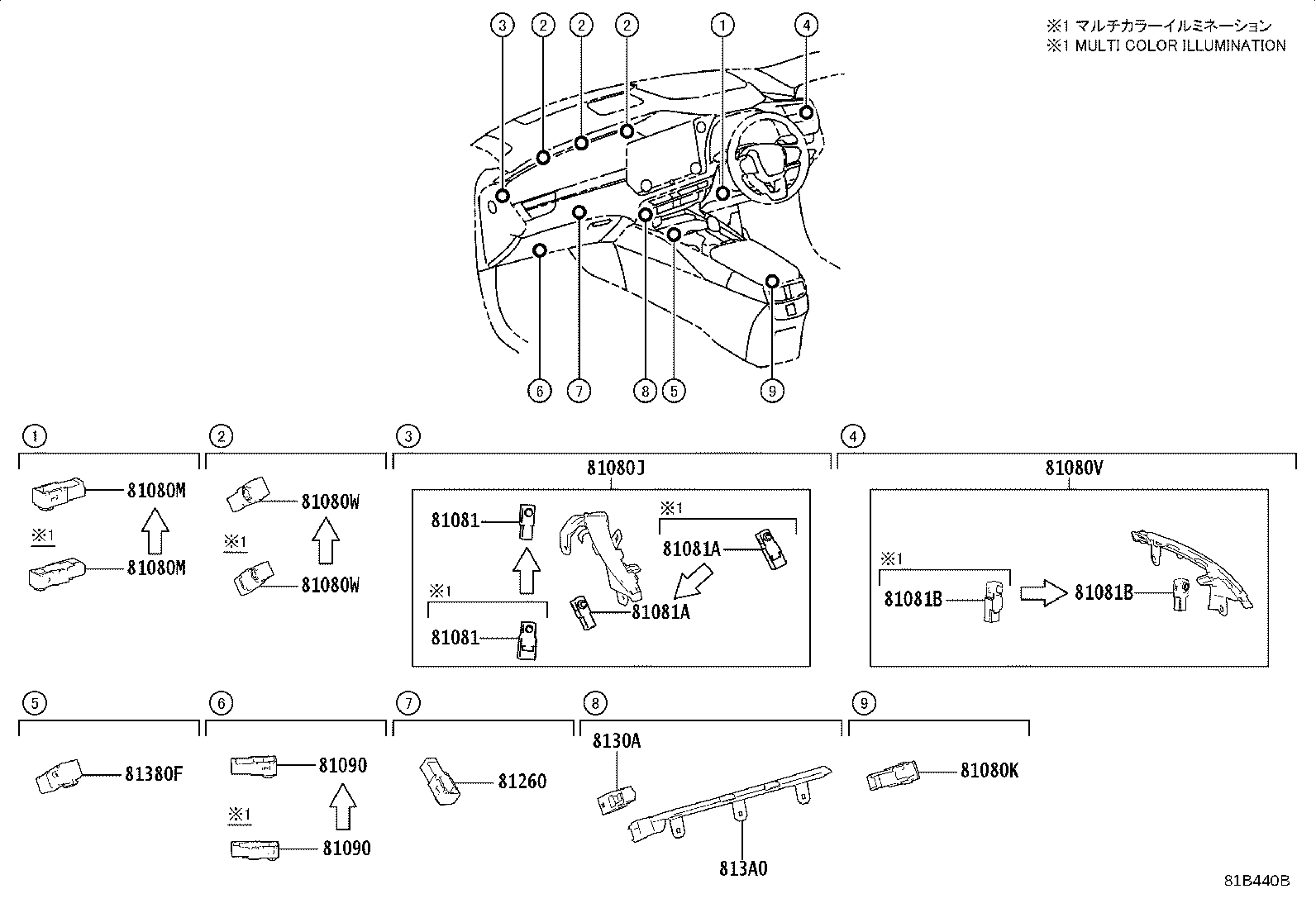

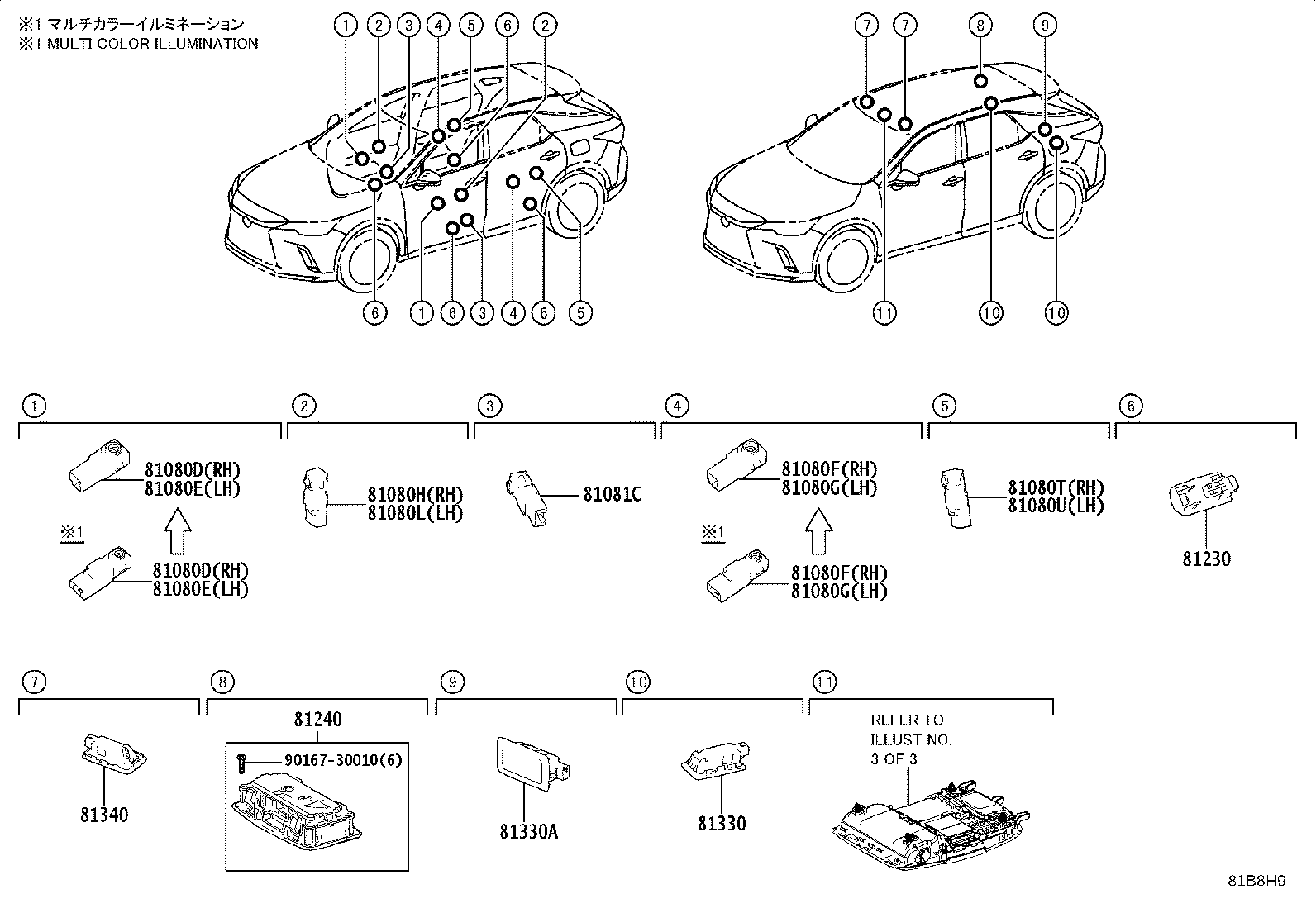

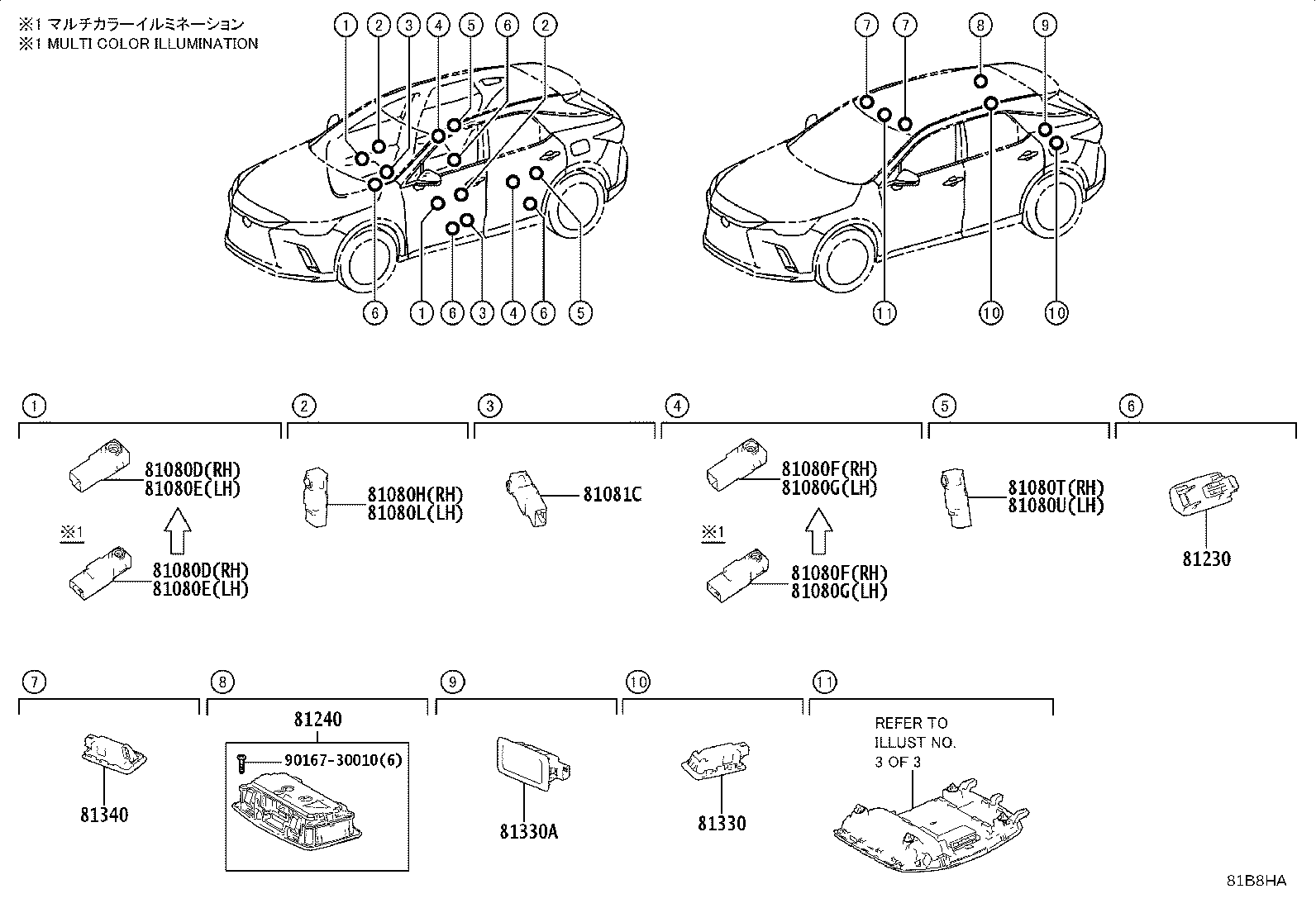

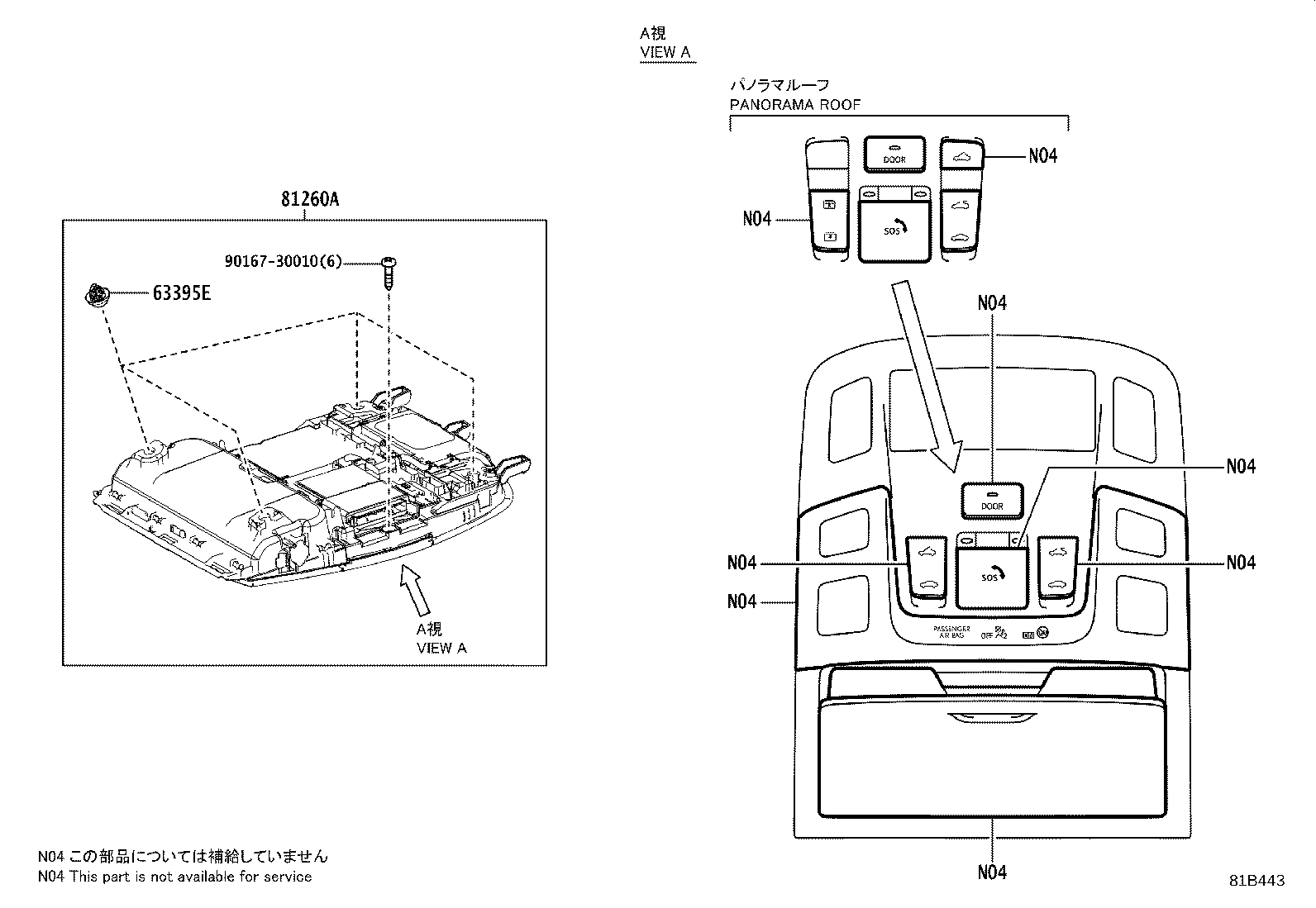

Figure 81B441B 81B441B 2022-11 → — Figure 81B440B 81B440B 2022-11 → — Figure 81B8HA 81B8HA 2022-11 → — Figure 81B8H9 81B8H9 2022-11 → — Figure 81B443 81B443 2022-11 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81081 Lamp Sub-assy, Interior Illumination
81081A Lamp Sub-assy, Interior Illumination, NO.2
81081B Lamp Sub-assy, Interior Illumination, NO.3
81081C Lamp Sub-assy, Interior Illumination, NO.4
81090 Lamp Assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81240 Lamp Assy, Room, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
8130A Lamp Sub-assy, Instrument Panel, NO.1
81330 Lamp Assy, Luggage Compartment, NO.1
81330A Lamp Assy, Luggage Compartment, NO.2
81340 Lamp Assy, Vanity
81380F Lamp Assy, Console Box
813A0 Lamp Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
