Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

176 part groups · 21 illustrations

Illustrations

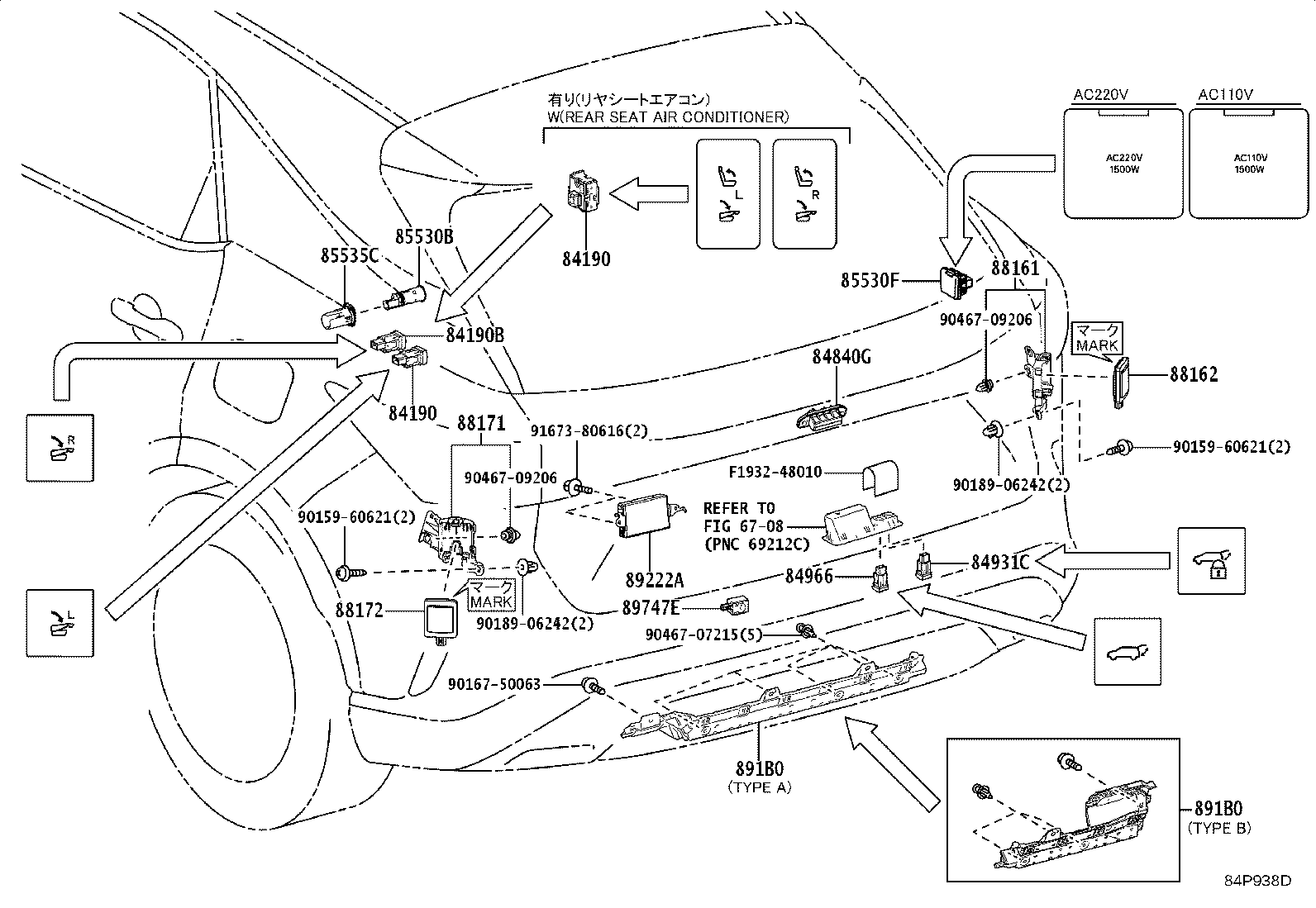

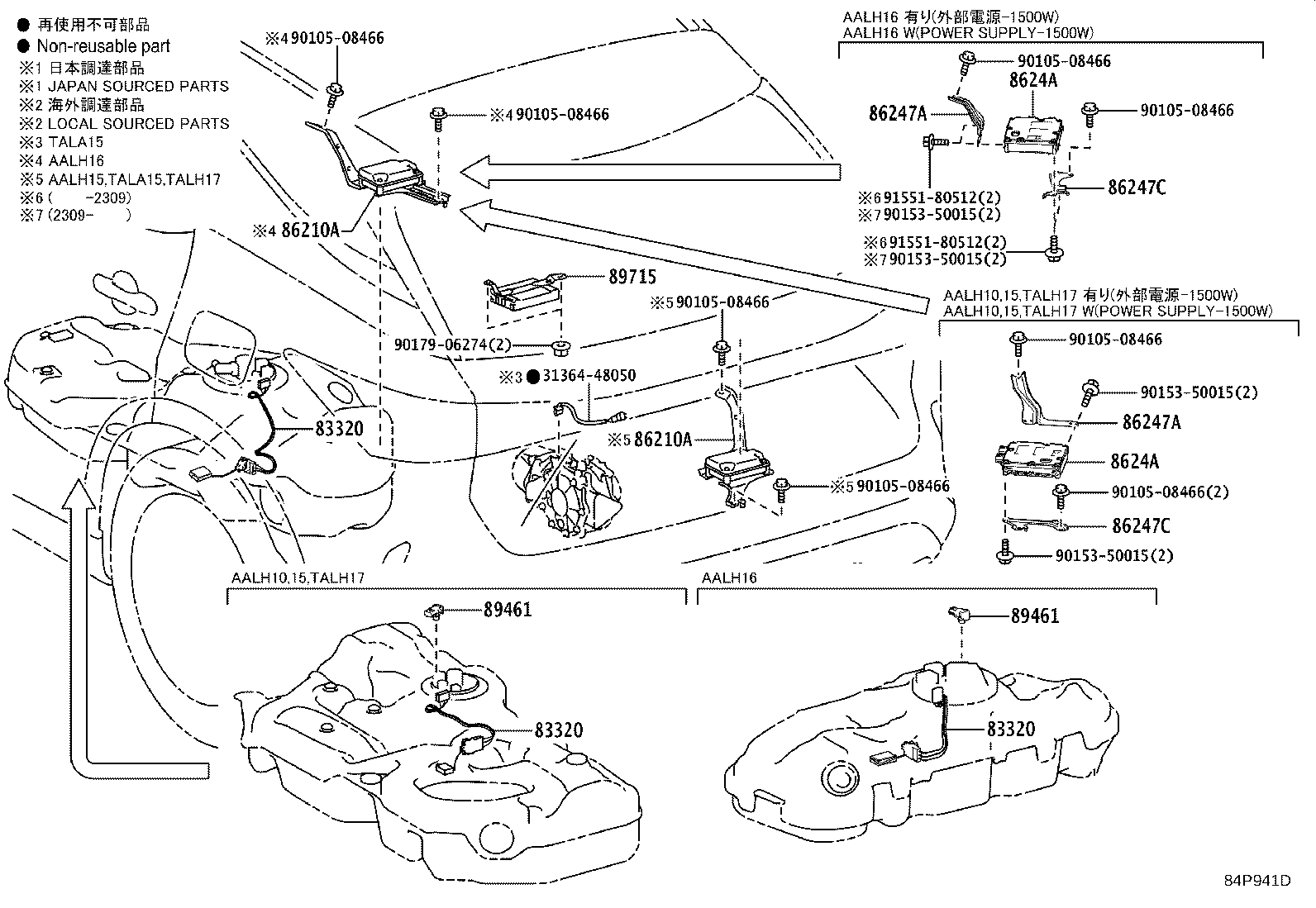

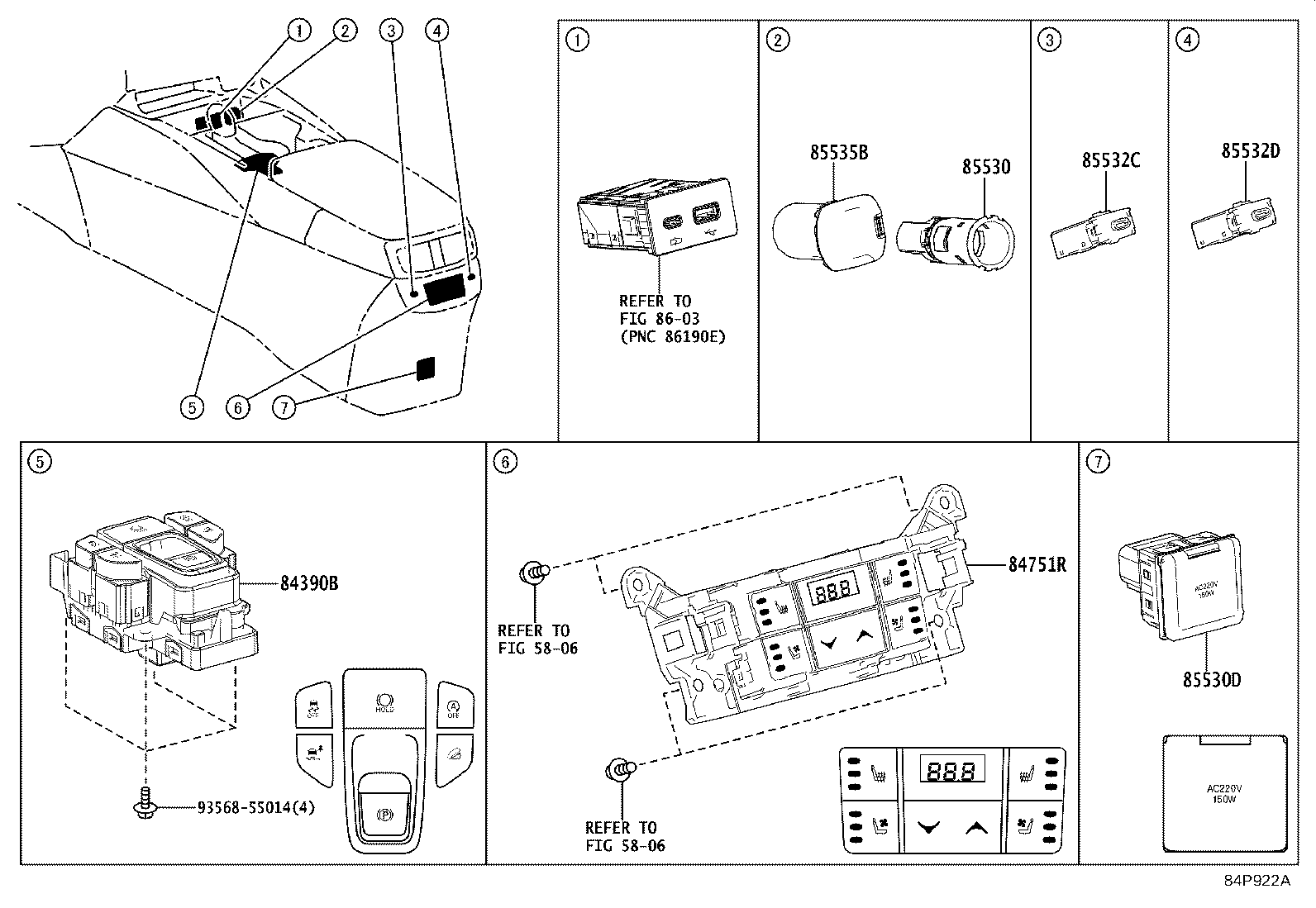

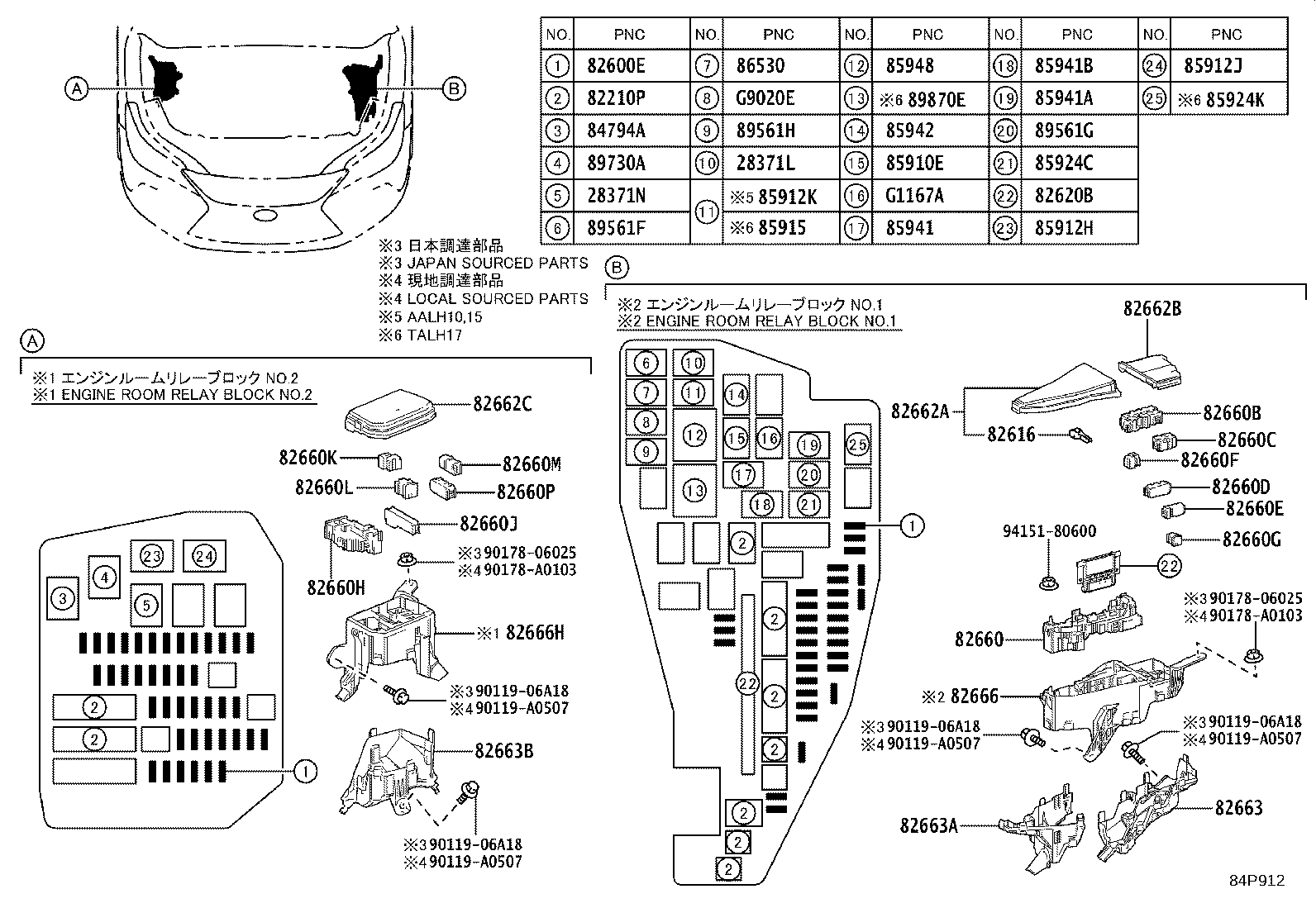

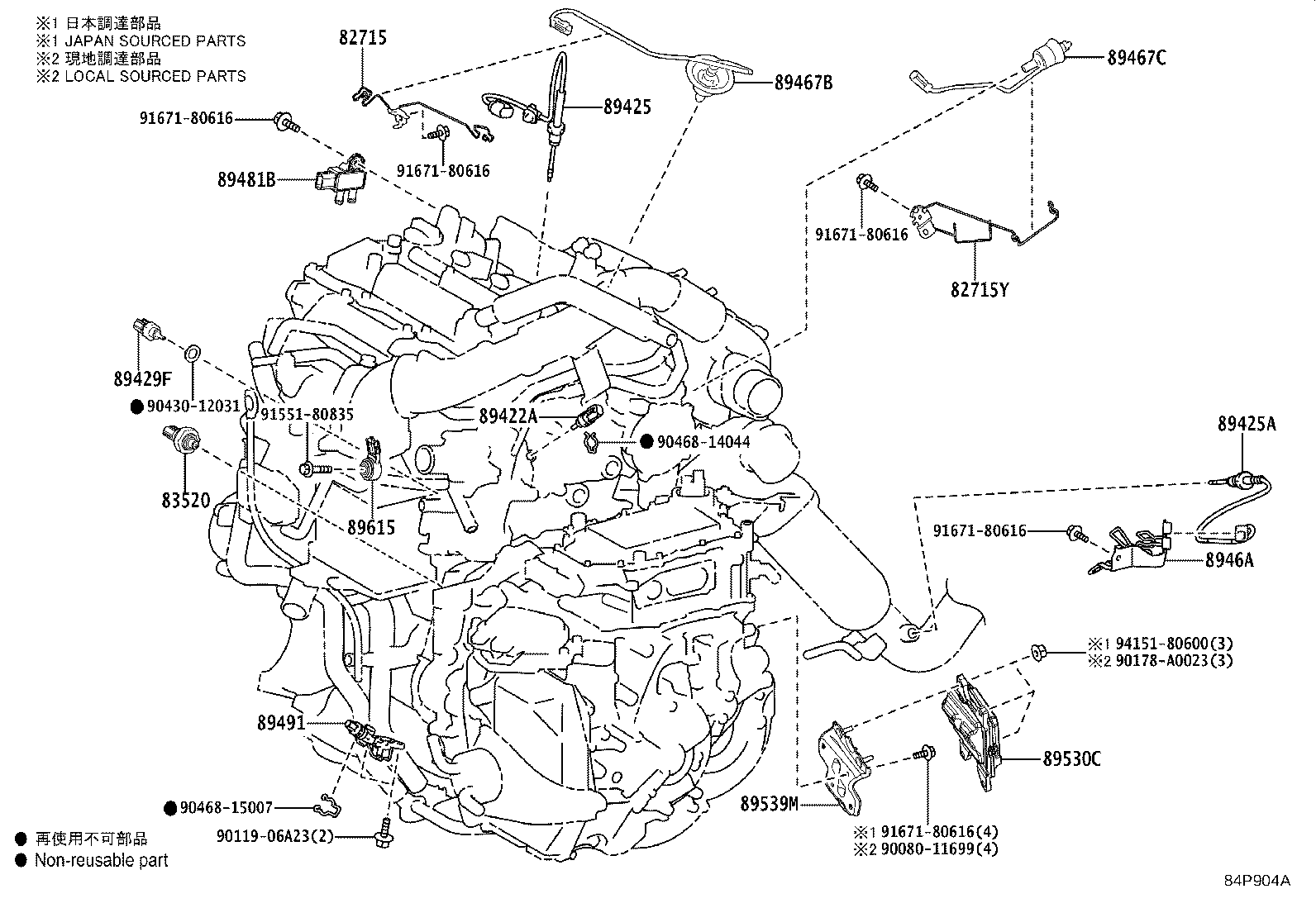

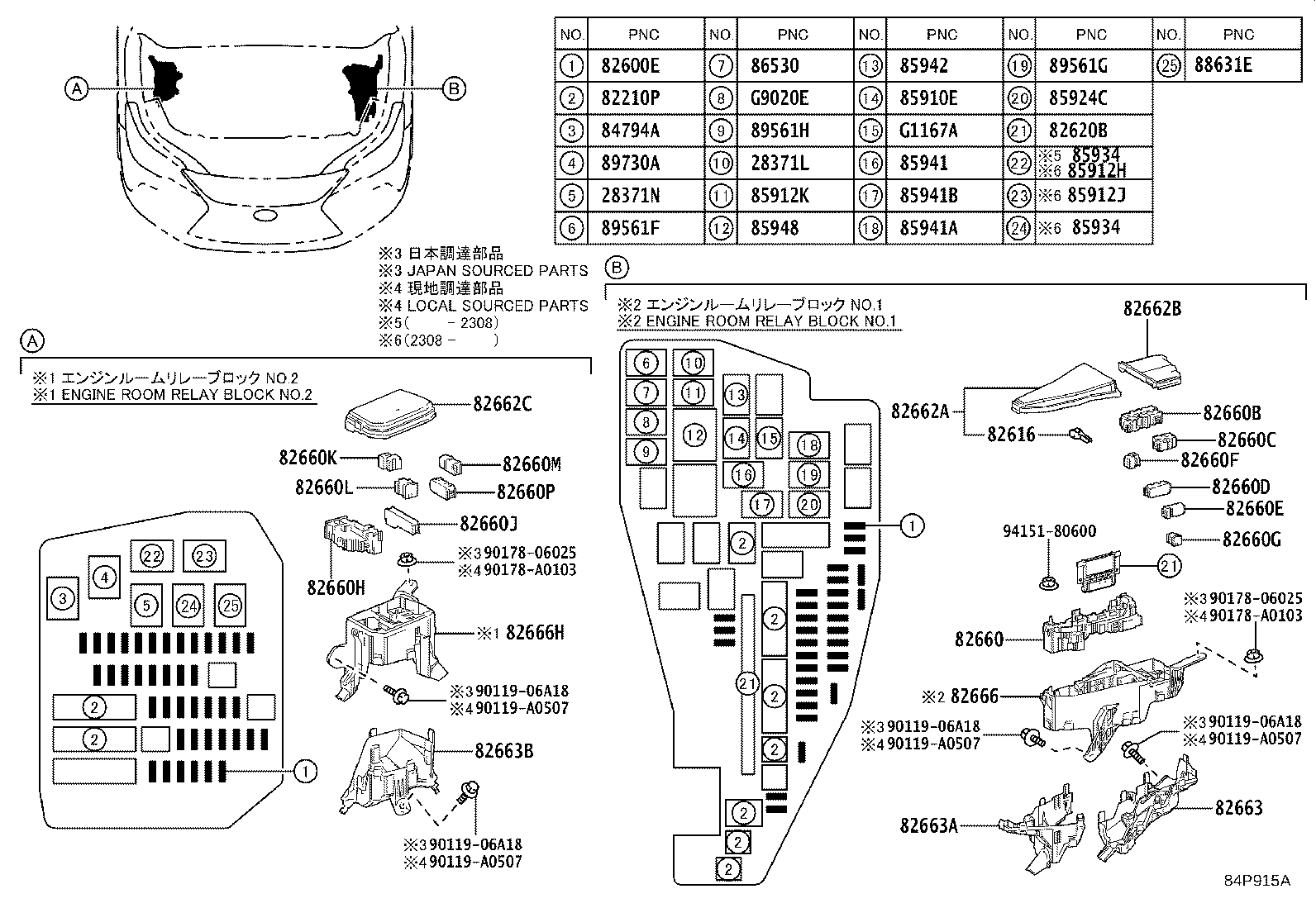

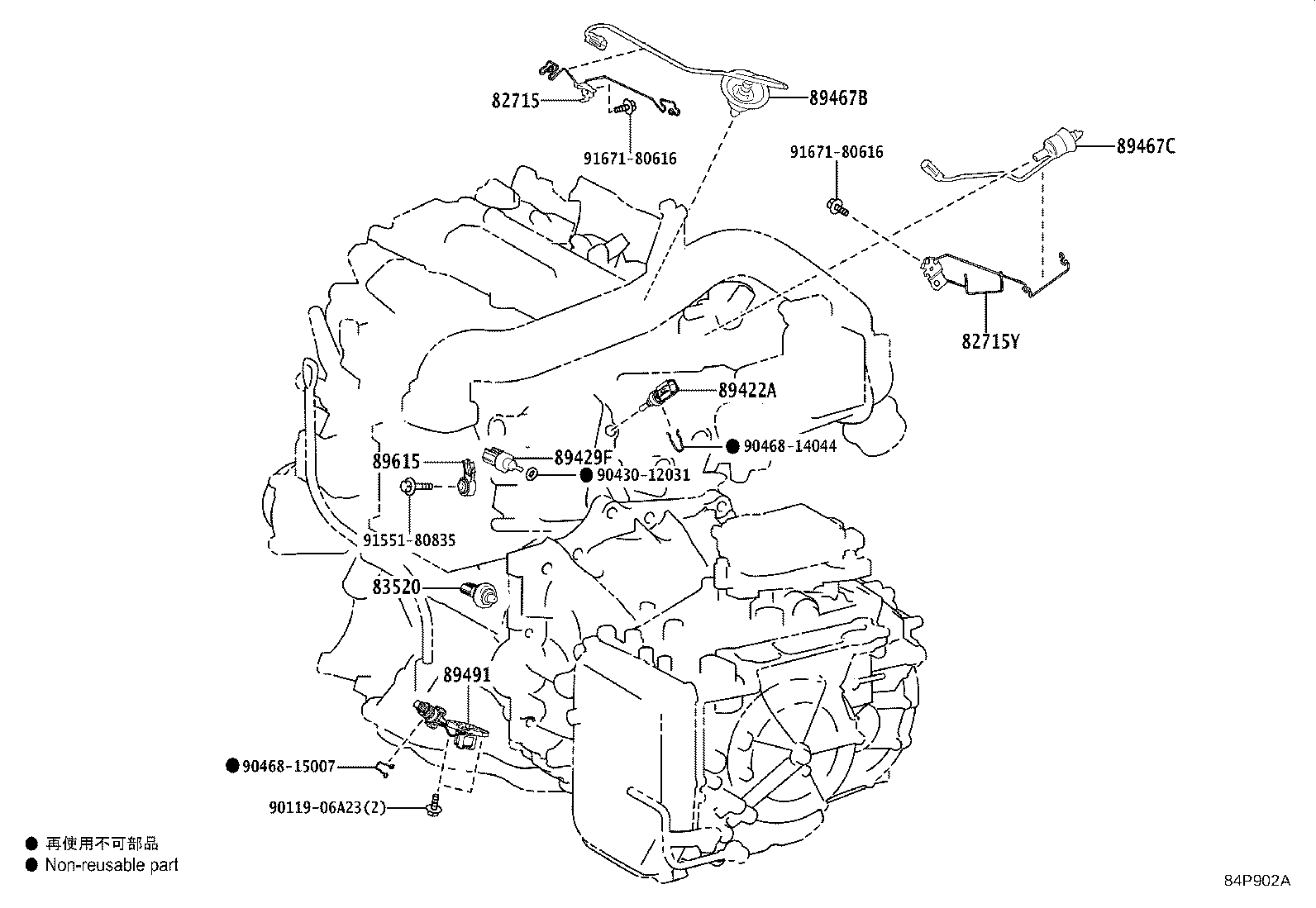

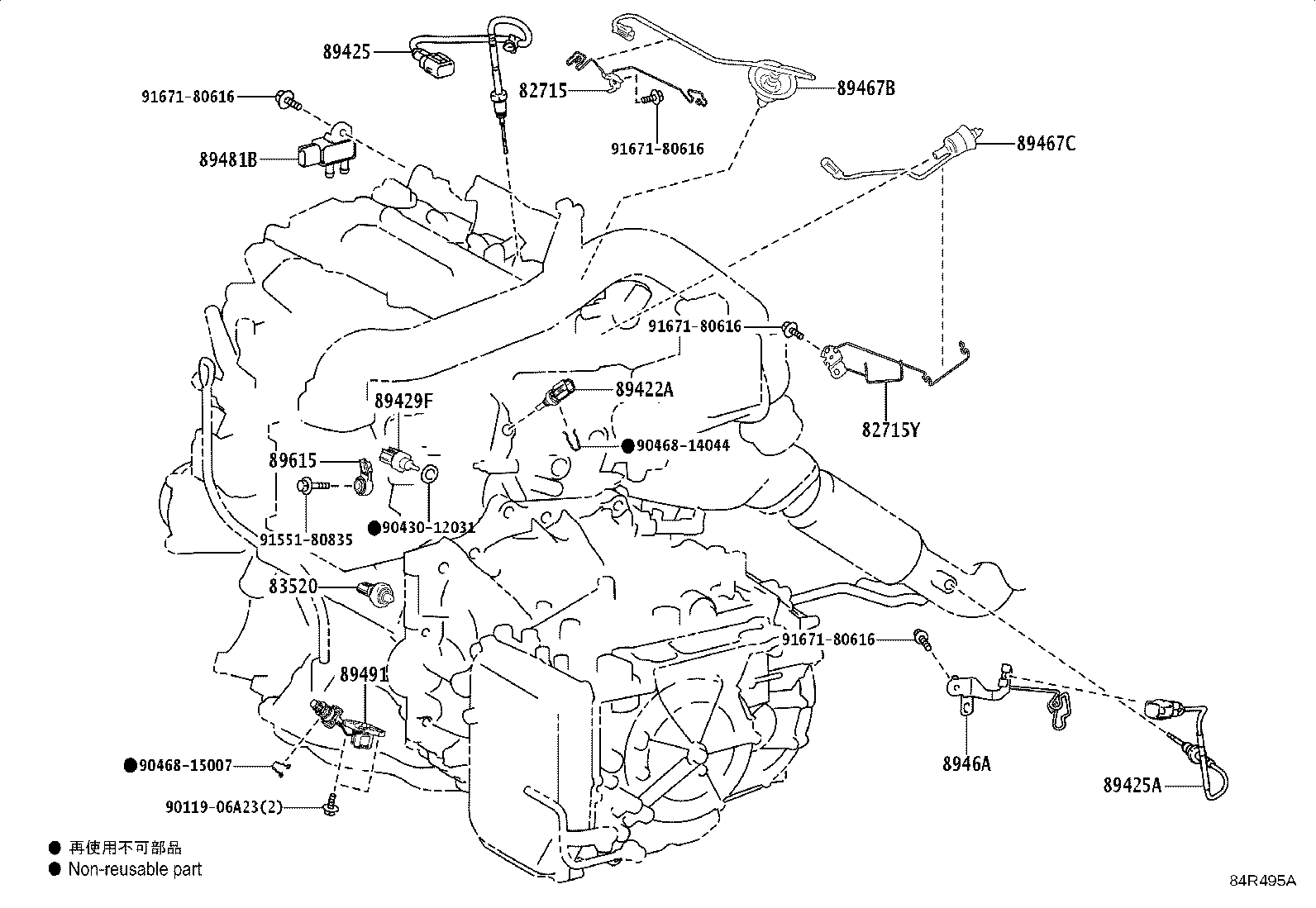

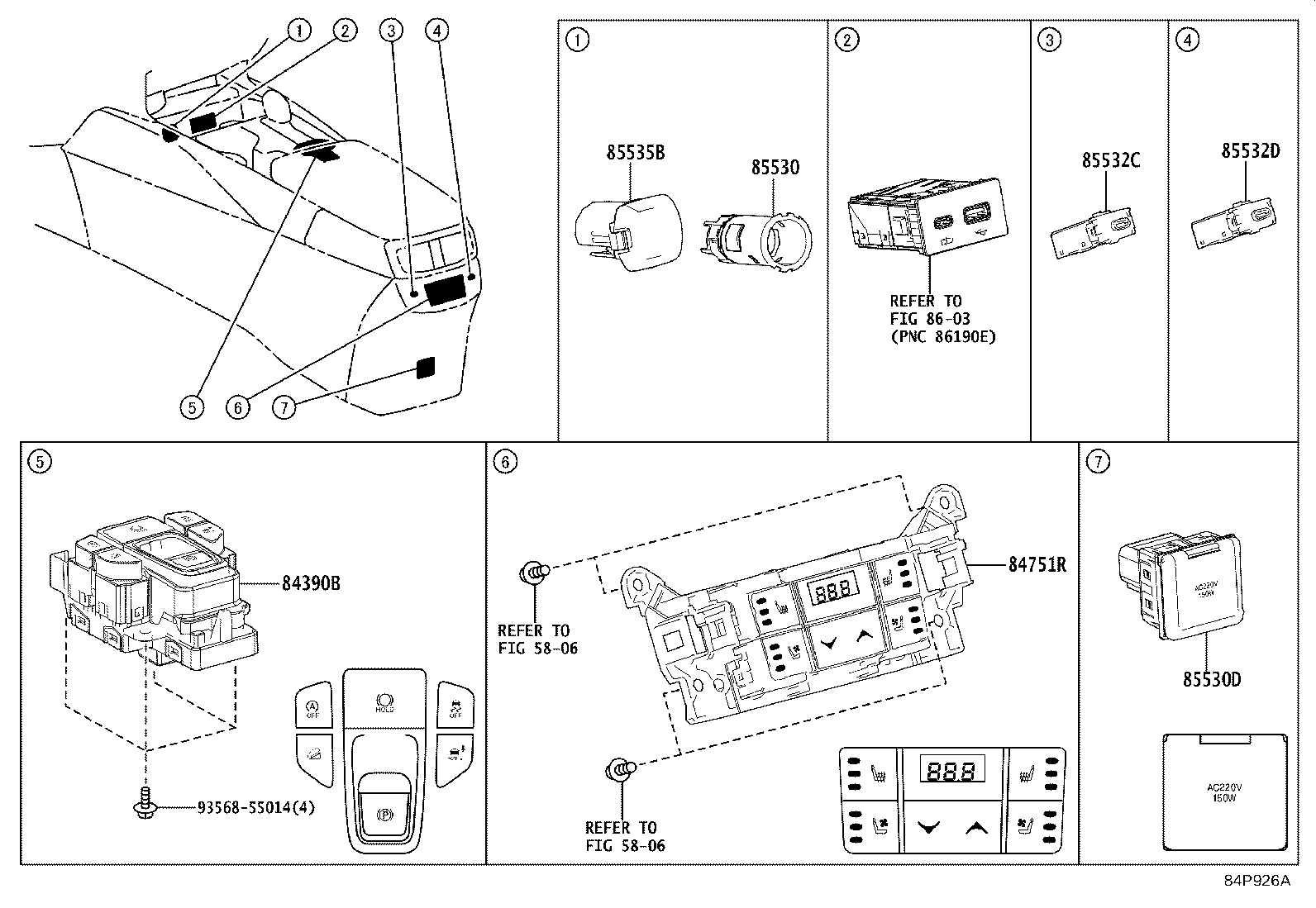

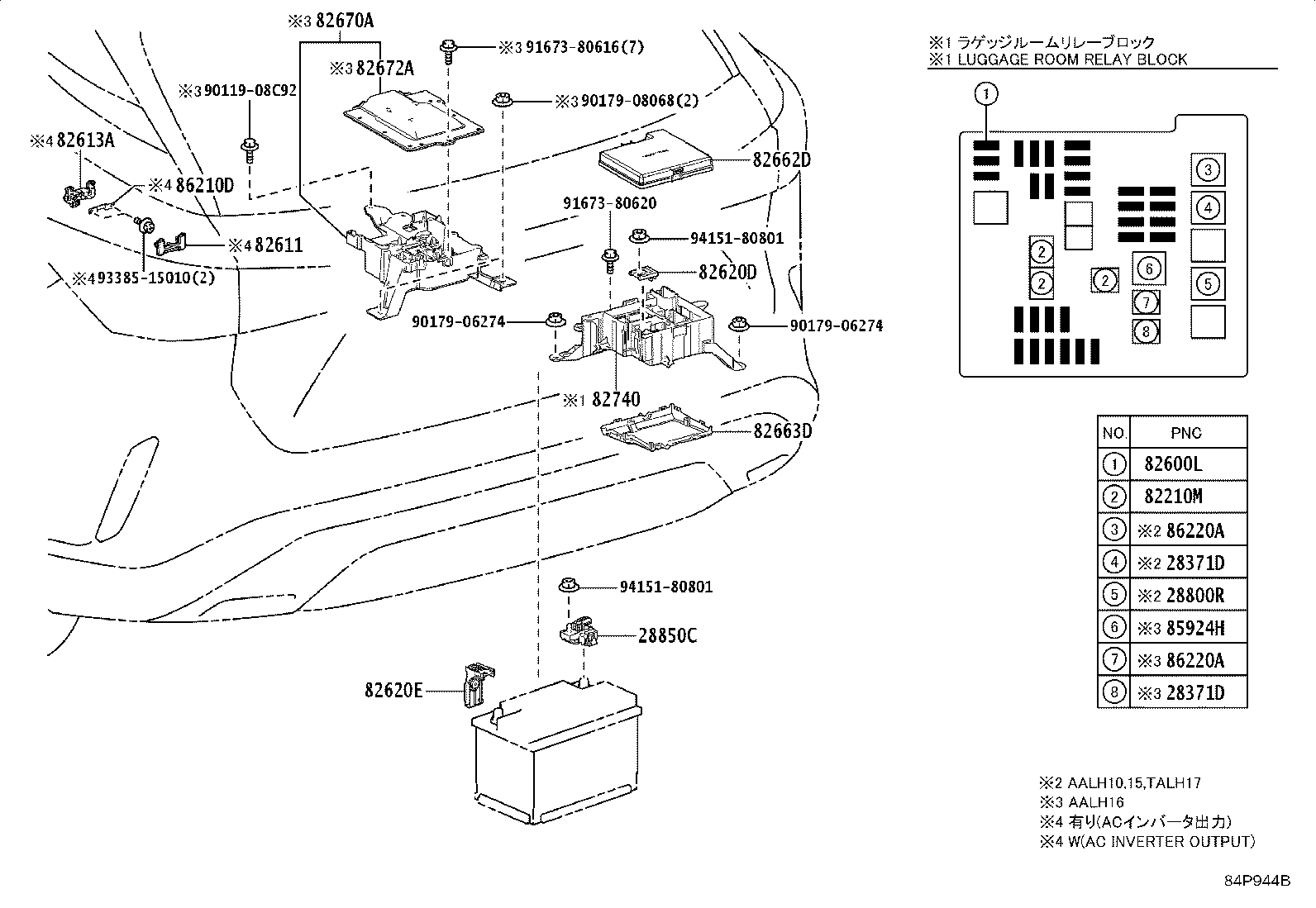

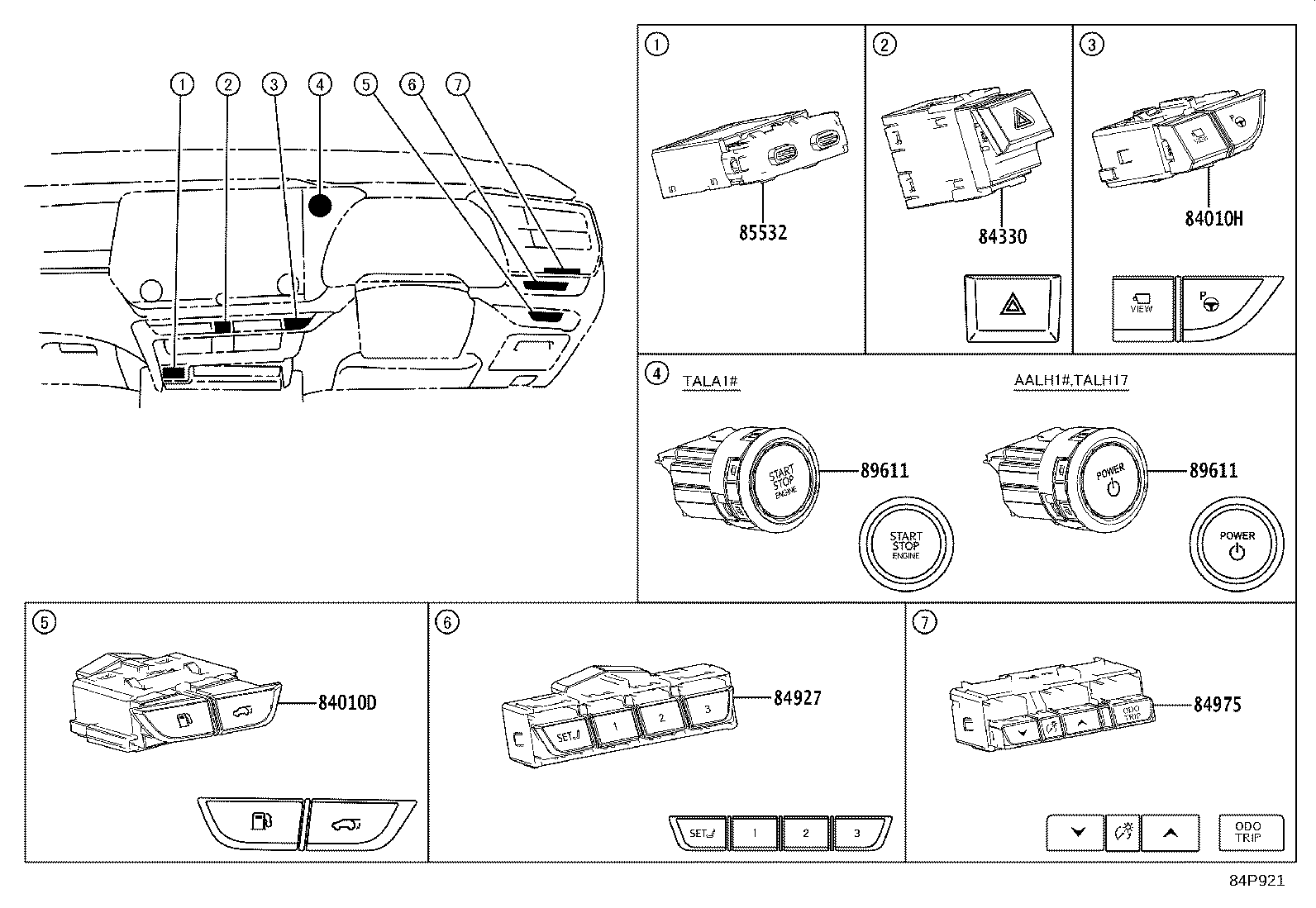

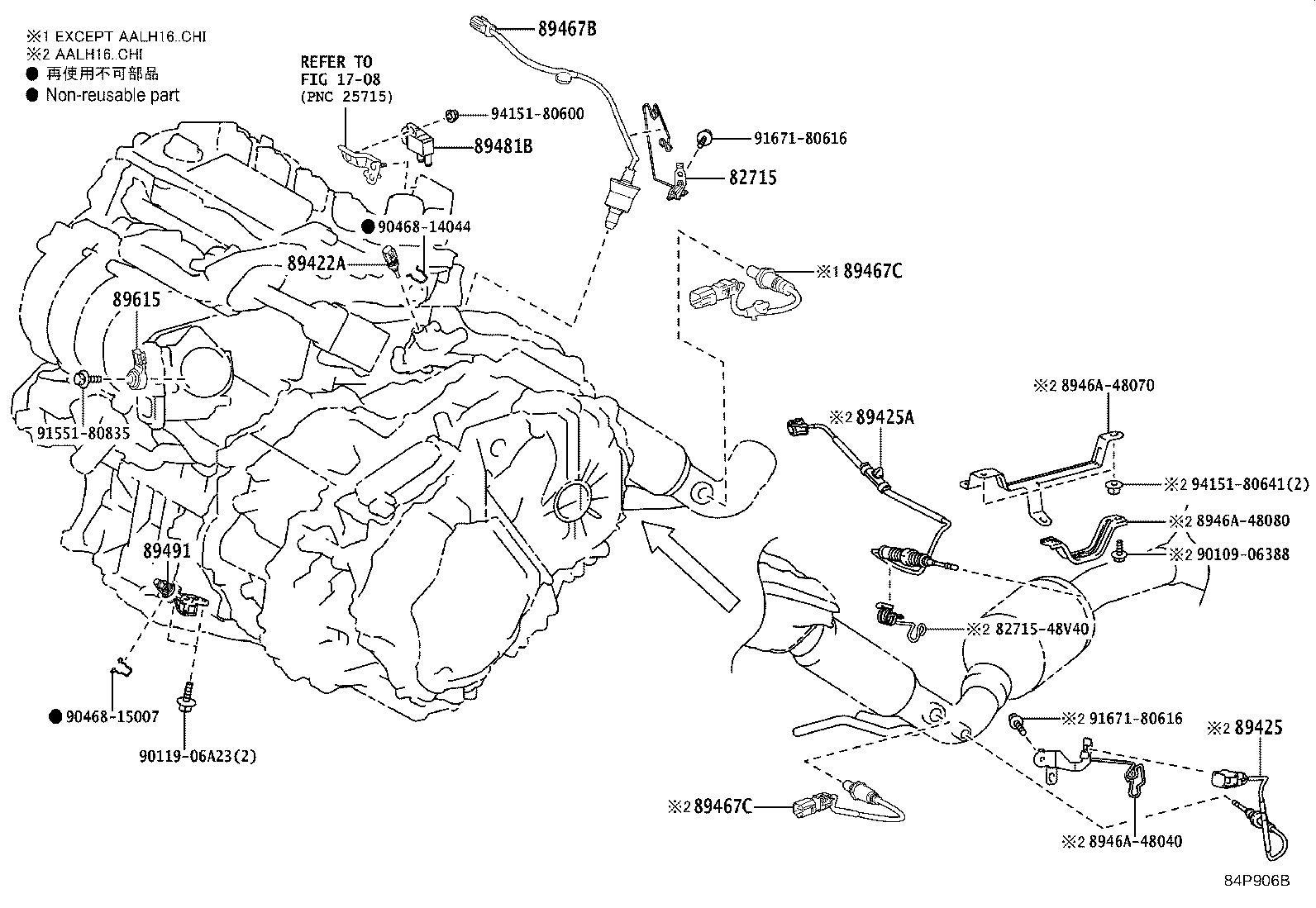

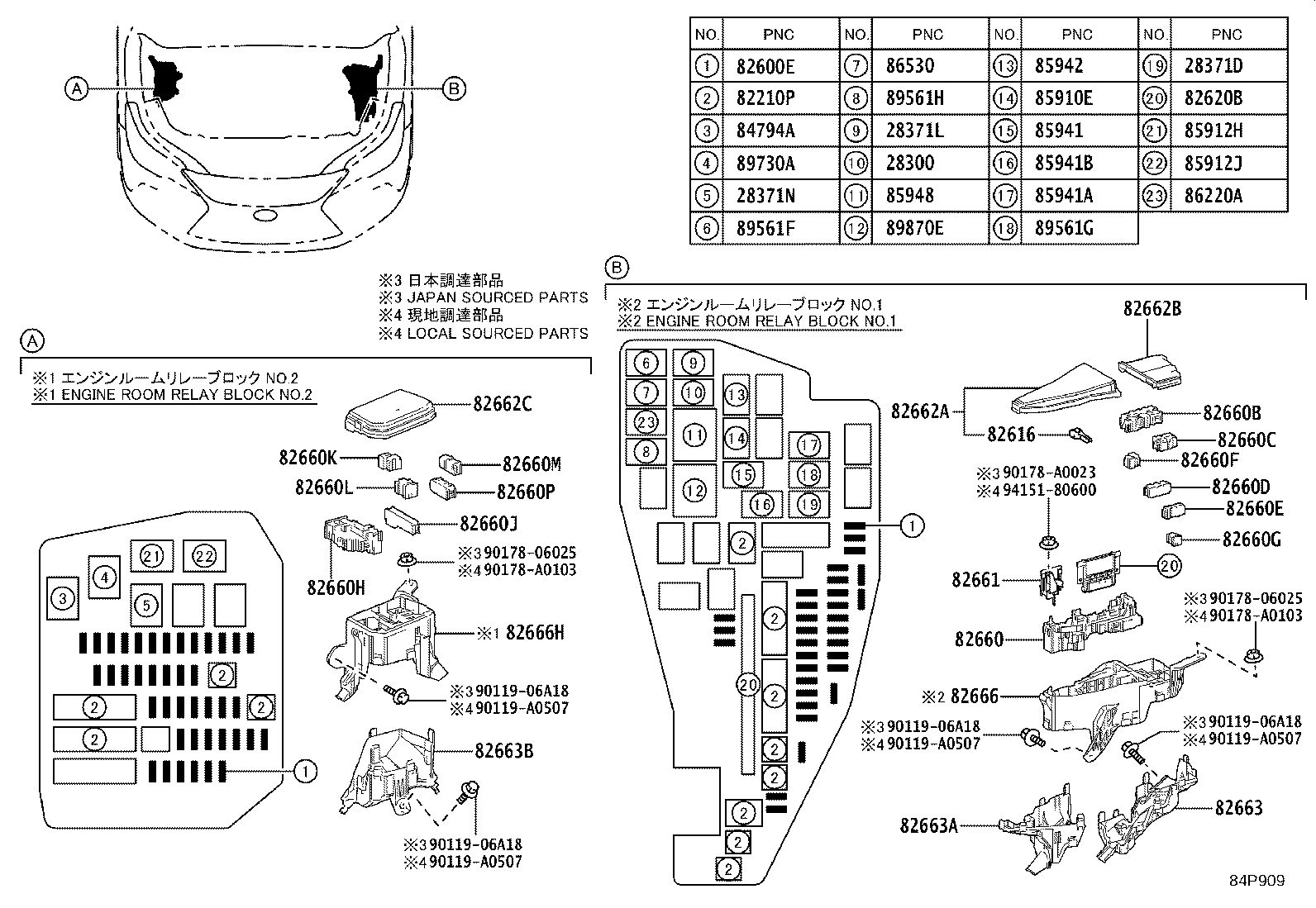

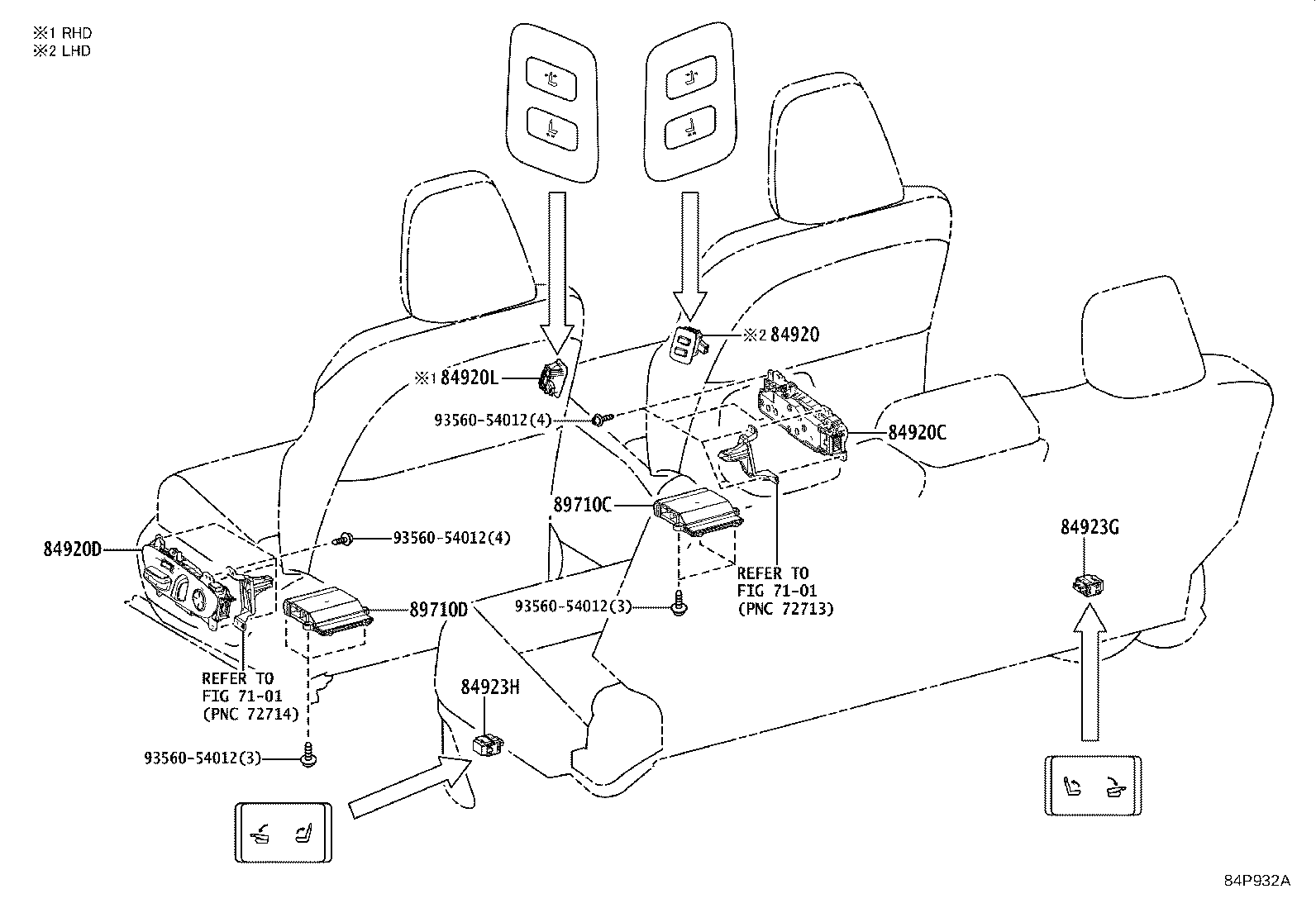

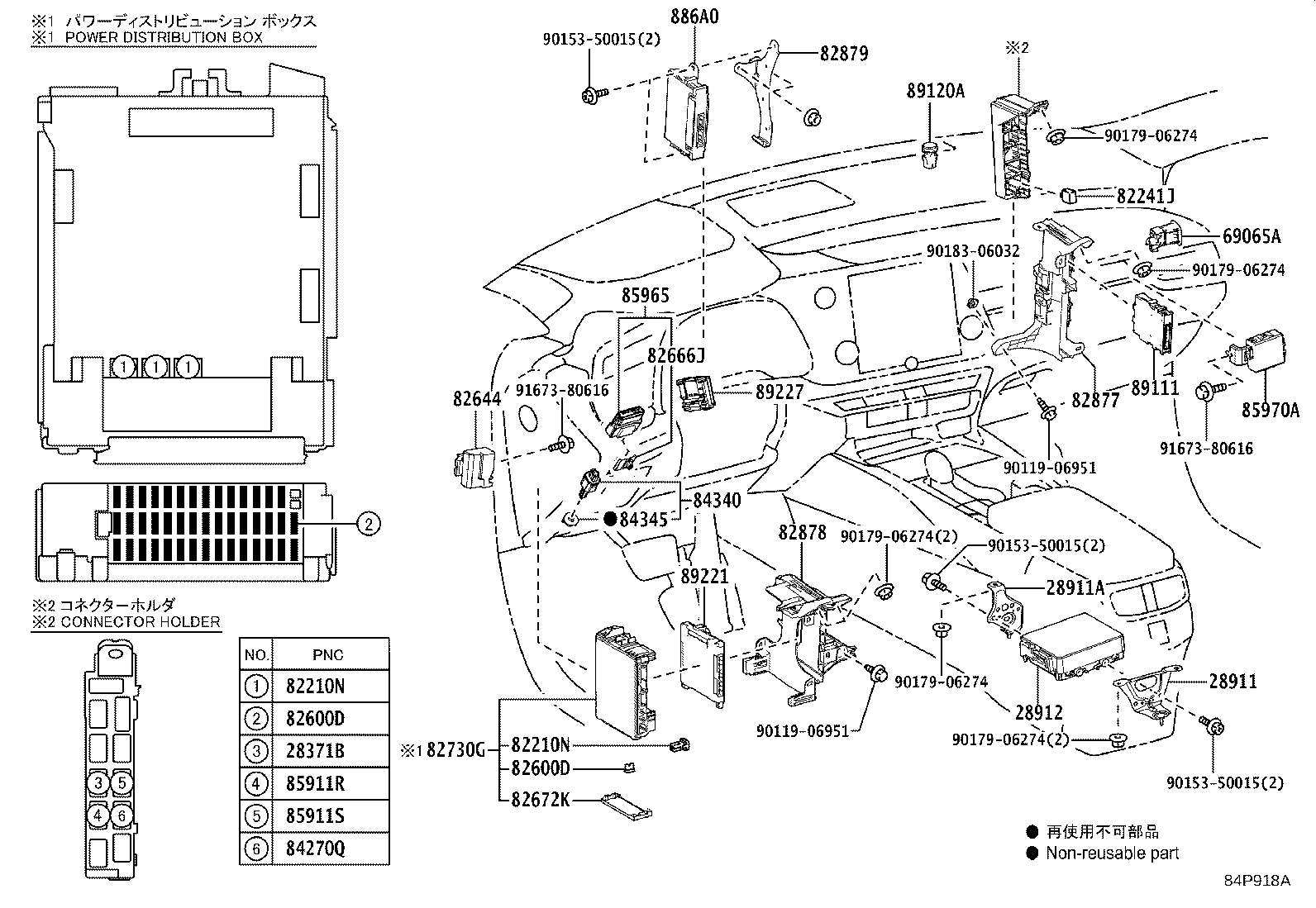

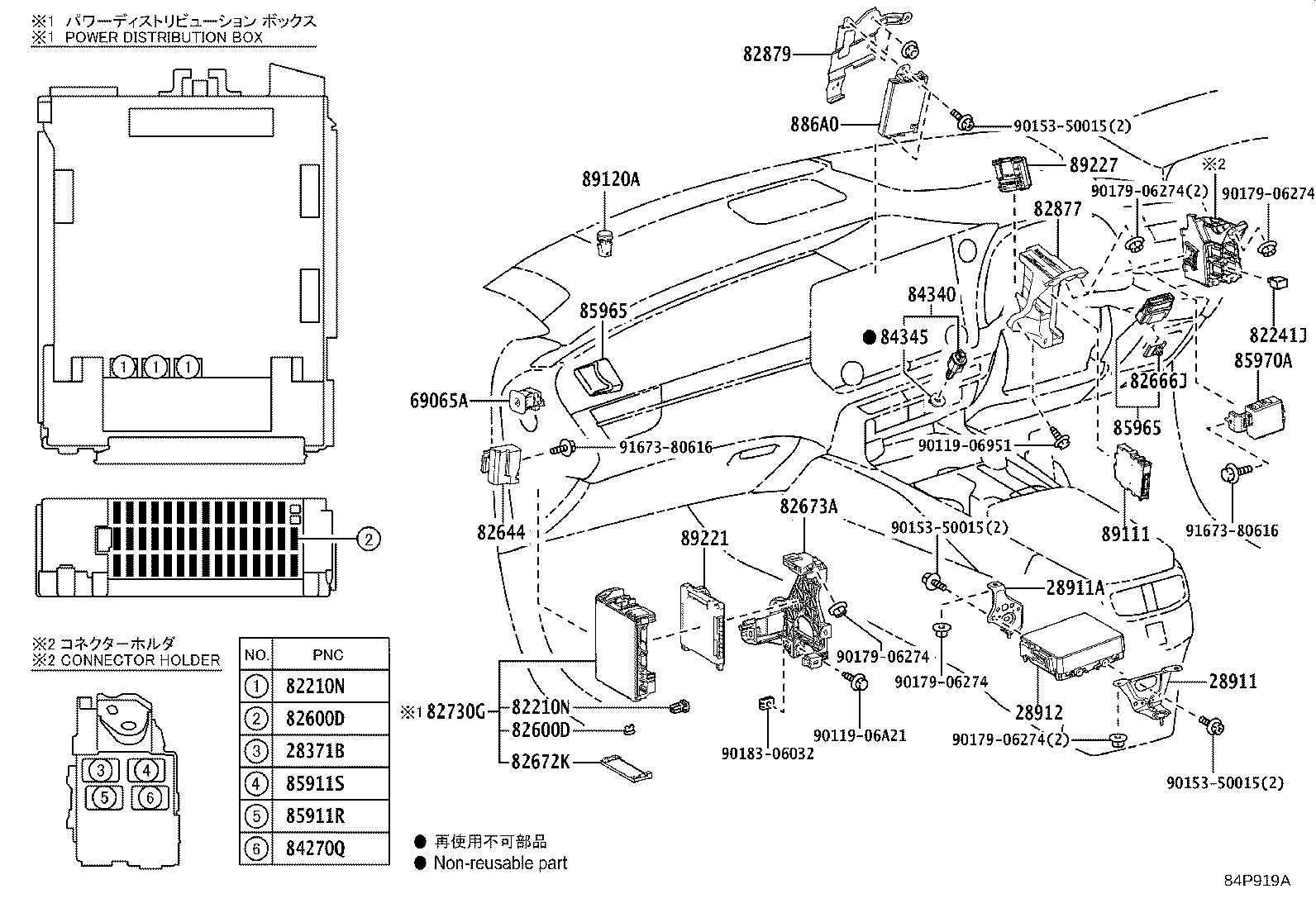

Figure 84P901B 84P901B 2022-11 → — Figure 84P906B 84P906B 2022-11 → — Figure 84R495A 84R495A 2024-10 → — Figure 84P902A 84P902A 2022-11 → — Figure 84P904A 84P904A 2022-11 → — Figure 84P907B 84P907B 2022-11 → — Figure 84P909 84P909 2022-11 → — Figure 84P912 84P912 2022-11 → — Figure 84P915A 84P915A 2022-11 → — Figure 84P918A 84P918A 2022-11 → — Figure 84P919A 84P919A 2022-11 → — Figure 84P923 84P923 2022-11 → — Figure 84P921 84P921 2022-11 → — Figure 84P922A 84P922A 2022-11 → — Figure 84P926A 84P926A 2022-11 → — Figure 84P930A 84P930A 2022-11 → — Figure 84P932A 84P932A 2022-11 → — Figure 84P935 84P935 2022-11 → — Figure 84P938D 84P938D 2022-11 → — Figure 84P941D 84P941D 2022-11 → — Figure 84P944B 84P944B 2022-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371B Relay, Igr
28371D Relay, Ignition, NO.3
28371L Relay, Igp
28371N Relay, Igp, NO.3
28800R Relay, Battery Fan

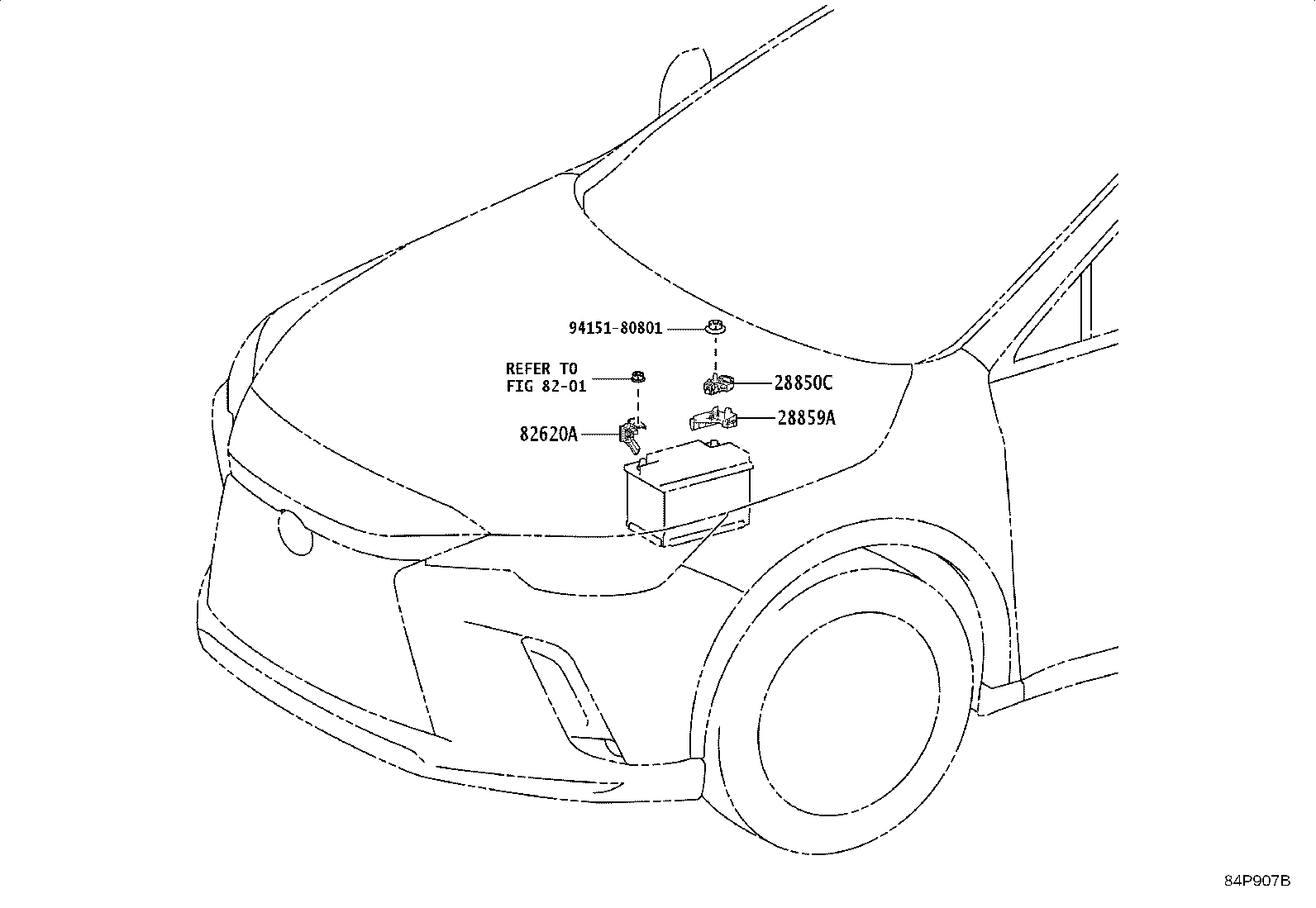

28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82241J Pin, Short
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82611 Cover, Fuse Block
82613A Block, Fuse Base
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660K Block Assy, Relay
82660L Block Assy, Relay
82660M Block Assy, Relay
82660P Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663D Cover, Relay Block, Lower, NO.5
82666 Holder, Connector
82666H Holder, Connector, NO.2
82666J Holder, Connector, NO.3
82670A Block Assy, Junction, NO.1
82672A Cover, Junction Block
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82715 Bracket,Wiring Harness Clamp
82715Y Bracket, Wiring Harness Clamp, NO.3
82730G Box Assy, Power Distribution
82740 Block Assy, Engine Room Relay
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
82879 Adapter, Computer Integration Box
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
84010D Control & Panel Assy, Integration
84010H Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84190 Switch Assy, Fold Seat
84190B Switch Assy, Fold Seat, NO.2
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch

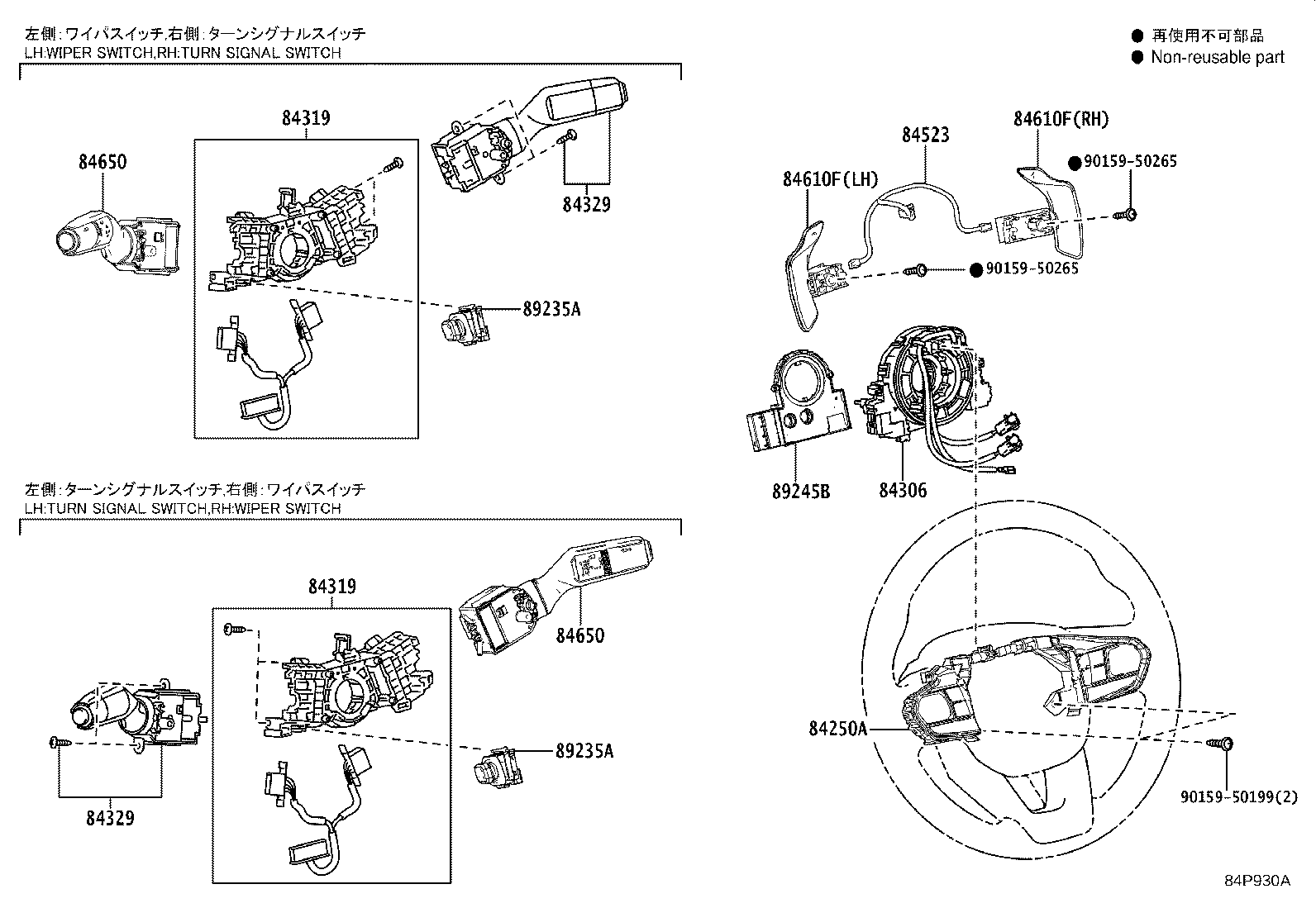

84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84523 Wire, Switch NO.1
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84751R Switch, Seat Heater(REAR)
84794A Relay, FR Wiper Deicer

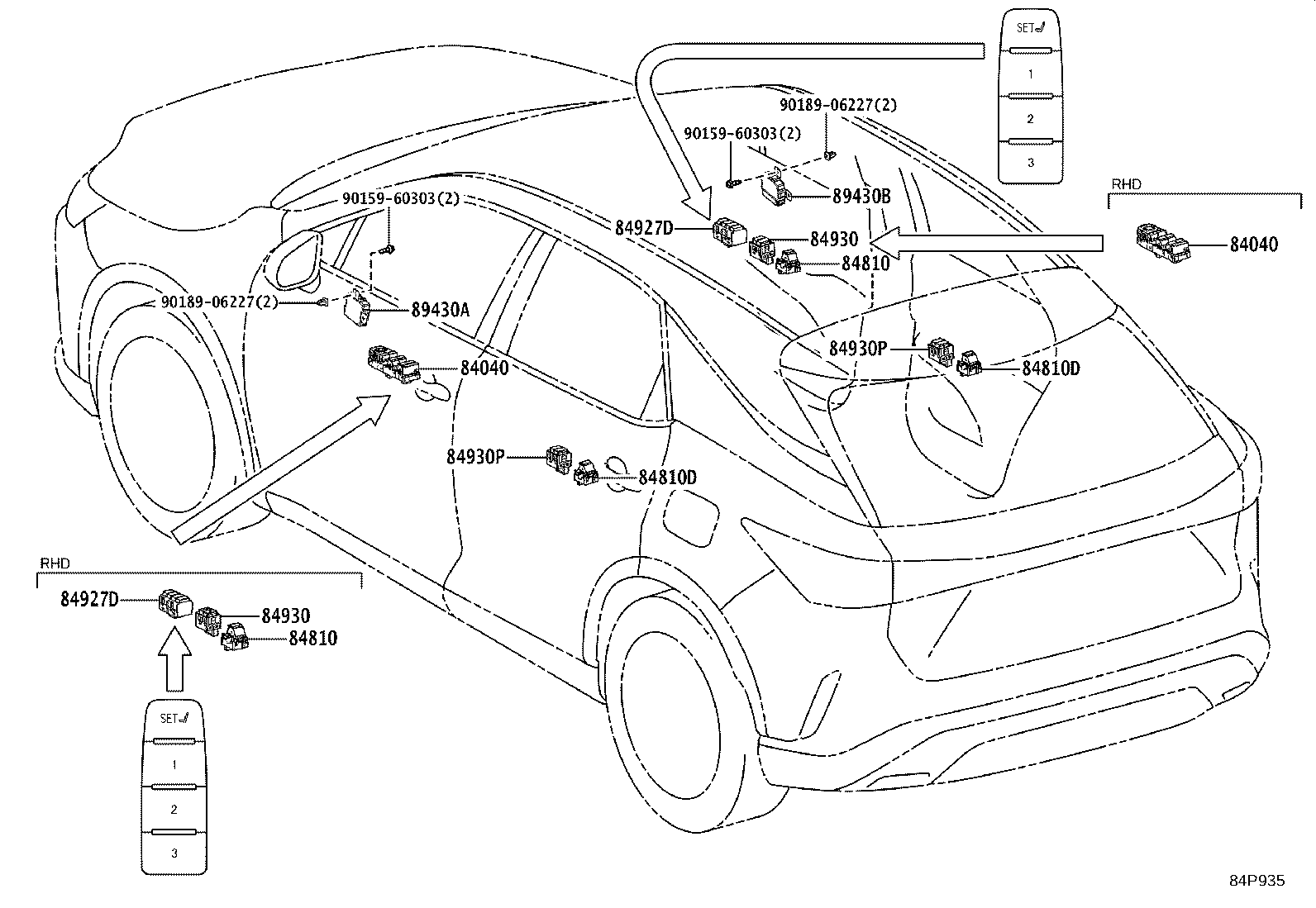

84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84920 Switch Assy, Power Seat
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84920L Switch Assy, Power Seat, NO.2
84923G Switch, Rear Power Seat, NO.1, RH
84923H Switch, Rear Power Seat, NO.1, LH
84927 Switch, Seat Memory
84927D Switch, Seat Memory, NO.2
84930 Switch Assy, Door Control
84930P Switch Assy, Door Control
84931C Switch, Back Door Control
84966 Switch, Power Back Door Control
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530F Socket Assy, Power Outlet, Rear NO.2
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85910E Relay, Injector
85911R Relay, Rear Seat Heater, RH
85911S Relay, Rear Seat Heater, LH
85912H Relay, Hwd, NO.1
85912J Relay, Hwd, NO.2
85912K Relay, Vvt
85915 Relay, Main
85924C Relay, Igct
85924H Relay, Igct-scene
85924K Relay, Igct, NO.2
85934 Relay, Magnet-clutch
85941 Relay, Windshield Washer
85941A Relay, Rear Windshield Washer
85941B Relay, Windshield Washer, NO.2
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85965 Relay, Room Lamp Control
85970A Relay Assy, Double Lock Door Control
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86220A Relay, Inverter
86247A Bracket, Voltage Inverter
86247C Bracket, Voltage Inverter, NO.2
8624A Inverter, Voltage
86530 Relay Assy, Horn
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
88631E Relay, Airconditioner
886A0 Computer Assy, Heat Pump
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
8946A Bracket, Exhaust Sensor Clamp
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3

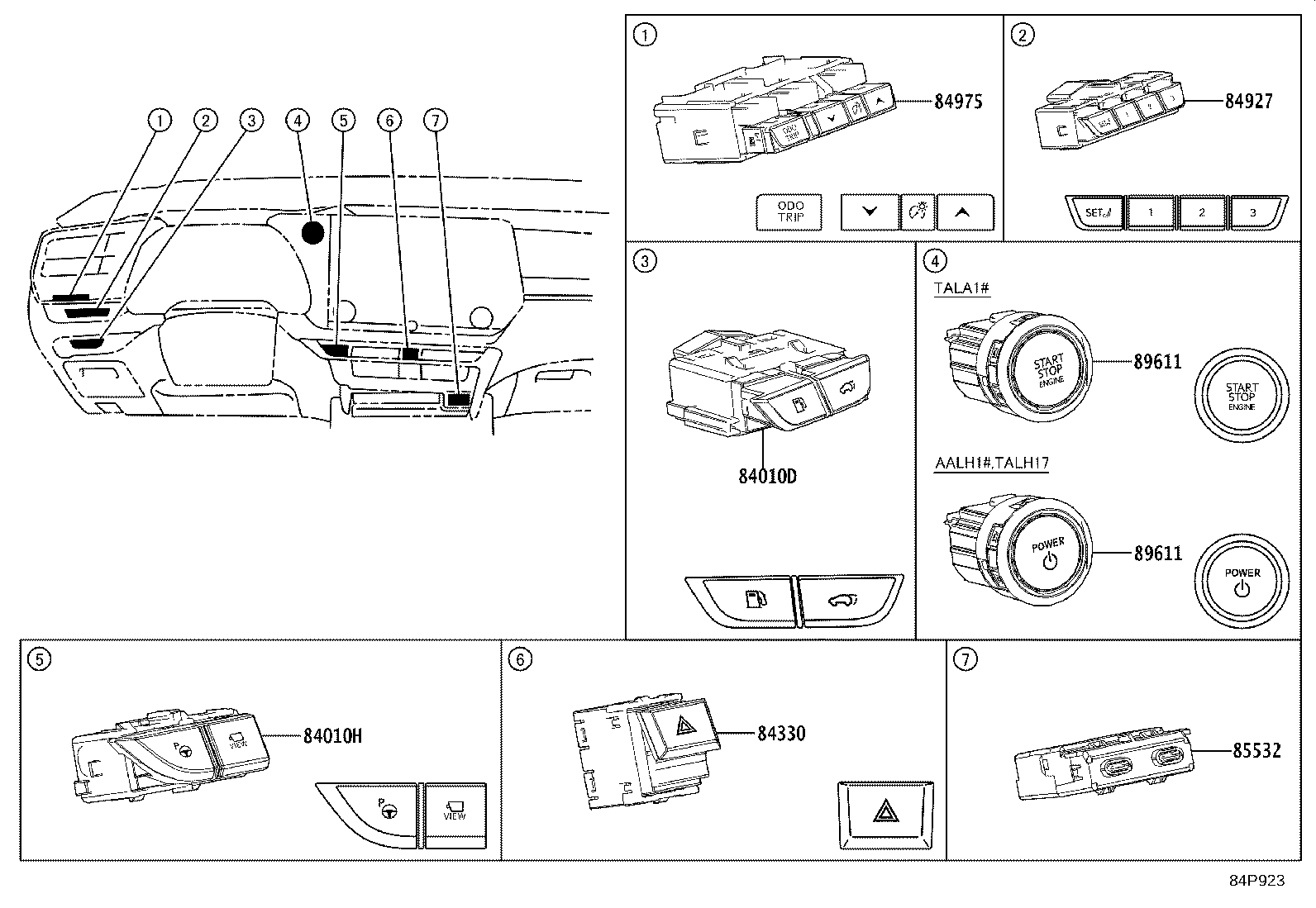

89611 Switch, Push Start
89615 Sensor, Knock Control
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G1167A Relay (FOR OIL PUMP MOTOR)
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
