Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

13 part groups · 2 illustrations

Illustrations

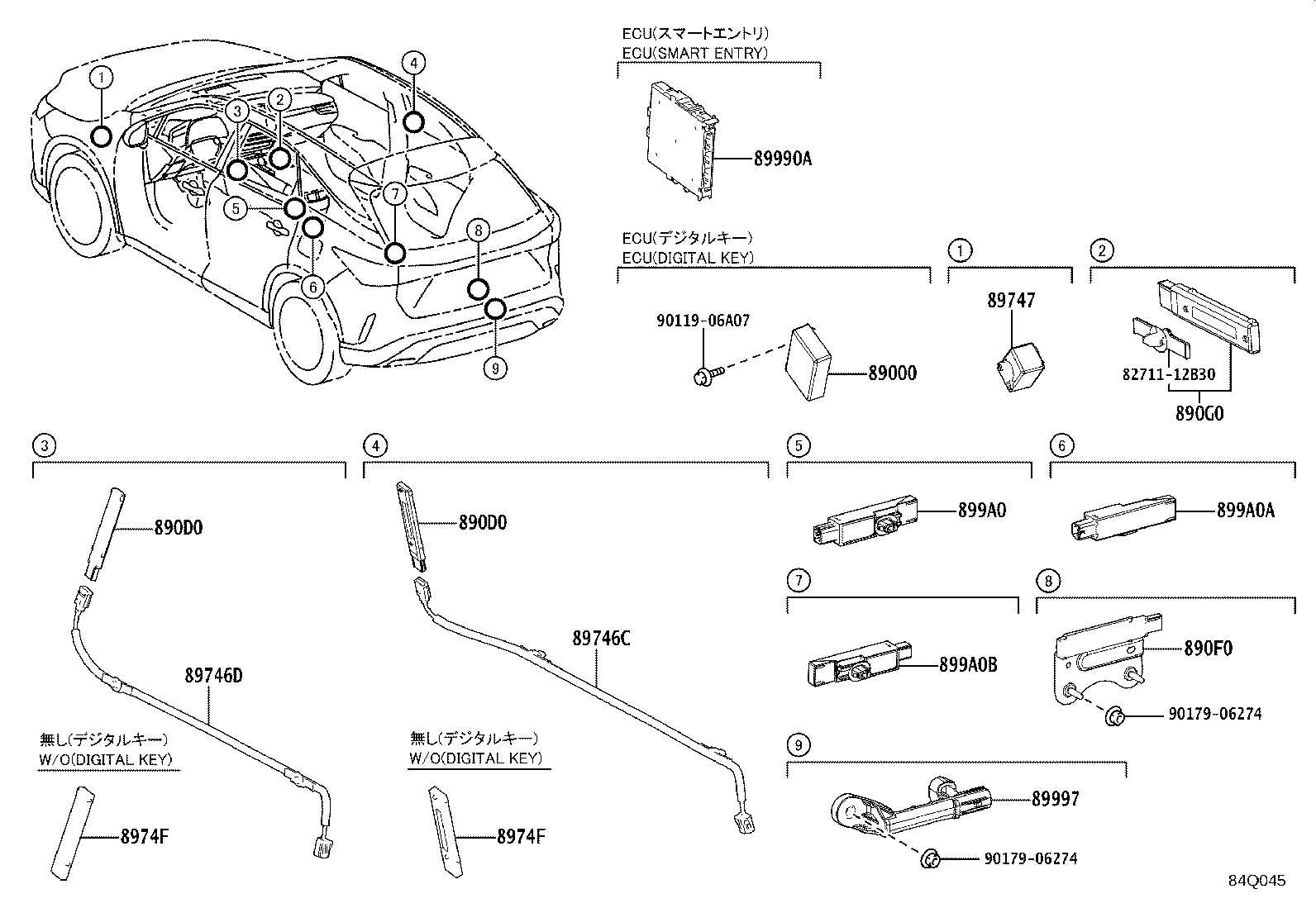

Figure 84Q047 84Q047 2022-11 → — Figure 84Q045 84Q045 2022-11 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890D0 Receiver Assy, Ble Door Digital Key
890F0 Receiver Assy, Ble Luggage Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
8974F Case, W/O Digital Key
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
