Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 3 illustrations

Illustrations

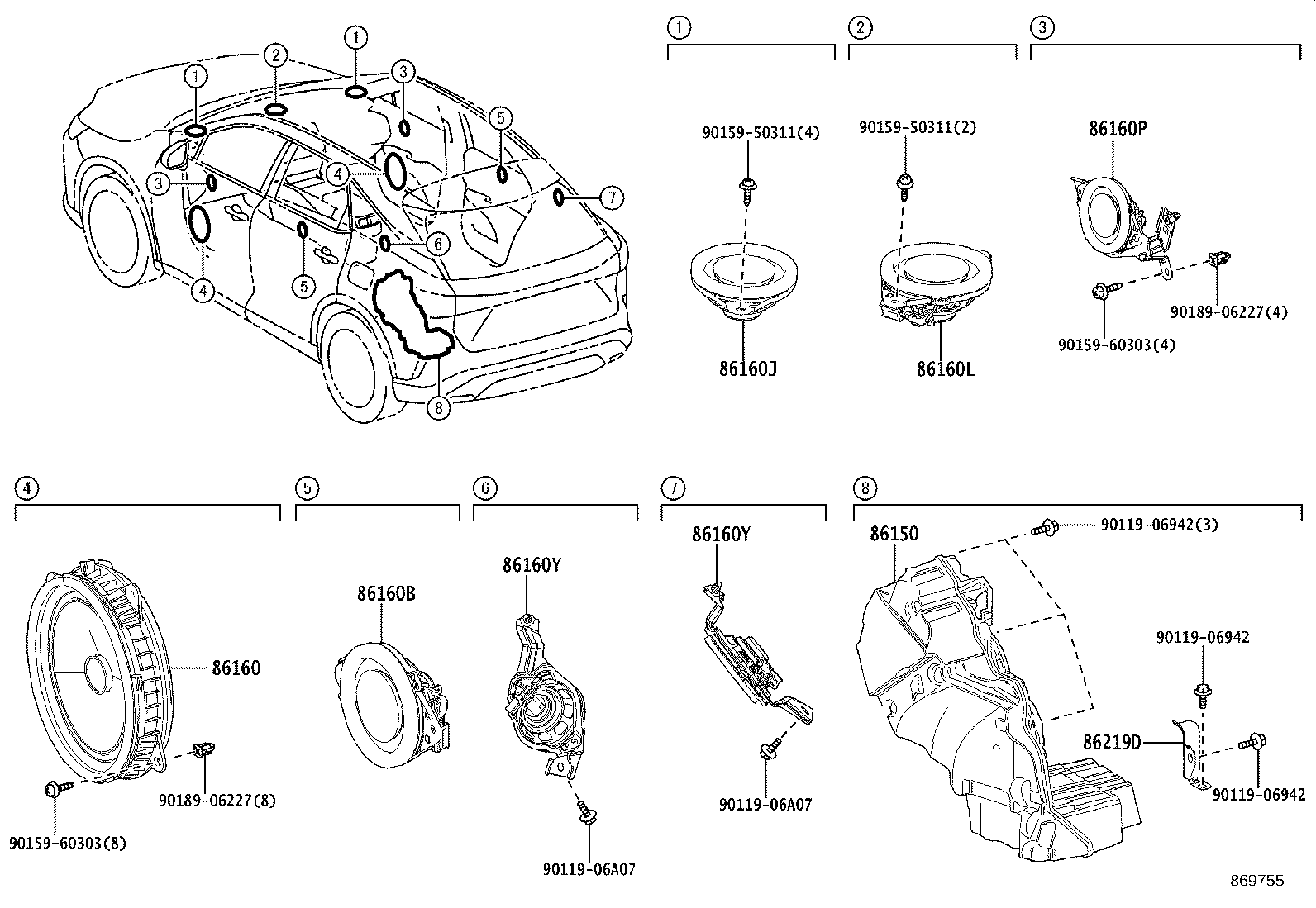

Figure 869754 869754 2022-10 → — Figure 869755 869755 2022-10 → — Figure 869757 869757 2022-10 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86219D Bracket, Speaker, Rear NO.1
86240A Equalizer Assy,Stereo Component
86240B Equalizer Assy, Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
