Toyota Lexus RX Series
2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe
Supported model
Data version 2024-10
Heating & Air Conditioning - Water Piping

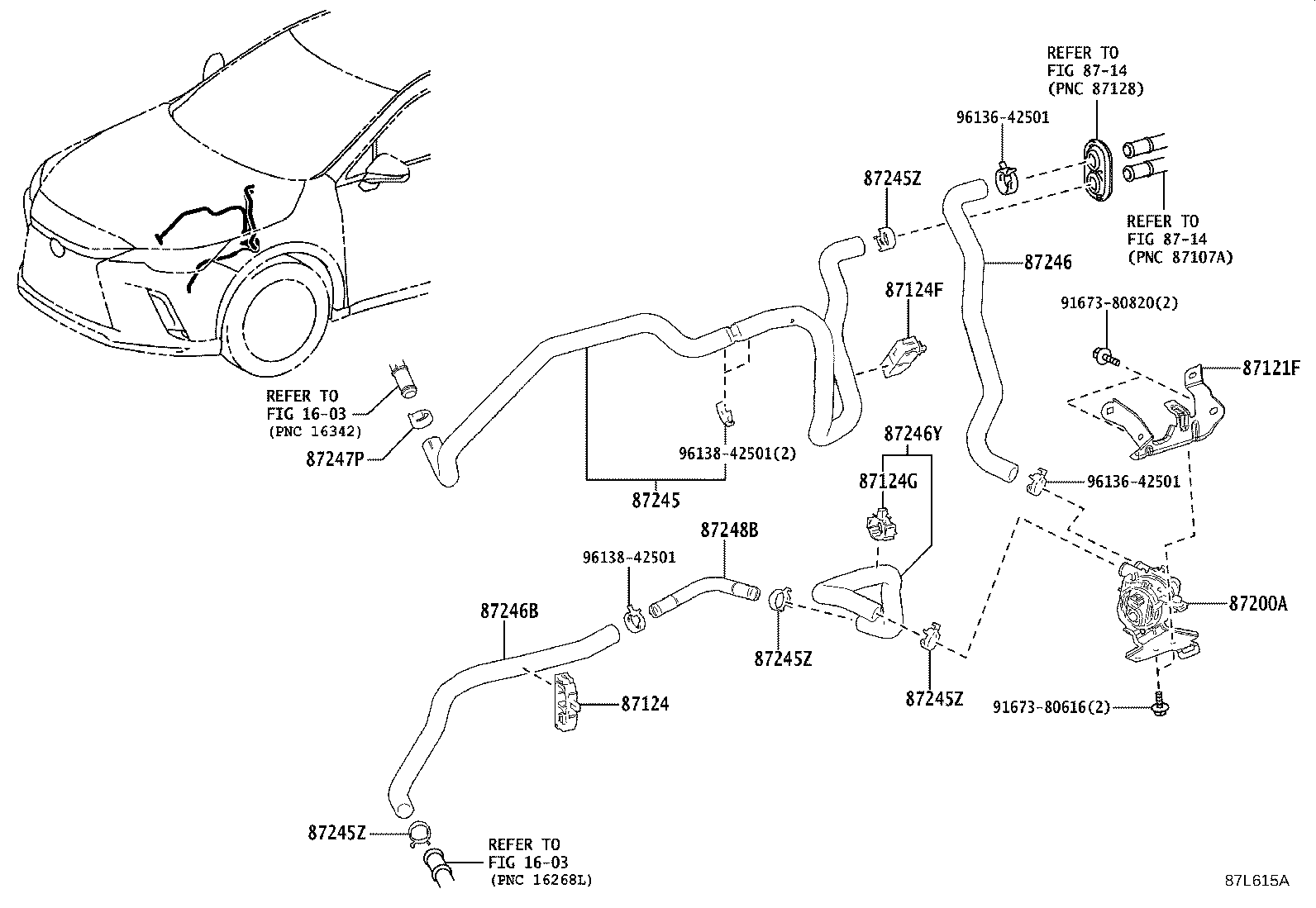

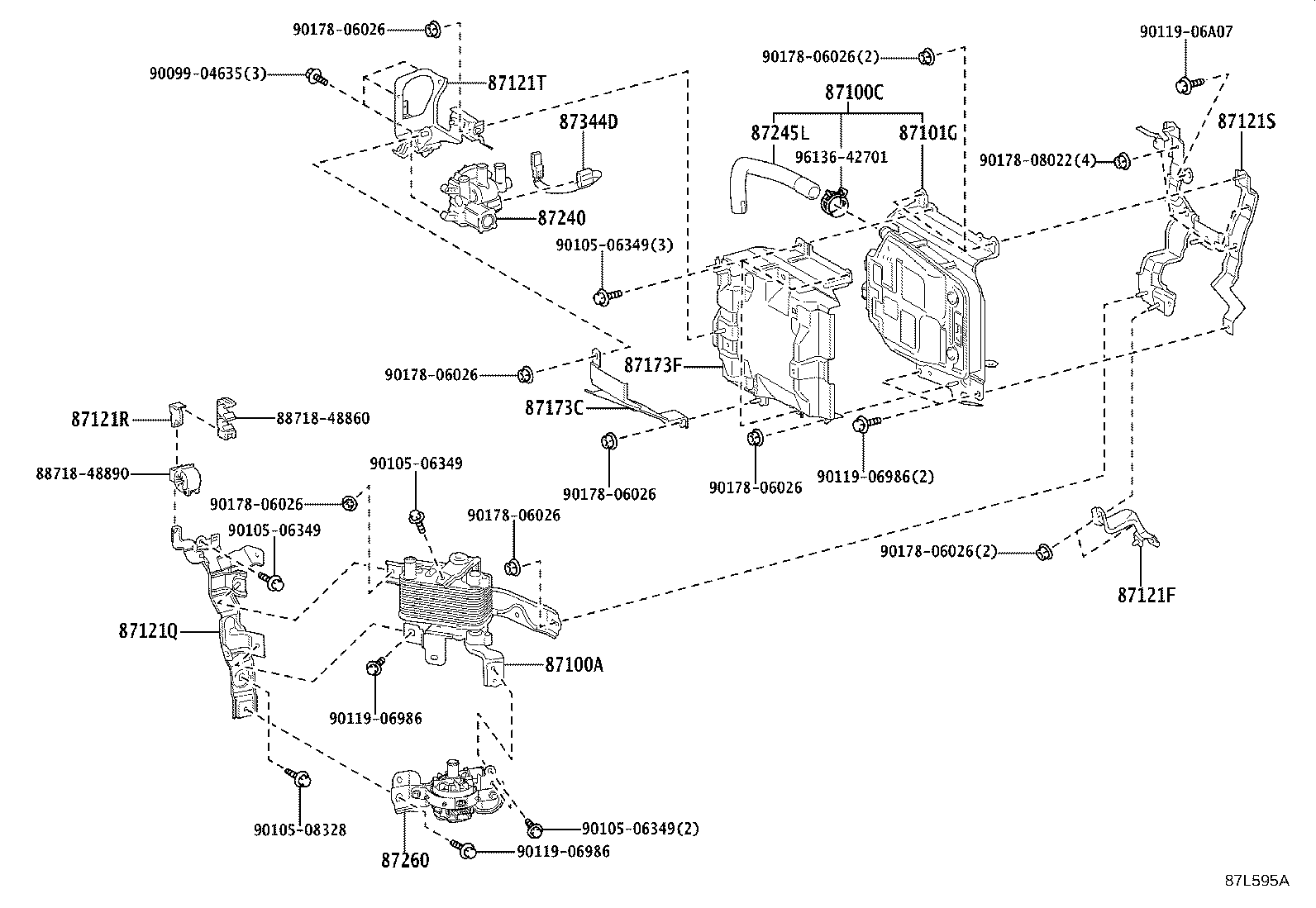

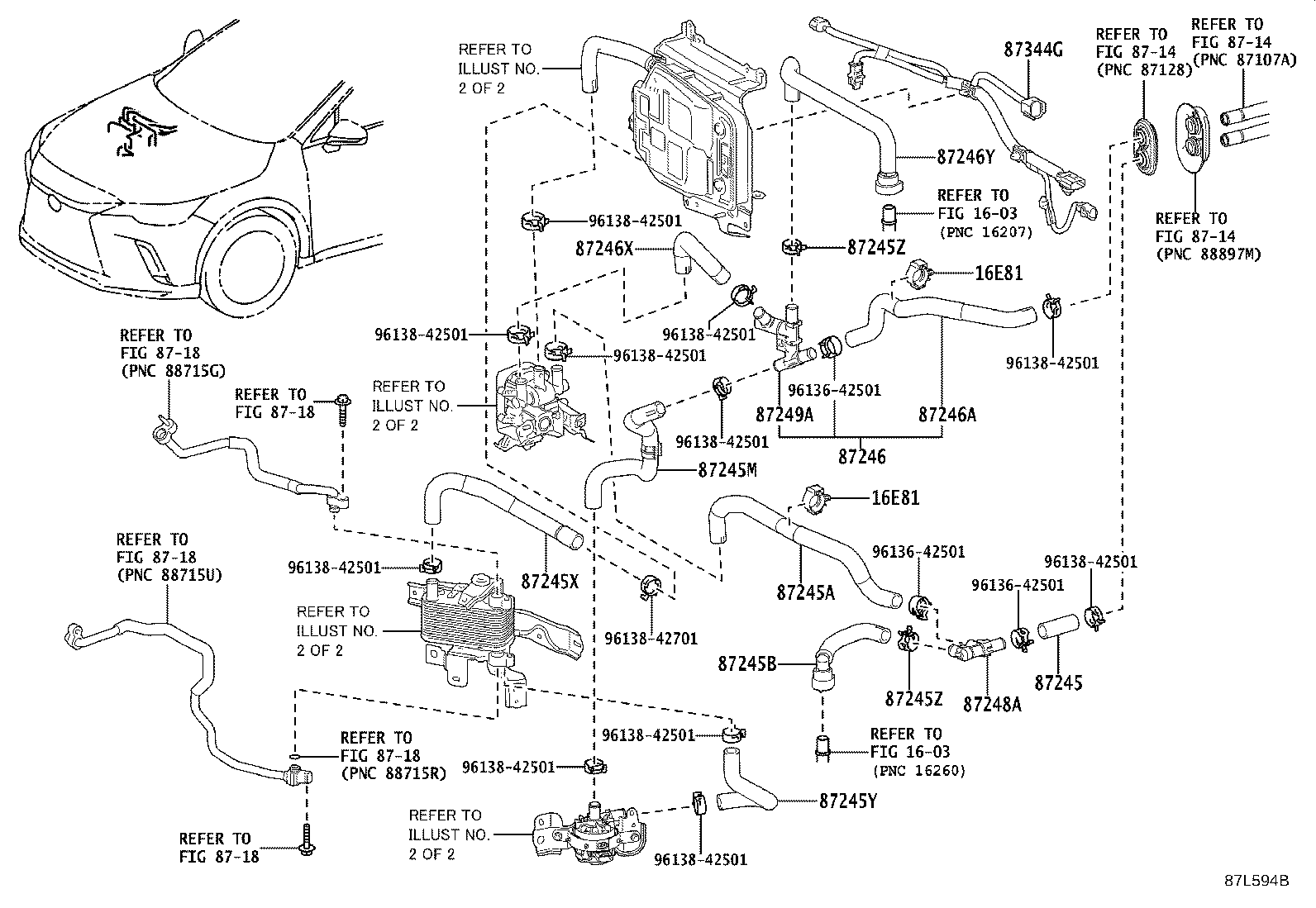

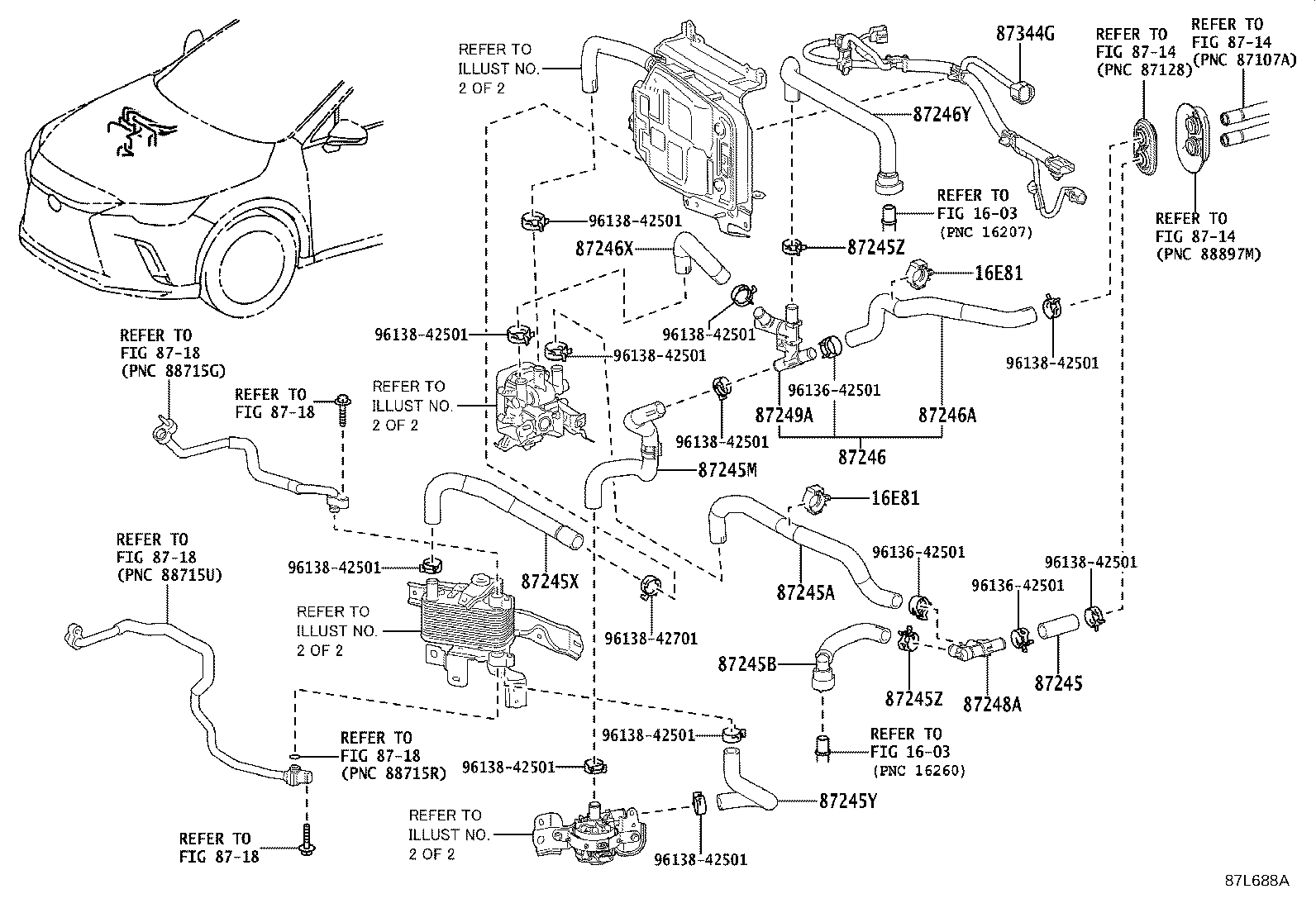

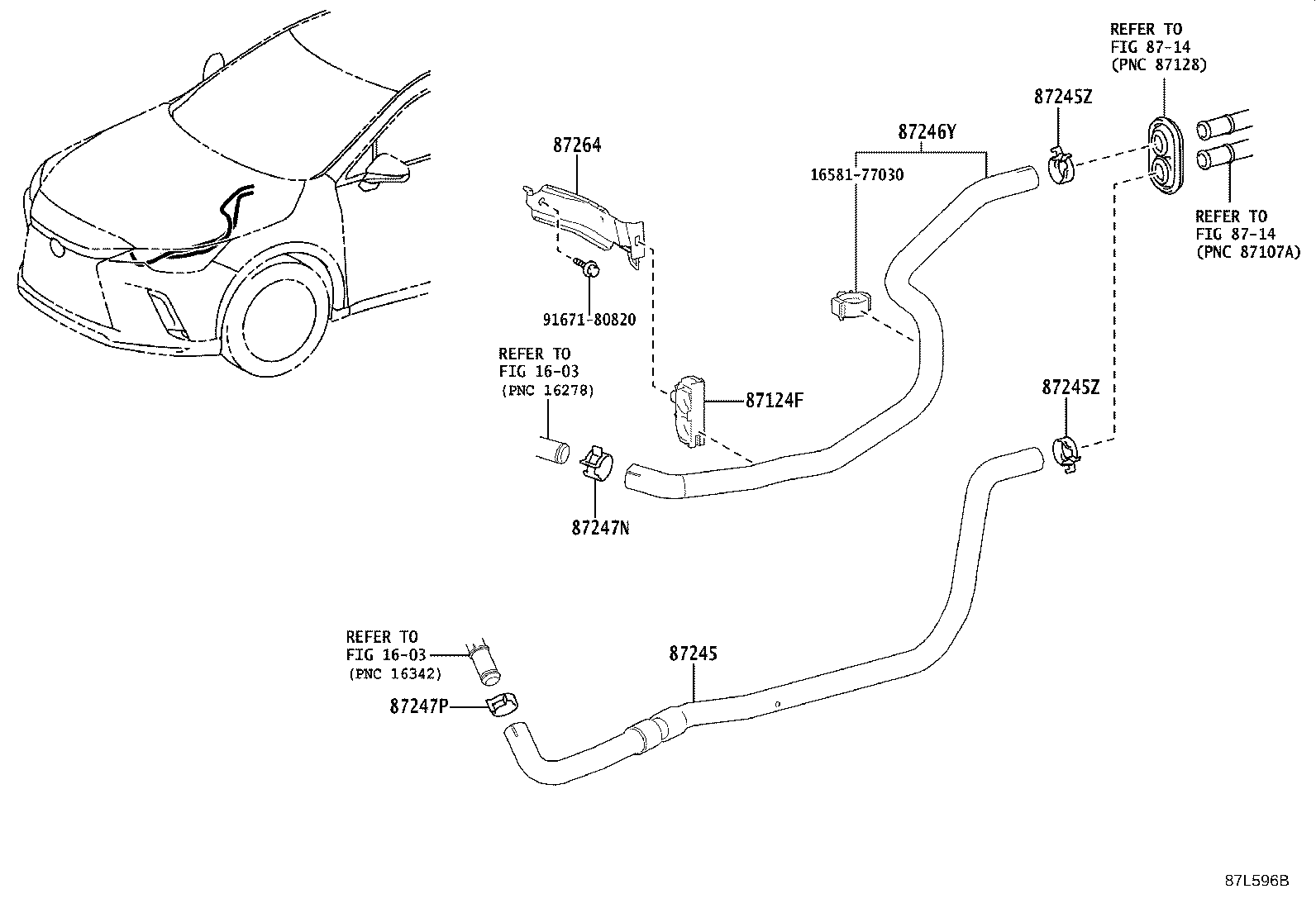

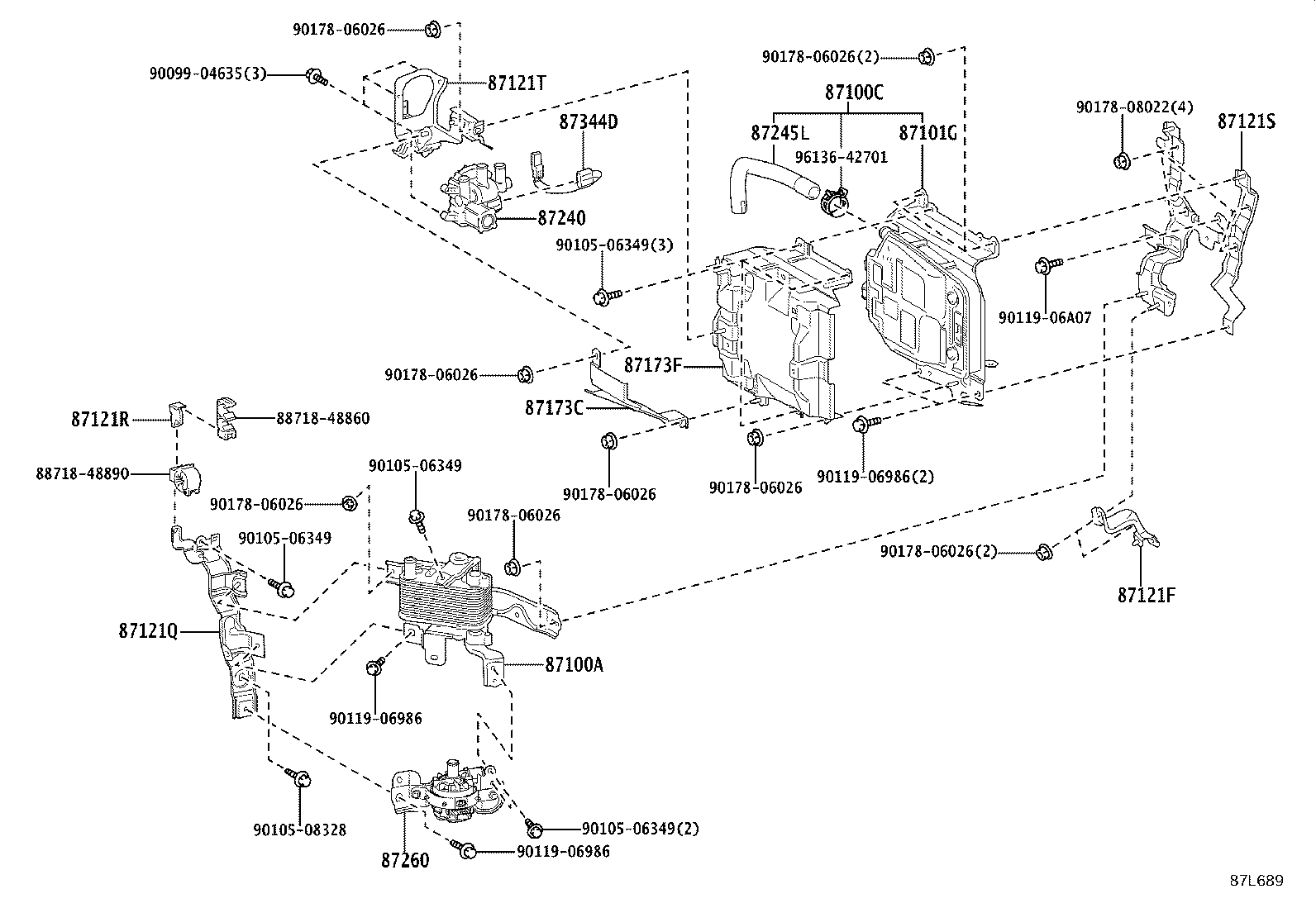

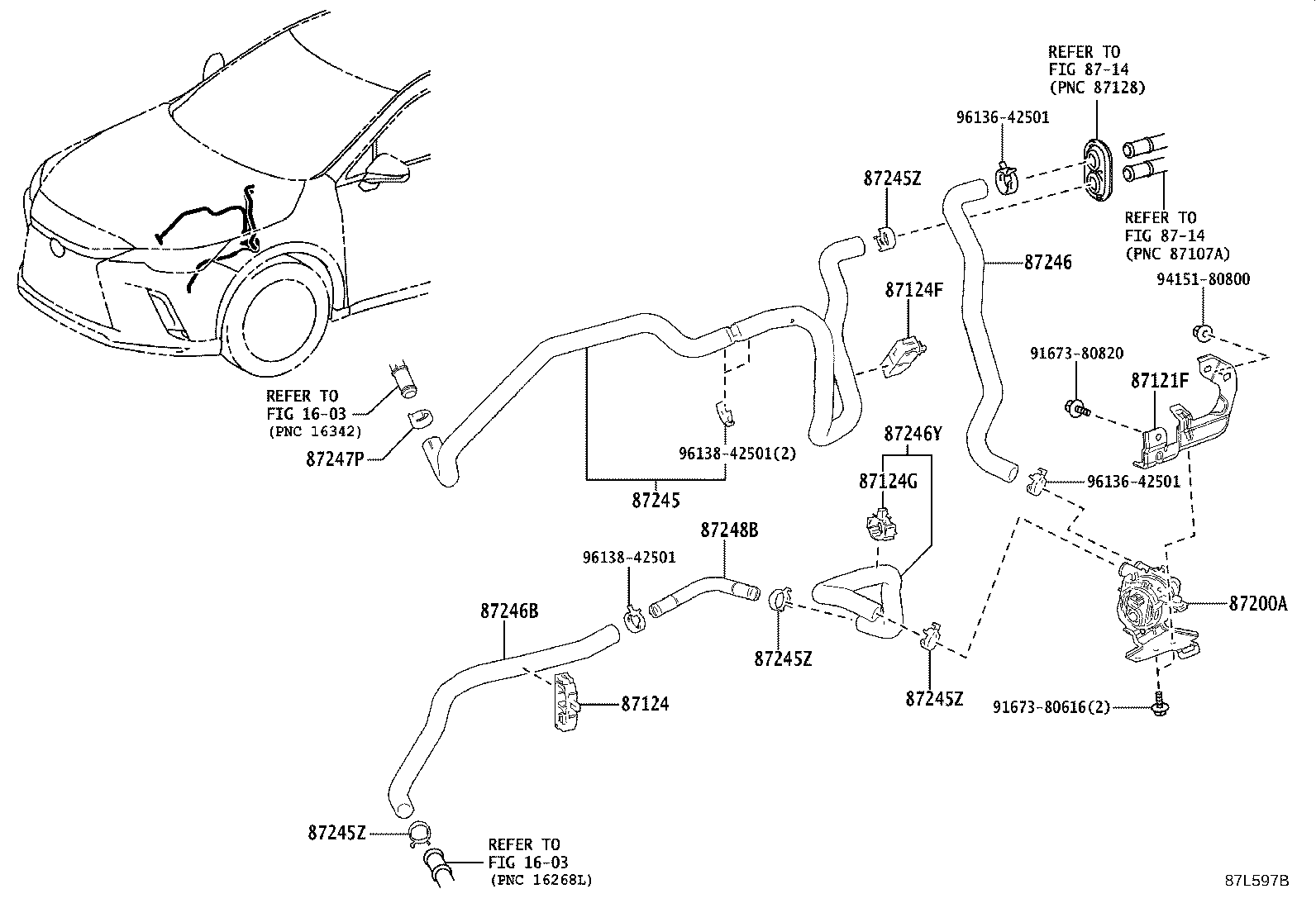

38 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 16E81 | Clamp, Hose(FOR WATER HOSE) |
| 87100A | Heater & Accessory Assy |
| 87100C | Heater & Accessory Assy, NO.2 |
| 87101G | Heater Sub-assy, Electric |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87121R | Bracket, Heater NO.3 |
| 87121S | Bracket, Heater NO.4 |
| 87121T | Bracket, Heater NO.5 |
| 87124 | Clamp, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87173C | Protector, Heater |
| 87173F | Protector, Heater, NO.2 |
| 87200A | Pump Assy, Water(FOR HEATER) |
| 87240 | Valve Assy, Heater Water |
| 87245 | Hose, Heater Water, Inlet |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245L | Hose, Heater Water, L |
| 87245M | Hose, Heater Water, M |
| 87245X | Hose, Heater Water |
| 87245Y | Hose, Heater Water |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246 | Hose, Heater Water, Outlet |
| 87246A | Hose, Heater Water, Outlet A |
| 87246B | Hose, Heater Water, Outlet B |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87247N | Clip, Hose |
| 87247P | Clip, Hose |
| 87248A | Pipe, Heater Water Inlet, A |
| 87248B | Pipe, Heater Water Inlet, B |
| 87249A | Pipe, Heater Water Outlet, A |
| 87260 | Pump Assy, Heater |
| 87264 | Bracket, Heater Water Hose |
| 87344D | Wiring, Heater |
| 87344G | Wiring, Heater, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
