Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

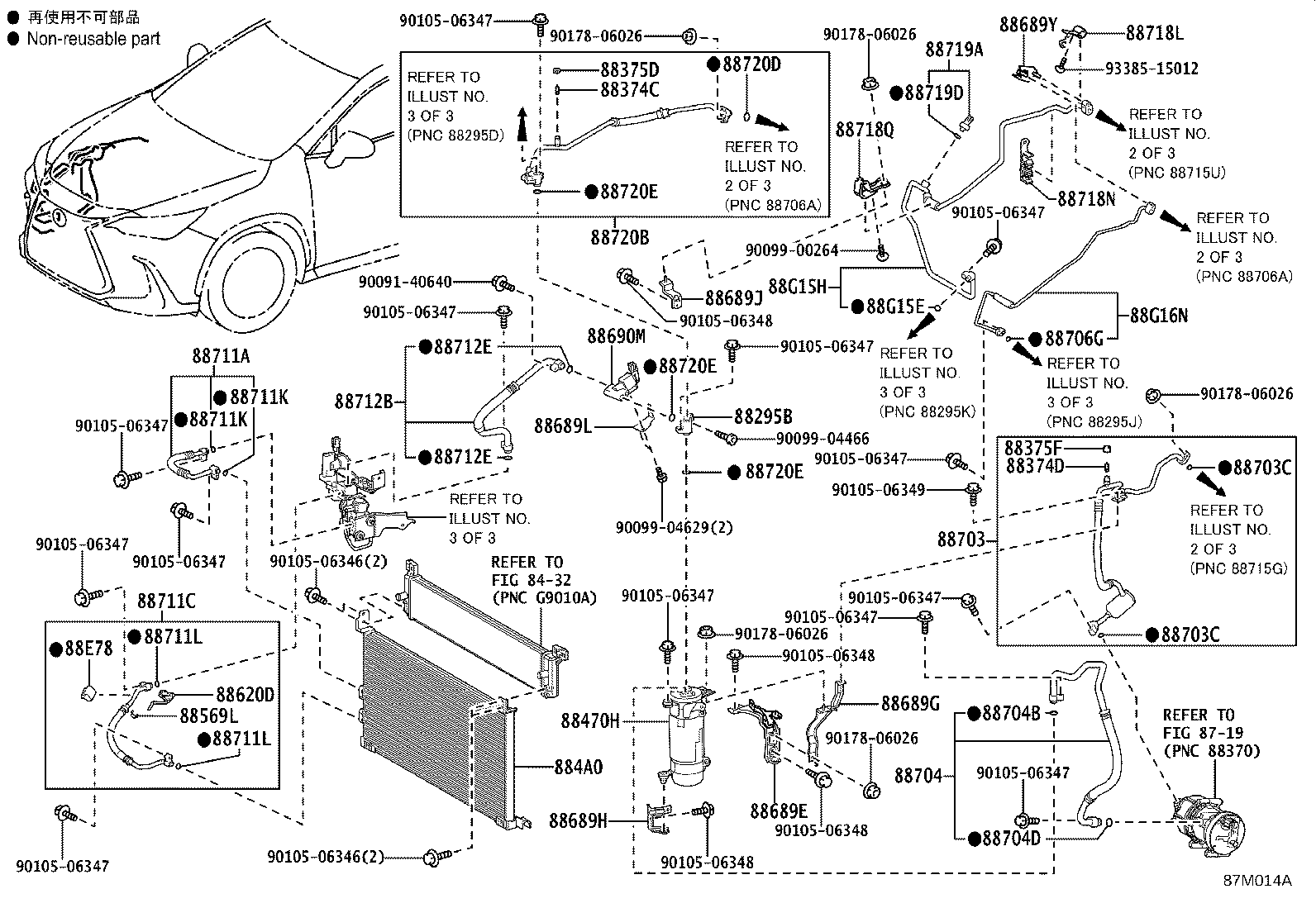

Heating & Air Conditioning - Cooler Piping

99 part groups · 10 illustrations

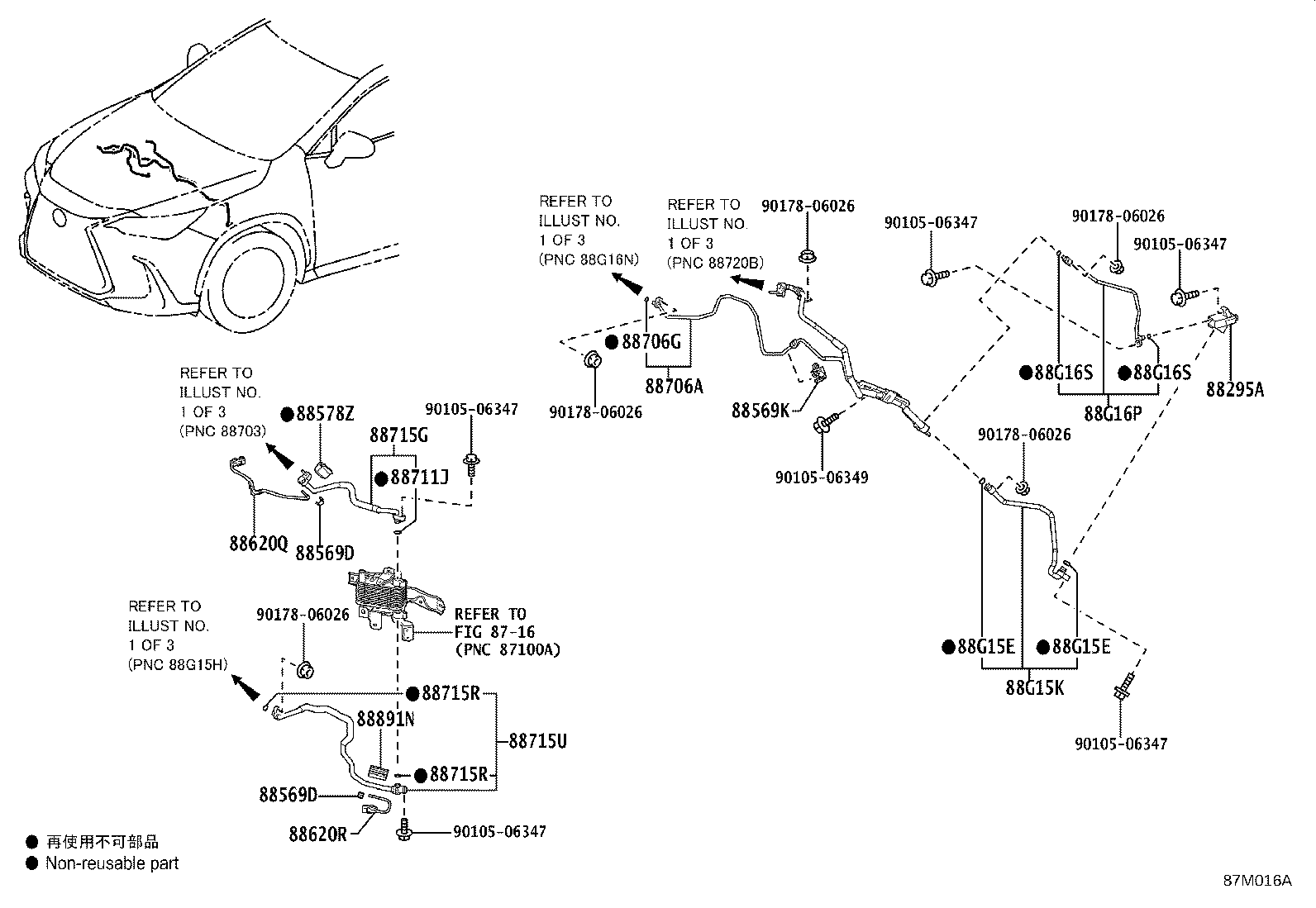

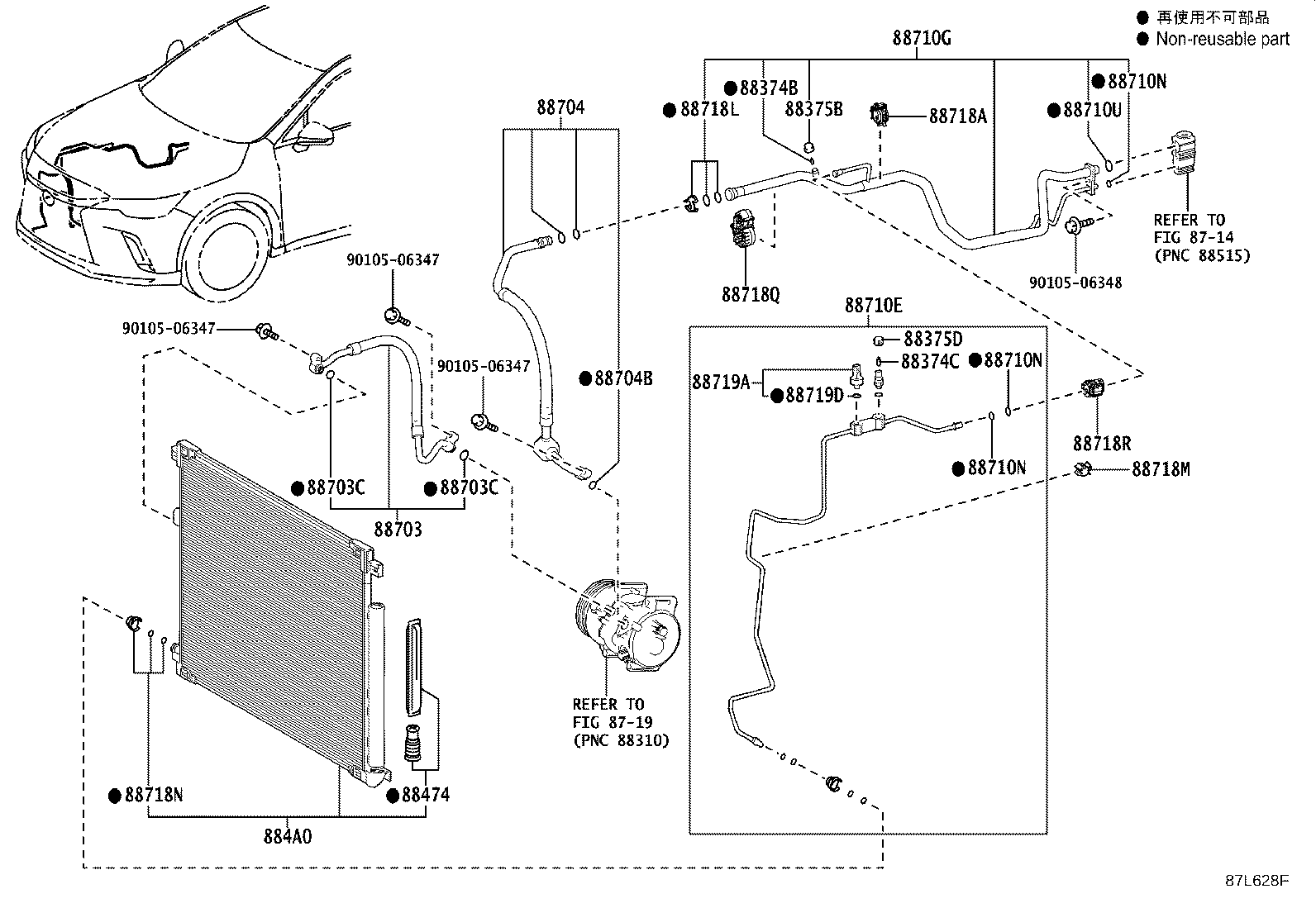

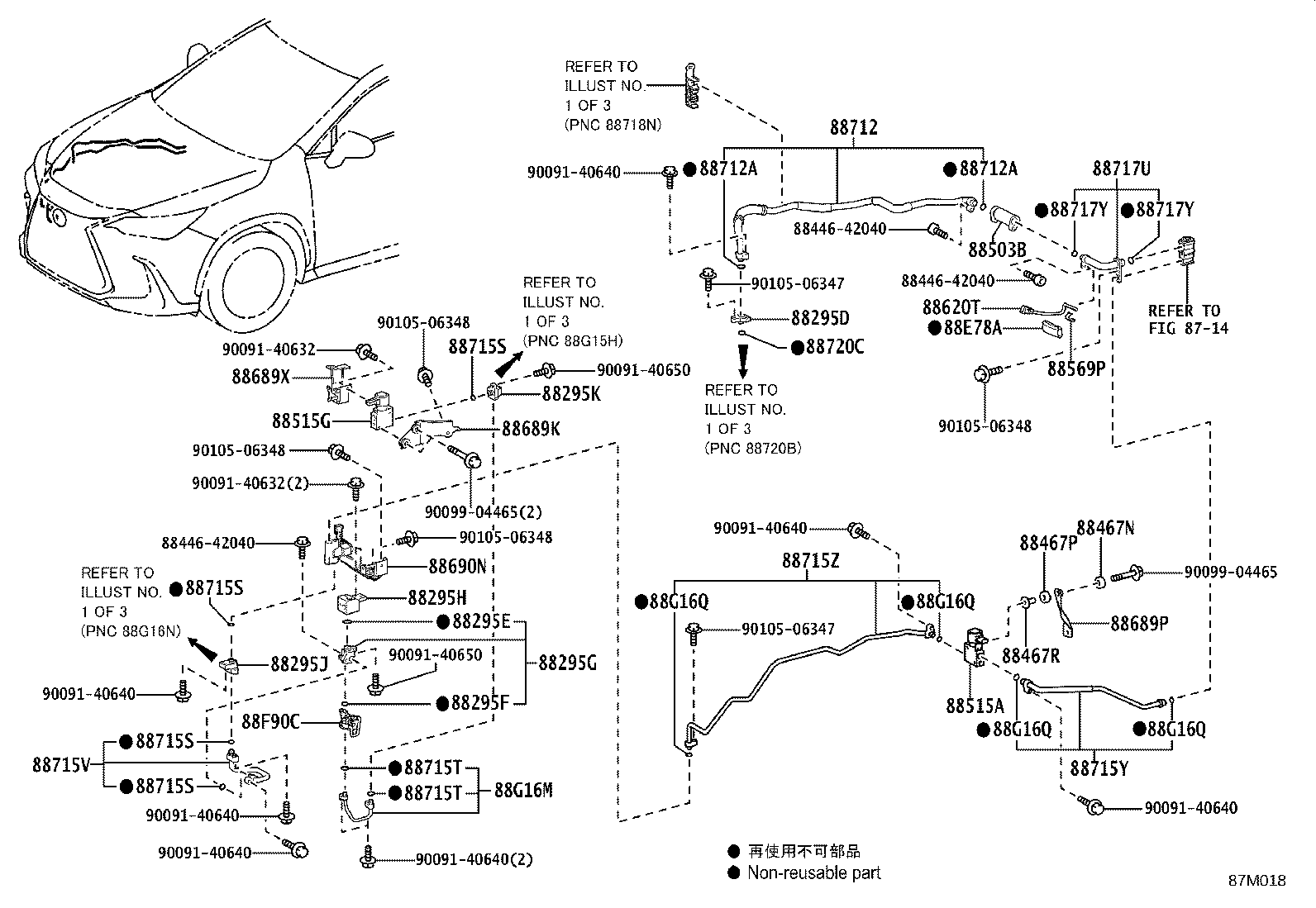

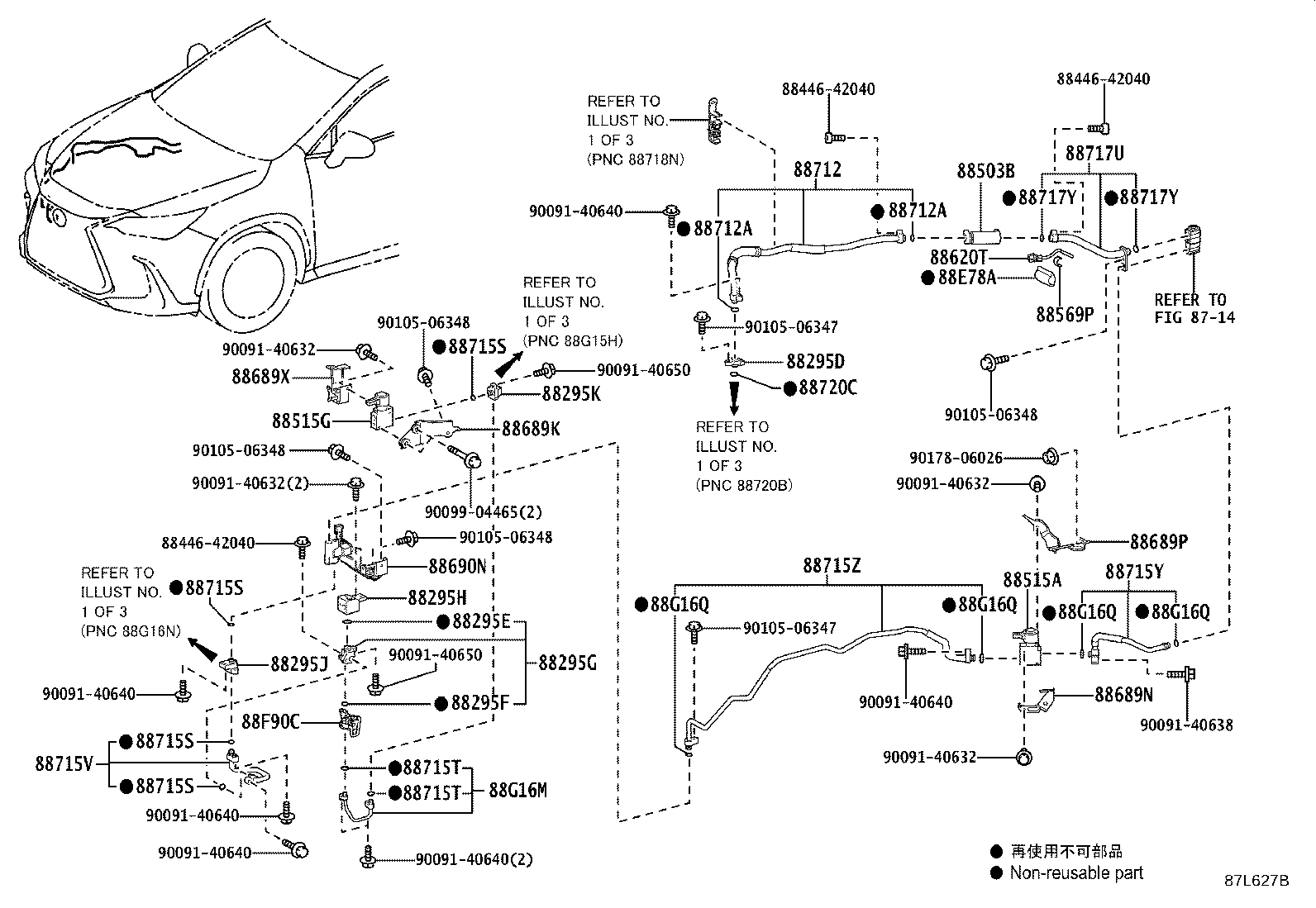

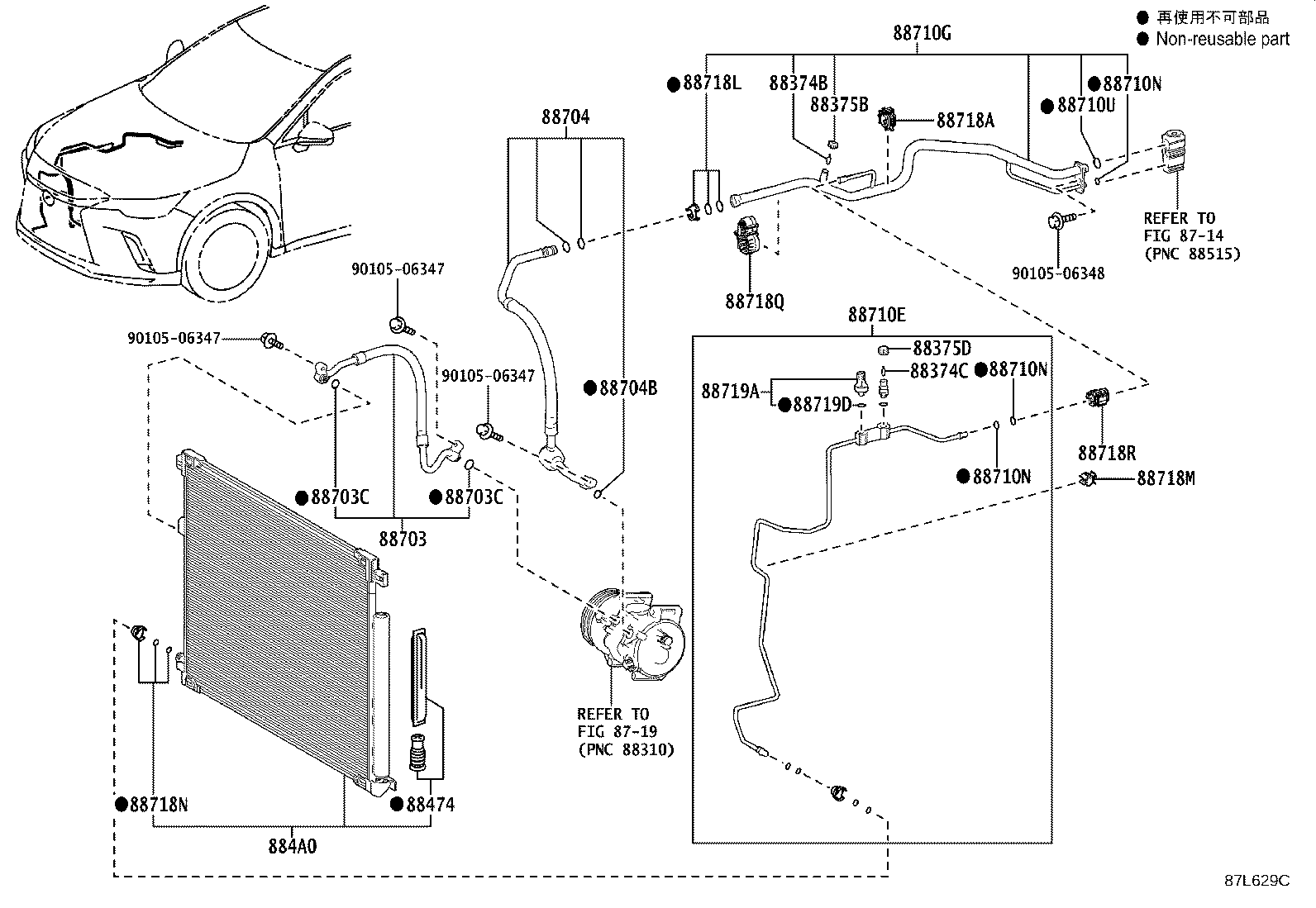

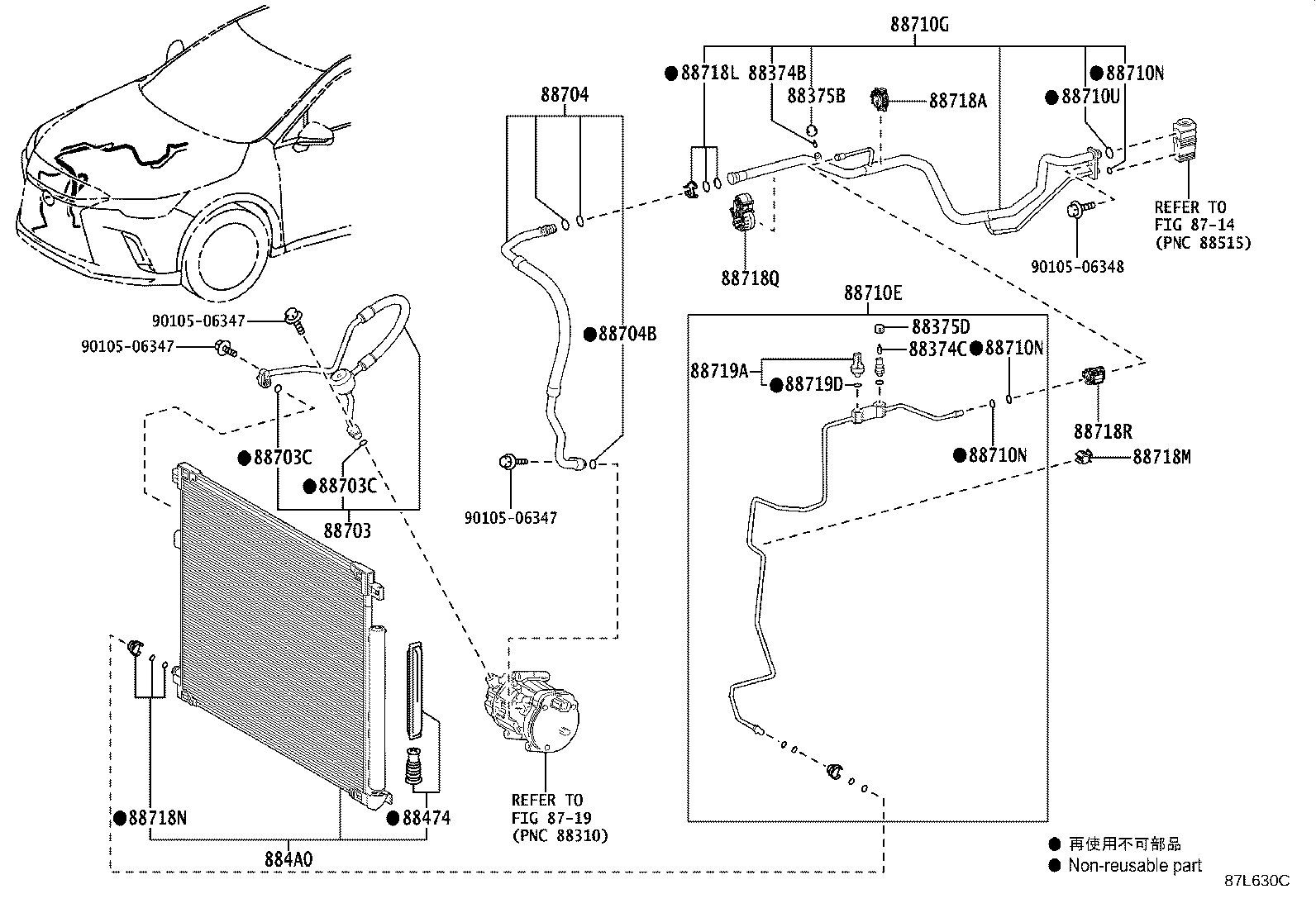

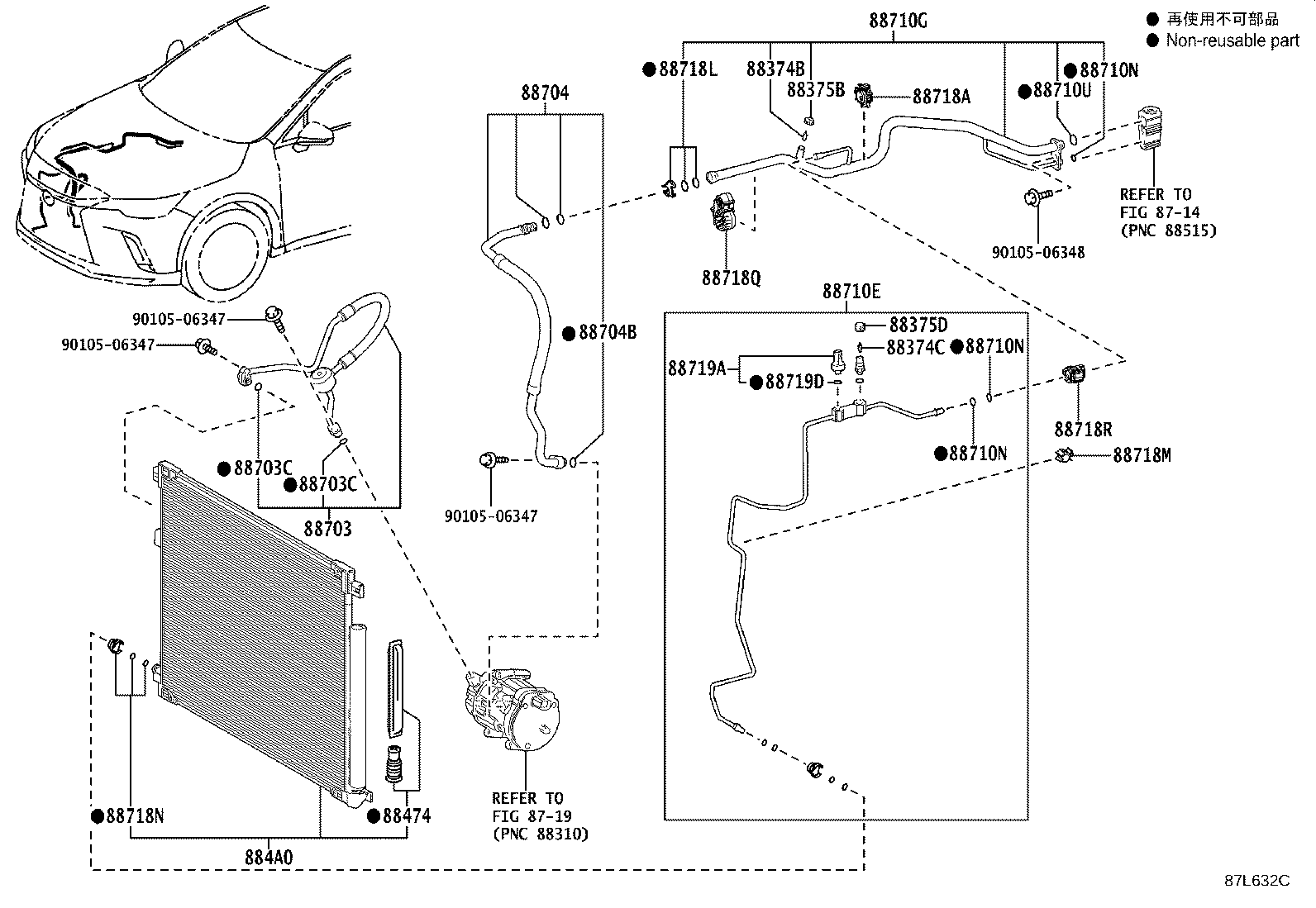

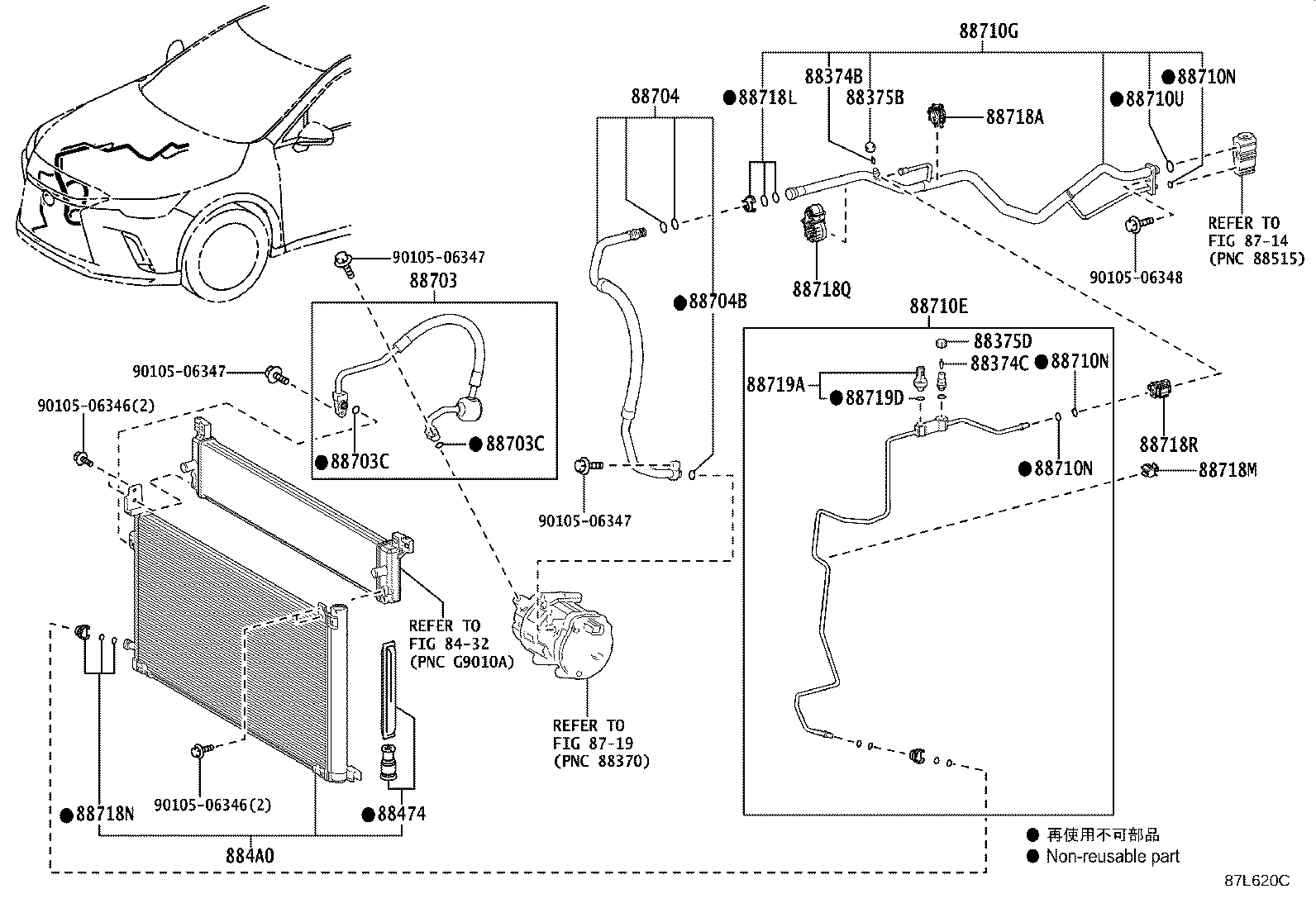

Illustrations

Part groups

PNC	Description
88295A	Tube, Valve TO Connector
88295B	Tube, Valve TO Connector, NO.2
88295D	Tube, Valve TO Connector, NO.4
88295E	Ring, O, NO.1(FOR TUBE, VALVE TO CONNECTOR)
88295F	Ring, O, NO.2(FOR TUBE, VALVE TO CONNECTOR)
88295G	Tube, Valve TO Connector, NO.5
88295H	Tube, Valve TO Connector, NO.6
88295J	Tube, Valve TO Connector, NO.7
88295K	Tube, Valve TO Connector, NO.8
88374B	Valve, Service, NO.1
88374C	Valve, Service, NO.2
88374D	Valve, Service NO.3
88375B	Cap, Service Valve, NO.1
88375D	Cap, Service Valve, NO.2
88375F	Cap, Service Valve, NO.3
88467N	Cushion, Cooler, NO.3
88467P	Cushion, Cooler, NO.4
88467R	Bush, NO.2
88470H	Accumulator Assy
88474	Dryer, Cooler
884A0	Condenser Assy, Cooler
88503B	Regulator Sub-assy, Pressure
88515A	Valve, Cooler Expansion
88515G	Valve, Cooler Expansion, NO.2
88569D	Clamp, Cooler, NO.1
88569K	Clamp, Cooler, NO.2
88569L	Clamp, Cooler, NO.3
88569P	Clamp, Cooler, NO.4
88578Z	Packing, Cooler, NO.1
88620D	Thermostat Assy
88620Q	Thermistor Assy, Air Conditioner NO.1
88620R	Thermistor Assy, Air Conditioner NO.2
88620T	Thermistor Assy, Air Conditioner NO.4
88689E	Bracket, Cooler, NO.1
88689G	Bracket, Cooler, NO.3
88689H	Bracket, Cooler, NO.4
88689J	Bracket, Cooler, NO.5
88689K	Bracket, Cooler, NO.6
88689L	Bracket, Cooler, NO.7
88689N	Bracket, Cooler, NO.9
88689P	Bracket, Cooler, NO.10
88689X	Bracket, Cooler, NO.18
88689Y	Bracket, Cooler, NO.19
88690M	Valve Assy, Magnet, NO.1
88690N	Valve Assy, Magnet, NO.2
88703	Hose Sub-assy, Discharge
88703C	Ring, O(FOR DISCHARGE HOSE)
88704	Hose Sub-assy, Suction
88704B	Ring, O(FOR SUCTION HOSE)
88704D	Ring, O, NO.2 (FOR SUCTION HOSE)
88706A	Tube Sub-assy, Liquid, A
88706G	Ring, O(FOR LIQUID TUBE)
88710E	Tube & Accessory Assy, Air Conditioner
88710G	Tube & Accessory Assy, Air Conditioner, NO.2
88710N	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710U	Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711A	Hose, Cooler Refrigerant Discharge, NO.2
88711C	Hose, Cooler Refrigerant Discharge, NO.3
88711J	Ring, O, NO.1(FOR DISCHARGE HOSE)
88711K	Ring, O, NO.2(FOR DISCHARGE HOSE)
88711L	Ring, O, NO.3(FOR DISCHARGE HOSE)
88712	Hose, Cooler Refrigerant Suction, NO.1
88712A	Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712B	Hose, Cooler Refrigerant Suction
88712E	Ring, O, NO.2 (FOR COOLER REFRIGERANT SUCTION HOSE)
88715G	Tube, Discharge, G
88715R	Ring, O(FOR DISCHARGE TUBE)
88715S	Ring, O, NO.2(FOR DISCHARGE TUBE)
88715T	Ring, O, NO.3(FOR DISCHARGE TUBE)
88715U	Tube, Discharge, NO.1
88715V	Tube, Discharge, NO.2
88715Y	Tube, Discharge, NO.5
88715Z	Tube, Discharge, NO.6
88717U	Tube, Suction, NO.1
88717Y	Ring, O, NO.1(FOR SUCTION TUBE)
88718A	Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718L	Clamp, Piping
88718M	Clamp, Piping
88718N	Clamp, Piping
88718Q	Clamp, Piping
88718R	Clamp, Piping
88719A	Sensor, Air Conditioner Pressure
88719D	Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88720B	Hose & Accessory, Air Conditioner
88720C	Ring, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
88720D	Ring, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
88720E	Ring, O, NO.3(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
88891N	Packing, Cooler
88E78	Packing, Cooler, NO.2
88E78A	Packing, Cooler, NO.3
88F90C	Valve Assy, Magnet NO.3
88G15E	Ring, O, NO.9(FOR DISCHARGE TUBE)
88G15H	Tube, Discharge, NO.7
88G15K	Tube, Discharge, NO.9
88G16M	Tube, Liquid, NO.1
88G16N	Tube, Liquid, NO.2
88G16P	Tube, Liquid, NO.3
88G16Q	Ring, O, NO.1(FOR LIQUID TUBE)
88G16S	Ring, O, NO.3(FOR LIQUID TUBE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
