Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

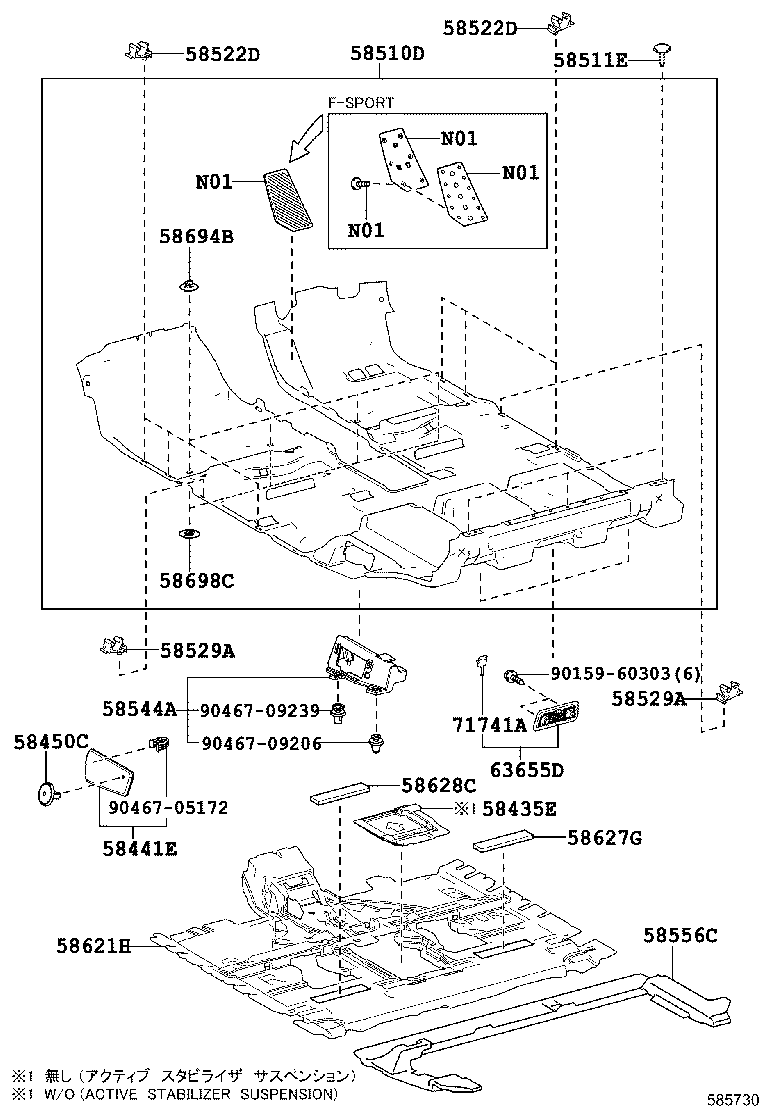

Exploded illustration 585730 58694B — PLATE, MAT SET, UPPER (2 parts) 58698C — PLATE, MAT SET, LOWER (2 parts) 71741A — COVER, AIR HOLE (10 parts) 63655D — COVER, AIR INTAKE (10 parts) 9046705172 — not listed in this catalogue 9046709206 — not listed in this catalogue 9015960303 — not listed in this catalogue 9046709239 — not listed in this catalogue 58510D — CARPET ASSY, FLOOR, FRONT (36 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (4 parts) 58522D — HOOK, FLOOR CARPET, NO.2 (2 parts) 58522D — HOOK, FLOOR CARPET, NO.2 (2 parts) 58529A — HOOK, FLOOR CARPET, NO.3 (2 parts) 58441E — COVER, BATTERY SERVICE HOLE (10 parts) 58450C — CLIP (10 parts) 58544A — BRACKET, FLOOR CARPET, LH (2 parts) 58556C — SILENCER, REAR FLOOR (4 parts) 58529A — HOOK, FLOOR CARPET, NO.3 (2 parts) 58435E — SILENCER, FRONT FLOOR, CENTER (2 parts) 58621H — PAD, FRONT FLOOR SILENCER (4 parts) 58627G — PAD, CENTER FLOOR SILENCER, REAR RH (2 parts) 58628C — PAD, CENTER FLOOR SILENCER, REAR LH (2 parts)
585730 · 18 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
58435E — Silencer, Front Floor, Center
58435-48020 Silencer, Front Floor, Center
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58435-48020 Silencer, Front Floor, Center
2019-08 → —
AGL2#,GGL25,GYL25 —
58441E — Cover, Battery Service Hole
58441-48060-C2 note Cover, Battery Service Hole
2015-10 → 2019-08 ended
GYL25 STD —
58441-48060-C2 note Cover, Battery Service Hole
2015-10 → 2019-08 ended
GYL25 ECO —
58441-48060-E1 note Cover, Battery Service Hole
2015-10 → 2019-08 ended
GYL25 ECO —
58441-48060-E1 note Cover, Battery Service Hole
2015-10 → 2019-08 ended
GYL25 STD —
58441-48060-C2 note Cover, Battery Service Hole
2019-08 → 2020-07 ended
GYL25 ECO —
58441-48060-C2 note Cover, Battery Service Hole
2019-08 → 2020-07 ended
GYL25 STD —
58441-48060-C2 note Cover, Battery Service Hole
2020-07 → —
GYL25 ECO —
58441-48060-C2 note Cover, Battery Service Hole
2020-07 → —
GYL25 STD —
58441-48060-E1 note Cover, Battery Service Hole
2019-08 → 2020-07 ended
GYL25 ECO —
58441-48060-E1 note Cover, Battery Service Hole
2019-08 → 2020-07 ended
GYL25 STD —
58450C — Clip
90467-07206-C0 note Clip
2015-10 → 2019-08 ended
GYL25 ECO —
90467-07206-C0 note Clip
2015-10 → 2019-08 ended
GYL25 STD —
90467-07206-E0 note Clip
2015-10 → 2019-08 ended
GYL25 STD —
90467-07206-E0 note Clip
2015-10 → 2019-08 ended
GYL25 ECO —
90467-07206-C0 note Clip
2019-08 → 2020-07 ended
GYL25 ECO —
90467-07206-C0 note Clip
2019-08 → 2020-07 ended
GYL25 STD —
90467-07206-C0 note Clip
2020-07 → —
GYL25 ECO —
90467-07206-C0 note Clip
2020-07 → —
GYL25 STD —
90467-07206-E0 note Clip
2019-08 → 2020-07 ended
GYL25 ECO —
90467-07206-E0 note Clip
2019-08 → 2020-07 ended
GYL25 STD —
58510D — Carpet Assy, Floor, Front
58510-48450-C1 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL20 LHD —
58510-48450-C1 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25,GGL25 LHD —
58510-48450-E0 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL20 LHD —
58510-48450-E0 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25,GGL25 LHD —
58510-48460-C1 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL20 RHD —
58510-48460-C1 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25 RHD —
58510-48460-E0 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25 RHD —
58510-48460-E0 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL20 RHD —
58510-48470-C2 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25,GGL25 LHD —
58510-48470-C2 note Carpet Assy, Floor, Front
2016-08 → 2019-08 ended
AGL20 LHD —
58510-48480-C2 note Carpet Assy, Floor, Front
2015-09 → 2019-08 ended
AGL25 RHD —
58510-48480-C2 note Carpet Assy, Floor, Front
2016-08 → 2019-08 ended
AGL20 RHD —
58510-48490-C1 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 LHD —
58510-48490-E0 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 LHD —
58510-48500-C1 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 RHD —
58510-48500-E0 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 RHD —
58510-48510-C2 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 LHD STD —
58510-48520-C2 note Carpet Assy, Floor, Front
2015-10 → 2019-08 ended
GYL25 RHD STD —
58510-48450-C1 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
AGL2#,GGL25 —
58510-48450-C1 note Carpet Assy, Floor, Front
2020-07 → —
AGL2#,GGL25 —
58510-48450-E0 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
AGL2#,GGL25 —
58510-48470-C2 note Carpet Assy, Floor, Front
2019-08 → —
AGL2#,GGL25 —
58510-48490-C1 note Carpet Assy, Floor, Front
2020-07 → —
GYL25 LHD ECO —
58510-48490-C1 note Carpet Assy, Floor, Front
2020-07 → —
GYL25 LHD STD —
58510-48490-C1 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 LHD ECO —
58510-48490-C1 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 LHD STD —
58510-48490-E0 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 LHD ECO —
58510-48490-E0 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 LHD STD —
58510-48500-C1 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 RHD STD —
58510-48500-C1 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 RHD ECO —
58510-48500-C1 note Carpet Assy, Floor, Front
2020-07 → —
GYL25 RHD ECO —
58510-48500-C1 note Carpet Assy, Floor, Front
2020-07 → —
GYL25 RHD STD —
58510-48500-E0 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 RHD ECO —
58510-48500-E0 note Carpet Assy, Floor, Front
2019-08 → 2020-07 ended
GYL25 RHD STD —
58510-48510-C2 note Carpet Assy, Floor, Front
2019-08 → —
GYL25 LHD STD —
58510-48520-C2 note Carpet Assy, Floor, Front
2019-08 → —
GYL25 RHD STD —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-07049-23 note Clip(FOR FRONT FLOOR MAT)
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 —
90467-07049-C0 note Clip(FOR FRONT FLOOR MAT)
2015-09 → 2016-10 ended
AGL20;GYL25 ECO —
90467-07049-C0 note Clip(FOR FRONT FLOOR MAT)
2015-09 → 2016-10 ended
AGL25,GGL25,GYL25 STD —
90467-07049-23 note Clip(FOR FRONT FLOOR MAT)
2019-08 → —
AGL2#,GGL25,GYL25 —
58522D — Hook, Floor Carpet, NO.2
58522-48010 Hook, Floor Carpet, NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58522-48010 Hook, Floor Carpet, NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
58529A — Hook, Floor Carpet, NO.3
58524-48010 Hook, Floor Carpet, NO.3
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58524-48010 Hook, Floor Carpet, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
58544A — Bracket, Floor Carpet, LH
58544-48010 Bracket, Floor Carpet, LH
2015-10 → 2019-08 ended
GYL25 —
58544-48010 Bracket, Floor Carpet, LH
2019-08 → —
GYL25 —
58556C — Silencer, Rear Floor
58556-48020 Silencer, Rear Floor
2015-09 → 2019-08 ended
AGL2#,GGL25 —
58556-48030 Silencer, Rear Floor
2015-10 → 2019-08 ended
GYL25 —
58556-48020 Silencer, Rear Floor
2019-08 → —
AGL2#,GGL25 —
58556-48030 Silencer, Rear Floor
2019-08 → —
GYL25 —
58621H — Pad, Front Floor Silencer
58621-48010 Pad, Front Floor Silencer
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 LHD —
58621-48020 Pad, Front Floor Silencer
2015-09 → 2019-08 ended
AGL2#,GYL25 RHD —
58621-48010 Pad, Front Floor Silencer
2019-08 → —
AGL2#,GGL25,GYL25 LHD —
58621-48020 Pad, Front Floor Silencer
2019-08 → —
GYL25 RHD —
58627G — Pad, Center Floor Silencer, Rear RH
58627-48010 Pad, Center Floor Silencer, Rear RH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58627-48010 Pad, Center Floor Silencer, Rear RH
2019-08 → —
AGL2#,GGL25,GYL25 —
58628C — Pad, Center Floor Silencer, Rear LH
58627-48010 Pad, Center Floor Silencer, Rear LH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58627-48010 Pad, Center Floor Silencer, Rear LH
2019-08 → —
AGL2#,GGL25,GYL25 —
58694B — Plate, Mat Set, Upper
58694-78010 Plate, Mat Set, Upper
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58694-78010 Plate, Mat Set, Upper
2019-08 → —
AGL2#,GGL25,GYL25 —
58698C — Plate, Mat Set, Lower
58698-78010 Plate, Mat Set, Lower
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
58698-78010 Plate, Mat Set, Lower
2019-08 → —
AGL2#,GGL25,GYL25 —
63655D — Cover, Air Intake
63655-48050-C0 note Cover, Air Intake
2015-10 → 2019-08 ended
GYL25 ECO —
63655-48050-C0 note Cover, Air Intake
2015-10 → 2019-08 ended
GYL25 STD —
63655-48050-E0 note Cover, Air Intake
2015-10 → 2019-08 ended
GYL25 ECO —
63655-48050-E0 note Cover, Air Intake
2015-10 → 2019-08 ended
GYL25 STD —
63655-48050-C0 note Cover, Air Intake
2020-07 → —
GYL25 STD —
63655-48050-C0 note Cover, Air Intake
2020-07 → —
GYL25 ECO —
63655-48050-C0 note Cover, Air Intake
2019-08 → 2020-07 ended
GYL25 STD —
63655-48050-C0 note Cover, Air Intake
2019-08 → 2020-07 ended
GYL25 ECO —
63655-48050-E0 note Cover, Air Intake
2019-08 → 2020-07 ended
GYL25 ECO —
63655-48050-E0 note Cover, Air Intake
2019-08 → 2020-07 ended
GYL25 STD —
71741A — Cover, Air Hole
71741-48010-C0 note Cover, Air Hole
2015-10 → 2019-08 ended
GYL25 ECO —
71741-48010-C0 note Cover, Air Hole
2015-10 → 2019-08 ended
GYL25 STD —
71741-48010-E1 note Cover, Air Hole
2015-10 → 2019-08 ended
GYL25 ECO —
71741-48010-E1 note Cover, Air Hole
2015-10 → 2019-08 ended
GYL25 STD —
71741-48010-C0 note Cover, Air Hole
2019-08 → 2020-07 ended
GYL25 ECO —
71741-48010-C0 note Cover, Air Hole
2019-08 → 2020-07 ended
GYL25 STD —
71741-48010-C0 note Cover, Air Hole
2020-07 → —
GYL25 ECO —
71741-48010-C0 note Cover, Air Hole
2020-07 → —
GYL25 STD —
71741-48010-E1 note Cover, Air Hole
2019-08 → 2020-07 ended
GYL25 ECO —
71741-48010-E1 note Cover, Air Hole
2019-08 → 2020-07 ended
GYL25 STD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
