Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

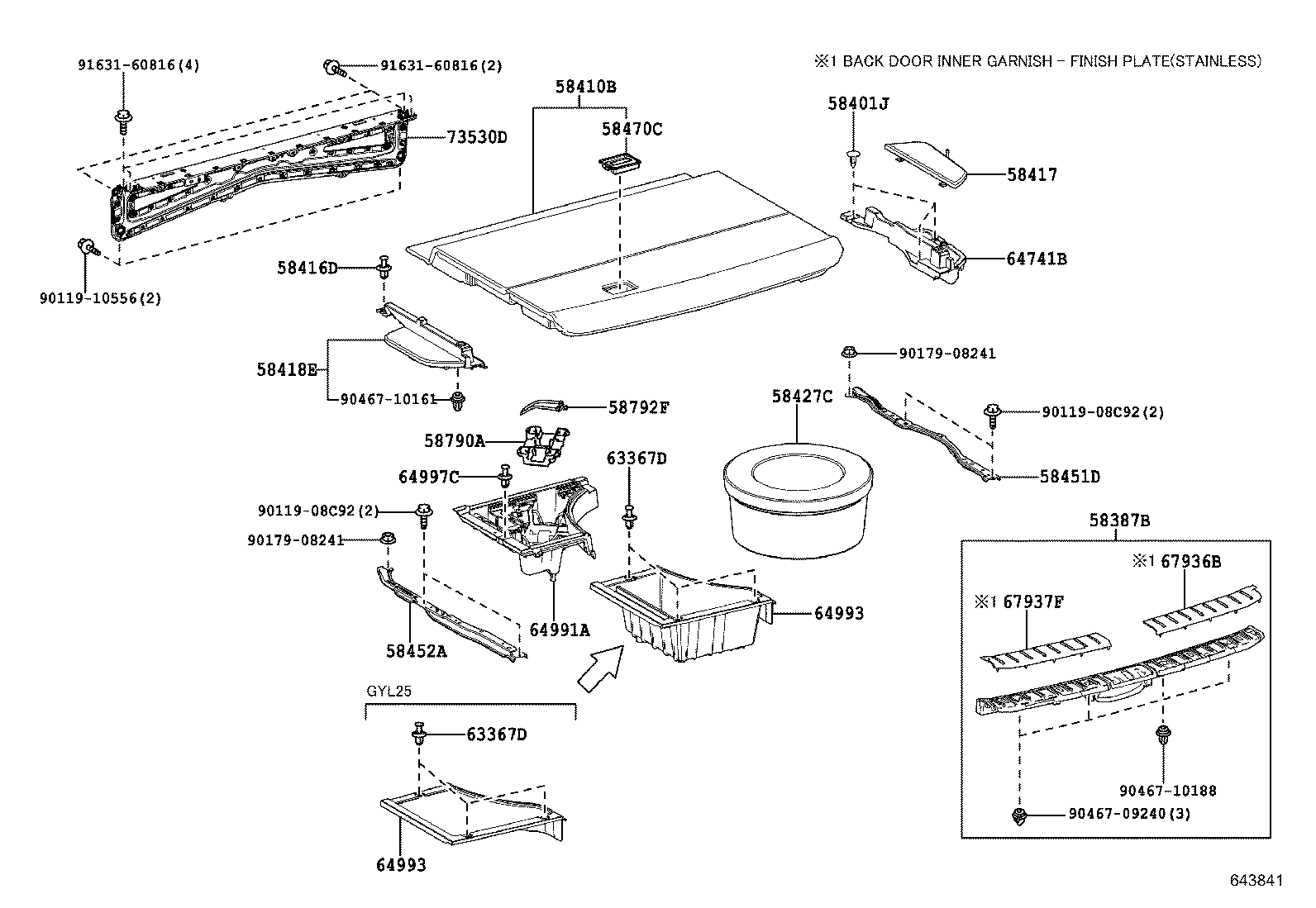

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58387B — Plate, Rear Floor Finish | ||||
| 58387-48080-C0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL2#,GGL25,GYL25 | — | |
| 58387-48080-E0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48080-E0 note |
Plate, Rear Floor Finish
2015-10 → 2016-02
ended
|
GYL25 ECO | — | |
| 58387-48081-C0 note |
Plate, Rear Floor Finish
2016-03 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 58387-48081-E0 note |
Plate, Rear Floor Finish
2016-03 → 2019-08
ended
|
GYL25 ECO | — | |
| 58387-48081-E0 note |
Plate, Rear Floor Finish
2016-03 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48090-C0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL25,GGL25,GYL25 STD | — | |
| 58387-48090-C0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL20 | — | |
| 58387-48090-E0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL25,GGL25,GYL25 STD | — | |
| 58387-48090-E0 note |
Plate, Rear Floor Finish
2015-09 → 2016-02
ended
|
AGL20 | — | |
| 58387-48091-C0 note |
Plate, Rear Floor Finish
2016-03 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48091-E0 note |
Plate, Rear Floor Finish
2016-03 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48081-C0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58387-48081-C0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48081-C0 note |
Plate, Rear Floor Finish
2020-07 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48081-C0 note |
Plate, Rear Floor Finish
2020-07 → —
|
GYL25 ECO | — | |
| 58387-48081-E0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58387-48081-E0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48091-C0 note |
Plate, Rear Floor Finish
2020-07 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48091-C0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58387-48091-E0 note |
Plate, Rear Floor Finish
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58401J — Clip(FOR DECK BOAD) | ||||
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2015-09 → 2019-08
ended
|
AGL25,GGL25,GYL25 LHD STD | — | |
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2015-09 → 2019-08
ended
|
AGL20 LHD | — | |
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
| 90467-06020-C0 note |
Clip(FOR DECK BOAD)
2019-08 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410B — Board Assy, Deck | ||||
| 58410-48130-C1 note |
Board Assy, Deck
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58410-48130-E1 note |
Board Assy, Deck
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58410-48130-E1 note |
Board Assy, Deck
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58410-48140-C1 note |
Board Assy, Deck
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48140-C1 note |
Board Assy, Deck
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58410-48140-E1 note |
Board Assy, Deck
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48140-E1 note |
Board Assy, Deck
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2020-07 → 2021-09
ended
|
GYL25 ECO | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2020-07 → 2021-09
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2020-07 → 2021-09
ended
|
GGL25 | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48130-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GGL25 | — | |
| 58410-48130-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48130-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58410-48130-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GGL25 | — | |
| 58410-48131-C1 note |
Board Assy, Deck
2021-07 → —
|
GGL25 | — | |
| 58410-48131-C1 note |
Board Assy, Deck
2021-07 → —
|
AGL2#,GYL25 STD | — | |
| 58410-48131-C1 note |
Board Assy, Deck
2021-07 → —
|
GYL25 ECO | — | |
| 58410-48140-C1 note |
Board Assy, Deck
2020-07 → 2021-09
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48140-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48140-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48141-C1 note |
Board Assy, Deck
2021-07 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2020-07 → 2021-07
ended
|
GYL25 LHD ECO | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2020-07 → 2021-07
ended
|
AGL2#,GYL25 LHD STD | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2020-07 → 2021-07
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2020-07 → 2021-07
ended
|
GGL25 | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 LHD ECO | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 LHD STD | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GGL25 | — | |
| 58410-48150-C1 note |
Board Assy, Deck
2020-07 → 2021-07
ended
|
GYL25 ECO | — | |
| 58410-48150-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 LHD ECO | — | |
| 58410-48150-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 LHD STD | — | |
| 58410-48150-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
AGL2#,GYL25 STD | — | |
| 58410-48150-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58410-48150-E1 note |
Board Assy, Deck
2019-08 → 2020-07
ended
|
GGL25 | — | |
| 58410-48151-C1 note |
Board Assy, Deck
2021-07 → —
|
AGL2#,GYL25 STD | — | |
| 58410-48151-C1 note |
Board Assy, Deck
2021-07 → —
|
GYL25 LHD ECO | — | |
| 58410-48151-C1 note |
Board Assy, Deck
2021-07 → —
|
AGL2#,GYL25 LHD STD | — | |
| 58410-48151-C1 note |
Board Assy, Deck
2021-07 → —
|
GYL25 ECO | — | |
| 58410-48151-C1 note |
Board Assy, Deck
2021-07 → —
|
GGL25 | — | |
| 58416D — Clip, Rear Floor Board | ||||
| 63399-78010 note |
Clip, Rear Floor Board
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 63399-78010 note |
Clip, Rear Floor Board
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 63399-78010 note |
Clip, Rear Floor Board
2019-08 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58417 — Board, Rear Floor, NO.3 | ||||
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58417-48040-E1 note |
Board, Rear Floor, NO.3
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58417-48040-E1 note |
Board, Rear Floor, NO.3
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58417-48050-C0 note |
Board, Rear Floor, NO.3
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58417-48050-C0 note |
Board, Rear Floor, NO.3
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58417-48050-E0 note |
Board, Rear Floor, NO.3
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58417-48050-E0 note |
Board, Rear Floor, NO.3
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2020-07 → —
|
GYL25 ECO | — | |
| 58417-48040-C1 note |
Board, Rear Floor, NO.3
2020-07 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 58417-48040-E1 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58417-48040-E1 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58417-48050-C0 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58417-48050-C0 note |
Board, Rear Floor, NO.3
2020-07 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58417-48050-E0 note |
Board, Rear Floor, NO.3
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58418E — Board, Rear Floor, NO.4 | ||||
| 58418-48100-C0 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL25,GGL25,GYL25 STD | — | |
| 58418-48100-C0 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL20;GYL25 ECO | — | |
| 58418-48100-E0 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL25,GGL25,GYL25 STD | — | |
| 58418-48100-E0 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL20;GYL25 ECO | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
GYL25 ECO | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58418-48101-E0 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
GYL25 ECO | — | |
| 58418-48101-E0 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58418-48110-C1 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL20 LHD | — | |
| 58418-48110-C1 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL25,GGL25,GYL25 LHD STD | — | |
| 58418-48110-E1 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL20 LHD | — | |
| 58418-48110-E1 note |
Board, Rear Floor, NO.4
2015-09 → 2015-12
ended
|
AGL25,GGL25,GYL25 LHD STD | — | |
| 58418-48111-C1 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58418-48111-C1 note |
Board, Rear Floor, NO.4
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58418-48111-E1 note |
Board, Rear Floor, NO.4
2016-01 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58418-48111-E1 note |
Board, Rear Floor, NO.4
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2020-07 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2020-07 → —
|
GYL25 ECO | — | |
| 58418-48101-C0 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58418-48101-E0 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58418-48101-E0 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58418-48111-C1 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58418-48111-C1 note |
Board, Rear Floor, NO.4
2020-07 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58418-48111-E1 note |
Board, Rear Floor, NO.4
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58427C — Spacer, Rear Floor Board | ||||
| 58427-48030 note |
Spacer, Rear Floor Board
2015-09 → 2016-06
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58427-48031 note |
Spacer, Rear Floor Board
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58427-48031 note |
Spacer, Rear Floor Board
2016-07 → 2019-08
ended
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58427-48031 note |
Spacer, Rear Floor Board
2019-08 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 58451D — Reinforcement, Deck Board, NO.1 | ||||
| 58451-48040 |
Reinforcement, Deck Board, NO.1
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 58451-48040 |
Reinforcement, Deck Board, NO.1
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
| 58452A — Reinforcement, Deck Board, NO.2 | ||||
| 58452-48020 |
Reinforcement, Deck Board, NO.2
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 58452-48020 |
Reinforcement, Deck Board, NO.2
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
| 58470C — Handle Assy, Deck Board | ||||
| 58470-78020-C0 note |
Handle Assy, Deck Board
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58470-78020-E0 note |
Handle Assy, Deck Board
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58470-78020-E0 note |
Handle Assy, Deck Board
2015-10 → 2019-08
ended
|
GYL25 ECO | — | |
| 58470-50010-C0 note |
Handle Assy, Deck Board
2021-07 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 58470-50010-C0 note |
Handle Assy, Deck Board
2021-07 → —
|
GYL25 ECO | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2020-07 → 2021-09
ended
|
AGL2#,GYL25 STD | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2021-07 → 2021-09
ended
|
GGL25 | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2021-07 → 2021-09
ended
|
GGL25 | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2020-07 → 2021-09
ended
|
GYL25 ECO | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2020-07 → 2021-07
ended
|
GGL25 | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58470-78020-C0 note |
Handle Assy, Deck Board
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58470-78020-E0 note |
Handle Assy, Deck Board
2019-08 → 2020-07
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 58470-78020-E0 note |
Handle Assy, Deck Board
2019-08 → 2020-07
ended
|
GYL25 ECO | — | |
| 58790A — Carrier Assy, Jack | ||||
| 58790-48060 |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 58790-48060 note |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 58790-48080 |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 58790-48080 note |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD STD | — | |
| 58790-48080 note |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 58790-48080 note |
Carrier Assy, Jack
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD | — | |
| 58790-48080 note |
Carrier Assy, Jack
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 58790-48060 note |
Carrier Assy, Jack
2019-08 → —
|
GGL25 | — | |
| 58790-48060 |
Carrier Assy, Jack
2019-08 → —
|
AGL2#,GYL25 | — | |
| 58790-48080 |
Carrier Assy, Jack
2019-08 → —
|
GGL25 | — | |
| 58790-48080 note |
Carrier Assy, Jack
2019-08 → —
|
AGL2#,GYL25 LHD STD | — | |
| 58790-48080 note |
Carrier Assy, Jack
2019-08 → —
|
AGL2#,GYL25 | — | |
| 58790-48080 note |
Carrier Assy, Jack
2019-08 → —
|
AGL2#,GYL25 LHD | — | |
| 58792F — Support, Jack Carrier | ||||
| 58792-48010 |
Support, Jack Carrier
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 58792-48010 |
Support, Jack Carrier
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
| 63367D — Clip(FOR DECK FLOOR BOX) | ||||
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2015-10 → 2019-08
ended
|
GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2# | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD STD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2# | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
GGL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 LHD | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 LHD STD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
GGL25 | — | |
| 64741B — Box, Deck Side Trim, RH | ||||
| 64741-48090 |
Box, Deck Side Trim, RH
2015-09 → 2016-06
ended
|
AGL2#,GGL25,GYL25 | — | |
| 64741-48091 |
Box, Deck Side Trim, RH
2016-07 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 64741-48100-C0 note |
Box, Deck Side Trim, RH
2015-09 → 2016-07
ended
|
AGL25,GGL25,GYL25 LHD STD | — | |
| 64741-48100-C0 note |
Box, Deck Side Trim, RH
2015-09 → 2016-07
ended
|
AGL20 LHD | — | |
| 64741-48101 note |
Box, Deck Side Trim, RH
2016-08 → 2019-08
ended
|
GYL25 STD;AGL2#,GGL25 LHD | — | |
| 64741-48091 |
Box, Deck Side Trim, RH
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
| 64741-48101 note |
Box, Deck Side Trim, RH
2019-08 → —
|
AGL2#,GGL25,GYL25 LHD STD | — | |
| 64991A — Box, Deck Floor, FR | ||||
| 64991-48070 |
Box, Deck Floor, FR
2015-09 → 2016-06
ended
|
GGL25 | — | |
| 64991-48070 note |
Box, Deck Floor, FR
2015-09 → 2016-06
ended
|
AGL2#,GYL25 LHD | — | |
| 64991-48070 note |
Box, Deck Floor, FR
2015-09 → 2016-06
ended
|
AGL2#,GYL25 LHD STD | — | |
| 64991-48070 note |
Box, Deck Floor, FR
2015-09 → 2016-06
ended
|
AGL2#,GYL25 | — | |
| 64991-48071 |
Box, Deck Floor, FR
2016-07 → 2019-08
ended
|
GGL25 | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2016-07 → 2019-08
ended
|
AGL2#,GYL25 LHD STD | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2016-07 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2016-07 → 2019-08
ended
|
AGL2#,GYL25 LHD | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 64991-48071 |
Box, Deck Floor, FR
2019-08 → —
|
GGL25 | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2019-08 → —
|
AGL2#,GYL25 LHD STD | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2019-08 → —
|
AGL2#,GYL25 | — | |
| 64991-48071 note |
Box, Deck Floor, FR
2019-08 → —
|
AGL2#,GYL25 LHD | — | |
| 64993 — Box, Deck Floor, Rear | ||||
| 64993-48120 note |
Box, Deck Floor, Rear
2015-09 → 2016-06
ended
|
AGL2# LHD | — | |
| 64993-48120 note |
Box, Deck Floor, Rear
2015-09 → 2016-06
ended
|
AGL2# LHD | — | |
| 64993-48120 note |
Box, Deck Floor, Rear
2015-09 → 2016-06
ended
|
AGL2# | — | |
| 64993-48120 |
Box, Deck Floor, Rear
2015-09 → 2016-06
ended
|
GGL25 | — | |
| 64993-48121 |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
GGL25 | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
AGL2# LHD | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
AGL2# | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
AGL2# LHD | — | |
| 64993-48130 note |
Box, Deck Floor, Rear
2015-10 → 2016-06
ended
|
GYL25 LHD STD | — | |
| 64993-48130 note |
Box, Deck Floor, Rear
2015-10 → 2016-06
ended
|
GYL25 | — | |
| 64993-48130 note |
Box, Deck Floor, Rear
2015-10 → 2016-06
ended
|
GYL25 LHD | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
GYL25 LHD | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
GYL25 LHD STD | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2016-07 → 2019-08
ended
|
GYL25 | — | |
| 64993-48140 |
Box, Deck Floor, Rear
2015-10 → 2019-08
ended
|
GYL25 | — | |
| 64993-48121 |
Box, Deck Floor, Rear
2019-08 → —
|
GGL25 | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2019-08 → —
|
AGL2# | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2019-08 → —
|
AGL2# | — | |
| 64993-48121 note |
Box, Deck Floor, Rear
2019-08 → —
|
AGL2# | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2019-08 → —
|
GYL25 LHD STD | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2019-08 → —
|
GYL25 | — | |
| 64993-48131 note |
Box, Deck Floor, Rear
2019-08 → —
|
GYL25 LHD | — | |
| 64993-48140 |
Box, Deck Floor, Rear
2019-08 → —
|
GYL25 | — | |
| 64997C — Clip(FOR DECK FLOOR BOX) | ||||
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2016-08 → 2019-08
ended
|
GYL25 RHD STD | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
AGL2#,GYL25 LHD STD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2015-09 → 2019-08
ended
|
GGL25 | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
GGL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 LHD STD | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 LHD | — | |
| 63399-78010 |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
AGL2#,GYL25 | — | |
| 63399-78010 note |
Clip(FOR DECK FLOOR BOX)
2019-08 → —
|
GGL25 | — | |
| 67936B — Cover, Back Door Scuff Side, RH | ||||
| 67936-48030 note |
Cover, Back Door Scuff Side, RH
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 67936-48030 note |
Cover, Back Door Scuff Side, RH
2019-08 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 67937F — Cover, Back Door Scuff Side, LH | ||||
| 67937-48040 note |
Cover, Back Door Scuff Side, LH
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 STD | — | |
| 67937-48040 note |
Cover, Back Door Scuff Side, LH
2019-08 → —
|
AGL2#,GGL25,GYL25 STD | — | |
| 73530D — Panel Assy, Rear Seat Sub Floor | ||||
| 73530-48060 |
Panel Assy, Rear Seat Sub Floor
2015-09 → 2019-08
ended
|
AGL2#,GGL25,GYL25 | — | |
| 73530-48060 |
Panel Assy, Rear Seat Sub Floor
2019-08 → —
|
AGL2#,GGL25,GYL25 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
