Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

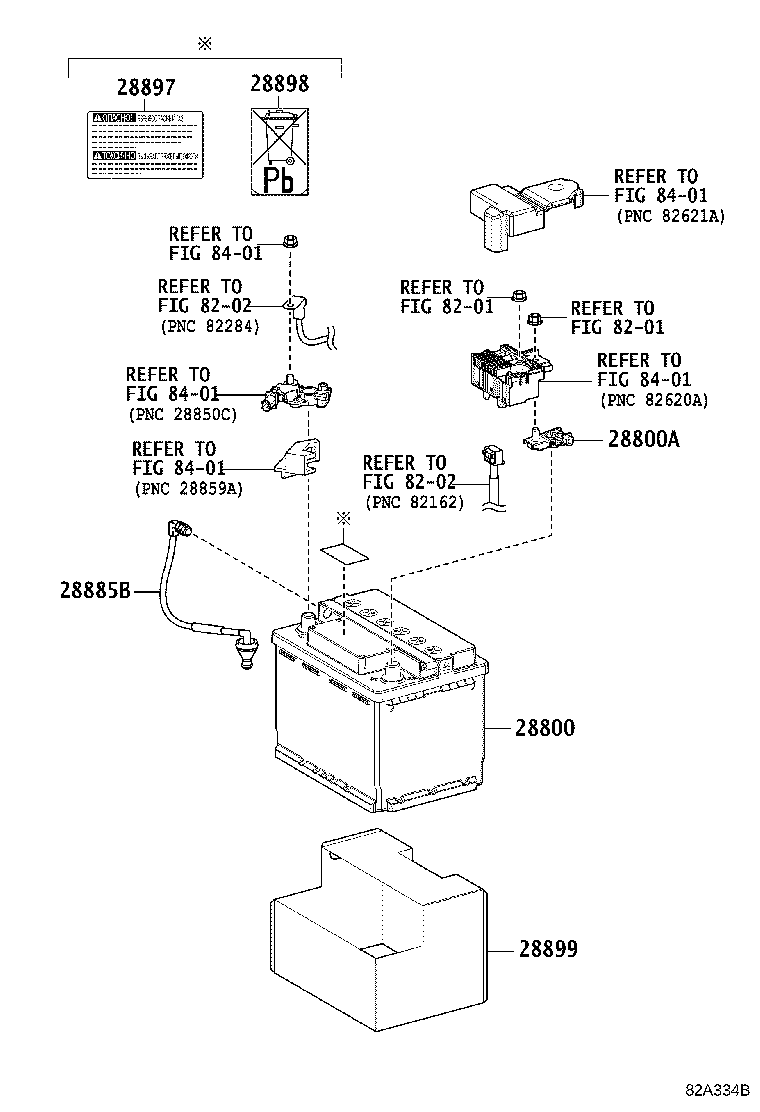

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-36131 note |
Battery
2015-10 → 2019-08
ended
|
2GRFXS GYL25 | — | |
| 28800-36150 note |
Battery
2015-09 → 2019-08
ended
|
8ARFTS AGL2# | — | |
| 28800-38080 note |
Battery
2015-09 → 2019-08
ended
|
2GRFKS GGL25 | — | |
| 28800-36131 note |
Battery
2019-08 → 2023-05
ended
|
2GRFXS GYL25 | — | |
| 28800-36150 note |
Battery
2019-08 → 2023-02
ended
|
8ARFTS AGL2# | — | |
| 28800-38080 note |
Battery
2019-08 → 2022-08
ended
|
2GRFKS GGL25 | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05054 |
Terminal, Battery Positive
2015-10 → 2019-08
ended
|
2GRFXS GYL25 | — | |
| 90982-05056 |
Terminal, Battery Positive
2015-09 → 2019-08
ended
|
8ARFTS,2GRFKS AGL2#,GGL25 | — | |
| 90982-05054 |
Terminal, Battery Positive
2019-08 → —
|
2GRFXS GYL25 | — | |
| 90982-05056 |
Terminal, Battery Positive
2019-08 → —
|
8ARFTS,2GRFKS AGL2#,GGL25 | — | |
| 28885B — Hose, Battery | ||||
| 28885-31100 |
Hose, Battery
2015-10 → 2019-08
ended
|
2GRFXS GYL25 | — | |
| 28885-31100 |
Hose, Battery
2019-08 → —
|
2GRFXS GYL25 | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-31040 note |
Plate, Battery Caution
2017-12 → 2018-03
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-31040 note |
Plate, Battery Caution
2017-12 → 2018-03
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-31040 note |
Plate, Battery Caution
2015-09 → 2018-03
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-31040 |
Plate, Battery Caution
2015-09 → 2018-03
ended
|
2GRFKS GGL25 | — | |
| 28897-38070 |
Plate, Battery Caution
2018-03 → 2019-08
ended
|
2GRFKS GGL25 | — | |
| 28897-38070 note |
Plate, Battery Caution
2018-03 → 2019-08
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 note |
Plate, Battery Caution
2018-03 → 2019-08
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 note |
Plate, Battery Caution
2018-03 → 2019-08
ended
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 |
Plate, Battery Caution
2019-08 → —
|
2GRFKS GGL25 | — | |
| 28897-38070 note |
Plate, Battery Caution
2019-08 → —
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 note |
Plate, Battery Caution
2019-08 → —
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 note |
Plate, Battery Caution
2019-08 → —
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28897-38070 note |
Plate, Battery Caution
2019-08 → —
|
8ARFTS,2GRFXS AGL2#,GYL25 LHD | — | |
| 28898 — Plate, Battery | ||||
| 28898-46020 |
Plate, Battery
2015-09 → 2019-08
ended
|
8ARFTS,2GRFKS AGL2#,GGL25 | — | |
| 28898-46020 |
Plate, Battery
2017-03 → 2019-08
ended
|
2GRFXS GYL25 | — | |
| 28898-46020 |
Plate, Battery
2019-08 → —
|
8ARFTS,2GR# AGL2#,GGL25,GYL25 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-36050 |
Insulator, Battery
2015-10 → 2019-08
ended
|
2GRFXS GYL25 | — | |
| 28899-36050 |
Insulator, Battery
2019-08 → 2021-09
ended
|
2GRFXS GYL25 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
