Factory parts data · Europe

Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09

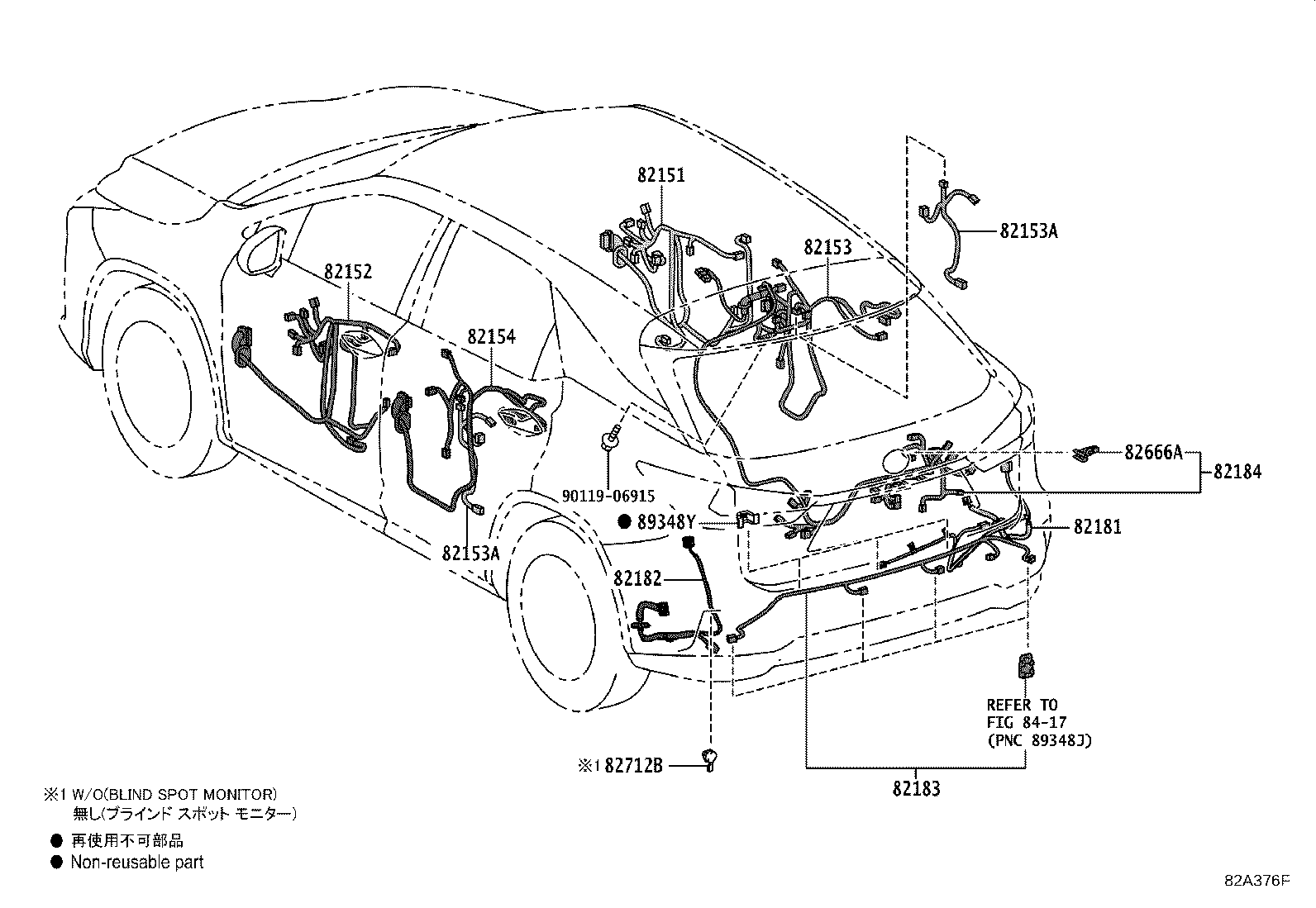

174 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-48820 Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 LHD —
82151-48830 note Wire, Front Door, RH
2015-09 → 2016-08 ended
AGL20 LHD —
82151-48830 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82151-48830 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 LHD —
82151-48850 note Wire, Front Door, RH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82151-48860 Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL2#,GYL25 RHD —
82151-48870 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL2#,GYL25 RHD —
82151-48890 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82151-48890 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82151-48890 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 LHD —
82151-48890 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 LHD —
82151-48A00 note Wire, Front Door, RH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82151-48A00 note Wire, Front Door, RH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82151-48A00 note Wire, Front Door, RH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82151-48A10 note Wire, Front Door, RH
2015-09 → 2016-08 ended
AGL20 RHD —
82151-48A10 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 RHD —
82151-48A10 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 RHD —
82151-48A10 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82151-48A10 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82151-48A10 note Wire, Front Door, RH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82151-48A10 note Wire, Front Door, RH
2016-08 → 2019-08 ended
AGL20 RHD —
82151-48A20 note Wire, Front Door, RH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82151-48A70 Wire, Front Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 LHD —
82151-48A80 note Wire, Front Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 LHD STD —
82151-48B00 note Wire, Front Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 LHD STD —
82151-48B00 note Wire, Front Door, RH
2021-07 → —
AGL25,GGL25,GYL25 LHD STD —
82151-48B00 note Wire, Front Door, RH
2019-08 → —
AGL20 —
82151-48B00 note Wire, Front Door, RH
2019-08 → 2021-07 ended
AGL25,GGL25,GYL25 LHD STD —
82151-48B40 note Wire, Front Door, RH
2019-08 → —
GYL25 RHD —
82151-48B60 note Wire, Front Door, RH
2019-08 → —
GYL25 RHD STD —
82151-48B60 note Wire, Front Door, RH
2019-08 → —
GYL25 RHD STD —
82151-48B60 note Wire, Front Door, RH
2019-08 → 2021-07 ended
GYL25 RHD STD —
82151-48B60 note Wire, Front Door, RH
2021-07 → —
GYL25 RHD STD —
82151-48C60 Wire, Front Door, RH
2019-08 → —
GYL25 RHD —
82151-48G30 note Wire, Front Door, RH
2021-07 → —
GYL25 RHD STD —
82152 — Wire, Front Door, LH
82152-48830 Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 LHD —
82152-48840 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 LHD —
82152-48860 note Wire, Front Door, LH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82152-48870 Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL2#,GYL25 RHD —
82152-48880 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82152-48880 note Wire, Front Door, LH
2015-09 → 2016-08 ended
AGL20 RHD —
82152-48880 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 RHD —
82152-48A10 note Wire, Front Door, LH
2015-09 → 2016-08 ended
AGL20 LHD —
82152-48A10 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 LHD —
82152-48A10 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 LHD —
82152-48A10 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 LHD —
82152-48A10 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82152-48A10 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82152-48A10 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 LHD STD —
82152-48A20 note Wire, Front Door, LH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82152-48A20 note Wire, Front Door, LH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82152-48A30 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82152-48A30 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 RHD —
82152-48A30 note Wire, Front Door, LH
2016-08 → 2019-08 ended
AGL20 RHD —
82152-48A30 note Wire, Front Door, LH
2015-09 → 2019-08 ended
AGL25,GYL25 RHD STD —
82152-48A40 note Wire, Front Door, LH
2017-12 → 2019-08 ended
GYL25 RHD STD —
82152-48A90 note Wire, Front Door, LH
2019-08 → —
AGL2#,GGL25,GYL25 LHD —
82152-48B10 note Wire, Front Door, LH
2019-08 → 2021-07 ended
AGL25,GGL25,GYL25 LHD STD —
82152-48B10 note Wire, Front Door, LH
2021-07 → —
AGL25,GGL25,GYL25 LHD STD —
82152-48B10 note Wire, Front Door, LH
2019-08 → —
AGL2#,GGL25,GYL25 LHD STD —
82152-48B10 note Wire, Front Door, LH
2019-08 → —
AGL20 —
82152-48B10 note Wire, Front Door, LH
2019-08 → —
AGL2#,GGL25,GYL25 LHD STD —
82152-48B40 Wire, Front Door, LH
2019-08 → —
GYL25 RHD —
82152-48B50 note Wire, Front Door, LH
2019-08 → —
GYL25 RHD STD —
82152-48B70 note Wire, Front Door, LH
2019-08 → 2021-07 ended
GYL25 RHD STD —
82152-48B70 note Wire, Front Door, LH
2021-07 → —
GYL25 RHD STD —
82152-48B70 note Wire, Front Door, LH
2019-08 → —
GYL25 RHD STD —
82152-48C50 Wire, Front Door, LH
2019-08 → —
AGL2#,GGL25,GYL25 LHD —
82152-48C80 note Wire, Front Door, LH
2021-07 → —
AGL25,GGL25,GYL25 LHD STD —
82153 — Wire, Rear Door, NO.1
82153-48250 note Wire, Rear Door, NO.1
2017-12 → 2019-08 ended
GYL25 RHD STD —
82153-48260 note Wire, Rear Door, NO.1
2017-12 → 2019-08 ended
GYL25 RHD STD —
82153-48260 note Wire, Rear Door, NO.1
2017-12 → 2019-08 ended
GYL25 RHD STD —
82153-48270 Wire, Rear Door, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82153-48280 note Wire, Rear Door, NO.1
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82153-48280 note Wire, Rear Door, NO.1
2016-08 → 2019-08 ended
AGL20 —
82153-48280 note Wire, Rear Door, NO.1
2016-08 → 2019-08 ended
AGL20 —
82153-48280 note Wire, Rear Door, NO.1
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82153-48280 note Wire, Rear Door, NO.1
2015-09 → 2016-08 ended
AGL20 —
82153-48270 Wire, Rear Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82153-48280 note Wire, Rear Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82153-48280 note Wire, Rear Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82153A — Wire, Rear Door, RH
82157-48020 note Wire, Rear Door, RH
2015-09 → 2016-08 ended
AGL20 —
82157-48020 note Wire, Rear Door, RH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82157-48020 note Wire, Rear Door, RH
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82157-48020 note Wire, Rear Door, RH
2016-08 → 2019-08 ended
AGL20 —
82157-48020 note Wire, Rear Door, RH
2016-08 → 2019-08 ended
AGL20 —
82157-48030 Wire, Rear Door, RH
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82157-48020 note Wire, Rear Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82157-48020 note Wire, Rear Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82157-48030 Wire, Rear Door, RH
2019-08 → —
AGL2#,GGL25,GYL25 —
82154 — Wire, Rear Door, NO.2
82154-48160 note Wire, Rear Door, NO.2
2017-12 → 2019-08 ended
GYL25 RHD STD —
82154-48180 note Wire, Rear Door, NO.2
2017-12 → 2019-08 ended
GYL25 RHD STD —
82154-48180 note Wire, Rear Door, NO.2
2017-12 → 2019-08 ended
GYL25 RHD STD —
82154-48210 Wire, Rear Door, NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82154-48220 note Wire, Rear Door, NO.2
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82154-48220 note Wire, Rear Door, NO.2
2015-09 → 2019-08 ended
AGL25,GGL25,GYL25 STD —
82154-48220 note Wire, Rear Door, NO.2
2016-08 → 2019-08 ended
AGL20 —
82154-48220 note Wire, Rear Door, NO.2
2016-08 → 2019-08 ended
AGL20 —
82154-48220 note Wire, Rear Door, NO.2
2015-09 → 2016-08 ended
AGL20 —
82154-48210 Wire, Rear Door, NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
82154-48220 note Wire, Rear Door, NO.2
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82154-48220 note Wire, Rear Door, NO.2
2019-08 → —
AGL2#,GGL25,GYL25 STD —
82181 — Wire, Luggage Room, NO.1
82181-48190 Wire, Luggage Room, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82181-48200 note Wire, Luggage Room, NO.1
2015-09 → 2016-08 ended
AGL2# RHD;GYL25 RHD ECO —
82181-48200 note Wire, Luggage Room, NO.1
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82181-48200 note Wire, Luggage Room, NO.1
2015-09 → 2019-08 ended
GYL25 STD;GYL25 LHD ECO;AGL2#,GGL25 +1 —
82181-48210 note Wire, Luggage Room, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82181-48220 note Wire, Luggage Room, NO.1
2015-09 → 2017-12 ended
GYL25 LHD ECO —
82181-48220 note Wire, Luggage Room, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 LHD STD —
82181-48220 note Wire, Luggage Room, NO.1
2015-09 → 2016-08 ended
AGL2#,GYL25 RHD —
82181-48220 note Wire, Luggage Room, NO.1
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82181-48280 Wire, Luggage Room, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82181-48290 note Wire, Luggage Room, NO.1
2019-08 → 2020-07 ended
GGL25 —
82181-48290 note Wire, Luggage Room, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82181-48290 note Wire, Luggage Room, NO.1
2019-08 → 2021-07 ended
AGL2#,GYL25 LHD —
82181-48300 note Wire, Luggage Room, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82181-48310 note Wire, Luggage Room, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82182 — Wire, Luggage Room, NO.2
82182-48100 note Wire, Luggage Room, NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82182-48100 note Wire, Luggage Room, NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
82183 — Wire, Luggage Room, NO.3
82183-48040 note Wire, Luggage Room, NO.3
2015-09 → 2016-08 ended
AGL2# RHD;GYL25 RHD ECO —
82183-48040 note Wire, Luggage Room, NO.3
2015-09 → 2019-08 ended
GYL25 STD;GYL25 LHD ECO;AGL2#,GGL25 +1 —
82183-48040 note Wire, Luggage Room, NO.3
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82183-48040 note Wire, Luggage Room, NO.3
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82183-48070 note Wire, Luggage Room, NO.3
2019-08 → 2020-07 ended
GGL25 —
82183-48070 note Wire, Luggage Room, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
82183-48070 note Wire, Luggage Room, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
82183-48070 note Wire, Luggage Room, NO.3
2019-08 → 2021-07 ended
AGL2#,GYL25 LHD —
82183-48090 note Wire, Luggage Room, NO.3
2019-08 → 2021-07 ended
AGL2#,GYL25 LHD —
82183-48090 note Wire, Luggage Room, NO.3
2019-08 → 2020-07 ended
GGL25 —
82183-48090 note Wire, Luggage Room, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
82183-48090 note Wire, Luggage Room, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
82183-48110 note Wire, Luggage Room, NO.3
2019-08 → —
AGL2#,GGL25,GYL25 —
82184 — Wire, Back Door, NO.1
82184-48750 note Wire, Back Door, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48760 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 —
82184-48760 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 —
82184-48761 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48761 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48790 Wire, Back Door, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48800 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 —
82184-48800 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 STD —
82184-48800 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 —
82184-48800 note Wire, Back Door, NO.1
2015-09 → 2016-09 ended
AGL2#,GGL25,GYL25 STD —
82184-48801 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48801 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 STD —
82184-48801 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 STD —
82184-48801 note Wire, Back Door, NO.1
2016-10 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82184-48A30 Wire, Back Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82184-48A40 note Wire, Back Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82184-48A40 note Wire, Back Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82184-48A50 note Wire, Back Door, NO.1
2019-08 → —
AGL2#,GGL25,GYL25 —
82666A — Holder, Connector NO.2
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 STD —
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 STD —
82666-48440 note Holder, Connector NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
82666-48440 note Holder, Connector NO.2
2019-08 → —
AGL2#,GGL25,GYL25 —
82712B — Support, Wiring Harness
82712-28290 Support, Wiring Harness
2015-09 → 2019-08 ended
AGL2#,GGL25,GYL25 —
82712-28290 Support, Wiring Harness
2019-08 → —
AGL2#,GGL25,GYL25 —
89348Y — Clip, Ultrasonic Sensor, Rear
89348-50050 note Clip, Ultrasonic Sensor, Rear
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2016-08 → 2019-08 ended
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2015-09 → 2019-08 ended
GYL25 STD;GYL25 LHD ECO;AGL2#,GGL25 +1 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2015-09 → 2016-08 ended
AGL2# RHD;GYL25 RHD ECO —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → 2020-07 ended
GGL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → 2020-07 ended
GGL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → 2021-07 ended
AGL2#,GYL25 LHD —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → 2021-07 ended
AGL2#,GYL25 LHD —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → —
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → —
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → —
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → —
AGL2#,GGL25,GYL25 —
89348-50050 note Clip, Ultrasonic Sensor, Rear
2019-08 → —
AGL2#,GGL25,GYL25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
