Engine Oil Cooler

6 part groups · 2 illustrations

Illustrations

Figure 152435E

152435E 2015-09 → —

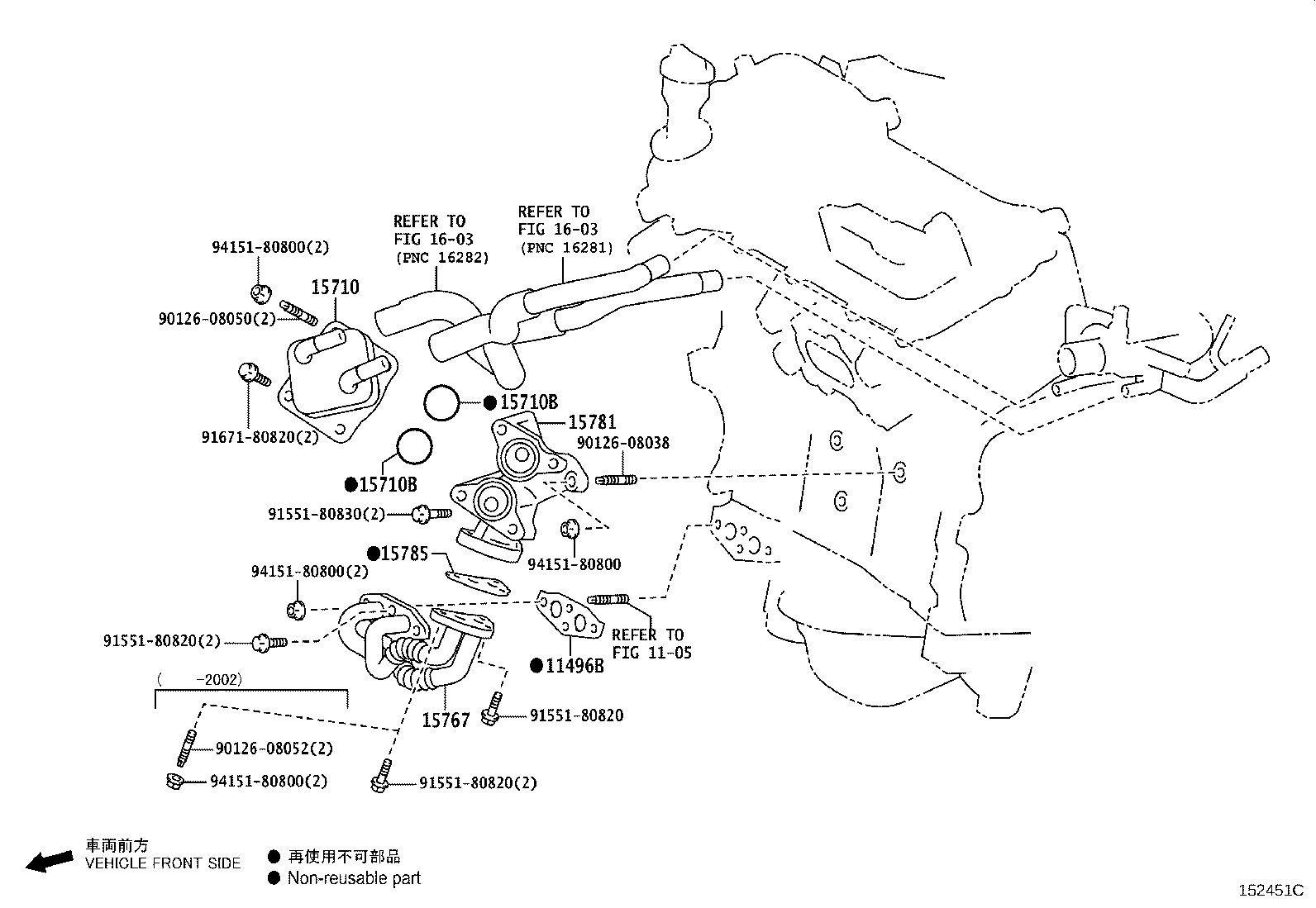

Figure 152451C

152451C 2015-09 → —

Part groups

PNC	Description
11496B	Gasket, Oil Hole Cover
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15767	Pipe, Oil Cooler
15781	Bracket, Oil Cooler, NO.1
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
