Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

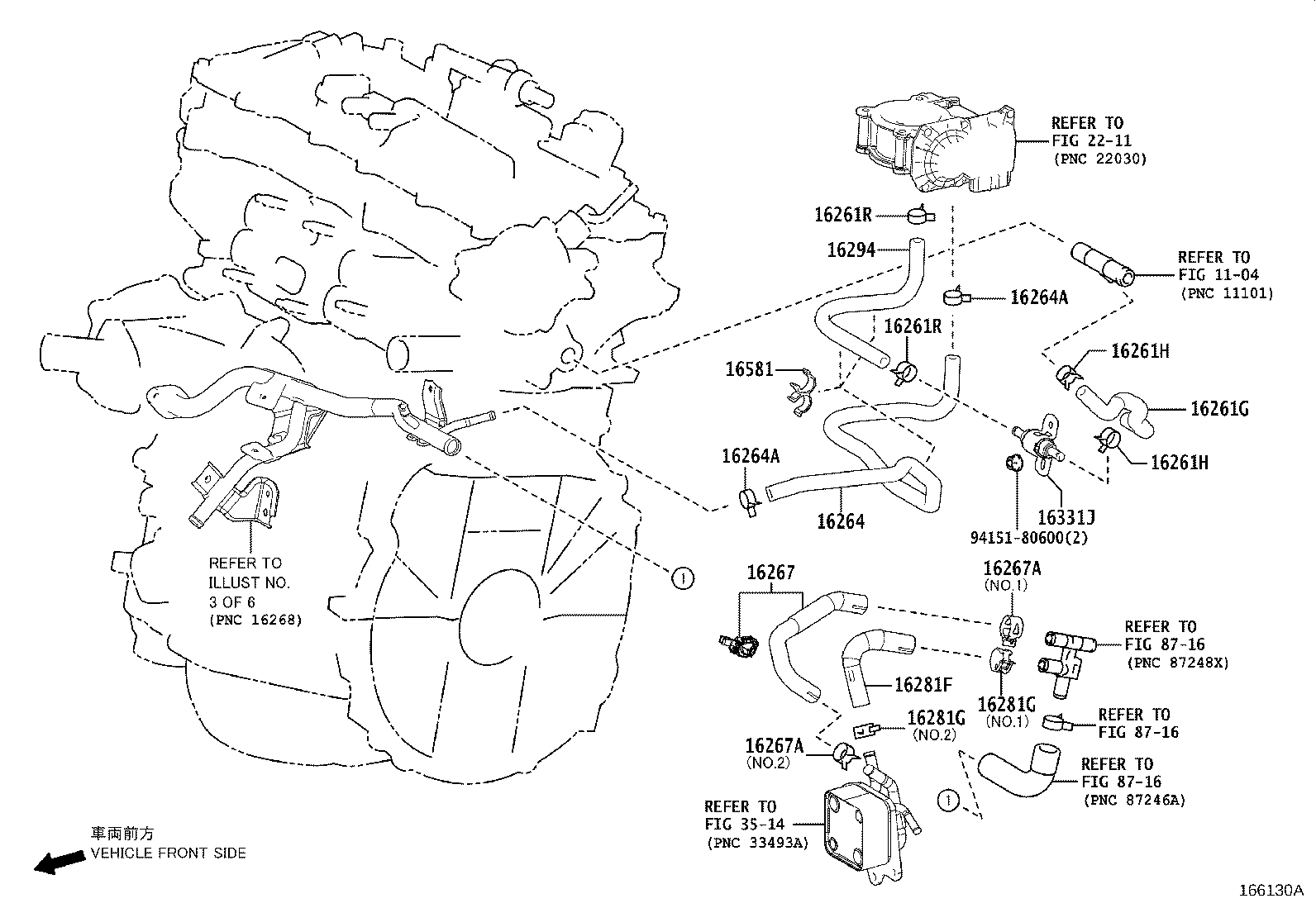

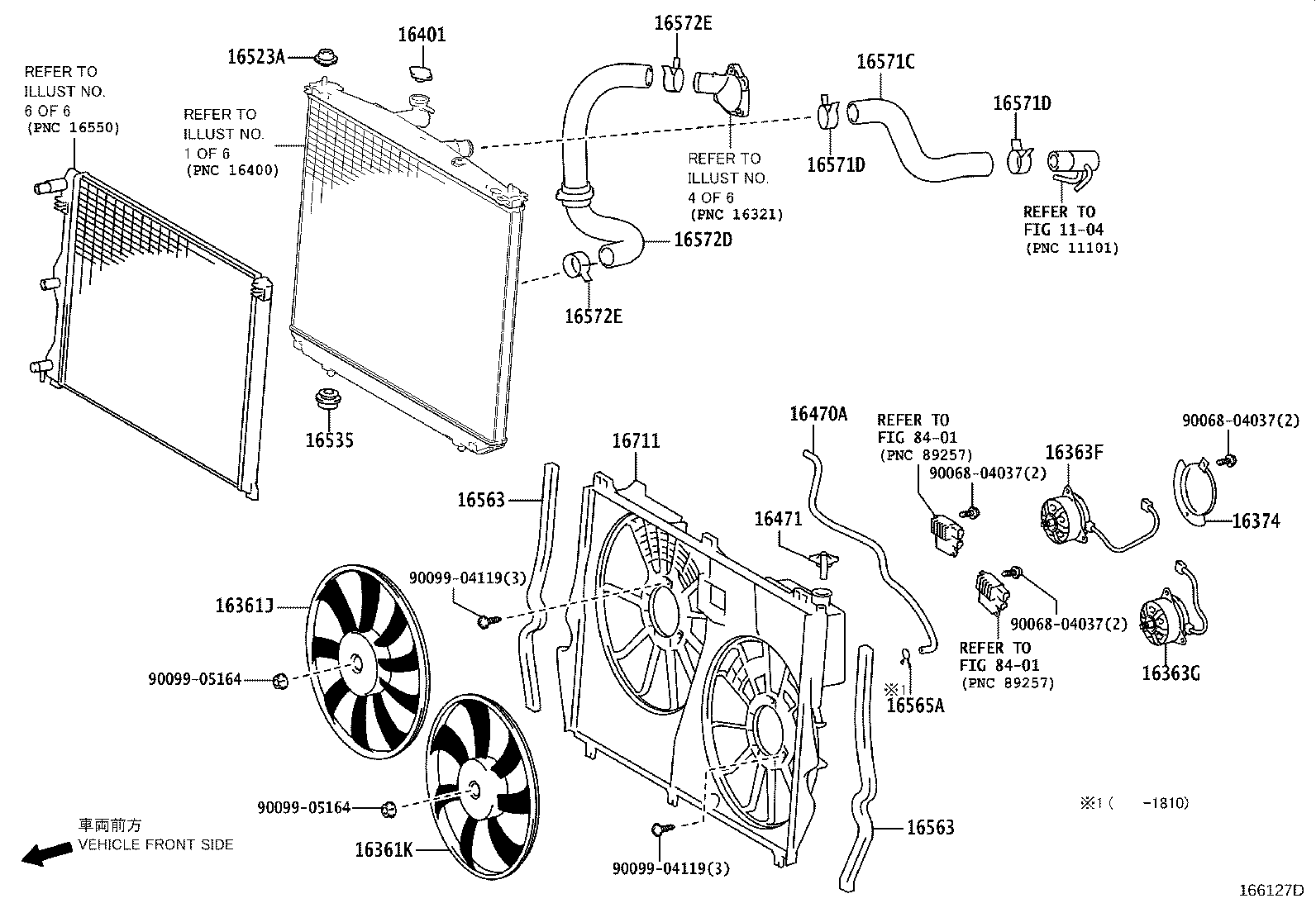

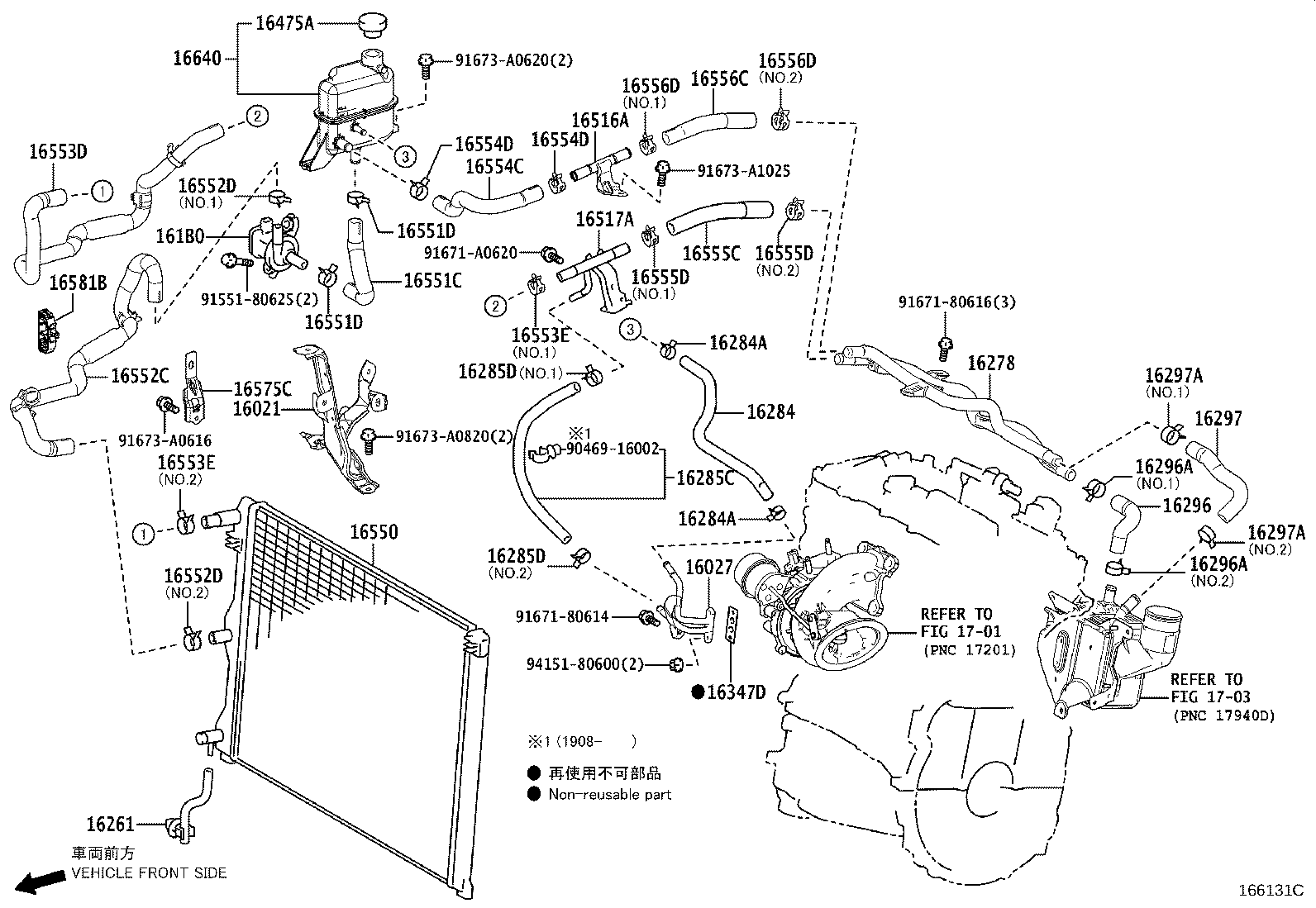

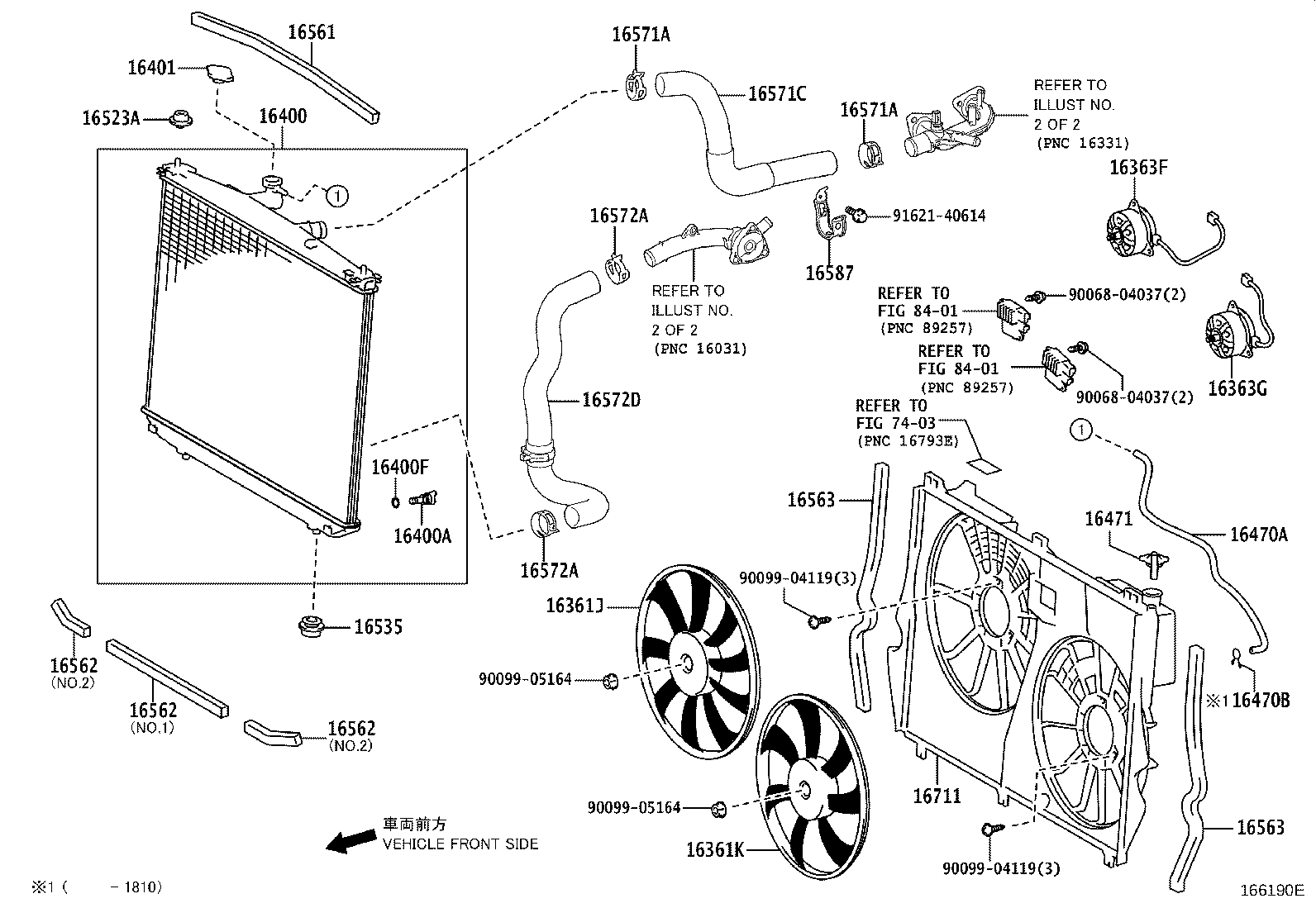

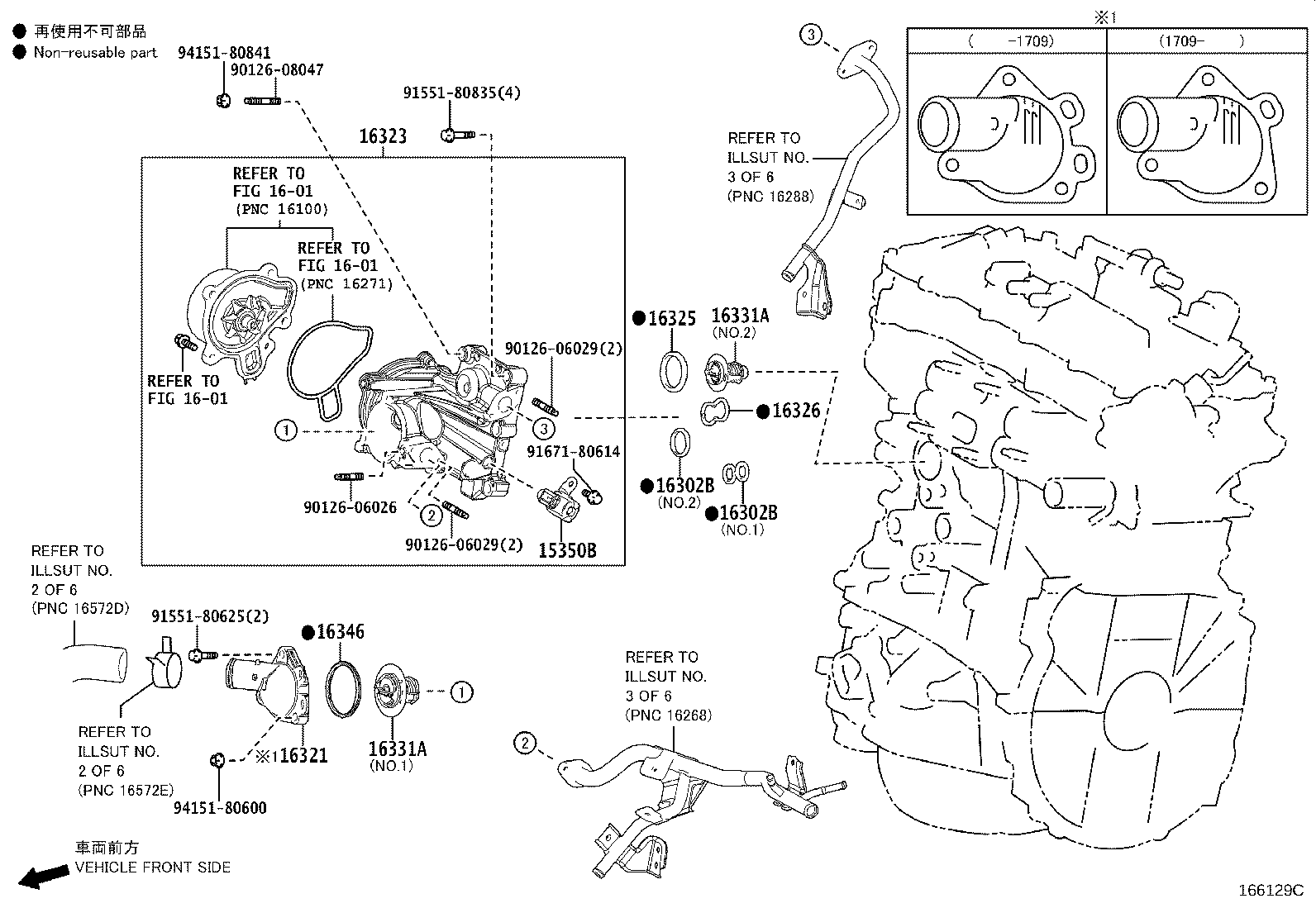

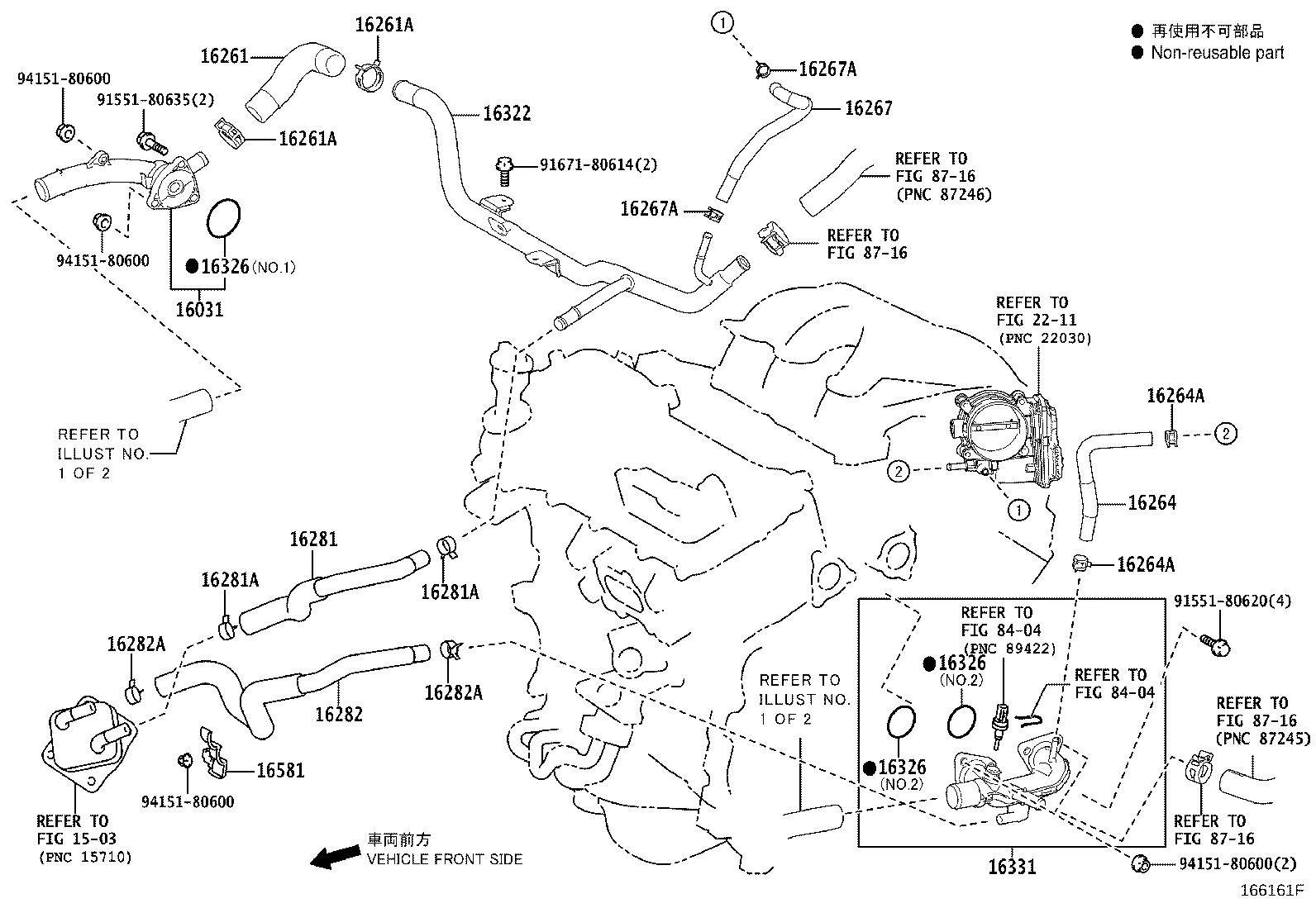

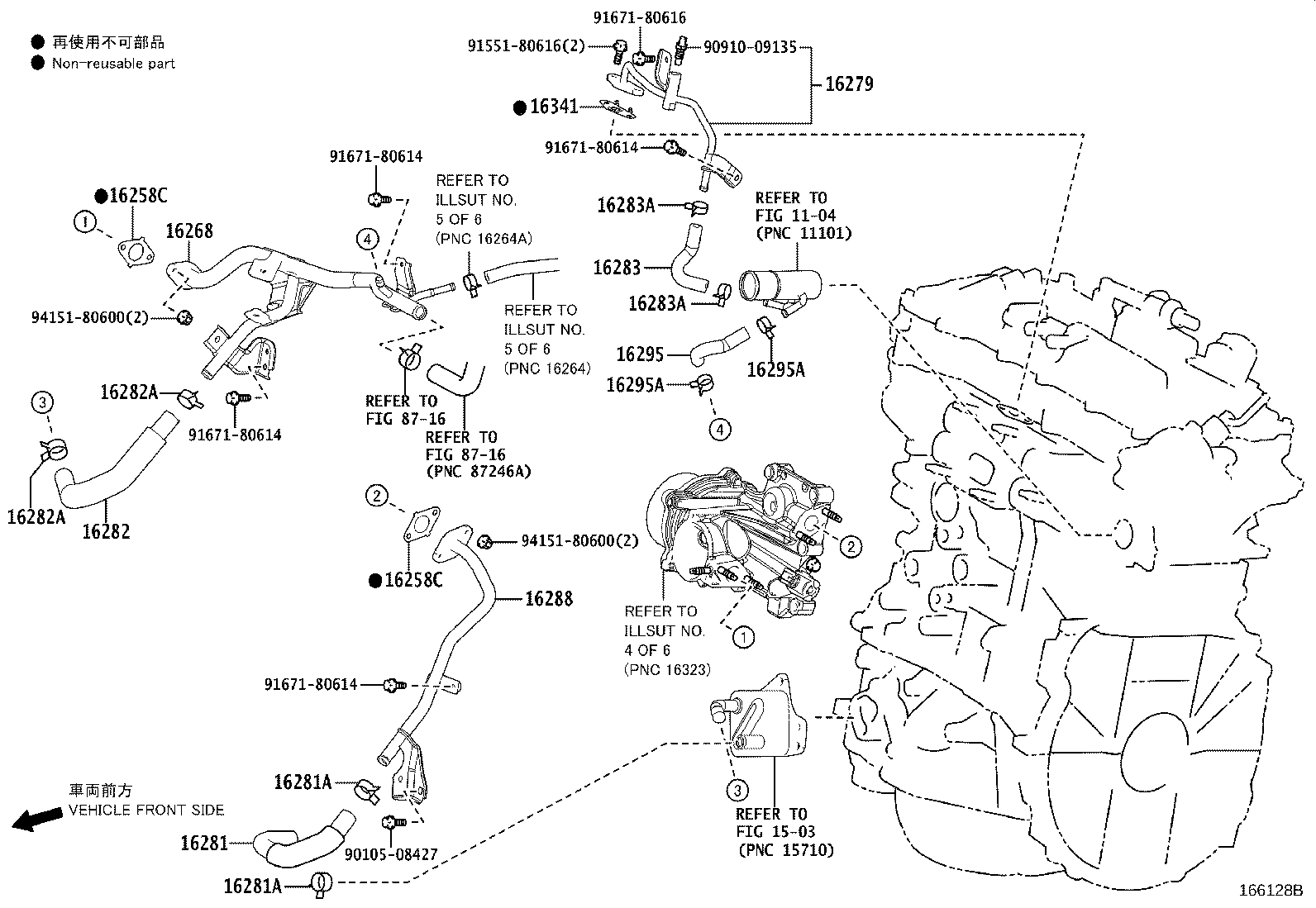

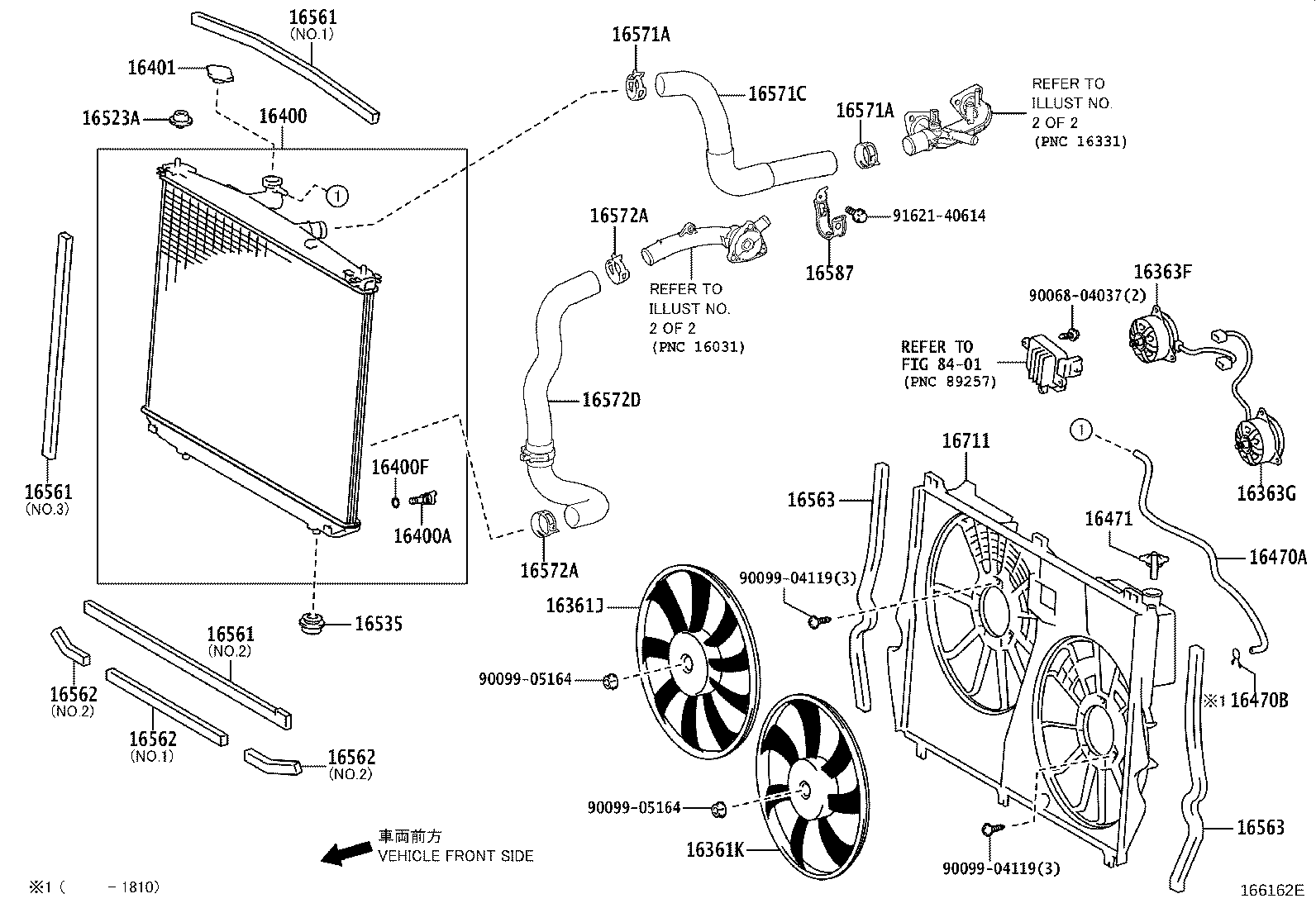

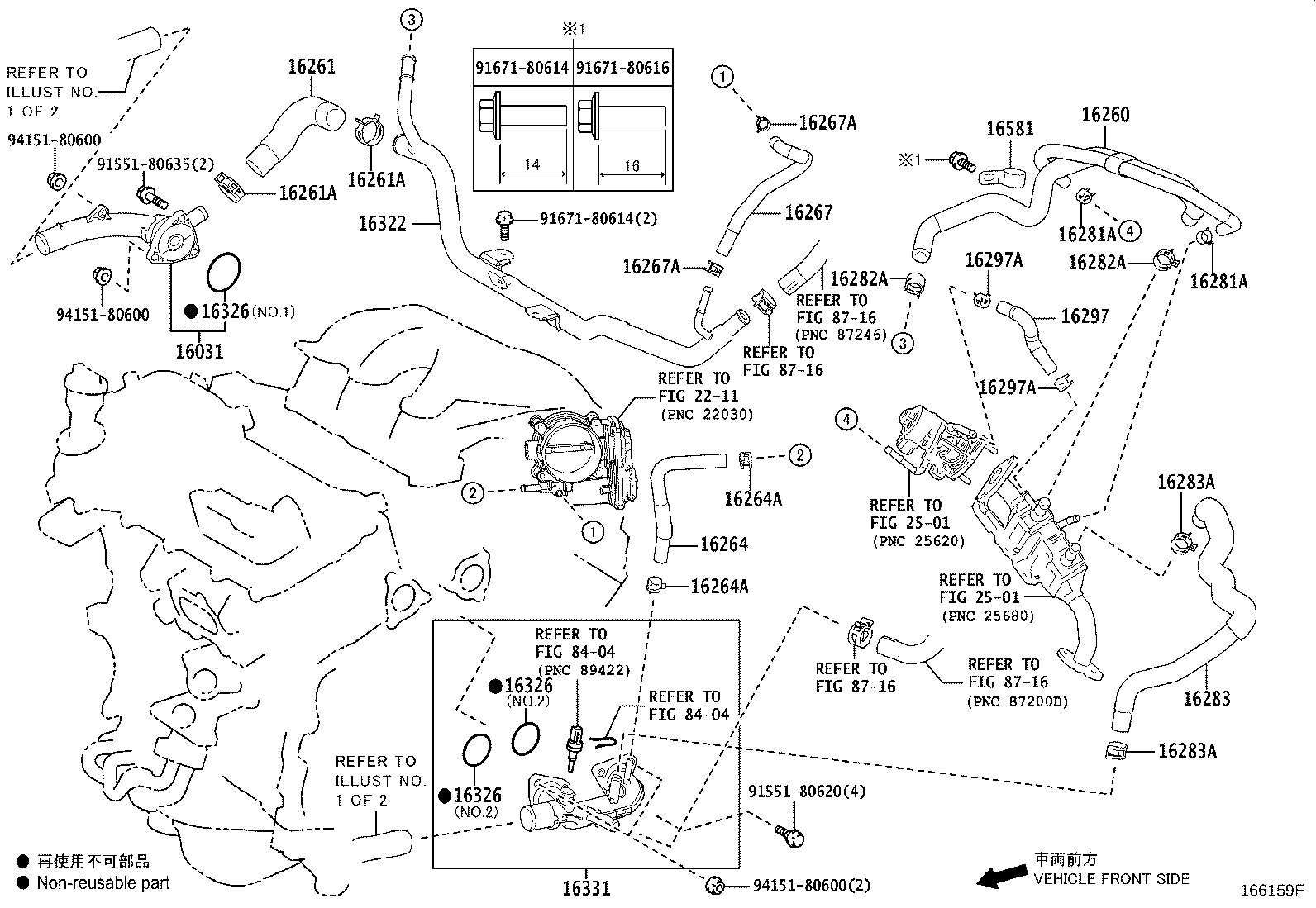

Radiator & Water Outlet
99 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 15350B | Valve Assy, Oil Pressure Switching |
| 16021 | Bracket Sub-assy, Water Pump |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 161B0 | Pump Assy, Electric Water |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261R | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285C | Hose, Intercooler Water, NO.2 |
| 16285D | Clip(FOR INTERCOOLER WATER HOSE NO.2) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16294 | Hose, Water By-pass, NO.11 |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16302B | Gasket(FOR WATER INLET HOUSING) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331J | Thermostat, Manifold |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16347D | Gasket, Water By-pass |
| 16361J | Fan, RH |
| 16361K | Fan, LH |
| 16363F | Motor, Cooling Fan, RH |
| 16363G | Motor, Cooling Fan, LH |
| 16374 | Insulator, Cooling Fan Motor |
| 16400 | Radiator Assy |
| 16400A | Cock Sub-assy, Radiator Drain |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 16516A | Pipe, Intercooler Cooling Water, NO.2 |
| 16517A | Pipe, Intercooler Cooling Water, NO.3 |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16550 | Radiator Assy, Intercooler Cooling |
| 16551C | Hose, Intercooler Cooling Water, NO.1 |
| 16551D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1) |
| 16552C | Hose, Intercooler Cooling Water, NO.2 |
| 16552D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2) |
| 16553D | Hose, Intercooler Cooling Water, NO.3 |
| 16553E | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3) |
| 16554C | Hose, Intercooler Cooling Water, NO.4 |
| 16554D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) |
| 16555C | Hose, Intercooler Cooling Water, NO.5 |
| 16555D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) |
| 16556C | Hose, Intercooler Cooling Water, NO.6 |
| 16556D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6) |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16562B | Seal, Radiator TO Support, NO.4 |
| 16563 | Seal, Radiator TO Support, NO.3 |
| 16565A | Clip |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16587 | Clamp, Radiator Pipe |
| 16640 | Tank Assy, Intercooler Reserve |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
