Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

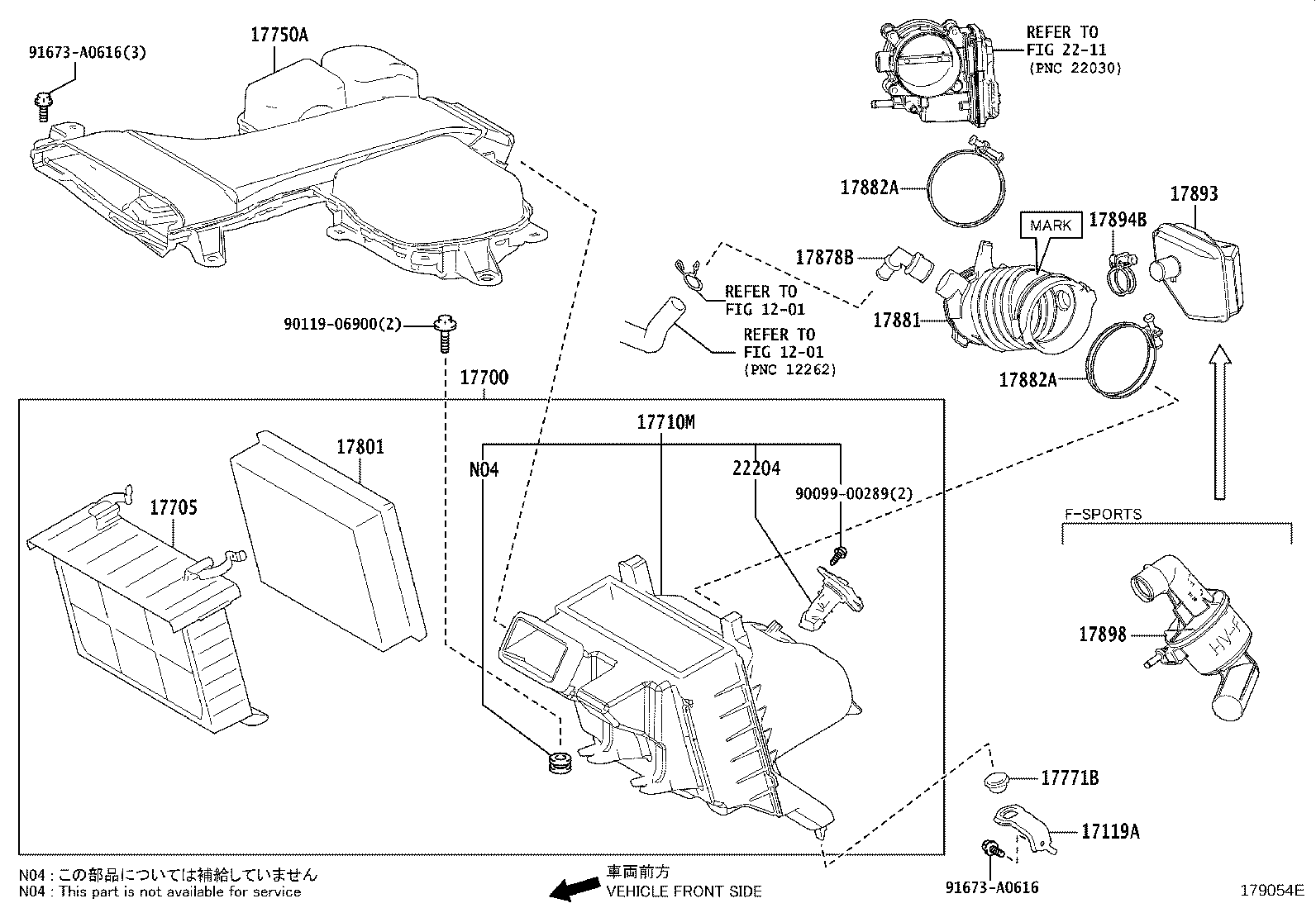

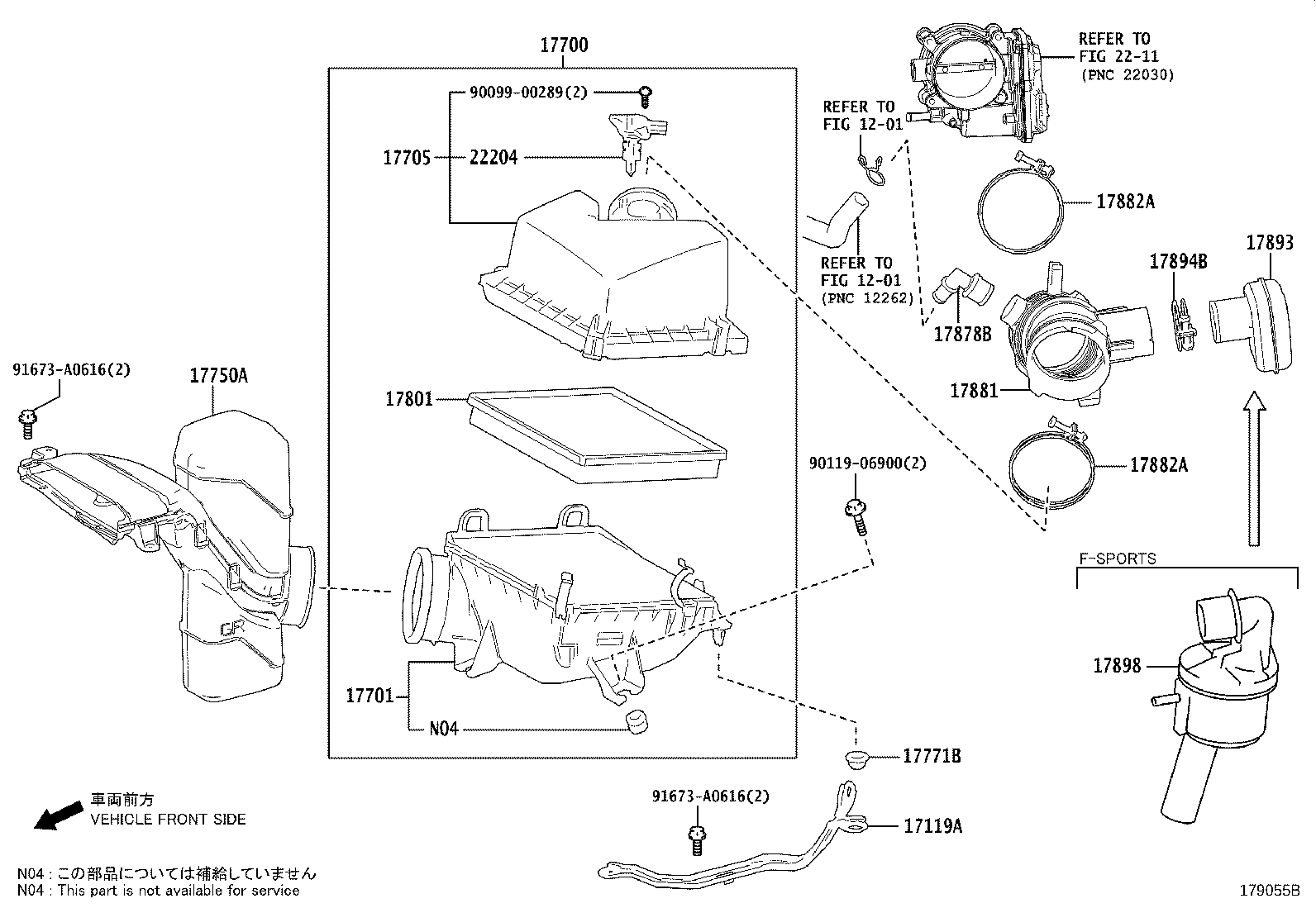

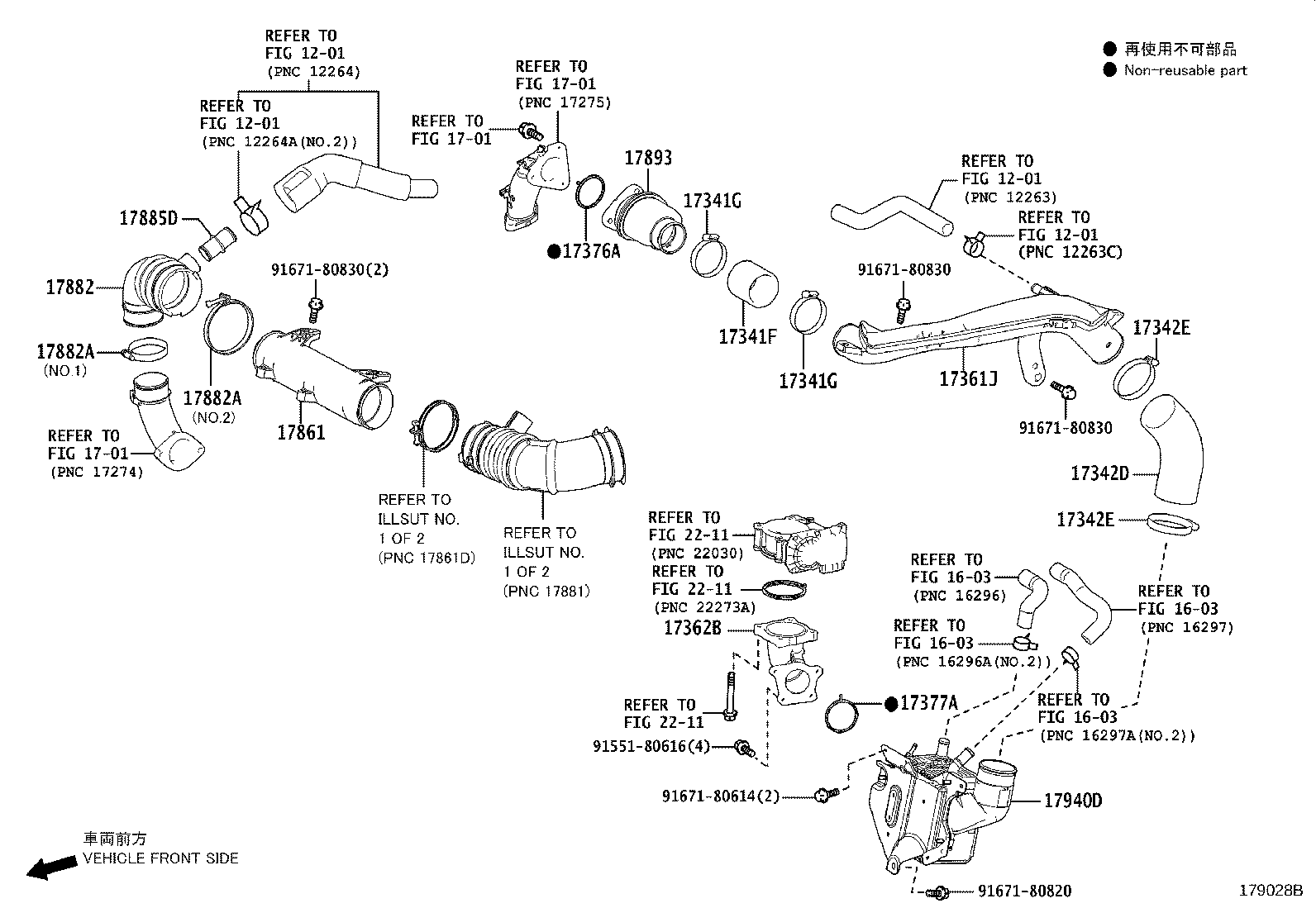

Air Cleaner
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17119A | Bracket, Air Cleaner |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17376A | Gasket, Air Tube |
| 17377A | Gasket, Air Tube, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710M | Cleaner Assy, Air (WITHOUT ELEMENT) |
| 17750A | Inlet Assy, Air Cleaner |
| 17771B | Grommet(FOR AIR CLEANER BRACKET) |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17878B | Tube, Ventilation |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17885 | Pipe, Air Cleaner |
| 17885D | Pipe, Air Cleaner, NO.2 |
| 17893 | Resonator, Intake Air |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17898 | Creator, Intake Air Sound |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
