Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

33 part groups · 8 illustrations

Illustrations

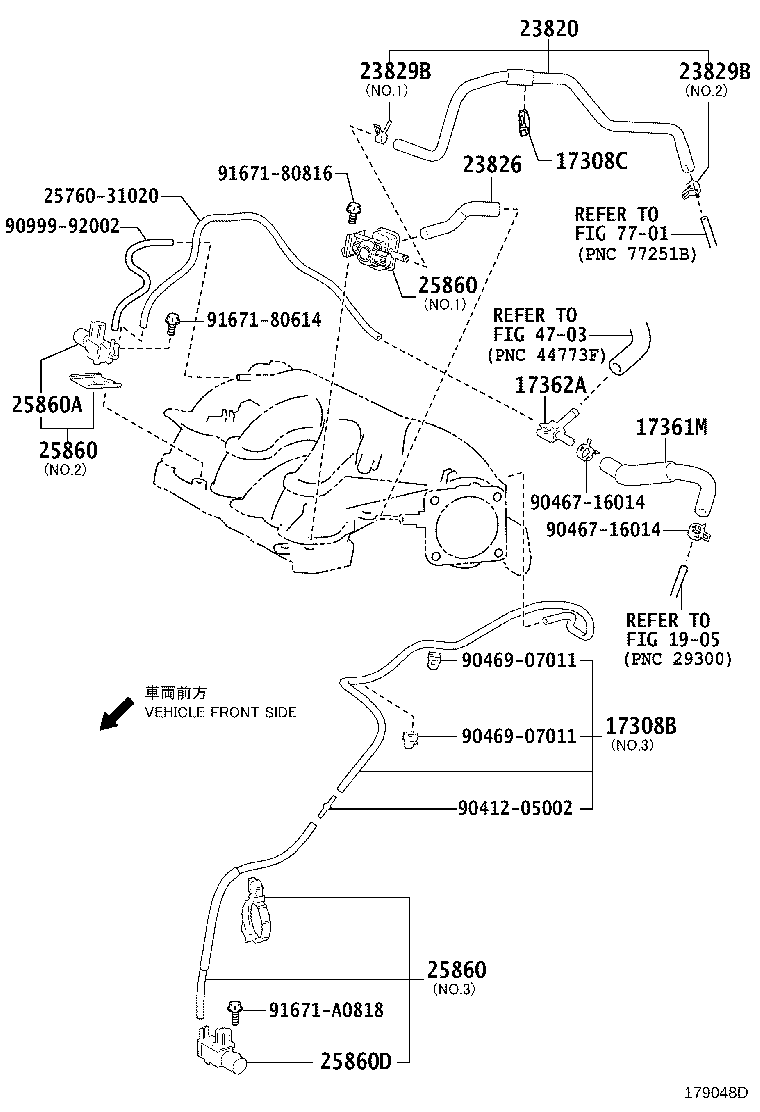

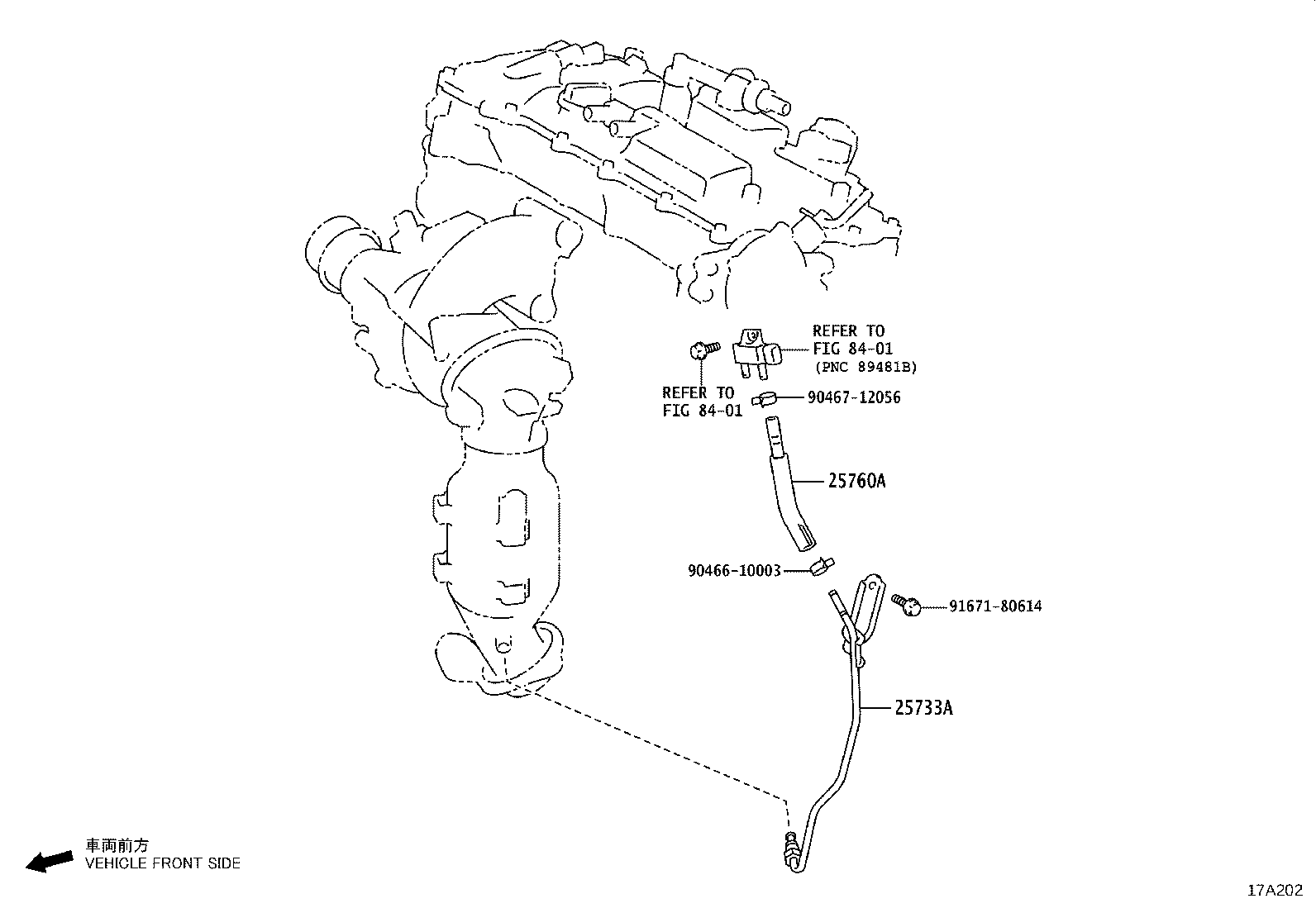

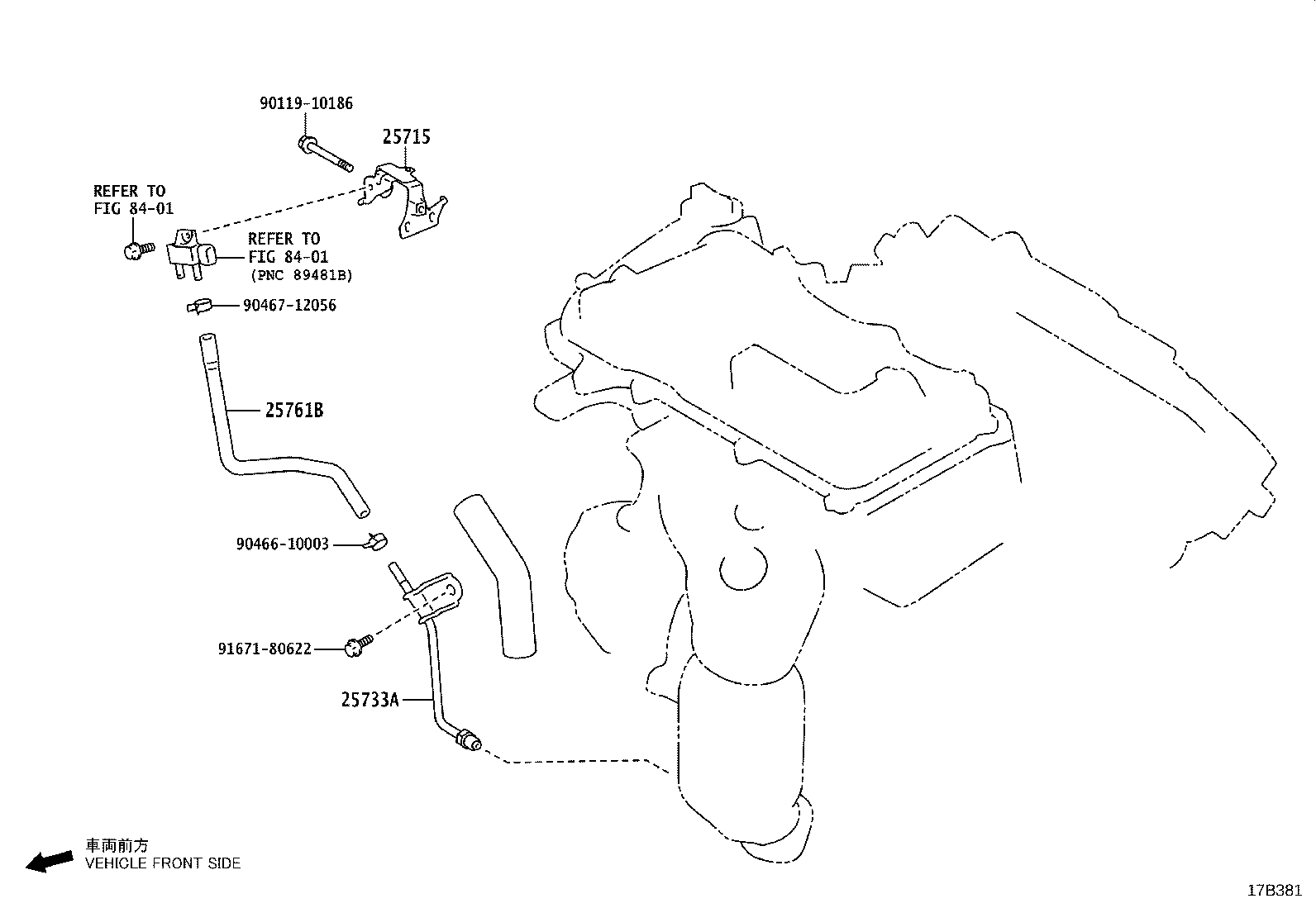

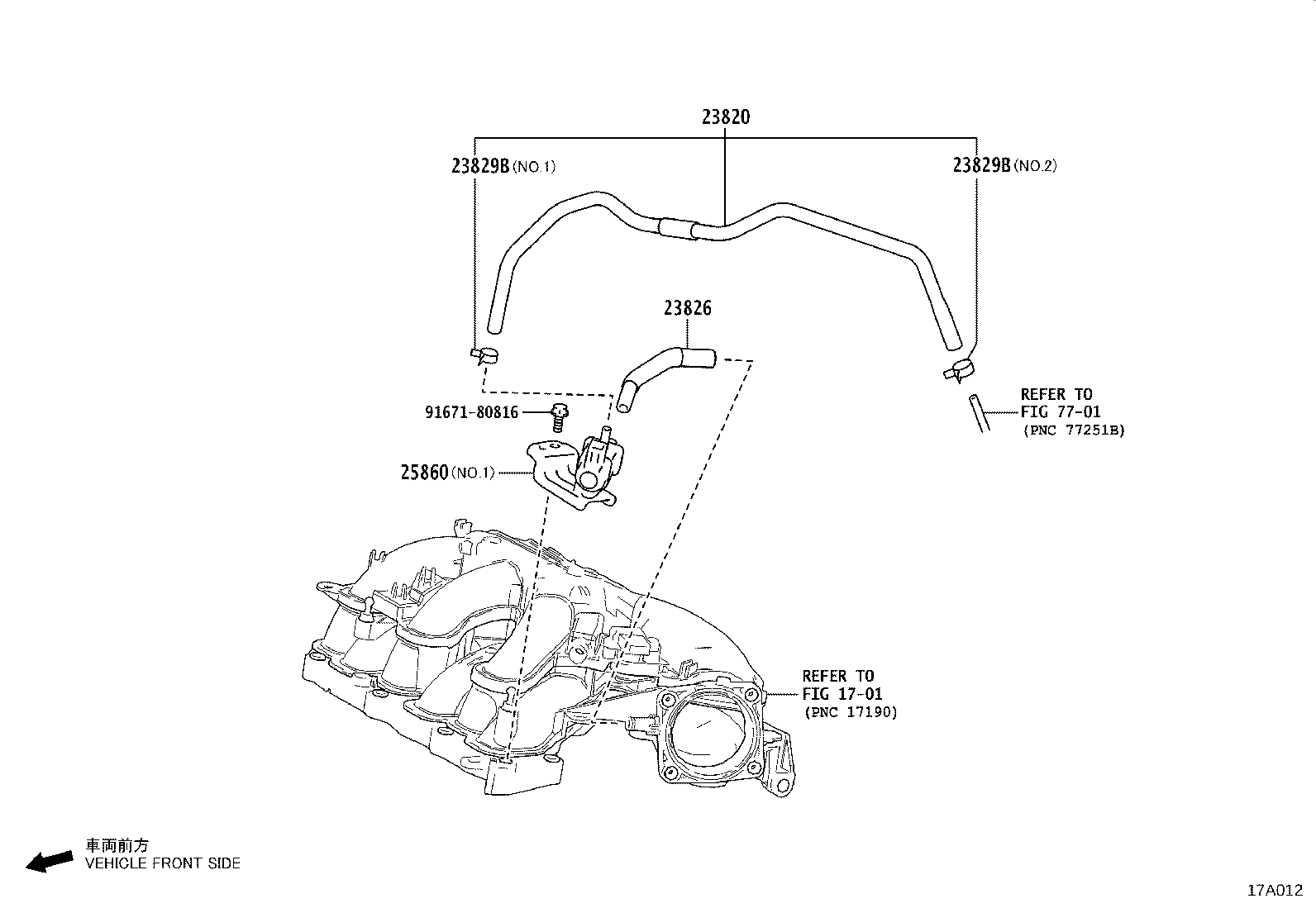

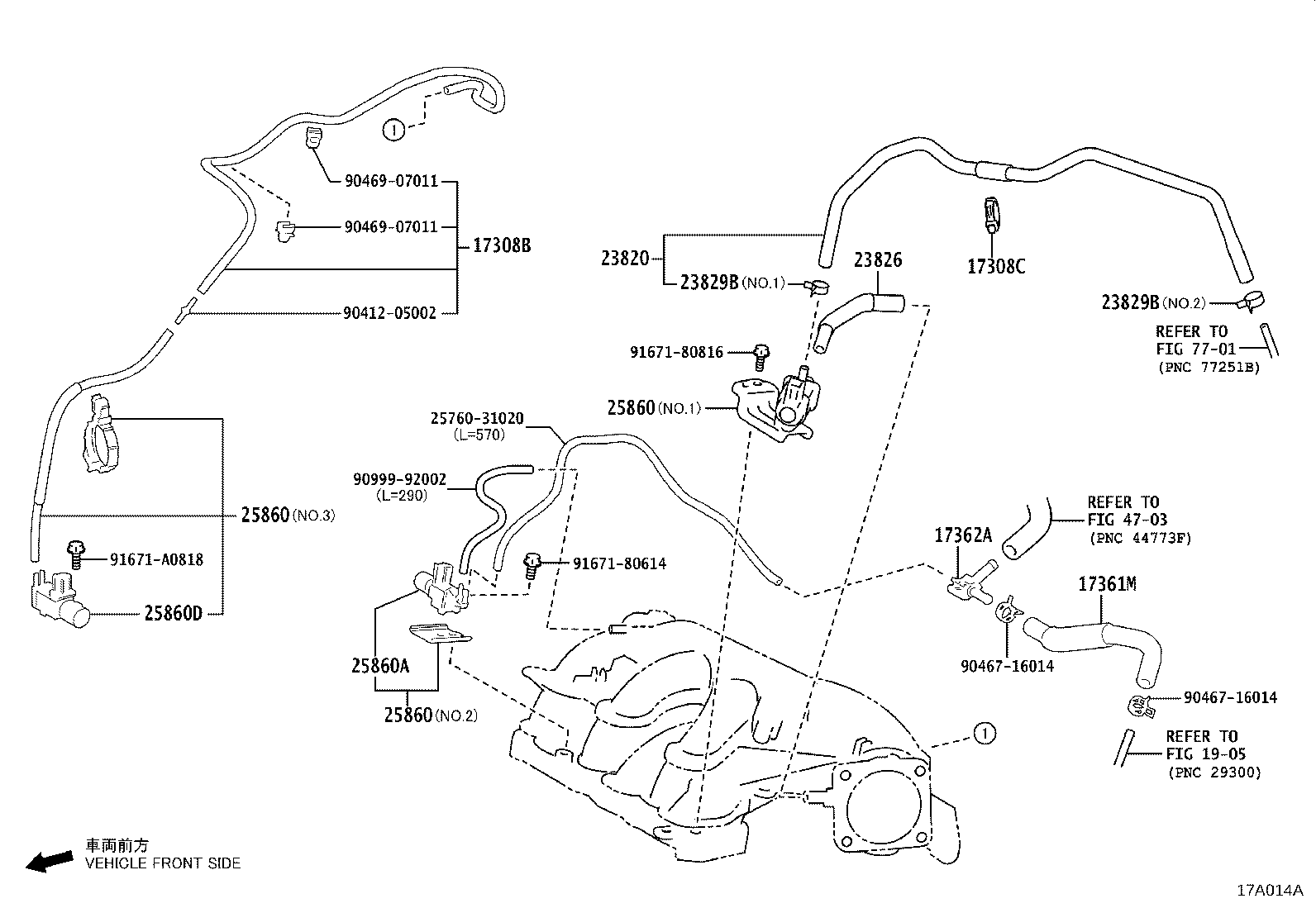

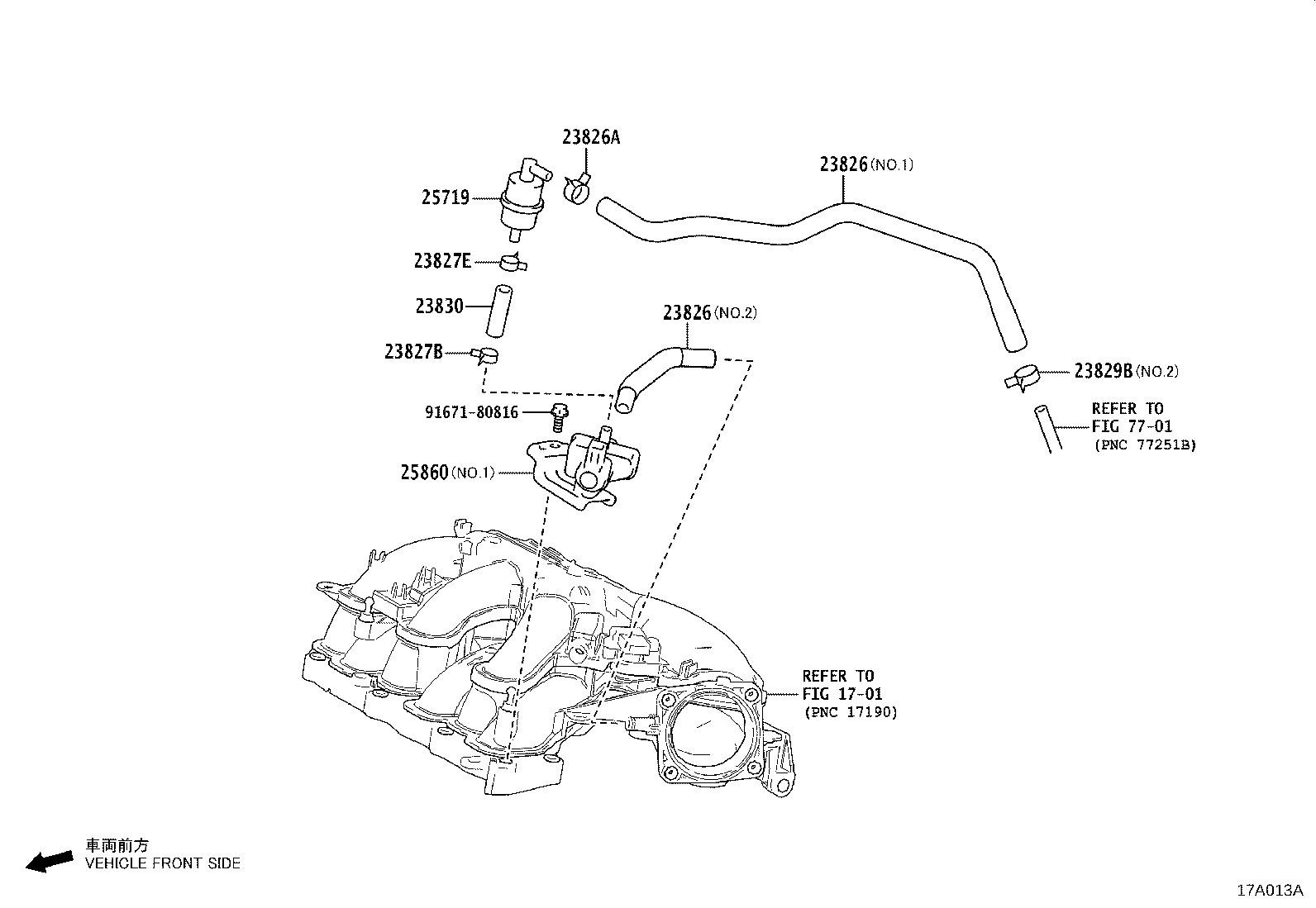

Figure 179020B 179020B 2015-09 → — Figure 17A202 17A202 2018-03 → — Figure 179048D 179048D 2015-09 → 2017-12 Figure 179049B 179049B 2015-10 → 2017-12 Figure 17A014A 17A014A 2017-12 → — Figure 17A012 17A012 2017-12 → — Figure 17A013A 17A013A 2018-03 → — Figure 17B381 17B381 2020-07 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17340 Hose Assy, Vacuum Switching Valve
17342K Clip(FOR VACUUM HOSE)
17361M Tube, Air
17362A Tube, Air, NO.2
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23211K Bracket
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
