Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

27 part groups · 6 illustrations

Illustrations

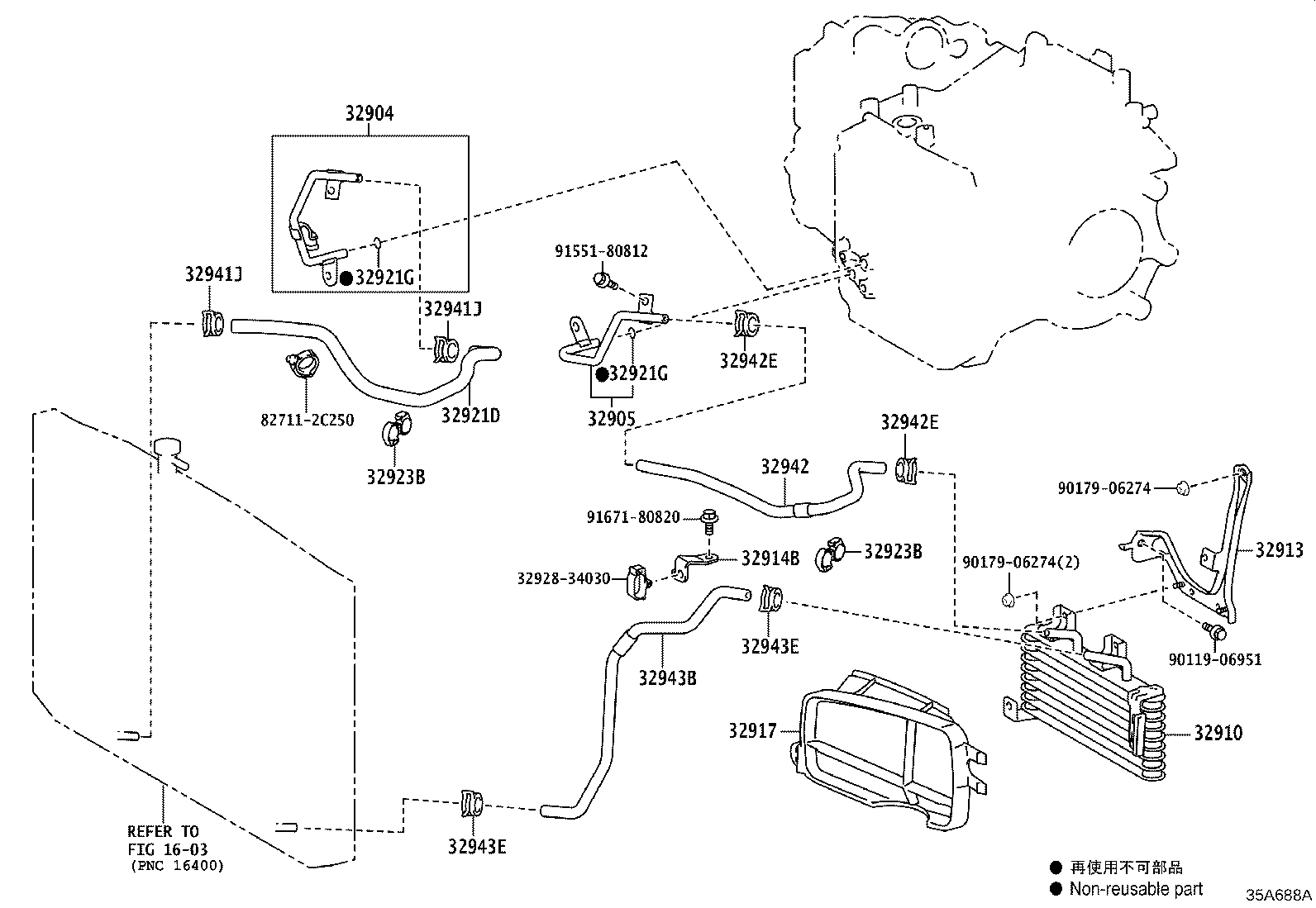

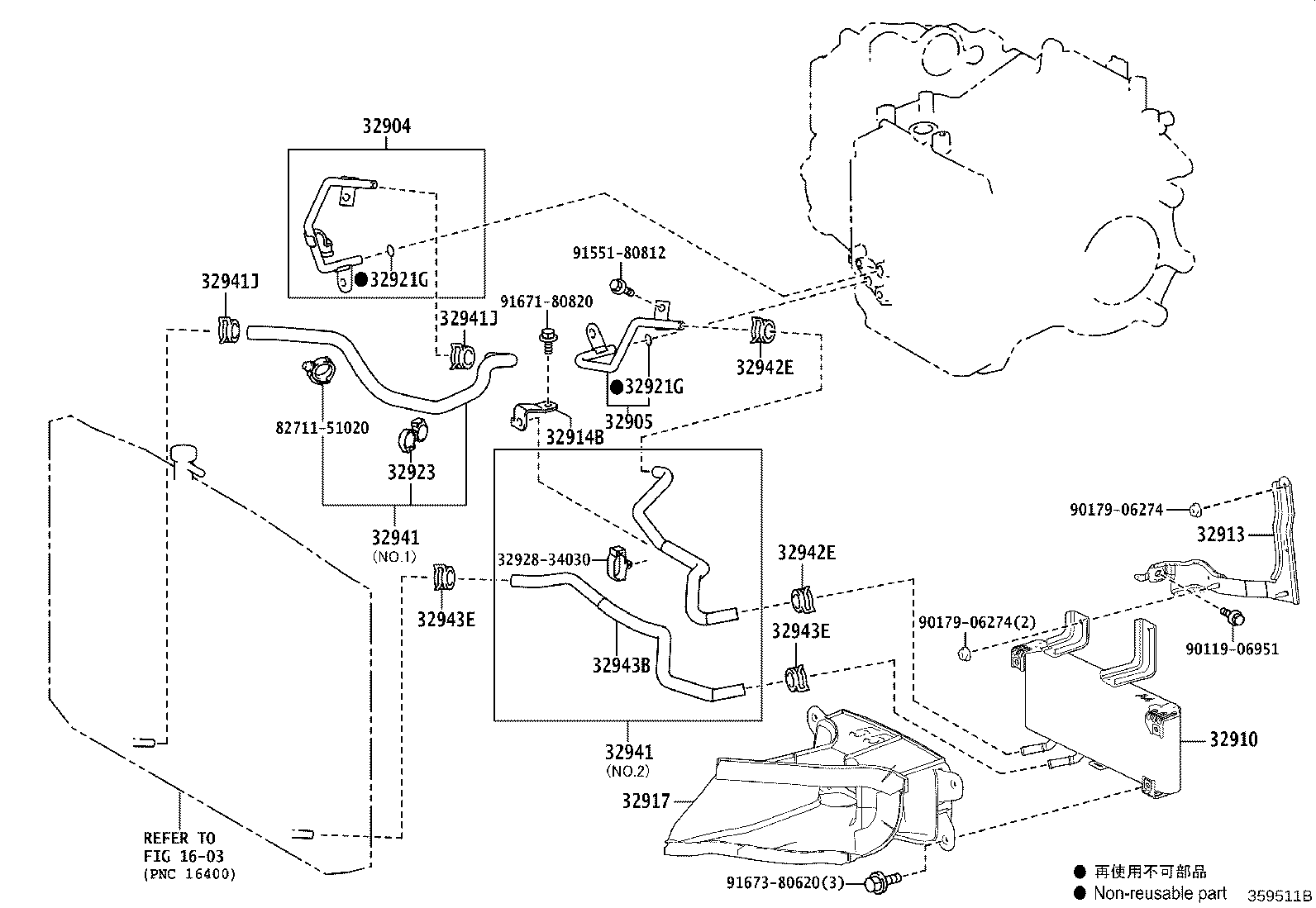

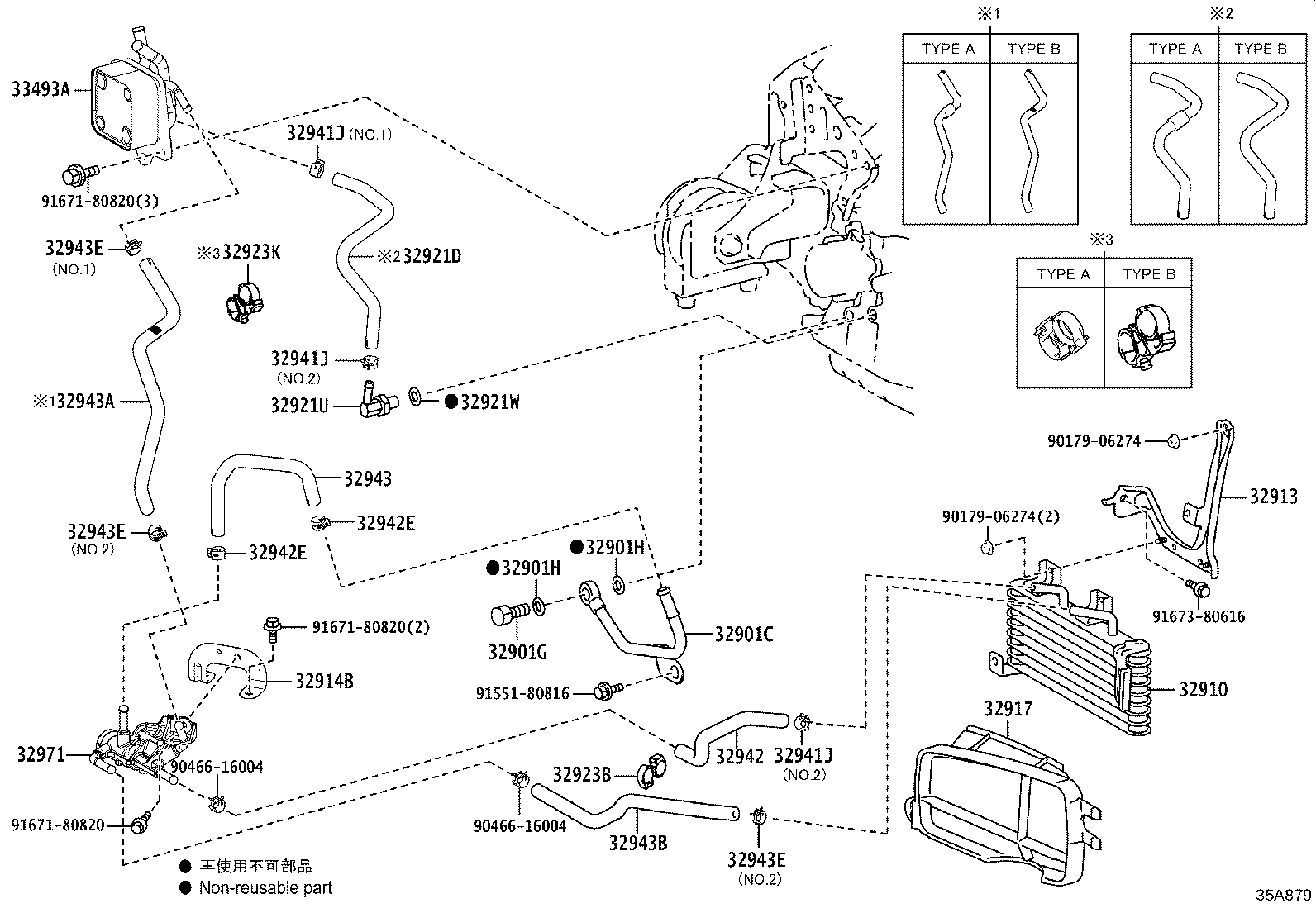

Figure 35A441C 35A441C 2015-09 → 2019-08 Figure 35A428D 35A428D 2019-08 → 2021-03 Figure 35A879 35A879 2021-03 → — Figure 359511B 359511B 2015-09 → 2019-08 Figure 35A688A 35A688A 2019-08 → 2021-03 Figure 35A882 35A882 2021-03 → —

Part groups

PNCDescription
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32914B Stay, Transmission Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921U Elbow(FOR OIL COOLER TUBE)
32921W Ring, O(FOR OIL COOLER TUBE ELBOW)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32930E Hose Assy, Transmission Oil Cooler, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943B Hose, Transmission Oil Cooler
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32971 Thermostat, Transmission Oil
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
