Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

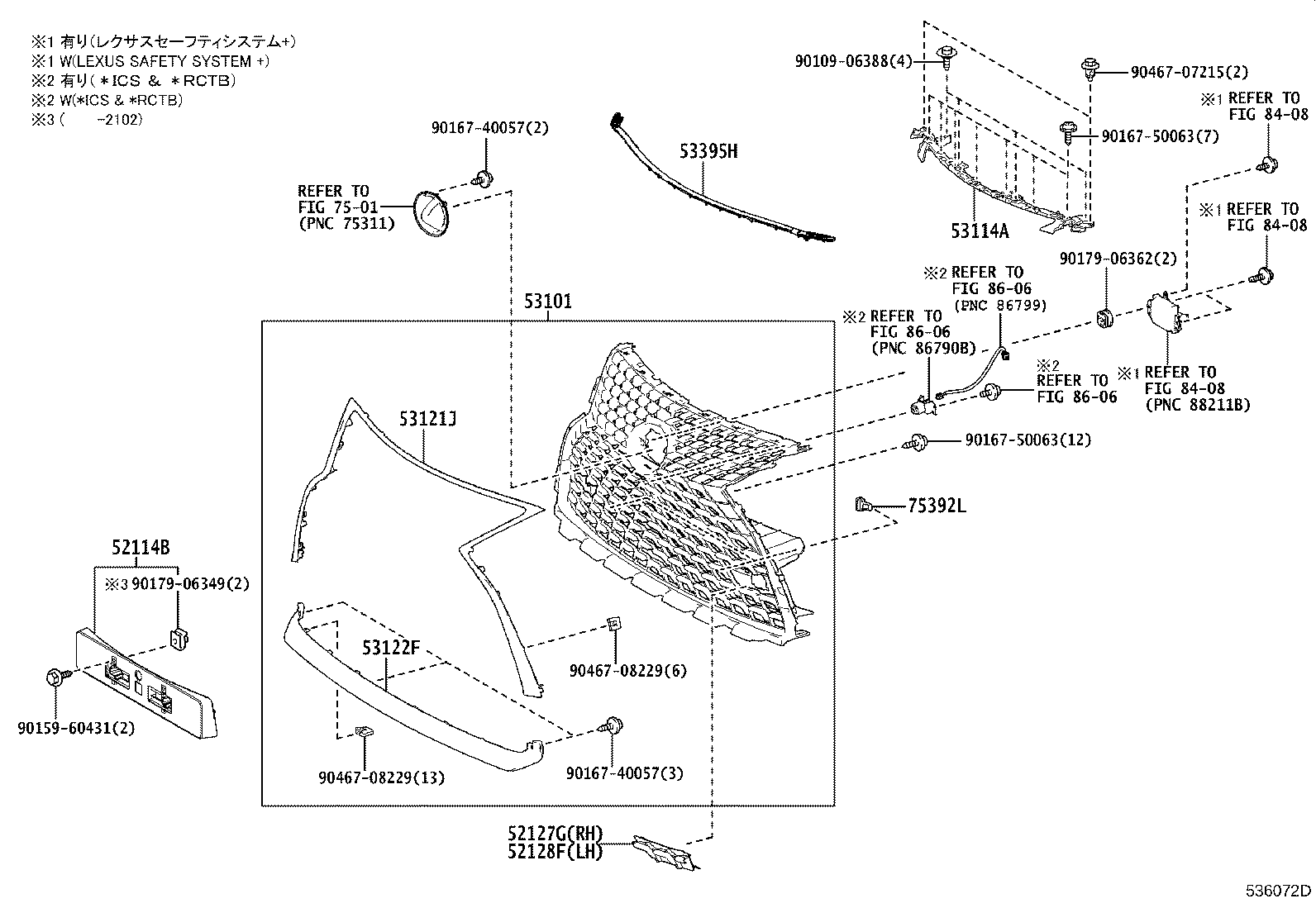

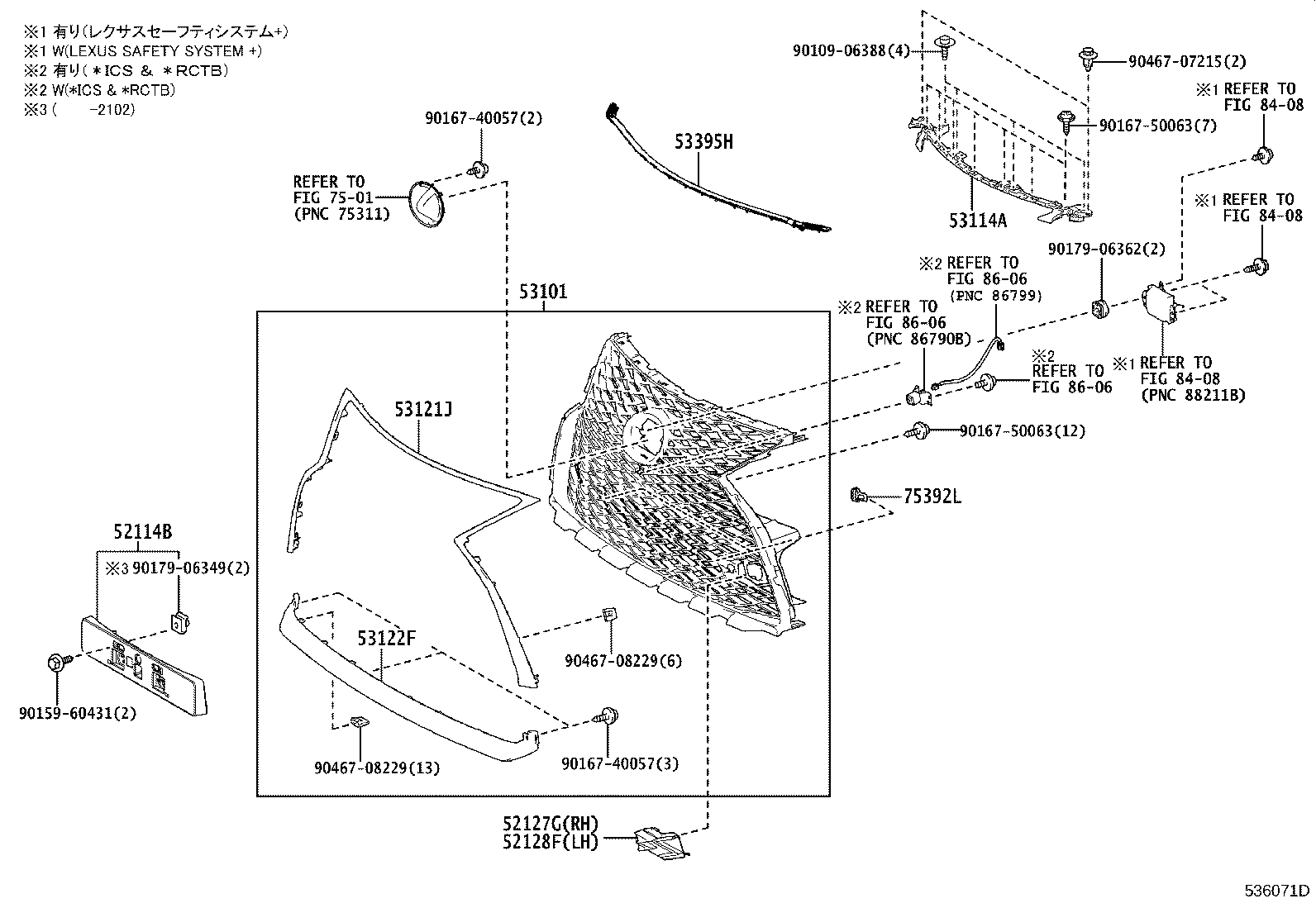

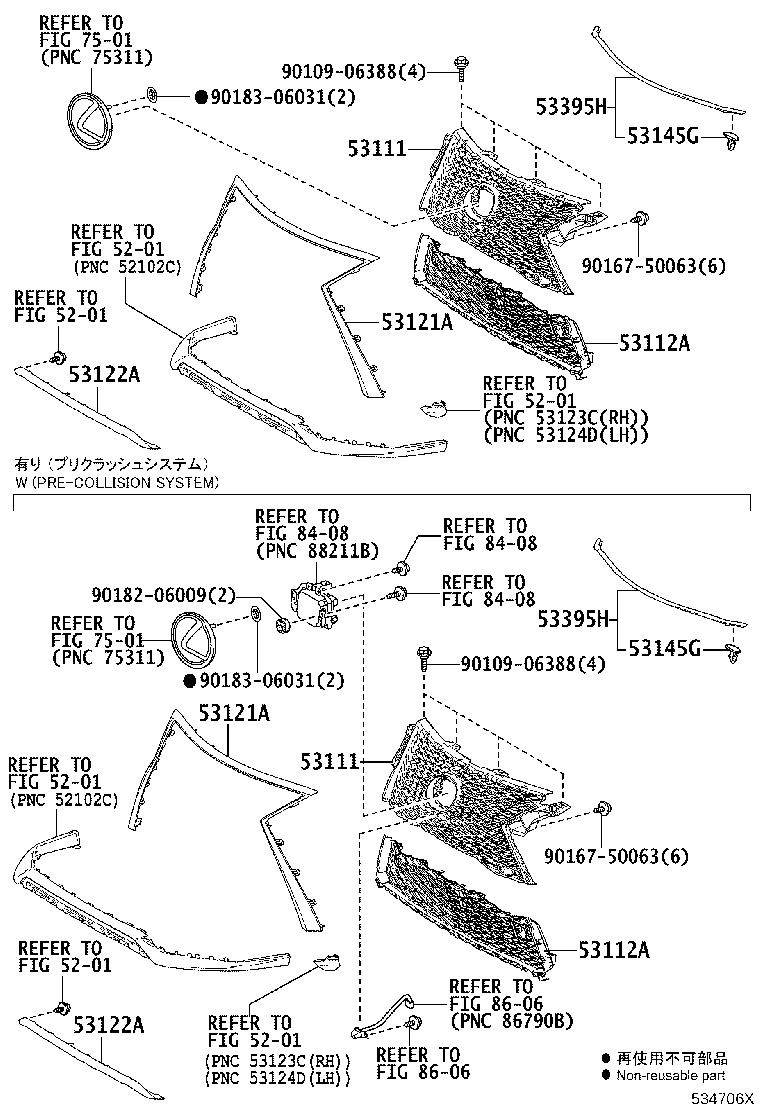

Radiator Grille
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52127G | Cover, Front Bumper Hole, RH |
| 52128F | Cover, Front Bumper Hole, LH |
| 53101 | Grille Sub-assy, Radiator |
| 53111 | Grille, Radiator |
| 53112A | Grille, Radiator, Lower |
| 53114A | Grille, Radiator, Inner |
| 53121A | Moulding, Radiator Grille |
| 53121J | Moulding, Radiator Grille, NO.1 |
| 53122A | Moulding, Radiator Grille, Lower |
| 53122F | Moulding, Radiator Grille, NO.2 |
| 53145G | Clip, Radiator Grille |
| 53395H | Seal, Hood TO Radiator Grille |
| 75392L | Retainer, Outside Moulding |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
