Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

53 part groups · 20 illustrations

Illustrations

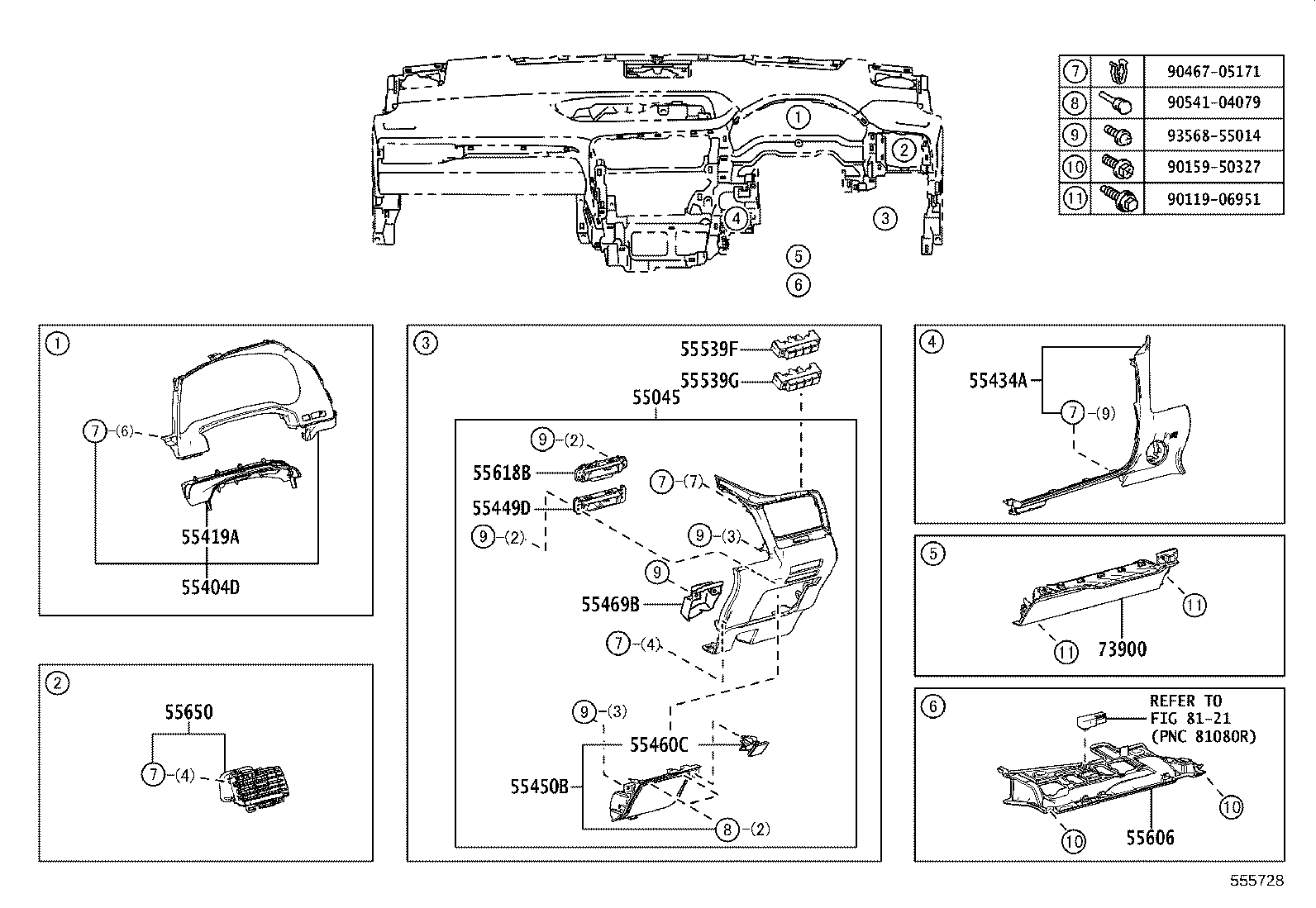

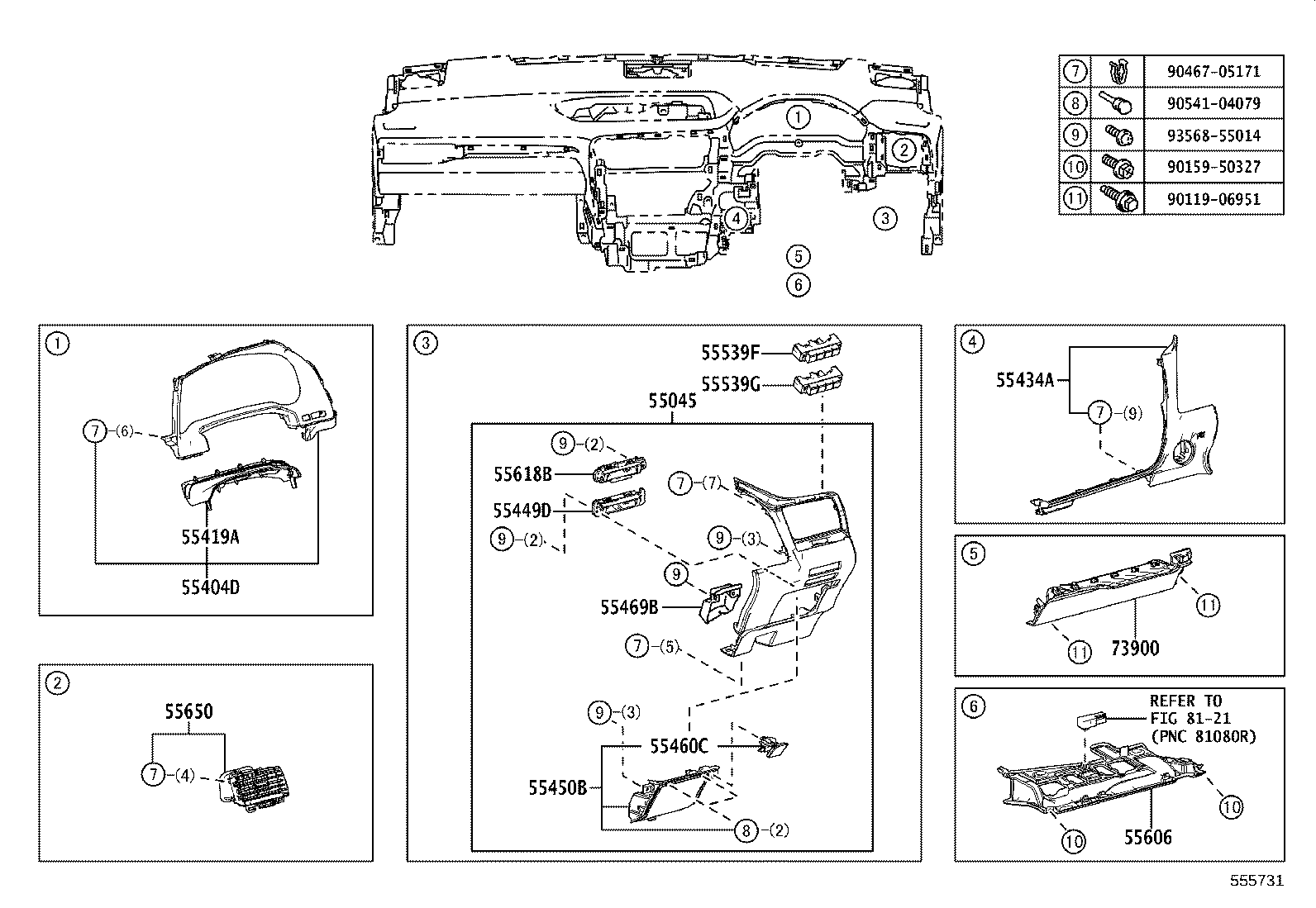

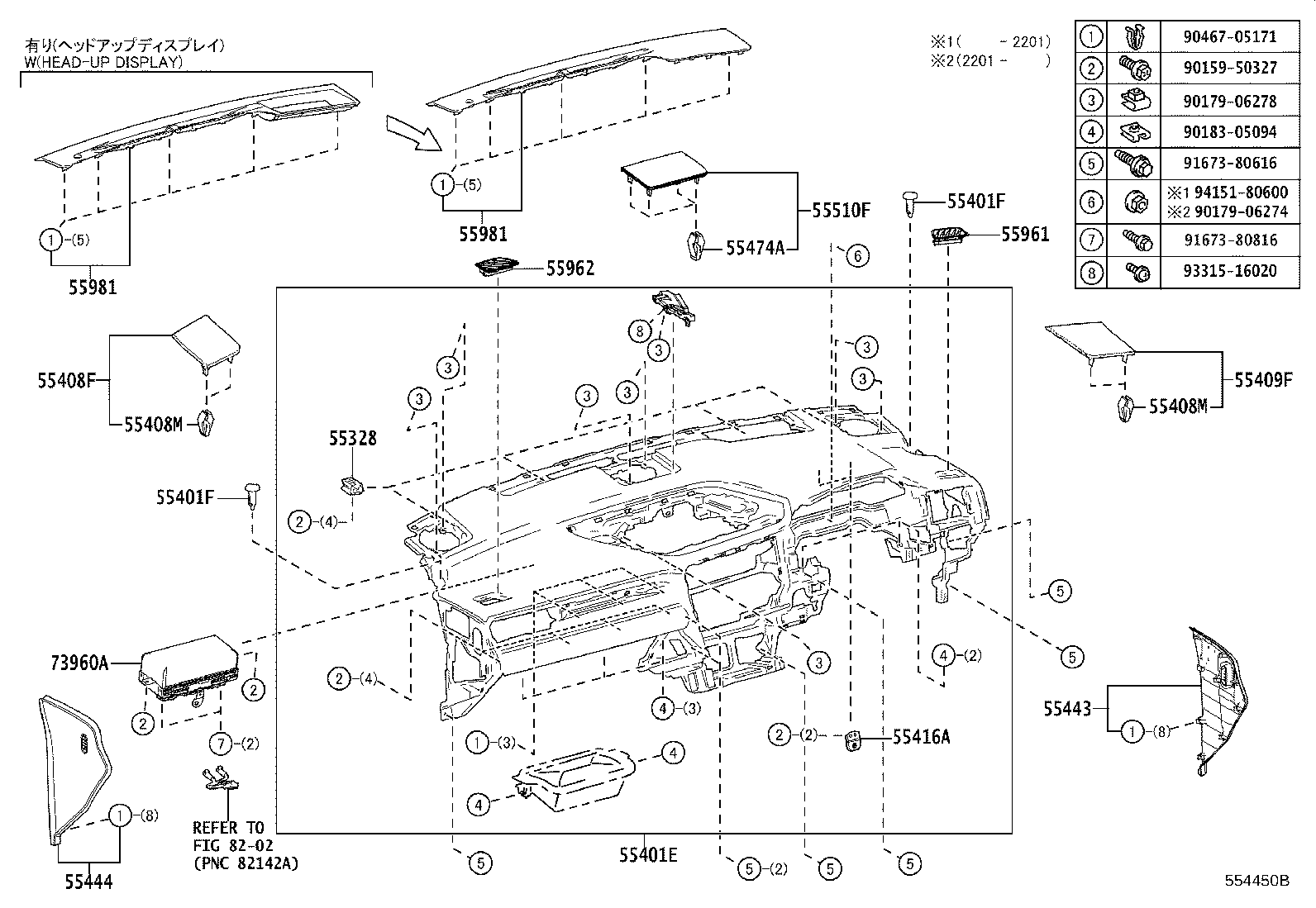

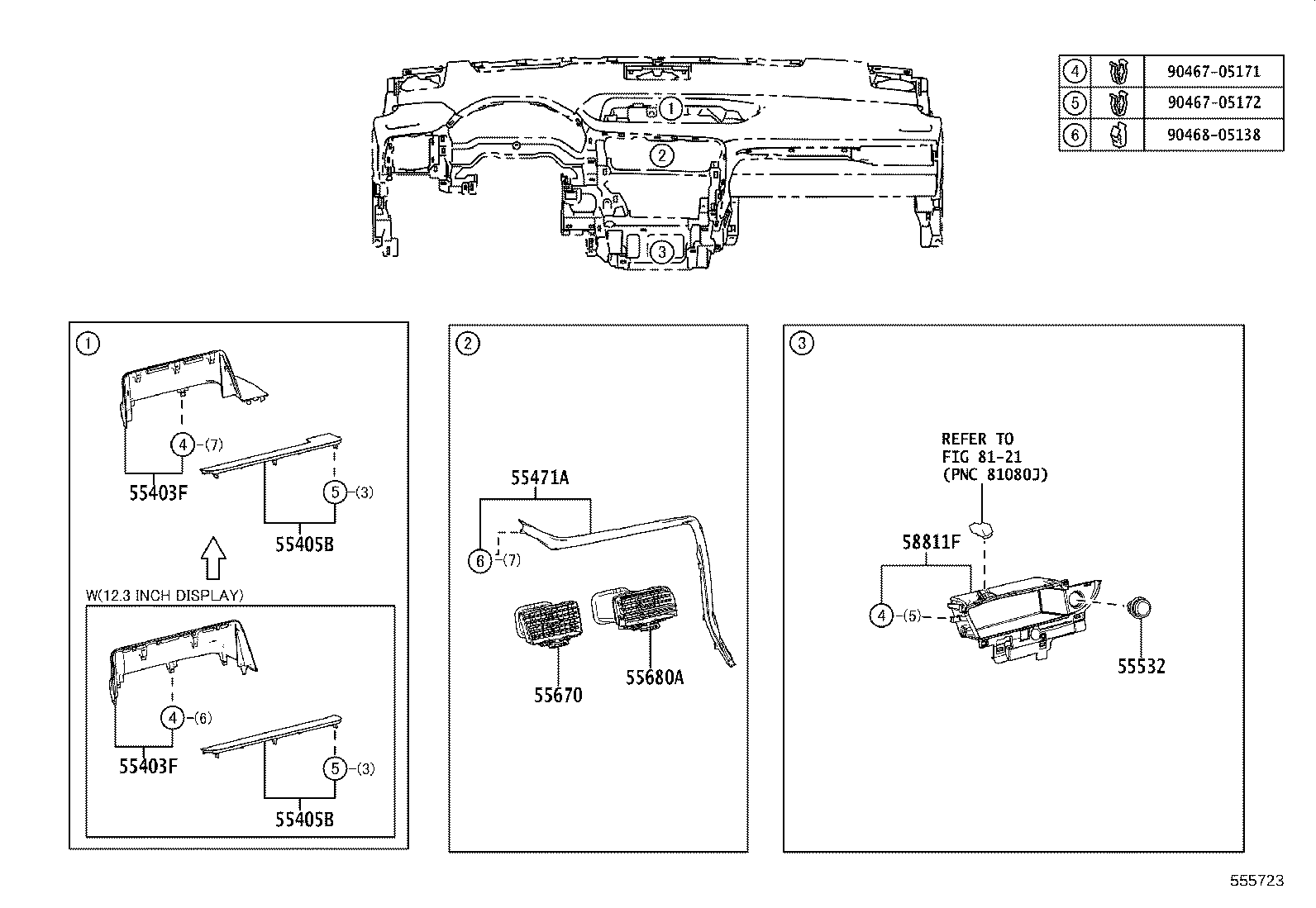

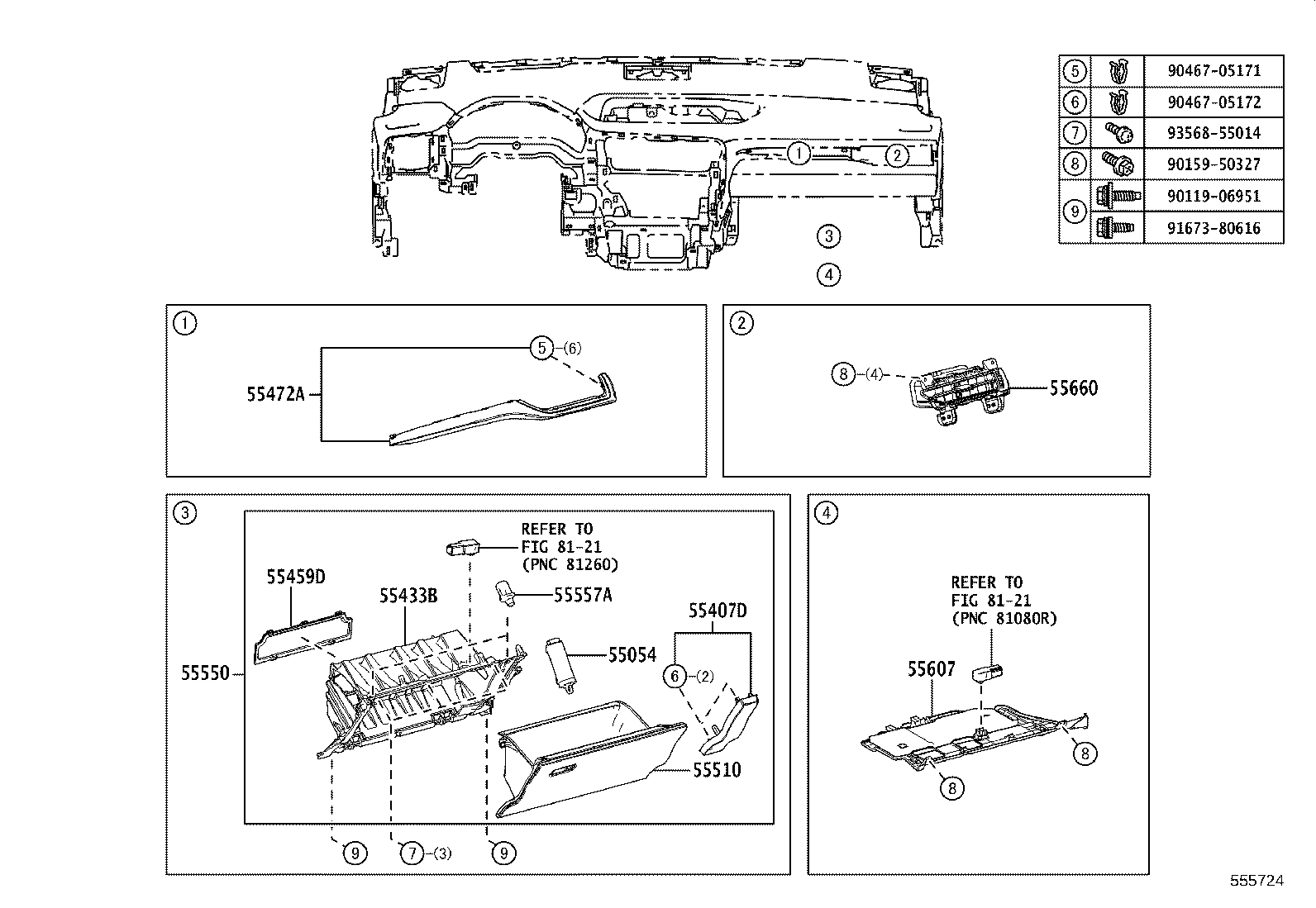

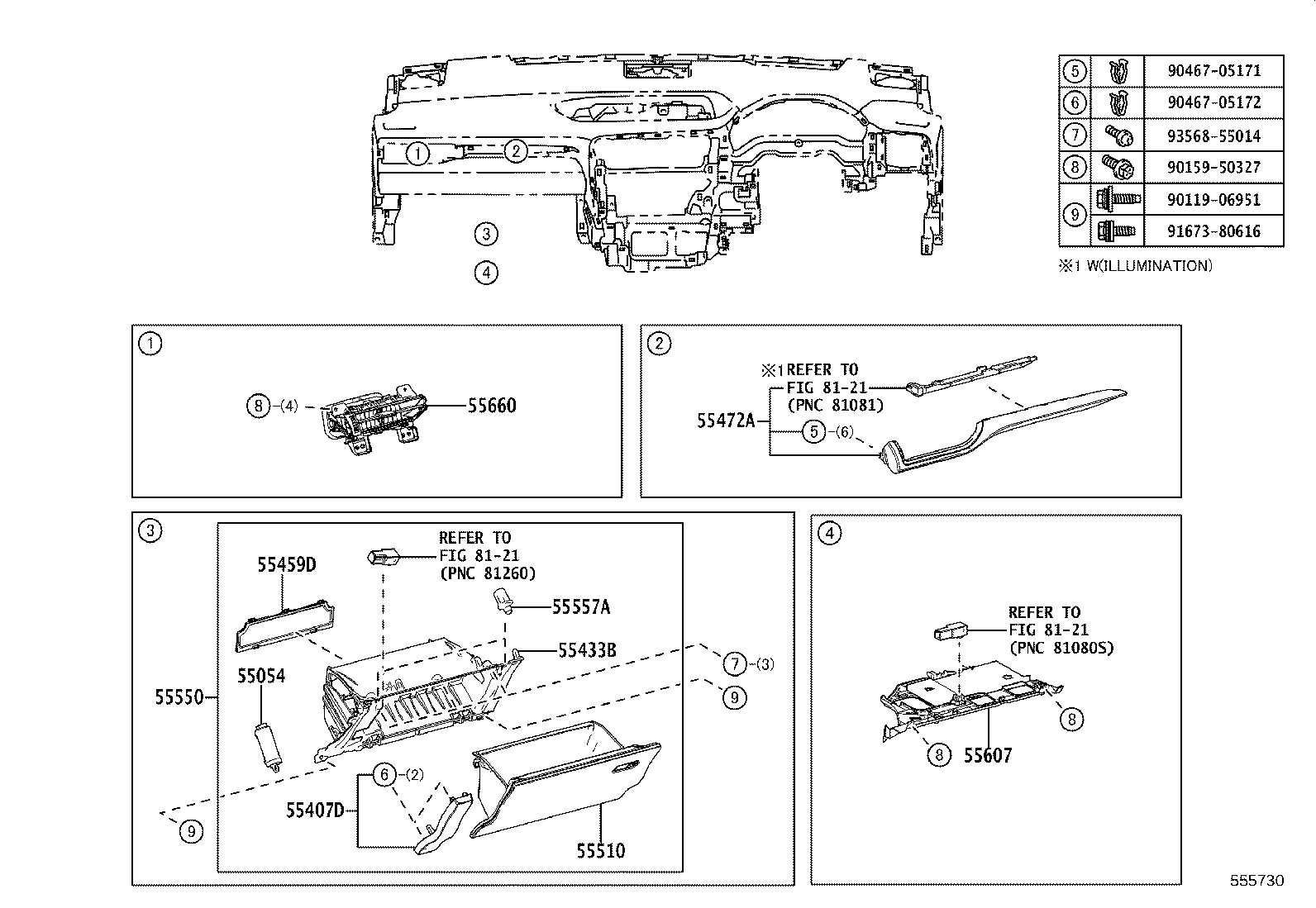

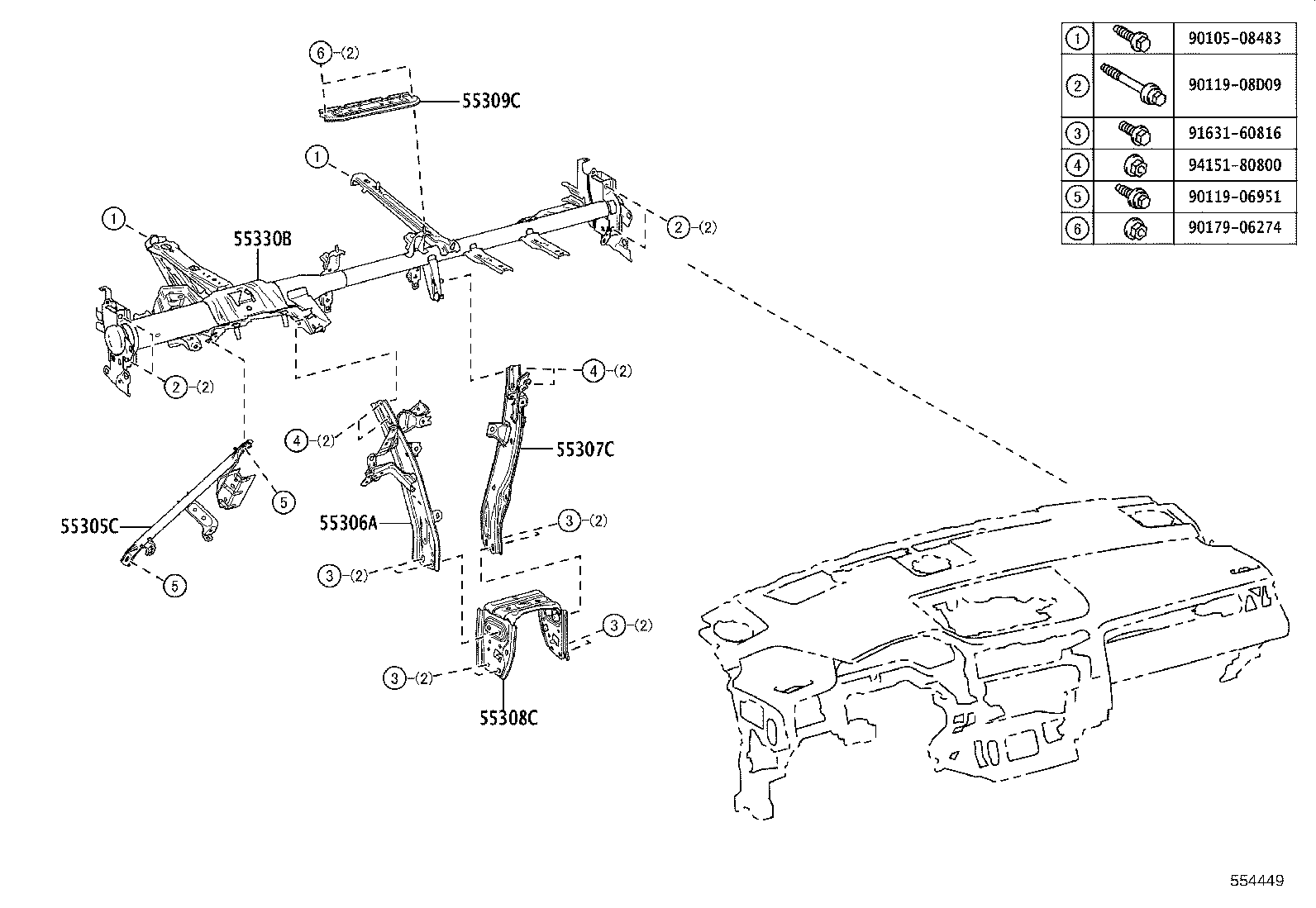

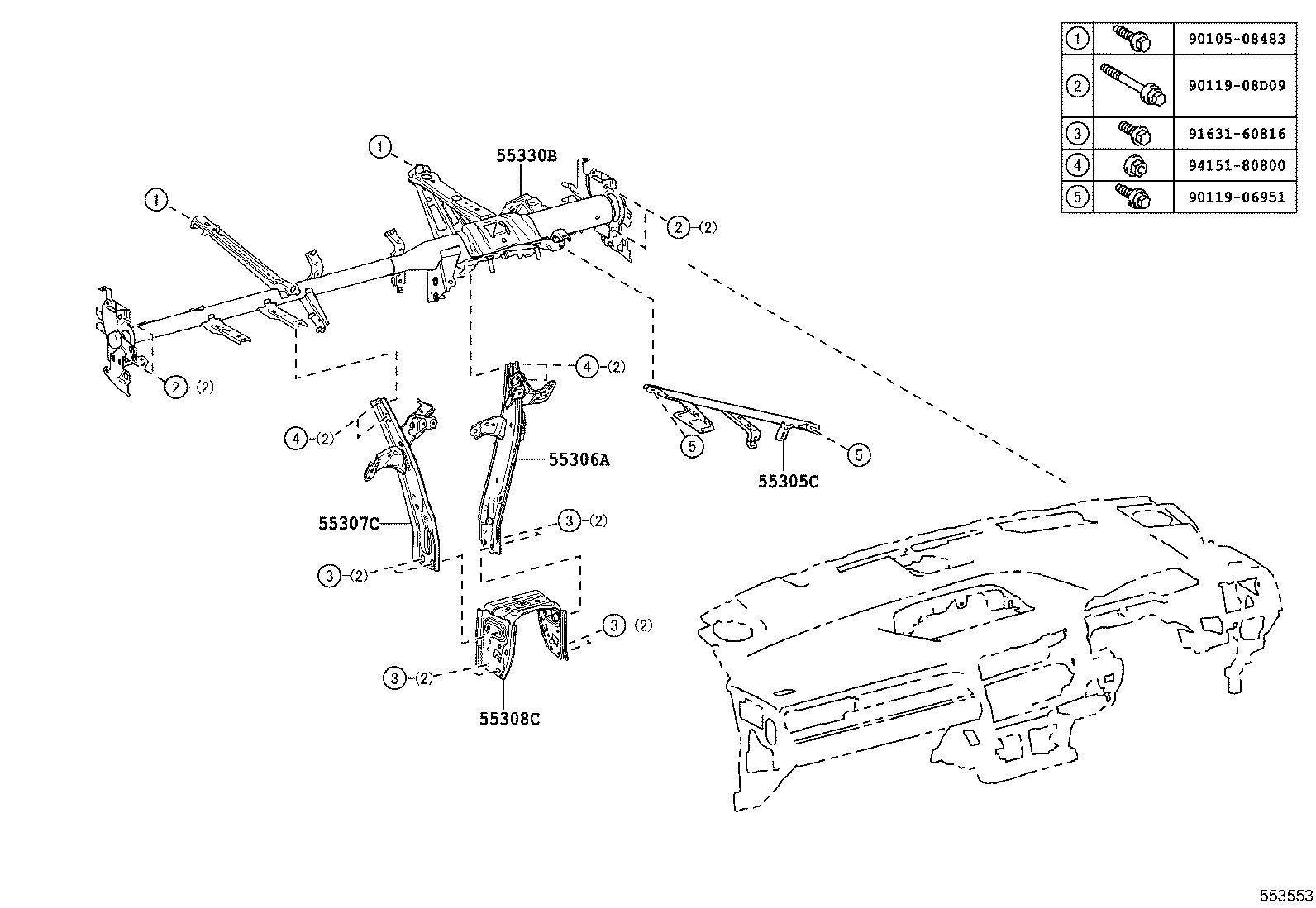

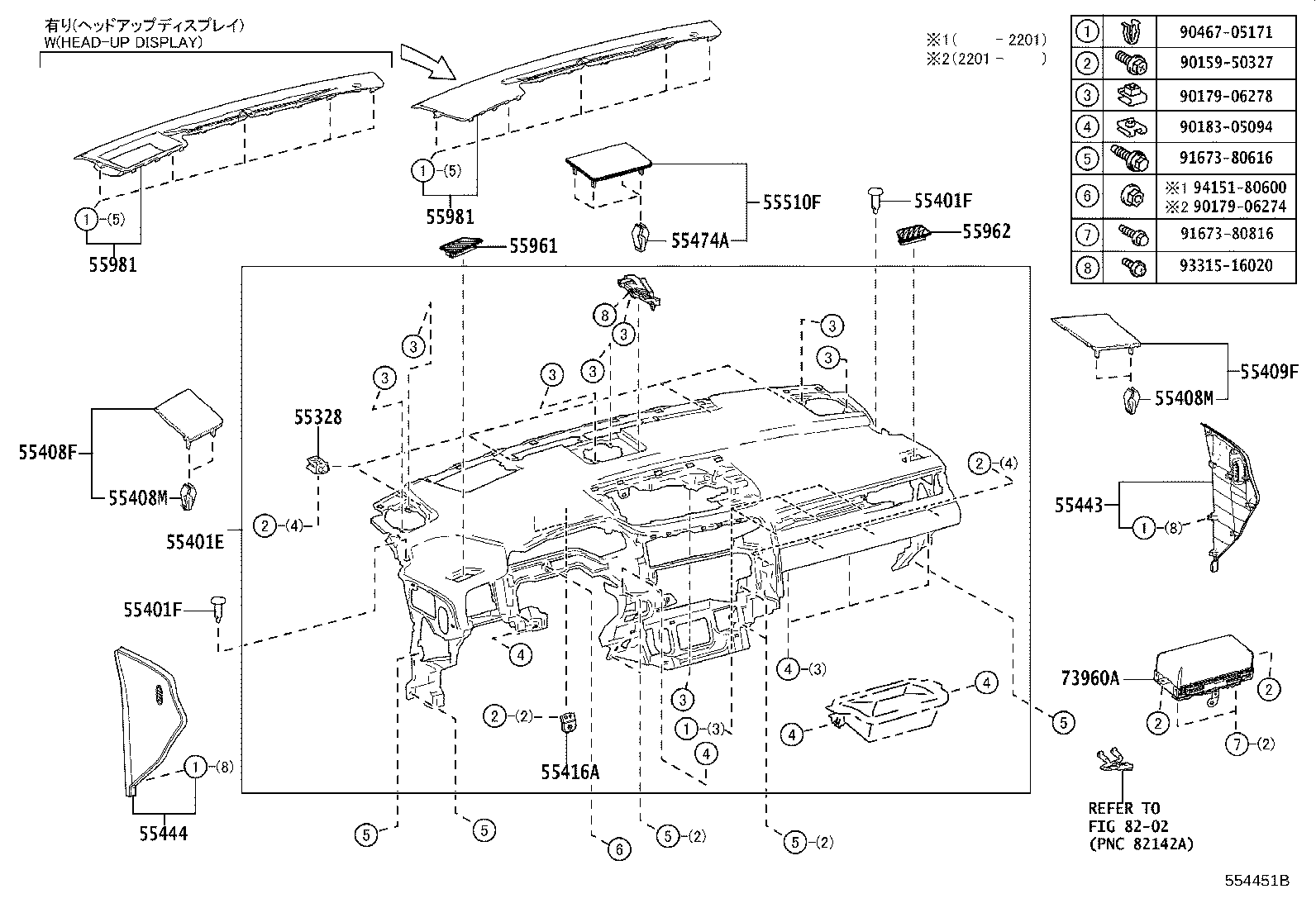

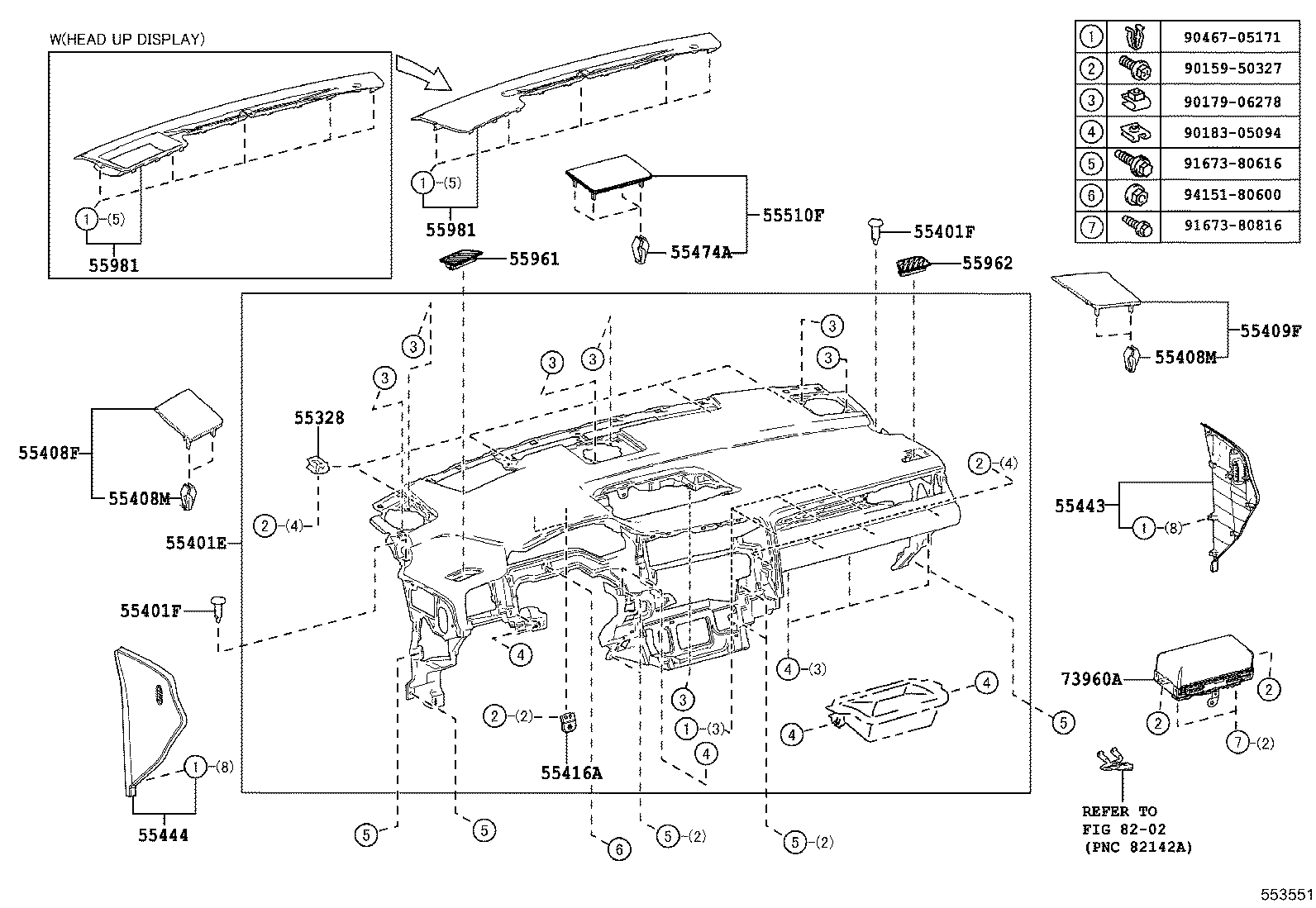

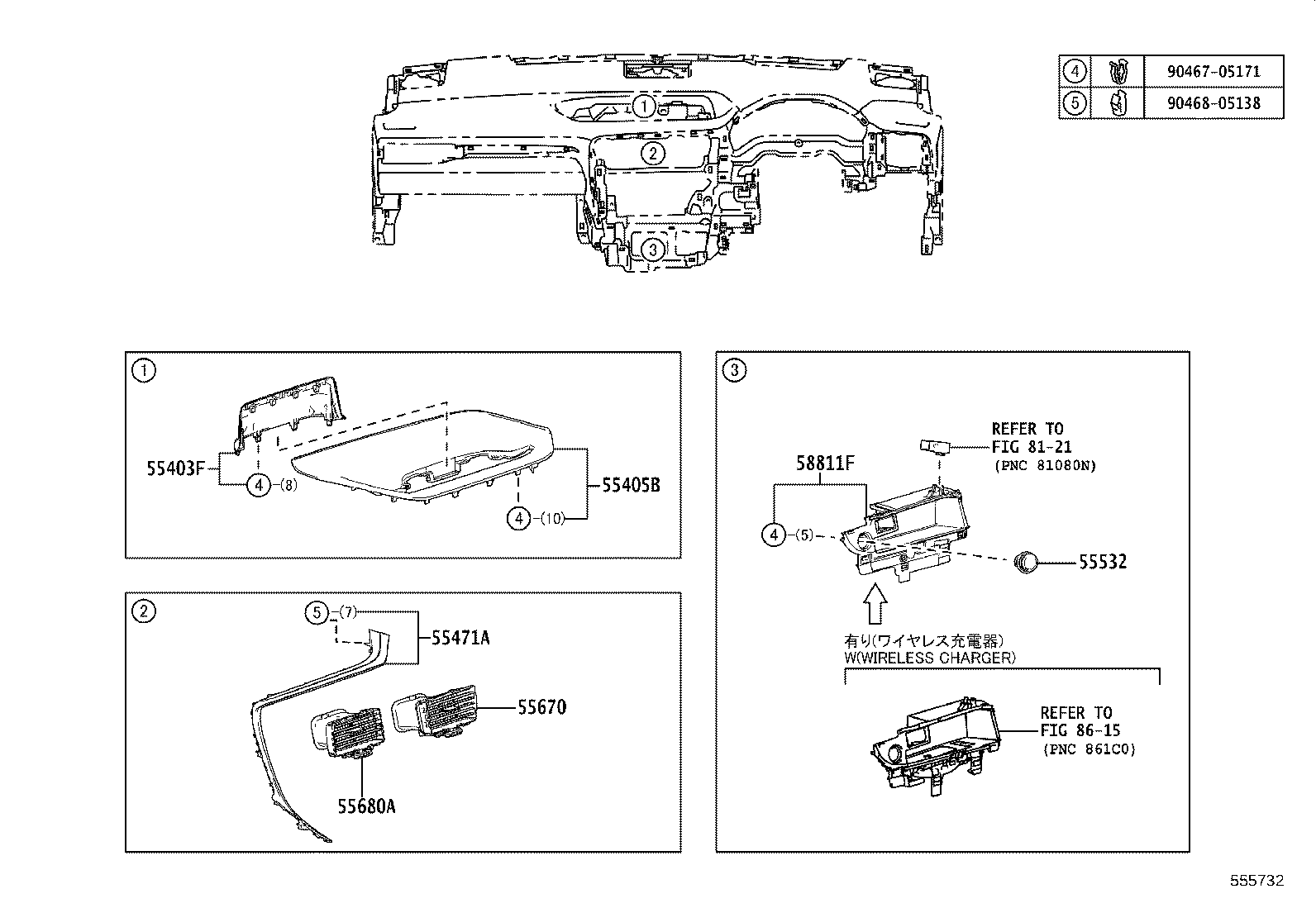

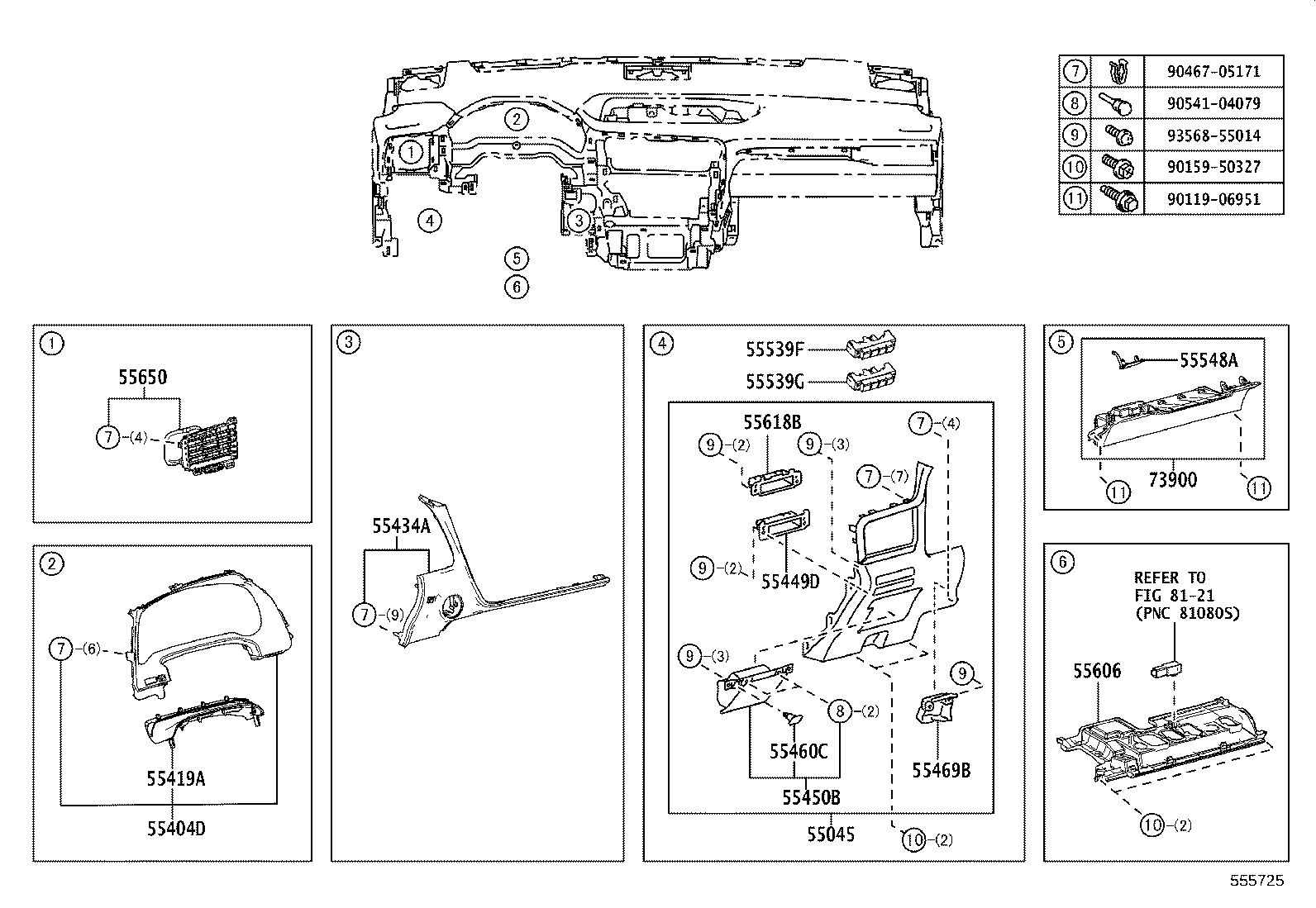

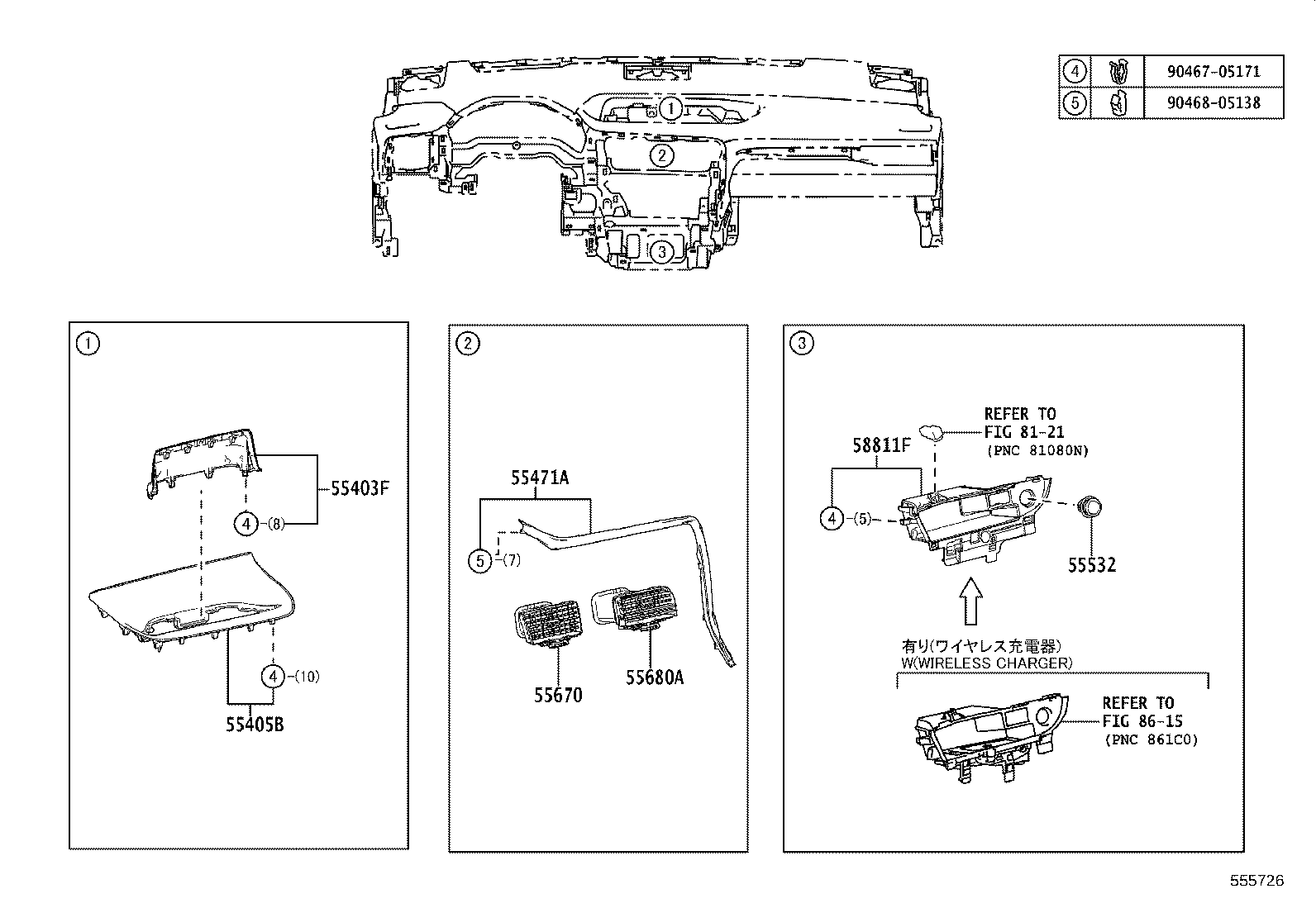

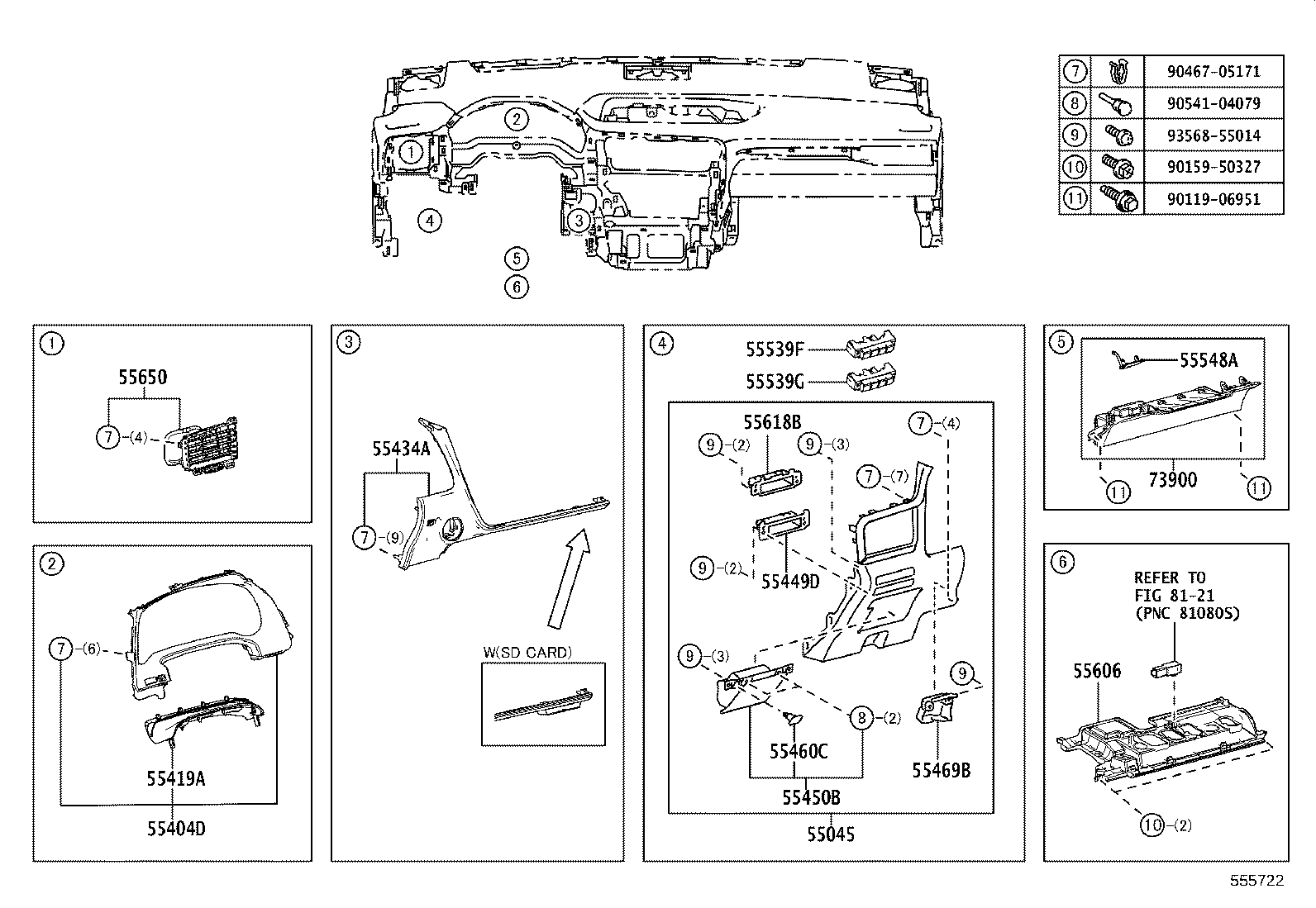

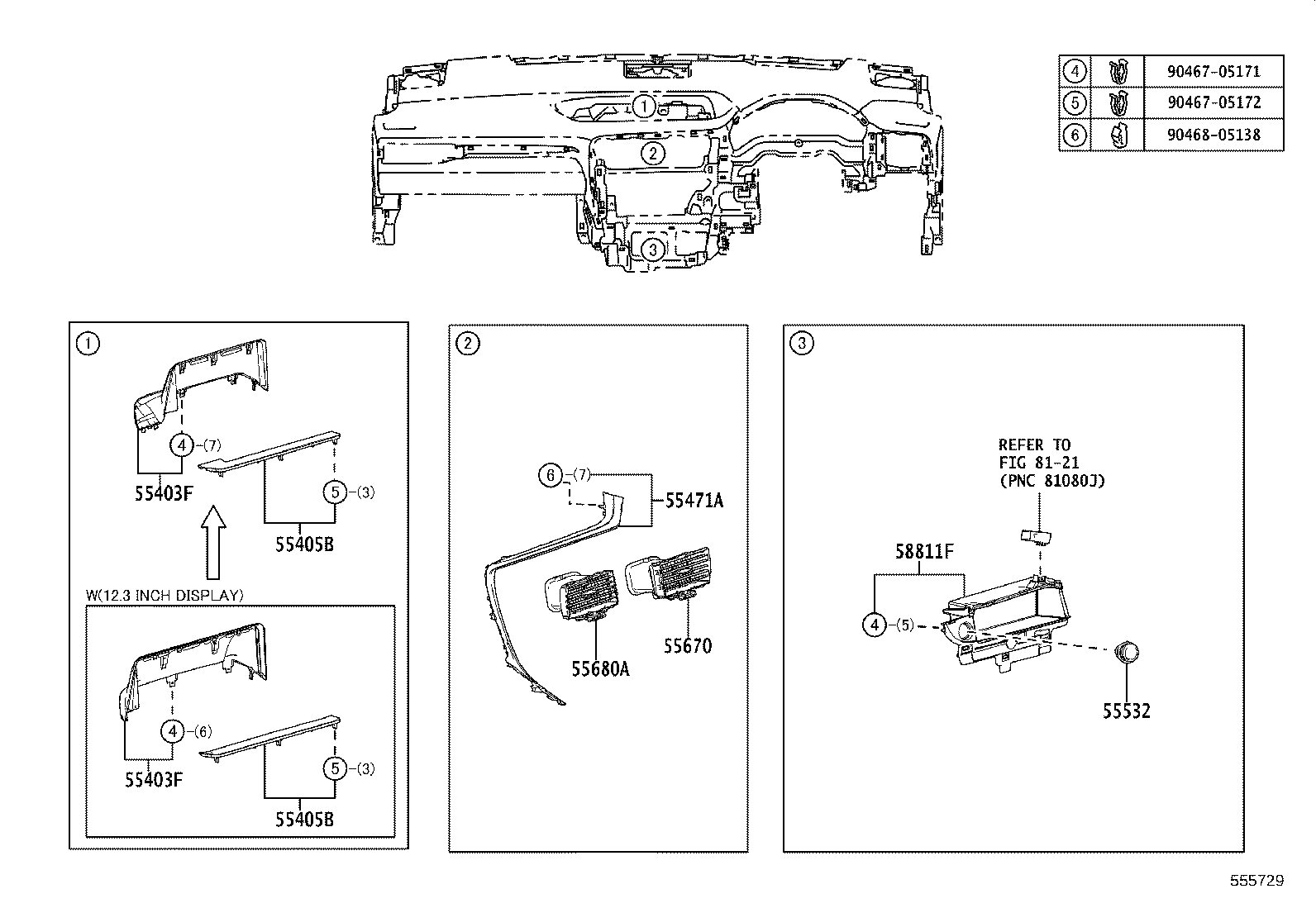

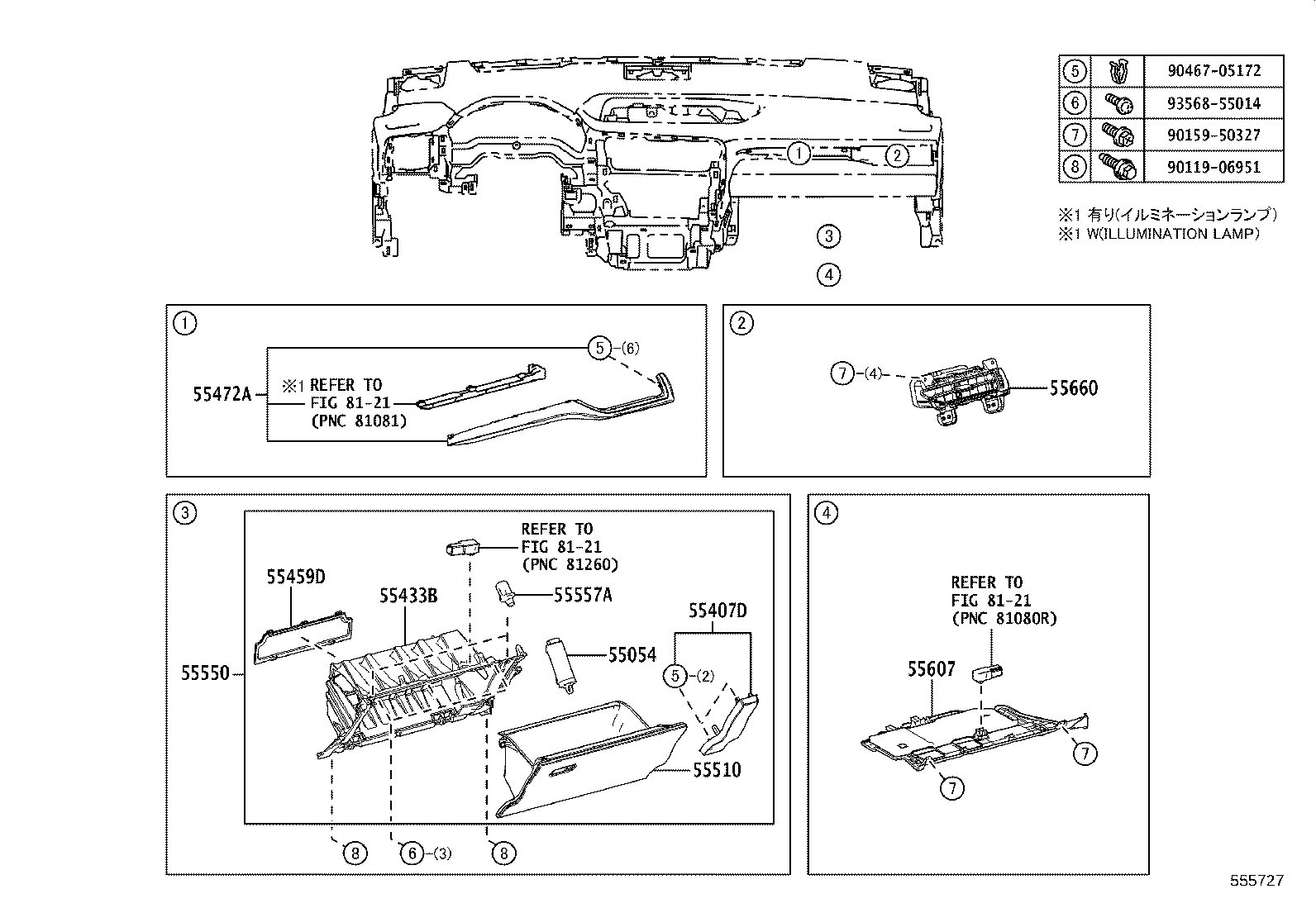

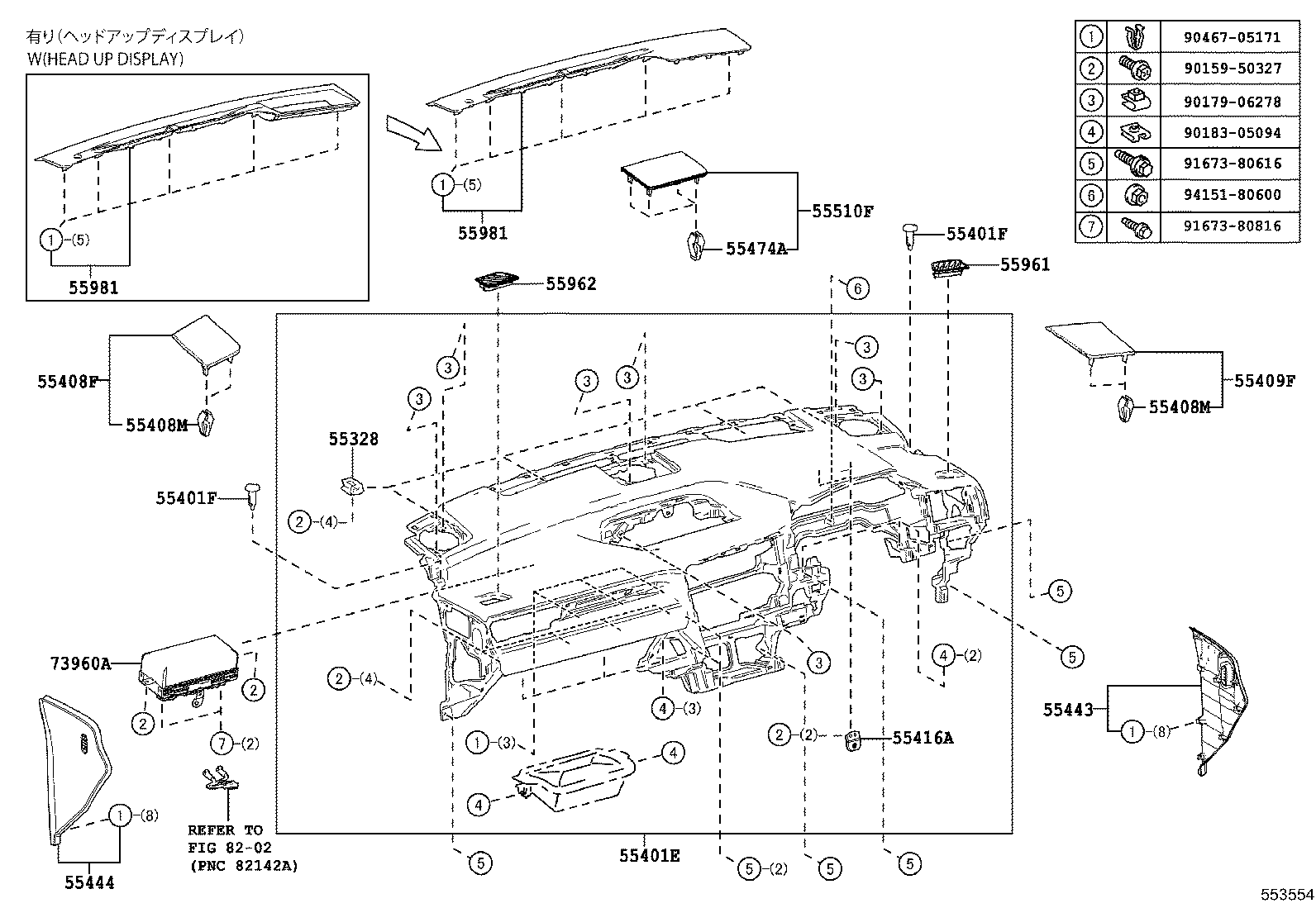

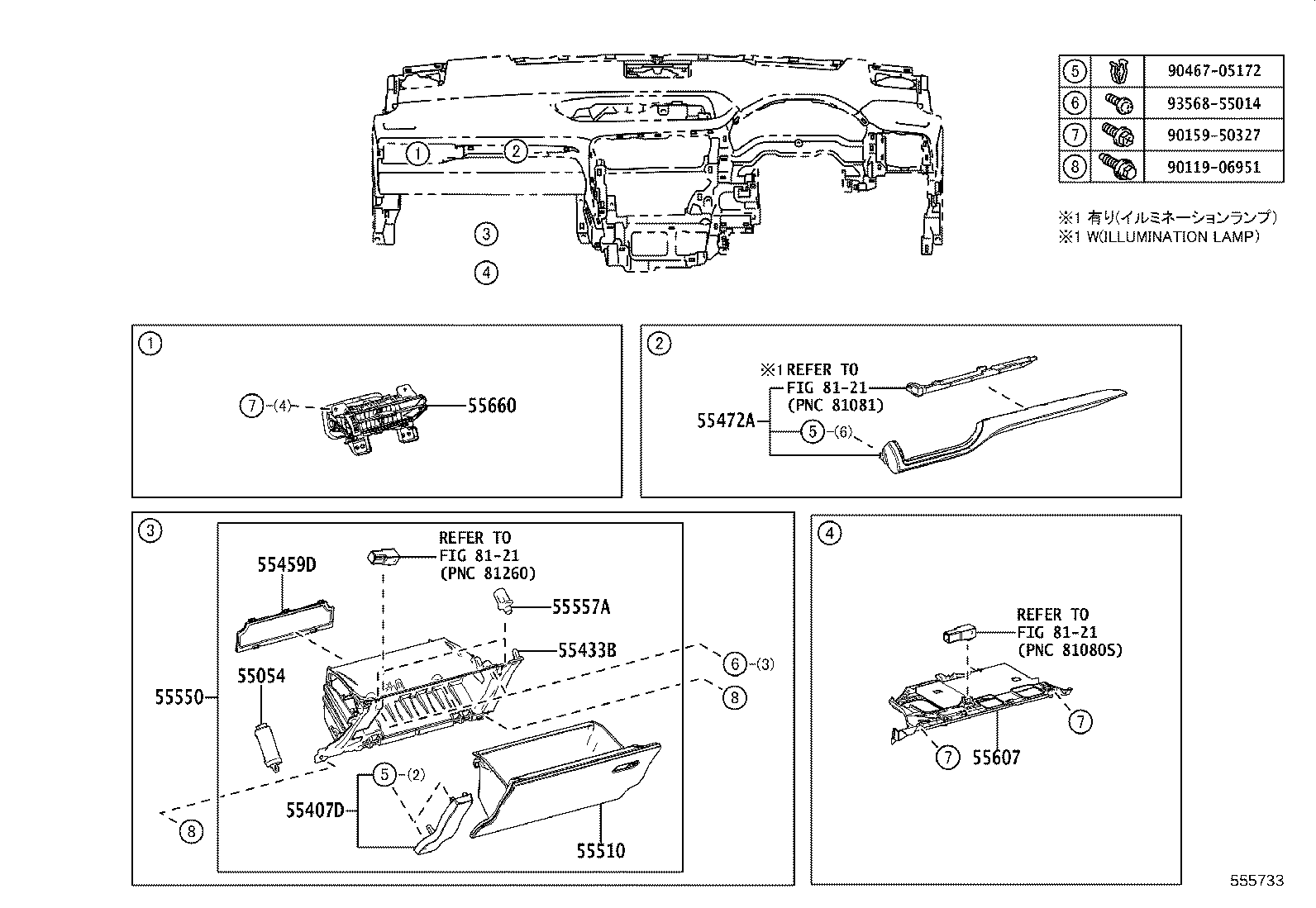

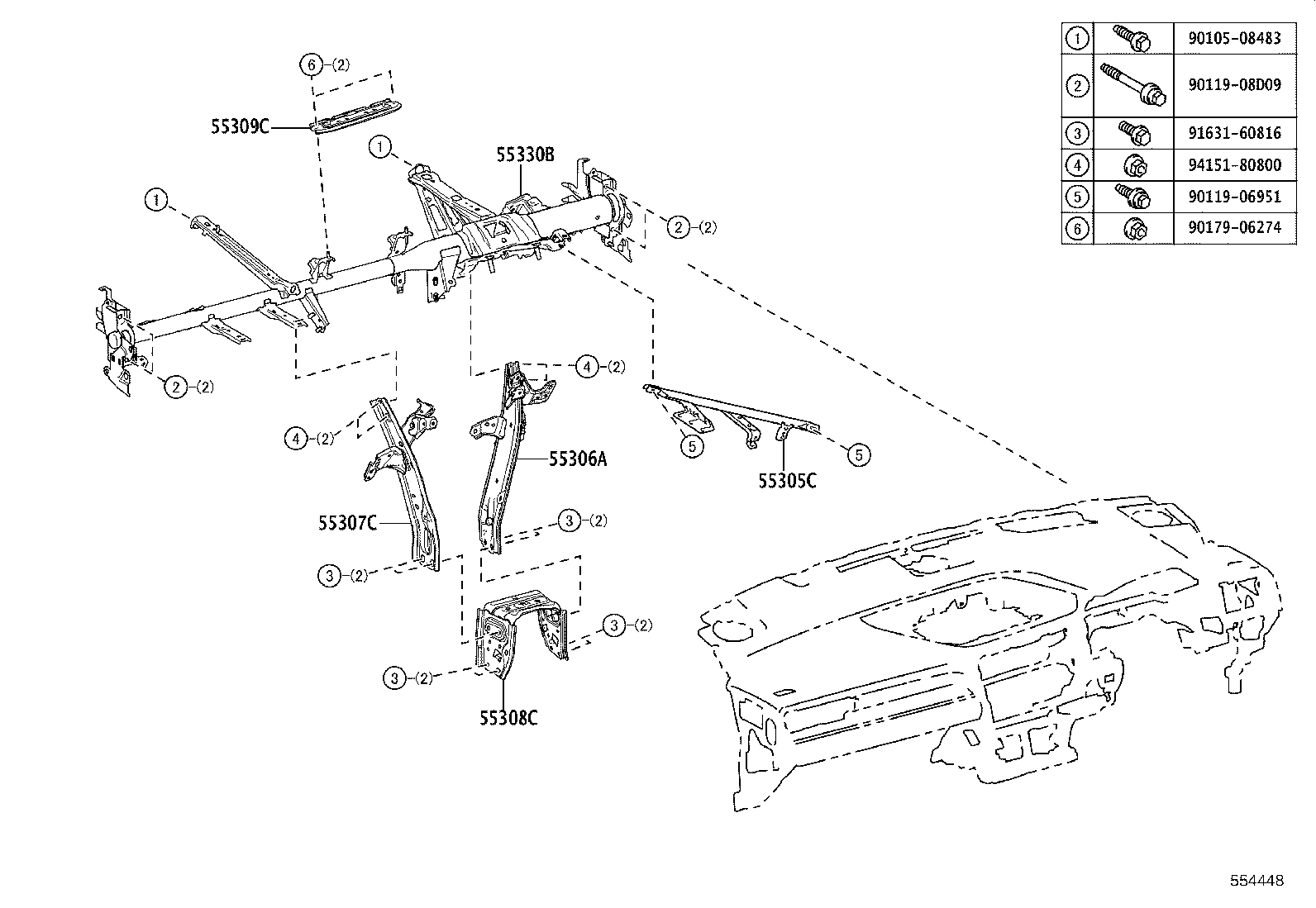

Figure 553550 553550 2015-09 → 2019-08 Figure 554449 554449 2019-08 → — Figure 553551 553551 2015-09 → 2019-08 Figure 554451B 554451B 2019-08 → — Figure 555722 555722 2015-09 → 2019-08 Figure 555725 555725 2019-08 → — Figure 555723 555723 2015-09 → 2019-08 Figure 555726 555726 2019-08 → — Figure 555724 555724 2015-09 → 2019-08 Figure 555727 555727 2019-08 → — Figure 553553 553553 2015-09 → 2019-08 Figure 554448 554448 2019-08 → — Figure 553554 553554 2015-09 → 2019-08 Figure 554450B 554450B 2019-08 → — Figure 555728 555728 2015-09 → 2019-08 Figure 555731 555731 2019-08 → — Figure 555729 555729 2015-09 → 2019-08 Figure 555732 555732 2019-08 → — Figure 555730 555730 2015-09 → 2019-08 Figure 555733 555733 2019-08 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55305C Reinforcement Sub-assy, Instrument Panel
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55309C Reinforcement Sub-assy, Instrument Panel, Center
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55407D Pad Sub-assy, Instrument Panel, End
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55408M Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55416A Retainer, Meter Hood, NO.1
55419A Cushion, Instrument Cluster Finish Panel
55433B Panel, Instrument Panel Finish, Lower NO.2
55434A Panel, Instrument Finish, Lower Sub
55443 Garnish, Instrument Panel, RH
55444 Garnish, Instrument Panel, LH
55449D Base, Switch
55450B Box Assy, Coin
55459D Cover, Instrument, Lower LH
55460C Lock Assy, Instrument Panel Box
55469B Insert, Instrument Panel Lower Pad Sub
55471A Ornament, Instrument Cluster Finish Panel
55472A Moulding, Instrument Cluster, NO.2
55474A Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55510 Door Assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55532 Cover, Cigar Lighter Hole
55539F Cover, Spare Switch Hole
55539G Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618B Base, Switch Hole, NO.3
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58811F Box, Consol
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
