Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

21 part groups · 2 illustrations

Illustrations

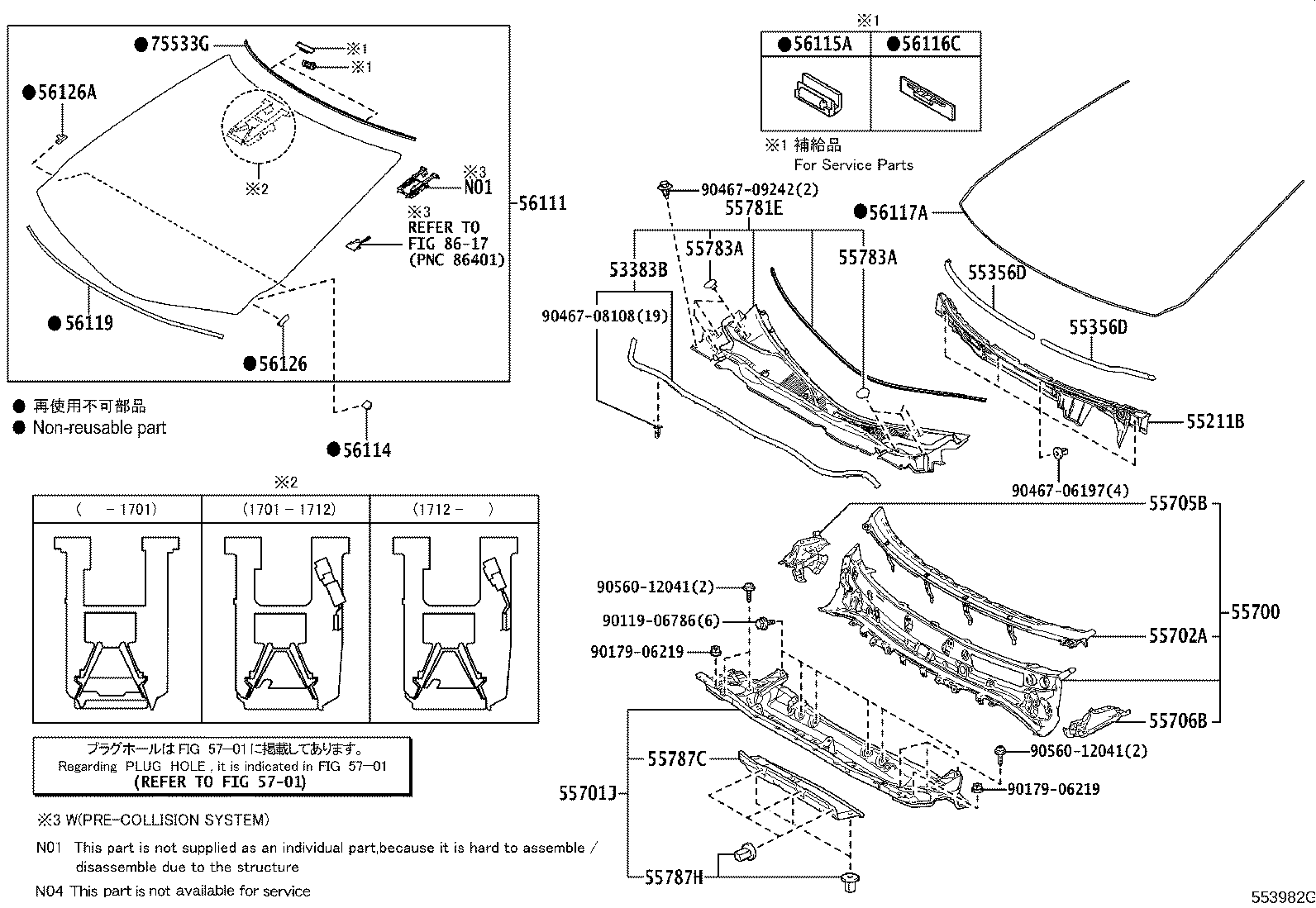

Figure 553569I 553569I 2015-09 → — Figure 553982G 553982G 2015-09 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55211B Silencer, Front Panel
55356D Cushion, Instrument Panel, NO.2
55700 Panel Assy, Front
55701J Panel Sub-assy, Cowl Top, Outer
55702A Panel Sub-assy, Cowl Top, Outer Front
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
55787C Insulator, Cowl Top Panel, NO.1
55787H Clip, Cowl Top Panel Insulator
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56119 Seal, Windshield Glass
56126 Spacer, Windshield Glass, NO.2
56126A Spacer, Windshield Glass, NO.1
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
