Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

82 part groups · 3 illustrations

Illustrations

615378B 2015-09 → —

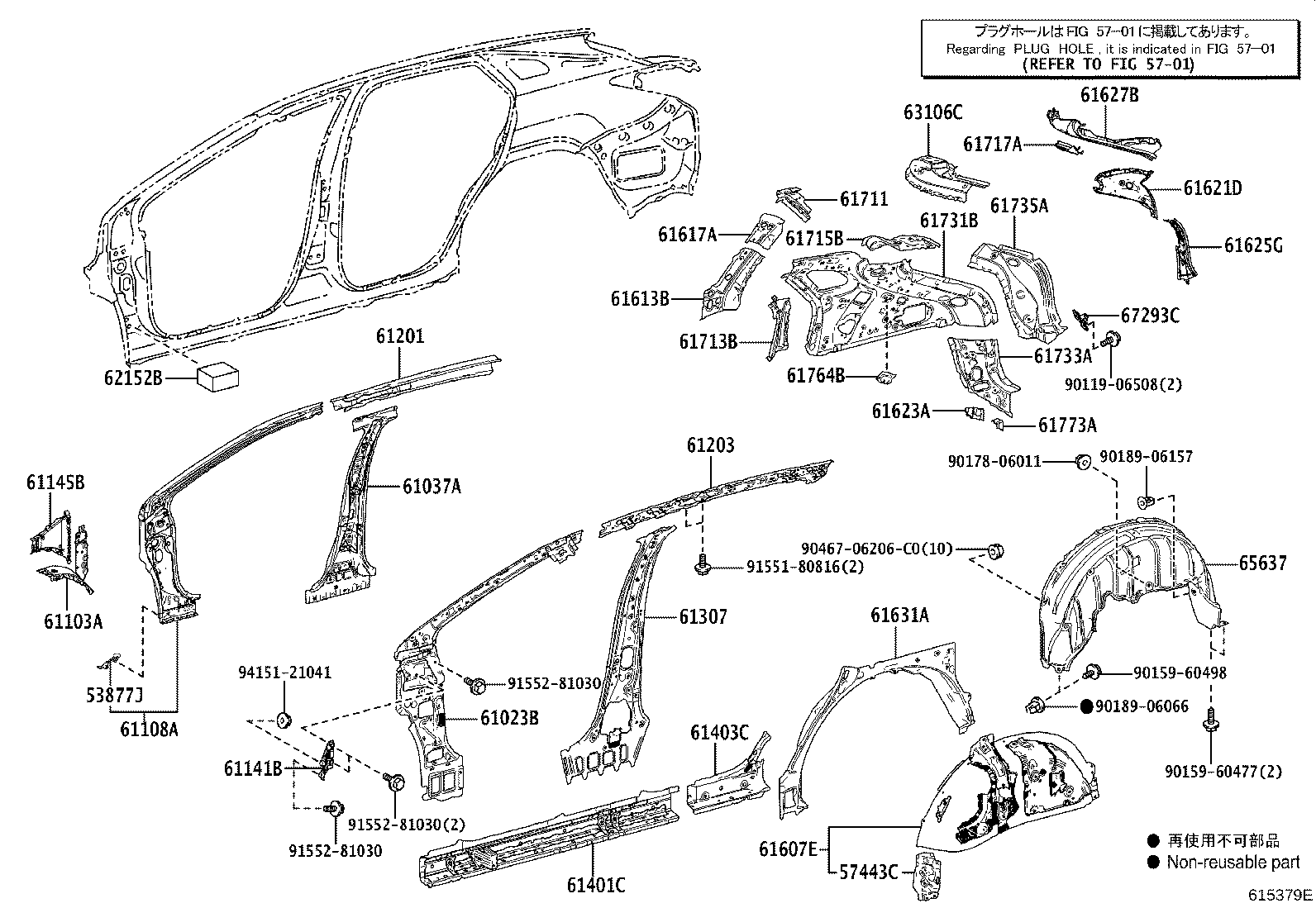

615379E 2015-09 → —

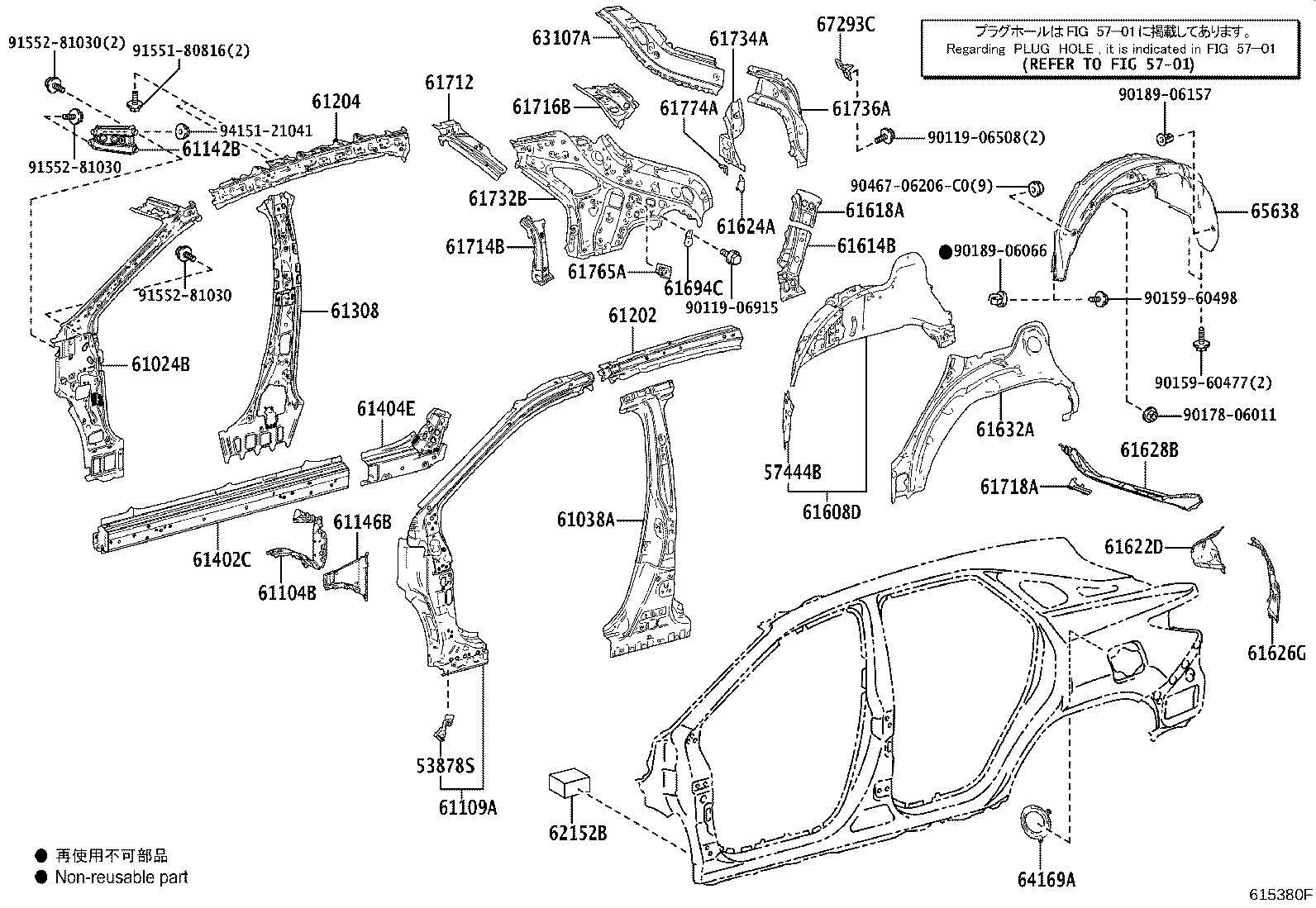

615380F 2015-09 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53821F	Bracket, Front Fender, Rear NO.2 RH
53822B	Bracket, Front Fender, Rear LH
53822E	Bracket, Front Fender, Rear NO.2 LH
53877J	Bracket, Front Fender Rear Side Panel, Lower RH
53878S	Bracket, Front Fender Rear Side Panel, Lower LH
57443C	Reinforcement, Center Floor Side Member
57444B	Reinforcement, NO.4 Body Mounting
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61103A	Reinforcement Sub-assy, Cowl Side, RH
61104B	Reinforcement Sub-assy, Cowl Side, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61141B	Gusset, Front Body Pillar, Upper RH
61142B	Gusset, Front Body Pillar, Upper LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61307	Pillar Sub-assy, Center Body, Inner RH
61308	Pillar Sub-assy, Center Body, Inner LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61607E	Panel, Quarter Wheel House, Inner RH
61608D	Panel, Quarter Wheel House, Inner LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613B	Panel, Quarter, Inner Front RH
61614B	Panel, Quarter, Inner Front LH
61617A	Panel, Quarter Inner, Rear RH
61618A	Panel, Quarter, Inner Rear LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61623A	Extension, Quarter Panel, Outer RH
61624A	Extension, Quarter Panel, Outer LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61627B	Extension, Quarter Panel, Upper Rear RH
61628B	Extension, Quarter Panel, Upper Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61694C	Retainer, Rear Seatback Set, LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61715B	Extension, Roof Side, Inner Front RH
61716B	Extension, Roof Side, Inner Front LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61773A	Patch, Back Door Opening, Lower RH
61774A	Patch, Back Door Opening, Lower LH
62152B	Pad, Cowl Side Silencer, NO.2
63106C	Guide Sub-assy, Roof Headlining, Rear RH
63107A	Guide Sub-assy, Roof Headlining, Rear LH
64169A	Protector, Fuel Inlet
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
67293C	Cushion, Back Door Stopper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
