Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

6 part groups · 3 illustrations

Illustrations

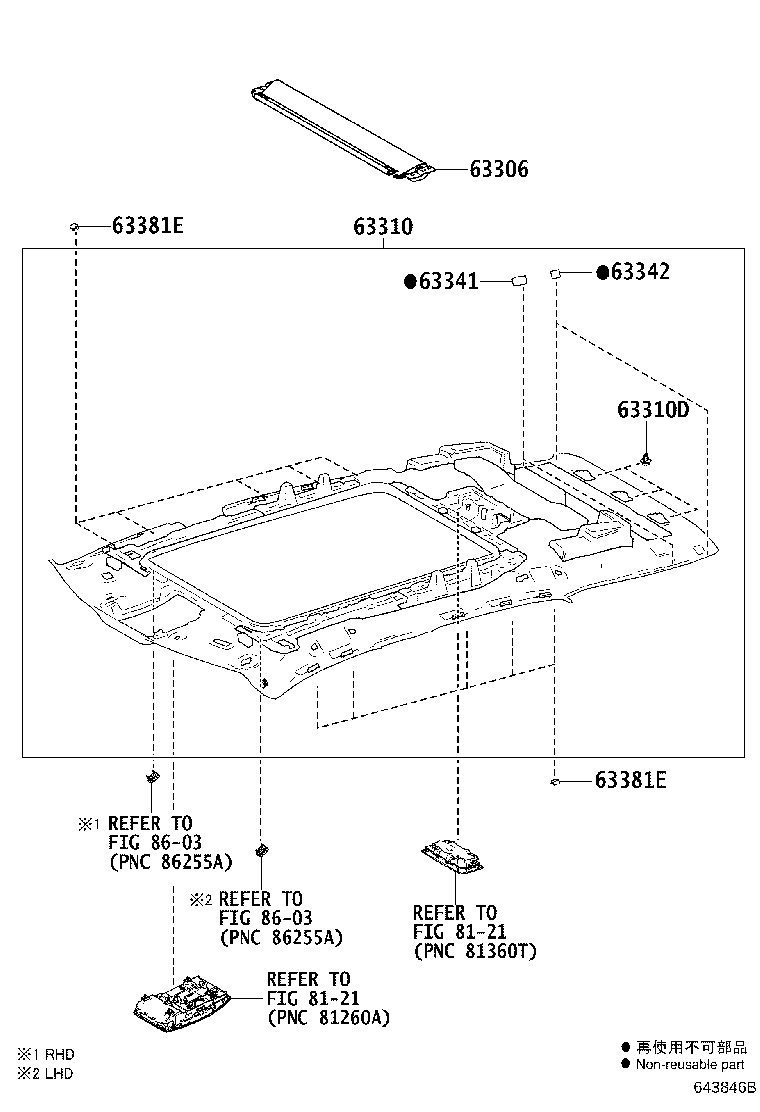

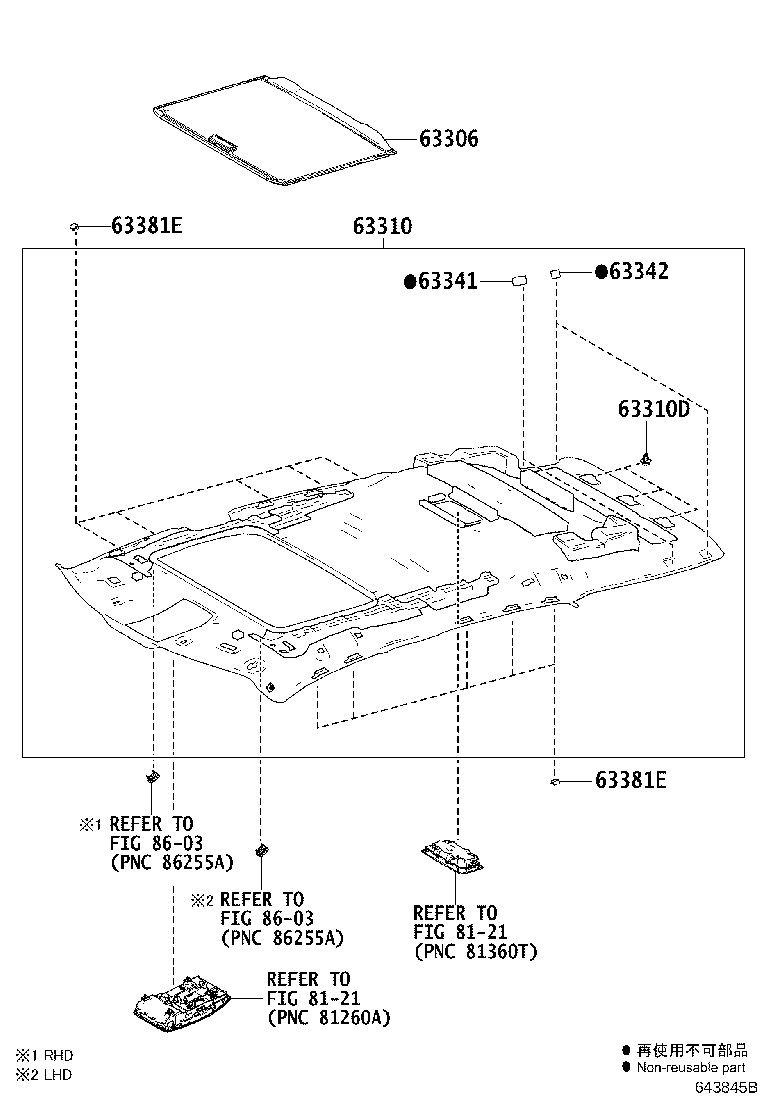

Figure 643844B 643844B 2015-09 → — Figure 643845B 643845B 2015-09 → — Figure 643846B 643846B 2015-09 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63381E Retainer, Roof Headlining Trim, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
