Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

16 part groups · 2 illustrations

Illustrations

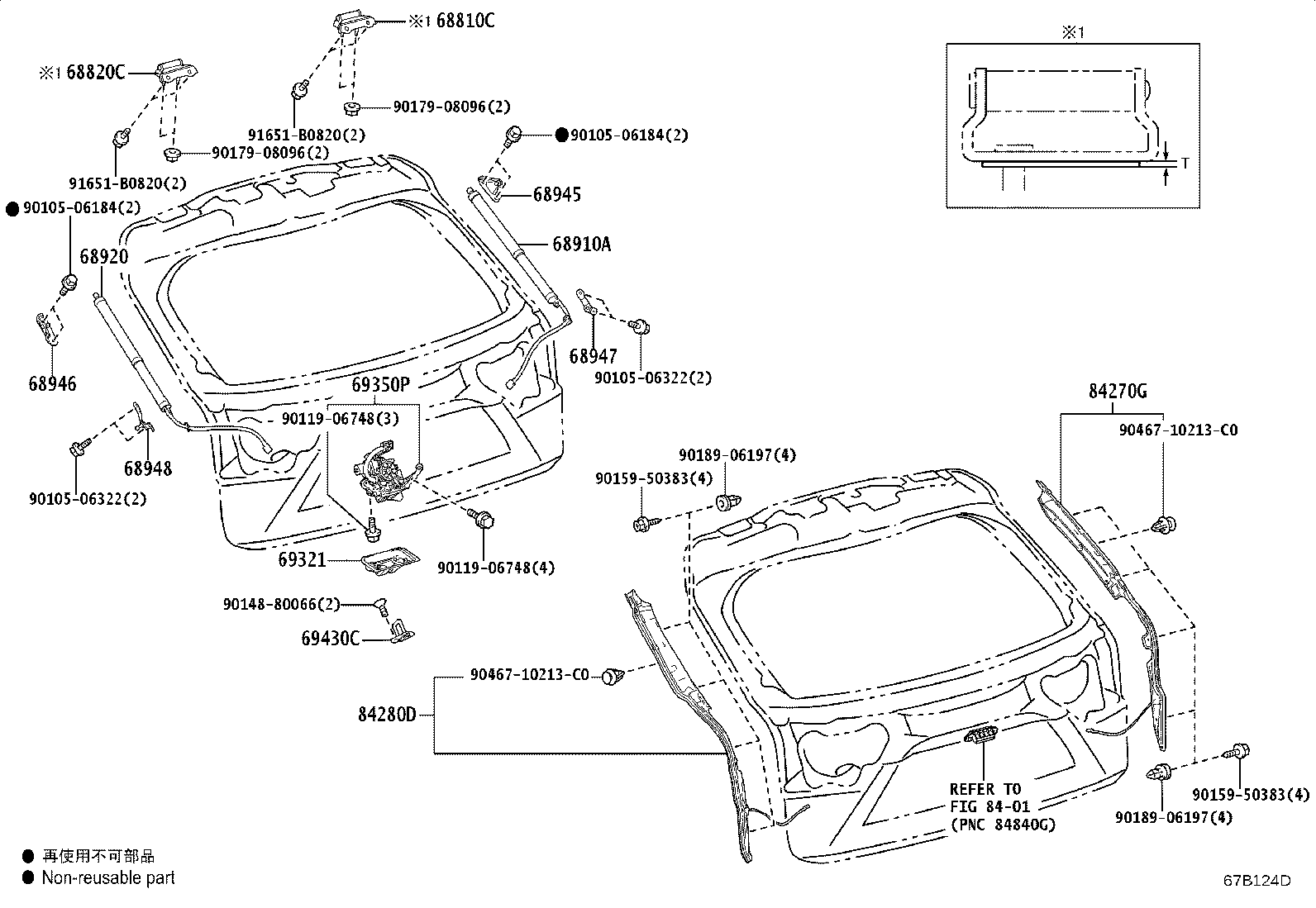

Figure 678818F 678818F 2015-09 → — Figure 67B124D 67B124D 2015-09 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68910A Unit Assy Set, Power Back Door, RH
68920 Unit Assy Set, Power Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68949 Seal, Back Door Stay Bracket
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69321 Cover, Back Door Lock
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
