Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

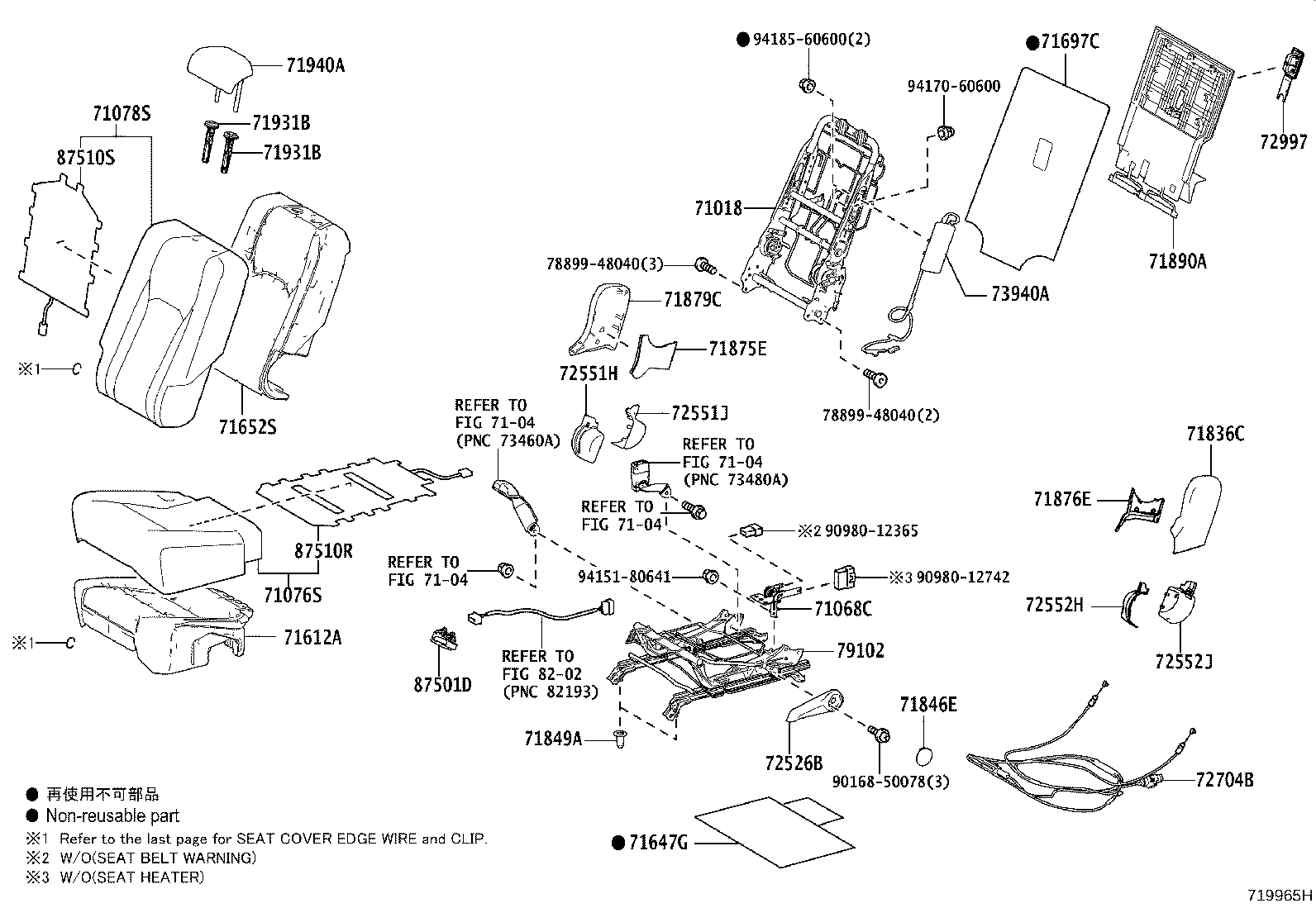

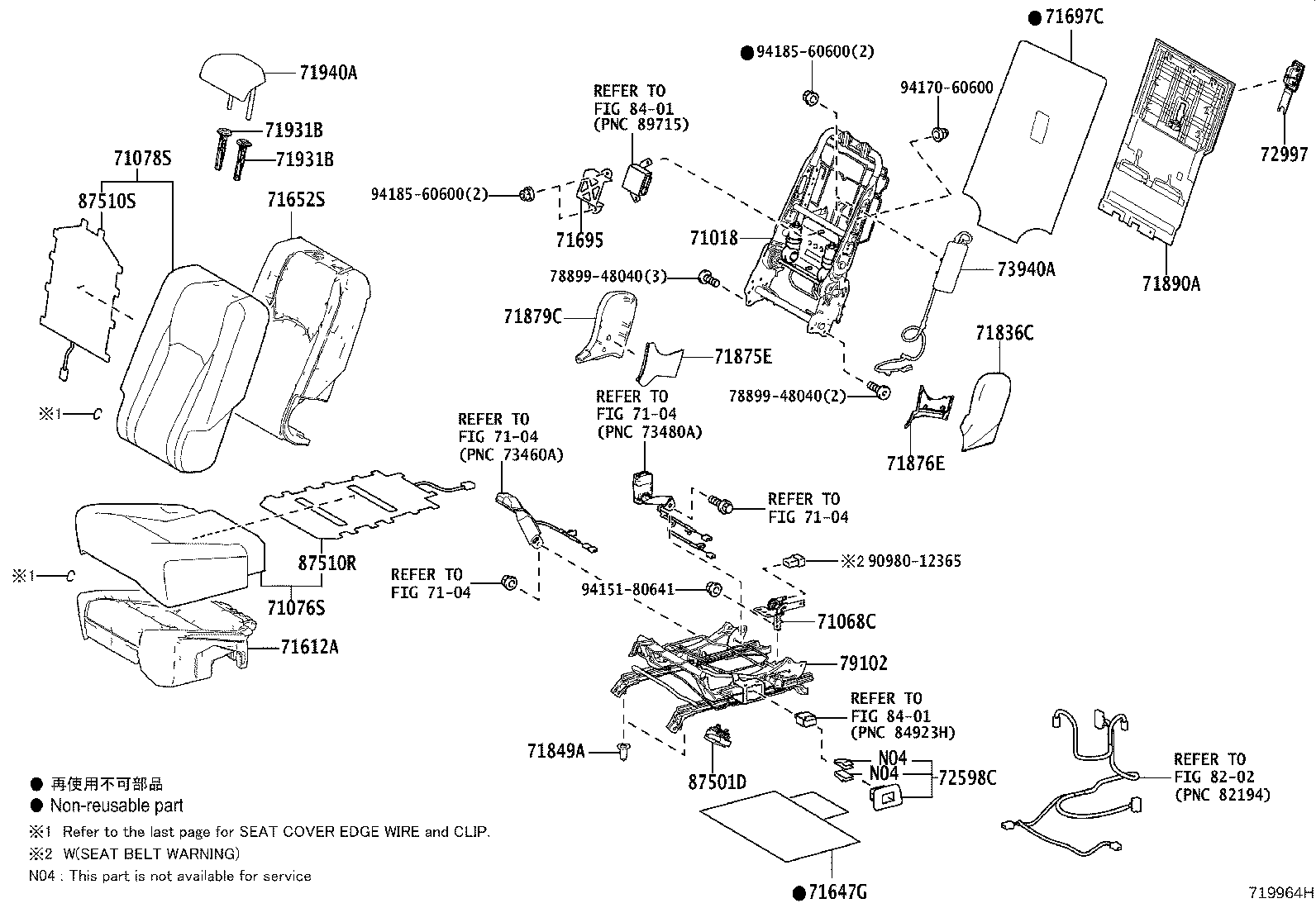

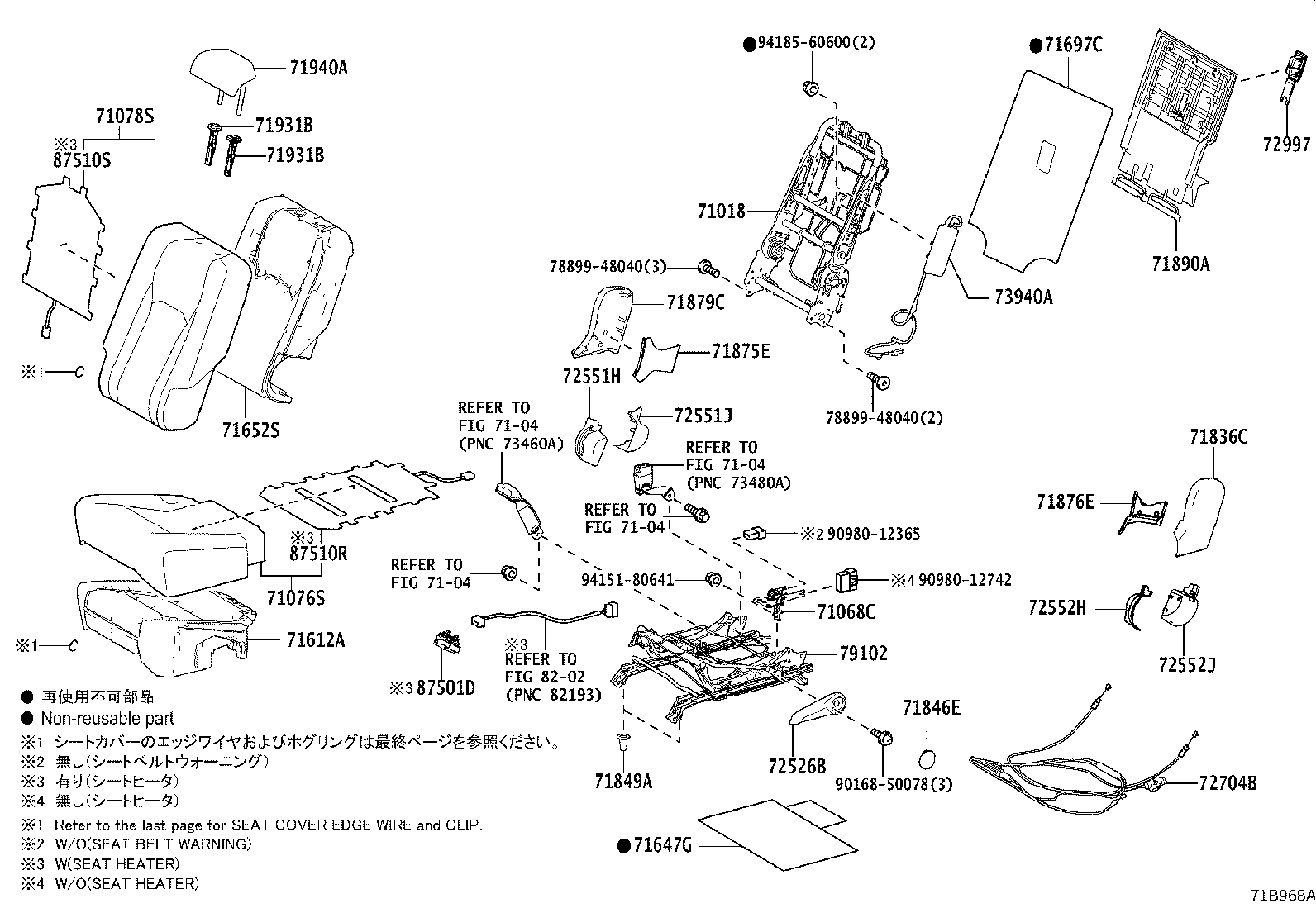

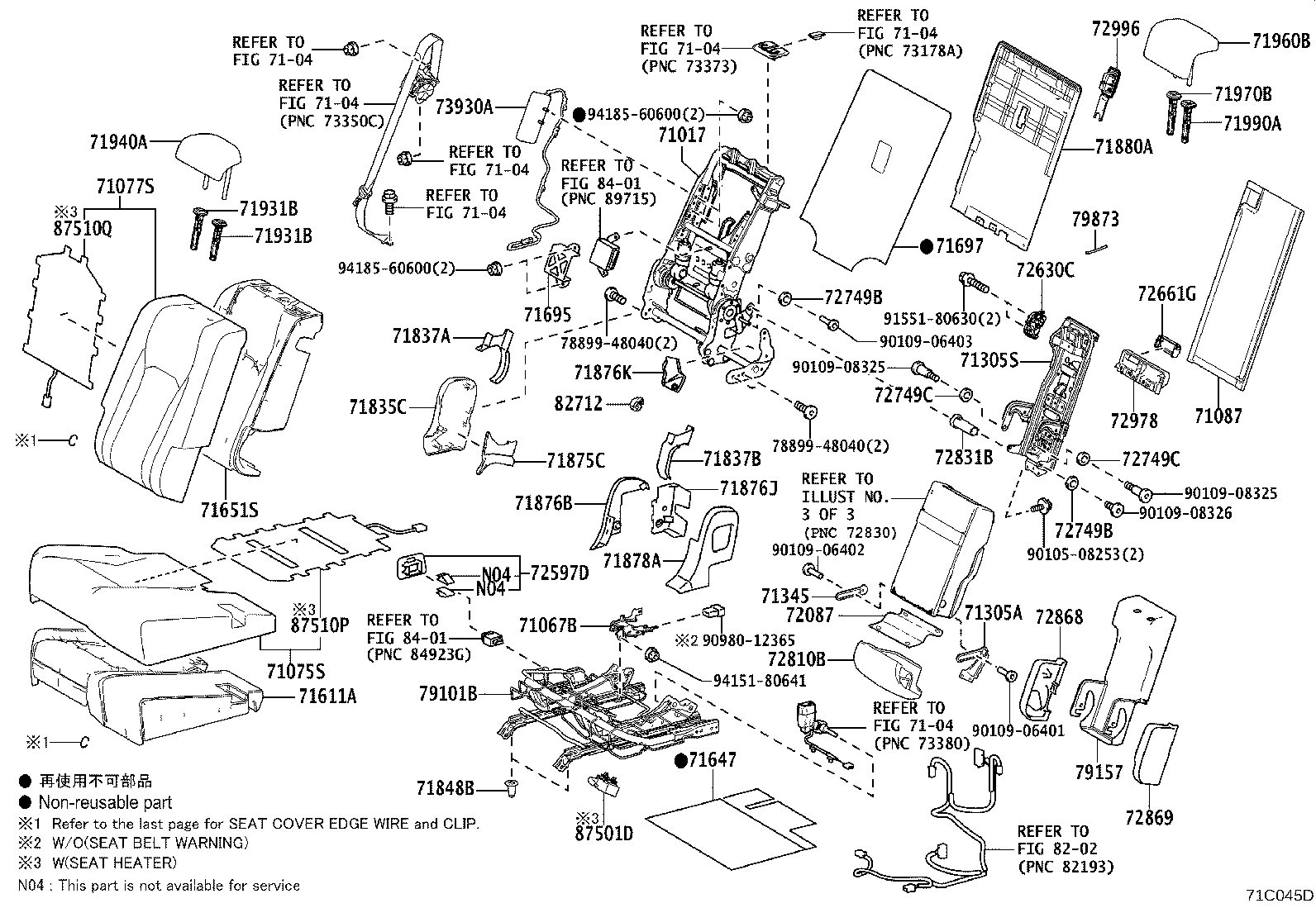

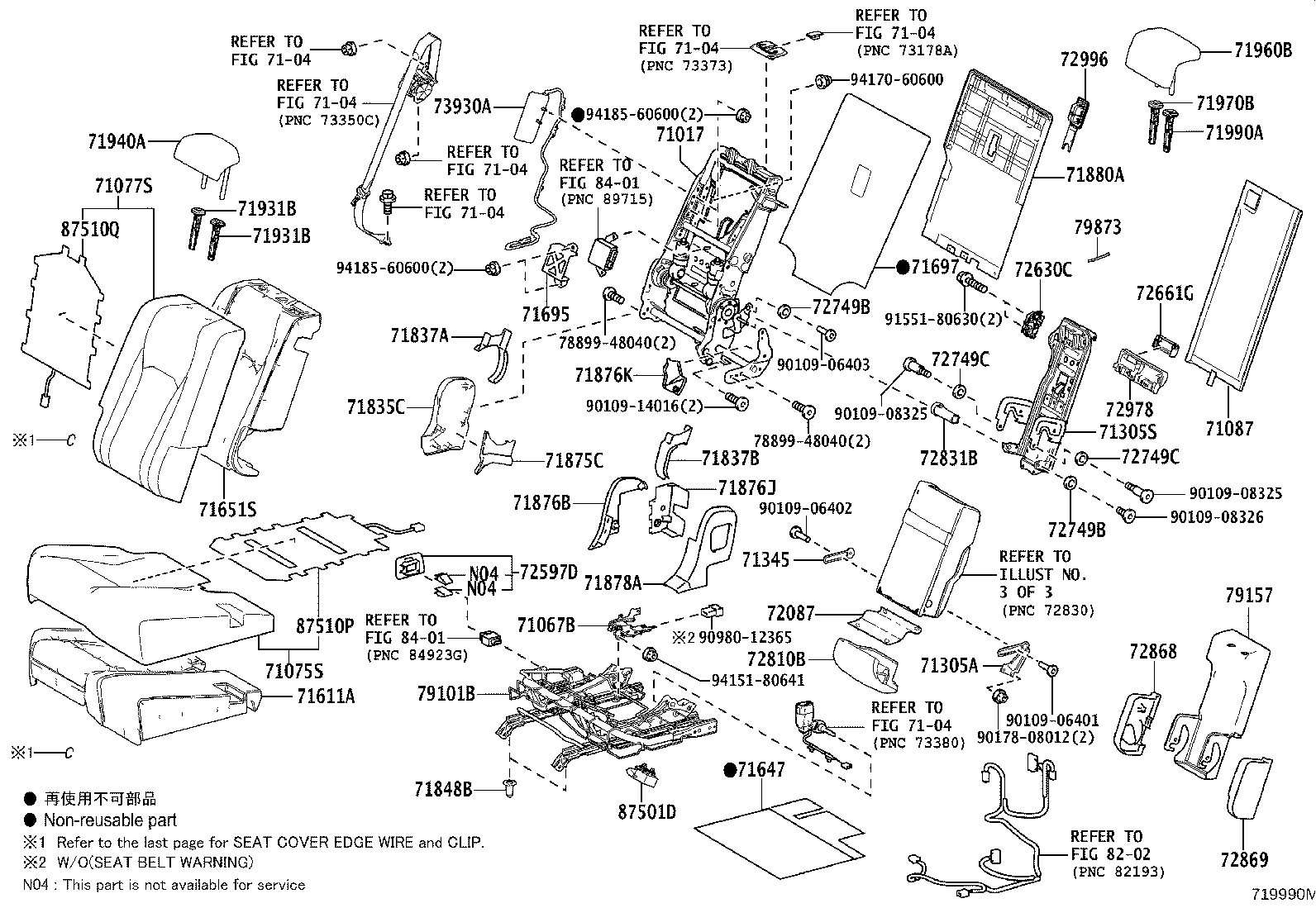

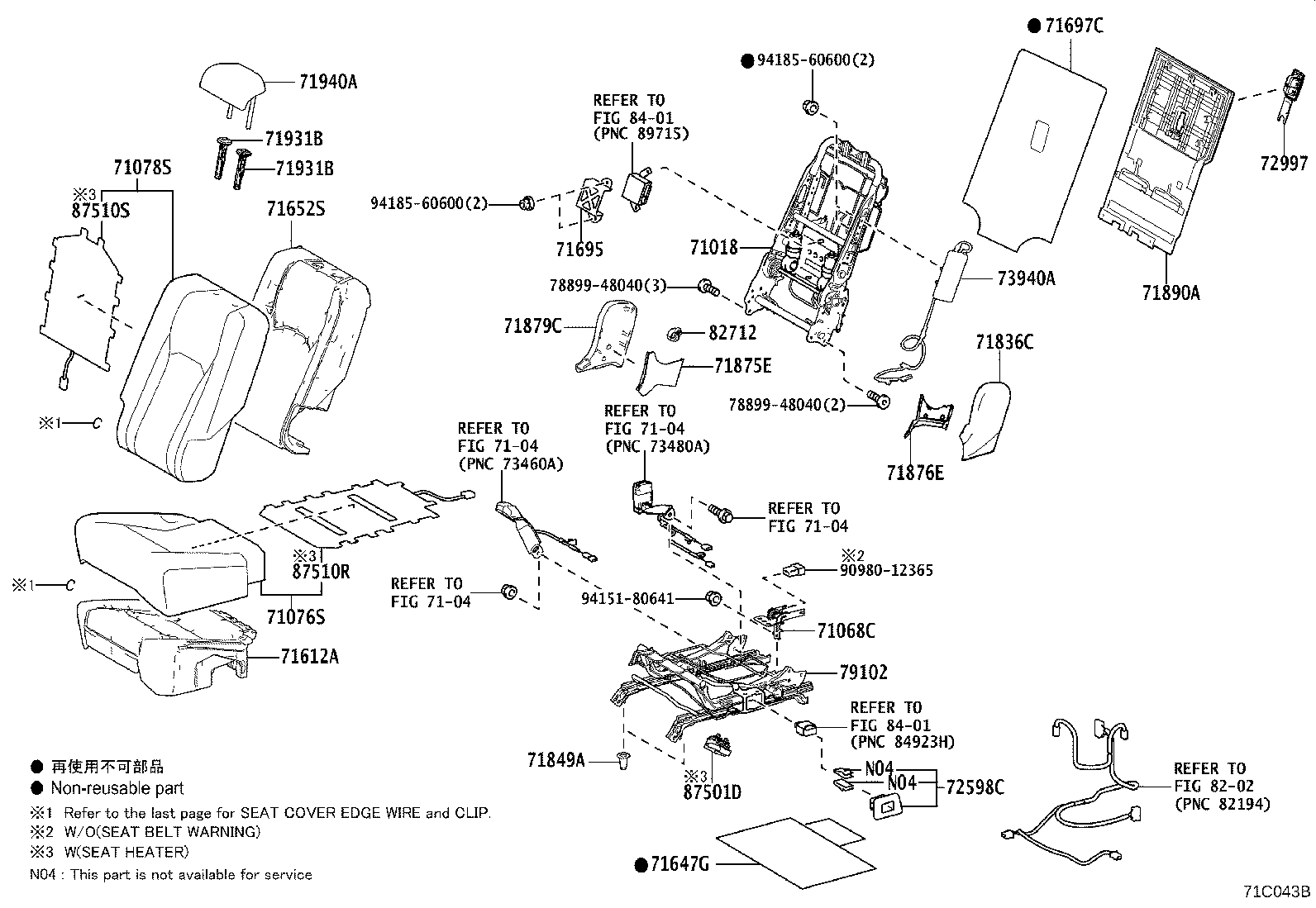

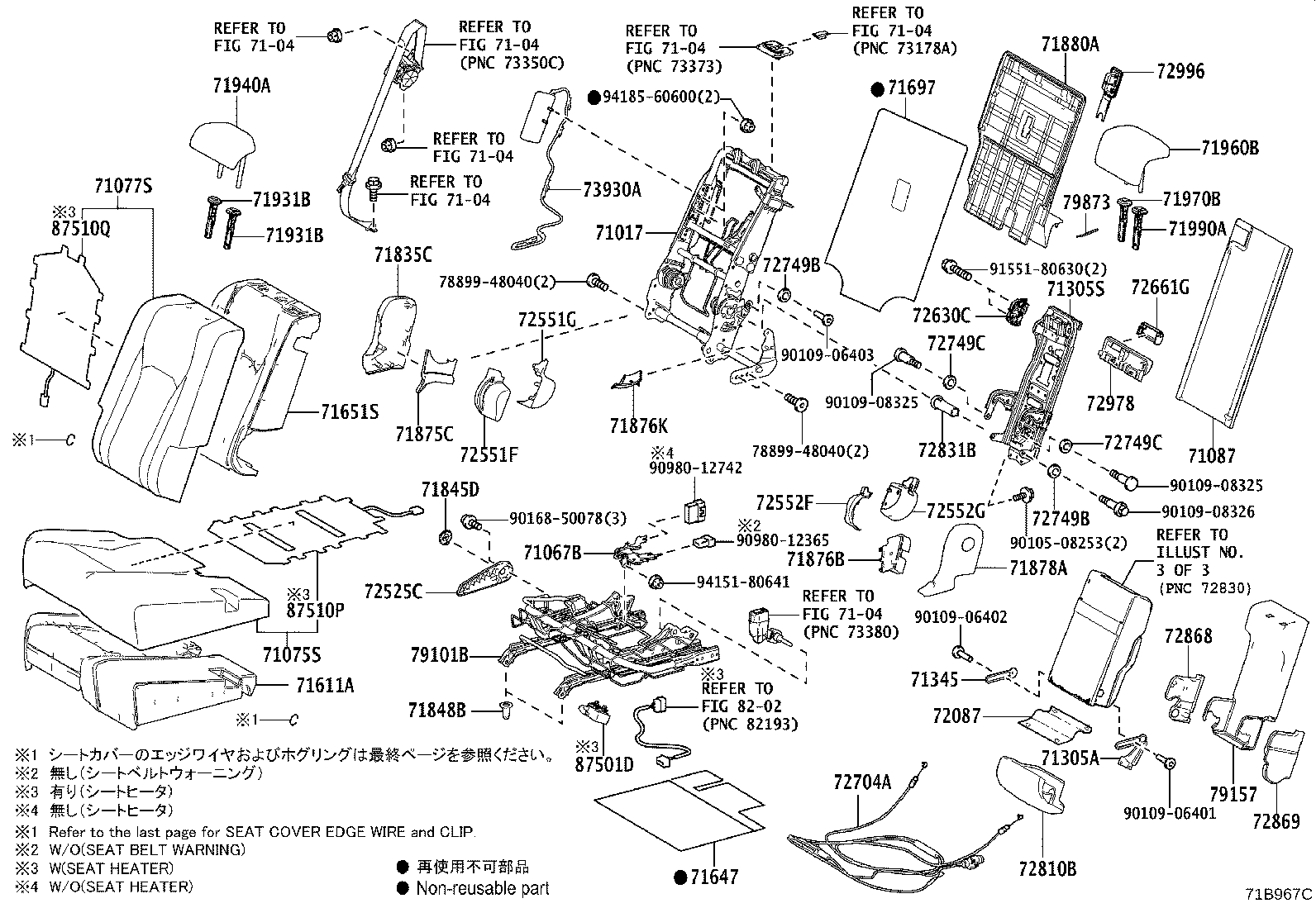

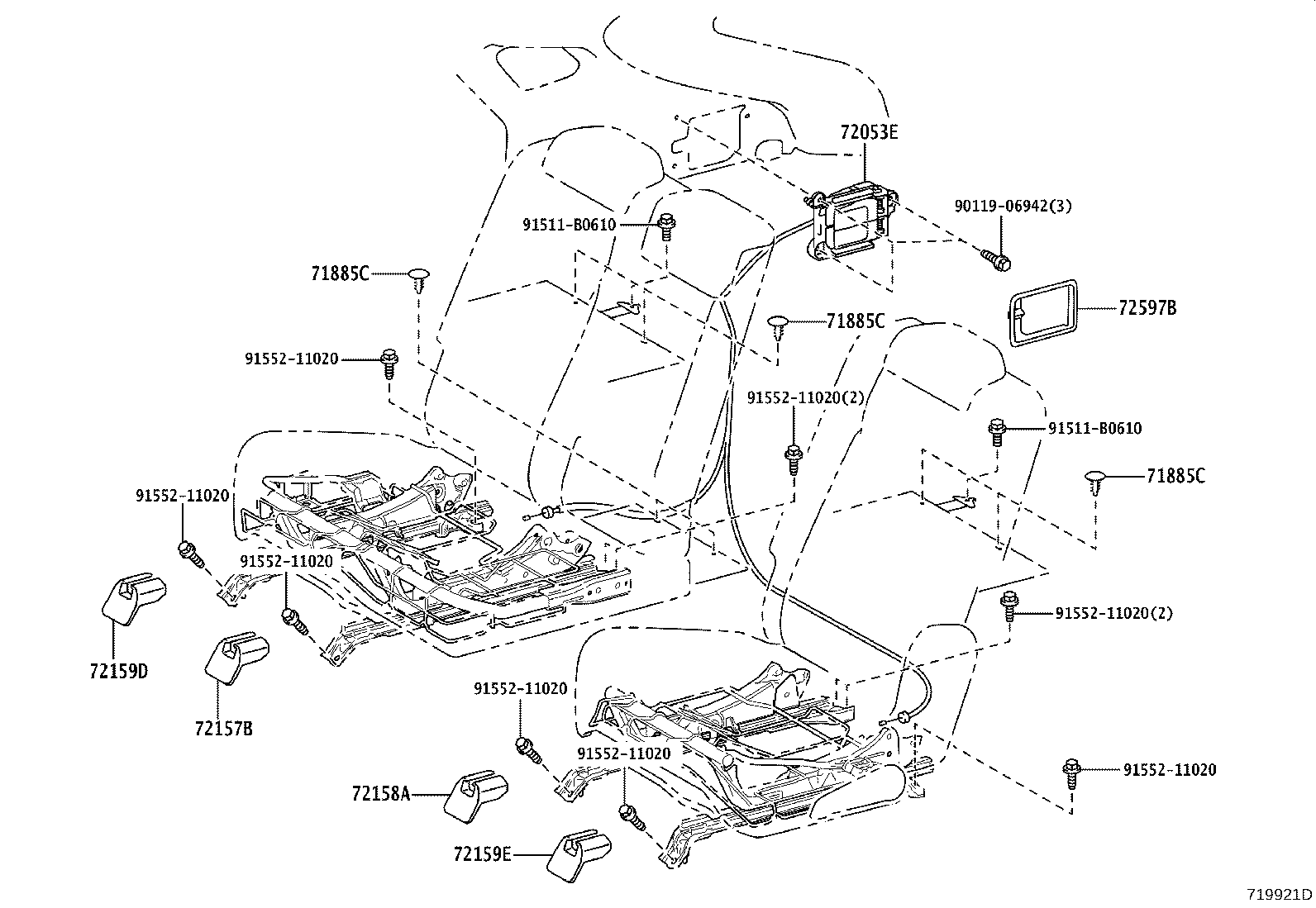

Rear Seat & Seat Track
94 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

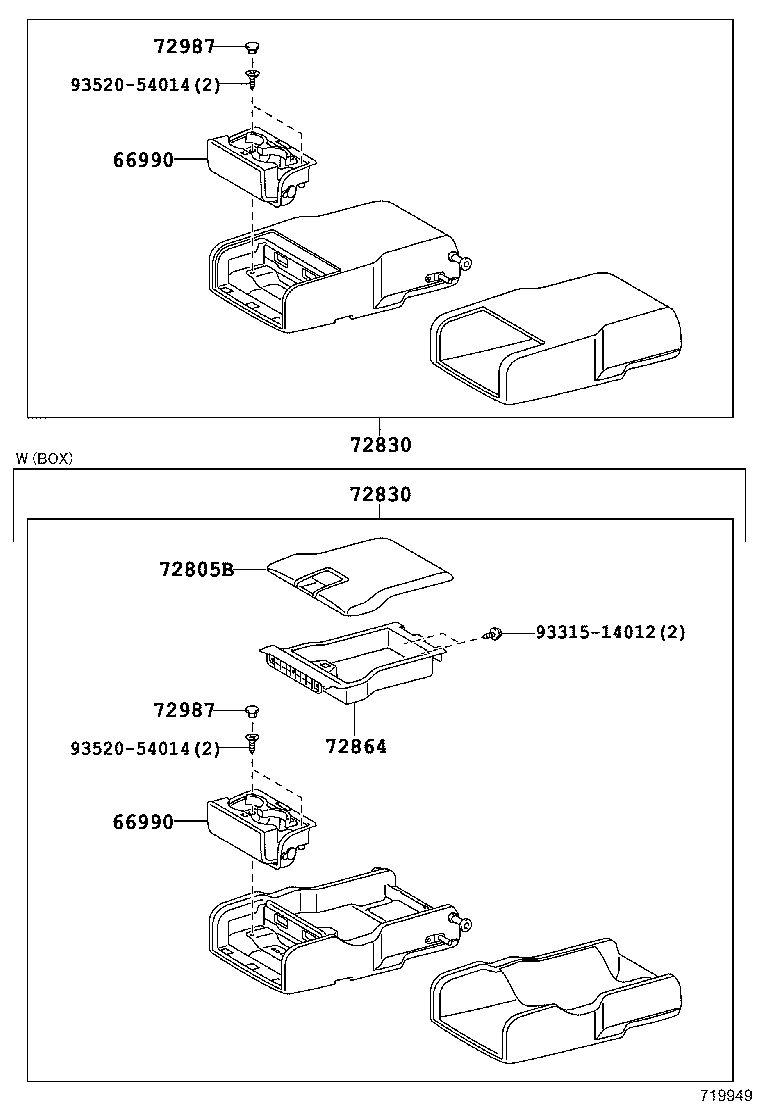

| 66990 | Holder Assy, Cup |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71067B | Plate Sub-assy, Rear Seat Leg, RH |
| 71068C | Plate Sub-assy, Rear Seat Leg, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71087 | Board Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71305S | Frame Sub-assy, Center Seatback |
| 71345 | Hinge, Rear Seatback |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71647 | Protector, Rear Seat Cushion Edge |
| 71647G | Protector, Rear Seat Cushion Edge |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71695 | Protector, Rear Seatback |
| 71697 | Protector, Rear Seatback Edge |
| 71697C | Protector, Rear Seatback Edge LH |
| 71835C | Moulding, Rear Seatback, RH |
| 71836C | Moulding, Rear Seatback, LH |
| 71837A | Moulding, Rear Seatback, Upper NO.1 |
| 71837B | Moulding, Rear Seatback, Upper NO.2 |
| 71845D | Cap, Rear Seat Cover, RH |
| 71846E | Cap, Rear Seat Cover, LH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71876K | Cover, Reclining Adjuster Inside, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71885C | Clip(FOR REAR SEATBACK CARPET) |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 71970B | Support Assy, Rear Seat Headrest, RH |
| 71990A | Support Assy, Rear Seat Headrest, LH |
| 72053E | Lever Sub-assy, Reclining Remote Control, RH |
| 72087 | Cover, Rear Seat Center Armrest, NO.1 |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72159D | Cover, Rear Seat Track Bracket, Outer RH |
| 72159E | Cover, Rear Seat Track Bracket, Outer LH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72551F | Cover, Reclining Link, RH NO.1 |
| 72551G | Cover, Reclining Link, RH NO.2 |
| 72551H | Cover, Reclining Link, RH NO.3 |
| 72551J | Cover, Reclining Link, RH NO.4 |
| 72552F | Cover, Reclining Link, LH NO.1 |
| 72552G | Cover, Reclining Link, LH NO.2 |
| 72552H | Cover, Reclining Link, LH NO.3 |
| 72552J | Cover, Reclining Link, LH NO.4 |
| 72597B | Bezel, Reclining Remote Control Lever, NO.1 |
| 72597D | Bezel, Reclining Remote Control, RH |
| 72598C | Bezel, Reclining Remote Control, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72661G | Lever, Rear Seatback Lock |
| 72704A | Cable, Rear Seat Reclining Control |
| 72704B | Cable, Rear Seat Reclining Control, NO.2 |
| 72749B | Spacer, Rear Seat Reclining, NO.1 |
| 72749C | Spacer, Rear Seat Reclining, NO.2 |
| 72805B | Door Sub-assy, Rear Seat Center Armrest |
| 72810B | Armrest Assy, NO.1 Seat |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72864 | Box, Rear Seat Center Armrest, NO.2 |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72869 | Cover, Center Armrest Hinge, LH |
| 72978 | Cover, NO.2 Center Seatback |
| 72987 | Cover, Rear Seat Center Armrest |
| 72996 | Cover, Rear Seatback, RH |
| 72997 | Cover, Rear Seatback, LH |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79157 | Cover, NO.1 Seatback |
| 79873 | Wire, Fold Seatback |
| 82712 | Clamp, Wiring Harness |
| 87501D | Control Sub-assy, Seat Heater |
| 87510P | Heater Assy, Seat |
| 87510Q | Heater Assy, Seat |
| 87510R | Heater Assy, Seat |
| 87510S | Heater Assy, Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
