Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 2 illustrations

Illustrations

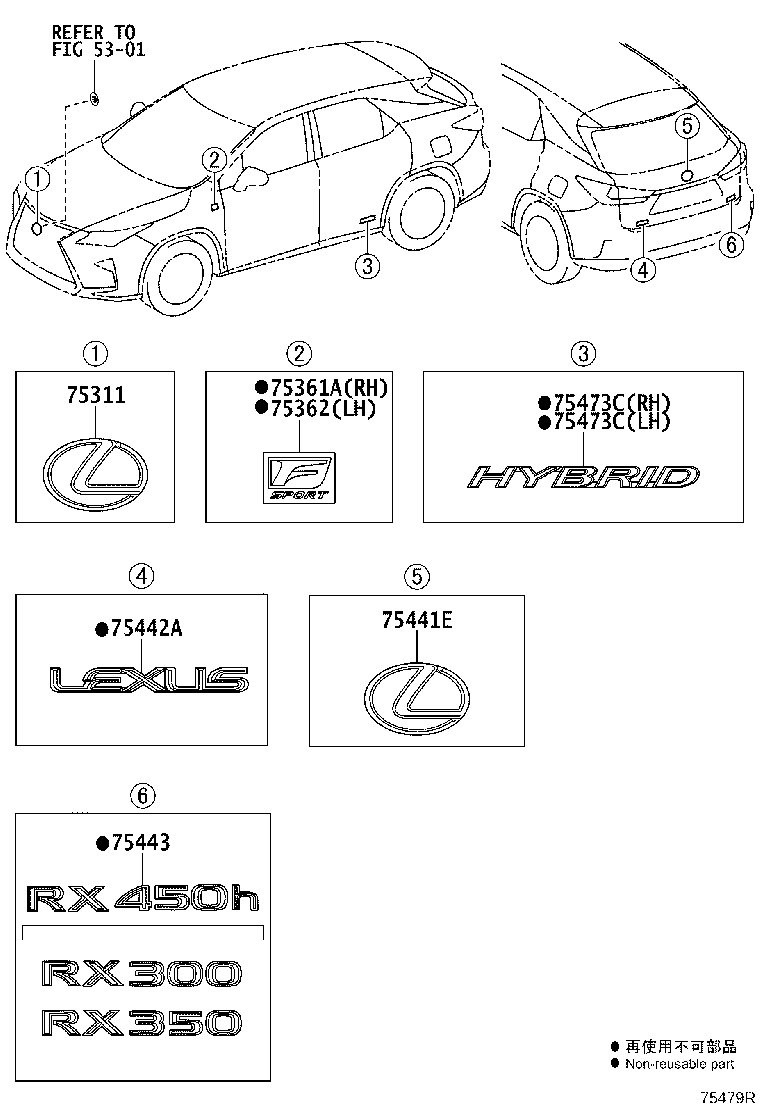

Figure 753230C 753230C 2015-09 → 2019-08 Figure 75479R 75479R 2019-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361A Plate, Front Fender Name, NO.1
75362 Plate, Front Fender Name, NO.2
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75473C Plate, Body Side Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
