Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

8 part groups · 2 illustrations

Illustrations

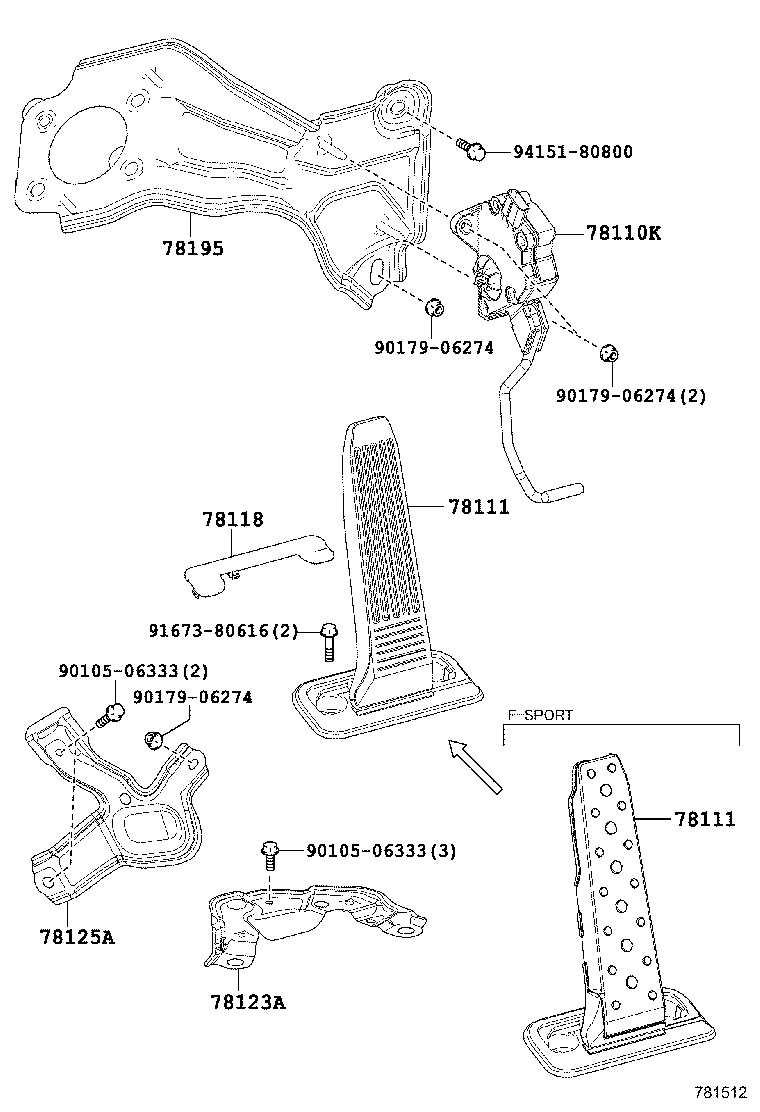

Figure 781513 781513 2015-09 → — Figure 781512 781512 2015-09 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111 Pedal, Accelerator
78118 Pad, Accelerator Pedal
78123A Reinforcement, Accelerator Pedal Rod
78124A Bracket, Accelerator Pedal Rod
78125A Bracket, Accelerator Pedal Rod, NO.2
78126 Bracket, Accelerator Pedal Rod
78195 Bracket, Accelerator Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
