Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09

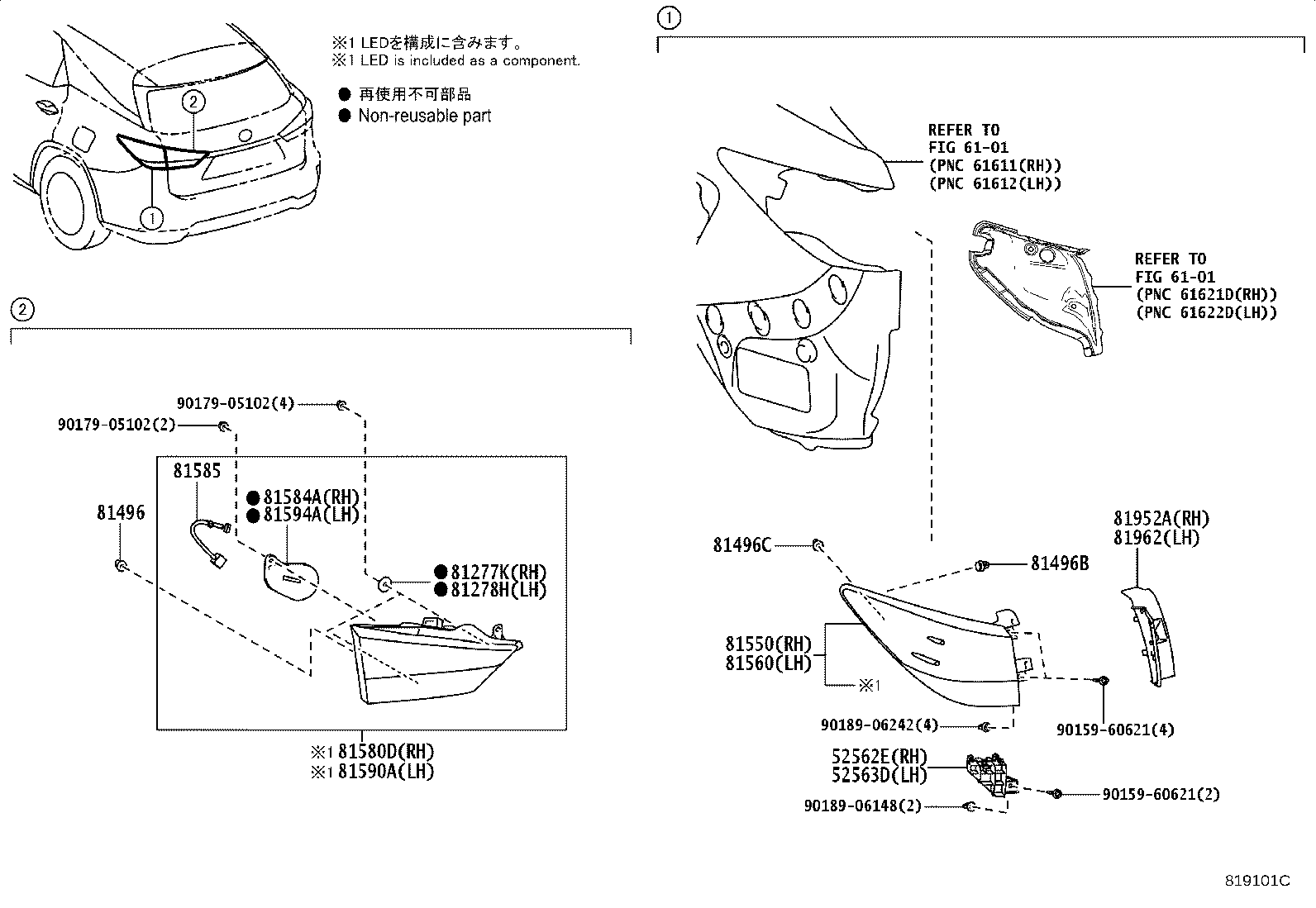

Rear Combination Lamp
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562E | Retainer, Rear Bumper, Upper RH |
| 52563D | Retainer, Rear Bumper, Upper LH |
| 81277K | Shade, License Plate Lamp, RH |
| 81278H | Shade, License Plate Lamp, LH |
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81558M | Bracket, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81568K | Bracket, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81582 | Gasket, Rear Lamp |
| 81584A | Gasket, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81586 | Cord, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81952A | Cover, Rear Lamp, RH |
| 81962 | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
