Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

149 part groups · 21 illustrations

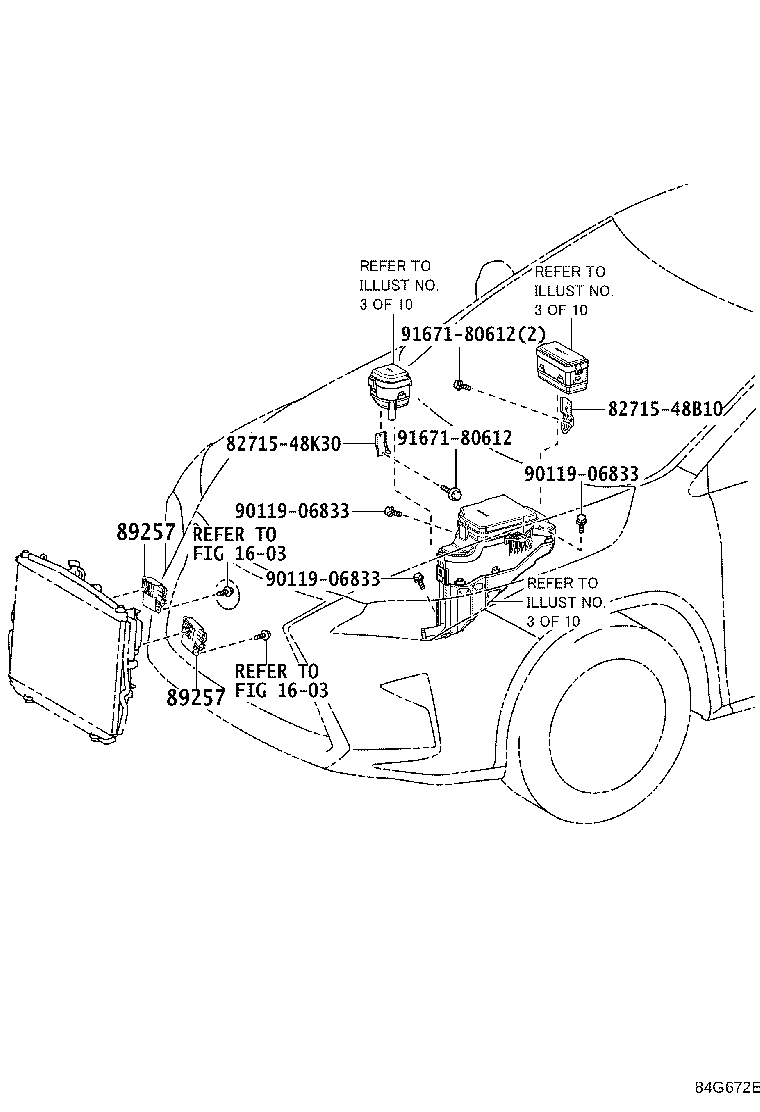

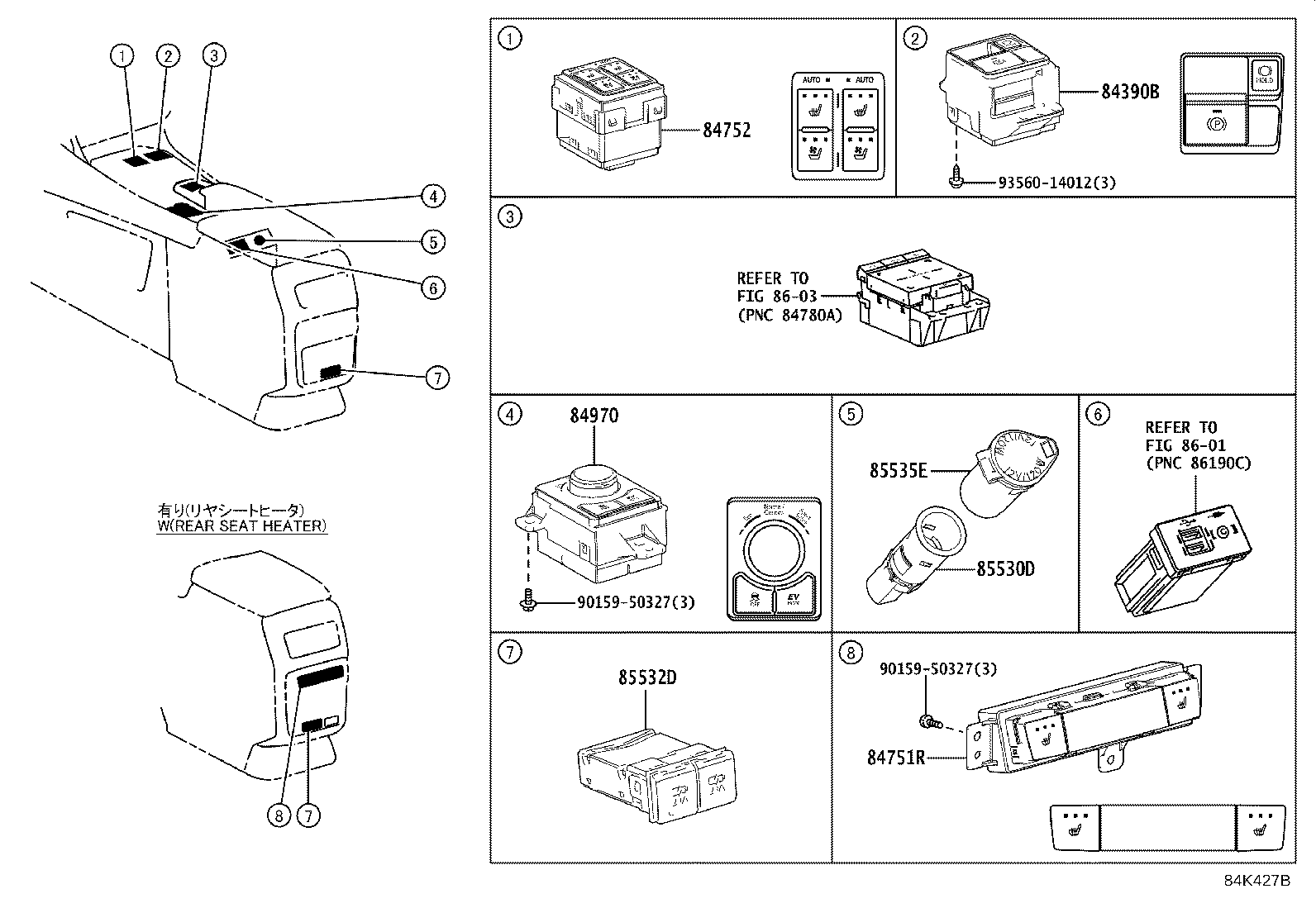

Illustrations

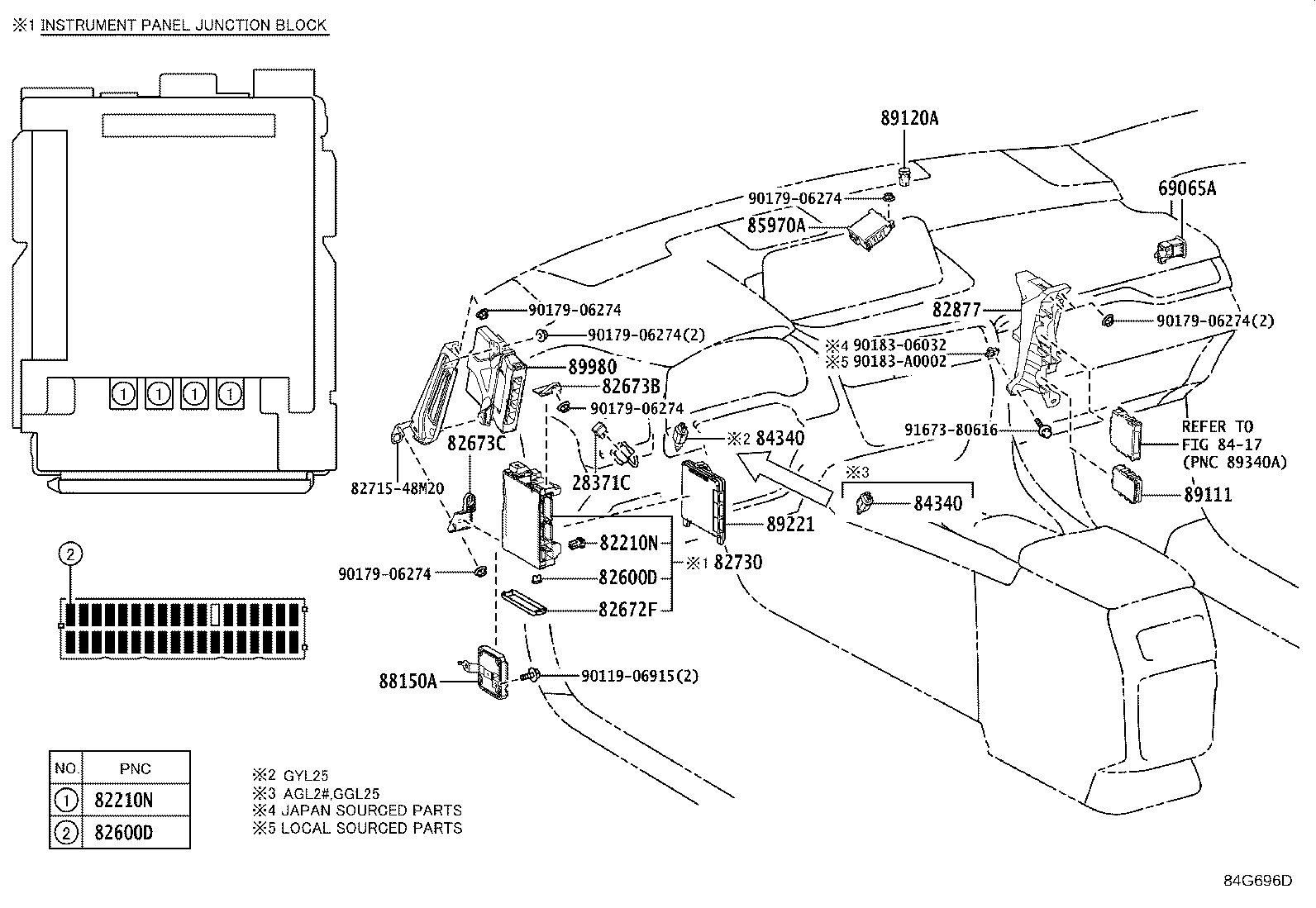

84G696D 2015-09 → 2019-08

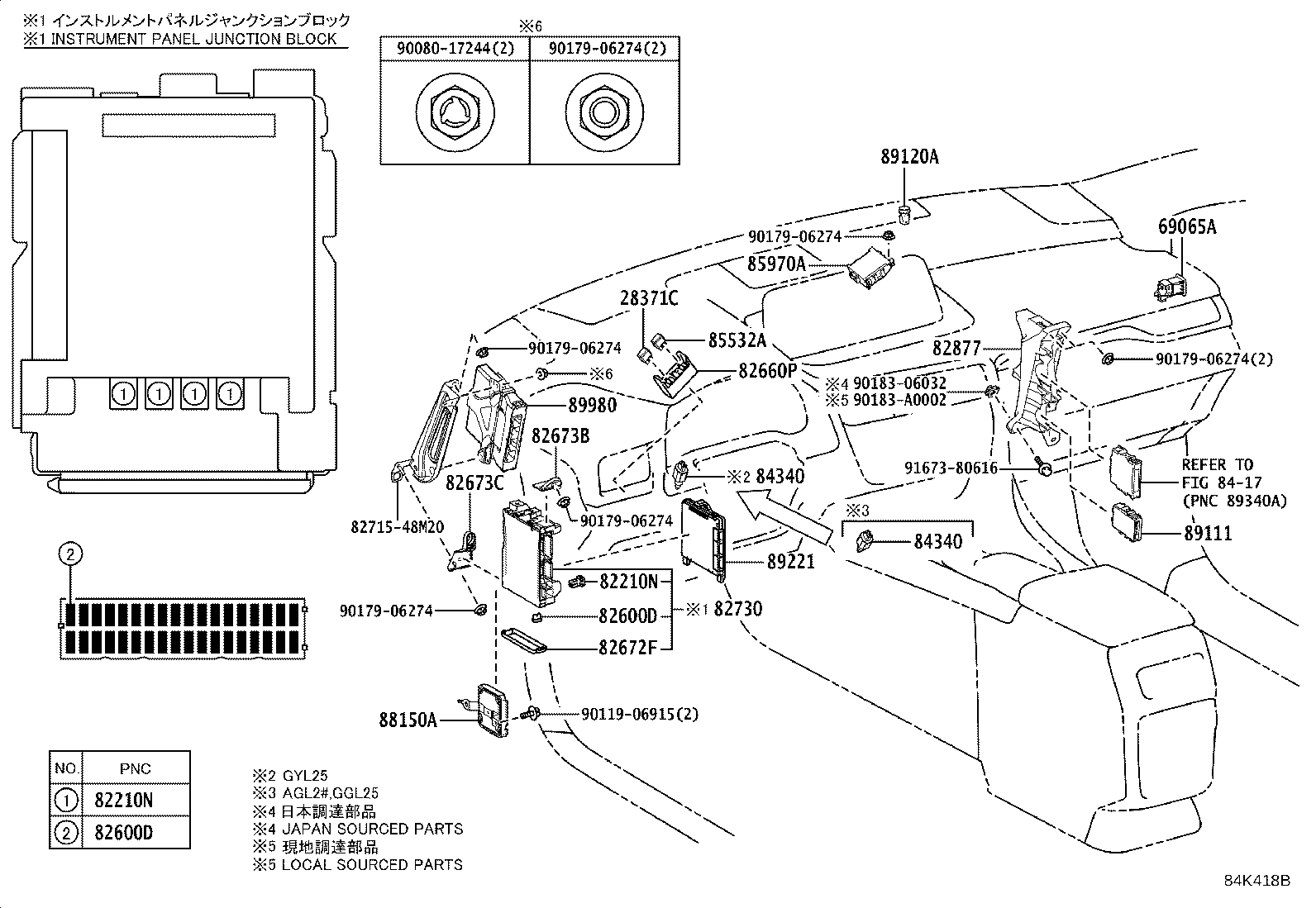

84K418B 2019-08 → —

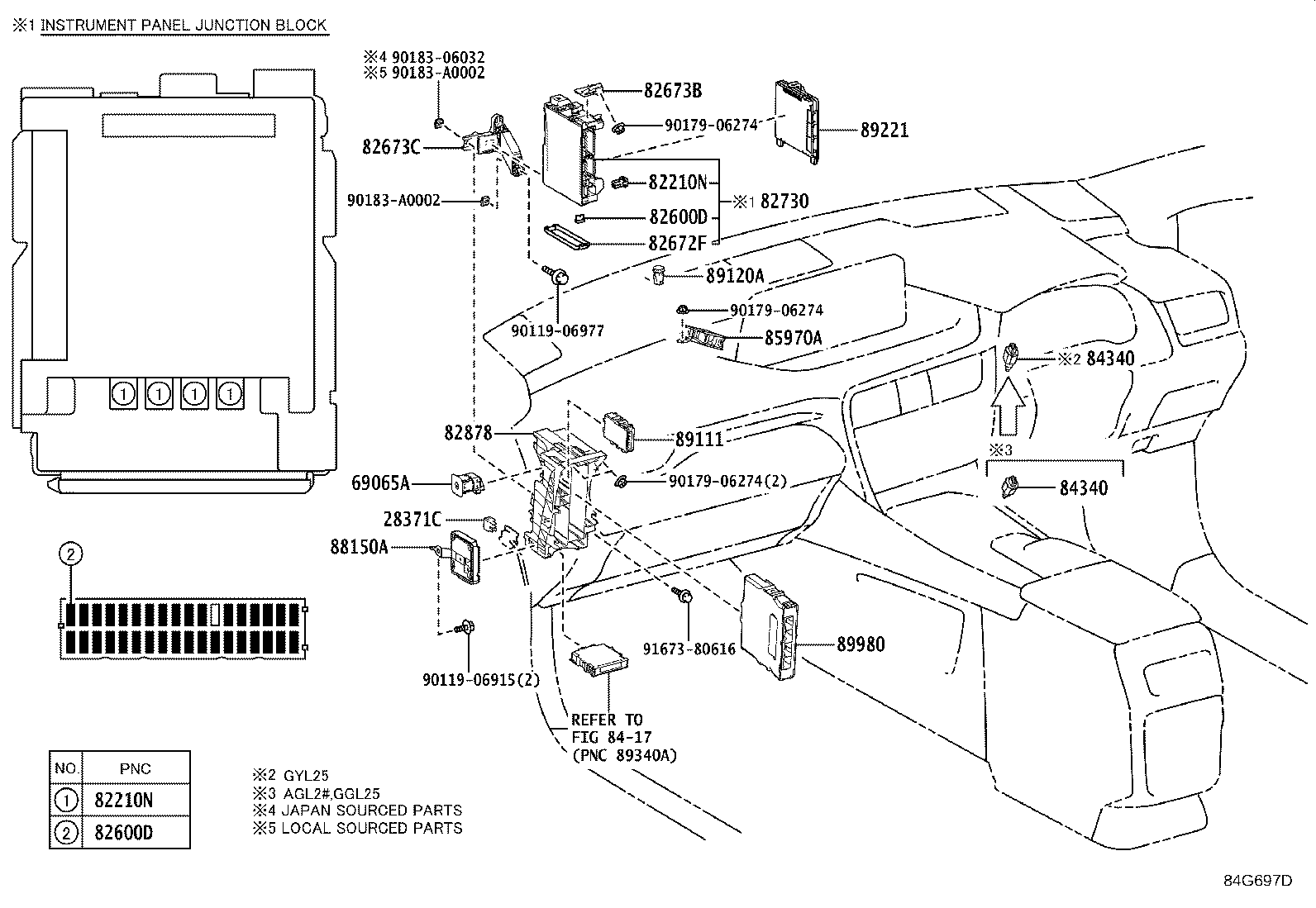

84G697D 2015-09 → 2019-08

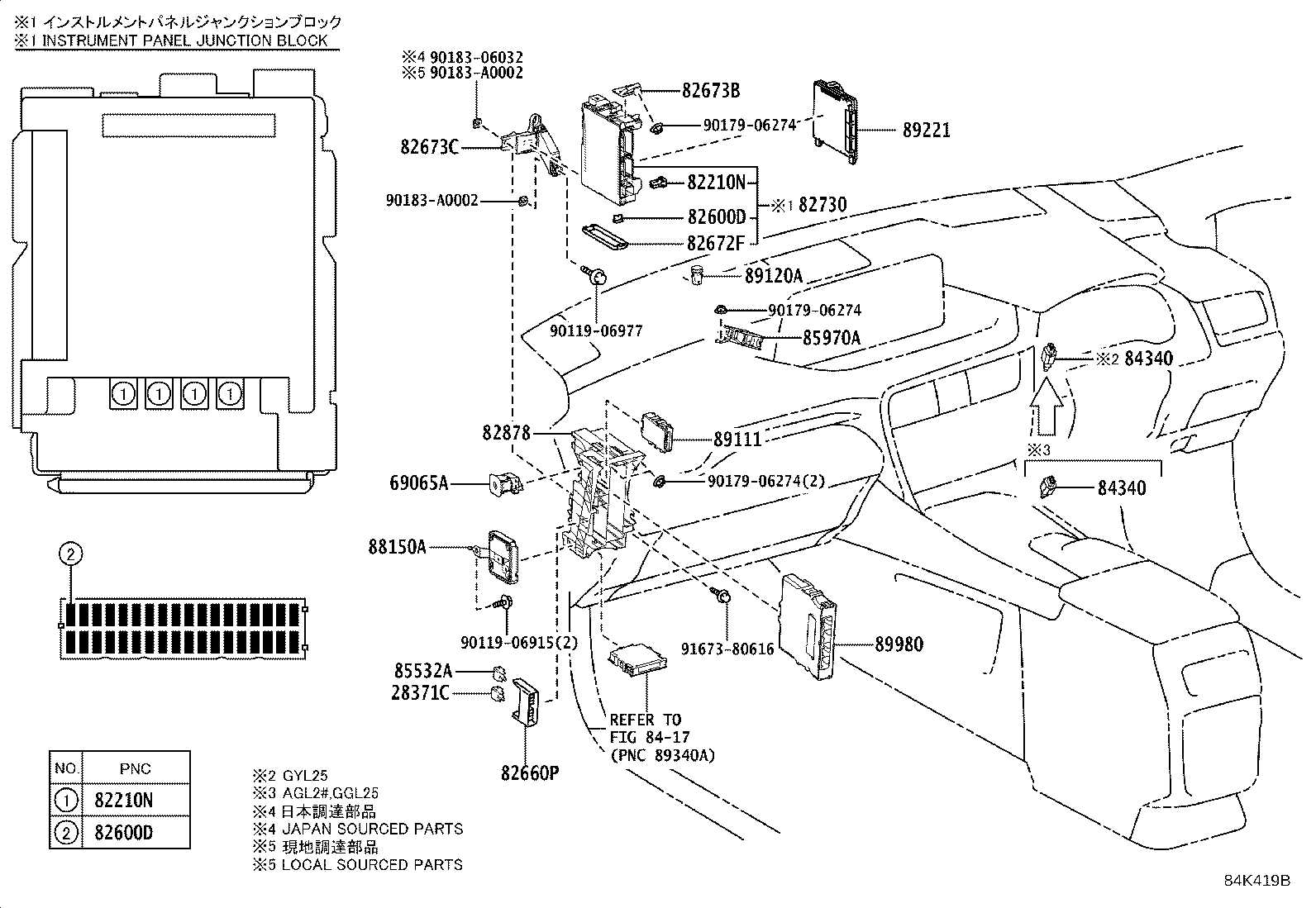

84K419B 2019-08 → —

84G594A 2015-09 → —

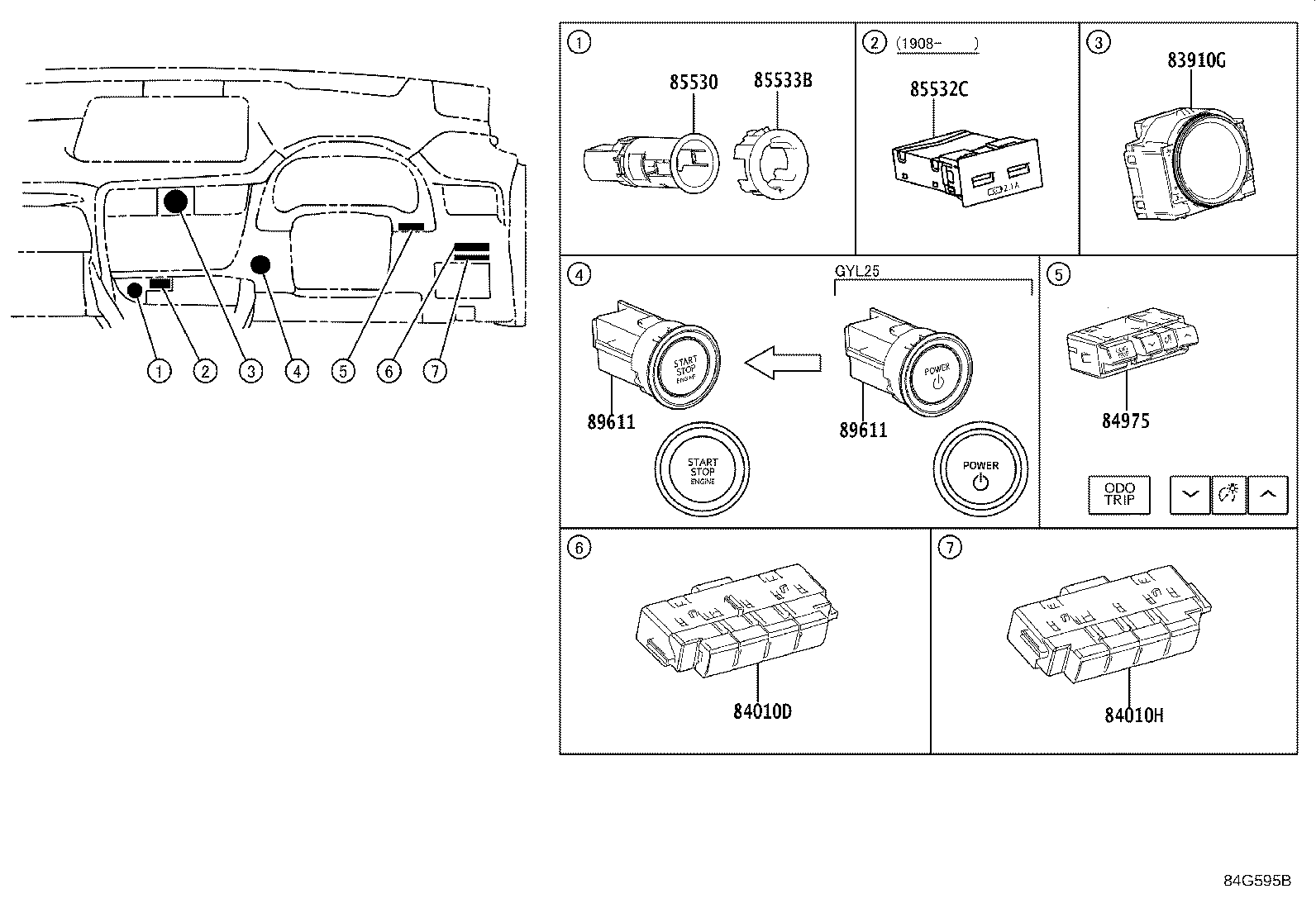

84G595B 2015-09 → —

84G705B 2015-09 → 2019-08

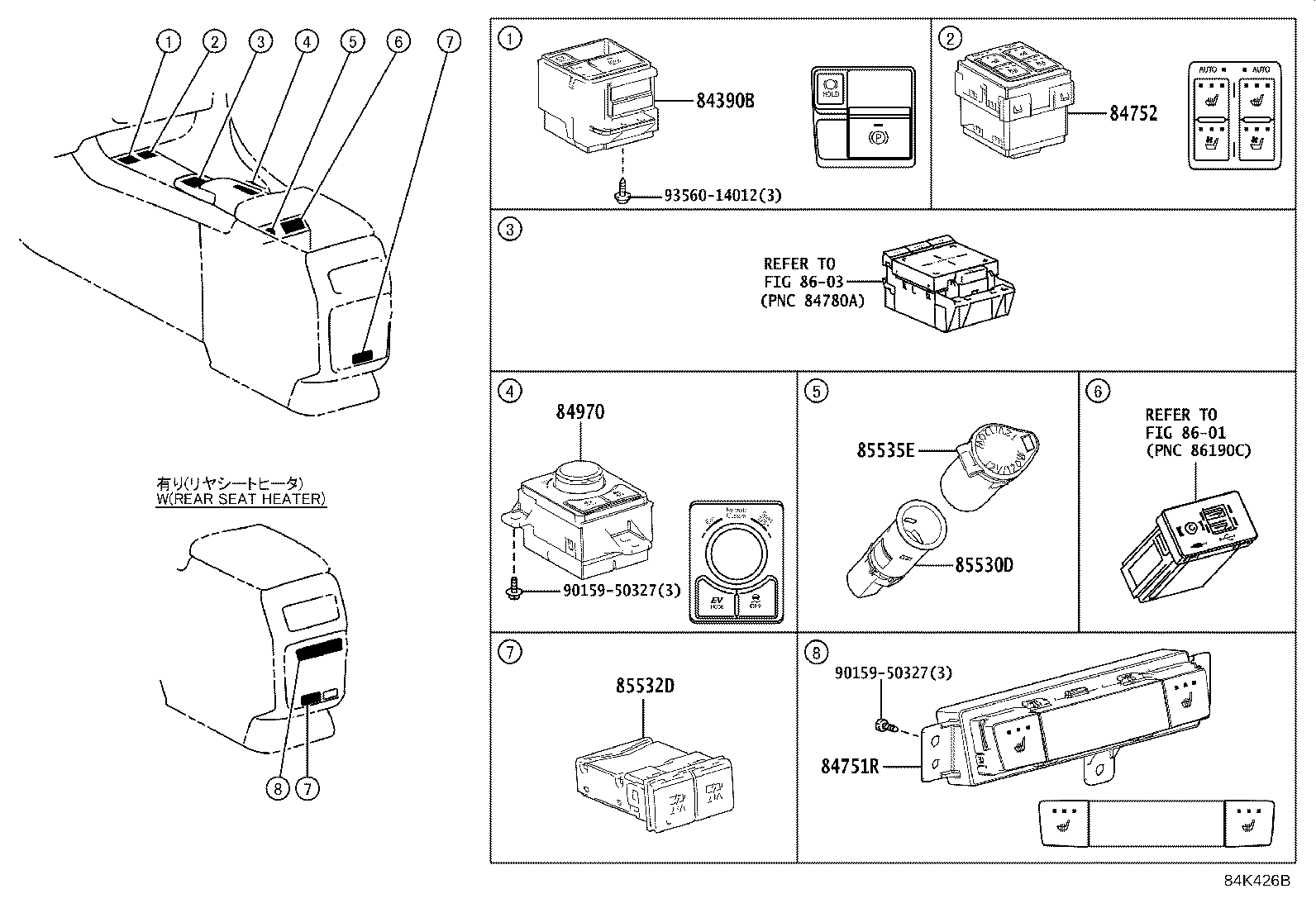

84K426B 2019-08 → —

84G597B 2015-09 → 2019-08

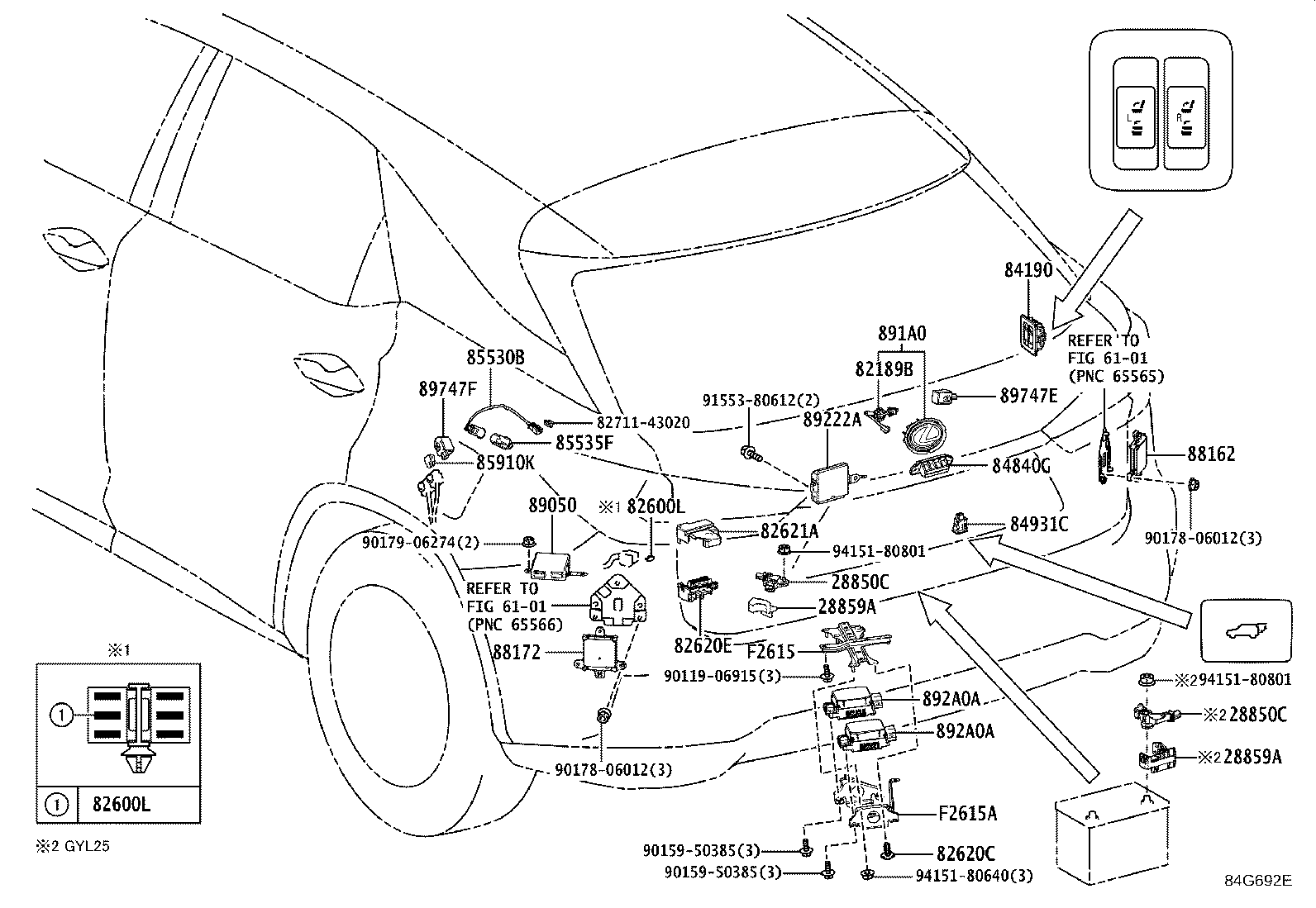

84G692E 2015-09 → 2019-08

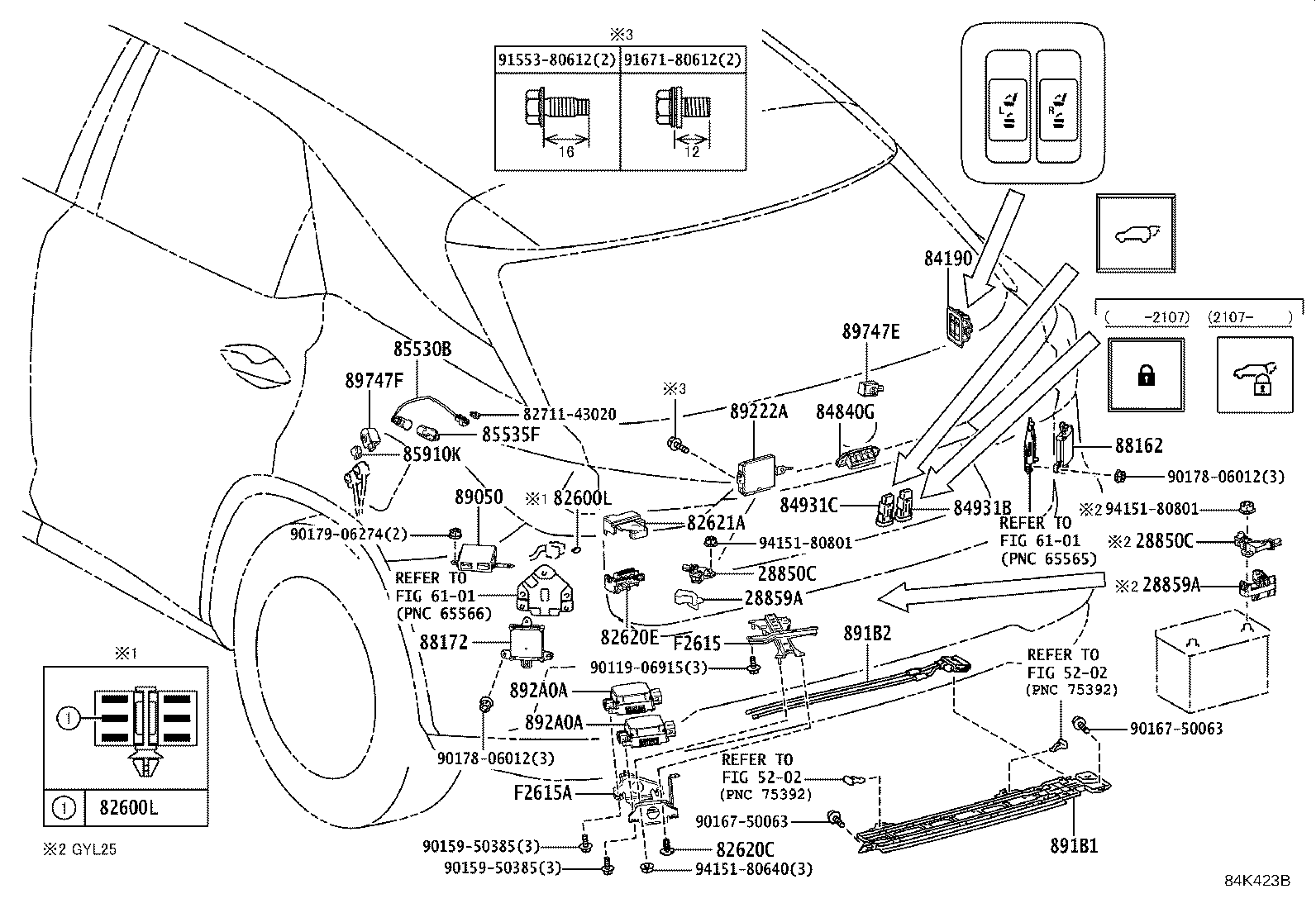

84K423B 2019-08 → —

Part groups

PNC	Description

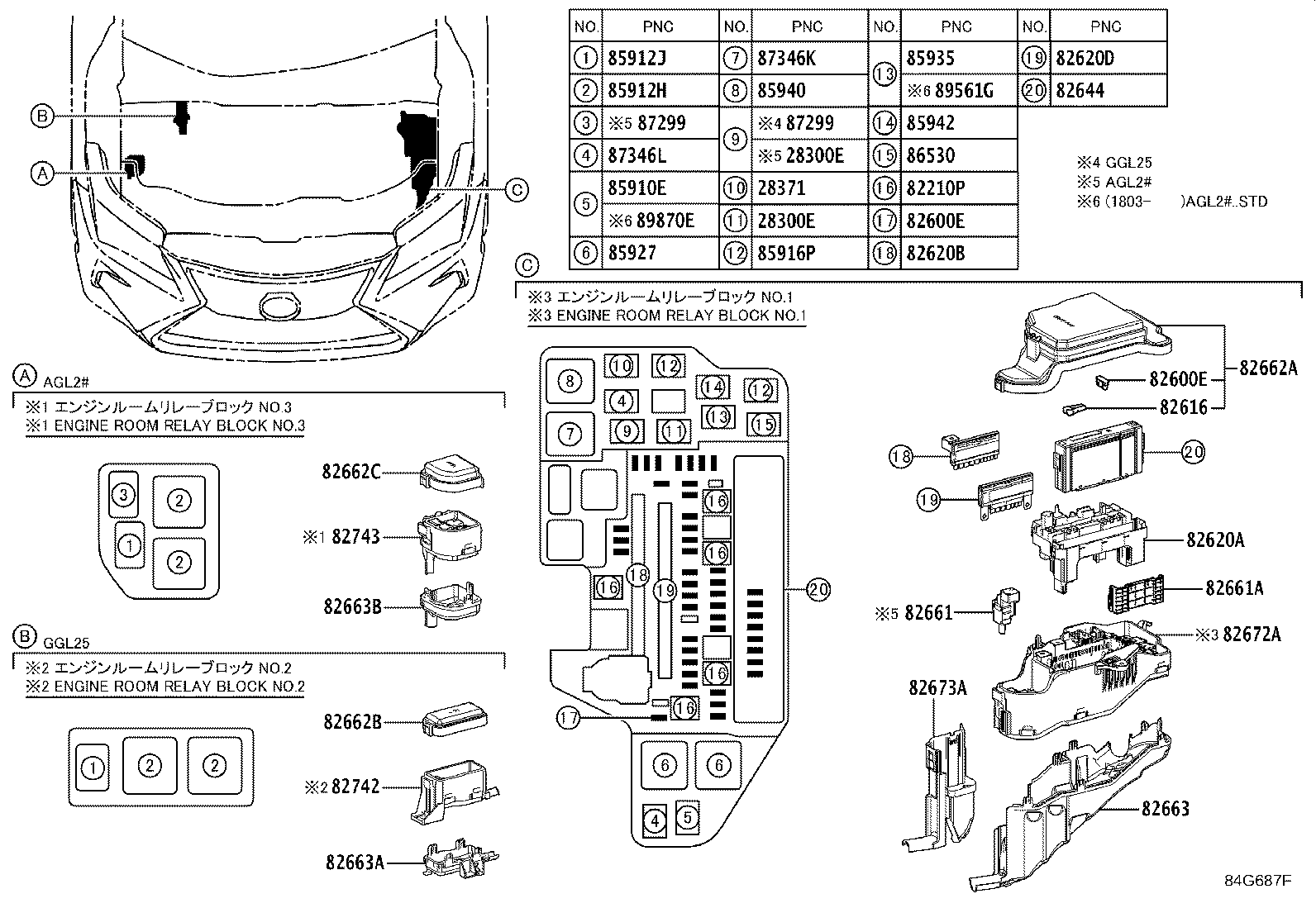

28300E	Relay Assy, Starter, NO.1
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28800R	Relay, Battery Fan
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
82189B	Wire, Back Door, NO.4
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620C	Clip
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82644	Computer, Semiconductor Power Integration

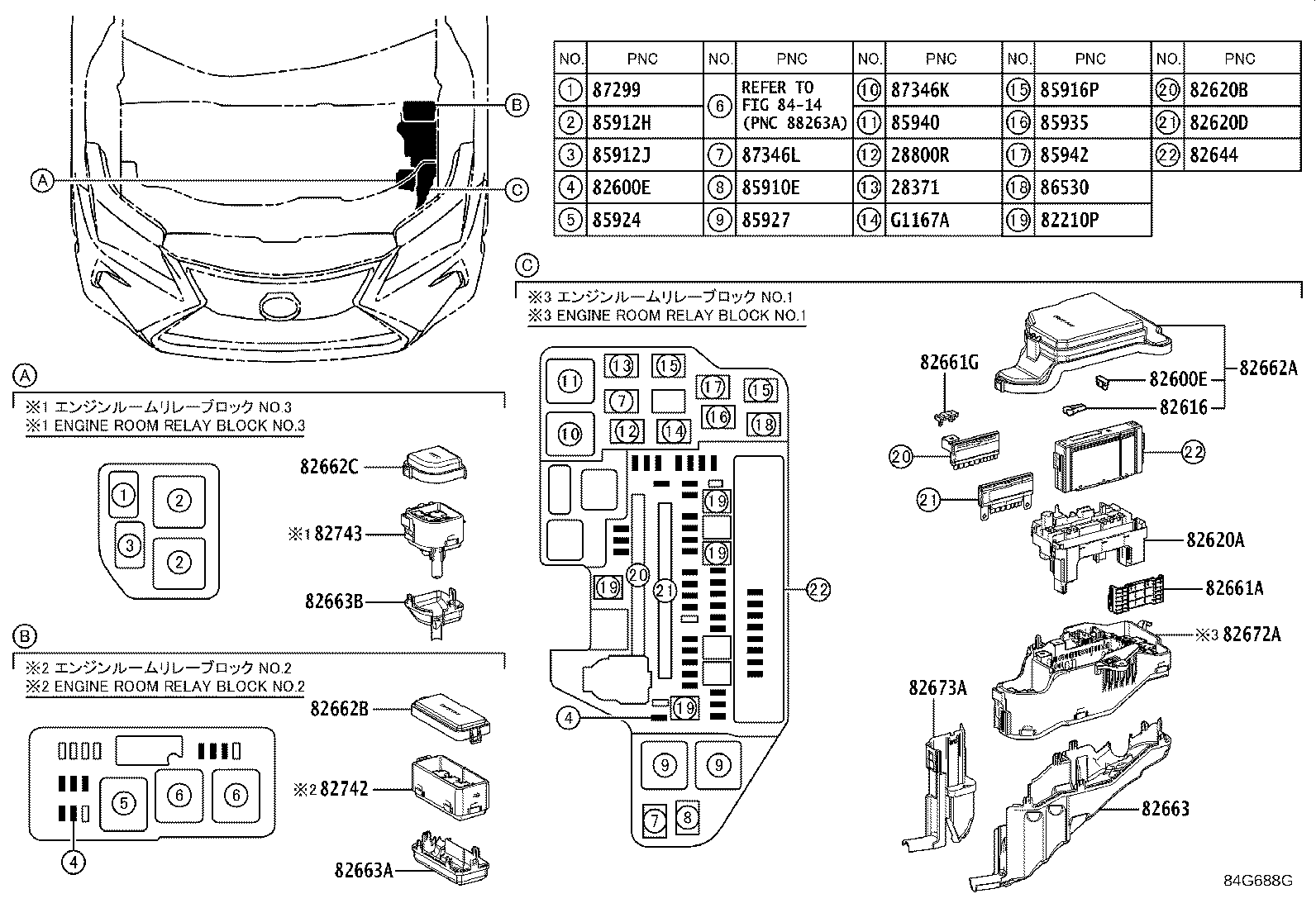

82660P	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82661G	Cover, Booster Terminal
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82672A	Cover, Junction Block
82672F	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block
82730	Block Assy, Instrument Panel Junction
82742	Block, Engine Room Relay, NO.2
82743	Block, Engine Room Relay, NO.3
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83520	Gage Assy,Oil Pressure Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83910G	Clock Assy

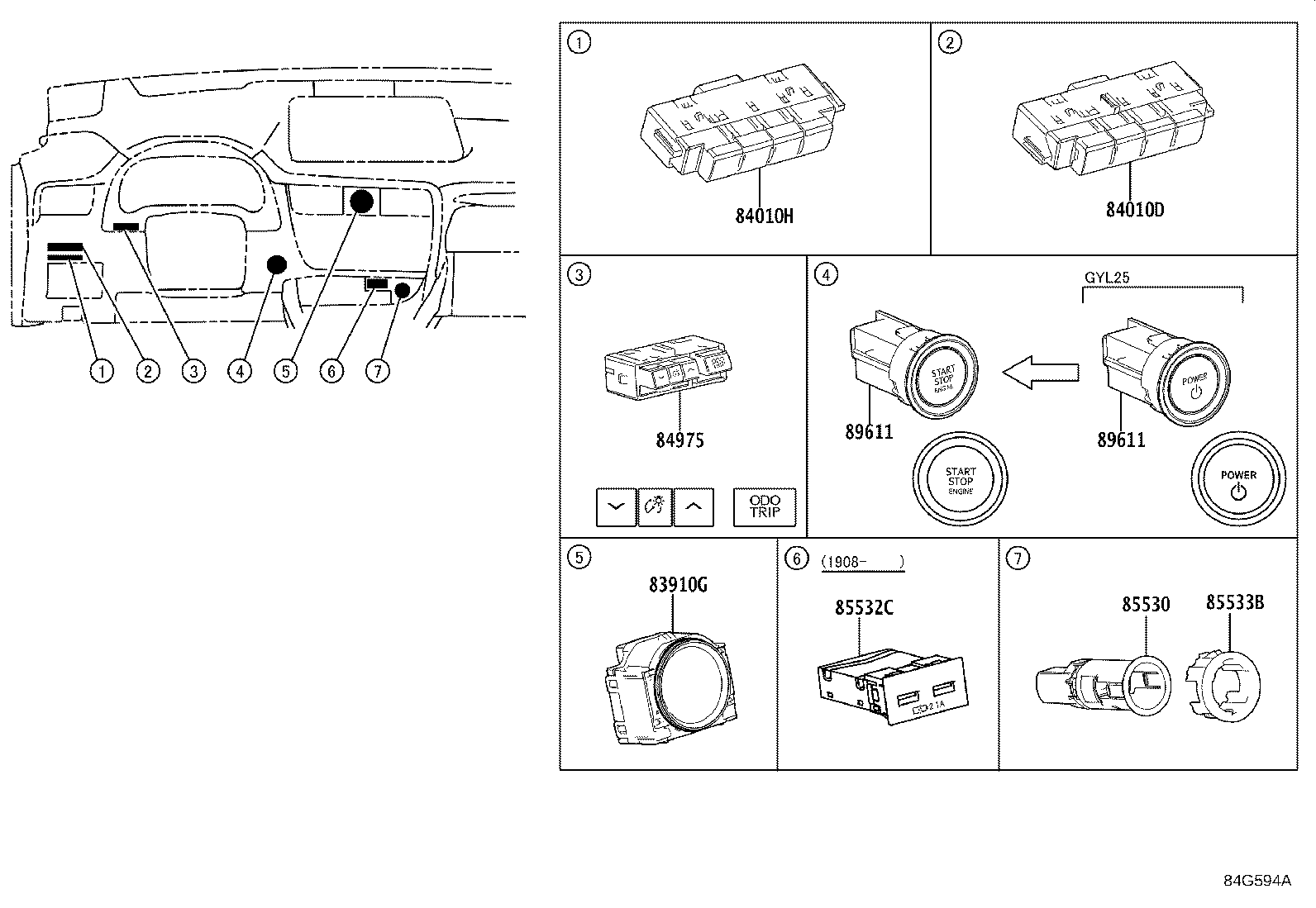

84010D	Control & Panel Assy, Integration
84010H	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network

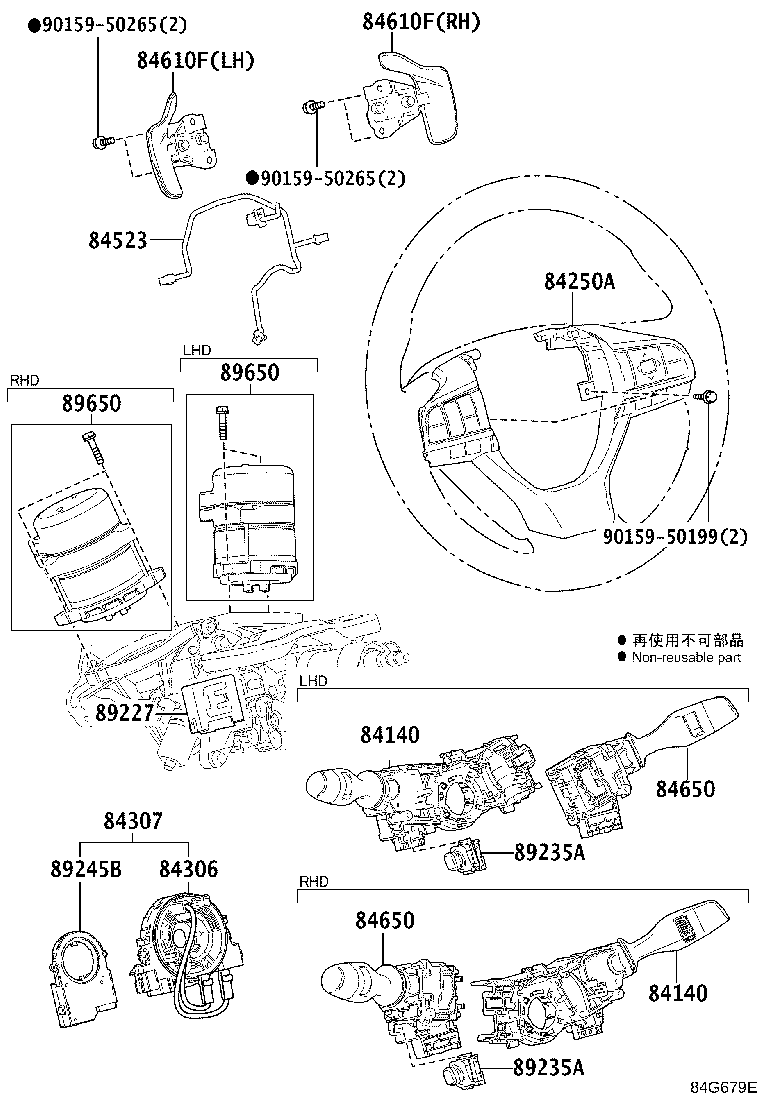

84140	Switch Assy, Headlamp Dimmer
84190	Switch Assy, Fold Seat
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84340	Switch Assy, Stop Lamp
84390B	Switch Assy, Electric Parking Brake
84523	Wire, Switch NO.1
84540	Switch Assy, Neutral Start
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper

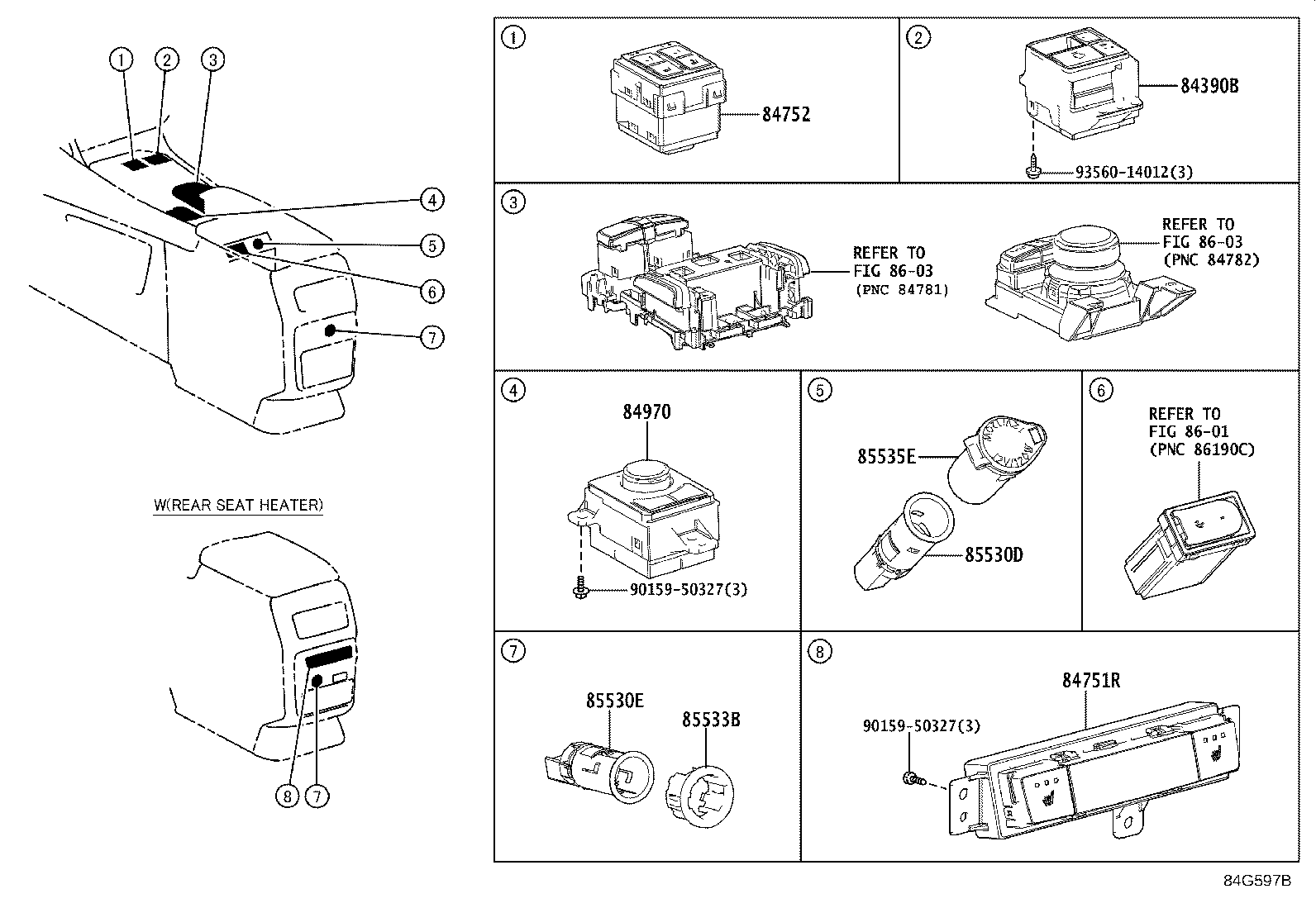

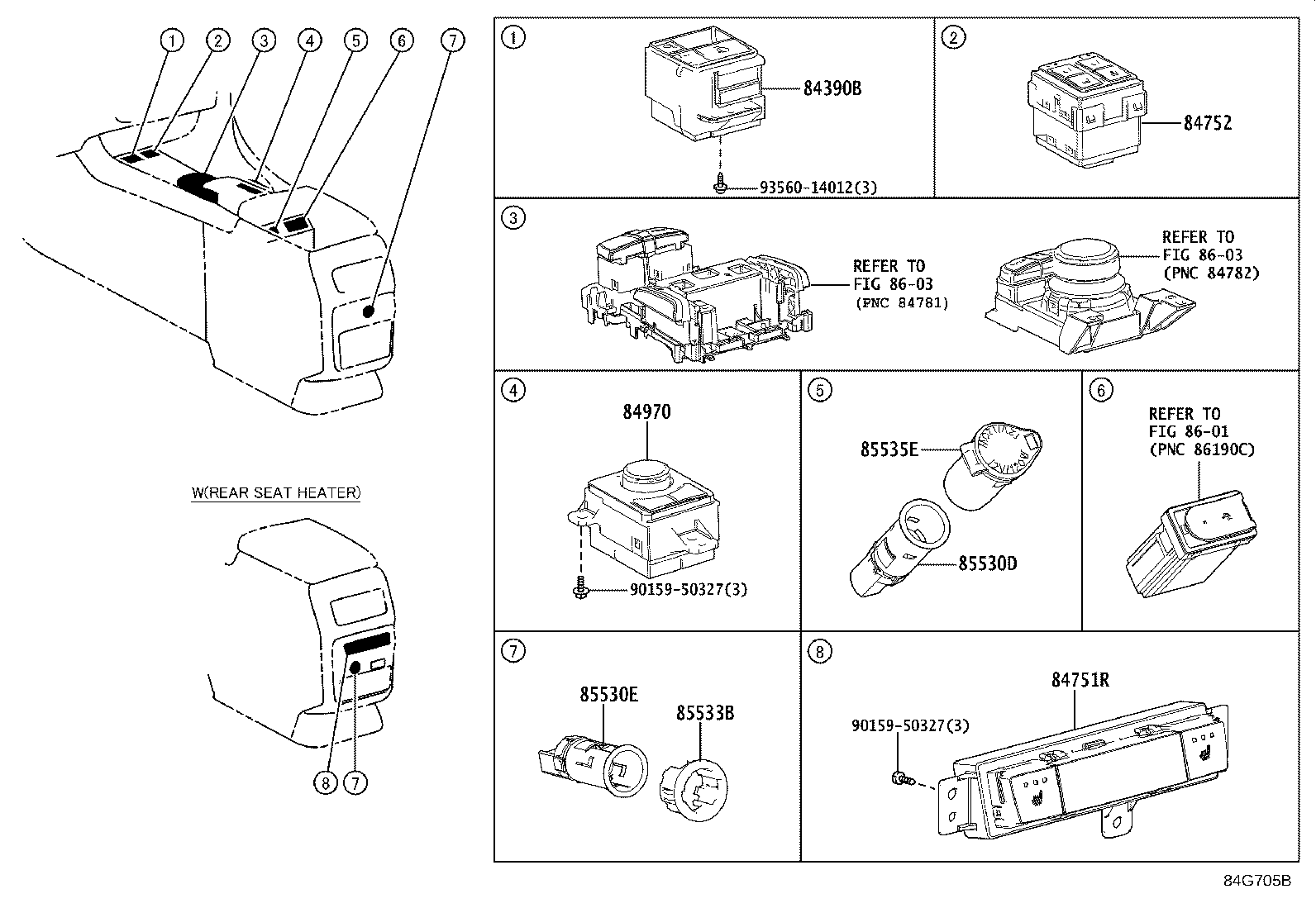

84751R	Switch, Seat Heater(REAR)
84752	Switch, Refreshing Seat
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922A	Switch, Front Power Seat(FOR LUMBAR)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84923G	Switch, Rear Power Seat, NO.1, RH
84923H	Switch, Rear Power Seat, NO.1, LH

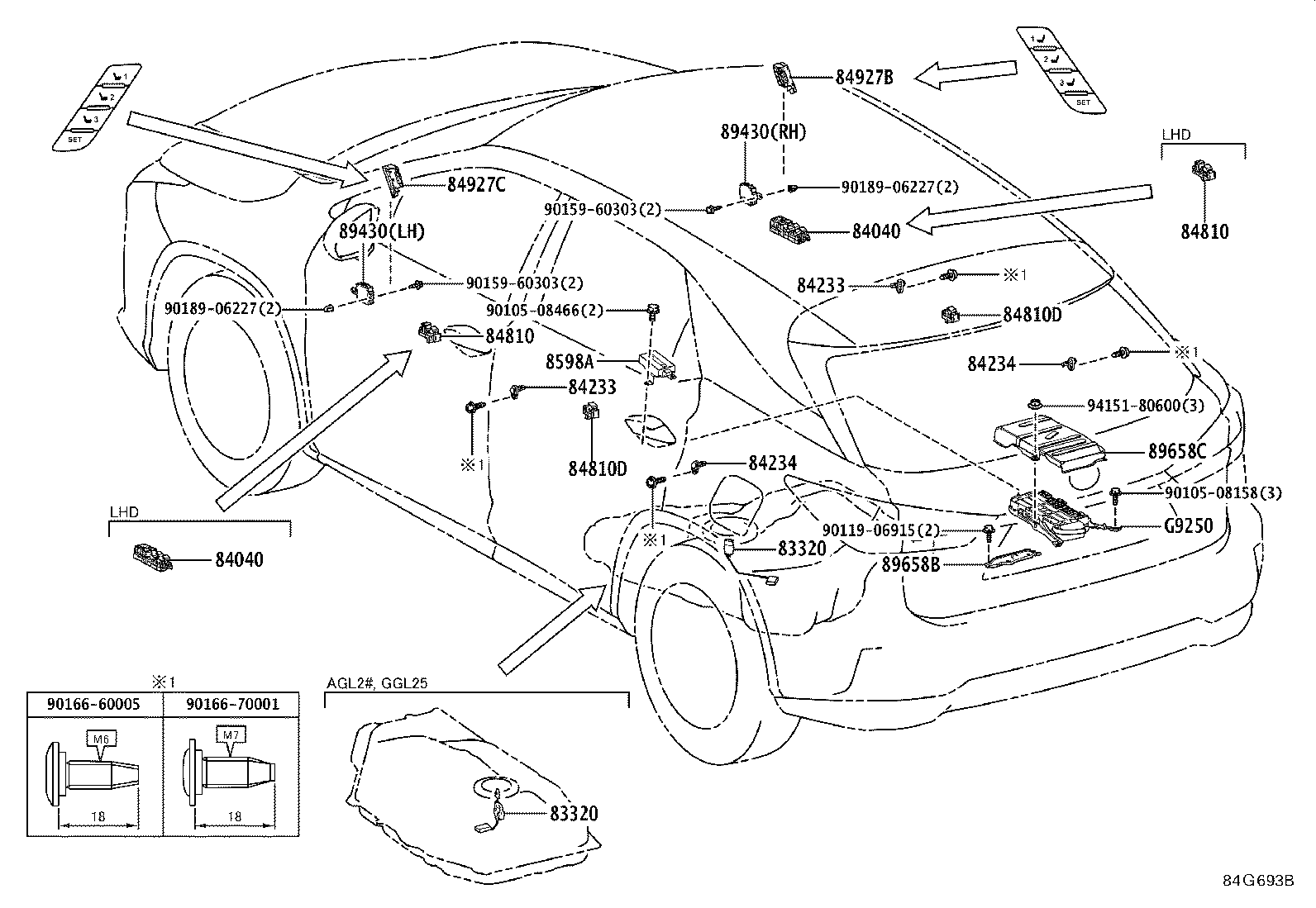

84927B	Switch, Seat Memory, RH
84927C	Switch, Seat Memory, LH

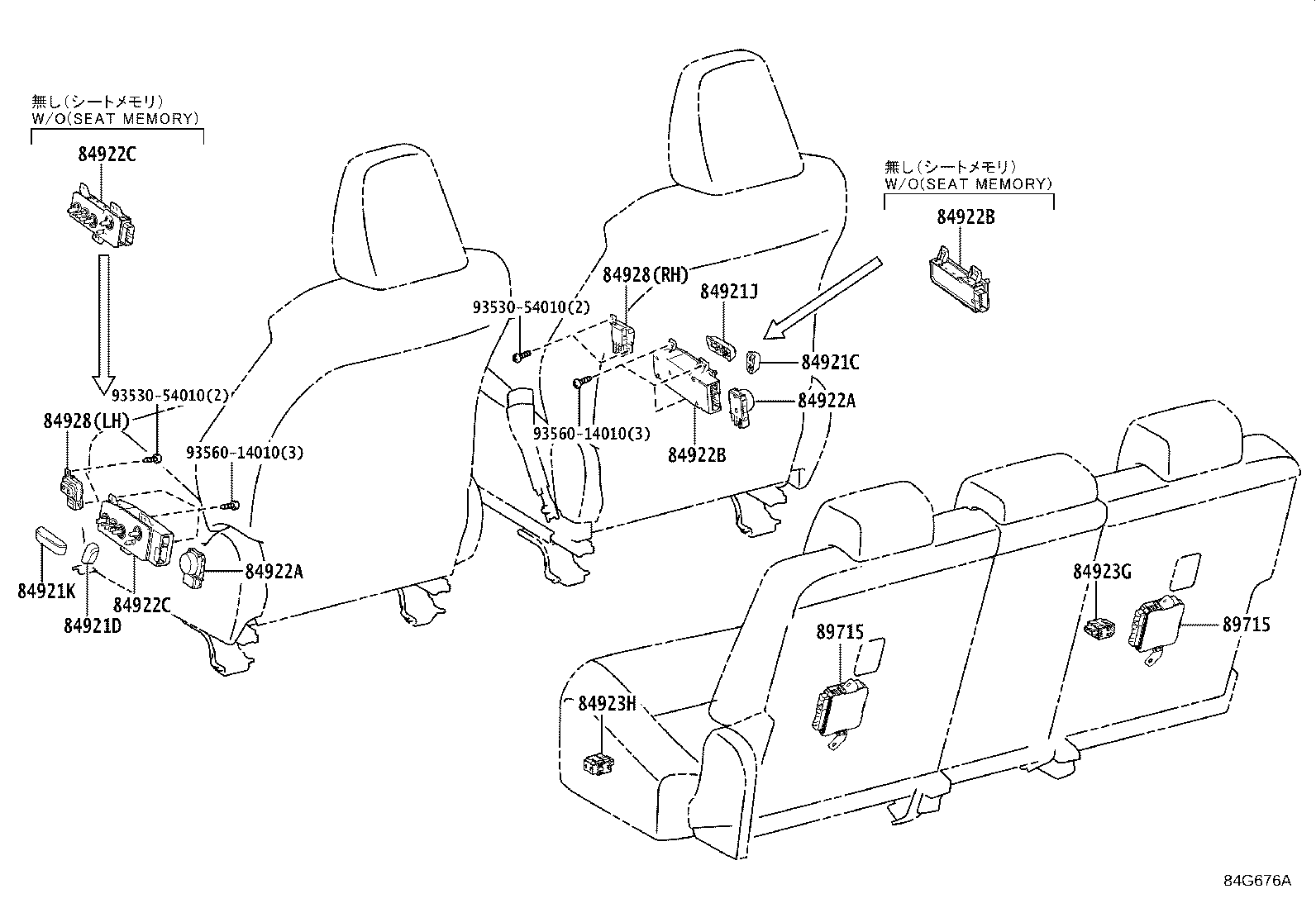

84928	Switch, Seat Variable Cushion
84931B	Switch, Door Control
84931C	Switch, Back Door Control
84970	Switch Assy, Combination
84975	Switch, Trip
85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85532A	Relay, Usb
85532C	Socket, Usb Charger, NO.2
85532D	Socket, Usb Charger, NO.3
85533B	Lens, Power Outlet Socket
85535E	Cover, Power Outlet Socket, NO.2
85535F	Cover, Power Outlet Socket, Rear
85910E	Relay, Injector
85910K	Relay, Rear Seat Heater
85912H	Relay, Hwd, NO.1
85912J	Relay, Hwd, NO.2
85916P	Relay, Headlamp
85924	Relay, Ignition Control
85927	Relay, Cooling Fan
85935	Relay, Fuel Pump
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
85970A	Relay Assy, Double Lock Door Control
8598A	Battery, Door Control
86530	Relay Assy, Horn
87299	Relay, Heater
87346K	Relay, Ptc Heater
87346L	Relay, Ptc Heater
88150A	Computer Assy, Driving Support
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
891A0	Sensor Assy, Rear Emblem
891B1	Bracket, Kick Door Control
891B2	Sensor, Kick Door Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering

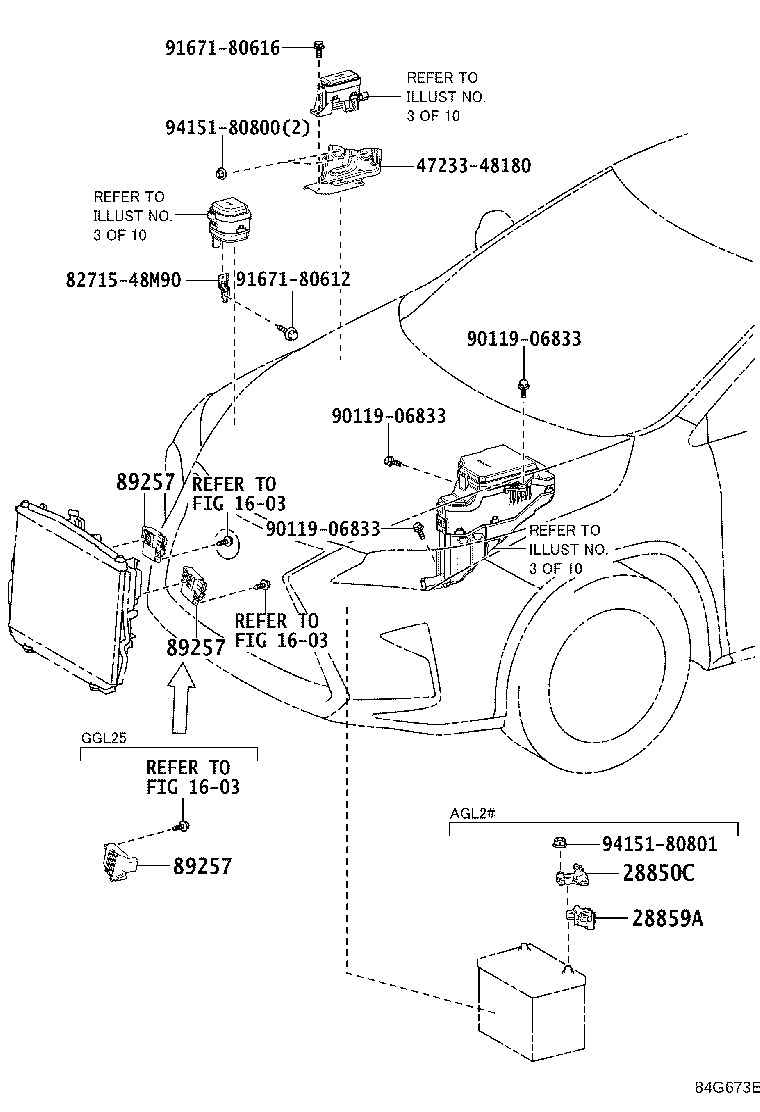

89257	Computer, Cooling Fan
892A0A	Computer Assy, Active Stabilizer Control
89429F	Sensor, Temperature
89430	Computer Assy, Outer Mirror Control
89439	Bracket, Sensor
89451A	Sensor, Shift Lever Position
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2

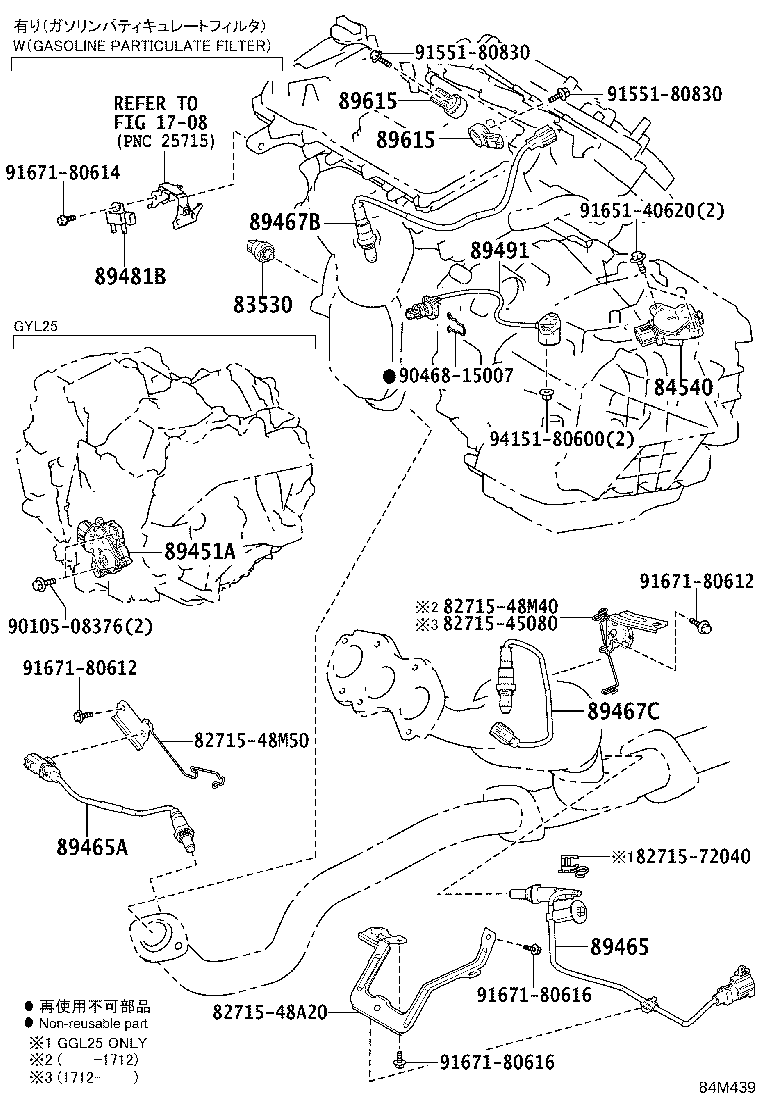

89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
89561G	Relay, Electronic Fuel Injection Main, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89658B	Bracket, Power Steering, NO.1
89658C	Bracket, Power Steering, NO.2
89715	Computer, Fold Seat Control
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
89870E	Relay, Electronic Driver Unit
89980	Computer Assy, Hybrid Vehicle Control
F2615	Bracket, Front Active Stabilizer Computer
F2615A	Bracket, Active Stabilizer Computer
G1167A	Relay (FOR OIL PUMP MOTOR)
G9250	Converter Assy, Power Steering

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
