Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 3 illustrations

Illustrations

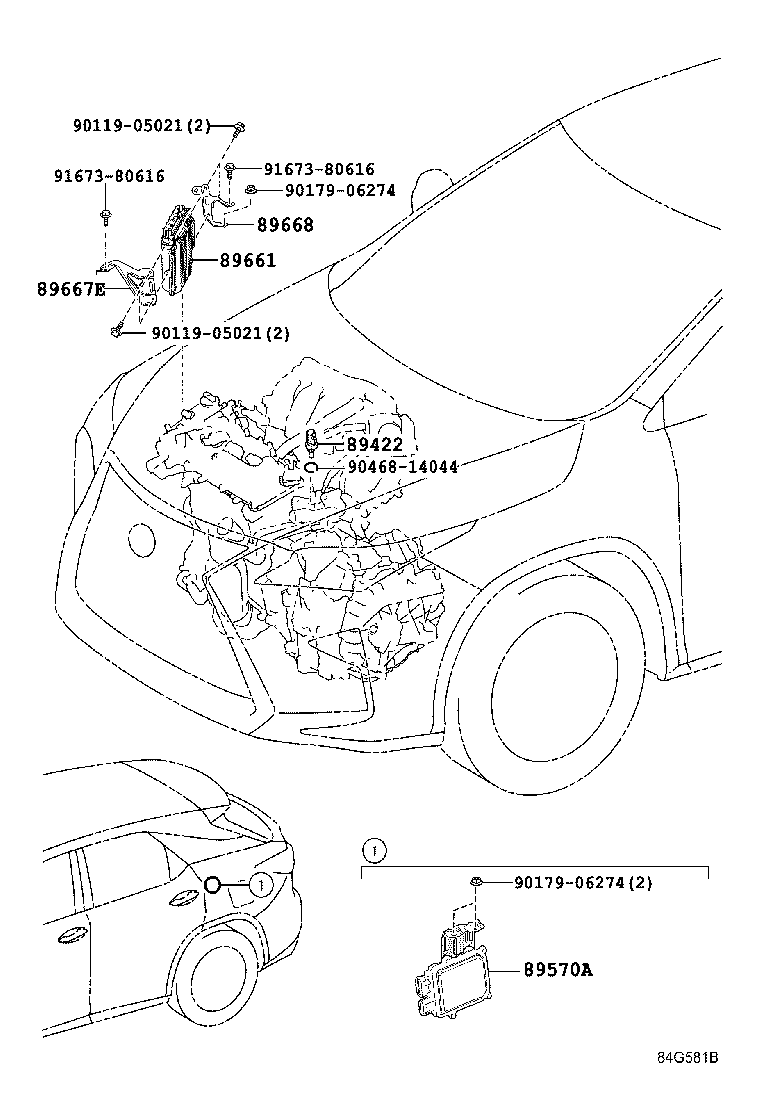

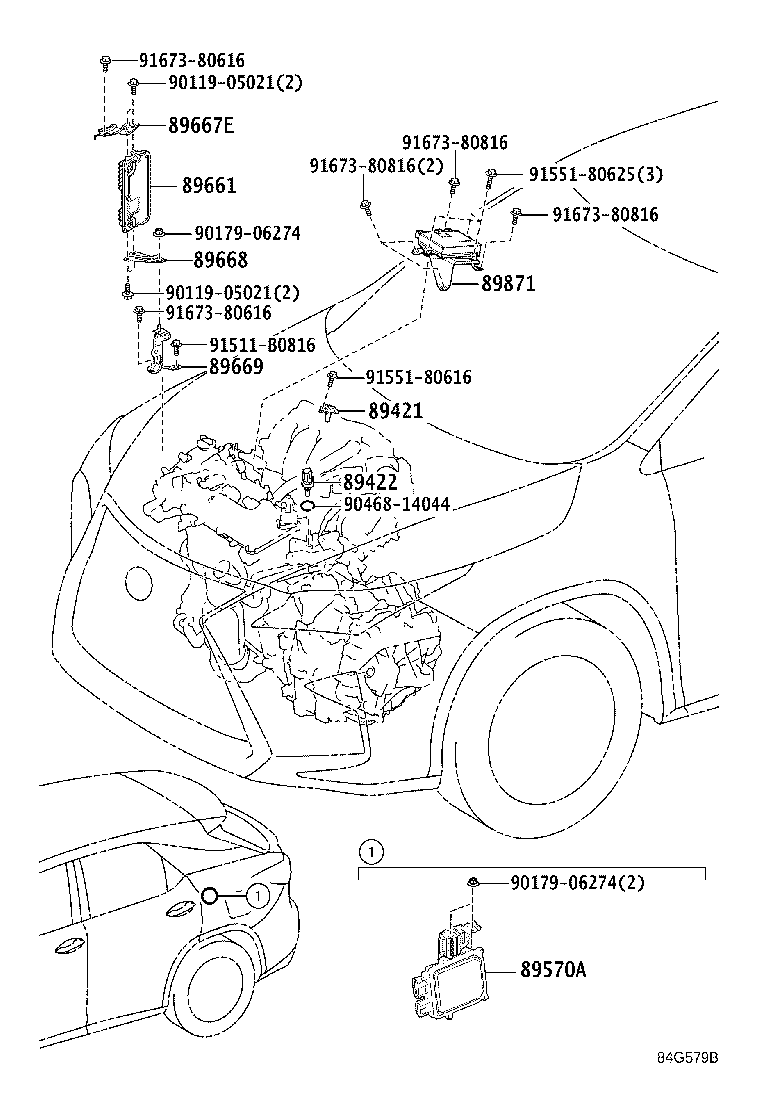

Figure 84G580B 84G580B 2015-09 → — Figure 84G581B 84G581B 2015-09 → — Figure 84G579B 84G579B 2015-09 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
