Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

18 part groups · 2 illustrations

Illustrations

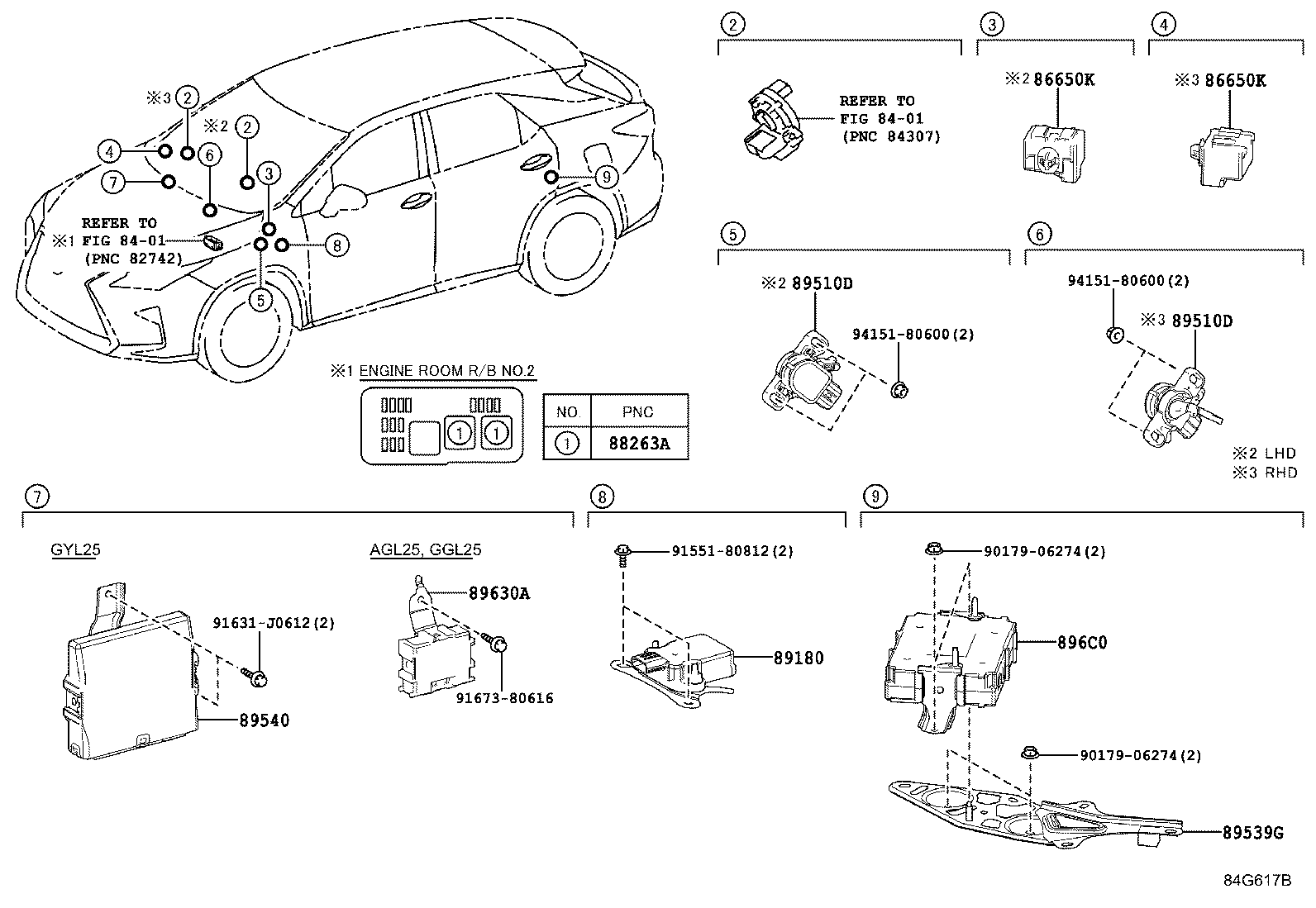

Figure 84G616A 84G616A 2015-09 → — Figure 84G617B 84G617B 2015-09 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263A Relay, Skid Control
89180 Sensor Assy, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89516G Wire, Skid Control Sensor, Rear RH NO.1
89516H Wire, Skid Control Sensor, Rear LH NO.1
89516J Wire, Skid Control Sensor, Rear RH NO.2
89516K Wire, Skid Control Sensor, Rear LH NO.2
89539G Bracket, Computer
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
896C0 Supply Assy, Brake Control Power W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
