Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

15 part groups · 2 illustrations

Illustrations

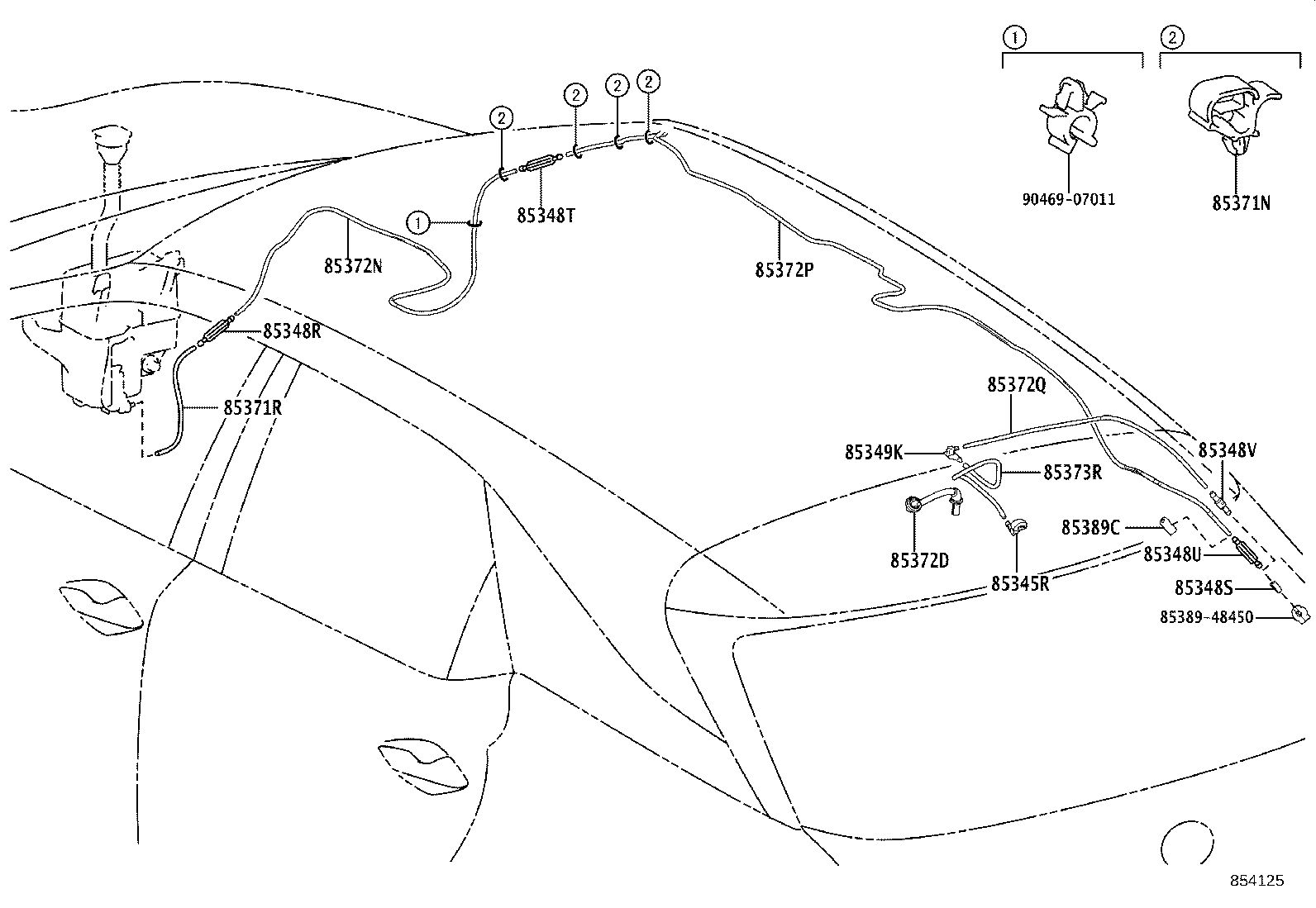

Figure 853444B 853444B 2015-09 → 2019-08 Figure 854125 854125 2019-08 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85348V Joint, Rear Washer Hose, NO.4
85349K Joint, Rear Washer Elbow, NO.2
85371N Clamp, Rear Washer Hose
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85389C Protector, Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
