Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

21 part groups · 2 illustrations

Illustrations

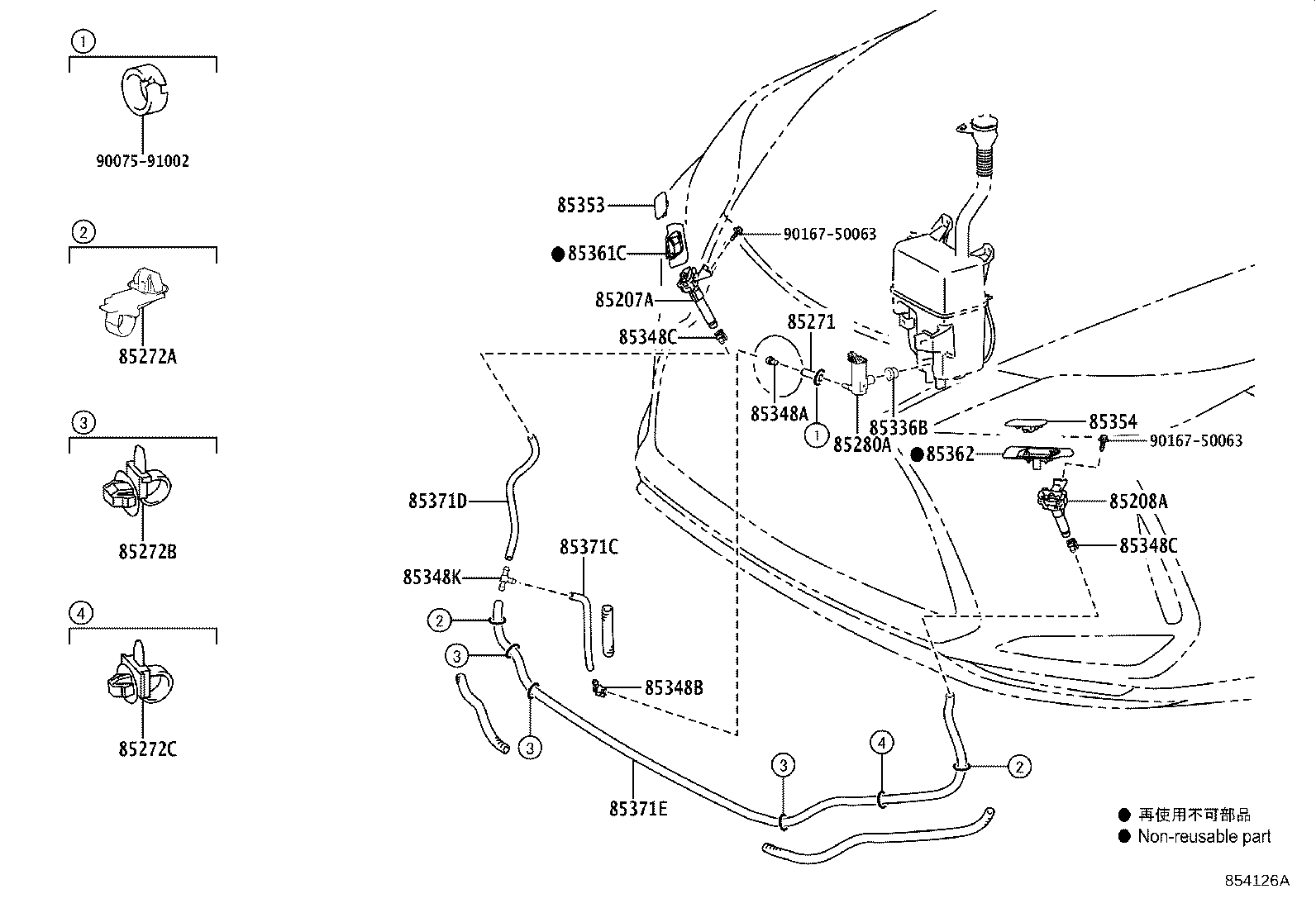

Figure 853446B 853446B 2015-09 → 2019-08 Figure 854126A 854126A 2019-08 → —

Part groups

PNCDescription
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85272C Clamp, Headlamp Cleaner, NO.3
85280A Motor And Pump Assy, Headlamp Cleaner
85336B Packing, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85353 Cover, Headlamp Washer, RH
85354 Cover, Headlamp Washer, LH
85361C Bracket, Washer
85362 Bracket, Washer, NO.2
85371C Hose, Headlamp Cleaner, NO.1
85371D Hose, Headlamp Cleaner, NO.2
85371E Hose, Headlamp Cleaner, NO.3
85371F Hose, Headlamp Cleaner, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
