Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe
Supported model
Data version 2023-09
Antenna

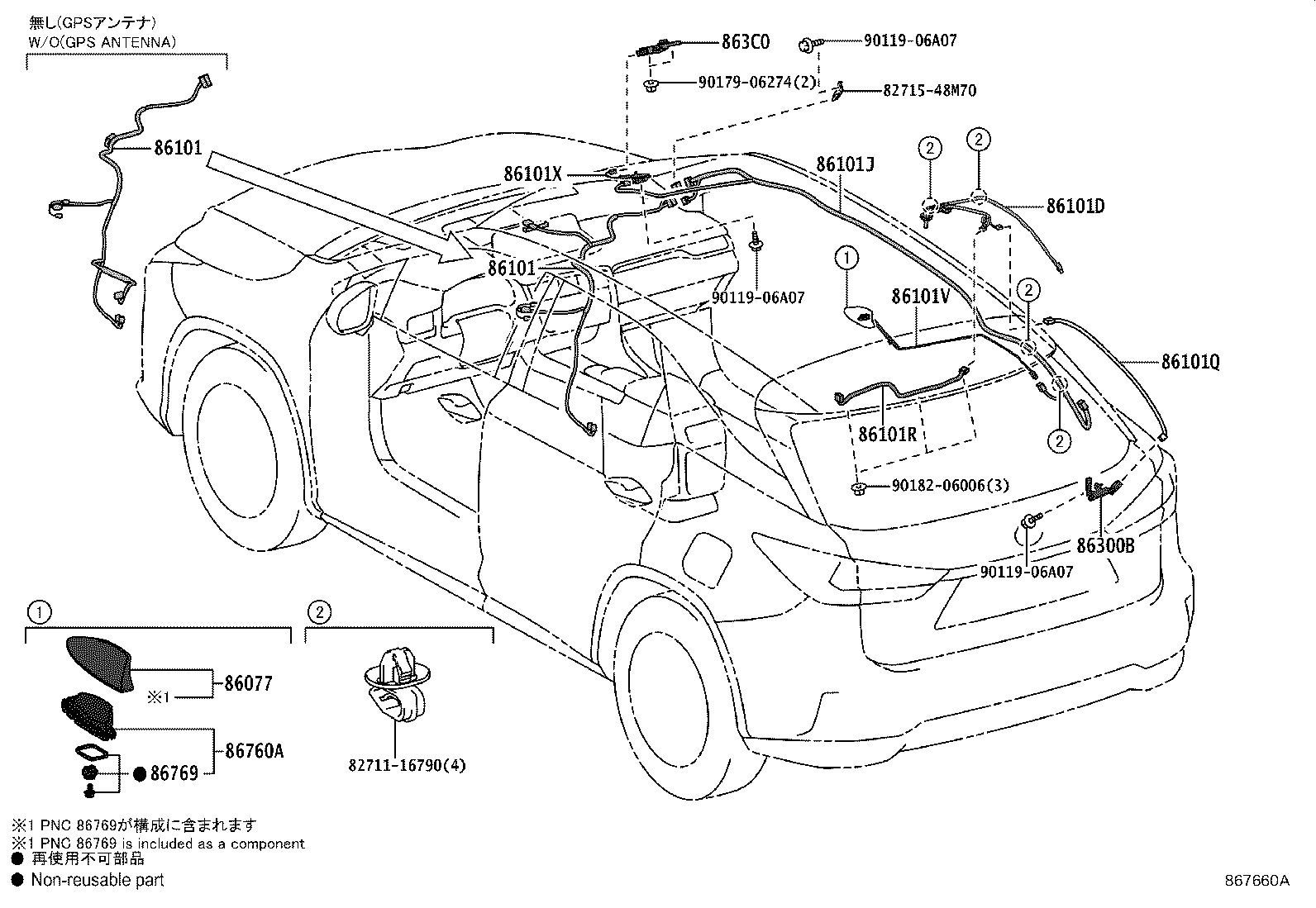

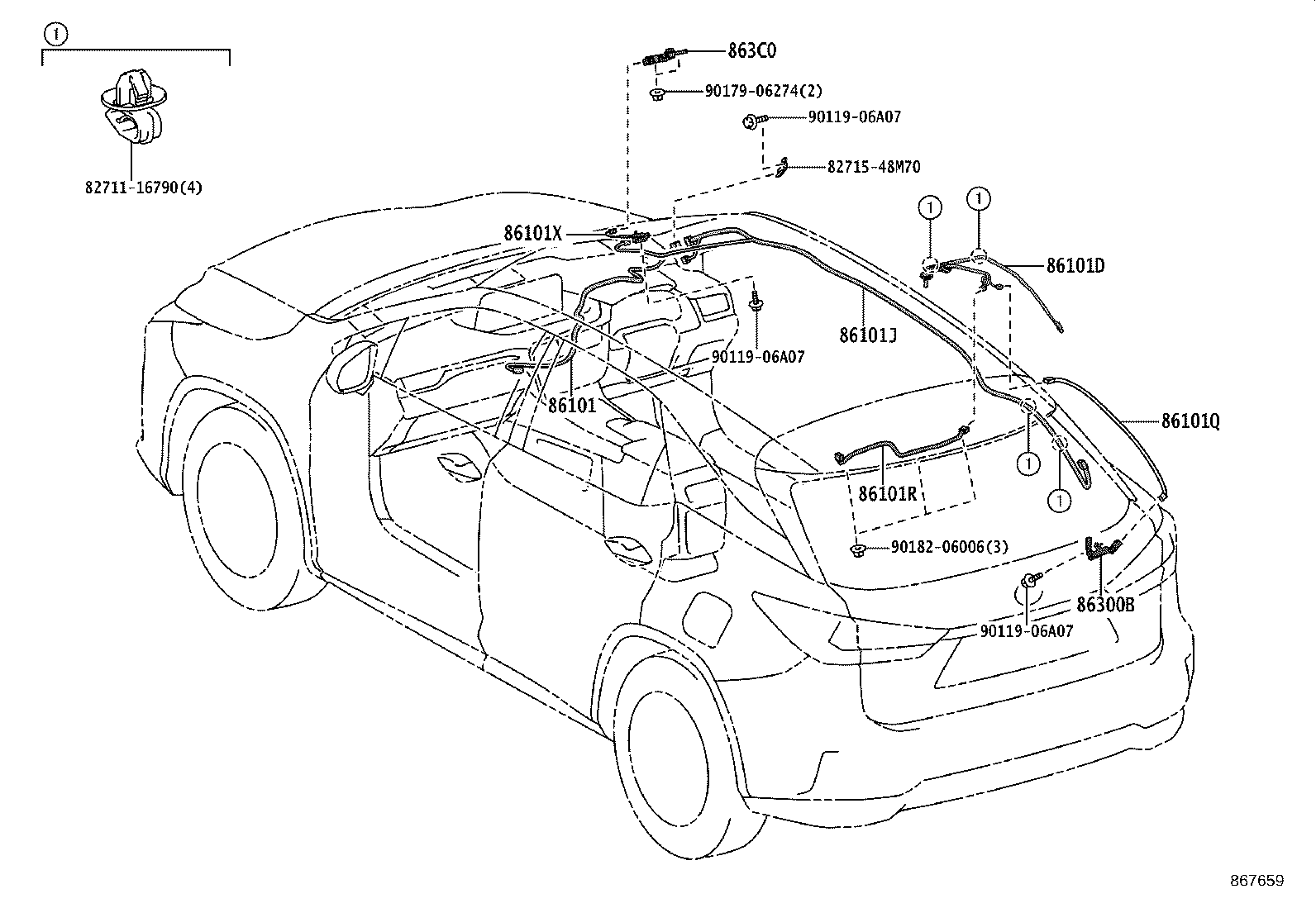

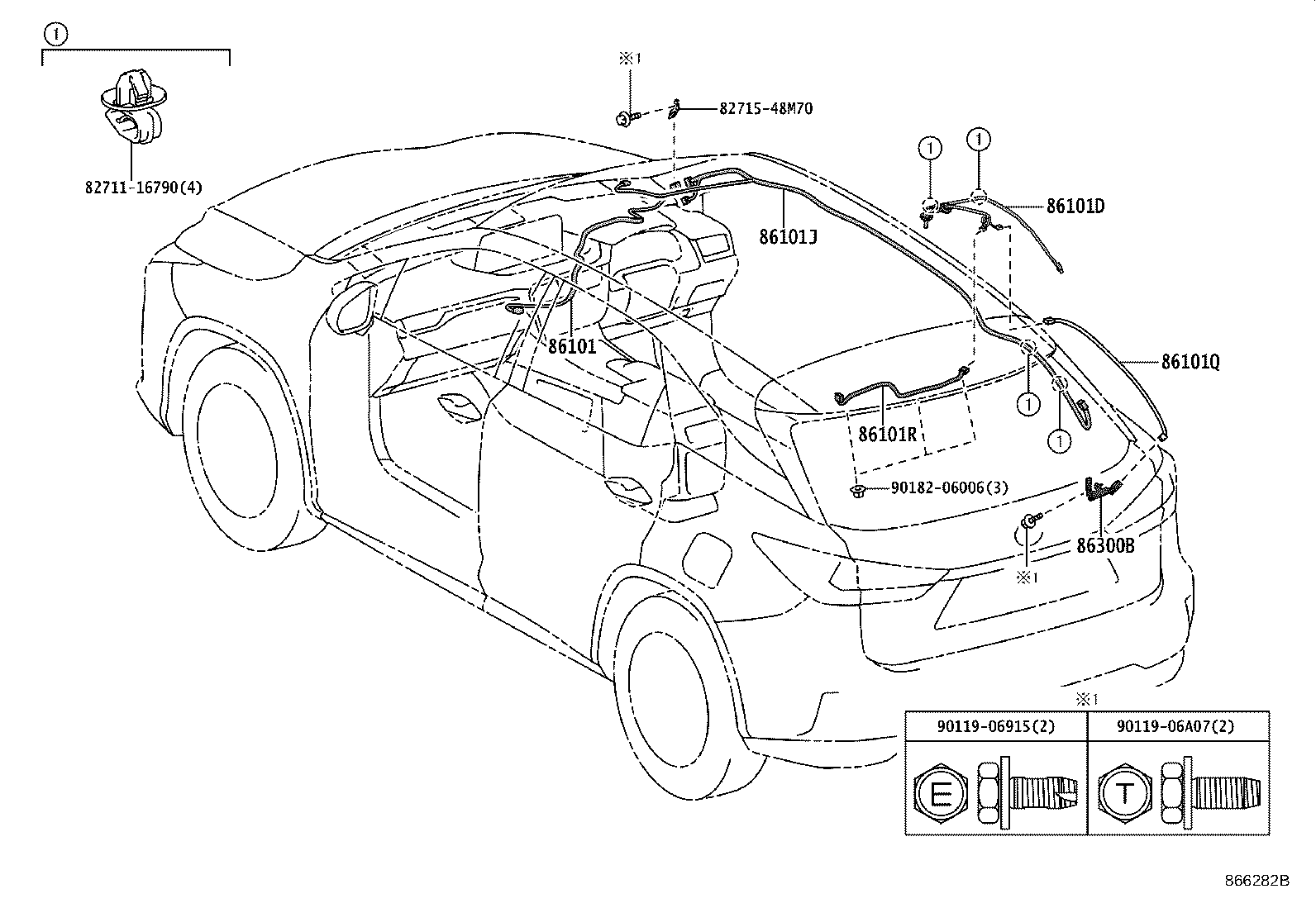

12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86101V | Cord Sub-assy, Antenna, NO.6 |
| 86101X | Cord Sub-assy, Antenna, NO.8 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 863C0 | Antenna Assy, Digital Audio Broadcasting |
| 86760A | Antenna Assy, Telephone |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
