Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

5 part groups · 2 illustrations

Illustrations

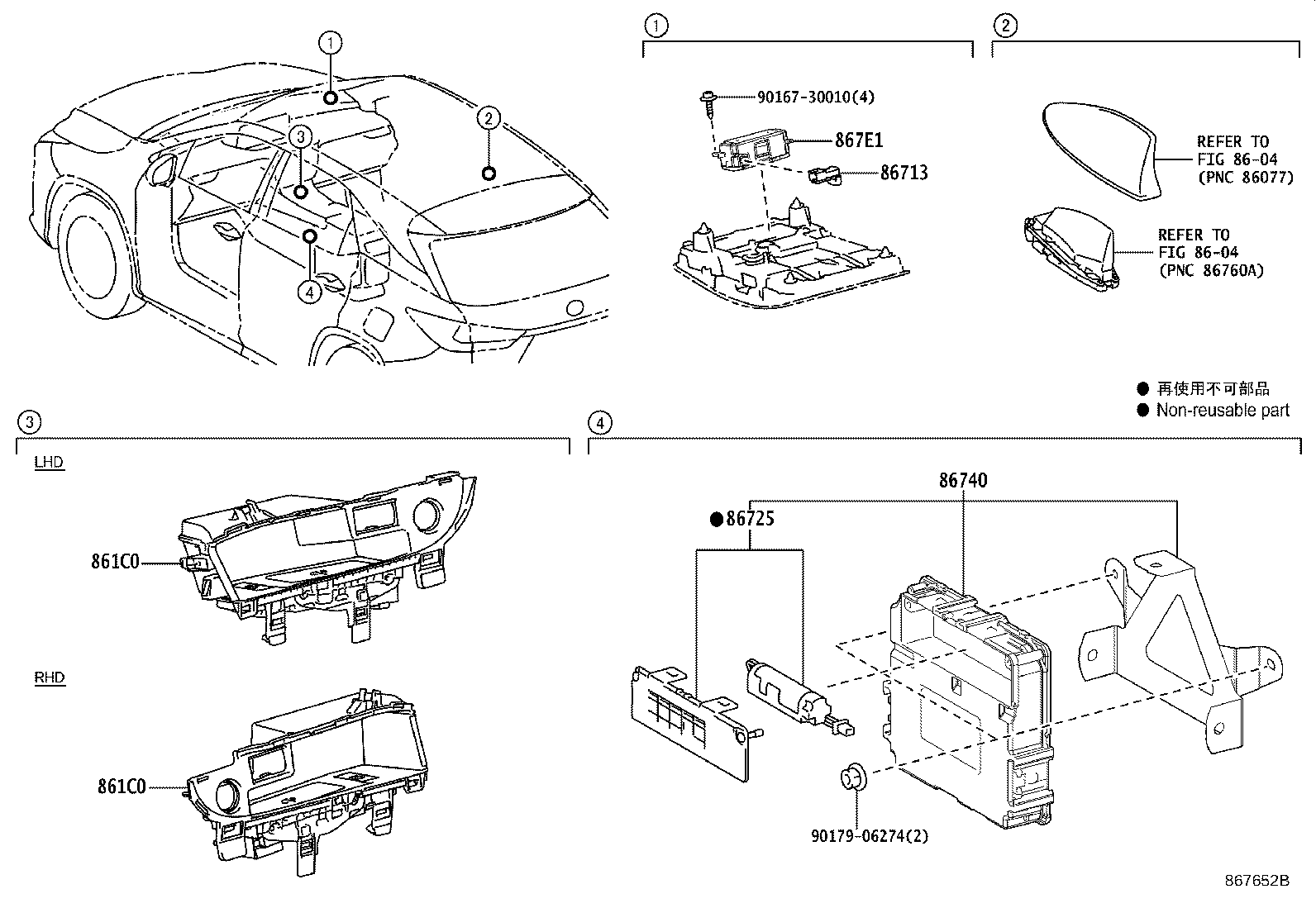

Figure 866345C 866345C 2015-09 → 2019-08 Figure 867652B 867652B 2019-08 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
86713 Wire, Telephone Computer
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
