Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

5 part groups · 2 illustrations

Illustrations

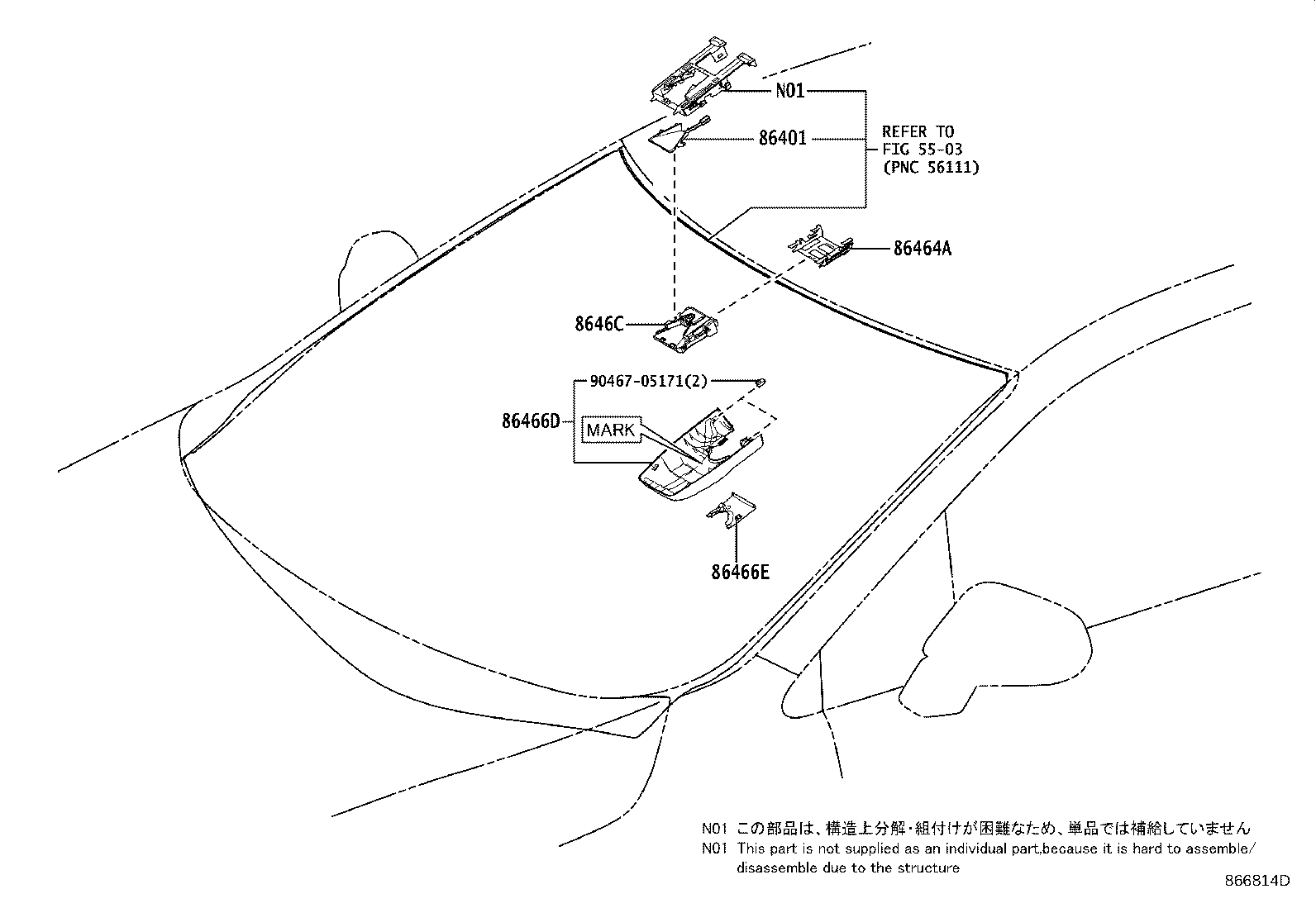

Figure 866294B 866294B 2015-09 → 2016-12 Figure 866814D 866814D 2016-12 → —

Part groups

PNCDescription
86401 Hood Sub-assy, Forward Recognition W/Heater
86464A Latch, Forward Recognition
86466D Cover, Forward Recognition, NO.1
86466E Cover, Forward Recognition, NO.2
8646C Camera, Forward Recognition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
