Heating & Air Conditioning - Control & Air Duct

22 part groups · 10 illustrations

Illustrations

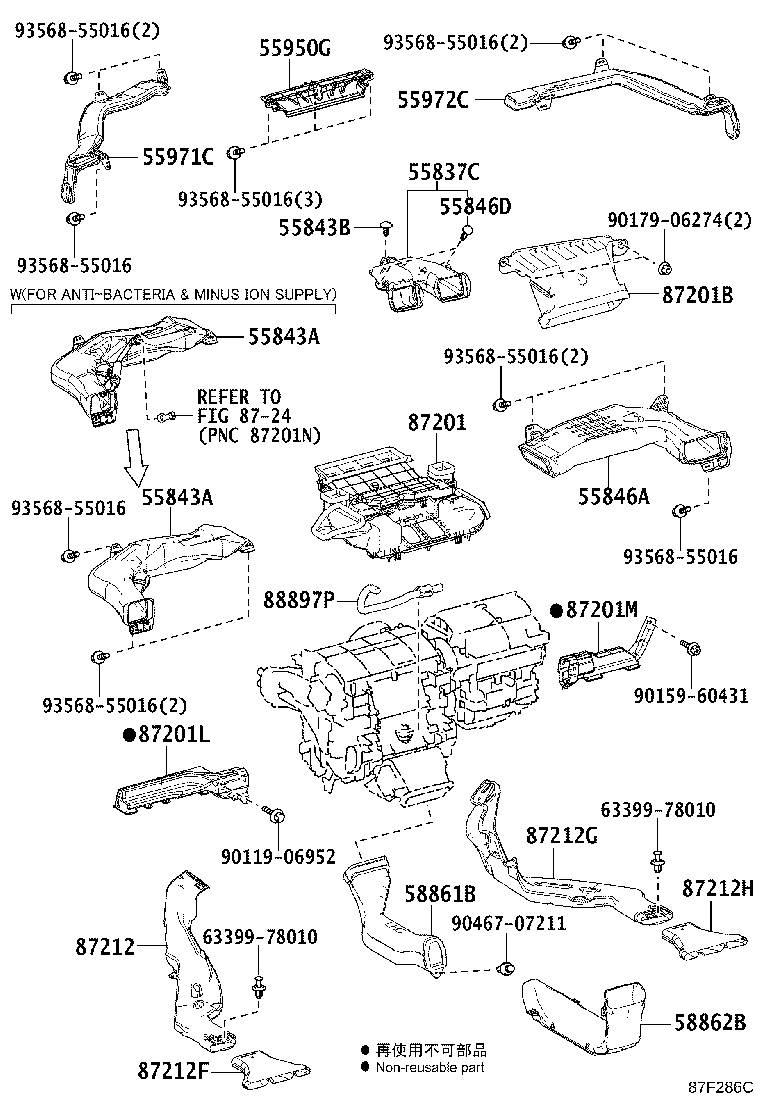

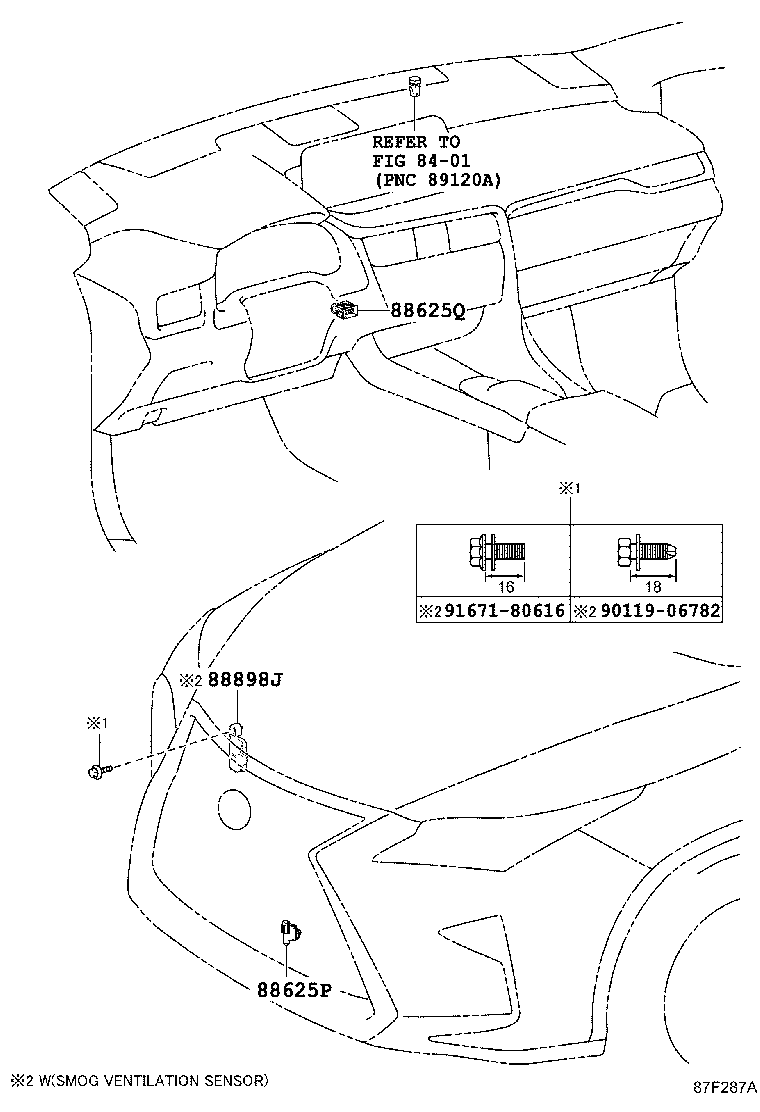

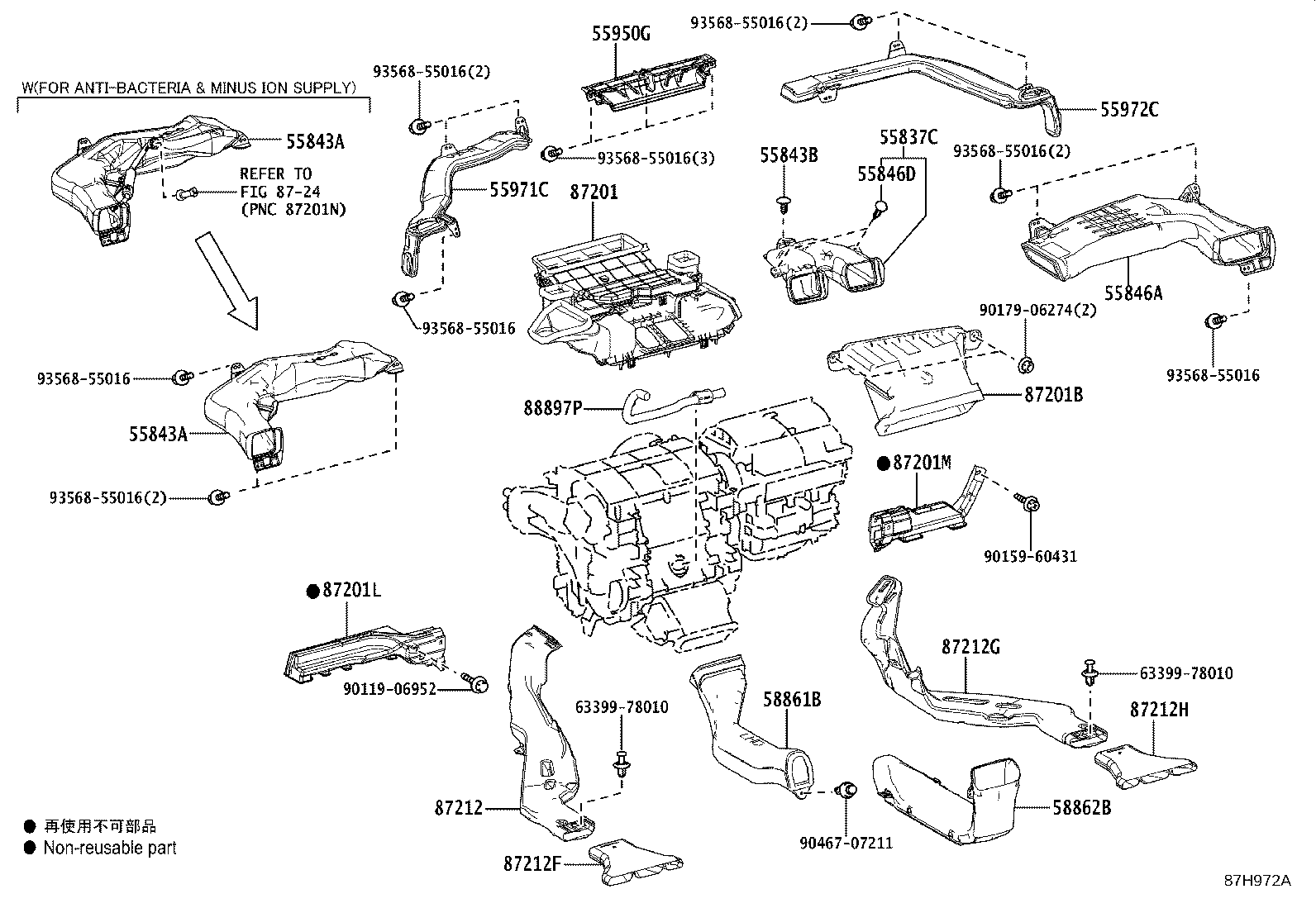

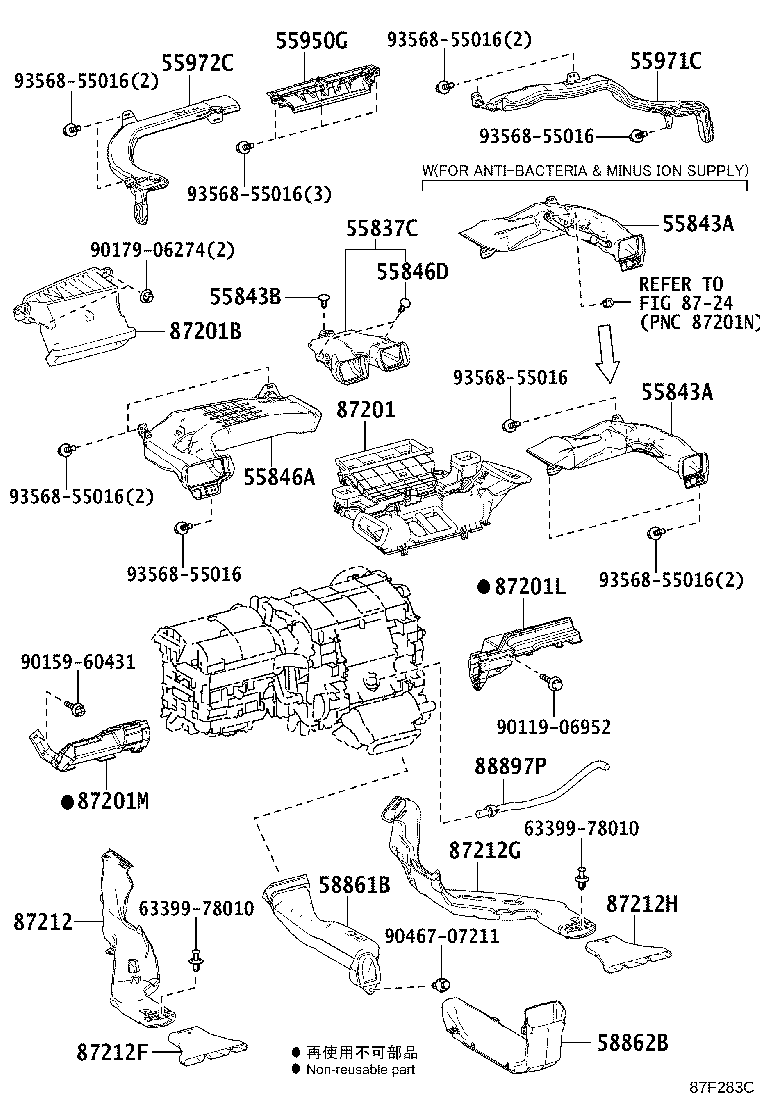

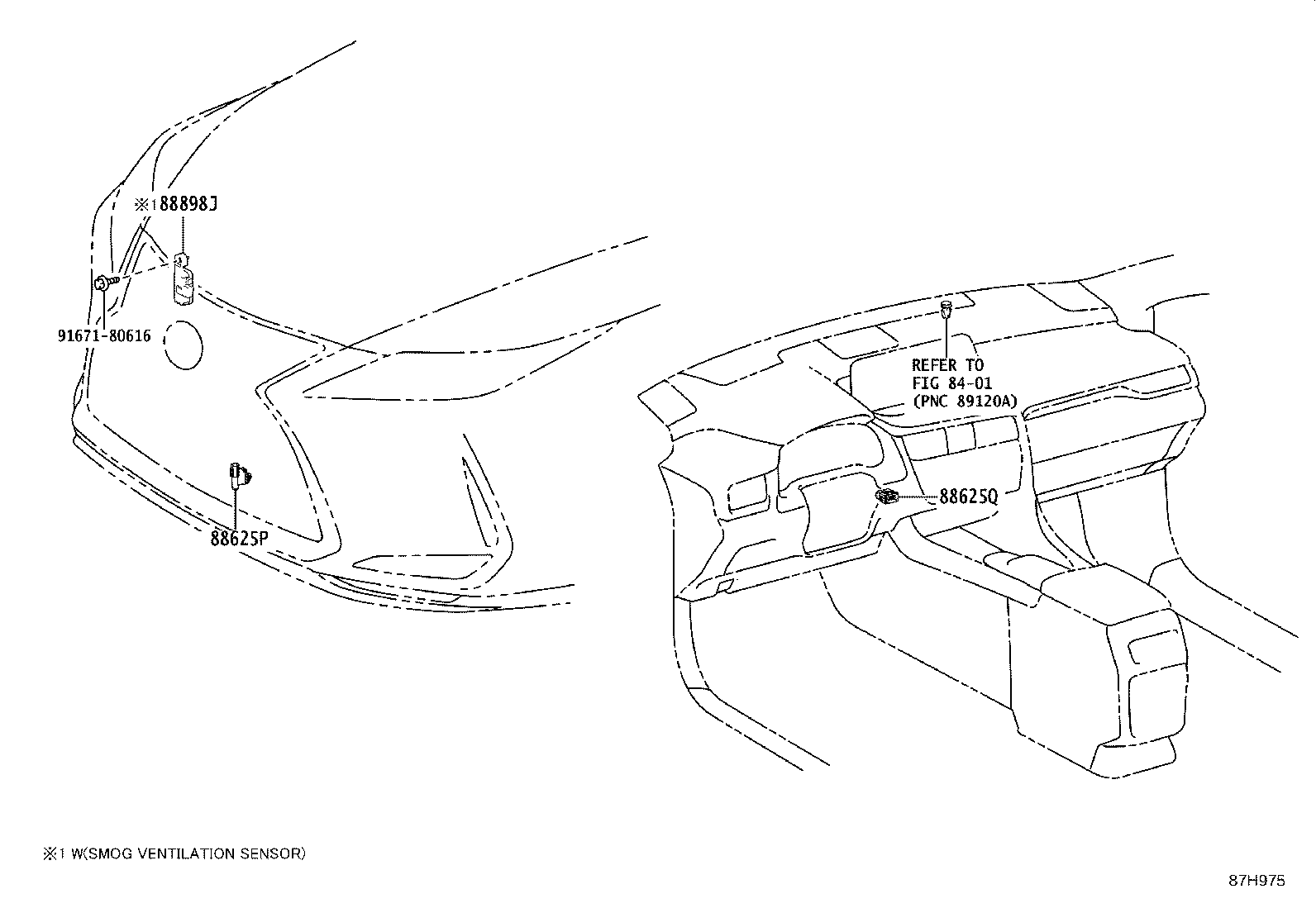

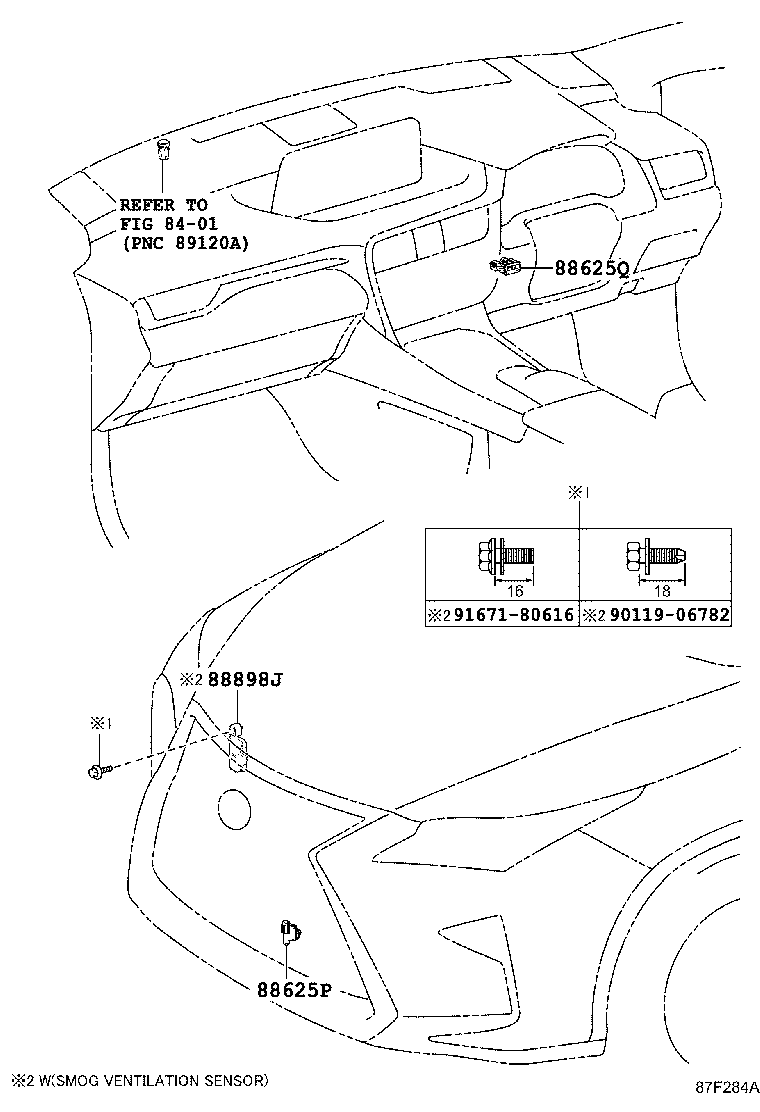

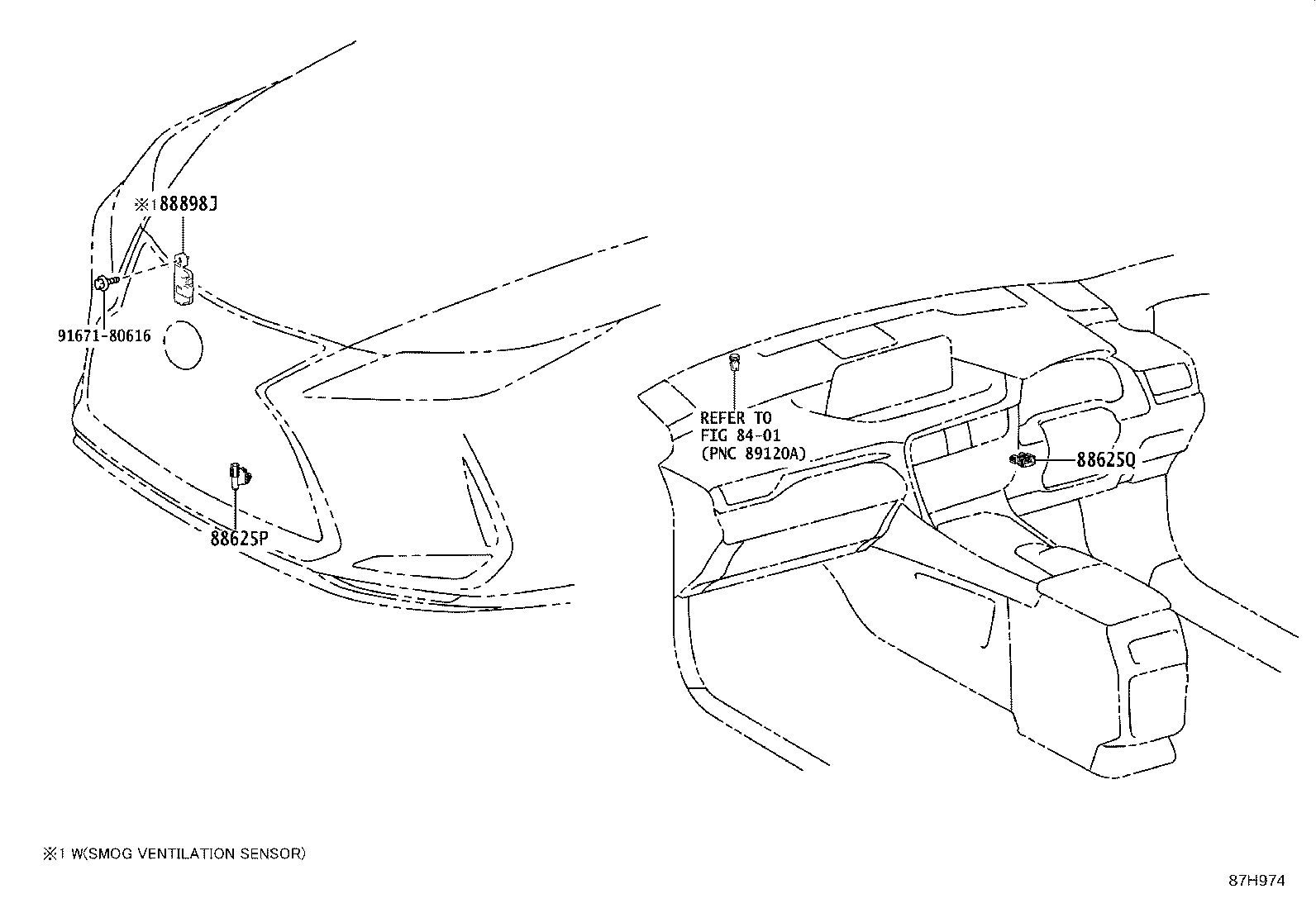

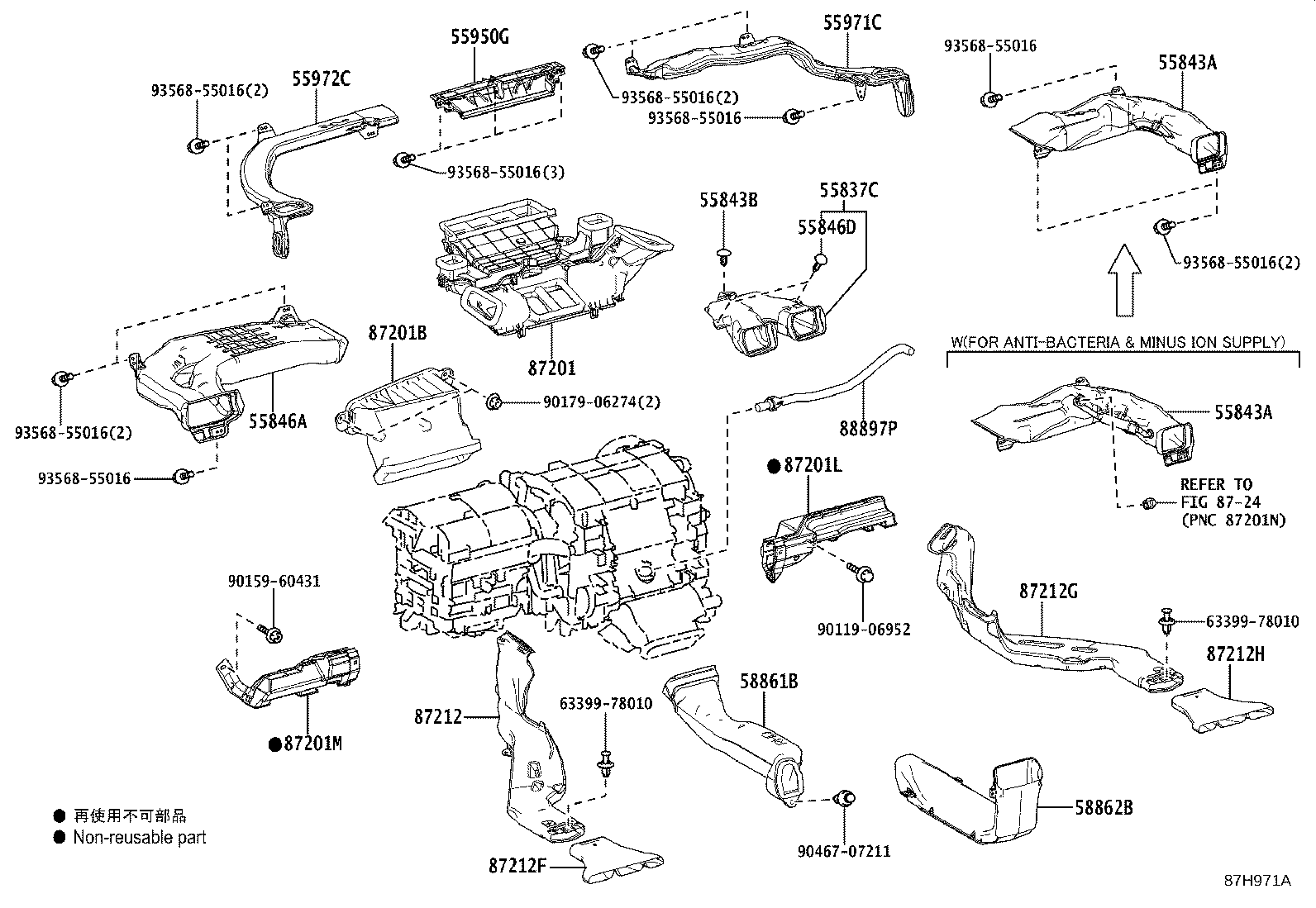

Figure 87F282A 87F282A 2015-09 → — Figure 87F285A 87F285A 2015-09 → — Figure 87F283C 87F283C 2015-09 → 2019-08 Figure 87H971A 87H971A 2019-08 → — Figure 87F286C 87F286C 2015-09 → 2019-08 Figure 87H972A 87H972A 2019-08 → — Figure 87F284A 87F284A 2015-09 → 2019-08 Figure 87H974 87H974 2019-08 → — Figure 87F287A 87F287A 2015-09 → 2019-08 Figure 87H975 87H975 2019-08 → —

Part groups

PNCDescription
55837C Duct, Heater TO Register Center Sub
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55846A Duct, Heater TO Register, NO.4
55846D Clip, Heater TO Register Duct
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201L Duct Sub-assy, Air, NO.4
87201M Duct Sub-assy, Air, NO.5
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
