Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 8 illustrations

Illustrations

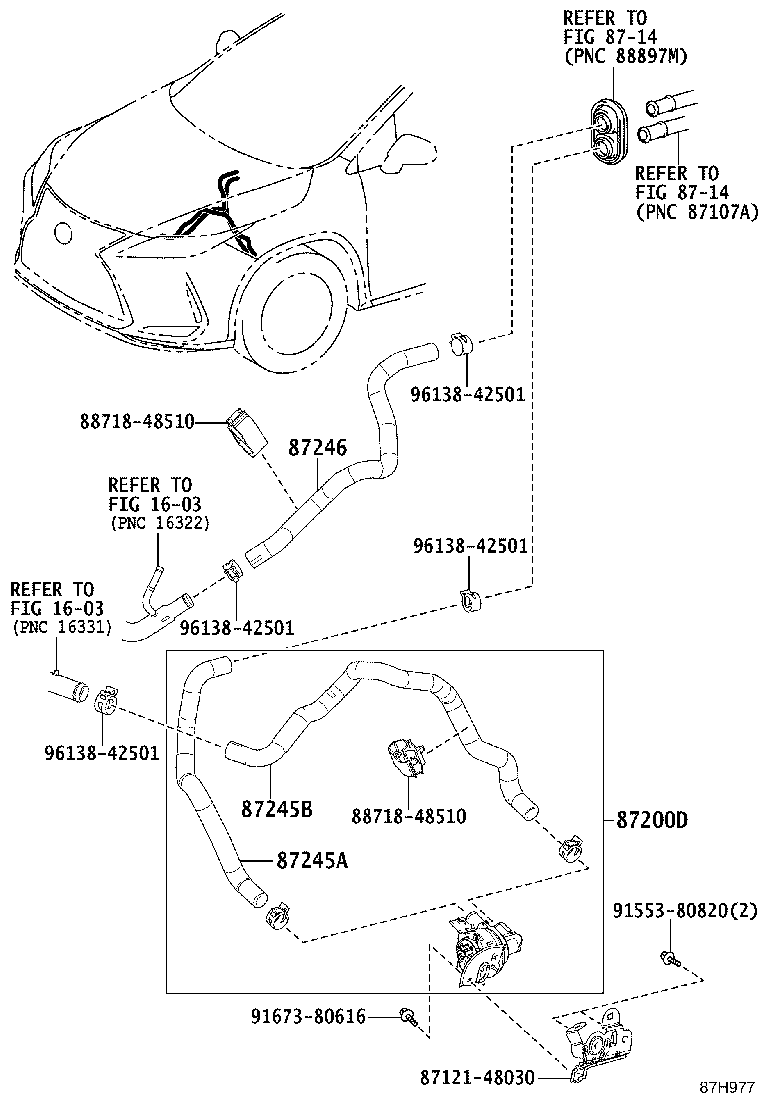

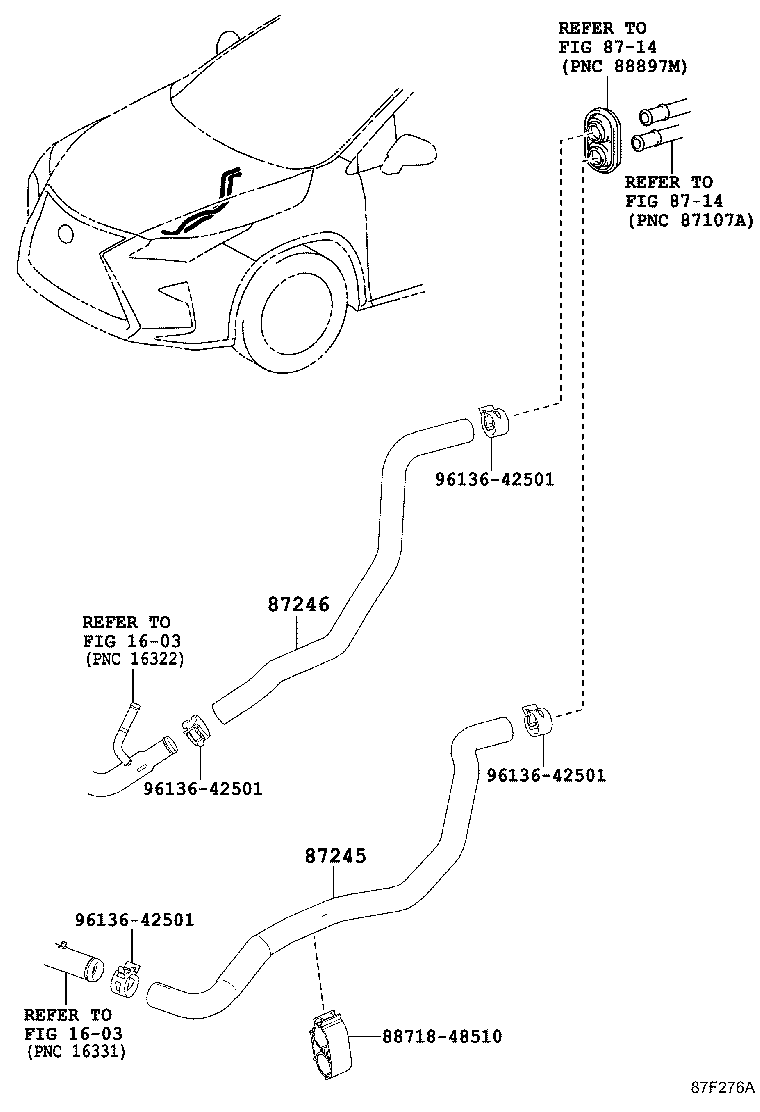

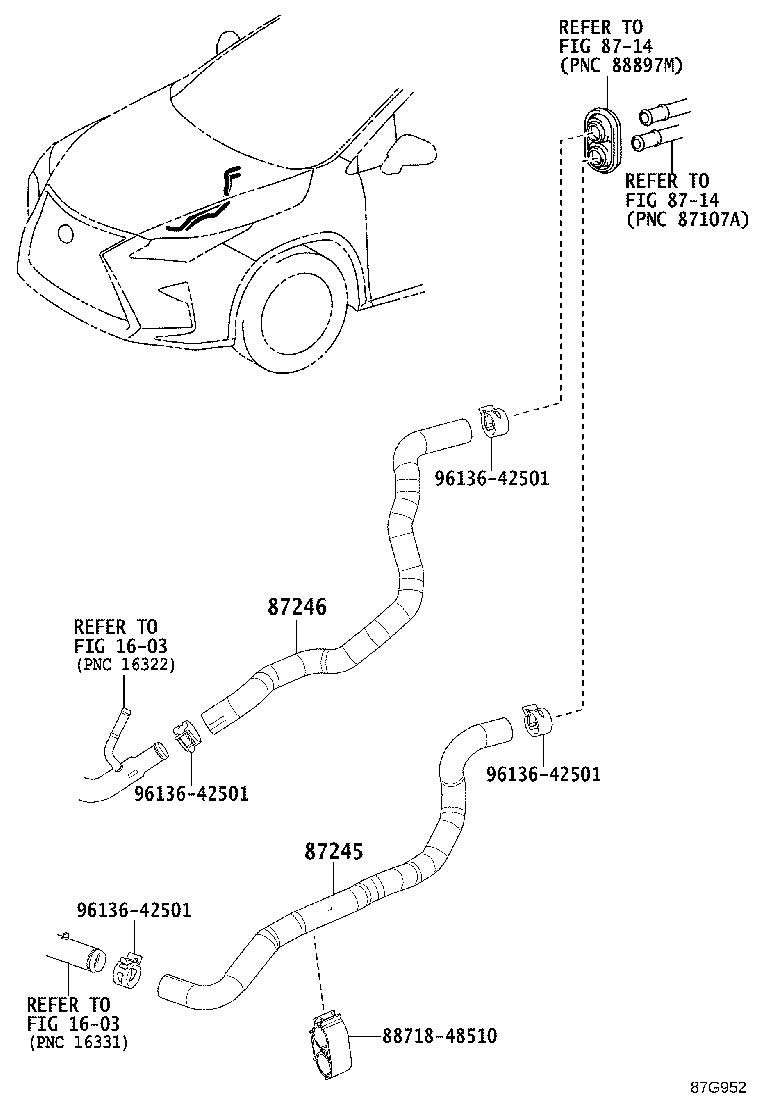

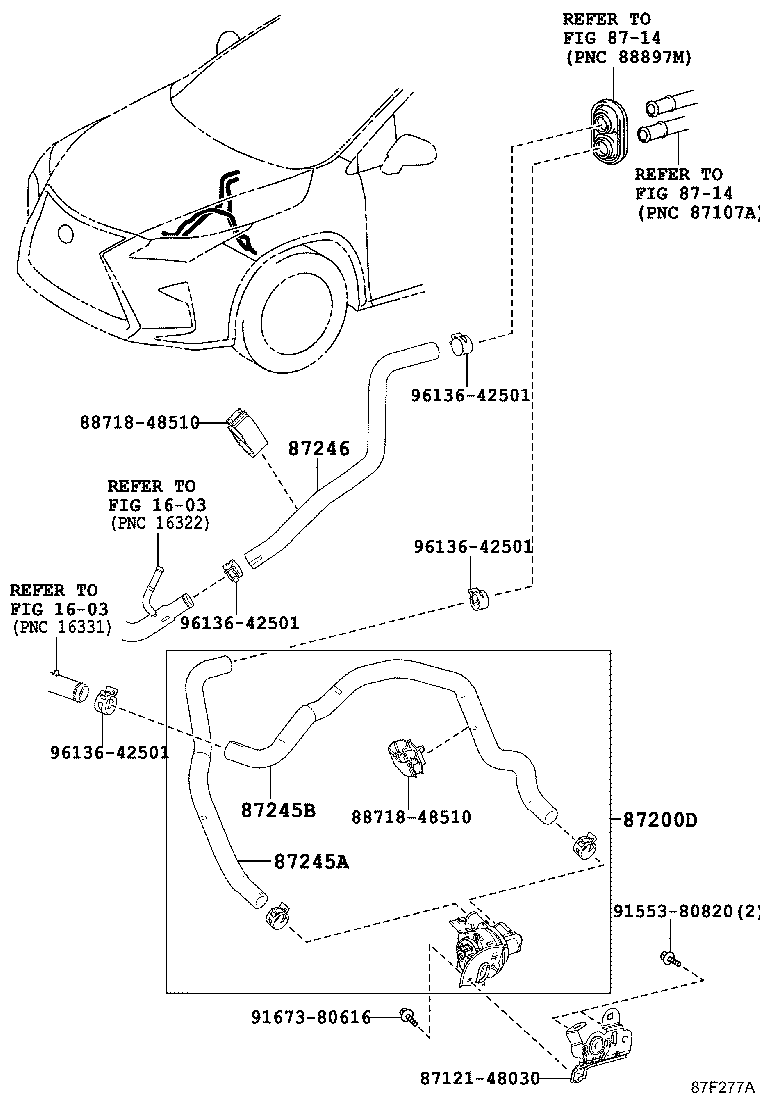

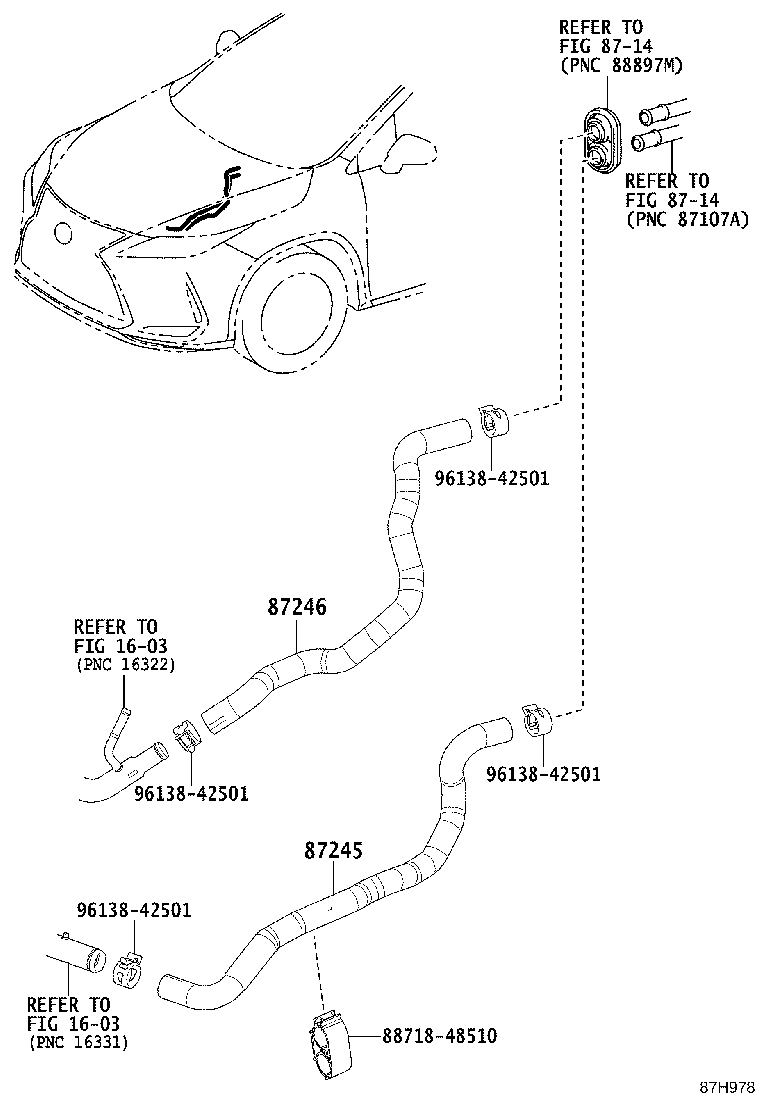

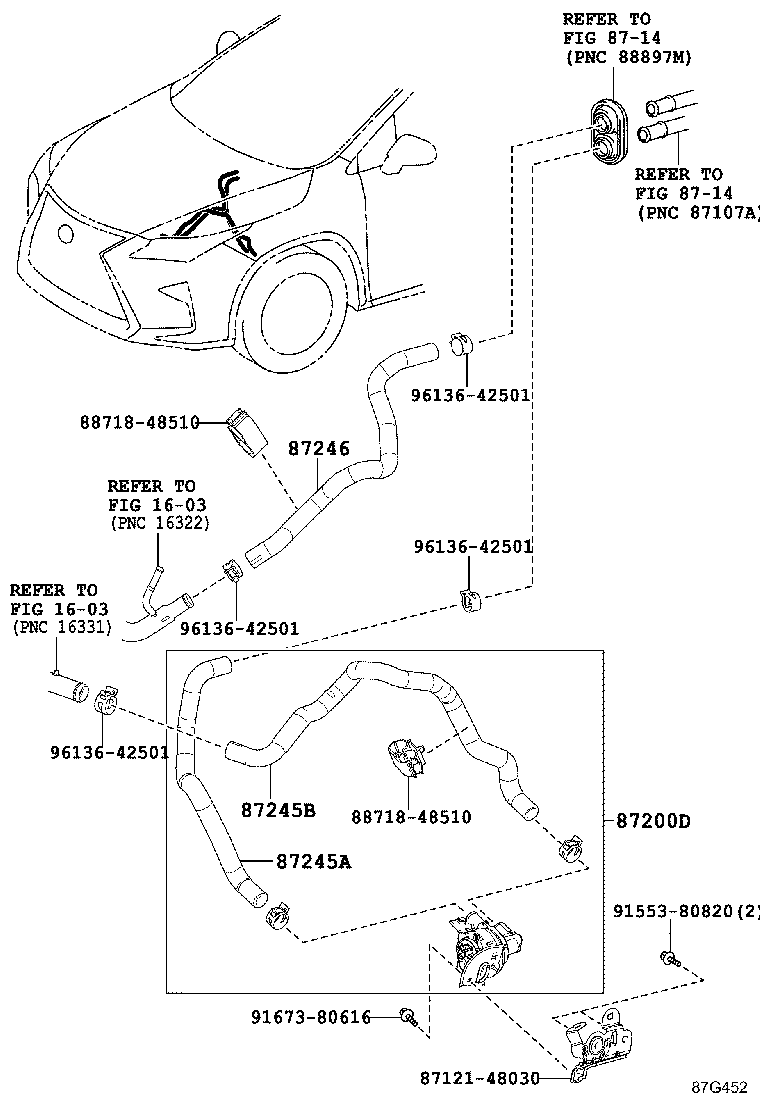

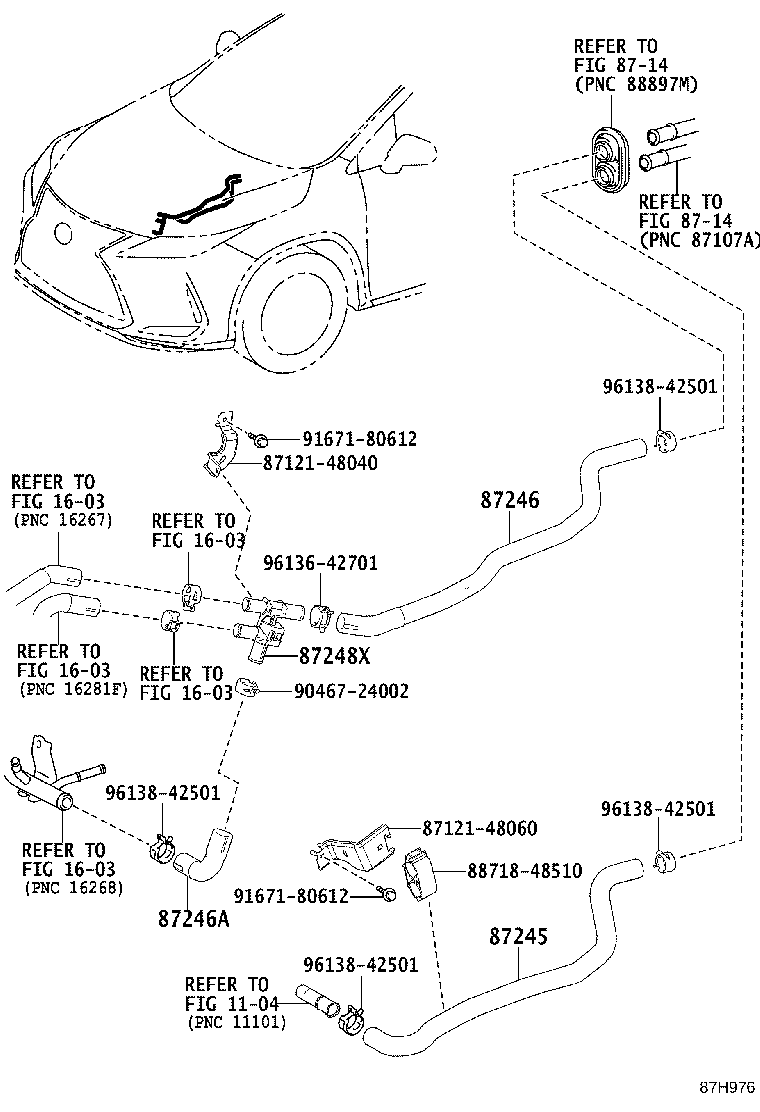

Figure 87F275A 87F275A 2015-09 → 2019-08 Figure 87H976 87H976 2019-08 → — Figure 87F276A 87F276A 2015-09 → 2017-12 Figure 87G952 87G952 2017-12 → 2019-08 Figure 87H978 87H978 2019-08 → — Figure 87F277A 87F277A 2015-10 → 2017-12 Figure 87G452 87G452 2017-12 → 2019-08 Figure 87H977 87H977 2019-08 → —

Part groups

PNCDescription
87200D Accessory Assy, Heater
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87248X Pipe, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
