Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 14 illustrations

Illustrations

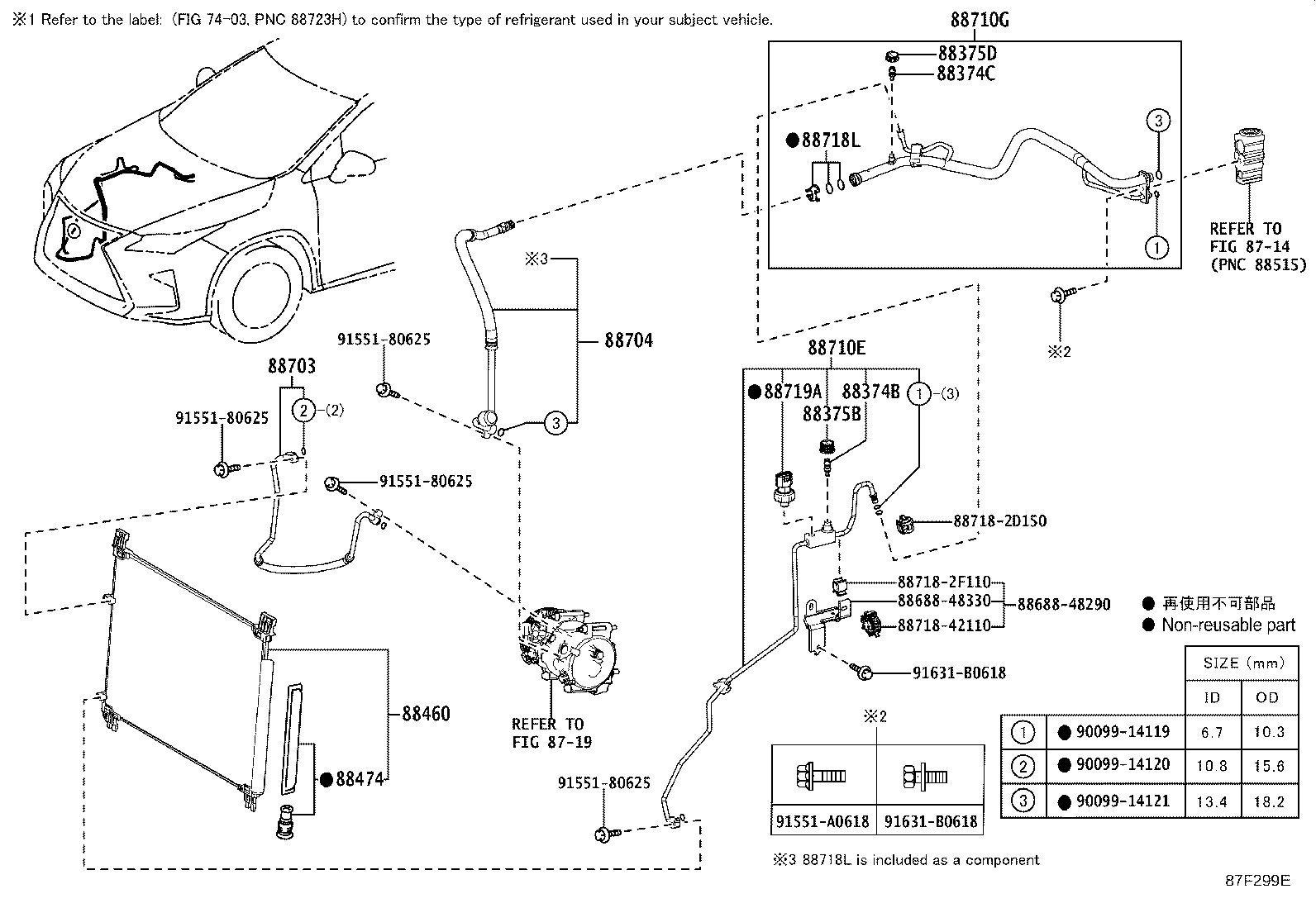

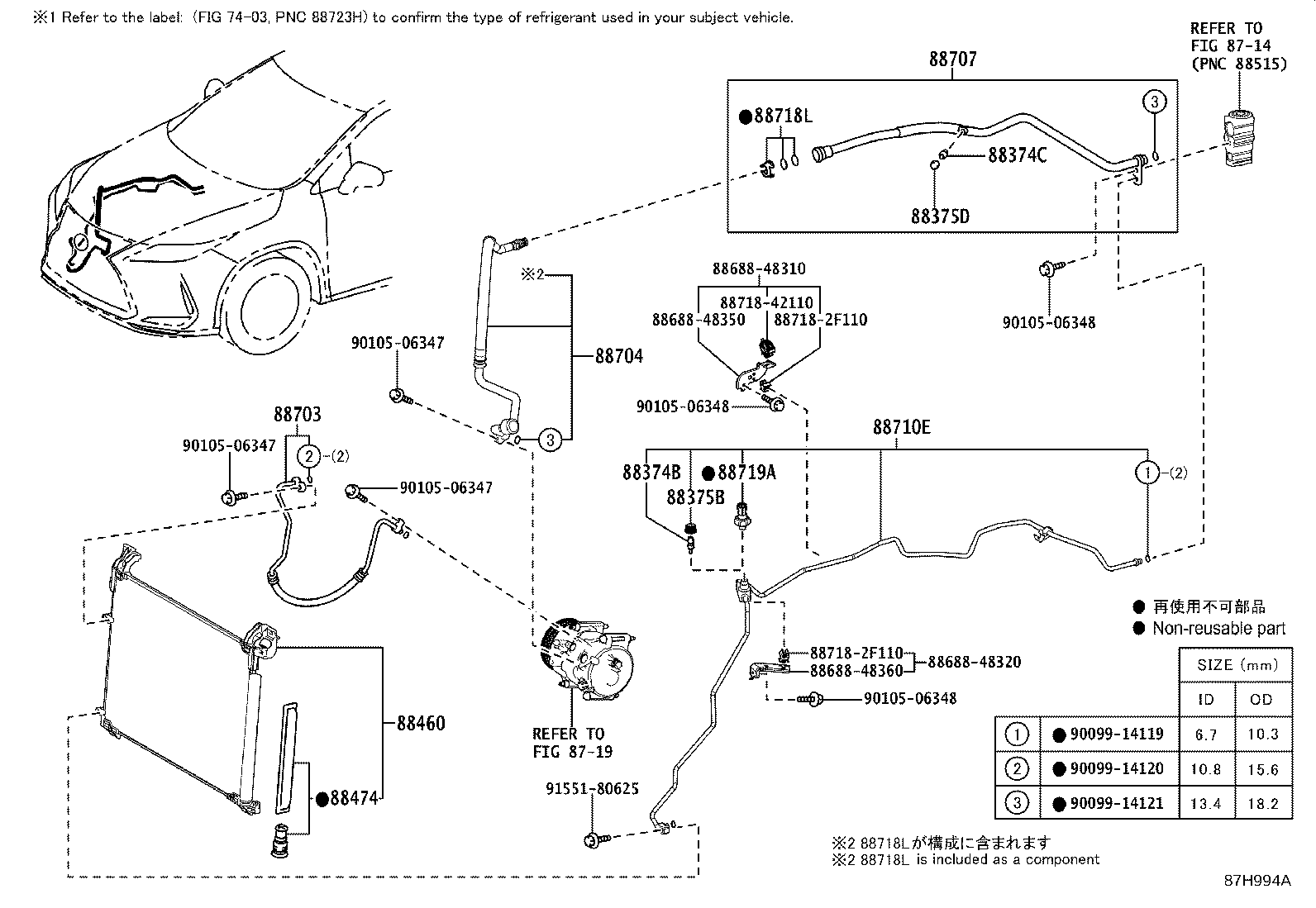

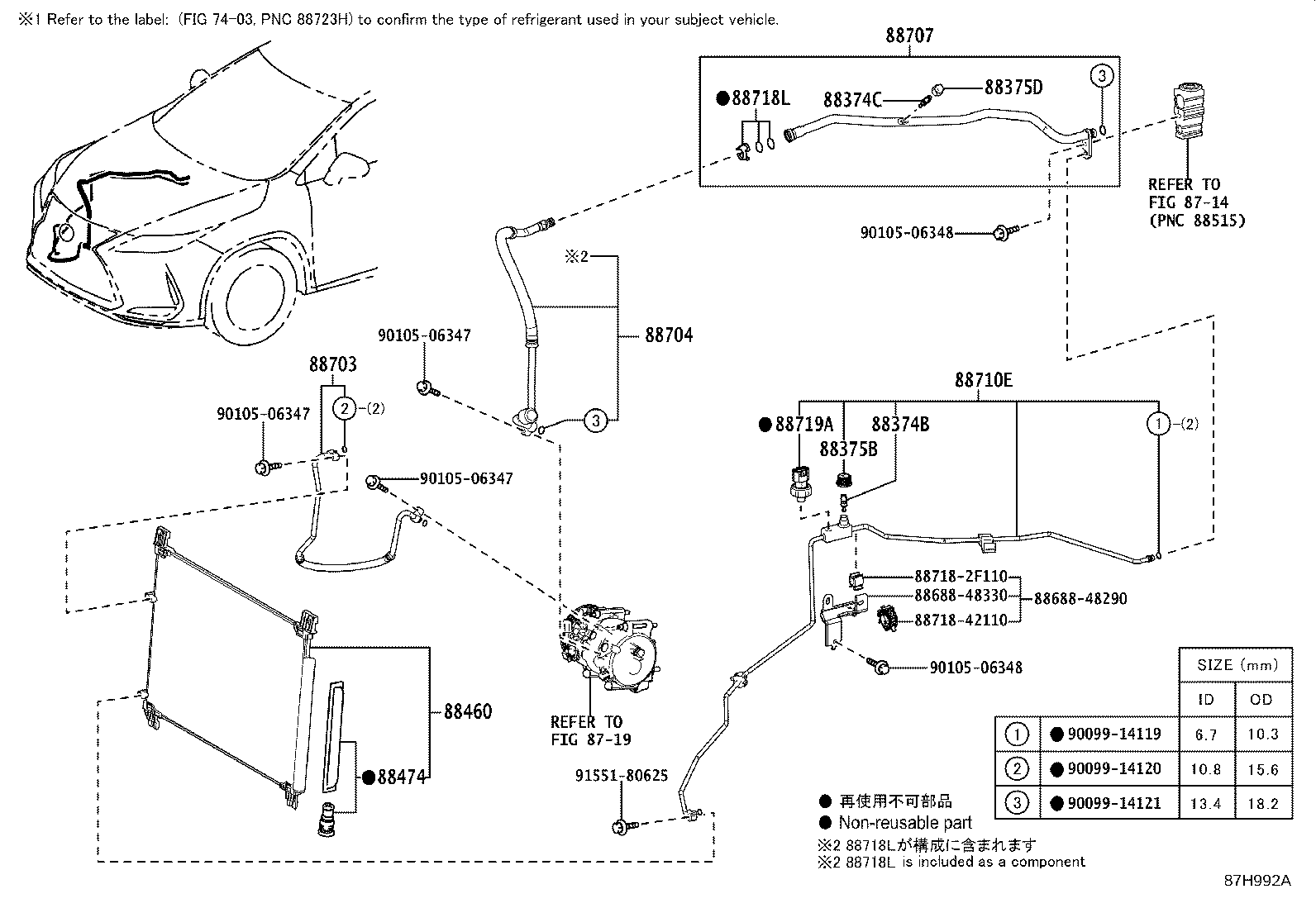

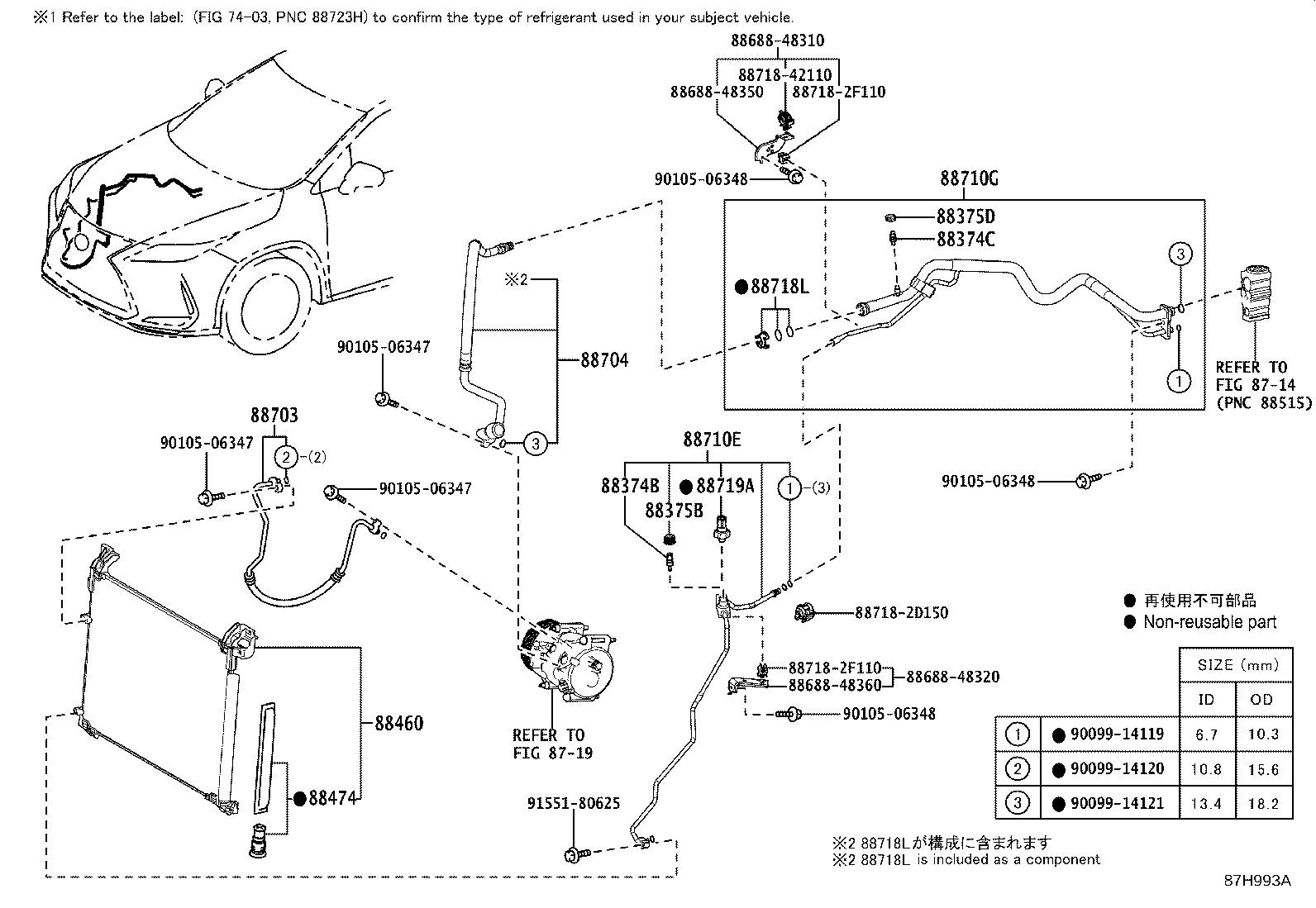

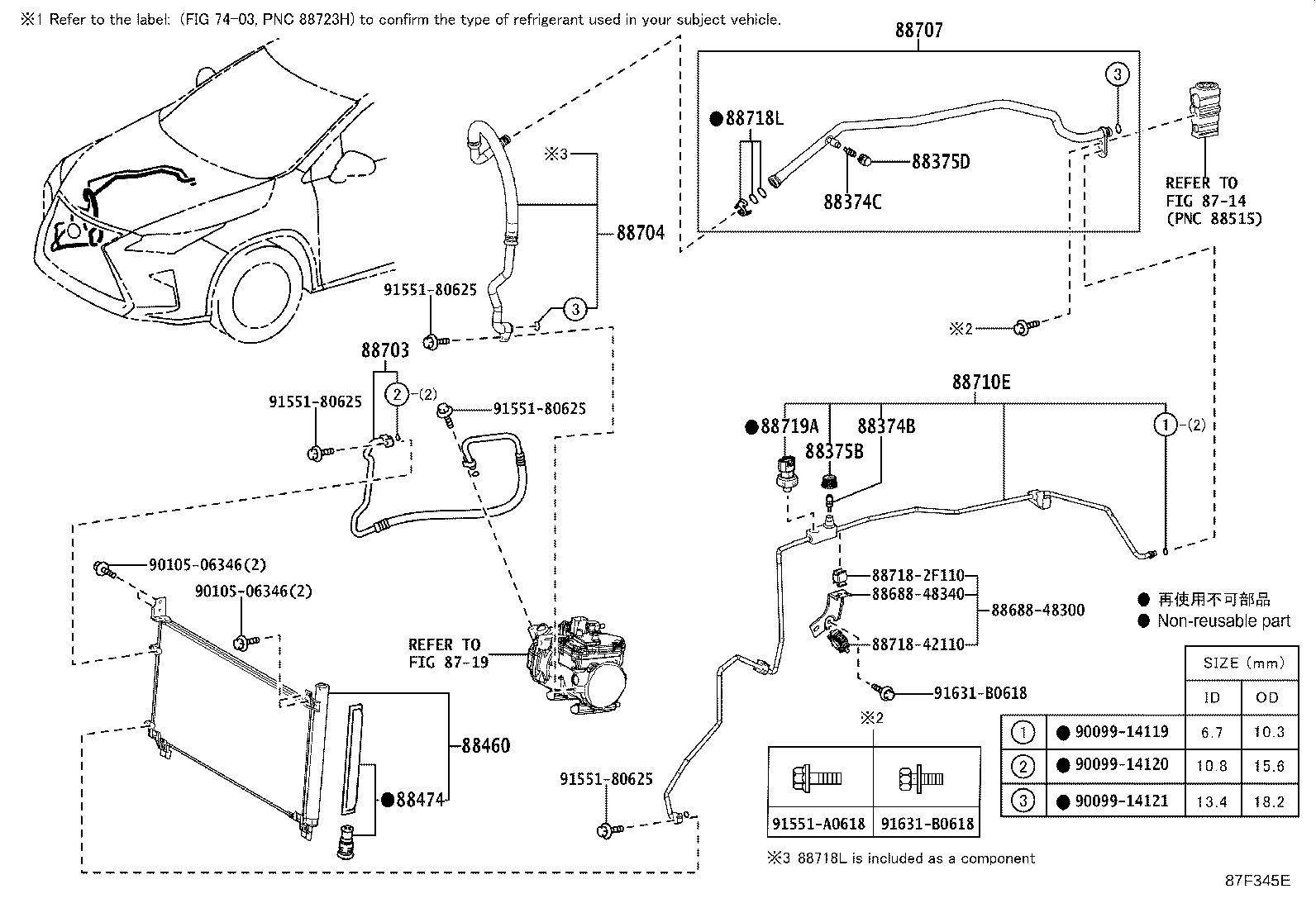

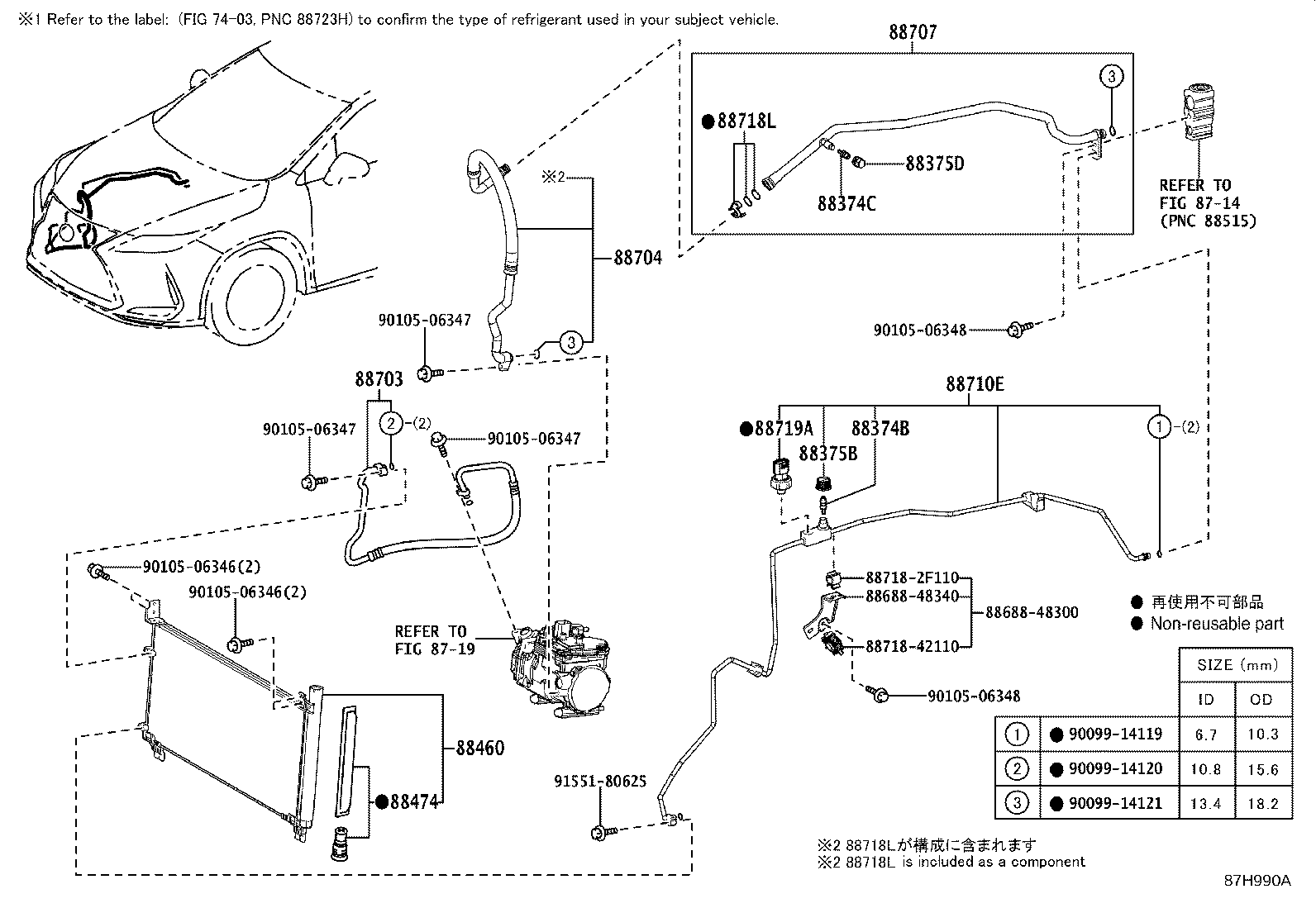

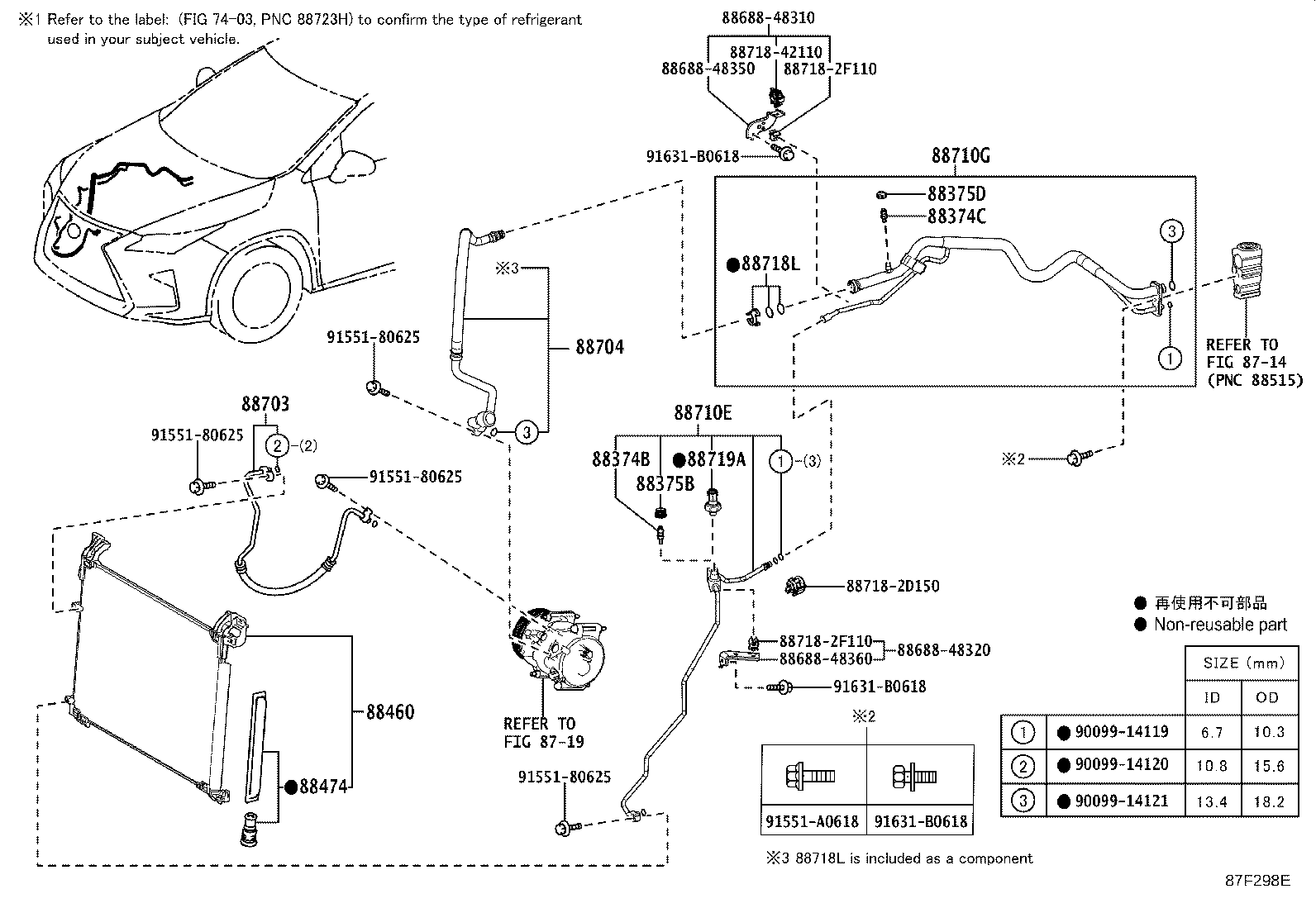

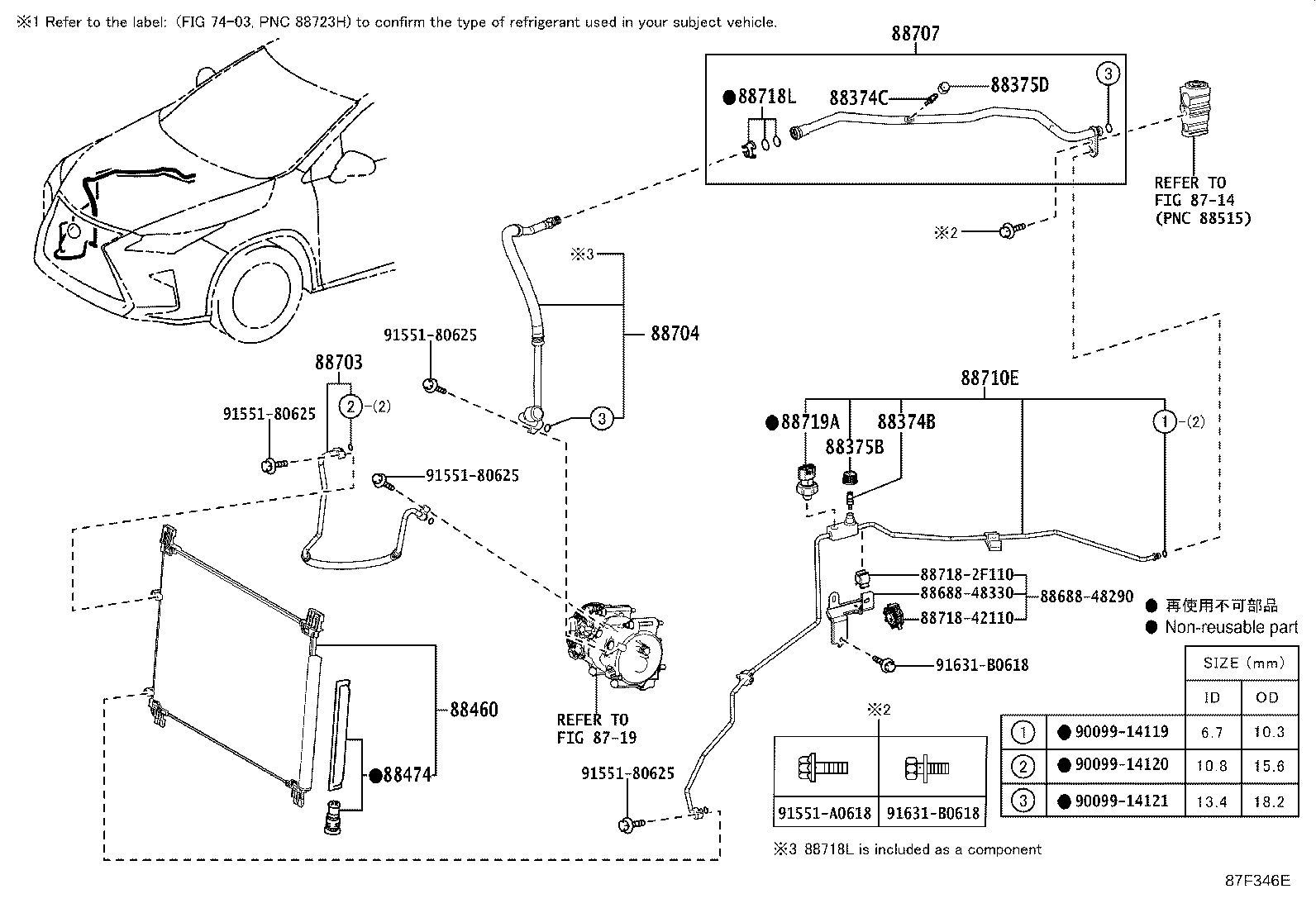

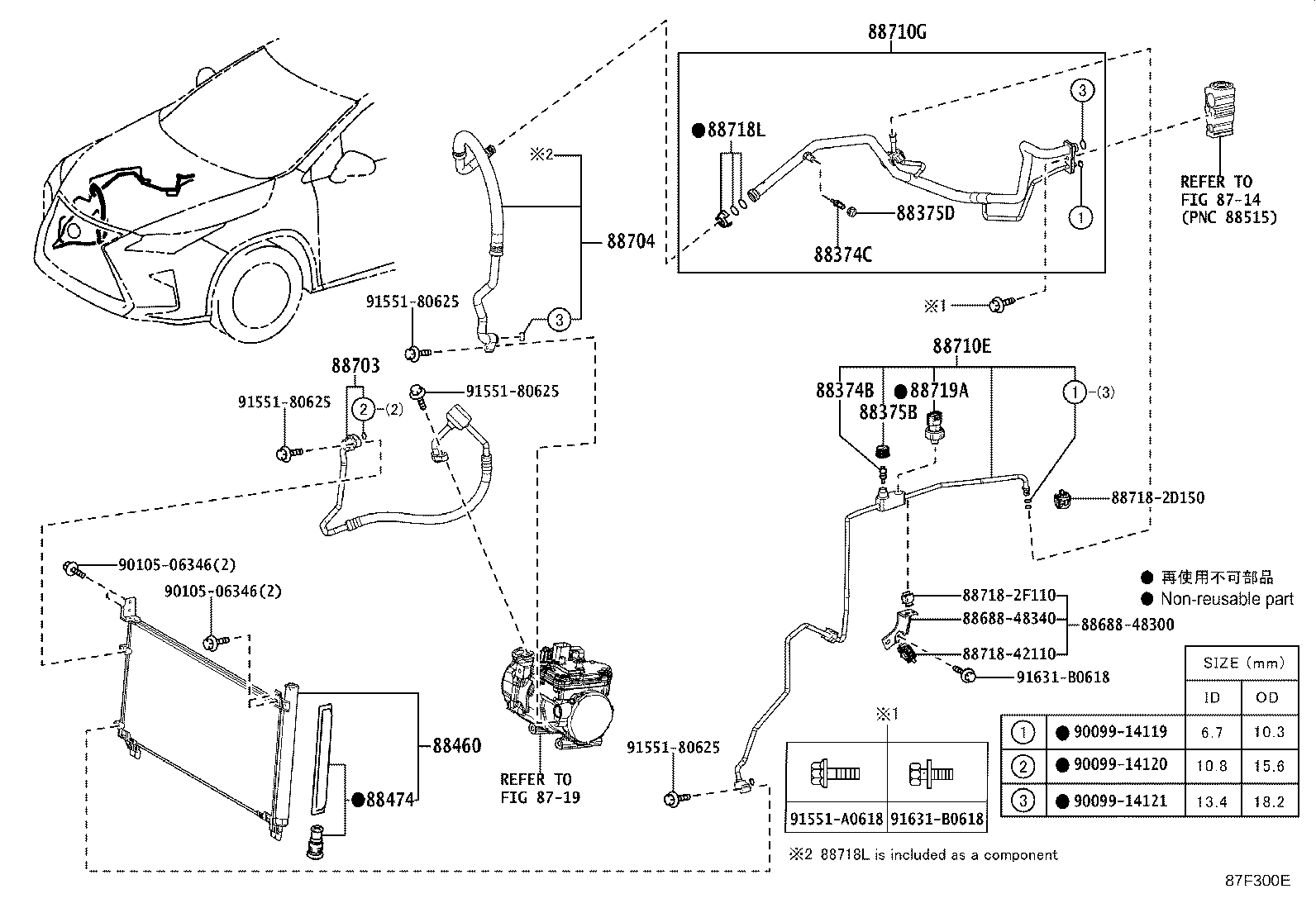

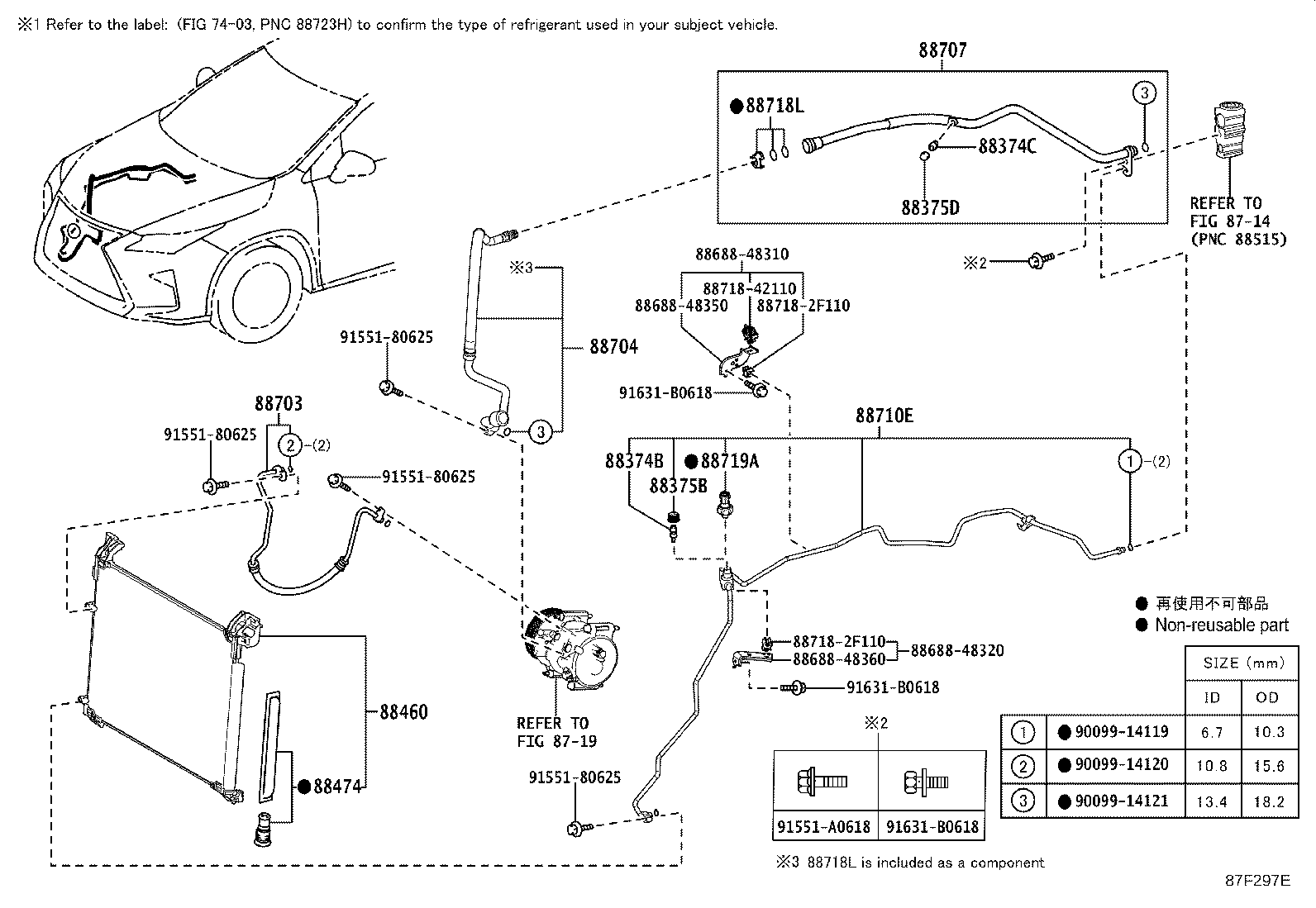

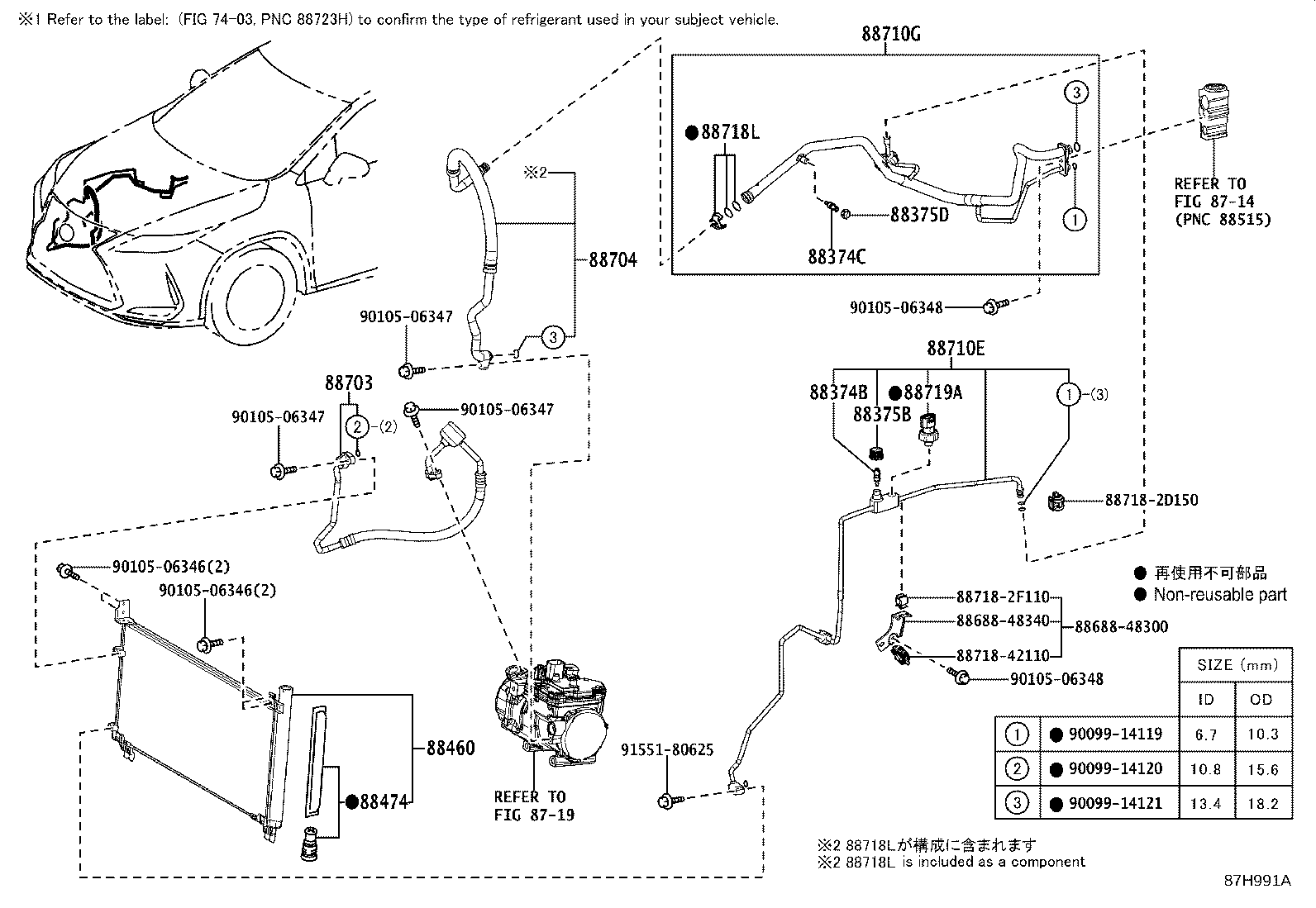

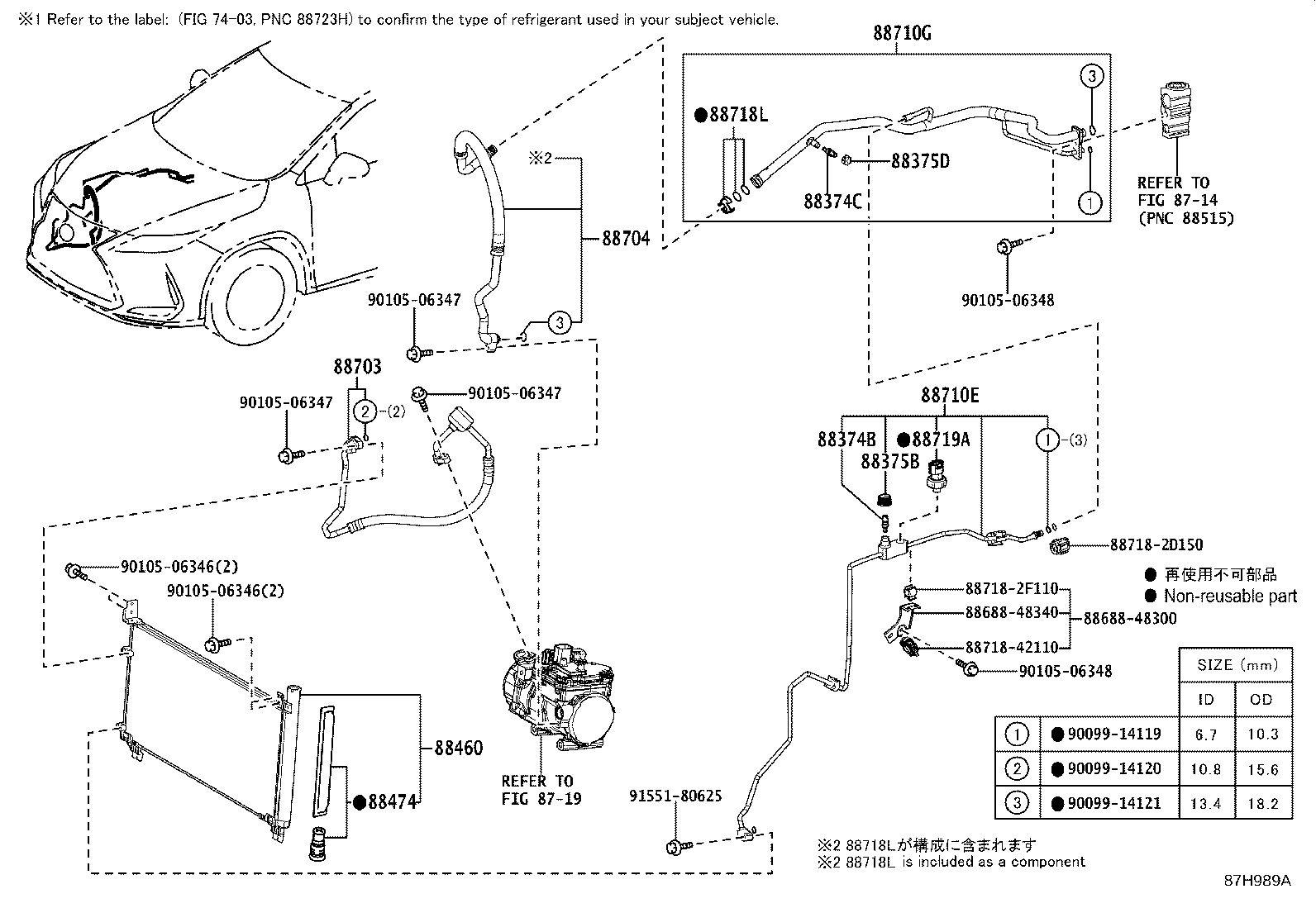

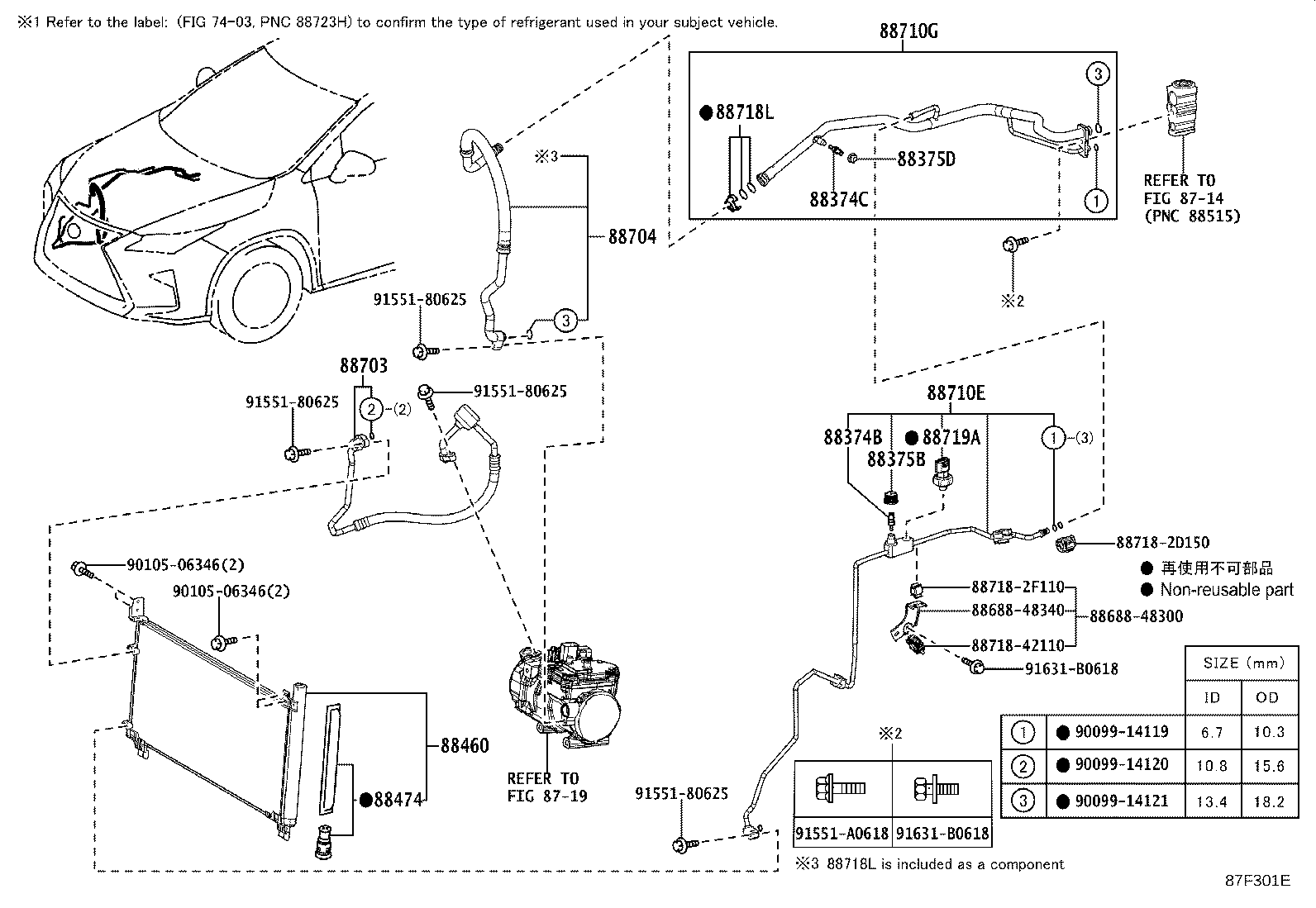

Figure 87F296E 87F296E 2015-09 → 2019-08 Figure 87F297E 87F297E 2015-09 → 2019-08 Figure 87H994A 87H994A 2019-08 → — Figure 87F298E 87F298E 2015-09 → 2019-08 Figure 87H993A 87H993A 2019-08 → — Figure 87F346E 87F346E 2015-09 → 2019-08 Figure 87F299E 87F299E 2015-09 → 2019-08 Figure 87H992A 87H992A 2019-08 → — Figure 87F300E 87F300E 2015-10 → 2019-08 Figure 87H991A 87H991A 2019-08 → — Figure 87F345E 87F345E 2015-10 → 2019-08 Figure 87H990A 87H990A 2019-08 → — Figure 87F301E 87F301E 2015-10 → 2019-08 Figure 87H989A 87H989A 2019-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
