Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL25,GYL25 · catalogue 521550 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 8 illustrations

Illustrations

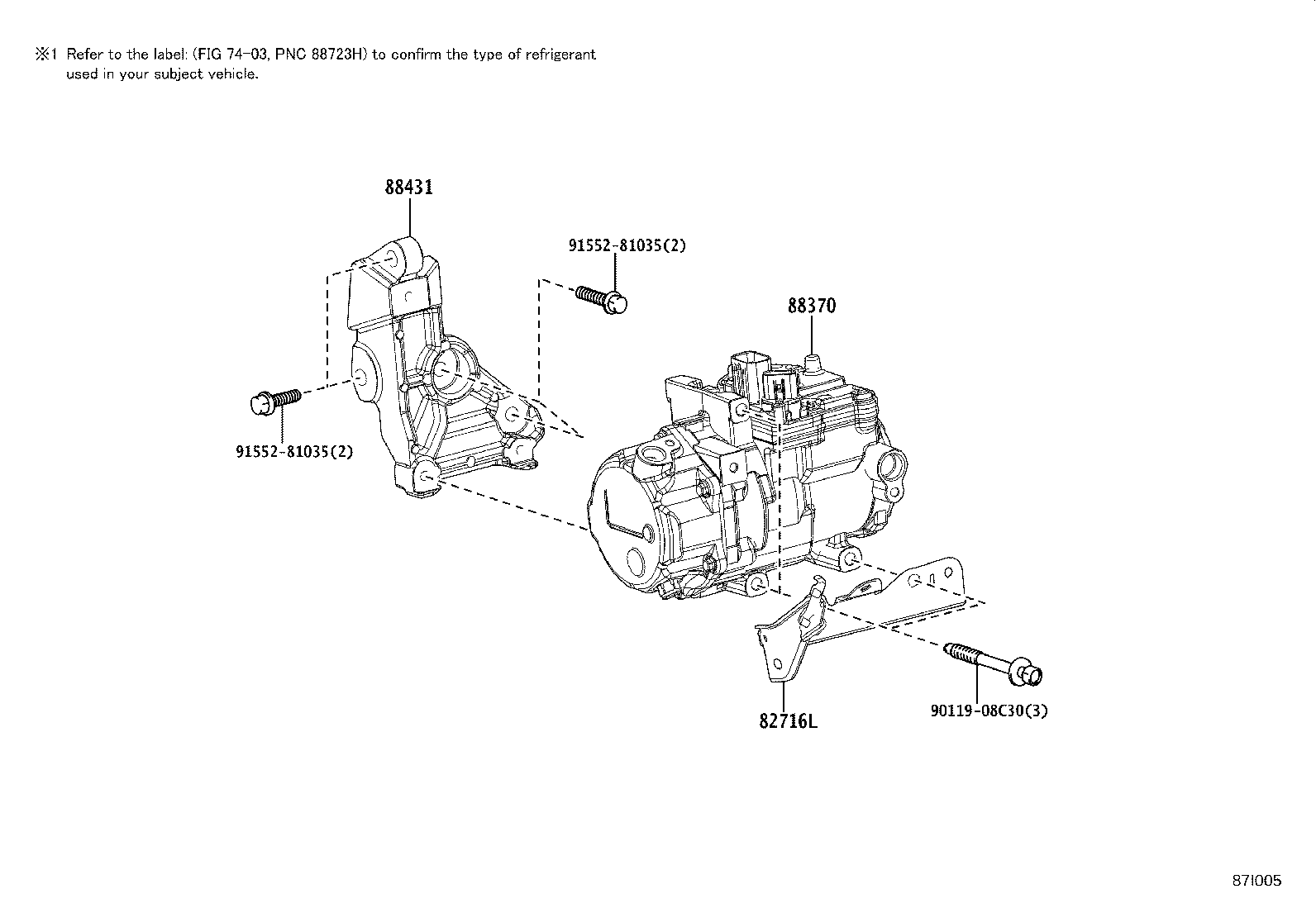

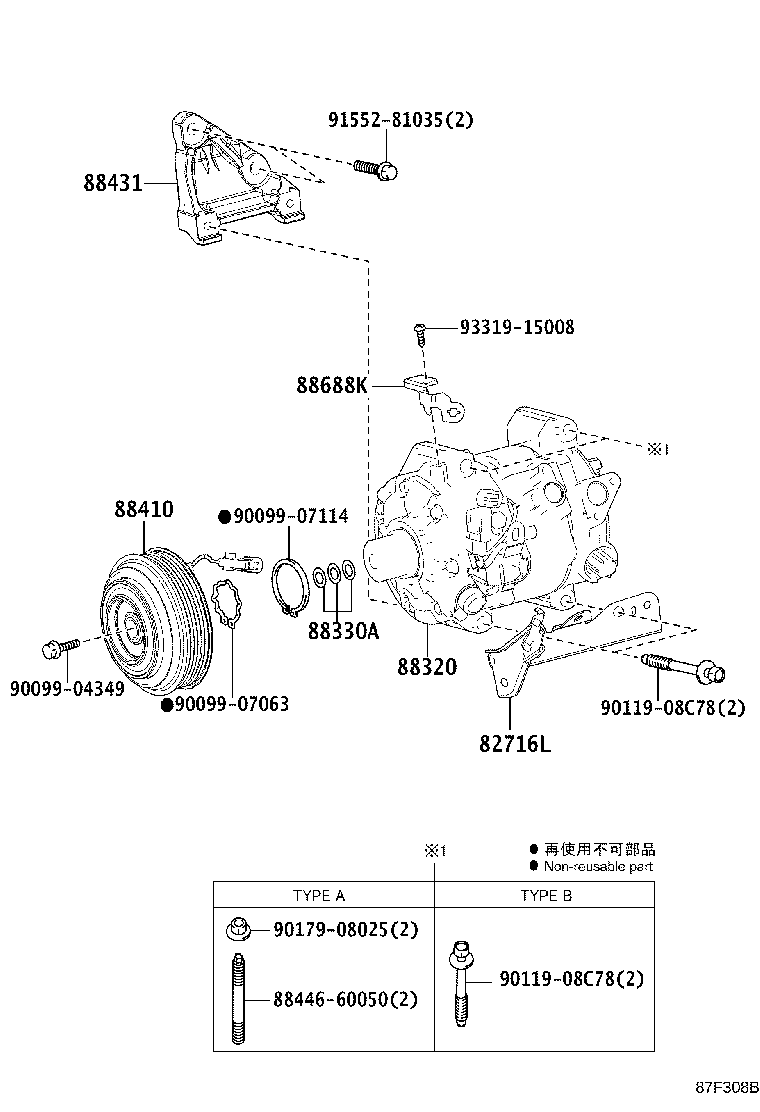

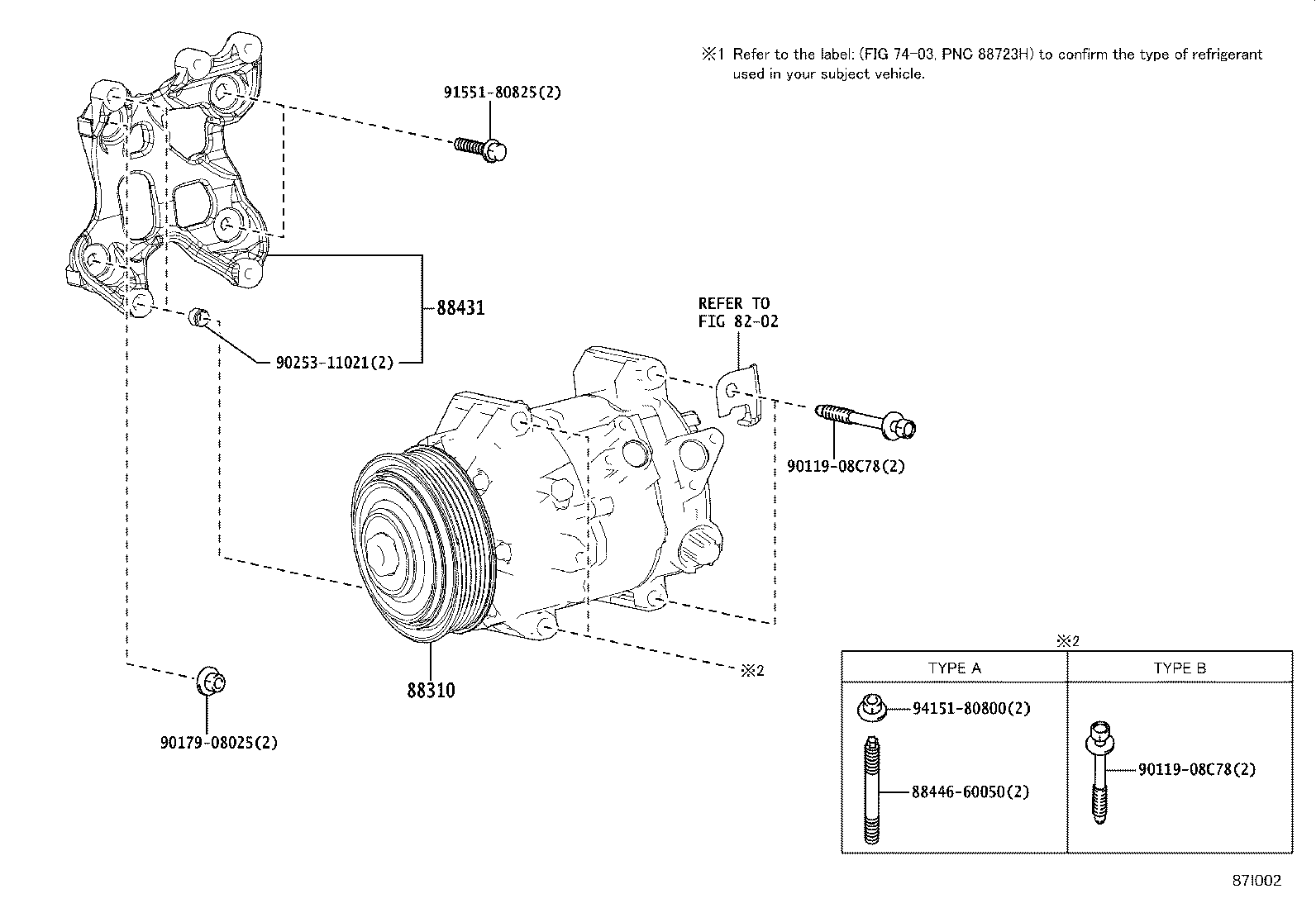

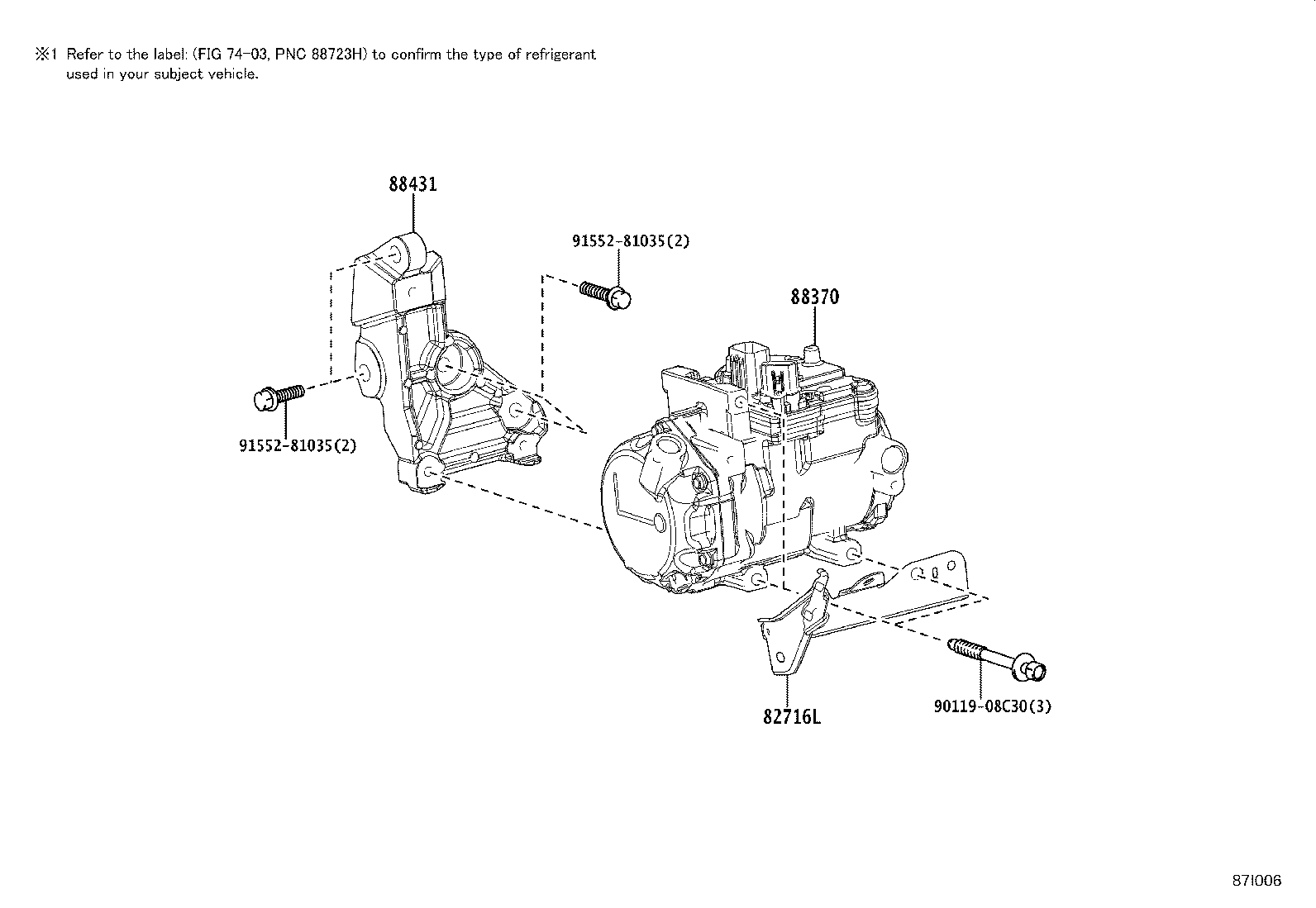

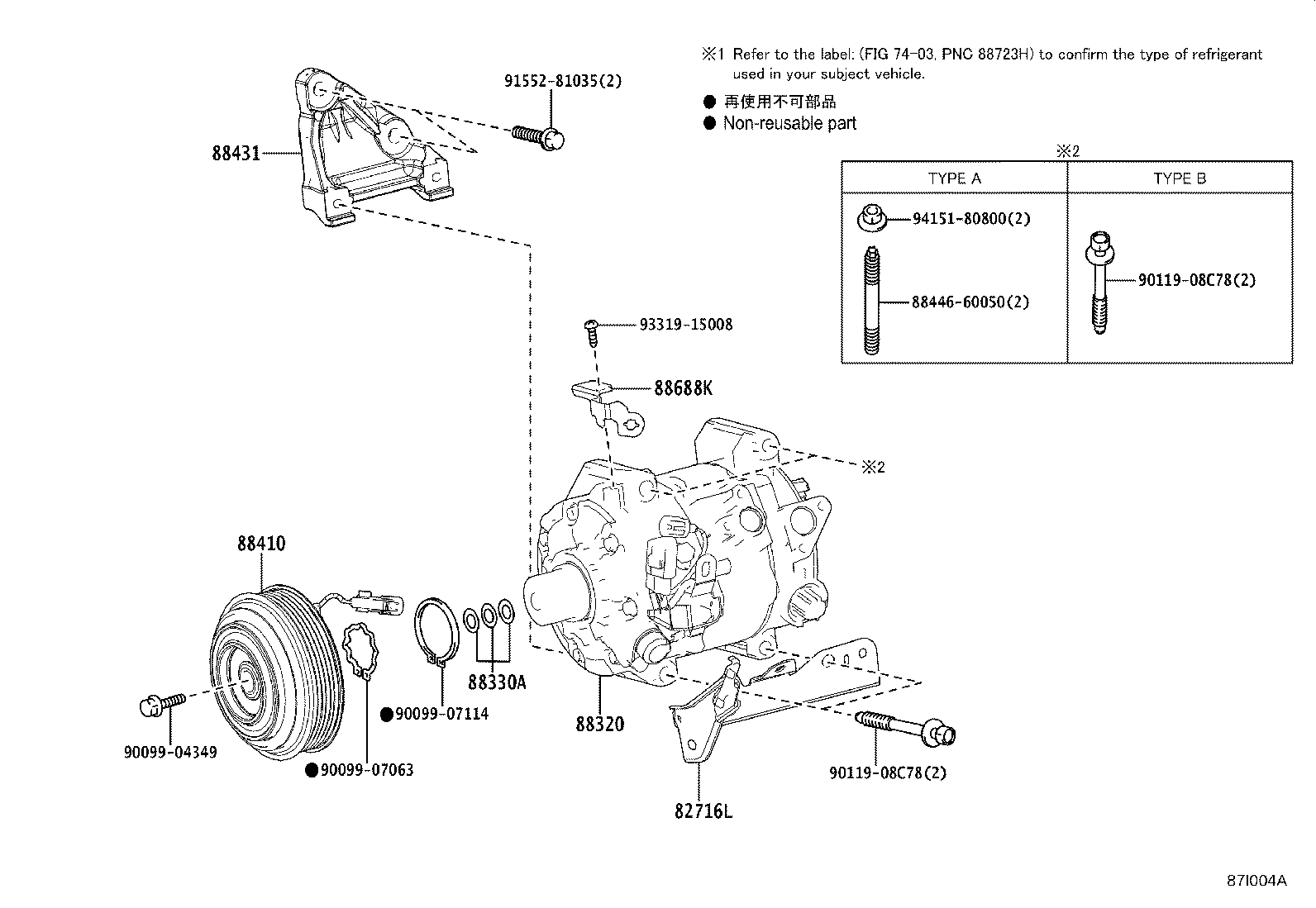

Figure 87F307 87F307 2015-09 → 2019-08 Figure 87I002 87I002 2019-08 → — Figure 87F308B 87F308B 2015-09 → 2019-08 Figure 87I004A 87I004A 2019-08 → — Figure 87F347A 87F347A 2015-10 → 2019-08 Figure 87I006 87I006 2019-08 → — Figure 87F348A 87F348A 2015-10 → 2019-08 Figure 87I005 87I005 2019-08 → —

Part groups

PNCDescription
82716L Bracket, Wiring Harness Clamp
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
