Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

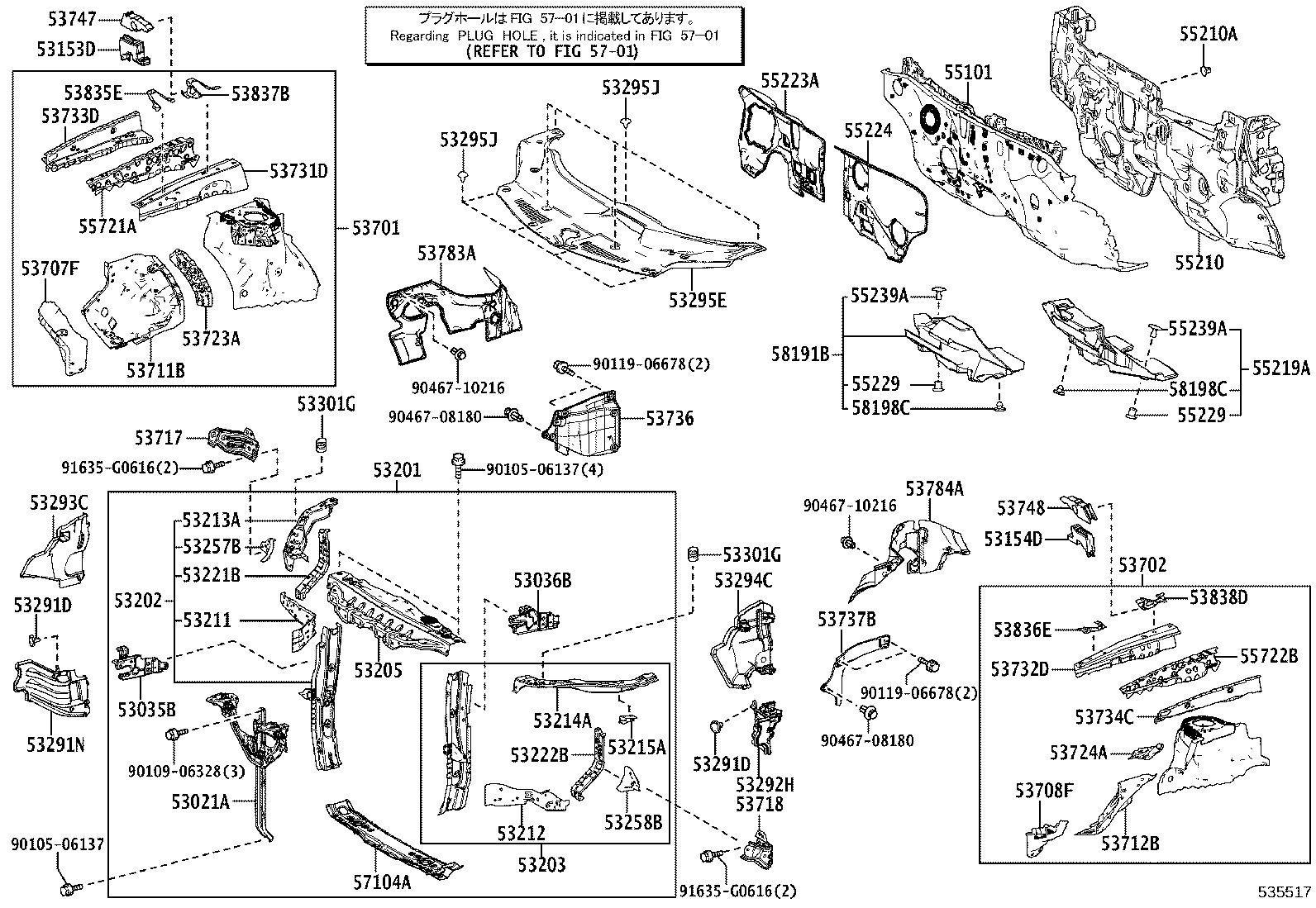

Exploded illustration 535517 53021A — MOULDING SUB-ASSY, RADIATOR GRILLE (2 parts) 53035B — BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH (2 parts) 53036B — BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH (2 parts) 53153D — GUIDE, RADIATOR GRILLE SIDE AIR, RH (2 parts) 53154D — GUIDE, RADIATOR GRILLE SIDE AIR, LH (2 parts) 53201 — SUPPORT SUB-ASSY, RADIATOR (2 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (2 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (2 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53212 — SUPPORT, RADIATOR, LH (2 parts) 53213A — SUPPORT, RADIATOR, UPPER RH (2 parts) 53214A — SUPPORT, RADIATOR, UPPER LH (2 parts) 53215A — EXTENSION, RADIATOR SUPPORT, UPPER (2 parts) 53221B — BRACE, RADIATOR SUPPORT APRON, RH (2 parts) 53222B — BRACE, RADIATOR SUPPORT APRON, LH (2 parts) 53258B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH (2 parts) 53291D — CLIP, RADIATOR SUPPORT TO FRAME (2 parts) 53291D — CLIP, RADIATOR SUPPORT TO FRAME (2 parts) 53291N — SEAL, RADIATOR SUPPORT TO FRAME, RH (2 parts) 53292H — SEAL, RADIATOR SUPPORT TO FRAME, LH (2 parts) 53293C — DEFLECTOR, RADIATOR SIDE, RH (2 parts) 53294C — DEFLECTOR, RADIATOR SIDE, LH (4 parts) 53295E — SEAL, COOL AIR INTAKE DUCT (2 parts) 53295J — CLIP, COOL AIR INTAKE DUCT SEAL (2 parts) 53295J — CLIP, COOL AIR INTAKE DUCT SEAL (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (2 parts) 53707F — GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH (2 parts) 53708F — GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH (2 parts) 53711B — APRON, FRONT FENDER, FRONT RH (2 parts) 53712B — APRON, FRONT FENDER, FRONT LH (2 parts) 53717 — PLATE, FENDER APRON, RH (2 parts) 53718 — PLATE, FENDER APRON, LH (2 parts) 53723A — REINFORCEMENT, FRONT SPRING SUPPORT, RH (2 parts) 53724A — REINFORCEMENT, FRONT SPRING SUPPORT, LH (2 parts) 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (2 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (2 parts) 53733D — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH (2 parts) 53734C — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH (2 parts) 53736 — SEAL, FRONT FENDER APRON, RH (2 parts) 53837B — BRACKET, FRONT SIDE PANEL, NO.2 (2 parts) 53747 — PLATE, AIR SEALED, RH (2 parts) 53748 — PLATE, AIR SEALED, LH (2 parts) 53783A — INSULATOR, APRON FRONT FENDER, RH (2 parts) 53784A — INSULATOR, APRON FRONT FENDER, LH (2 parts) 53835E — BRACE, FRONT FENDER TO APRON, RH (2 parts) 53836E — BRACE, FRONT FENDER TO APRON, LH (2 parts) 53737B — SEAL, FRONT FENDER APRON, LH (4 parts) 53838D — BRACKET, FRONT SIDE PANEL, NO.2 LH (2 parts) 55101 — PANEL SUB-ASSY, DASH (6 parts) 55210 — INSULATOR ASSY, DASH PANEL (6 parts) 55210A — CLIP (2 parts) 55219A — PACKING, DASH PANEL HOLE COVER (4 parts) 55223A — INSULATOR, DASH PANEL, OUTER (4 parts) 55224 — INSULATOR, DASH PANEL, OUTER LH (4 parts) 55229 — PLATE, DASH PANEL INSULATOR, NO.4 (2 parts) 55229 — PLATE, DASH PANEL INSULATOR, NO.4 (2 parts) 55239A — PLATE, DASH PANEL INSULATOR, NO.3 (2 parts) 55239A — PLATE, DASH PANEL INSULATOR, NO.3 (2 parts) 55721A — BRACE, COWL TOP TO COWL, INNER NO.1 (2 parts) 55722B — BRACE, COWL TOP TO COWL, INNER NO.2 (2 parts) 57104A — MEMBER SUB-ASSY, FRONT CROSS (2 parts) 58191B — FOOTREST, FRONT FLOOR (4 parts) 58198C — CLIP, DASH PANEL INSULATOR PAD (4 parts) 58198C — CLIP, DASH PANEL INSULATOR PAD (4 parts) 9010506137 — not listed in this catalogue 9010506137 — not listed in this catalogue 9010906328 — not listed in this catalogue 9011906678 — not listed in this catalogue 9011906678 — not listed in this catalogue 9046708180 — not listed in this catalogue 9046708180 — not listed in this catalogue 9046710216 — not listed in this catalogue 9046710216 — not listed in this catalogue 91635G0616 — not listed in this catalogue 91635G0616 — not listed in this catalogue 53211 — SUPPORT, RADIATOR, RH (2 parts) 5701 — not listed in this catalogue 53257B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER (2 parts)
535517 · 69 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
148 parts on this figure
Part number Description Fitment Price
53021A — Moulding Sub-assy, Radiator Grille
53021-48010 Moulding Sub-assy, Radiator Grille
2017-12 → 2019-08 ended
GGL26,GYL26 —
53021-48010 Moulding Sub-assy, Radiator Grille
2019-08 → —
GGL26,GYL26 —
53035B — Bracket Sub-assy, Headlamp Mounting, RH
53035-48010 Bracket Sub-assy, Headlamp Mounting, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53035-48020 Bracket Sub-assy, Headlamp Mounting, RH
2019-08 → —
GGL26,GYL26 —
53036B — Bracket Sub-assy, Headlamp Mounting, LH
53036-48010 Bracket Sub-assy, Headlamp Mounting, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53036-48020 Bracket Sub-assy, Headlamp Mounting, LH
2019-08 → —
GGL26,GYL26 —
53153D — Guide, Radiator Grille Side Air, RH
53153-48030 Guide, Radiator Grille Side Air, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53153-48030 Guide, Radiator Grille Side Air, RH
2019-08 → —
GGL26,GYL26 —
53154D — Guide, Radiator Grille Side Air, LH
53154-48030 Guide, Radiator Grille Side Air, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53154-48030 Guide, Radiator Grille Side Air, LH
2019-08 → —
GGL26,GYL26 —
53201 — Support Sub-assy, Radiator
53201-48160 Support Sub-assy, Radiator
2017-12 → 2019-08 ended
GGL26,GYL26 —
53201-48180 Support Sub-assy, Radiator
2019-08 → —
GGL26,GYL26 —
53202 — Support Sub-assy, Radiator, RH
53202-48100 Support Sub-assy, Radiator, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53202-48100 Support Sub-assy, Radiator, RH
2019-08 → —
GGL26,GYL26 —
53203 — Support Sub-assy, Radiator, LH
53203-48140 Support Sub-assy, Radiator, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53203-48140 Support Sub-assy, Radiator, LH
2019-08 → —
GGL26,GYL26 —
53205 — Support Sub-assy, Radiator, Upper
53205-48070 Support Sub-assy, Radiator, Upper
2017-12 → 2019-08 ended
GGL26,GYL26 —
53205-48070 Support Sub-assy, Radiator, Upper
2019-08 → —
GGL26,GYL26 —
53211 — Support, Radiator, RH
53211-48030 Support, Radiator, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53211-48030 Support, Radiator, RH
2019-08 → —
GGL26,GYL26 —
53212 — Support, Radiator, LH
53212-48050 Support, Radiator, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53212-48050 Support, Radiator, LH
2019-08 → —
GGL26,GYL26 —
53213A — Support, Radiator, Upper RH
53213-48090 Support, Radiator, Upper RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53213-48090 Support, Radiator, Upper RH
2019-08 → —
GGL26,GYL26 —
53214A — Support, Radiator, Upper LH
53214-48100 Support, Radiator, Upper LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53214-48100 Support, Radiator, Upper LH
2019-08 → —
GGL26,GYL26 —
53215A — Extension, Radiator Support, Upper
53215-48050 Extension, Radiator Support, Upper
2017-12 → 2019-08 ended
GGL26,GYL26 —
53215-48050 Extension, Radiator Support, Upper
2019-08 → —
GGL26,GYL26 —
53221B — Brace, Radiator Support Apron, RH
53221-48030 Brace, Radiator Support Apron, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53221-48030 Brace, Radiator Support Apron, RH
2019-08 → —
GGL26,GYL26 —
53222B — Brace, Radiator Support Apron, LH
53222-48030 Brace, Radiator Support Apron, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53222-48030 Brace, Radiator Support Apron, LH
2019-08 → —
GGL26,GYL26 —
53257B — Bracket, Radiator Support TO Front Fender
53257-48070 Bracket, Radiator Support TO Front Fender
2017-12 → 2019-08 ended
GGL26,GYL26 —
53257-48070 Bracket, Radiator Support TO Front Fender
2019-08 → —
GGL26,GYL26 —
53258B — Bracket, Radiator Support TO Front Fender, LH
53258-48070 Bracket, Radiator Support TO Front Fender, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53258-48070 Bracket, Radiator Support TO Front Fender, LH
2019-08 → —
GGL26,GYL26 —
53291D — Clip, Radiator Support TO Frame
90467-07220 Clip, Radiator Support TO Frame
2017-12 → 2019-08 ended
GGL26,GYL26 —
90467-07220 Clip, Radiator Support TO Frame
2019-08 → —
GGL26,GYL26 —
53291N — Seal, Radiator Support TO Frame, RH
53291-48020 Seal, Radiator Support TO Frame, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53291-48040 Seal, Radiator Support TO Frame, RH
2019-08 → —
GGL26,GYL26 —
53292H — Seal, Radiator Support TO Frame, LH
53292-48010 Seal, Radiator Support TO Frame, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53292-48030 Seal, Radiator Support TO Frame, LH
2019-08 → —
GGL26,GYL26 —
53293C — Deflector, Radiator Side, RH
53293-48140 Deflector, Radiator Side, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53293-48160 Deflector, Radiator Side, RH
2019-08 → —
GGL26,GYL26 —
53294C — Deflector, Radiator Side, LH
53294-48130 Deflector, Radiator Side, LH
2017-12 → 2019-08 ended
GGL26 —
53294-48140 Deflector, Radiator Side, LH
2018-03 → 2019-08 ended
GYL26 —
53294-48150 Deflector, Radiator Side, LH
2019-08 → —
GGL26 —
53294-48160 Deflector, Radiator Side, LH
2019-08 → —
GYL26 —
53295E — Seal, Cool Air Intake Duct
53295-48060 Seal, Cool Air Intake Duct
2017-12 → 2019-08 ended
GGL26,GYL26 —
53295-48061 Seal, Cool Air Intake Duct
2019-08 → —
GGL26,GYL26 —
53295J — Clip, Cool Air Intake Duct Seal
90467-07217 Clip, Cool Air Intake Duct Seal
2017-12 → 2019-08 ended
GGL26,GYL26 —
90467-07217 Clip, Cool Air Intake Duct Seal
2019-08 → —
GGL26,GYL26 —
53301G — Cushion, Hood Bumper
90541-15004 Cushion, Hood Bumper
2017-12 → 2019-08 ended
GGL26,GYL26 —
90541-15004 Cushion, Hood Bumper
2019-08 → —
GGL26,GYL26 —
53701 — Apron Sub-assy, Front Fender, RH
53701-48100 Apron Sub-assy, Front Fender, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53701-48110 Apron Sub-assy, Front Fender, RH
2019-08 → —
GGL26,GYL26 —
53702 — Apron Sub-assy, Front Fender, LH
53702-48070 Apron Sub-assy, Front Fender, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53702-48070 Apron Sub-assy, Front Fender, LH
2019-08 → —
GGL26,GYL26 —
53707F — Gusset Sub-assy, Front Fender Apron, Lower RH
53707-48020 Gusset Sub-assy, Front Fender Apron, Lower RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53707-48030 Gusset Sub-assy, Front Fender Apron, Lower RH
2019-08 → —
GGL26,GYL26 —
53708F — Gusset Sub-assy, Front Fender Apron, Lower LH
53708-48010 Gusset Sub-assy, Front Fender Apron, Lower LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53708-48010 Gusset Sub-assy, Front Fender Apron, Lower LH
2019-08 → —
GGL26,GYL26 —
53711B — Apron, Front Fender, Front RH
53711-48050 Apron, Front Fender, Front RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53711-48050 Apron, Front Fender, Front RH
2019-08 → —
GGL26,GYL26 —
53712B — Apron, Front Fender, Front LH
53712-48040 Apron, Front Fender, Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53712-48040 Apron, Front Fender, Front LH
2019-08 → —
GGL26,GYL26 —
53717 — Plate, Fender Apron, RH
53717-48070 Plate, Fender Apron, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53717-48070 Plate, Fender Apron, RH
2019-08 → —
GGL26,GYL26 —
53718 — Plate, Fender Apron, LH
53718-48070 Plate, Fender Apron, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53718-48070 Plate, Fender Apron, LH
2019-08 → —
GGL26,GYL26 —
53723A — Reinforcement, Front Spring Support, RH
53723-48010 Reinforcement, Front Spring Support, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53723-48010 Reinforcement, Front Spring Support, RH
2019-08 → —
GGL26,GYL26 —
53724A — Reinforcement, Front Spring Support, LH
53724-48010 Reinforcement, Front Spring Support, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53724-48010 Reinforcement, Front Spring Support, LH
2019-08 → —
GGL26,GYL26 —
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-48050 Member, Front Apron TO Cowl Side, Upper RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53731-48050 Member, Front Apron TO Cowl Side, Upper RH
2019-08 → —
GGL26,GYL26 —
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-48040 Member, Front Apron TO Cowl Side, Upper LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53732-48040 Member, Front Apron TO Cowl Side, Upper LH
2019-08 → —
GGL26,GYL26 —
53733D — Member, Front Apron TO Cowl Side, Lower Front RH
53733-48040 Member, Front Apron TO Cowl Side, Lower Front RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53733-48040 Member, Front Apron TO Cowl Side, Lower Front RH
2019-08 → —
GGL26,GYL26 —
53734C — Member, Front Apron TO Cowl Side, Lower Front LH
53734-48050 Member, Front Apron TO Cowl Side, Lower Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53734-48050 Member, Front Apron TO Cowl Side, Lower Front LH
2019-08 → —
GGL26,GYL26 —
53736 — Seal, Front Fender Apron, RH
53736-48030 Seal, Front Fender Apron, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53736-48030 Seal, Front Fender Apron, RH
2019-08 → —
GGL26,GYL26 —
53737B — Seal, Front Fender Apron, LH
53737-33020 Seal, Front Fender Apron, LH
2017-12 → 2019-08 ended
GGL26 —
53737-48060 Seal, Front Fender Apron, LH
2018-03 → 2019-08 ended
GYL26 —
53737-33020 Seal, Front Fender Apron, LH
2019-08 → —
GGL26 —
53737-48060 Seal, Front Fender Apron, LH
2019-08 → —
GYL26 —
53747 — Plate, Air Sealed, RH
53747-48020 Plate, Air Sealed, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53747-48020 Plate, Air Sealed, RH
2019-08 → —
GGL26,GYL26 —
53748 — Plate, Air Sealed, LH
53748-48020 Plate, Air Sealed, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53748-48020 Plate, Air Sealed, LH
2019-08 → —
GGL26,GYL26 —
53783A — Insulator, Apron Front Fender, RH
53783-48020 Insulator, Apron Front Fender, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53783-48020 Insulator, Apron Front Fender, RH
2019-08 → —
GGL26,GYL26 —
53784A — Insulator, Apron Front Fender, LH
53784-48020 Insulator, Apron Front Fender, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53784-48020 Insulator, Apron Front Fender, LH
2019-08 → —
GGL26,GYL26 —
53835E — Brace, Front Fender TO Apron, RH
53835-48060 Brace, Front Fender TO Apron, RH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53835-48060 Brace, Front Fender TO Apron, RH
2019-08 → —
GGL26,GYL26 —
53836E — Brace, Front Fender TO Apron, LH
53836-48050 Brace, Front Fender TO Apron, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53836-48050 Brace, Front Fender TO Apron, LH
2019-08 → —
GGL26,GYL26 —
53837B — Bracket, Front Side Panel, NO.2
53837-48040 Bracket, Front Side Panel, NO.2
2017-12 → 2019-08 ended
GGL26,GYL26 —
53837-48040 Bracket, Front Side Panel, NO.2
2019-08 → —
GGL26,GYL26 —
53838D — Bracket, Front Side Panel, NO.2 LH
53838-48040 Bracket, Front Side Panel, NO.2 LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
53838-48040 Bracket, Front Side Panel, NO.2 LH
2019-08 → —
GGL26,GYL26 —
55101 — Panel Sub-assy, Dash
55101-48182 Panel Sub-assy, Dash
2017-12 → 2019-08 ended
GGL26 —
55101-48192 Panel Sub-assy, Dash
2018-03 → 2019-08 ended
GYL26 LHD —
55101-48222 Panel Sub-assy, Dash
2018-03 → 2019-08 ended
GYL26 RHD —
55101-48182 Panel Sub-assy, Dash
2019-08 → —
GGL26 —
55101-48192 Panel Sub-assy, Dash
2019-08 → —
GYL26 LHD —
55101-48222 Panel Sub-assy, Dash
2019-08 → —
GYL26 RHD —
55210 — Insulator Assy, Dash Panel
55210-48191 Insulator Assy, Dash Panel
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
55210-48200 Insulator Assy, Dash Panel
2018-03 → 2019-08 ended
GYL26 RHD —
55210-48191 Insulator Assy, Dash Panel
2019-08 → 2020-01 ended
GGL26,GYL26 LHD —
55210-48191 Insulator Assy, Dash Panel
2020-07 → —
GGL26,GYL26 LHD —
55210-48200 Insulator Assy, Dash Panel
2019-08 → —
GYL26 RHD —
55210-48240 Insulator Assy, Dash Panel
2020-02 → 2020-06 ended
GGL26,GYL26 LHD —
55210A — Clip
90467-06197 Clip
2017-12 → 2019-08 ended
GGL26,GYL26 —
90467-06197 Clip
2019-08 → —
GGL26,GYL26 —
55219A — Packing, Dash Panel Hole Cover
55219-48030 Packing, Dash Panel Hole Cover
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
55219-48040 Packing, Dash Panel Hole Cover
2018-03 → 2019-08 ended
GYL26 RHD —
55219-48030 Packing, Dash Panel Hole Cover
2019-08 → —
GGL26,GYL26 LHD —
55219-48040 Packing, Dash Panel Hole Cover
2019-08 → —
GYL26 RHD —
55223A — Insulator, Dash Panel, Outer
55223-48201 Insulator, Dash Panel, Outer
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
55223-48210 Insulator, Dash Panel, Outer
2018-03 → 2019-08 ended
GYL26 RHD —
55223-48201 Insulator, Dash Panel, Outer
2019-08 → —
GGL26,GYL26 LHD —
55223-48210 Insulator, Dash Panel, Outer
2019-08 → —
GYL26 RHD —
55224 — Insulator, Dash Panel, Outer LH
55224-48012 Insulator, Dash Panel, Outer LH
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
55224-48021 Insulator, Dash Panel, Outer LH
2018-03 → 2019-08 ended
GYL26 RHD —
55224-48012 Insulator, Dash Panel, Outer LH
2019-08 → —
GGL26,GYL26 LHD —
55224-48021 Insulator, Dash Panel, Outer LH
2019-08 → —
GYL26 RHD —
55229 — Plate, Dash Panel Insulator, NO.4
55229-48020 Plate, Dash Panel Insulator, NO.4
2017-12 → 2019-08 ended
GGL26,GYL26 —
55229-48020 Plate, Dash Panel Insulator, NO.4
2019-08 → —
GGL26,GYL26 —
55239A — Plate, Dash Panel Insulator, NO.3
55239-48020 Plate, Dash Panel Insulator, NO.3
2017-12 → 2019-08 ended
GGL26,GYL26 —
55239-48020 Plate, Dash Panel Insulator, NO.3
2019-08 → —
GGL26,GYL26 —
55721A — Brace, Cowl Top TO Cowl, Inner NO.1
55721-48030 Brace, Cowl Top TO Cowl, Inner NO.1
2017-12 → 2019-08 ended
GGL26,GYL26 —
55721-48030 Brace, Cowl Top TO Cowl, Inner NO.1
2019-08 → —
GGL26,GYL26 —
55722B — Brace, Cowl Top TO Cowl, Inner NO.2
55722-48050 Brace, Cowl Top TO Cowl, Inner NO.2
2017-12 → 2019-08 ended
GGL26,GYL26 —
55722-48050 Brace, Cowl Top TO Cowl, Inner NO.2
2019-08 → —
GGL26,GYL26 —
57104A — Member Sub-assy, Front Cross
57104-48060 Member Sub-assy, Front Cross
2017-12 → 2019-08 ended
GGL26,GYL26 —
57104-48060 Member Sub-assy, Front Cross
2019-08 → —
GGL26,GYL26 —
58191B — Footrest, Front Floor
58191-48140 Footrest, Front Floor
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
58191-48150 Footrest, Front Floor
2018-03 → 2019-08 ended
GYL26 RHD —
58191-48140 Footrest, Front Floor
2019-08 → —
GGL26,GYL26 LHD —
58191-48150 Footrest, Front Floor
2019-08 → —
GYL26 RHD —
58198C — Clip, Dash Panel Insulator Pad
58198-48040 Clip, Dash Panel Insulator Pad
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
58198-48040 Clip, Dash Panel Insulator Pad
2018-03 → 2019-08 ended
GYL26 RHD —
58198-48040 Clip, Dash Panel Insulator Pad
2019-08 → —
GGL26,GYL26 LHD —
58198-48040 Clip, Dash Panel Insulator Pad
2019-08 → —
GYL26 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
