Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

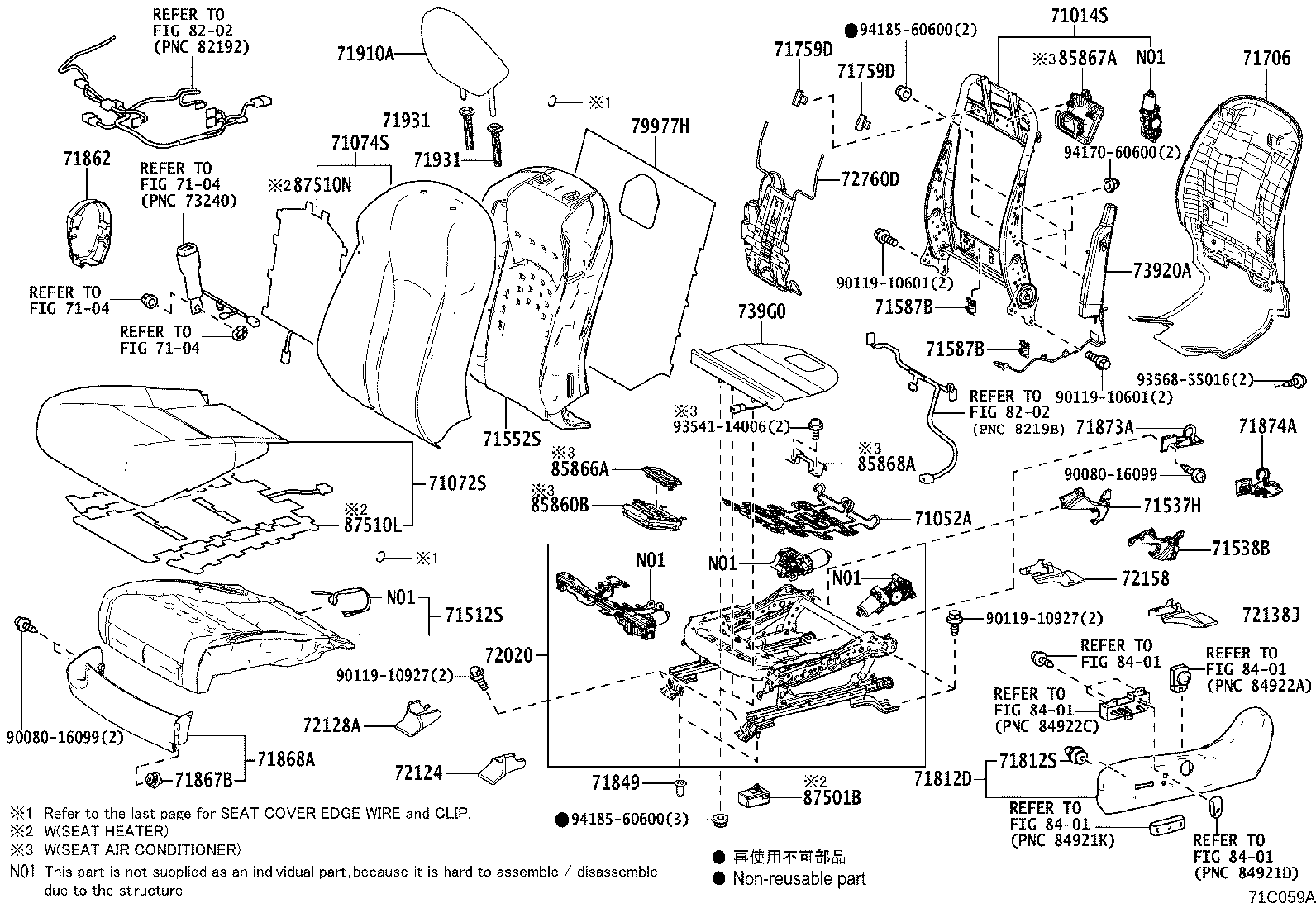

Exploded illustration 71C059A 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9417060600 — not listed in this catalogue 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71931 — SUPPORT, FRONT SEAT HEADREST (30 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (30 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (2 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (8 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (14 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (2 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (2 parts) 9011910927 — not listed in this catalogue 9011910927 — not listed in this catalogue 9356855016 — not listed in this catalogue 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 79977H — FELT, FRONT SEATBACK, LH (2 parts) 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (10 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (8 parts) 85868A — BRACKET, SEAT CUSHION CLIMATE CONTROL, LH (8 parts) 85866A — DUCT, SEAT CUSHION CLIMATE CONTROL, LH (8 parts) 85860B — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH (7 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (61 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (52 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (17 parts) 71537H — PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) (7 parts) 71538B — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) (7 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (19 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (15 parts) 71812S — CLIP, FRONT SEAT CUSHION SHIELD, LH (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (7 parts) 71867B — CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) (2 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (15 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (7 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (7 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (2 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (7 parts) 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (7 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (47 parts) 85867A — BLOWER, SEATBACK CLIMATE CONTROL, LH (7 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (5 parts) 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9354114006 — not listed in this catalogue 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (8 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (7 parts) 739G0 — AIRBAG ASSY, FRONT SEAT CUSHION, LH (3 parts) 9418560600 — not listed in this catalogue
71C059A · 40 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
424 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-48100 Frame Sub-assy, Front Seatback, LH
2018-03 → 2019-08 ended
GYL26 RHD —
71014-48110 Frame Sub-assy, Front Seatback, LH
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2018-03 → 2019-08 ended
GYL26 RHD —
71014-48100 Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 LHD —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 LHD —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 LHD —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 LHD —
71014-48110 note Frame Sub-assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-78010 Spring Sub-assy, Front Seat Cushion, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71051-78010 note Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 LHD —
71051-78020 Spring Sub-assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-48A40-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A40-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A40-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A40-F3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A41-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A41-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A41-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A41-F3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A60-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A60-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A60-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A60-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A60-F3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2018-06 ended
GGL26,GYL26 —
71072-48A61-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A61-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A61-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A61-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48A61-F3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-07 → 2019-08 ended
GGL26,GYL26 —
71072-48B80-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48B80-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48B80-C6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71072-48C10-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71072-48C10-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 LHD —
71072-48C10-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48C10-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48C10-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71072-48C10-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 LHD —
71072-48C10-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71072-48C10-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C10-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71072-48C30-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-A7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48C30-B4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71072-48C30-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71072-48C30-E7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-48C60-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C60-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C60-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C60-F2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C70-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C70-A5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C70-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C70-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48C70-F2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71074-48E60-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E60-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48E60-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71074-48E90-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71074-48E90-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 LHD —
71074-48E90-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48E90-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48E90-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26 —
71074-48E90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GYL26 LHD —
71074-48E90-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71074-48E90-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71074-48E90-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48E90-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-A5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-A5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48F10-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-07 → —
GYL26 —
71074-48F10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71074-48F10-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-48080 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-03 → 2019-08 ended
GYL26 RHD —
71502-48090 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-03 → 2019-08 ended
GYL26 RHD —
71512-48280 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
71512-48310 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
71502-48070 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71502-48080 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71502-48080 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71502-48080 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71502-48090 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71502-48090 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GYL26 RHD —
71512-48270 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48280 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48280 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48280 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48280 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48310 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71512-48310 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71537H — Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71537-42010-C0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71537-42010-E0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71537-42010-C0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2019-08 → 2020-07 ended
GYL26 —
71537-42010-C0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2019-08 → 2020-07 ended
GGL26 —
71537-42010-C0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2020-07 → —
GYL26 —
71537-42010-C0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2020-07 → —
GGL26 —
71537-42010-E0 note Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2019-08 → 2020-07 ended
GGL26,GYL26 —
71538B — Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71538-42010-E0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2019-08 → 2020-07 ended
GYL26 —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2019-08 → 2020-07 ended
GGL26 —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2020-07 → —
GYL26 —
71538-42010-C0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2020-07 → —
GGL26 —
71538-42010-E0 note Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2019-08 → 2020-07 ended
GGL26,GYL26 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-48210 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71552-48200 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 —
71552-48210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-08 → —
GGL26,GYL26 LHD —
71587B — Protector, Front Seatback Edge
71587-52030 Protector, Front Seatback Edge
2017-12 → 2019-08 ended
GGL26,GYL26 —
71587-52030 Protector, Front Seatback Edge
2019-08 → —
GGL26,GYL26 —
71706 — Board Sub-assy, Front Seatback, LH
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71705-48150-E0 note Board Sub-assy, Front Seatback, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 LHD —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2019-08 → 2020-07 ended
GGL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2019-08 → 2020-07 ended
GYL26 —
71705-48150-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71705-48150-E0 note Board Sub-assy, Front Seatback, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71705-48170-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GGL26 —
71705-48170-C0 note Board Sub-assy, Front Seatback, LH
2020-07 → —
GYL26 —
71759D — Hook, Front Seatback, NO.2
71759-47011 Hook, Front Seatback, NO.2
2017-12 → 2019-08 ended
GGL26,GYL26 —
71759-47011 Hook, Front Seatback, NO.2
2019-08 → —
GGL26,GYL26 —
71812D — Shield, Front Seat Cushion, LH
71812-48180-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71812-48180-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71812-48190-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71812-48190-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71812-48180-C0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GYL26 —
71812-48180-C0 note Shield, Front Seat Cushion, LH
2020-07 → —
GGL26 —
71812-48180-C0 note Shield, Front Seat Cushion, LH
2020-07 → —
GYL26 —
71812-48180-C0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26 —
71812-48180-E0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71812-48190-C0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71812-48190-C0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71812-48190-C0 note Shield, Front Seat Cushion, LH
2020-07 → —
GGL26,GYL26 —
71812-48190-C0 note Shield, Front Seat Cushion, LH
2020-07 → —
GGL26,GYL26 —
71812-48190-E0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71812-48190-E0 note Shield, Front Seat Cushion, LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71812S — Clip, Front Seat Cushion Shield, LH
71769-47020 Clip, Front Seat Cushion Shield, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71769-47020 Clip, Front Seat Cushion Shield, LH
2019-08 → —
GGL26,GYL26 —
71849 — Cap, Seat Adjuster Cover, LH
71848-76010 Cap, Seat Adjuster Cover, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71848-76010 Cap, Seat Adjuster Cover, LH
2019-08 → —
GGL26,GYL26 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-42080-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71862-42080-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71862-42080-C0 note Shield, Front Seat Cushion, Inner LH
2019-08 → 2020-07 ended
GYL26 —
71862-42080-C0 note Shield, Front Seat Cushion, Inner LH
2020-07 → —
GGL26 —
71862-42080-C0 note Shield, Front Seat Cushion, Inner LH
2020-07 → —
GYL26 —
71862-42080-C0 note Shield, Front Seat Cushion, Inner LH
2019-08 → 2020-07 ended
GGL26 —
71862-42080-E0 note Shield, Front Seat Cushion, Inner LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71867B — Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
71769-47020 Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
2017-12 → 2019-08 ended
GGL26,GYL26 —
71769-47020 Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
2019-08 → —
GGL26,GYL26 —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-48050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71868-48050-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71868-48060-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71868-48060-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71868-48050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GYL26 —
71868-48050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26 —
71868-48050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2020-07 → —
GGL26 —
71868-48050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2020-07 → —
GYL26 —
71868-48050-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71868-48060-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71868-48060-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2020-07 → —
GGL26,GYL26 —
71868-48060-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2020-07 → —
GGL26,GYL26 —
71868-48060-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71868-48060-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71868-48060-E0 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
71873A — Shield, Front Seat Cushion, Lower
71873-60030 Shield, Front Seat Cushion, Lower
2017-12 → 2019-08 ended
GGL26,GYL26 —
71873-60030 Shield, Front Seat Cushion, Lower
2019-08 → —
GGL26,GYL26 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-78020 Shield, Front Seat Cushion, Lower LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
71874-78020 Shield, Front Seat Cushion, Lower LH
2019-08 → —
GGL26,GYL26 —
71910A — Headrest Assy, Front Seat
71910-48A80-A0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A80-C0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A80-E0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A80-F0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A90-A0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A90-A1 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A90-C0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A90-E0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48A90-F0 note Headrest Assy, Front Seat
2017-12 → 2019-08 ended
GGL26,GYL26 —
71910-48D10-A3 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-A3 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-A3 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-A3 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 LHD —
71910-48D10-A4 note Headrest Assy, Front Seat
2020-07 → —
GGL26 —
71910-48D10-A4 note Headrest Assy, Front Seat
2019-08 → —
GYL26 LHD —
71910-48D10-A4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-A4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-A4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GYL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GGL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GYL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GGL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GYL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GGL26 —
71910-48D10-C2 note Headrest Assy, Front Seat
2019-08 → —
GYL26 LHD —
71910-48D10-C2 note Headrest Assy, Front Seat
2020-07 → —
GGL26 —
71910-48D10-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 LHD —
71910-48D10-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E6 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E6 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E6 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D10-E6 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 LHD —
71910-48D20-A4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-A4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-A5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-A5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-C2 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-C2 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-E4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-E4 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48D20-E5 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48E10-A3 note Headrest Assy, Front Seat
2019-08 → —
GGL26,GYL26 —
71910-48E10-C3 note Headrest Assy, Front Seat
2019-08 → —
GYL26 —
71910-48E10-C3 note Headrest Assy, Front Seat
2019-08 → —
GGL26 —
71931 — Support, Front Seat Headrest
71930-47020-A4 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71930-47020-C4 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71930-47020-L1 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71931-47020-A4 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71931-47020-C4 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71931-47020-L1 note Support, Front Seat Headrest
2017-12 → 2019-08 ended
GGL26,GYL26 —
71930-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 —
71930-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71930-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 LHD —
71930-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71930-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GGL26 —
71930-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GYL26 —
71930-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GYL26 LHD —
71930-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71930-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71930-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 LHD —
71930-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71930-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GYL26 —
71931-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 —
71931-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 LHD —
71931-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71931-47020-A4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71931-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GYL26 LHD —
71931-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GGL26 —
71931-47020-C4 note Support, Front Seat Headrest
2020-07 → —
GYL26 —
71931-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71931-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71931-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26 —
71931-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GGL26,GYL26 LHD —
71931-47020-C4 note Support, Front Seat Headrest
2019-08 → 2020-07 ended
GYL26 —
72020 — Adjuster Assy, Front Seat, LH
72020-48111 Adjuster Assy, Front Seat, LH
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
72020-48121 Adjuster Assy, Front Seat, LH
2018-03 → 2019-08 ended
GYL26 RHD —
72020-48131 note Adjuster Assy, Front Seat, LH
2017-12 → 2019-08 ended
GGL26,GYL26 LHD —
72020-48151 note Adjuster Assy, Front Seat, LH
2018-03 → 2019-08 ended
GYL26 RHD —
72020-48101 Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48111 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48111 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48111 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48111 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48121 Adjuster Assy, Front Seat, LH
2019-08 → —
GYL26 RHD —
72020-48131 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48131 note Adjuster Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 LHD —
72020-48151 note Adjuster Assy, Front Seat, LH
2019-08 → —
GYL26 RHD —
72020-48151 note Adjuster Assy, Front Seat, LH
2019-08 → —
GYL26 RHD —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-48120-C0 note Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72124-48120-E0 note Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72124-48120-C0 note Cover, Seat Track Bracket, Outer Front LH
2019-08 → 2020-07 ended
GYL26 —
72124-48120-C0 note Cover, Seat Track Bracket, Outer Front LH
2019-08 → 2020-07 ended
GGL26 —
72124-48120-C0 note Cover, Seat Track Bracket, Outer Front LH
2020-07 → —
GYL26 —
72124-48120-C0 note Cover, Seat Track Bracket, Outer Front LH
2020-07 → —
GGL26 —
72124-48120-E0 note Cover, Seat Track Bracket, Outer Front LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72128-48090-C0 note Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72128-48090-E0 note Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72128-48090-C0 note Cover, Seat Track Bracket, Inner Front LH
2019-08 → 2020-07 ended
GYL26 —
72128-48090-C0 note Cover, Seat Track Bracket, Inner Front LH
2019-08 → 2020-07 ended
GGL26 —
72128-48090-C0 note Cover, Seat Track Bracket, Inner Front LH
2020-07 → —
GYL26 —
72128-48090-C0 note Cover, Seat Track Bracket, Inner Front LH
2020-07 → —
GGL26 —
72128-48090-E0 note Cover, Seat Track Bracket, Inner Front LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
72138J — Cover, Front Seat Track, LH Rear Outer
72138-48120-C0 note Cover, Front Seat Track, LH Rear Outer
2017-12 → 2019-08 ended
GGL26,GYL26 —
72138-48120-E0 note Cover, Front Seat Track, LH Rear Outer
2017-12 → 2019-08 ended
GGL26,GYL26 —
72138-48120-C0 note Cover, Front Seat Track, LH Rear Outer
2019-08 → 2020-07 ended
GYL26 —
72138-48120-C0 note Cover, Front Seat Track, LH Rear Outer
2020-07 → —
GGL26 —
72138-48120-C0 note Cover, Front Seat Track, LH Rear Outer
2020-07 → —
GYL26 —
72138-48120-C0 note Cover, Front Seat Track, LH Rear Outer
2019-08 → 2020-07 ended
GGL26 —
72138-48120-E0 note Cover, Front Seat Track, LH Rear Outer
2019-08 → 2020-07 ended
GGL26,GYL26 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-48120-C0 note Cover, Seat Track Bracket, Inner LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72158-48120-E0 note Cover, Seat Track Bracket, Inner LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72158-48120-C0 note Cover, Seat Track Bracket, Inner LH
2019-08 → 2020-07 ended
GYL26 —
72158-48120-C0 note Cover, Seat Track Bracket, Inner LH
2019-08 → 2020-07 ended
GGL26 —
72158-48120-C0 note Cover, Seat Track Bracket, Inner LH
2020-07 → —
GYL26 —
72158-48120-C0 note Cover, Seat Track Bracket, Inner LH
2020-07 → —
GGL26 —
72158-48120-E0 note Cover, Seat Track Bracket, Inner LH
2019-08 → 2020-07 ended
GGL26,GYL26 —
72760D — Adjuster Assy, Lumbar Support, LH
72750-48050 note Adjuster Assy, Lumbar Support, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72750-48060 Adjuster Assy, Lumbar Support, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
72750-48050 note Adjuster Assy, Lumbar Support, LH
2019-08 → —
GGL26,GYL26 —
72750-48050 note Adjuster Assy, Lumbar Support, LH
2019-08 → —
GGL26,GYL26 —
72750-48060 Adjuster Assy, Lumbar Support, LH
2019-08 → —
GGL26,GYL26 —
73920A — Airbag Assy, Front Seat, LH
73920-48050 Airbag Assy, Front Seat, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
73920-48050 Airbag Assy, Front Seat, LH
2019-08 → —
GGL26,GYL26 —
739G0 — Airbag Assy, Front Seat Cushion, LH
739G0-48010 Airbag Assy, Front Seat Cushion, LH
2018-03 → 2019-08 ended
GYL26 RHD —
739G0-48010 Airbag Assy, Front Seat Cushion, LH
2019-08 → 2020-10 ended
GYL26 RHD —
739G0-48011 Airbag Assy, Front Seat Cushion, LH
2020-11 → —
GYL26 RHD —
79977H — Felt, Front Seatback, LH
79977-78010 Felt, Front Seatback, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
79977-78010 Felt, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
85860B — Blower Assy, Seat Cushion Climate Control, LH
85860-48020 Blower Assy, Seat Cushion Climate Control, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 LHD —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85860-48020 note Blower Assy, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85866A — Duct, Seat Cushion Climate Control, LH
85866-48010 Duct, Seat Cushion Climate Control, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → 2020-07 ended
GGL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85866-48010 note Duct, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 LHD —
85867A — Blower, Seatback Climate Control, LH
85867-48040 Blower, Seatback Climate Control, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85867-48040 note Blower, Seatback Climate Control, LH
2019-08 → —
GGL26,GYL26 LHD —
85868A — Bracket, Seat Cushion Climate Control, LH
85868-48010 Bracket, Seat Cushion Climate Control, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 LHD —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GYL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → 2020-07 ended
GGL26 —
85868-48010 note Bracket, Seat Cushion Climate Control, LH
2019-08 → —
GGL26,GYL26 —
87501B — Control Sub-assy, Seat Heater, LH
87501-48030 Control Sub-assy, Seat Heater, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → 2020-07 ended
GGL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GGL26,GYL26 —
87501-48030 note Control Sub-assy, Seat Heater, LH
2019-08 → —
GYL26 LHD —
87510L — Heater Assy, Front Seat Cushion, LH
87510-48200 Heater Assy, Front Seat Cushion, LH
2017-12 → 2018-07 ended
GGL26,GYL26 —
87510-48201 Heater Assy, Front Seat Cushion, LH
2018-07 → 2019-08 ended
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 —
87510-48201 note Heater Assy, Front Seat Cushion, LH
2019-08 → —
GGL26,GYL26 LHD —
87510N — Heater Assy, Front Seatback, LH
87530-48070 Heater Assy, Front Seatback, LH
2017-12 → 2019-08 ended
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 —
87530-48070 note Heater Assy, Front Seatback, LH
2019-08 → —
GGL26,GYL26 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
